Inside the app you can see the recommended recipes and their instructions
Taking a picture inside the app

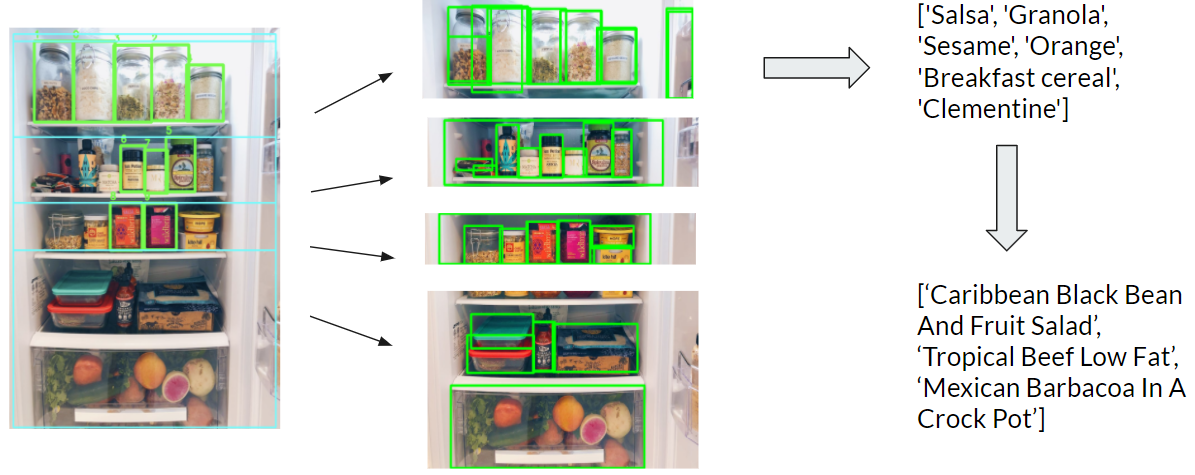

The progression of the algorithm to detect the food inside the users' fridge
This shows the progression of food detection from the algorithm, the ingredients that were recognized, and recipes found and suggested
"I'll leave it up to you"
On numerous occasions, we have each found ourselves staring blankly into the fridge with no idea of what to make. Given some combination of ingredients, what type of good food can I make, and how?
What It Does
We have built an app that recommends recipes based on the food that is in your fridge right now. Using Google Cloud Vision API and Food.com database we are able to detect the food that the user has in their fridge and recommend recipes that uses their ingredients.
What We Learned
Most of the members in our group were inexperienced in mobile app development and backend. Through this hackathon, we learned a lot of new skills in Kotlin, HTTP requests, setting up a server, and more.
How We Built It
We started with an Android application with access to the user’s phone camera. This app was created using Kotlin and XML. Android’s ViewModel Architecture and the X library were used. This application uses an HTTP PUT request to send the image to a Heroku server through a Flask web application. This server then leverages machine learning and food recognition from the Google Cloud Vision API to split the image up into multiple regions of interest. These images were then fed into the API again, to classify the objects in them into specific ingredients, while circumventing the API’s imposed query limits for ingredient recognition. We split up the image by shelves using an algorithm to detect more objects. A list of acceptable ingredients was obtained. Each ingredient was mapped to a numerical ID and a set of recipes for that ingredient was obtained. We then algorithmically intersected each set of recipes to get a final set of recipes that used the majority of the ingredients. These were then passed back to the phone through HTTP.
What We Are Proud Of
We were able to gain skills in Kotlin, HTTP requests, servers, and using APIs. The moment that made us most proud was when we put an image of a fridge that had only salsa, hot sauce, and fruit, and the app provided us with three tasty looking recipes including a Caribbean black bean and fruit salad that uses oranges and salsa.
Challenges You Faced
Our largest challenge came from creating a server and integrating the API endpoints for our Android app. We also had a challenge with the Google Vision API since it is only able to detect 10 objects at a time. To move past this limitation, we found a way to segment the fridge into its individual shelves. Each of these shelves were analysed one at a time, often increasing the number of potential ingredients by a factor of 4-5x. Configuring the Heroku server was also difficult.
We have big plans for our app in the future. Some next steps we would like to implement is allowing users to include their dietary restriction and food preferences so we can better match the recommendation to the user. We also want to make this app available on smart fridges, currently fridges, like Samsung’s, have a function where the user inputs the expiry date of food in their fridge. This would allow us to make recommendations based on the soonest expiring foods.
