Olùkọ́

Olùkọ́ (Yoruba for "Teacher") A voice-first AI learning platform that transforms any learning material into a live, interactive voice tutoring session with real-time whiteboard visualizations.

Inspiration

The inspiration for Olùkọ́ was born out of my own deep frustration with modern e-learning. Today's digital learning landscape often feels incredibly isolating. Staring at endless walls of AI-generated text is uninspiring, and slogging through dry PDFs literally puts me to sleep. Even worse are the long, pre-recorded video lectures if you get stuck, you can't raise your hand to ask a question. You leave a comment hoping for clarity, only to be ignored and left feeling completely on your own.

When I discovered the Amazon Nova Hackathon, a lightbulb went off: What if we could make learning genuinely fun again? I envisioned a platform that is deeply personalized, highly engaging, and, most importantly, creates a safe space where students can ask anything without the fear of being judged. That core desire to bring the human touch back to digital education is exactly what brought Olùkọ́ into existence.

What It Does

Olùkọ́ solves a fundamental problem in self-directed learning: the absence of a patient, adaptive teacher. Traditional tools give you content Olùkọ́ gives you a live AI tutor that speaks, listens, draws, and quizzes.

Capability	Description
Curriculum Generation	Upload a PDF, a video (≤25 MB), or type any topic → AI generates a structured multi-lesson course in seconds
Voice AI Tutoring	Live speech-to-speech conversation with an AI instructor that explains, adapts, and responds to questions in real time
Interactive Whiteboard	Real-time AI-generated diagrams, interactive React visualizations, and images projected during lessons
Concentration Mode	Voice-driven quizzes generated from study material to lock in understanding
Lesson Resume	AI-evaluated session transcripts allow mid-lesson pickup on return

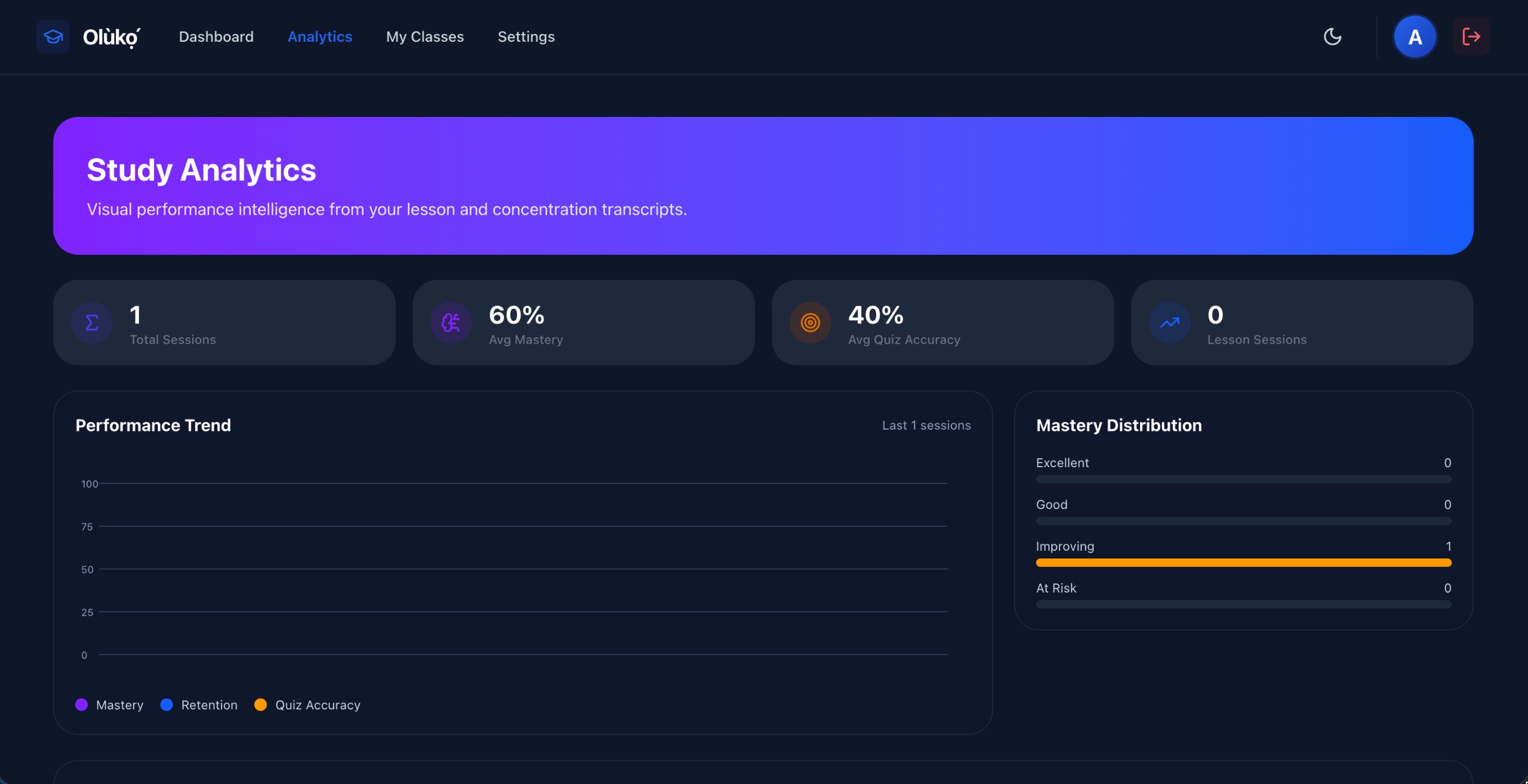

Study Analytics	AI-scored mastery, clarity, retention, and quiz accuracy after each session

How We Built It

Olùkọ́ is built as a three-tier architecture a React frontend, a Java Spring Boot backend, and a Python voice agent all orchestrated through LiveKit Cloud for real-time WebRTC communication and AWS Bedrock for AI model inference.

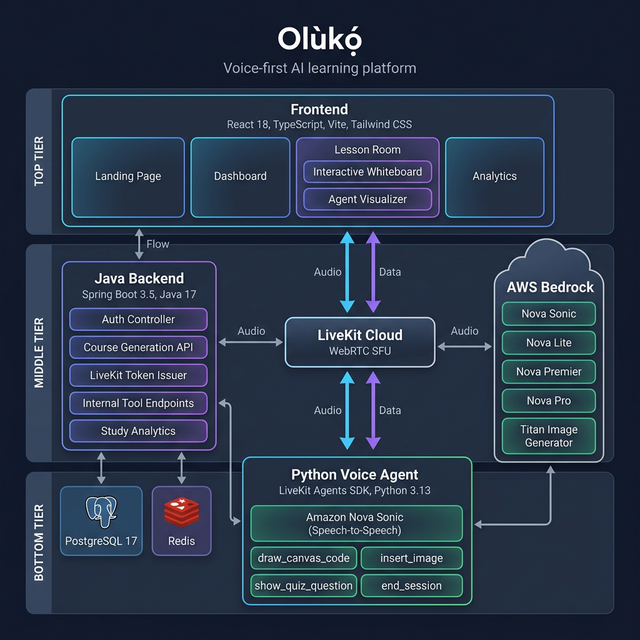

Architecture Overview

Frontend (React 18 SPA) → communicates via REST API → Java Backend (Spring Boot 3.5) → stores data in → PostgreSQL 17 + Redis

Frontend ↔ connects via WebRTC ↔ LiveKit Cloud ↔ connects via WebRTC ↔ Python Voice Agent

Python Voice Agent → calls tool endpoints on → Java Backend → invokes models on → AWS Bedrock

Tier 1 Frontend (React 18 + Vite + TypeScript)

The frontend is a single-page application built with React 18, TypeScript, and Vite 5, styled with Tailwind CSS 4 and animated with Framer Motion.

Key Libraries:

Library	Purpose
`react-router-dom v6`	Client-side routing with public/protected/guest-only guards
`@tanstack/react-query`	Server state management, polling, and cache
`zustand`	Client state stores (auth, toast, whiteboard)
`@livekit/components-react`	WebRTC room connection, audio rendering, data channels
`react-live`	Sandboxed execution of AI-generated React JSX on the whiteboard
`framer-motion`	Page transitions and landing animations
`axios`	HTTP client for REST API calls

Key Components:

Component	Responsibility
LessonRoom	Fetches LiveKit token → mounts `LiveKitRoom` → renders whiteboard + agent visualizer side-by-side
InteractiveWhiteboard	Listens on LiveKit data channel → routes incoming payloads to the canvas renderer, image display, or quiz UI
CanvasRenderer	Sanitizes AI-generated JSX (strips imports/exports, normalizes quotes) → renders it live via `react-live` sandbox
AgentVisualizer	Animated visual indicator showing AI speaking/listening state

Tier 2 Java Backend (Spring Boot 3.5)

The backend is a Spring Boot 3.5 application running on Java 17, serving as the central orchestrator for authentication, course generation, AI model invocation, and data persistence.

REST API Surface /api/v1/*:

Controller	Key Endpoints	Purpose
OnboardingController	`POST /signup` → `POST /verify-signup` → `POST /login` → `POST /verify-login` → `GET /me`	User registration, OTP-based 2FA authentication, profile management
CourseGenerationController	`POST /courses/generate` → `GET /courses/{id}/status` → `GET /courses/{id}/lessons`	Async course creation from PDF/video/topic, status polling, lesson retrieval
LiveKitController	`GET /livekit/token?lessonId=XYZ`	Generates signed LiveKit access tokens for lesson rooms
InternalLessonController	`GET /internal/lessons/{id}/prompt` → `POST /internal/lessons/{id}/session-transcript`	Serves system prompts to the Python agent; persists session transcripts
InternalToolController	`POST /internal/tools/generate-canvas` → `POST /internal/tools/generate-image`	AI-powered whiteboard code and image generation (called by the Python agent)
MediaController	`GET /media/image/{id}`	Serves Redis-cached generated images to the frontend
StudyAnalyticsController	`GET /analytics/overview` → `GET /analytics/lesson/{id}`	Returns AI-scored performance metrics and recommendations

Service Layer:

Service	What It Does
OnboardingService	Signup/login with OTP emails via Redis cache → bcrypt password hashing → JWT token generation
CourseGenerationService	Initializes course entities, enforces 10-course-per-user limit, delegates to async worker
CourseGenerationAsyncWorker	`@Async` background processing: digests uploaded material → generates syllabus via Nova Lite → persists lessons
NovaSyllabusGenerator	Calls Amazon Nova Lite to produce structured JSON syllabi from PDF text, video content, or topic descriptions
DocumentExtractionService	Apache Tika + PDFBox extracts text from uploaded PDFs and video transcripts
NovaToolService	Generates interactive React JSX (Nova Premier) and educational images (Titan Image Generator v2), caches results in Redis
LessonResumeService	Uses Nova Pro to evaluate session transcripts → determines completion %, generates resume summary
StudyAnalyticsService	Uses Nova Pro to score sessions: mastery, clarity, retention, quiz accuracy → generates strengths/weaknesses/recommendations
CourseProgressService	Sequential lesson unlocking marks lessons complete and unlocks the next one

Security:

JWT Authentication HMAC-SHA tokens with 48-hour expiry (jjwt 0.13)
Per-request JWT Filter validates tokens on every protected endpoint
OTP 2FA 6-digit codes cached in Redis with 5-minute TTL, delivered via Gmail SMTP
Resilience4j circuit breaker + retry patterns on all AWS Bedrock API calls

Tier 3 Python Voice Agent (LiveKit Agents SDK)

The voice agent is a Python 3.13 process using the LiveKit Agents SDK. It joins LiveKit rooms and conducts live voice lessons powered by Amazon Nova Sonic.

Agent Lifecycle:

Room Join LiveKit Cloud dispatches the agent into a room whose name is the lesson UUID
Context Fetch Agent calls GET /internal/lessons/{id}/prompt on the Java backend to retrieve the system prompt (lesson title, objective, source material, resume context)
Session Start Agent starts a RealtimeModel session with Amazon Nova Sonic (STT → LLM → TTS in one bidirectional audio stream)
Greeting Agent greets the student and immediately opens a whiteboard visualization
Teaching Loop Nova Sonic processes student speech in real time and responds conversationally, invoking tools as needed:

Tool Functions (called mid-conversation by Nova Sonic):

Tool	What Happens
`draw_canvas_code(prompt, interactivity)`	Agent → Java Backend (`POST /generate-canvas`) → Nova Premier generates interactive React JSX → result pushed to frontend via LiveKit Data Channel → react-live renders it on the whiteboard
`insert_image(description)`	Agent → Java Backend (`POST /generate-image`) → Titan Image Generator v2 creates a 1024×1024 image → cached in Redis (2h TTL) → URL pushed to frontend via Data Channel
`show_quiz_question(question, A, B, C, D)`	Agent pushes quiz JSON directly to the frontend via Data Channel → quiz UI renders on the whiteboard
`end_session(final_message)`	End signal sent via Data Channel → transcript POSTed to backend → Nova Pro evaluates completion → lesson marked complete → next lesson unlocked

Transcript Capture All user and assistant speech is logged and persisted to the backend on session end

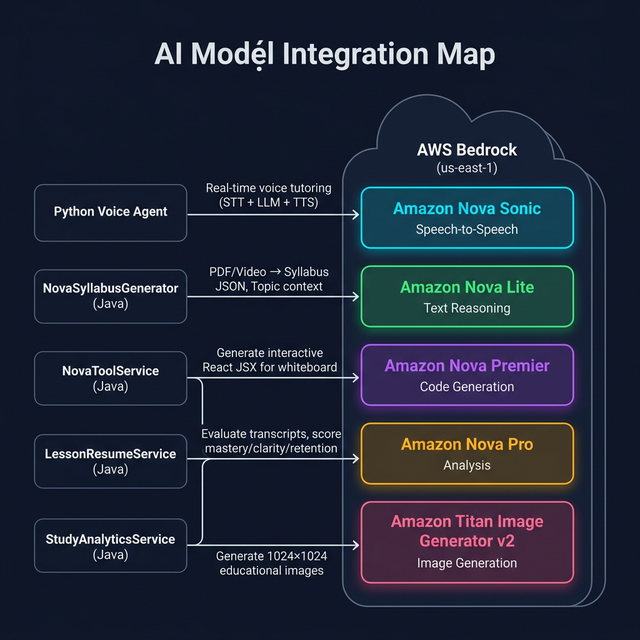

AI Model Integration

All AI models are accessed through AWS Bedrock (us-east-1):

Model	Where It's Used	What It Does
Amazon Nova Sonic	Python Agent (RealtimeModel)	Real-time speech-to-speech tutoring — listens, thinks, responds with sub-second latency
Amazon Nova Lite	NovaSyllabusGenerator (Java)	Digests PDFs/videos/topics → produces structured JSON syllabi; generates topic reference material
Amazon Nova Premier	NovaToolService (Java)	Generates interactive, sandboxed React JSX code for the whiteboard
Amazon Nova Pro	LessonResumeService + StudyAnalyticsService (Java)	Evaluates transcripts for completion %, mastery, clarity, retention, strengths/weaknesses
Amazon Titan Image Generator v2	NovaToolService (Java)	Generates 1024×1024 educational images, cached in Redis with 2-hour TTL

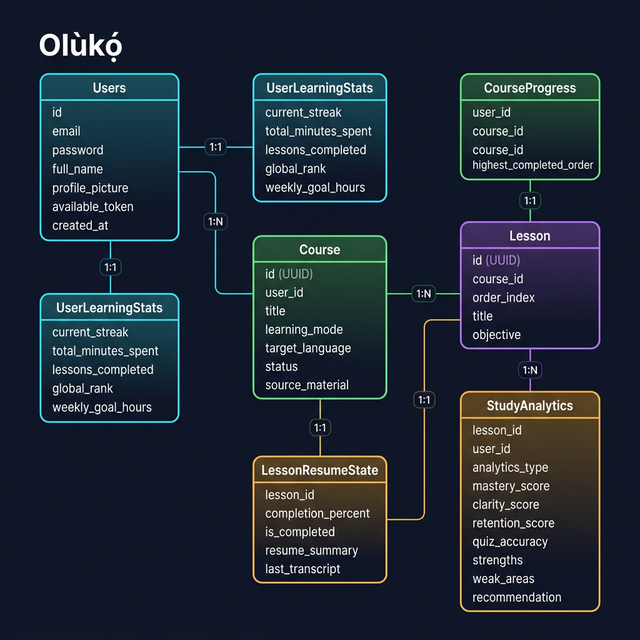

Data Model

Entities and Relationships:

Entity	Key Fields	Relationship
Users	`id`, `email` (unique), `password`, `full_name`, `profile_picture`, `available_token`	Has one `UserLearningStats`, has many `Course`
UserLearningStats	`current_streak`, `total_minutes_spent`, `lessons_completed`, `global_rank`, `weekly_goal_hours`	Belongs to one `Users`
Course	`id` (UUID), `user_id`, `title`, `learning_mode`, `target_language`, `status`, `source_material`	Has many `Lesson`, has one `CourseProgress`
Lesson	`id` (UUID), `course_id`, `order_index`, `title`, `objective`	Belongs to `Course`, has one `LessonResumeState`, has many `StudyAnalytics`
CourseProgress	`user_id`, `course_id`, `highest_completed_order`	Tracks which lessons are unlocked
LessonResumeState	`lesson_id`, `completion_percent`, `is_completed`, `resume_summary`, `last_transcript`	AI-generated resume context for mid-lesson pickup
StudyAnalytics	`lesson_id`, `user_id`, `analytics_type`, `mastery_score`, `clarity_score`, `retention_score`, `quiz_accuracy`, `strengths`, `weak_areas`, `recommendation`	AI-scored performance record per session

Key Enums: LearningMode → TOPIC, DOCUMENT, VIDEO | CourseStatus → PENDING, GENERATING, READY, FAILED | AnalyticsType → LESSON, QUIZ

Core Data Flows

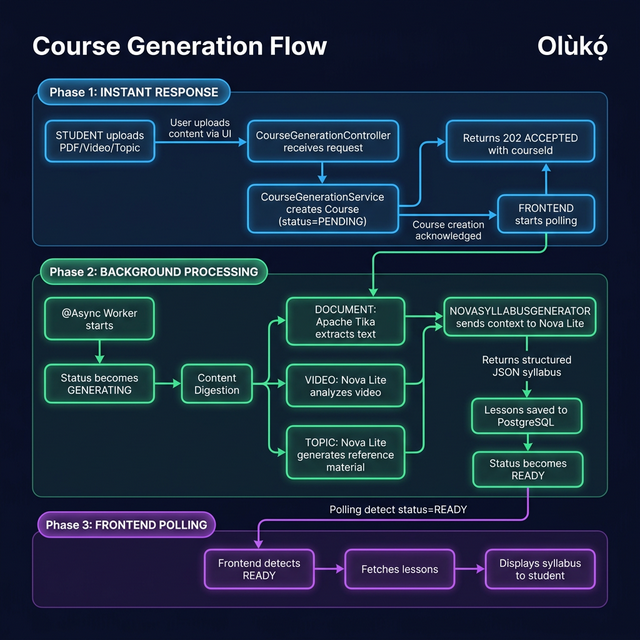

Flow 1 Course Generation

Student uploads material → Olùkọ́ builds a full structured course asynchronously.

Phase 1 Instant Response (synchronous):

Student uploads a PDF/video or types a topic on the frontend
Frontend sends POST /api/v1/courses/generate with the file, learning mode, and target language
CourseGenerationService validates the request (max 10 courses per user), creates a Course entity with status = PENDING, and saves it to PostgreSQL
Backend returns 202 Accepted with the courseId immediately
Service fires off the CourseGenerationAsyncWorker on a separate @Async thread

Phase 2 — Background Processing (asynchronous):

Worker updates status → GENERATING
Content Digestion (depends on learning mode):
- DOCUMENT → DocumentExtractionService uses Apache Tika to extract full text from the PDF
- VIDEO → NovaSyllabusGenerator sends video bytes to Nova Lite for content analysis
- TOPIC → NovaSyllabusGenerator sends the topic to Nova Lite to generate reference material
Syllabus Generation → NovaSyllabusGenerator sends the extracted context to Nova Lite → returns a structured JSON syllabus: [{ "title": "...", "objective": "..." }, ...]
Worker parses the JSON, creates Lesson entities ordered by index, saves them to PostgreSQL
Worker updates status → READY

Phase 3 — Frontend Polling:

Meanwhile, the frontend polls GET /courses/{id}/status every 2 seconds
When status becomes READY, frontend fetches GET /courses/{id}/lessons and displays the syllabus

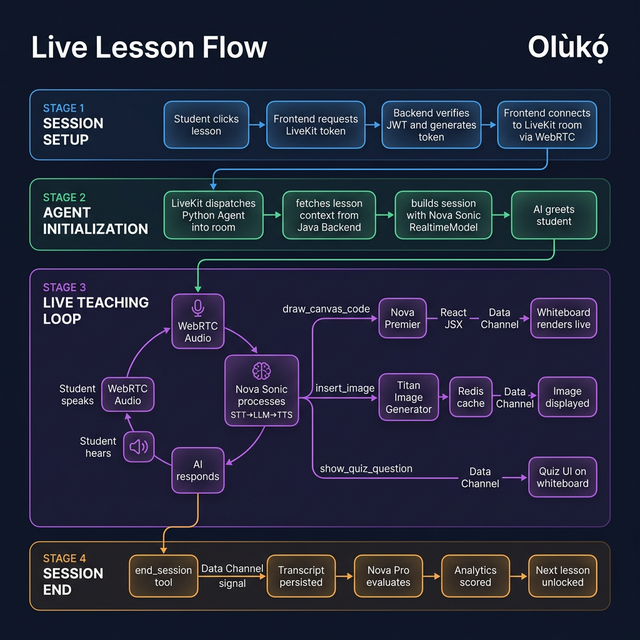

Flow 2 Live Lesson (Voice + Whiteboard)

Student enters a lesson → WebRTC voice session begins → AI teaches with speech and whiteboard in real time.

Stage 1 Session Setup:

Student clicks a lesson on the frontend
Frontend requests GET /api/v1/livekit/token?lessonId=XYZ
LiveKitController verifies JWT, checks course ownership, confirms the lesson is unlocked, checks for resume state, and generates a signed LiveKit access token (room name = lesson UUID)
Frontend receives { token, roomName, livekitUrl, hasResume, resumeCompletionPercent } and connects to the LiveKit room via WebRTC (audio enabled + data channel open)

Stage 2 Agent Initialization:

LiveKit Cloud dispatches the Python Voice Agent into the same room
Agent reads room.name → lesson_id = "XYZ"
Agent calls GET /internal/lessons/XYZ/prompt on the Java backend
Backend builds and returns the system prompt: target language, lesson title + objective, source material, resume context (if returning student), whiteboard instructions
Agent constructs an AgentSession with the system prompt, tool functions, and a Nova Sonic RealtimeModel
Agent generates an initial greeting and calls the whiteboard tool to show an opening visualization

Stage 3 — Live Teaching Loop:

🎤 Student speaks → WebRTC audio → Nova Sonic listens
🧠 Nova Sonic processes (STT → LLM reasoning → TTS) in one stream
🔊 AI responds → WebRTC audio → student hears
During conversation, Nova Sonic can invoke tools:
- Canvas visualization: Agent → POST /internal/tools/generate-canvas → Nova Premier generates interactive React JSX → result sent via Data Channel → react-live renders it live on the whiteboard
- Image generation: Agent → POST /internal/tools/generate-image → Titan Image Generator v2 → image cached in Redis → URL sent via Data Channel → image displayed on whiteboard
- Quiz question: Agent sends quiz JSON directly via Data Channel → quiz UI renders on whiteboard
All speech (student and AI) is captured as transcript lines

Stage 4 — Session End:

Agent calls end_session(final_message) → end signal sent to frontend via Data Channel → frontend navigates back to the syllabus
Agent POSTs the full transcript to POST /internal/lessons/XYZ/session-transcript
LessonResumeService sends the transcript to Nova Pro → determines completion %, generates a resume summary, saves LessonResumeState
StudyAnalyticsService sends the transcript to Nova Pro → scores mastery (0–100), clarity (0–100), retention (0–100), quiz accuracy (0–100), identifies strengths/weaknesses, generates a recommendation
CourseProgressService marks the lesson as completed and unlocks the next lesson in sequence

Flow 3 Authentication (JWT + OTP)

Signup: Student sends POST /signup { email, password, fullName } → backend checks email is available → generates a 6-digit OTP → caches the user object in Redis (keyed by OTP, 5-minute TTL) → sends OTP via email → student submits POST /verify-signup?otp=123456&email=... → backend retrieves cached user from Redis → hashes password with bcrypt → saves user to PostgreSQL → generates and returns a JWT token

Login: Student sends POST /login { email, password } → backend verifies password hash against PostgreSQL → generates a 6-digit OTP → caches in Redis (5-minute TTL) → sends OTP via email → student submits POST /verify-login?otp=789012&email=... → backend retrieves cached data from Redis → re-verifies password → generates and returns a JWT token

Infrastructure

Service	Technology	Purpose
Database	PostgreSQL 17 (Docker, port 5433)	Persistent storage for users, courses, lessons, analytics
Cache	Redis (Docker, port 6380)	OTP storage (5-min TTL), generated image cache (2-hour TTL), session state
Real-time	LiveKit Cloud (WebRTC SFU)	Signaling, room management, bidirectional audio + data channels
AI Models	AWS Bedrock (us-east-1)	Nova Sonic, Nova Lite, Nova Premier, Nova Pro, Titan Image Generator v2
Email	Spring Mail (Gmail SMTP)	OTP delivery for authentication
Resilience	Resilience4j	Circuit breaker + retry patterns on all external API calls

Key Design Decisions

Decision	Rationale
Async course generation (`@Async`)	PDF/video ingestion + AI syllabus generation takes 10–30s; immediate HTTP response with polling prevents timeouts
Room name = Lesson UUID	Zero-coordination room routing — the Python agent reads `ctx.room.name` as the lesson ID directly
react-live for whiteboard	Sandboxed in-browser JSX execution; no server rendering needed; AI-generated code runs instantly in the client
Redis for image cache	Generated images are base64-encoded (~1–2 MB); Redis provides fast retrieval with automatic 2-hour TTL expiry
OTP stored in Redis	Ephemeral data with automatic 5-minute expiry; no database cleanup required
Transcript-based resume	AI (Nova Pro) evaluates session transcripts for completion %, enabling intelligent mid-lesson resume without manual checkpoints
Async tool calls in agent	`draw_canvas_code` runs as a background task (`asyncio.create_task`) so the agent continues speaking while generation happens
Resilience4j on all Bedrock calls	Circuit breaker + retry prevents cascading failures from transient AWS API issues
Internal endpoints (no auth)	`/api/v1/internal/*` endpoints are called by the Python agent within the trusted network no JWT required

Challenges We Ran Into

Building this wasn't without its hurdles, especially since we joined the hackathon just 15 days before the deadline. Operating under that intense time crunch was stressful enough, but we also faced significant friction with the Amazon Nova sandbox environment. Frequent timeouts severely slowed down our ability to test and iterate rapidly.

Beyond infrastructure, our biggest technical hurdle was mastering prompt engineering. Making a Large Language Model behave deterministically within a dynamic, real-time application is an art. We quickly learned the golden rule of AI: garbage instructions yield garbage outputs. I was forced to learn advanced prompt structuring on the fly to tame the LLM and get the precise JSON outputs our app needed. It was a deeply humbling, yet completely fascinating, trial by fire.

Accomplishments That We're Proud Of

Built a fully functional, voice-first AI tutor in 15 days from zero to a working product with course generation, live voice interaction, an interactive whiteboard, and study analytics
Real-time whiteboard that executes AI-generated code the CanvasRenderer sanitizes and renders React JSX from Nova Premier live in the browser using react-live, creating truly interactive educational visualizations
Seamless speech-to-speech tutoring Amazon Nova Sonic delivers sub-second latency conversational AI that genuinely feels like talking to a human tutor
Intelligent lesson resume Nova Pro evaluates session transcripts to determine exactly where a student left off, enabling seamless continuation without manual checkpoints
End-to-end AI pipeline five different Amazon Nova models working in harmony: Sonic for voice, Lite for syllabus generation, Premier for code visualization, Pro for evaluation, and Titan for image generation
Async architecture that scales course generation runs on background threads with frontend polling, keeping the API responsive even during heavy AI processing

What We Learned

This project fundamentally changed my perspective on the intersection of technology and education. I learned that the absolute future of learning belongs to multimodal AI agents. They have the unprecedented power to see, hear, and adapt to human beings in real-time.

Equally important, I realized that prompt engineering is no longer just a buzzword it is a mandatory survival skill. In this new era of multimodal AI, you cannot just code the logic; you have to know how to effectively communicate with, and constrain, the intelligence powering your application.

What's Next for Olùkọ́

Multi-language voice support expand beyond English to support real-time tutoring in Yoruba, French, Spanish, and more
Collaborative learning rooms allow multiple students to join the same lesson and learn together with the AI tutor
Custom knowledge bases allow educators to upload entire course libraries and generate institution-wide AI tutors
Advanced analytics dashboard longitudinal learning curves, spaced repetition recommendations, and adaptive lesson difficulty
