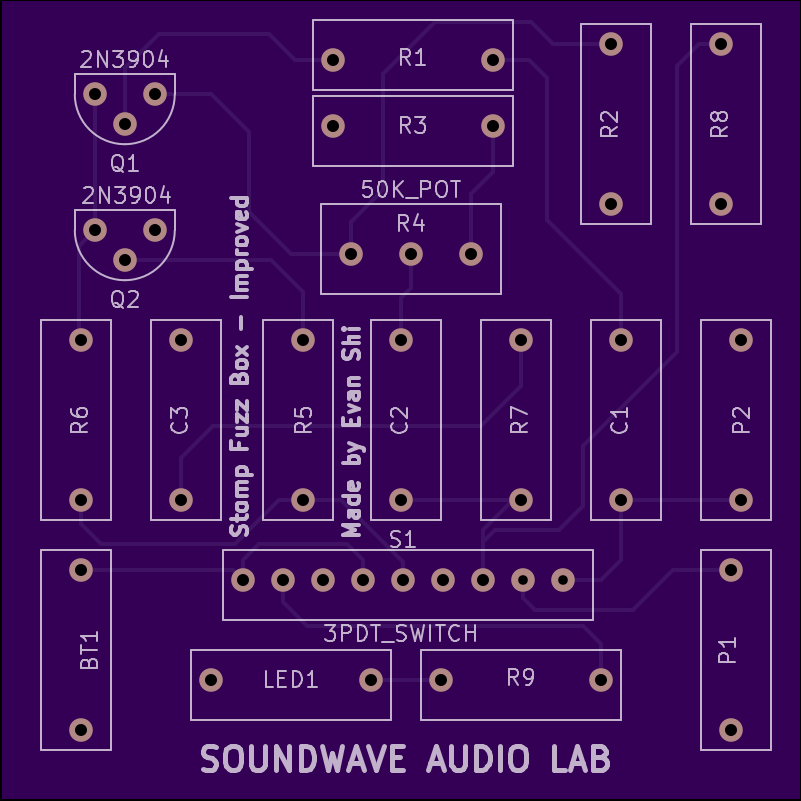

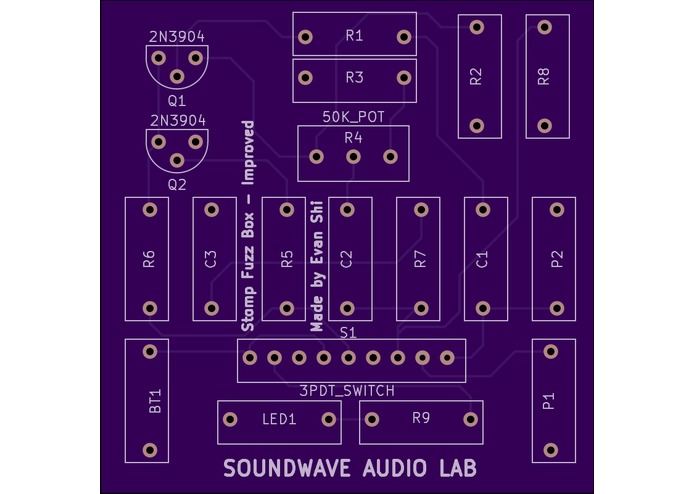

In Soundwave Audio Lab, we constructed a Fuzz Box kit. The circuit board included in the kit was atrociously ugly and inefficient, as well as being extremely poor in construction quality. The copper pads would frequently come off the board as we soldered. Therefore, today, I redesigned the entire circuit layout in order to provide a solution to this. The boards are cheap, $20 for 3; only 2x2 inches, so they can fit in most enclosures; better quality; and most importantly, not ugly.
Built With
- kicad
