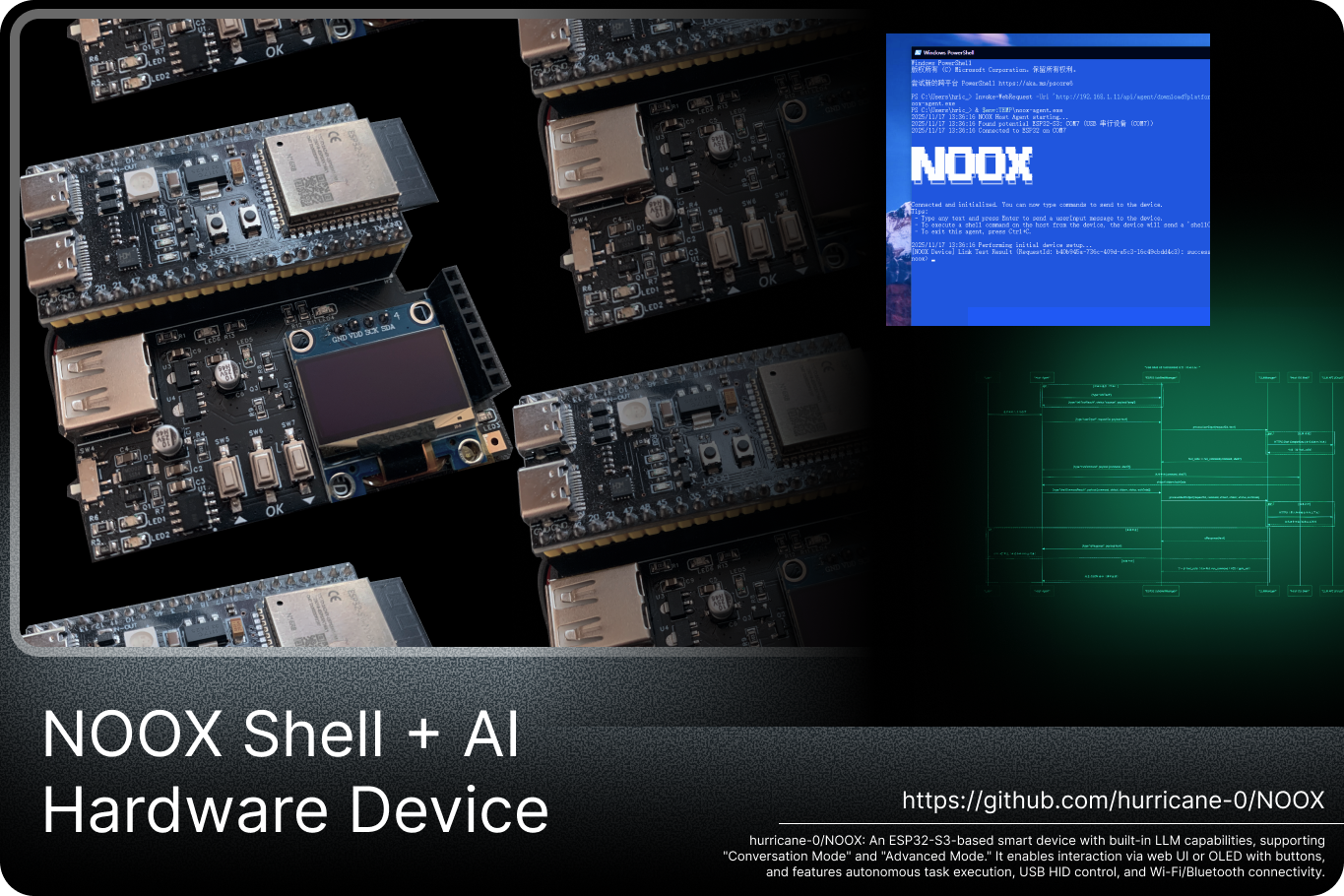

NOOX: An Open-Source AI-Driven Desktop Automation Device

Inspiration

NOOX began with a simple question: LLMs can plan and reason—but why can’t they directly act on our computers?

I wanted a small, open, portable device that could:

Control a computer via HID
Run cross-platform shell commands
Talk to LLMs
Perform multi-step automation autonomously

This became the foundation for NOOX, an ESP32-S3–based intelligent hardware platform merging peripherals, desktop automation, and AI planning.

What I Built

NOOX integrates:

1. Peripheral Hardware

USB HID keyboard/mouse emulation
USB CDC bidirectional channel
OLED screen + 3 buttons
GPIO + RGB LED

2. Desktop Automation

A Go-based Host Agent (auto-downloaded via HID) runs shell commands on Windows/Linux/macOS and communicates using JSON over USB CDC.

3. AI Autonomous Planning

With OpenAI/DeepSeek/OpenRouter support, the LLM can:

Plan multi-step tasks
Call tools like run_command, hid_keyboard_type, gpio_set
Iterate until a goal is complete

The system can perform tasks like:

“Create a file, populate it, compress it, and open the folder.”

How I Built It

Firmware: Arduino framework + ESP-IDF + FreeRTOS
Storage: LittleFS for configs, web UI, and host agent
UI: WebSocket-driven dark-theme console (Chat / Advanced Mode)
Memory: Heavy JSON/LLM handling stored in 8MB PSRAM
Host Agent: Cross-platform BLOB served from ESP32 and executed automatically
Hardware:
- ESP32-S3-WROOM-1
- SSD1315 OLED (I²C)
- PMOS USB/battery auto-switching
- Buttons + LEDs + WS2812

What I Learned

How to manage embedded memory to avoid fragmentation
Designing reliable USB HID sequences and timing
Crafting a CDC JSON protocol resilient to truncation and slow hosts
Building a WebSocket-driven UI with real-time streaming
Structuring LLM tool-calling for predictable autonomous behavior

Key Challenges

Getting HID scripts to reliably bootstrap PowerShell across systems
Parsing large LLM JSON responses within ESP32 memory limits
Handling differences between PowerShell, pwsh, cmd, bash, and sh
Avoiding WebSocket race conditions with multiple clients
Ensuring autonomous planning doesn't become unsafe

Security Notes

Because AI can run shell commands and simulate keyboard input, NOOX should never be executed with admin/root privileges. A VM or sandbox is recommended for experimentation.

* Final Thoughts**

NOOX was an exploration of what happens when you combine embedded hardware, desktop automation, and modern LLMs into a single portable device. I learned deeply across hardware, firmware, software, and AI orchestration—and the result is a platform that lets AI literally act on your computer.
