NexusAI: Internal Knowledge Manager

A multi-agent AI system for internal company knowledge management, team analytics, and employee onboarding.

Features

Knowledge Management: Hierarchical "textbook-style" knowledge graph with semantic search
Multi-Agent System: Specialized agents for knowledge retrieval, onboarding, and team analysis
MCP Connectors: Integration with Jira, GitHub, and Slack
Voice Onboarding: Voice-enabled onboarding using Deepgram STT and ElevenLabs TTS
Team Analytics: Health metrics, velocity tracking, and bottleneck detection

Inspiration

Internal knowledge is scattered across docs, tickets, and chats. Onboarding new hires and keeping teams aligned becomes a manual, error-prone process. NexusAI was built to unify these sources, maintain organizational memory, and deliver reliable answers with traceable context.

What it does

NexusAI is an internal AI copilot that:

Ingests knowledge from GitHub, Jira, and Slack via MCP connectors.
Builds a textbook-style knowledge graph in Neo4j with semantic embeddings in Qdrant.
Orchestrates specialized agents to answer questions, guide onboarding, and analyze team health.
Persists conversations, onboarding flows, and analytics in Supabase Postgres.

How we built it

FastAPI provides REST and WebSocket endpoints for chat and voice sessions.
LangGraph powers the orchestrator and agent routing (intent → tools → response).

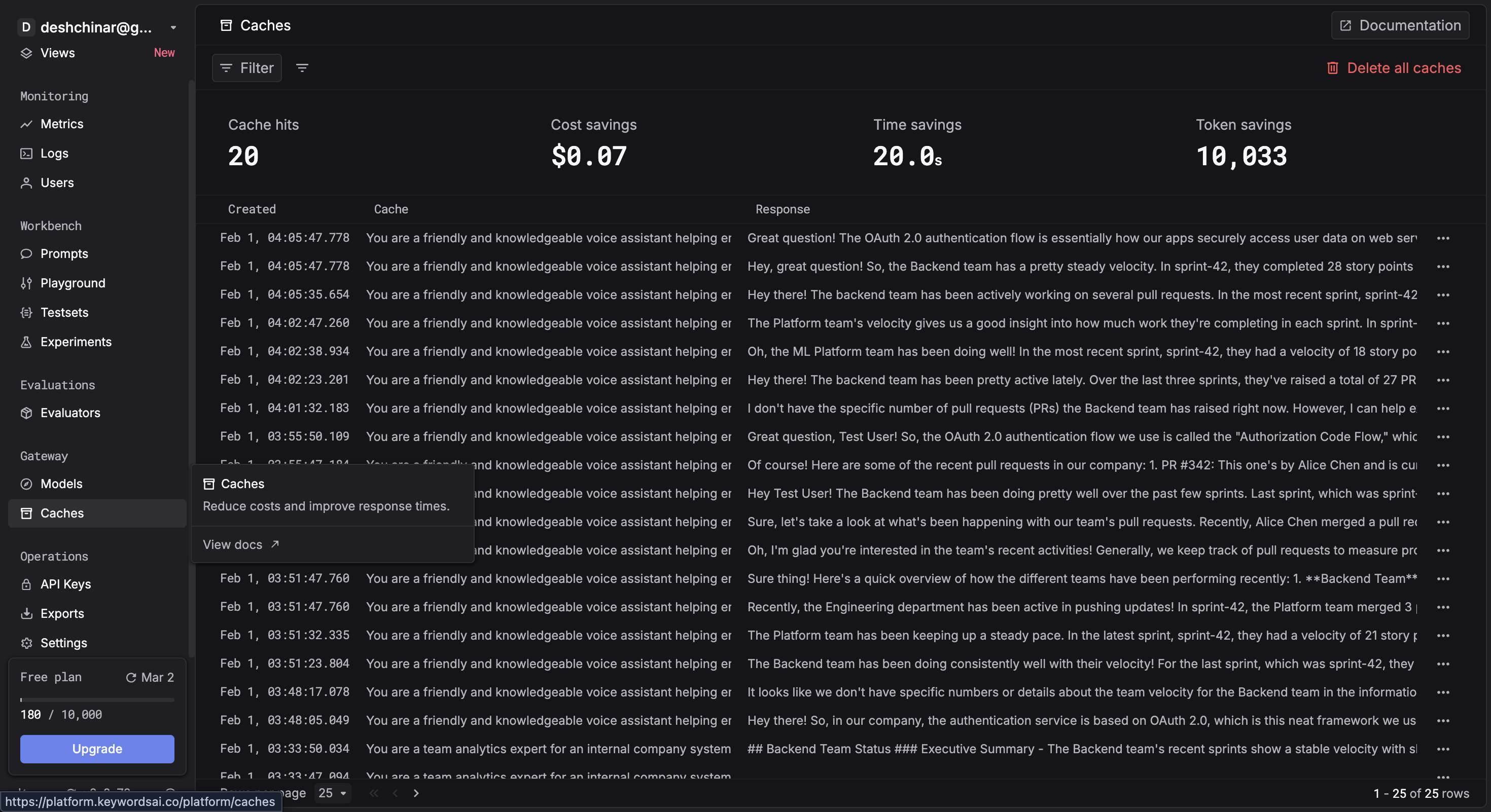

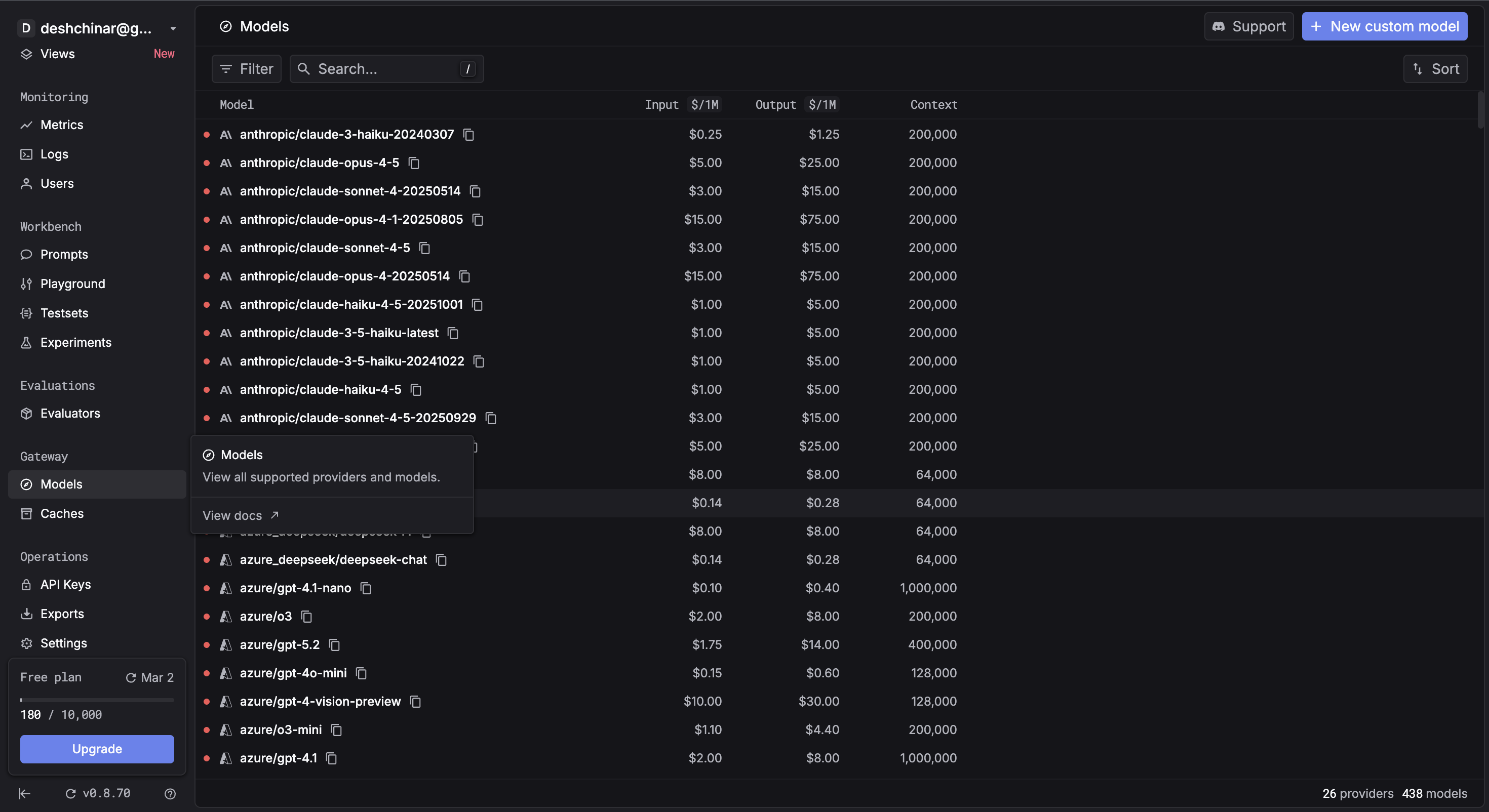

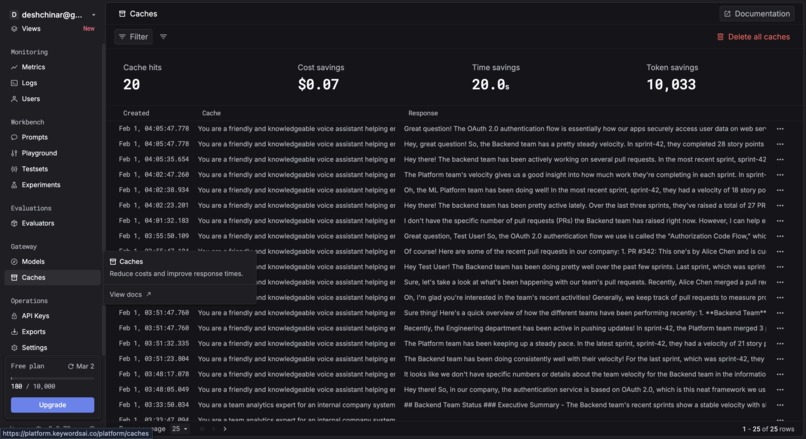

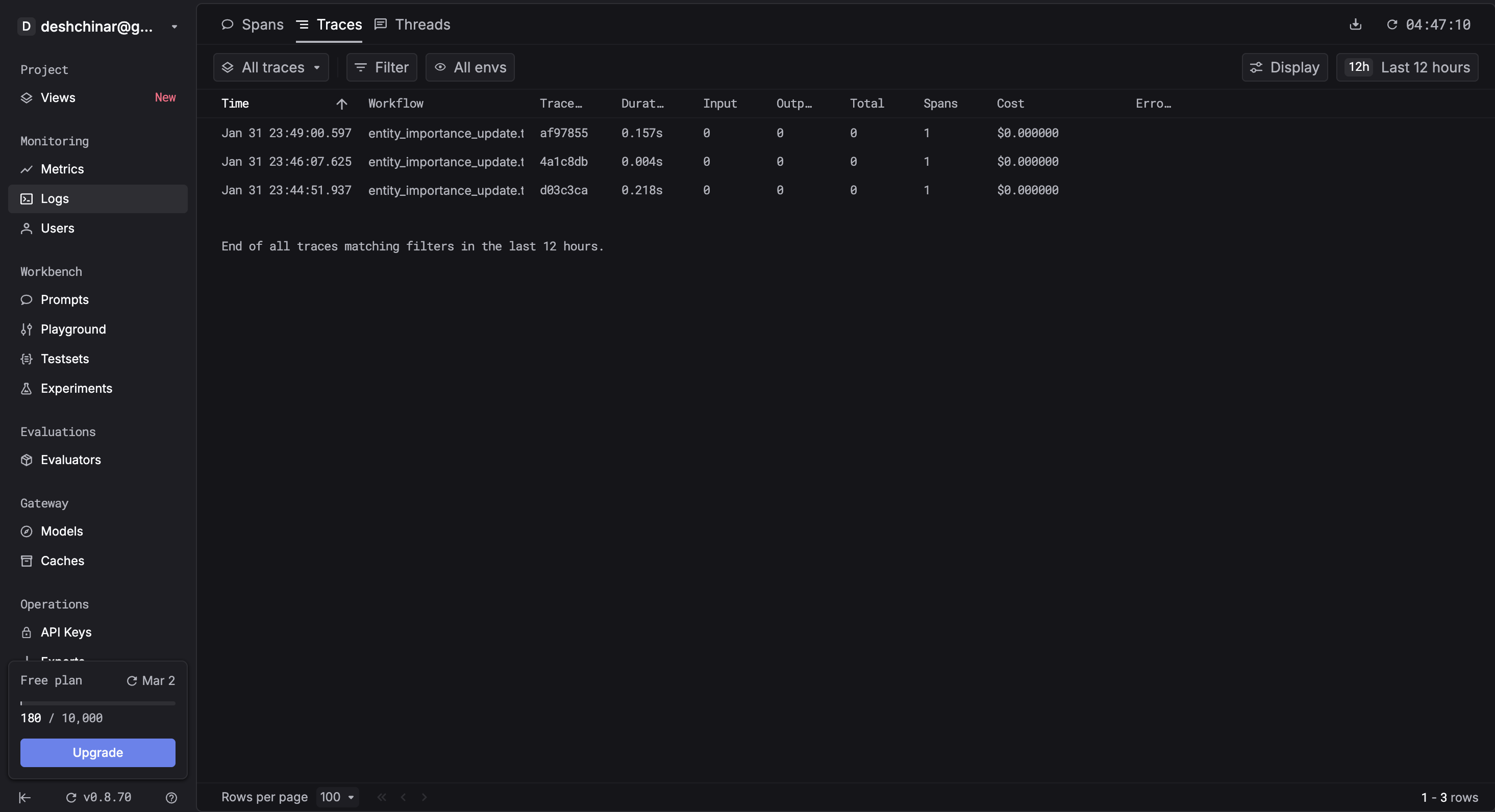

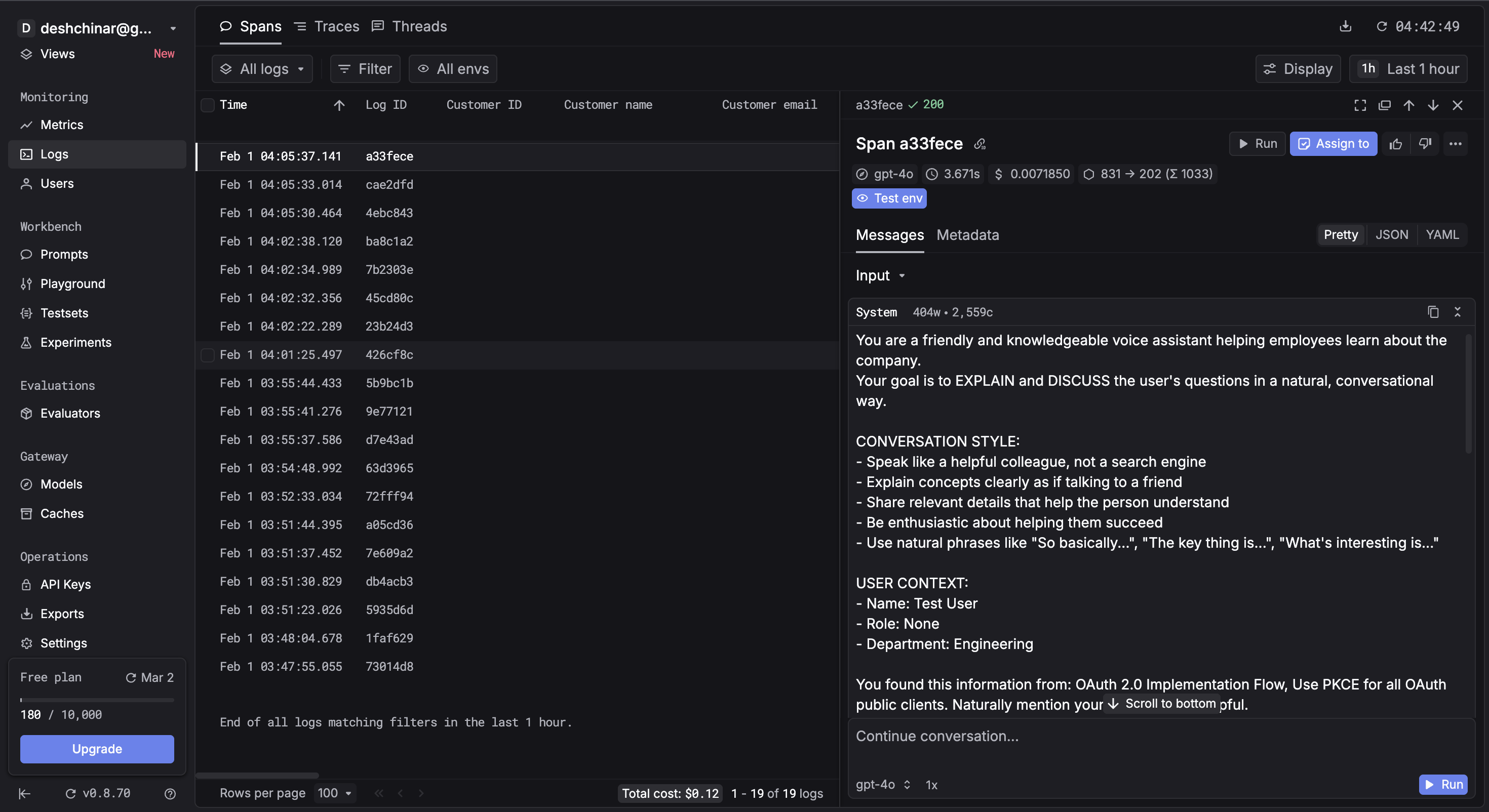

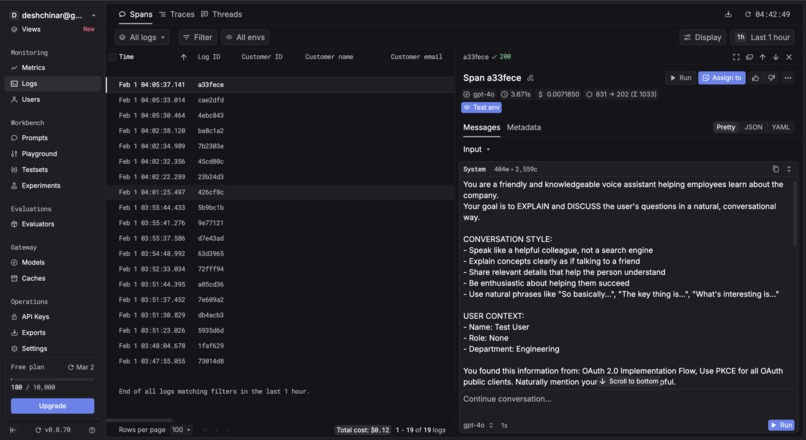

Keywords AI is used as the LLM layer via its OpenAI-compatible API, with centralized model routing, provider abstraction, and optional tracing/observability through the Keywords AI tracing endpoints.
Supabase Postgres stores users, conversations, onboarding state, and metrics.
Neo4j + Qdrant deliver graph traversal and vector search for retrieval.
Celery + Redis run ingestion and indexing jobs asynchronously.
Docker Compose brings up local infrastructure reproducibly.

Challenges we ran into

Designing a data flow that keeps the graph (Neo4j) and vector index (Qdrant) consistent.
Reducing latency across multi-step agent workflows while preserving explainability.
Managing multi-tenant memory boundaries for org, team, and user contexts.

Accomplishments that we're proud of

A modular agent system that routes tasks to the right specialist with minimal overhead.
A dual-index knowledge layer (graph + vectors) that improves accuracy and grounding.
A full local dev stack powered by Docker for quick onboarding and demos.

What we learned

Combining graph structure with embeddings yields higher-precision answers than either alone.
Background workers are essential for keeping ingestion and indexing fast and reliable.
Clear service boundaries make it easier to evolve LLM providers and tooling.

What's next for NexusAI

Deeper analytics for cross-team dependencies and knowledge gaps.
Automated data freshness checks and alerting.
Expanded MCP connectors and a self-serve integrations portal.

Technical Design

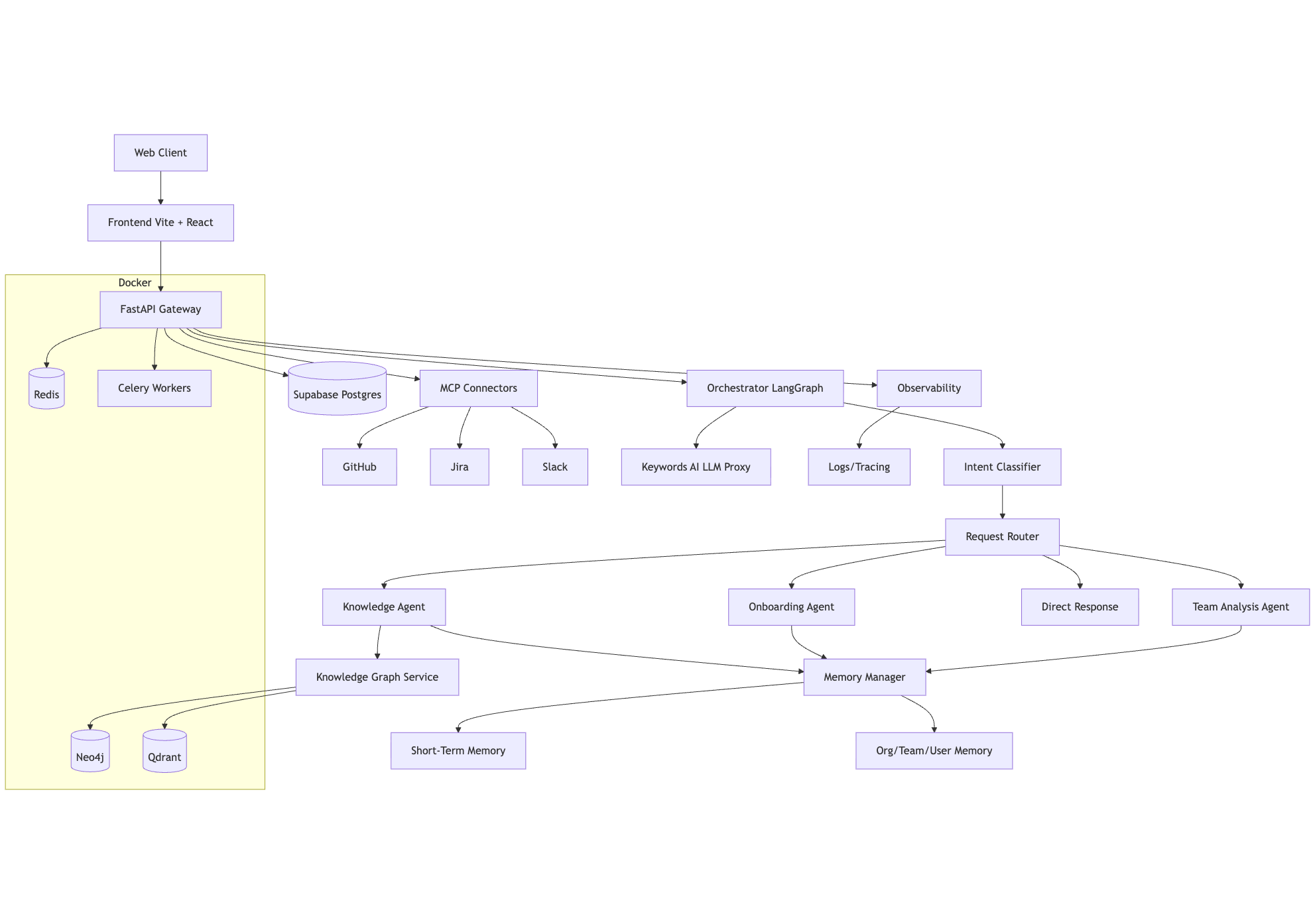

System Diagram

Design Overview

The system is a multi-agent, service-oriented architecture built around a LangGraph orchestrator. The FastAPI layer provides REST and WebSocket endpoints that handle user sessions, authentication, and request routing. Each request flows through an intent classifier and router to choose the right agent and tools, ensuring low-latency paths for direct responses and deeper pipelines for knowledge retrieval or analytics.

Request Lifecycle

Client request hits the FastAPI gateway (REST or WebSocket).
Orchestrator classifies intent and routes to a specialized agent.
Agent execution uses tools and shared services (memory, knowledge, MCP connectors).
LLM calls are handled through Keywords AI (OpenAI-compatible proxy), with model selection controlled by configuration.
Response streaming returns partial tokens for chat and voice workflows.

Data and Storage

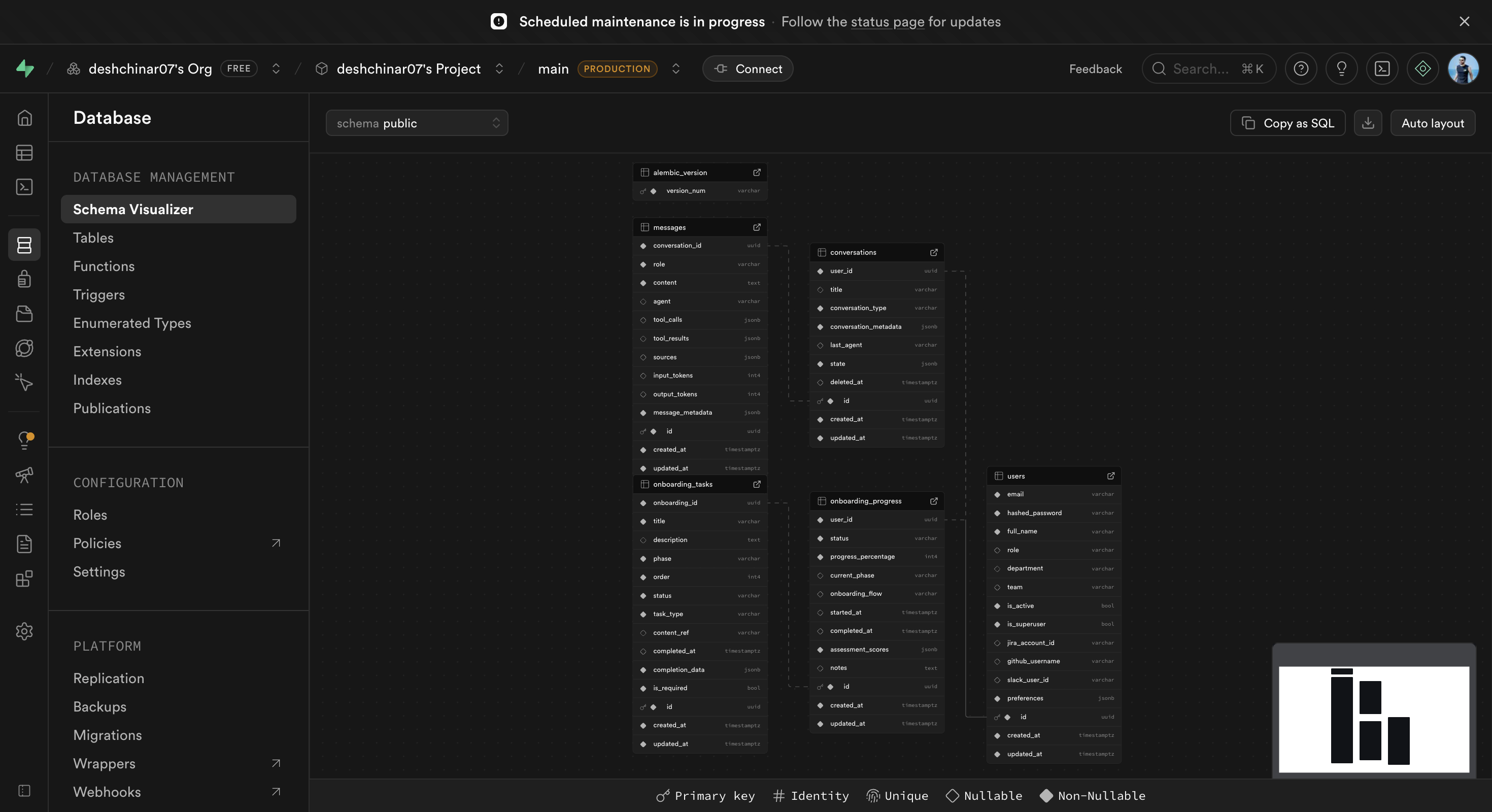

Supabase Postgres is the primary system of record for users, conversations, onboarding flows, and analytics.
Neo4j stores hierarchical knowledge and relationships (textbook-style graph).
Qdrant indexes embeddings for fast semantic retrieval.
Redis provides low-latency caching and backs Celery queues.

This separation optimizes for query patterns: transactional records in Postgres, graph traversal in Neo4j, and vector similarity in Qdrant.

Agent and Memory Model

Orchestrator maintains session state and manages tool access using a shared memory interface.
Short-term memory stores the immediate conversation context.
Org/team/user memory enables durable personalization and cross-session continuity.
Knowledge agent resolves facts by combining graph traversal and semantic retrieval.

Ingestion and Knowledge Indexing

MCP connectors pull data from GitHub/Jira/Slack on schedules or user demand.
Indexing pipeline chunks and embeds documents, writes embeddings to Qdrant, and links canonical entities in Neo4j.
Consistency is maintained with background Celery tasks to keep graph and vector indexes aligned.

Voice Onboarding

Deepgram handles speech-to-text.
ElevenLabs handles text-to-speech.
A dedicated WebSocket stream supports low-latency bidirectional audio.

Deployment and Operations

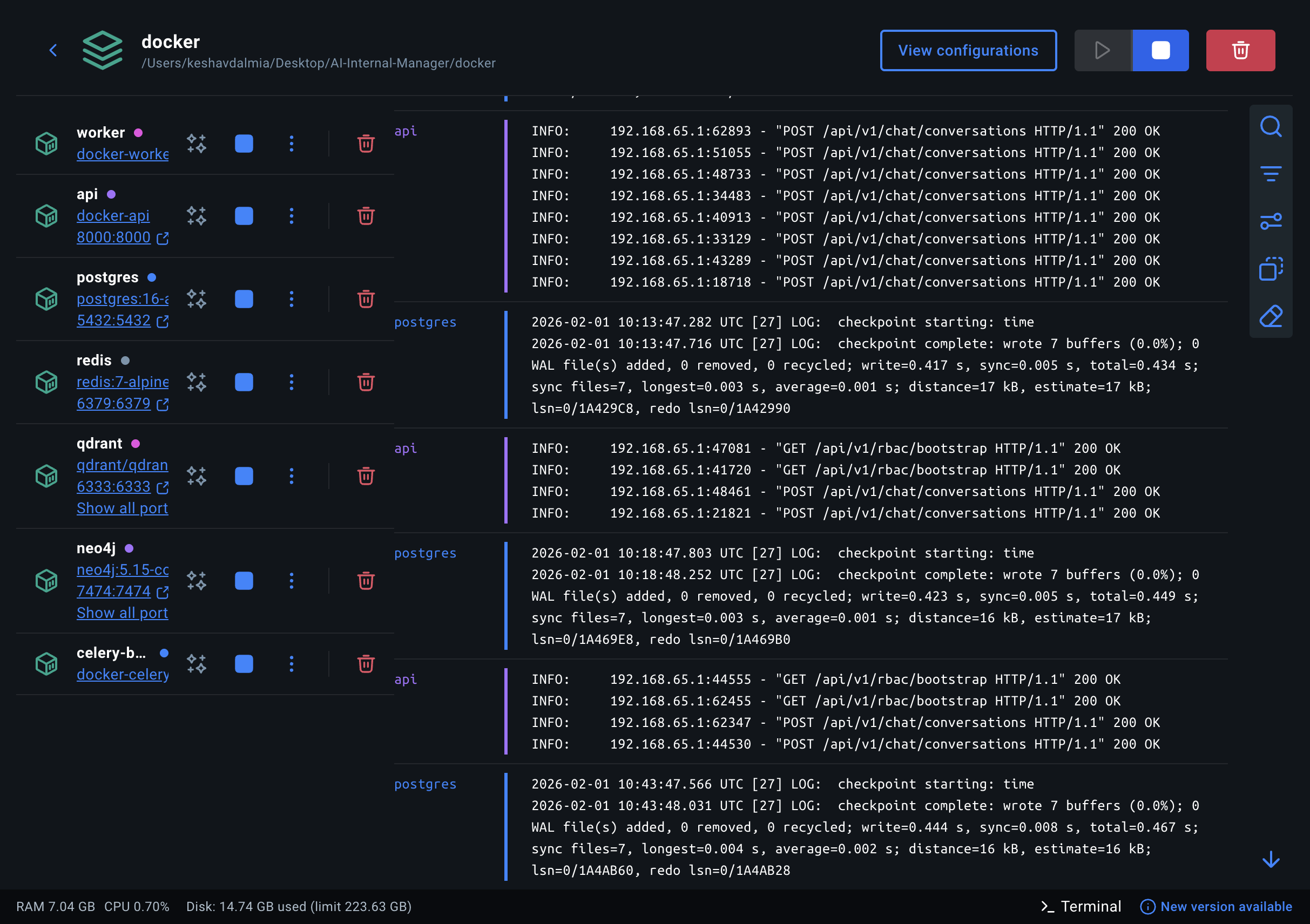

Docker Compose orchestrates local services (API, workers, Redis, Neo4j, Qdrant).

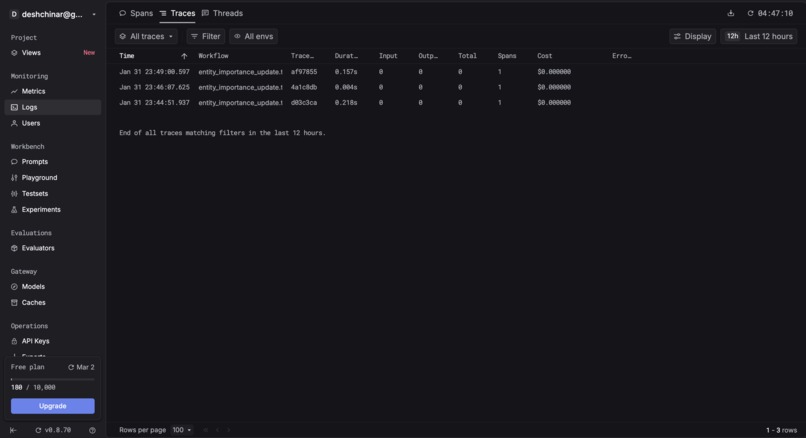

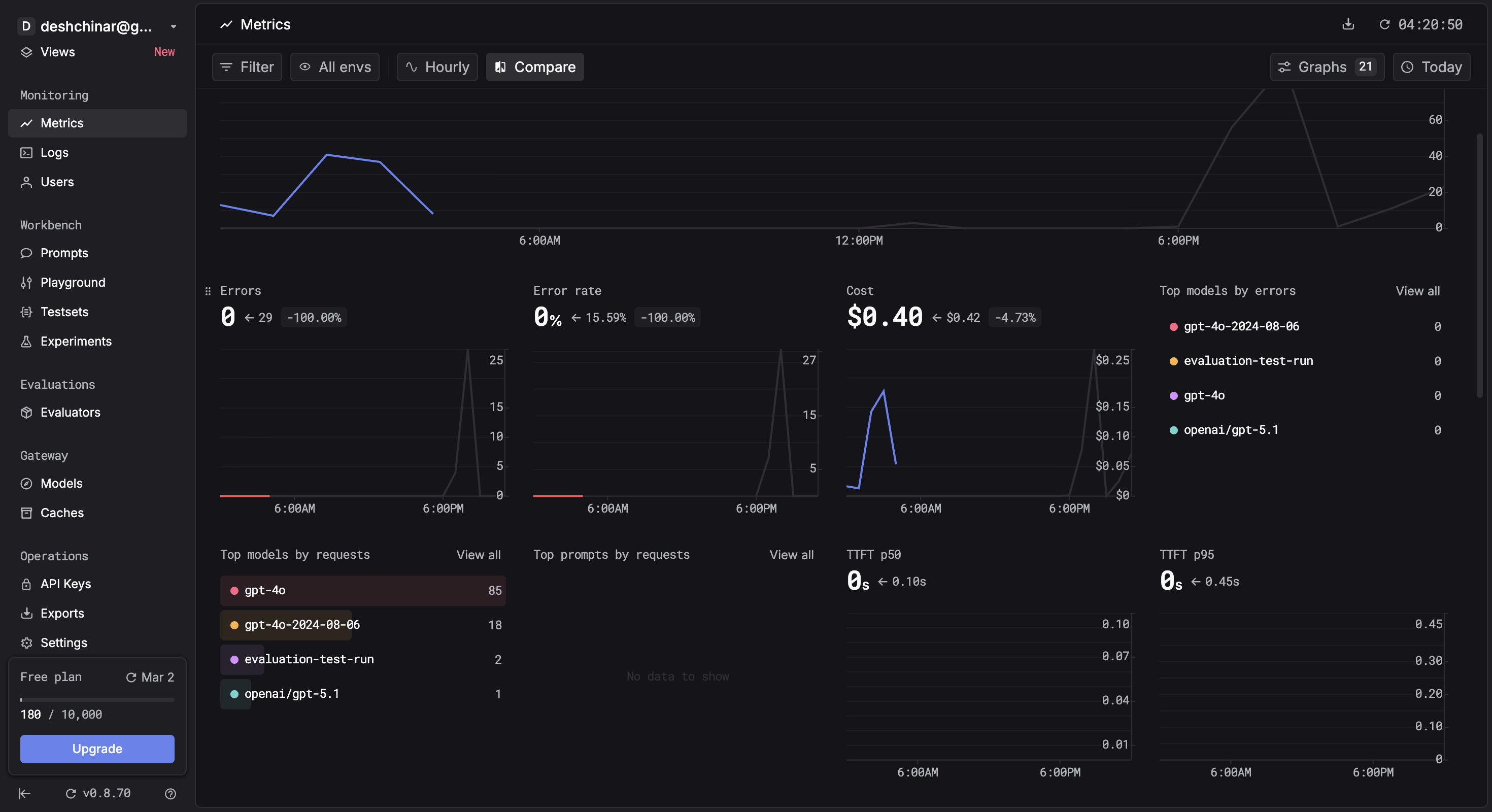

Observability captures logs and optional traces to diagnose latency or LLM/tool errors.
Configuration is centralized via environment variables for easy switching between providers.

Tech Stack

Component	Technology
API Framework	FastAPI
Agent Framework	LangGraph
LLM	Keywords AI (OpenAI-compatible) / Anthropic (optional)
Embeddings	Voyage AI / OpenAI
Knowledge Graph	Neo4j
Vector Database	Qdrant
Primary Database	Supabase Postgres
Cache/Queue	Redis
Task Queue	Celery
Voice	Deepgram + ElevenLabs

Quick Start

Prerequisites

Python 3.11+
Docker and Docker Compose
API keys for Anthropic, Voyage AI (or OpenAI for embeddings)

Setup

Clone the repository:

git clone <repository-url>
cd ai-internal-manager

Copy environment file and configure:

cp .env.example .env
# Edit .env with your API keys

Start services with Docker Compose:
```
cd docker
docker-compose up -d
```
Run database migrations:
```
alembic upgrade head
```
Start the API server:
```
uvicorn src.main:app --reload
```

Development Setup

Create a virtual environment:

python -m venv venv
source venv/bin/activate  # or `venv\Scripts\activate` on Windows

Install dependencies:
```
pip install -e ".[dev]"
```
Run tests:
```
pytest
```

API Endpoints

Chat

POST /api/v1/chat/conversations - Create conversation
POST /api/v1/chat/conversations/{id}/messages - Send message
WebSocket /api/v1/chat/ws/{id} - Real-time chat

Voice

POST /api/v1/voice/sessions - Create voice session
WebSocket /api/v1/voice/ws/{id} - Voice streaming

Knowledge

POST /api/v1/knowledge/search - Semantic search
GET /api/v1/knowledge/graph/hierarchy - Get knowledge structure
GET /api/v1/knowledge/graph/node/{id} - Get node details

Onboarding

GET /api/v1/onboarding/flows - List onboarding flows
POST /api/v1/onboarding/start - Start onboarding
GET /api/v1/onboarding/progress - Get progress

Analytics

GET /api/v1/analytics/team/{id}/health - Team health score
GET /api/v1/analytics/team/{id}/velocity - Sprint velocity
GET /api/v1/analytics/team/{id}/bottlenecks - Identified bottlenecks

Configuration

Key environment variables:

# Core
DATABASE_URL=postgresql+asyncpg://user:pass@localhost:5432/ai_manager
REDIS_URL=redis://localhost:6379/0
NEO4J_URI=bolt://localhost:7687
QDRANT_HOST=localhost

# LLM
ANTHROPIC_API_KEY=your-key

# Embeddings
VOYAGE_API_KEY=your-key  # or use OPENAI_API_KEY

# Voice (optional)
DEEPGRAM_API_KEY=your-key
ELEVENLABS_API_KEY=your-key

# External Services (optional)
JIRA_BASE_URL=https://your-domain.atlassian.net
JIRA_API_TOKEN=your-token
GITHUB_TOKEN=your-token
SLACK_BOT_TOKEN=your-token

Project Structure

ai-internal-manager/
├── docker/                 # Docker configuration
├── src/
│   ├── api/v1/            # REST + WebSocket endpoints
│   ├── agents/            # Agent implementations
│   │   ├── orchestrator/  # Main orchestrator with LangGraph
│   │   ├── knowledge/     # Knowledge retrieval agent
│   │   ├── onboarding/    # Onboarding agent
│   │   └── team_analysis/ # Team analytics agent
│   ├── mcp/               # MCP connectors
│   │   ├── jira/
│   │   ├── github/
│   │   └── slack/
│   ├── knowledge/         # Knowledge graph management
│   │   ├── graph/         # Neo4j operations
│   │   ├── textbook/      # Hierarchy management
│   │   └── indexing/      # Embeddings and chunking
│   ├── memory/            # Memory system
│   ├── models/            # SQLAlchemy models
│   └── schemas/           # Pydantic schemas
├── workers/               # Celery workers
├── alembic/               # Database migrations
└── tests/                 # Test suite
