Nexus Grid : The Ultimate City-Scale Energy Digital Twin & AI Orchestrator

Comment

Inspiration

Modern energy grids are decaying under the weight of their own complexity. As we transition to Distributed Energy Resources (DERs) like solar and EVs, our energy supply has become volatile, decentralized, and entirely unpredictable.

Through our research, we realized that current industry tools fail catastrophically because they rely on human-authored static heuristics ("if-this-then-that") or pre-trained machine learning models. The moment an unexpected weather anomaly hits, pre-trained models suffer catastrophic data drift and fail. The grid is no longer a predictable top-down utility; it is an infinitely complex, non-stationary mathematical graph. We were inspired to build the dynamic intelligence needed to autonomously orchestrate it.

What it does

NEXUS GRID is a groundbreaking, mathematically advanced digital twin and autonomous control operating system.

Instead of building just another dashboard, we built an autonomous mathematical brain. You provide the coordinates, and Nexus Grid instantly translates any district (like Ghaziabad, New York, or London) into an executable digital twin. It injects live macro-grid telemetry (carbon intensity, market pricing, solar forecasts) and unleashes a swarm of continuous-state Reinforcement Learning (RL) agents to balance the grid in real-time.

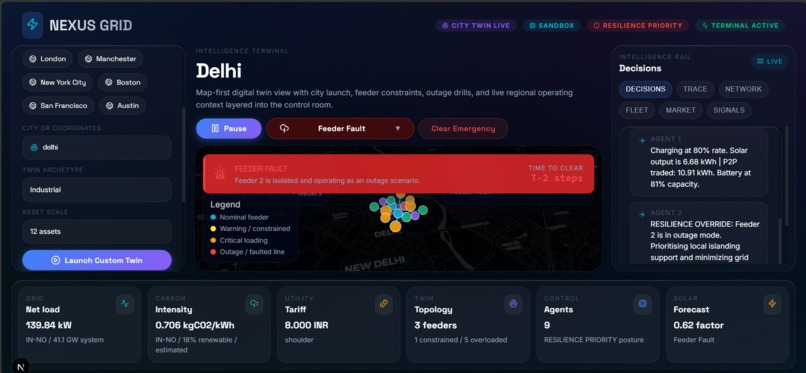

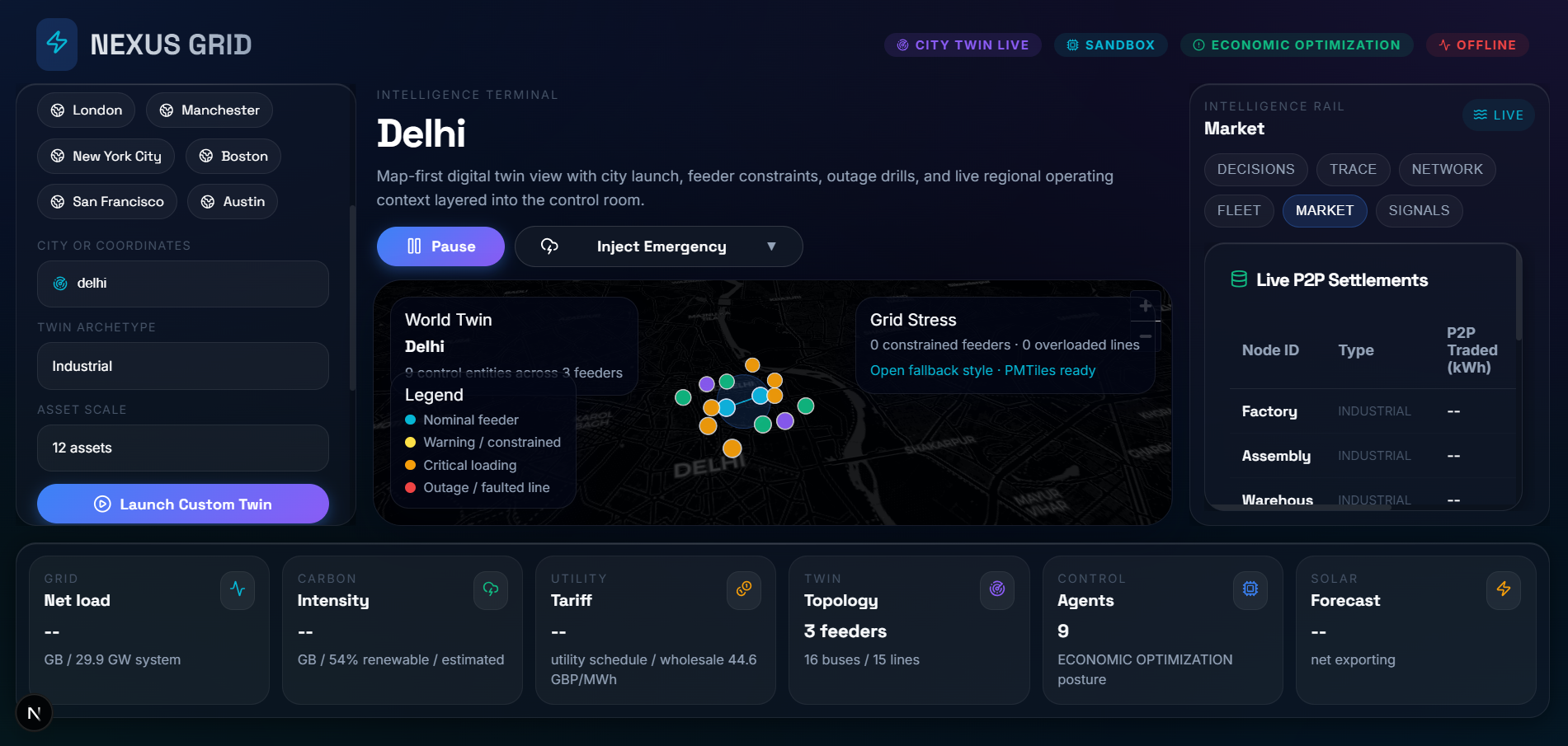

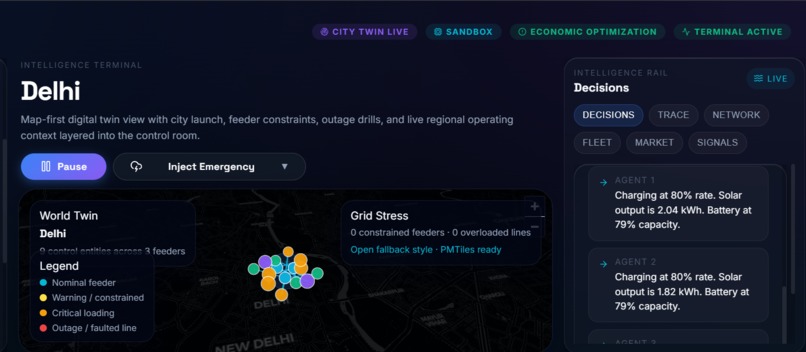

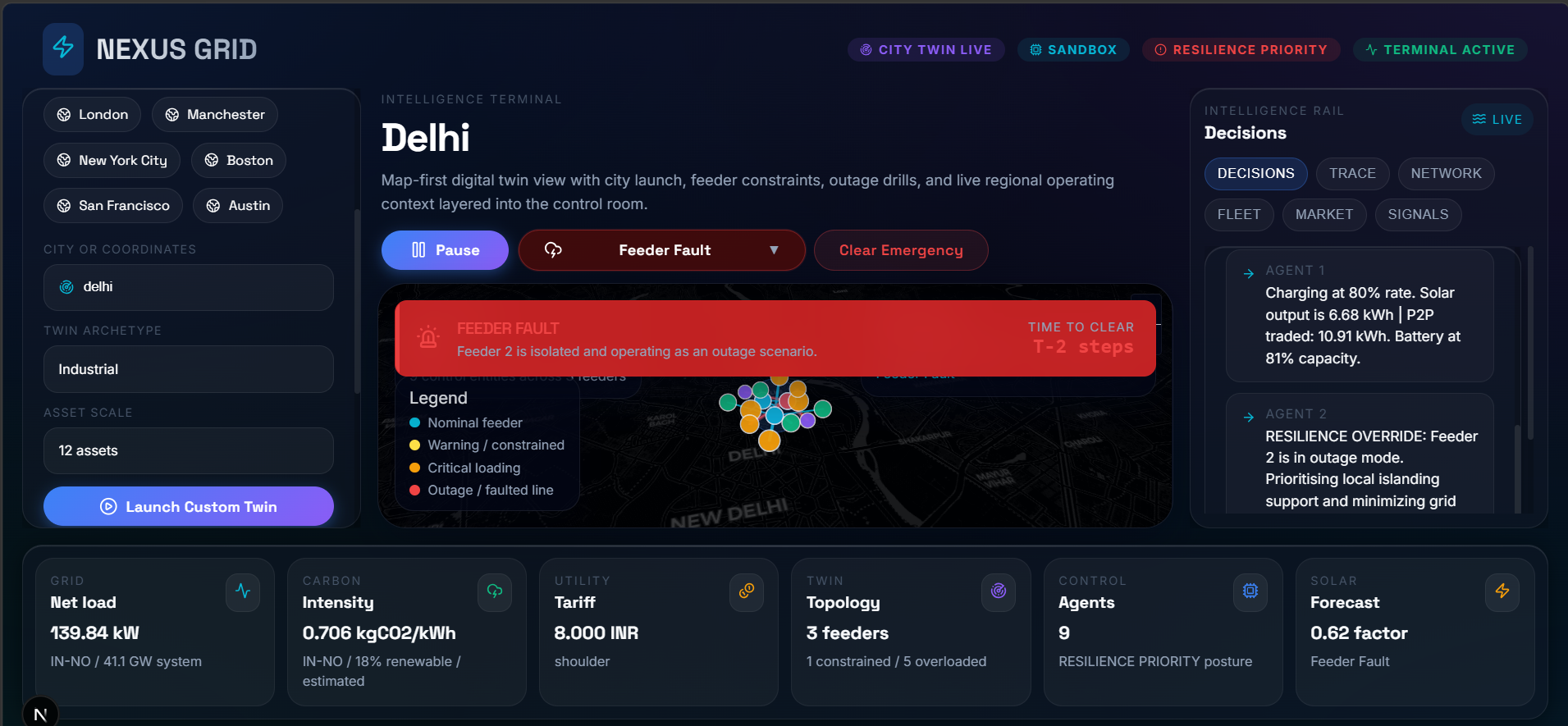

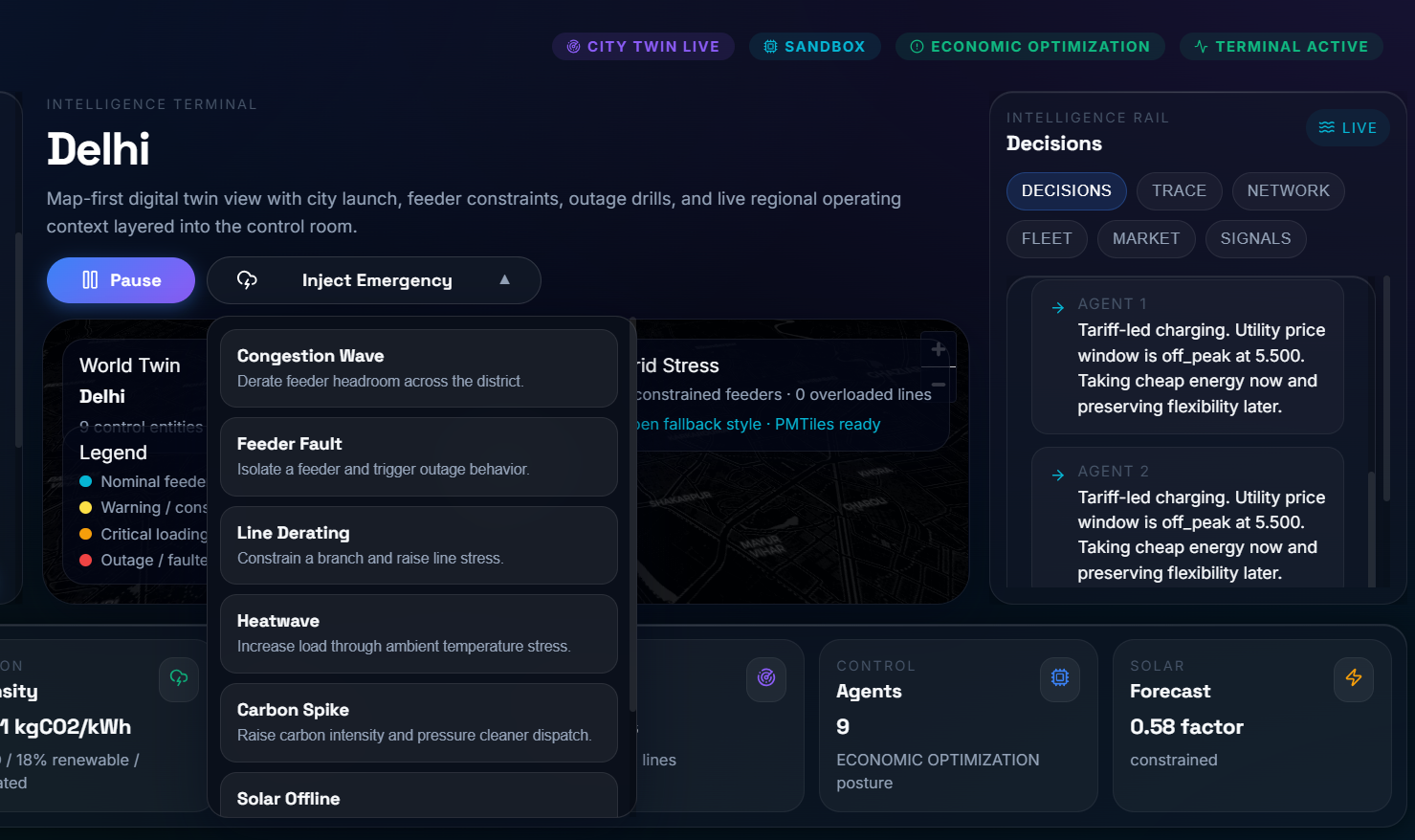

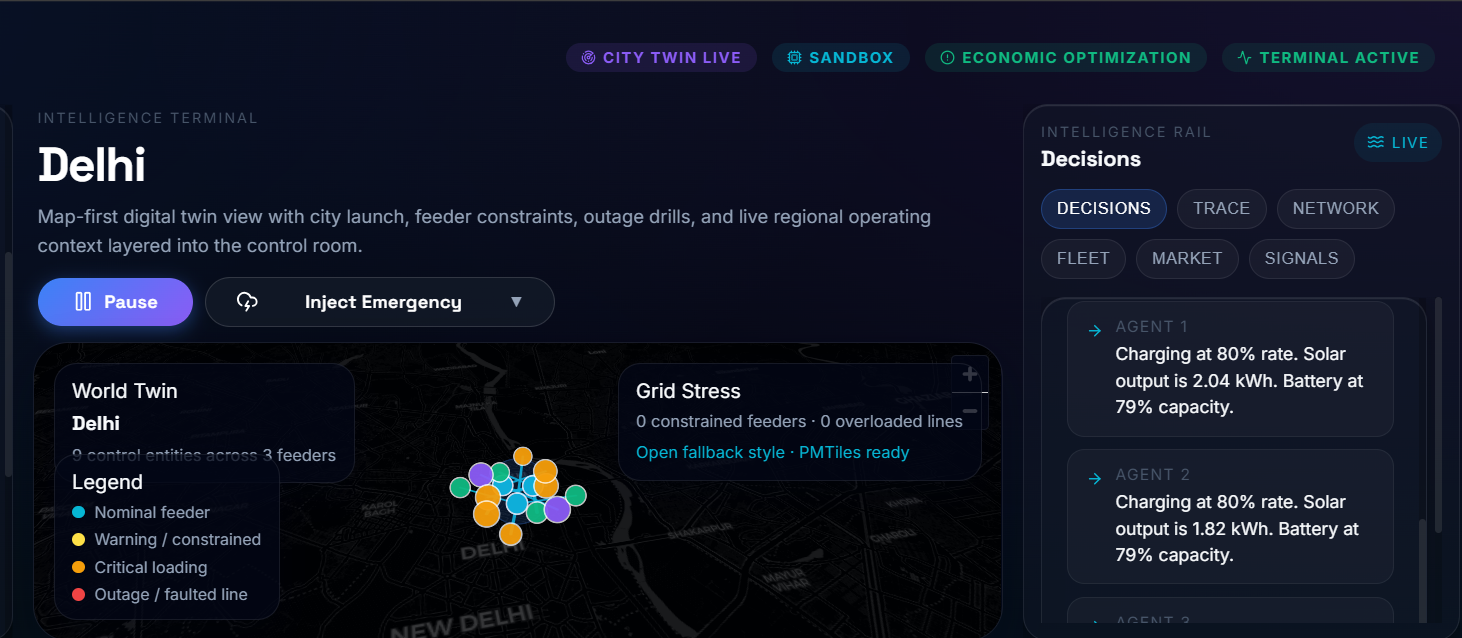

Through our Intelligence Terminal, operators can watch agents perform Live Peer-to-Peer (P2P) energy settlements, shifting power between commercial and residential nodes to negate carbon. Operators can even use our Chaos Engineering module to inject simulated feeder faults, watching the AI self-heal the district in milliseconds with zero downtime.

How we built it

We architected Nexus Grid as a high-performance decoupled monolith:

  • The Physics & Topology Engine: Built on Python, FastAPI, and NetworkX, this engine maps physical constraints, ampacity limits, and live data via WebSockets.
  • The Command Layer: A Series-A grade Next.js 14 spatial interface utilizing Framer Motion and TailwindCSS for real-time observability.
  • The Autonomy Engine: This is our core differentiator. Our Multi-Agent Reinforcement Learning (MARL) system is completely blank-slate (NOT pre-trained).

Because the physical grid is uniquely non-stationary, historical training data is useless. Instead, our asynchronous Deep-Q Network (DQN) / PPO hybrid learns from scratch.

We model the grid as a continually evolving Markov Decision Process (MDP). The RL agents seek to maximize the expected cumulative discounted reward: $$ J(\pi) = \mathbb{E}{\tau \sim \pi} \left[ \sum{t=0}^{T} \gamma^t R(s_t, a_t) \right] $$

The agents evaluate the State Space (live nodal voltages, battery SOC, live Carbon Intensity) and output continuous policies to the Action Space (load shifting, P2P routing).

Our non-linear reward formulation enforces strict grid physics: $$ R_t = \alpha \cdot \Delta E_{green} - \beta \cdot \mathcal{L}(C_{grid}^{(t)}) - \lambda \cdot \sum \max\left(0, \frac{|I_e|}{I_{max}} - 1\right)^2 $$ This asymptotic penalty ensures agents structurally cannot violate physical grid constraints, forcing them to find mathematically optimal dispatch strategies.

Challenges we ran into

Abstracting extreme mathematics into a real-time web application is incredibly difficult.

  1. Bridging the Physics-UI Gap: We had to ensure that the heavy matrix operations calculating load-flow in the Python backend synced perfectly via WebSockets to the React frontend without frame dropping.
  2. The "Zero-Shot" Execution: Training an RL model from scratch during runtime without pre-trained weights meant our physics engine had to aggressively sink the Q-value for impossible actions so the agents learned physical boundaries instantly.

Accomplishments that we're proud of

  1. Mathematical Resilience: Seeing our untrained agents successfully adapt to a manually injected "Emergency Feeder Fault" during a Chaos Drill, reroute power, and stabilize the district in real-time.
  2. The Premium Command Center: We built an unapologetically premium Command Center that spatializes the math perfectly, including a live "AI Rationale Feed" for deep explainability.
  3. Frictionless Deployment: Packaging massive complexity into a system that boots both the physics engine and UI with a single start.bat script.

What we learned

We learned that attempting to apply standard generative AI or pre-trained ML to physical infrastructure is disastrous. Physical systems are governed by strict thermodynamic laws. Autonomous infrastructure requires continuous, zero-shot reinforcement learning that respects boundary physics over historical datasets.

What's next for NEXUS GRID

NEXUS GRID was explicitly architected to dominate this hackathon, but the protocol has limitless scaling potential. Our next immediate steps are:

  • Integrating blockchain execution for live financial settlement of the P2P energy trades.
  • Scaling the topological generator from city districts to inter-state grid transmission lines.
  • Integrating live API hooks for V2G (Vehicle-to-Grid) bidirectional charging fleets.
