Inspiration

This generation of technological innovation and human factor design focuses heavily on designing for individuals with disabilities. As such, the inspiration for our project was an application of object detection (Darknet YOLOv3) for visually impaired individuals. This user group in particular has limited visual modality, which the project aims to provide.

What it does

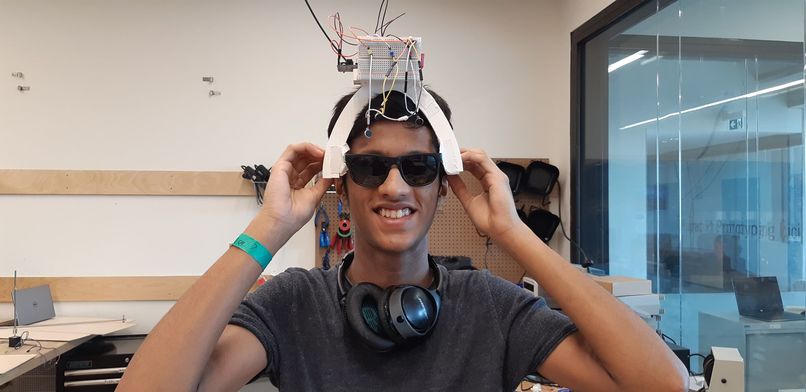

Our project aims to provide the visually impaired with sufficient awareness of their surroundings to maneuver. We created a head-mounted prototype that provides the user group real-time awareness of their surroundings through haptic feedback. Our smart wearable technology uses a computer-vision ML algorithm (convolutional neural network) to help scan the user’s environment to provide haptic feedback as a warning of a nearby obstacle. These obstacles are further categorized by our algorithm to be dynamic (moving, live objects), as well as static (stationary) objects. For our prototype, we filtered through all the objects detected to focus on the nearest object to provide immediate feedback to the user, as well as providing a stronger or weaker haptic feedback if said object is near or far respectively.

Process

While our idea is relatively simple in nature, we had no idea going in just how difficult the implementation was.

Our main goal was to meet a minimum deliverable product that was capable of vibrating based on the position, type, and distance of an object. From there, we had extra goals like distance calibration, optimization/performance improvements, and a more complex human interface.

Originally, the processing chip (the one with the neural network preloaded) was intended to be the Huawei Atlas. With the additional design optimizations unique to neural networks, it was perfect for our application. After 5 or so hours of tinkering with no progress however, we realized this would be far too difficult for our project.

We turned to a Raspberry Pi and uploaded Google’s pre-trained image analysis network. To get the necessary IO for the haptic feedback, we also had this hooked up to an Arduino which was connected to a series of haptic motors. This showed much more promise than the Huawei board and we had a functional object identifier in no time. The rest of the night was spent figuring out data transmission to the Arduino board and the corresponding decoding/output.

With only 3 hours to go, we still had to finish debugging and assemble the entire hardware rig.

Key Takeaways

In the future, we all learned just how important having a minimum deliverable product (MDP) was. Our solution could be executed with varying levels of complexity and we wasted a significant amount of time on unachievable pipe dreams instead of focusing on the important base implementation.

The other key takeaway of this event was to be careful with new technology. Since the Huawei boards were so new and relatively complicated to set up, they were incredibly difficult to use. We did not even use the Huawei Atlas in our final implementation meaning that all our work was not useful to our MDP.

Possible Improvements

If we had more time, there are a few things we would seek to improve.

First, the biggest improvement would be to get a better processor. Either a Raspberry Pi 4 or a suitable replacement would significantly improve the processing framerate. This would make it possible to provide more robust real-time tracking instead of tracking with significant delays.

Second, we would expand the recognition capabilities of our system. Our current system only filters for a very specific set of objects, particular to an office/workplace environment. Our ideal implementation would be a system applicable to all aspects of daily life. This means more objects that are recognized with higher confidence.

Third, we would add a robust distance measurement tool. The current project uses object width to estimate the distance to an object. This is not always accurate unfortunately and could be improved with minimal effort.
