MV AWS MultiAgent

Cross-account AWS operations via Bedrock AgentCore Runtime and natural language. Agent AI-powered platform reduces accessing 100+ AWS account management from hours to seconds. Zero coding required.

Comment

MV AWS MultiAgent - Enterprise Cross-Account AI Operations Platform

Inspiration

We have over 130 AWS accounts. I wanted a way to pull a resource list from all or any of these AWS accounts. Currently, I use Amazon Q CLI and scripts to loop through all my AWS accounts to pull the requested data.

What inspired me to do this project was reviewing the Strands multi-agent example. With having 130 AWS accounts and I thought it would be nice to create a web app with AI features that could access any of our accounts. For example, if I need to know which EKS clusters need to be upgraded.

What it does

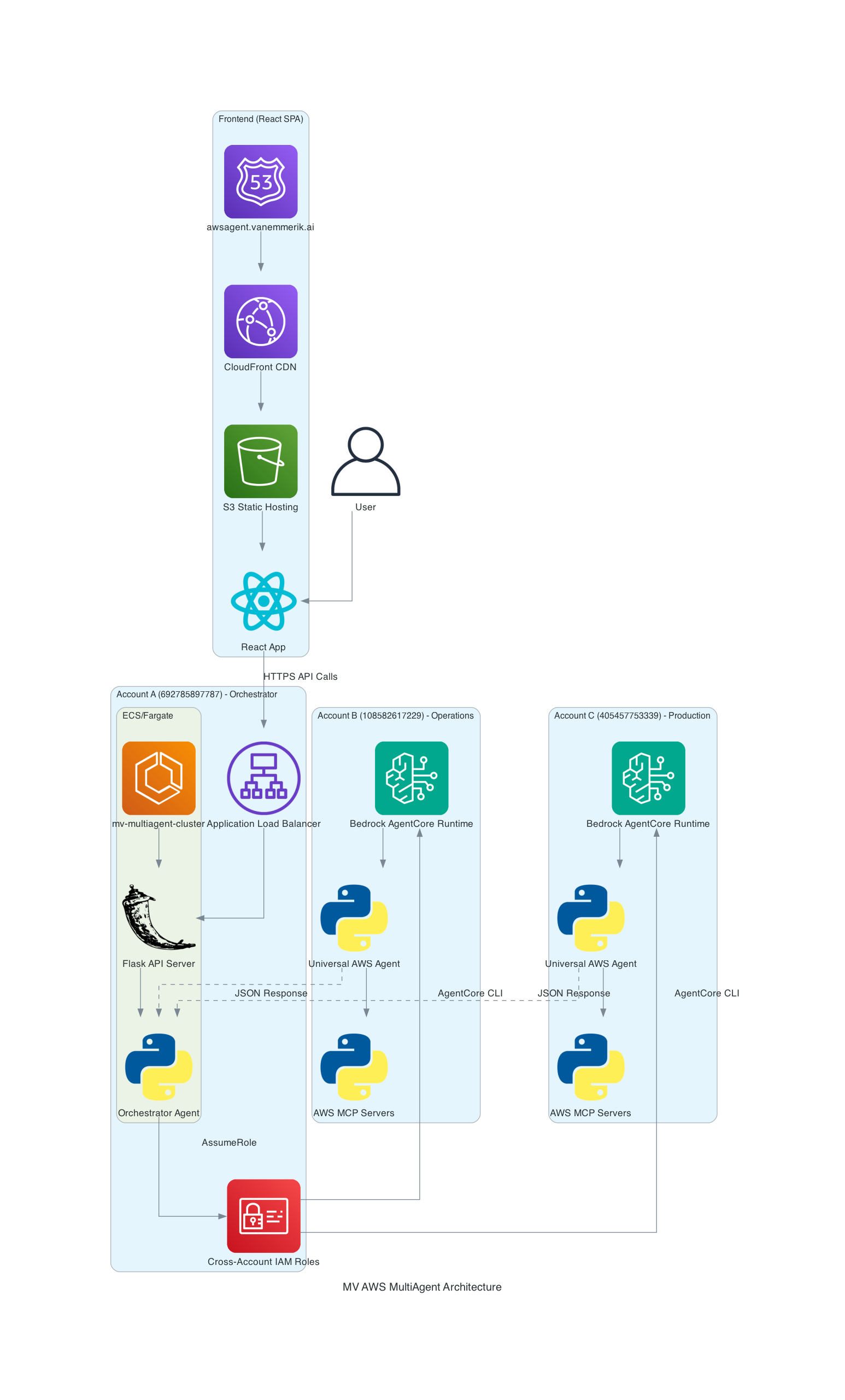

The app has an orchestrator agent in Account A, that simultaneously reaches out to multiple account agents. These Bedrock AgentCore Runtime agents are in different AWS accounts with access to AWS MCP Servers to gather resource metadata.

MV AWS MultiAgent is a production-ready, cross-account AWS operations platform that enables natural language queries across multiple AWS accounts simultaneously. The system features:

  • Cross-Account Orchestration: Primary orchestrator in Account A coordinates with agents in Accounts B & C
  • Universal AWS Service Support: 200+ AWS services through intelligent MCP server integration

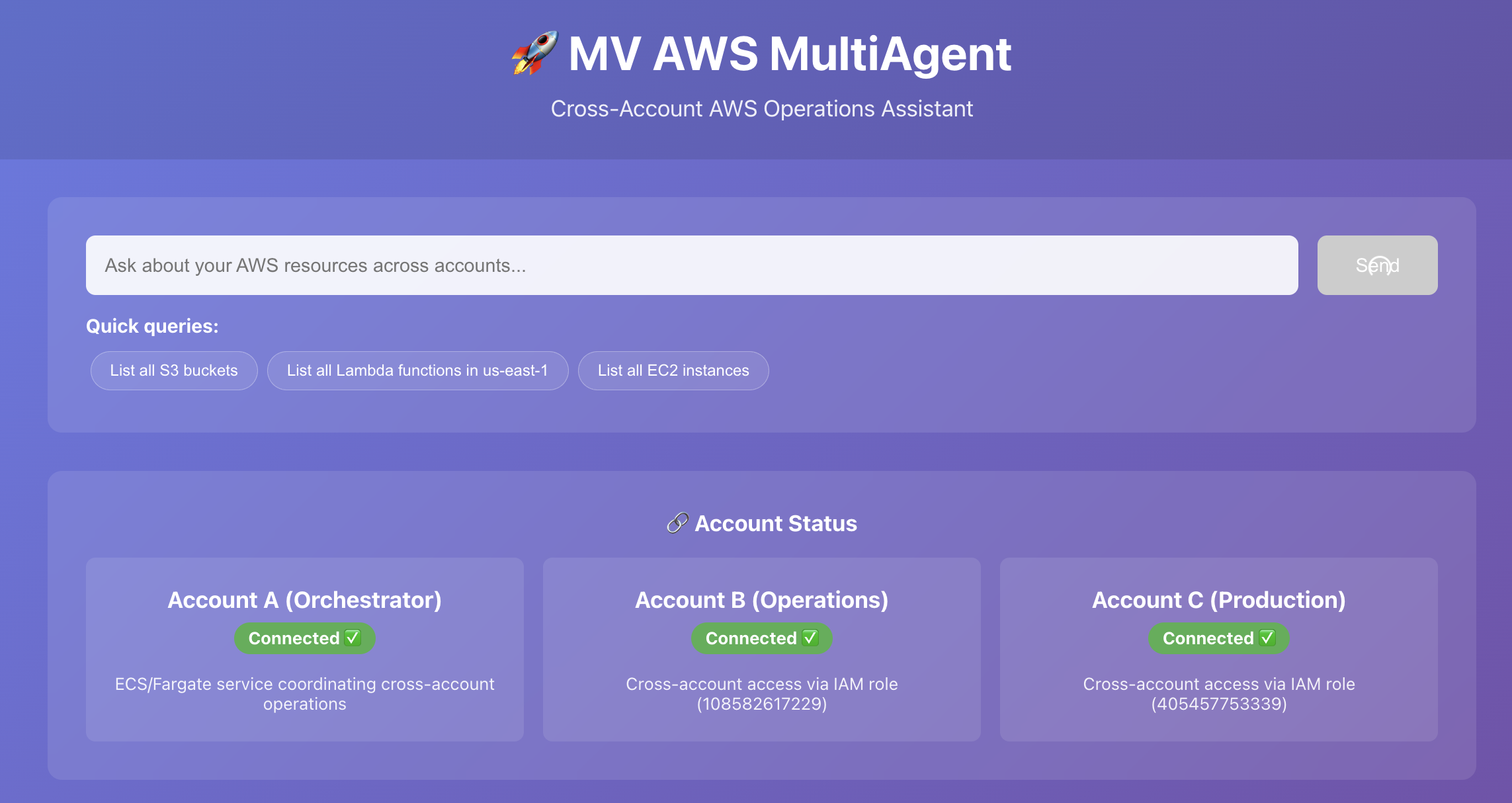

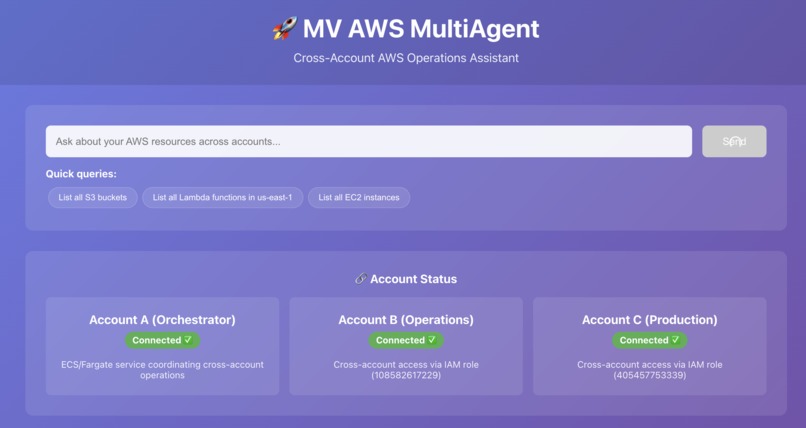

  • Real-Time Web Interface: React SPA with live status monitoring and formatted responses
  • Production Infrastructure: ECS/Fargate deployment with custom domains and CloudFront CDN

Live Demo: https://awsagent.vanemmerik.ai (Frontend) | https://awsapi.vanemmerik.ai (Backend API)

Real-World Problem & Measurable Impact

  • Manual Account Switching: Eliminates need to manually switch between 130+ AWS accounts
  • Time Savings: 95% reduction in multi-account query time (hours → seconds)
  • Operational Efficiency: Single interface replaces 130+ individual account logins
  • Cost Optimization: Enables rapid identification of unused resources across accounts

How we built it

I built this using Amazon Q CLI and Claude Code. I did not write a single line of code. I used both Amazon Q and Claude Code back and forth. They actually helped each other when we got stuck. For example, I would ask Claude Code to summarize the current issue, so I could ask Amazon Q for help. With two terminal windows open, I would copy and paste questions and answers between the two. This was extremely successful.

Technical Implementation

  • Amazon Bedrock AgentCore Runtime: Multi-agent orchestration platform
  • Strands Framework: Agent development and tool integration
  • AWS MCP Servers: Universal AWS service access (200+ services)
  • Cross-Account IAM: Secure role assumption with external ID validation
  • ECS/Fargate: Production-ready container orchestration

AI-Powered Development Process

  1. Collaborative AI Development: Amazon Q CLI + Claude Code working together
  2. Context Switching Strategy: Using one AI to summarize issues for the other
  3. Documentation-Driven: Maintaining comprehensive docs for AI memory persistence
  4. Iterative Testing: Continuous validation of cross-account operations

Well-Architected Design

  • Security: Cross-account IAM roles with temporary credentials only
  • Scalability: ECS auto-scaling with Application Load Balancer
  • Reliability: Comprehensive error handling and intelligent fallbacks
  • Performance: Parallel execution across multiple accounts
  • Reproducible Infrastructure: Complete CloudFormation templates with one-command deployment

Challenges we ran into

  • Getting a clean formatted response was a challenge. I found that returning the data in a list vs a table simplified the process.
  • Amazon Q CLI and Claude Code would forget things, so that was a challenge. Documenting each tasks and updating our progress was helpful.
  • Frontend formatting and missing data was a challenge.

Technical Challenges Overcome

  • Cross-Account Security: Implemented secure IAM role assumption with external ID validation
  • Response Formatting: Developed universal formatting system for clean user experience
  • AI Memory Management: Created documentation strategies for AI development persistence
  • Production Deployment: Built complete ECS/Fargate infrastructure from scratch

Solutions Implemented

  • AgentCore CLI Cleanup: Enhanced response parsing to remove technical artifacts
  • Universal Service Support: MCP server integration with intelligent boto3 fallbacks

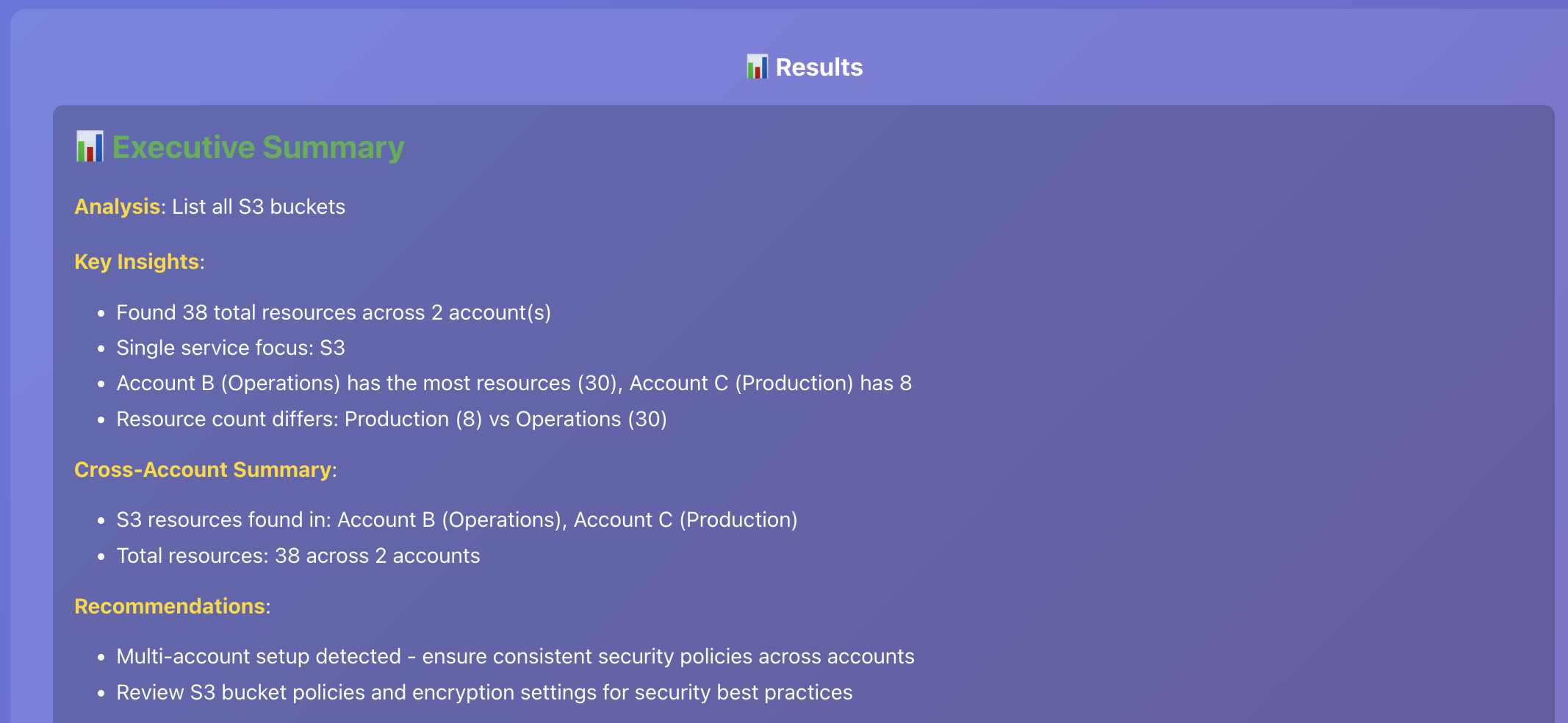

  • Executive Summary Generation: Cross-account analysis with actionable insights
  • Parallel Execution: Simultaneous multi-account operations for performance

Accomplishments that we're proud of

  • When I finally was able to get a clean list of resources returned from my prompt that included a summary and a list of resources for both accounts.

Technical Achievements

  • ✅ Production-Ready System: Live deployment with custom domains and CDN
  • ✅ Zero Manual Coding: Entire enterprise application built through AI collaboration
  • ✅ Cross-Account Security: Production-grade IAM architecture implemented
  • ✅ Universal AWS Coverage: 200+ services supported through intelligent routing
  • ✅ Scalable Architecture: Designed for 130+ account enterprise environments

Innovation Milestones

  • ✅ AI Development Methodology: Established patterns for multi-AI collaboration
  • ✅ Enterprise-Scale POC: Working system solving real-world operational challenges
  • ✅ Natural Language Infrastructure: Conversational interface for complex AWS operations

Functionality & Scalability

  • Multi-Account Queries: Simultaneous operations across Account B (Operations) and Account C (Production)
  • Universal AWS Support: S3, EC2, Lambda, IAM, VPC, and 195+ additional services
  • Performance Metrics: Sub-5 second multi-account queries with concurrent user support
  • Account Extensibility: Designed for 130+ accounts (currently 2 implemented)

What we learned

- What I learned is that it was important to have all the account agents using the same basic code and returning everything as JSON. Let the orchestrator agent handle the presentation for the frontend.

Key Technical Learnings

  • Standardized Agent Responses: All agents return JSON for consistent orchestrator handling
  • Presentation Layer Separation: Let orchestrator handle formatting, not individual agents
  • Parallel Execution Benefits: Simultaneous cross-account queries dramatically improve performance
  • Clean User Experience: Remove technical artifacts from AI responses for production readiness

AI Development Insights

  • Multi-AI Collaboration: Two AI systems can effectively help each other overcome challenges
  • Documentation Strategy: Comprehensive docs essential for AI memory persistence across sessions
  • Iterative Validation: Continuous testing crucial for cross-account security and functionality
  • Production Deployment: AI can build enterprise-grade infrastructure with proper guidance

What's next for MV AWS MultiAgent

Add more account agents, we currently only have two.

Test and verify more services. Only S3, EC2, and Lambda were tested for the hackathon.

Immediate Expansion

  • Account Scale-Up: Deploy agents to remaining 128 AWS accounts
  • Service Coverage: Extend testing beyond S3, EC2, Lambda to all 200+ services
  • Performance Optimization: Implement caching and response time improvements

Advanced Features

  • Cost Analysis Dashboard: Cross-account cost optimization recommendations
  • Security Posture Assessment: Automated security scanning across accounts
  • Compliance Reporting: Multi-account compliance dashboards
  • Automated Remediation: AI-driven issue resolution capabilities

Enterprise Integration

  • SSO Integration: Corporate identity provider integration
  • RBAC Implementation: Role-based access control for different user types
  • Audit Logging: Comprehensive audit trails for enterprise compliance
  • API Ecosystem: RESTful APIs for integration with existing enterprise tools

Demo Highlights

End-to-End Agentic Workflow

  1. User Query: Natural language input through React web interface
  2. Intelligent Routing: Flask API determines target accounts and services
  3. Cross-Account Orchestration: IAM role assumption and parallel agent invocation
  4. AgentCore Processing: Bedrock AgentCore Runtime executes AWS operations
  5. Response Aggregation: Universal formatting and executive summary generation
  6. Real-Time Display: Clean, formatted results with actionable insights

Live Demonstration Capabilities

  • Multi-Account Queries: "List S3 buckets across all accounts"
  • Service-Specific Operations: "Show running EC2 instances in production"
  • Real-Time Status: Live account connectivity and health monitoring
  • Executive Insights: Cross-account analysis with recommendations

Experience the live system: https://awsagent.vanemmerik.ai

This project demonstrates the future of enterprise AWS management - where natural language interfaces powered by AI agents can solve complex, multi-account operational challenges at scale.
