ModRadar

A real-time Reddit moderation radar: behavioral pipeline analysis, Jaccard threat scoring, and a live NOC dashboard — all powered by Devvit.

Comment

📡 ModRadar — Predictive Raid & Brigading Shield

Inspiration

Reddit moderation today is fundamentally reactive. Moderators often wake up to find their subreddit already flooded by coordinated brigades, spam waves, or karma-farming rings. By the time the issue is detected, the damage is already done.

We asked ourselves: What if moderators had the same kind of real-time threat detection systems used by enterprise security teams?

Inspired by cybersecurity Network Operations Centers (NOCs), we built ModRadar — a behavioral threat detection system that predicts and intercepts malicious activity in real time.

Our core insight was simple: Brigading and spam are not random. They leave measurable behavioral signatures:

  • Sudden comment velocity spikes
  • New-account clustering
  • Overlap with known hostile communities

We realized these signals could be detected mathematically and in real time using only Devvit APIs.

What it does

ModRadar is a real-time behavioral threat detection platform for Reddit, built entirely on Devvit. It combines four integrated subsystems:

1. 🔬 Sequential Security Pipeline

Every incoming comment passes through a chain of middleware analyzers:

  • Account Age Check: Flags accounts younger than the trusted threshold. (+30 risk points, triggers NEW_ACCOUNT)
  • Global Velocity Monitor: Detects abnormal comment acceleration across the subreddit. (+20 to +40 risk points, triggers HIGH_SUBREDDIT_VELOCITY / CRITICAL_SUBREDDIT_VELOCITY)
  • Jaccard Proximity Analysis: Computes the similarity between a user’s recent subreddit activity and a moderator-defined watchlist of hostile communities.

Jaccard Similarity Formula:

$$J(A, B) = \frac{|A \cap B|}{|A \cup B|}$$

If the combined risk score exceeds the configured threshold, the comment is automatically removed and sent to the mod queue before disruption occurs.

2. 📊 Sliding Window Telemetry Engine

Comment activity is bucketed per minute using Devvit kvStore. A rolling 15-minute window is segmented into three blocks:

  • Segment A ($t\text{-}0 \rightarrow t\text{-}4$): Immediate activity.
  • Segment B ($t\text{-}5 \rightarrow t\text{-}9$): Intermediate baseline.
  • Segment C ($t\text{-}10 \rightarrow t\text{-}14$): Historical baseline.

Velocity Acceleration Formula:

$$\Delta V = \frac{\text{Segment A}}{\text{avg}(\text{Segment B}, \text{Segment C})}$$

Threat levels escalate dynamically: LOW $\rightarrow$ MEDIUM $\rightarrow$ HIGH $\rightarrow$ CRITICAL.

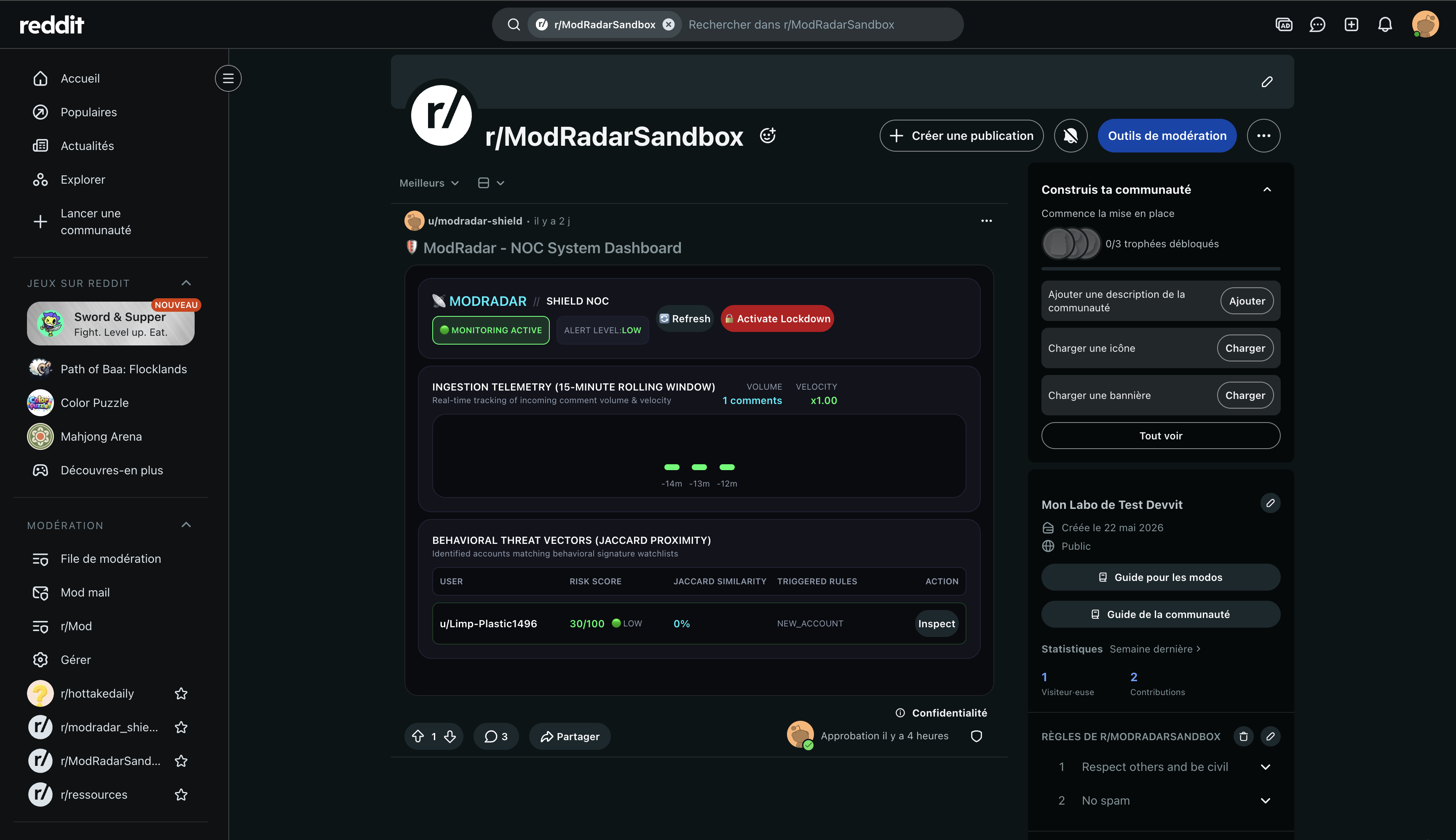

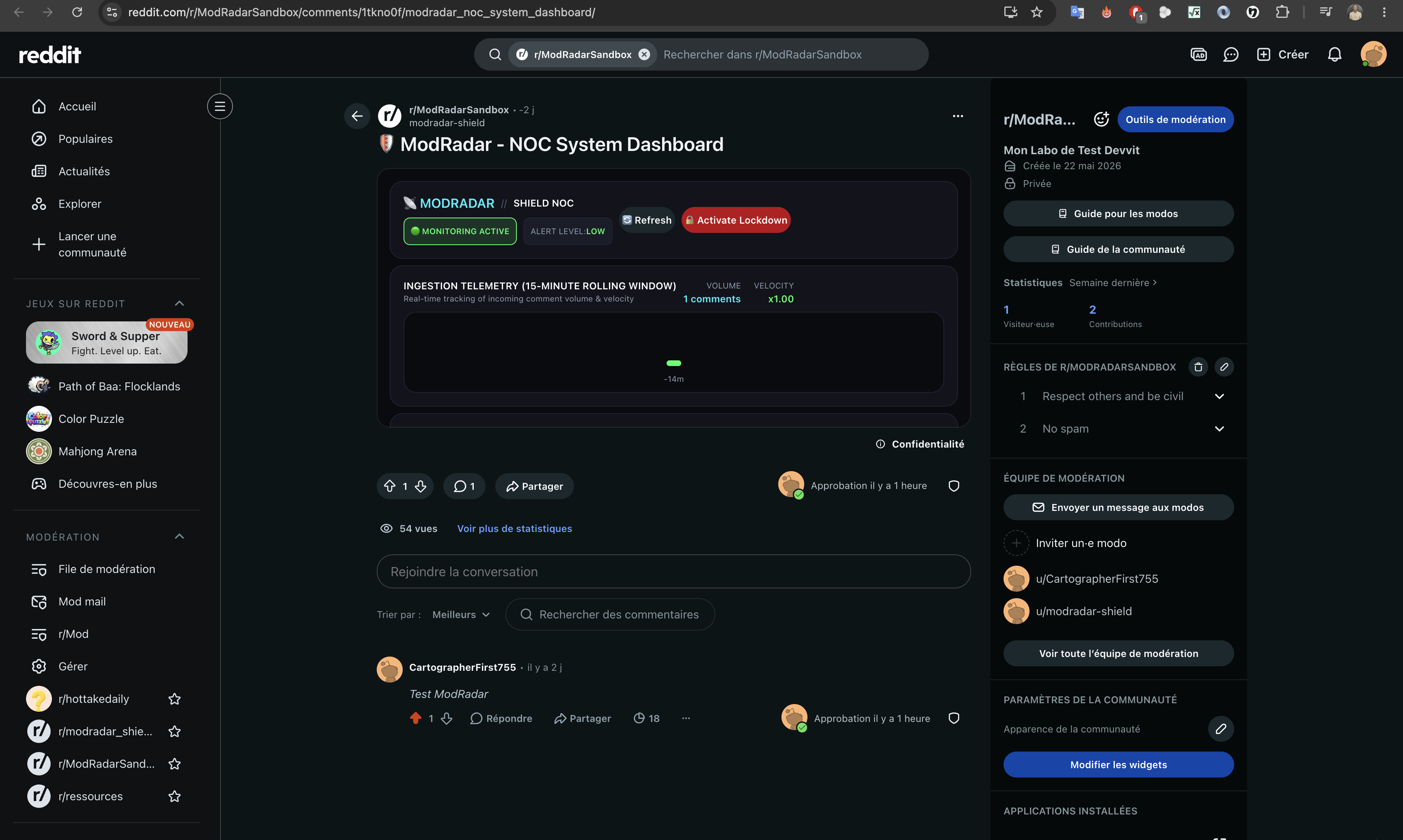

3. 🛡️ Interactive NOC Dashboard

A premium dark-themed Custom Post visualizes the subreddit security state in real time. Features include:

  • Live alert-level indicators (Harmonious NOC colors)
  • Ingestion telemetry charts (Custom built with dynamic primitives)
  • Behavioral threat tables showing flagged users, risk scores, Jaccard similarity, triggered rules, and deep scan inspection actions
  • Manual lockdown controls and automatic emergency lockdown (triggered at CRITICAL velocity with timed recovery via Devvit Scheduler)

4. ⚡ Circuit Breaker Optimization

To preserve Reddit API quotas during intense traffic, ModRadar implements a smart circuit breaker. If the account is trusted AND the alert level is LOW, the expensive Jaccard history analysis is skipped entirely. This dramatically reduces API consumption during normal traffic periods.

How we built it

ModRadar is a pure Devvit application built with a strict TypeScript architecture.

  • Real-Time Ingestion: Devvit.addTrigger(CommentSubmit)
  • Scheduled Recovery: Devvit.addSchedulerJob()
  • Interactive Dashboard: Devvit.addCustomPostType()
  • Moderator Controls: Devvit.addMenuItem() and Devvit.addSettings()

Clean Architecture:

src/
├── main.tsx                  # App orchestrator (triggers, scheduler, dashboard, menu)
├── types/
│   └── radar.ts              # Strict TypeScript interfaces & types
└── backend/
    ├── pipeline.ts           # Sequential middleware security engine
    └── sliding-window.ts     # Temporal telemetry bucketing & velocity computation

The Jaccard similarity engine was implemented entirely from scratch: zero external libraries, no ML dependencies, and no external services.

Challenges we ran into

  • Deprecated submitCustomPost(): We initially attempted context.reddit.submitCustomPost() based on older documentation, which failed. After inspecting the Devvit SDK source code, we migrated to the correct context.reddit.submitPost() with a JSX preview.
  • Custom Post Rendering Constraints: Devvit UI primitives do not provide native charting support. We manually built telemetry visualizations using dynamically-sized stacked layout blocks.
  • No Native TTL in kvStore: Devvit kvStore does not support automatic expiration. We implemented a probabilistic garbage collection mechanism (10% cleanup chance per comment) to evict buckets older than 20 minutes.
  • State Synchronization (ServerCallRequired): We ran into execution issues when using mutations inside client-side useAsync calls. We resolved this by extracting state updates into the asynchronous button handlers, letting Asyncify signals bubble up cleanly.

Accomplishments that we're proud of

  • Zero External Dependencies: The entire threat detection engine runs 100% on native Devvit APIs and pure TypeScript.
  • Real Mathematical Detection: Implemented a robust, case-insensitive, divide-by-zero safe Jaccard index from scratch.
  • Production-Grade Resilience: Built defensive null checks, fallbacks, and error boundaries for all operations.
  • Authentic NOC Experience: Created a highly immersive dark tactical UI with real-time incident controls.

What we learned

  • Devvit kvStore is surprisingly powerful when modeled as a lightweight time-series database.
  • Middleware patterns fit moderation systems exceptionally well.
  • Circuit breakers are just as valuable in moderation apps as they are in large microservices.

What's next for ModRadar

  • 📬 Mod Mail Integration: Automatic incident reports delivered directly to moderators.
  • ⏱️ Temporal Pattern Recognition: Detection of recurring attack patterns.
  • 🌐 Cross-Subreddit Federation: Shared anonymized threat intelligence across subreddits.
  • 🧠 Lightweight NLP Scoring: Combine behavioral detection with toxicity scoring.
  • 🔄 Real-Time Dashboard Refresh: Integrate useInterval to completely eliminate manual refreshes.
