Team 27 - Mocktail Maker

•

  Title Slide

•

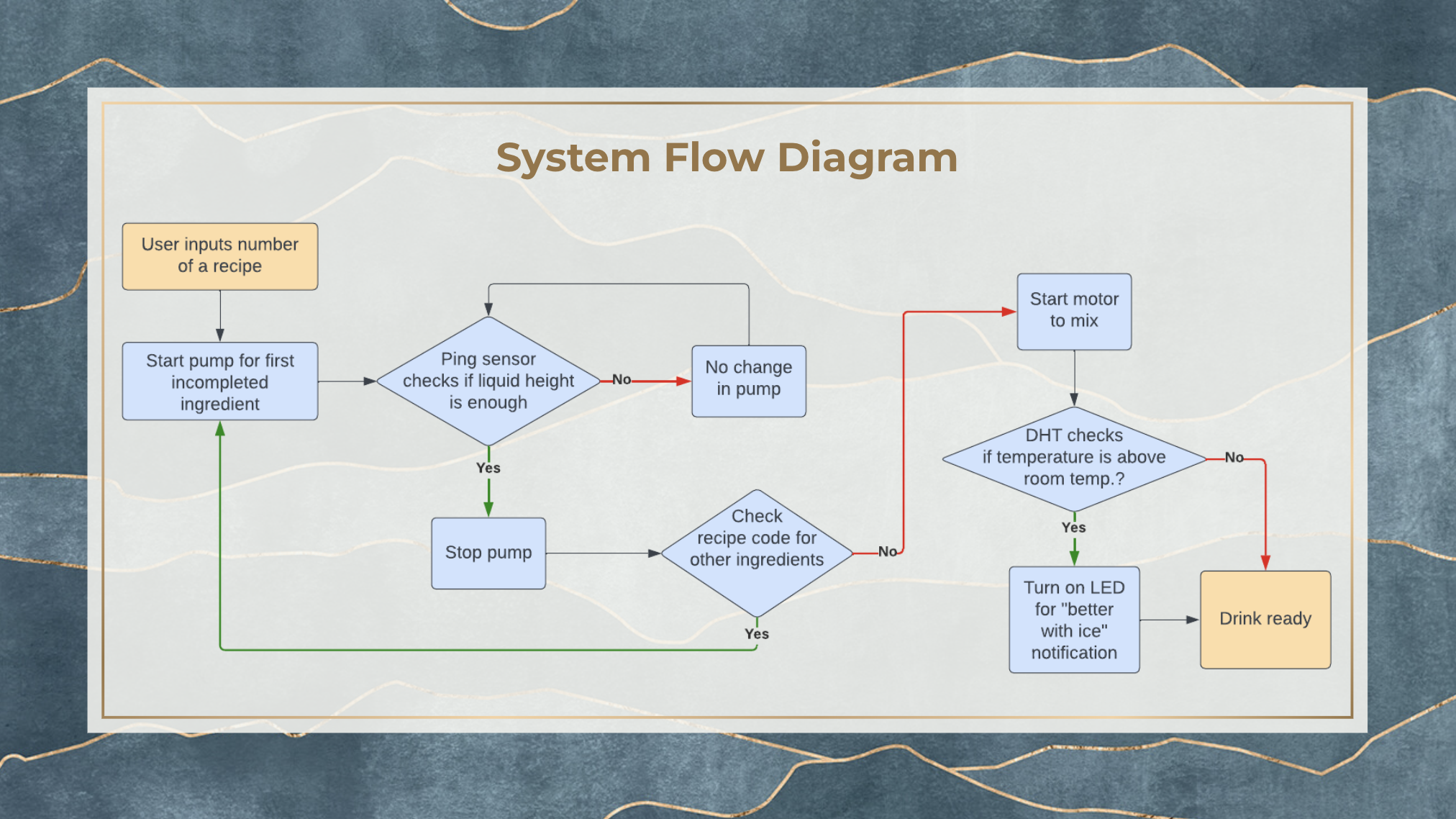

  System Flow Diagram

•

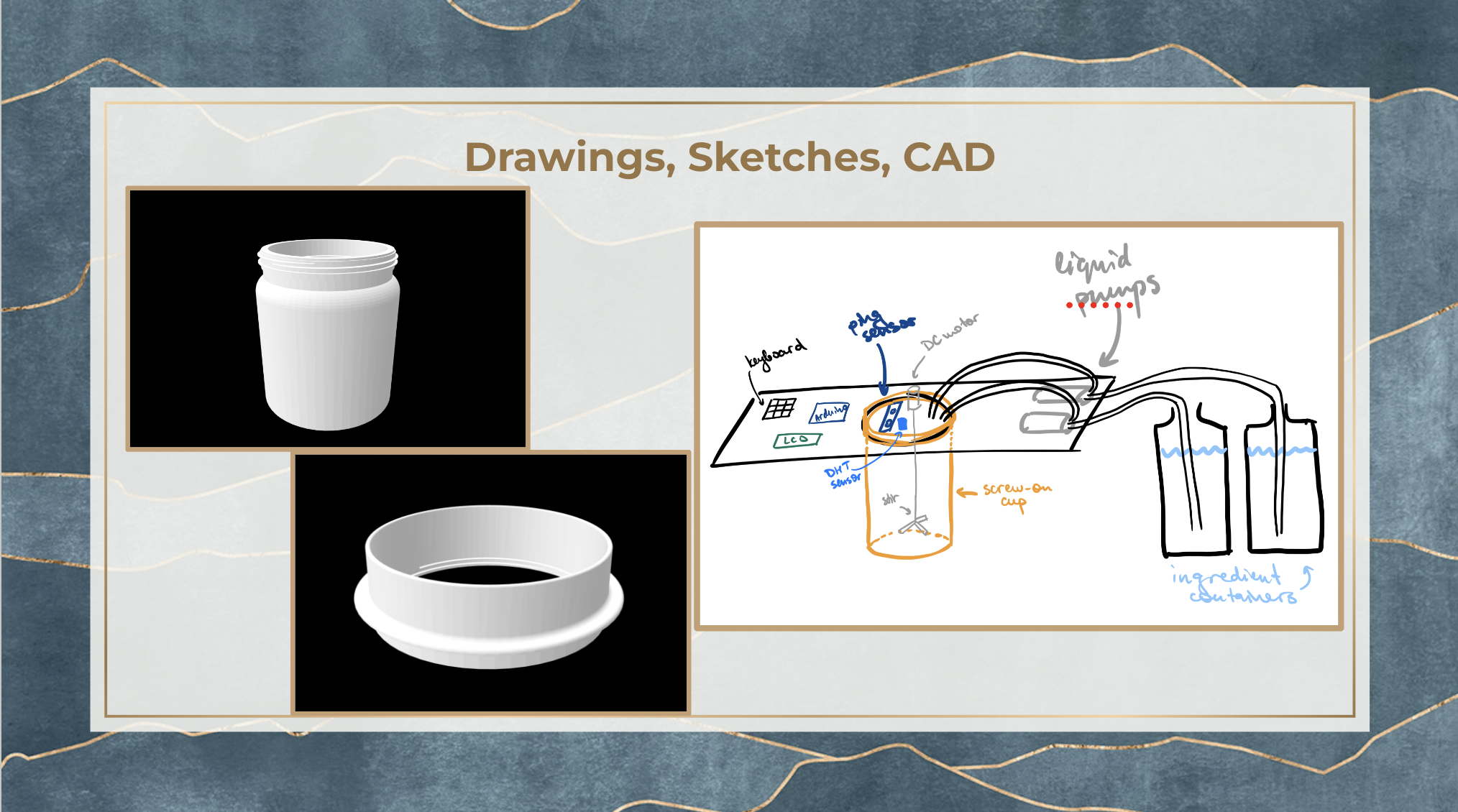

  Drawings, Sketches, CAD

•

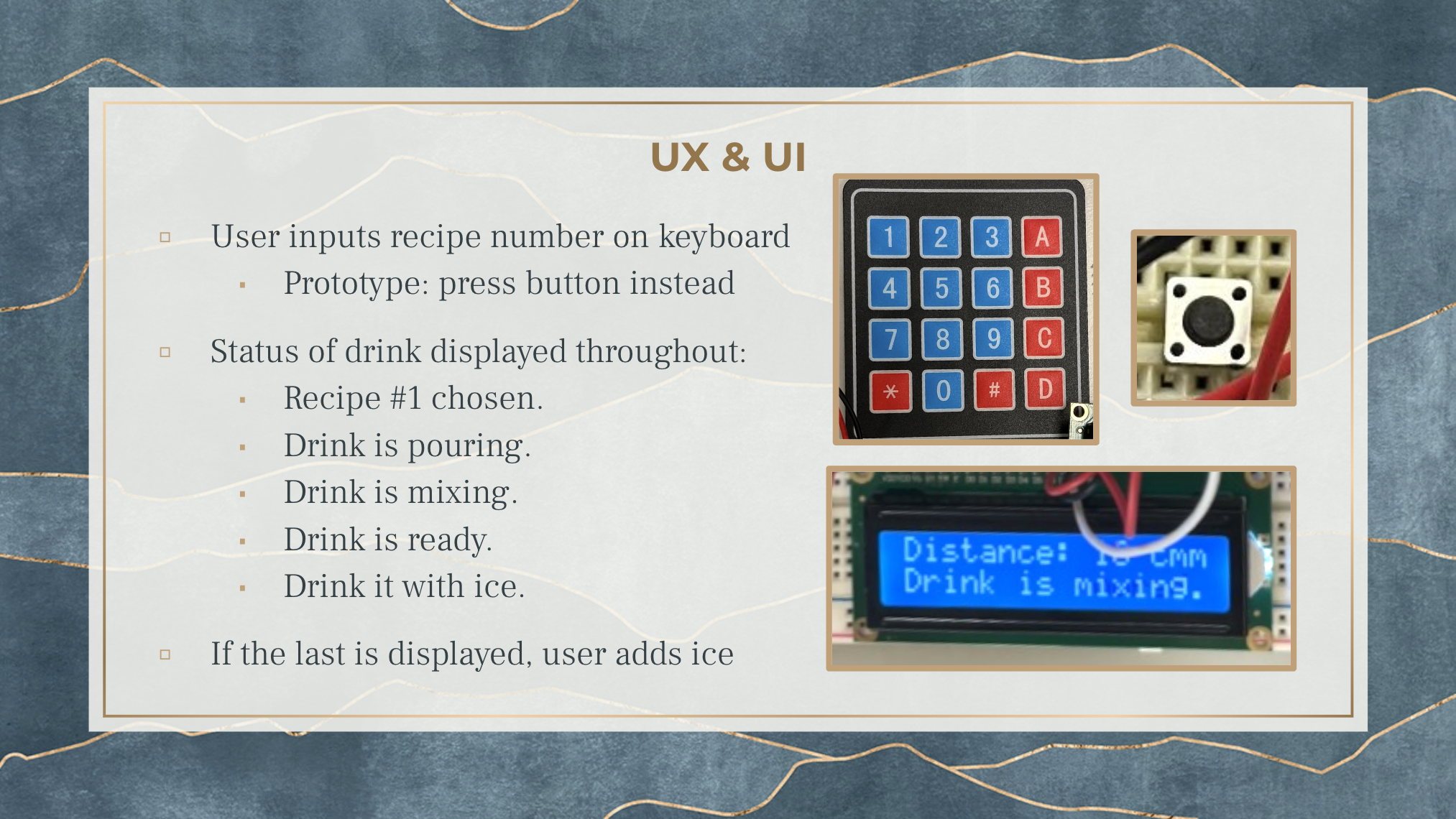

  UX & UI

•

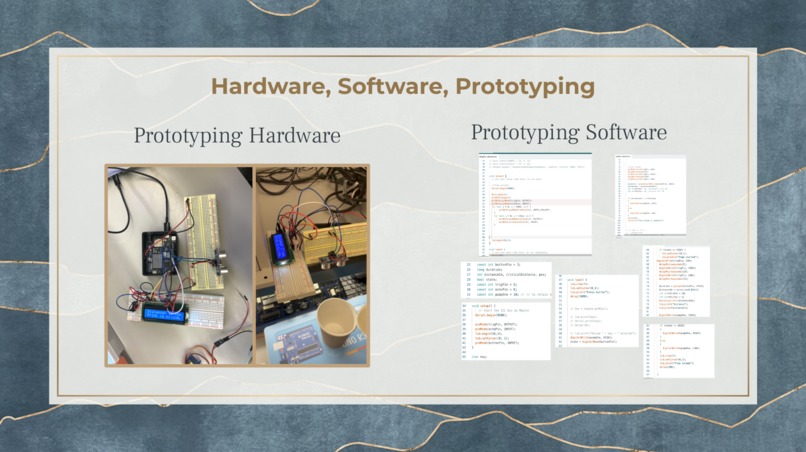

  Hardware, Software, Prototyping

•

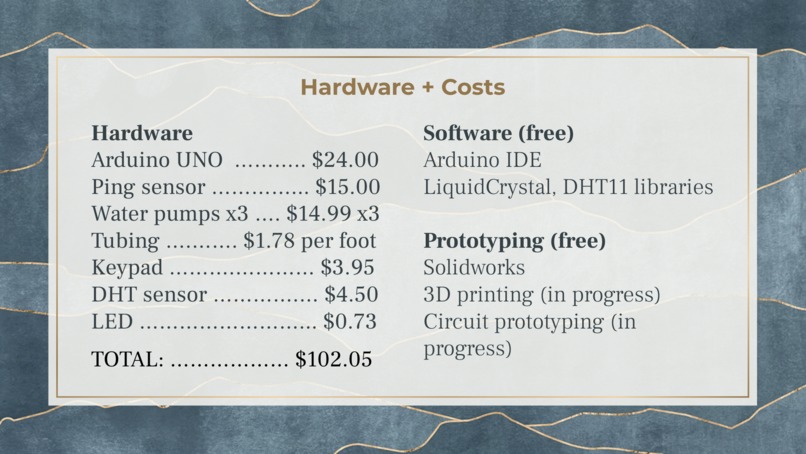

  Hardware and Costs

Problem

There are very few places that serve mocktails for individuals who don’t drink alcohol, and those that do charge outrageous prices.

Our Solution

A machine for college students that makes your desired mocktail for only the price of the ingredients.

How It Works

A ping sensor determines the height of the liquid in the cup. An Arduino Uno R4 Wifi controls the pumps that pour the ingredients into the user's cup and stop pouring once it reaches a certain height. The pumps use an external power source, which is controlled with relays. Three buttons allow the user to select one of three available recipes, while the LCD shows the status of the drink that is currently being made. Using data from a DHT sensor, the screen tells the user to add ice to their drink if needed.

Built With

• arduino
