GLP-1 Face Track: A Journey into Digital Health Monitoring

Inspiration

The idea for GLP-1 Face Track emerged from a growing concern in the medical community and social media discussions: "Ozempic Face" - the noticeable facial volume loss that many patients experience while taking GLP-1 agonists like Ozempic, Wegovy, and Mounjaro.

In 2025, a pivotal research paper by Sharma RK et al. titled "Radiographic Midfacial Volume Changes in Patients on GLP-1 Agonists" provided quantitative evidence: patients lose approximately 7% midfacial volume per 10kg of weight loss. This finding sparked a question:

Could we create an accessible tool that helps patients track these changes themselves, without expensive medical imaging equipment?

The goal was ambitious: transform a smartphone camera into a tool for longitudinal facial volume monitoring, democratizing access to health insights that were previously only available through clinical CT scans.

What I Learned

1. The Mathematics of Facial Analysis

The project deepened my understanding of computer vision and geometric analysis. Key concepts included:

Shoelace Formula for Area Calculation:

For a polygon with vertices $(x_1, y_1), (x_2, y_2), ..., (x_n, y_n)$, the area is:

$$A = \frac{1}{2} \left| \sum_{i=1}^{n-1} (x_i y_{i+1} - x_{i+1} y_i) + (x_n y_1 - x_1 y_n) \right|$$

Z-Depth Volume Estimation:

MediaPipe's Face Mesh provides 468 landmarks, each with an estimated Z-coordinate representing depth. The volume proxy uses:

$$V_{region} = \sum_{i \in region} A_i \cdot |z_i - z_{reference}|$$

Where $A_i$ is the area weight and $z_{reference}$ is a reference depth (typically nose bridge).

Inter-Pupillary Distance Normalization:

To account for varying camera distances, all metrics are normalized by the inter-pupillary distance (IPD):

$$\text{NormalizedIndex} = \frac{\text{RawIndex}}{\text{IPD}}$$

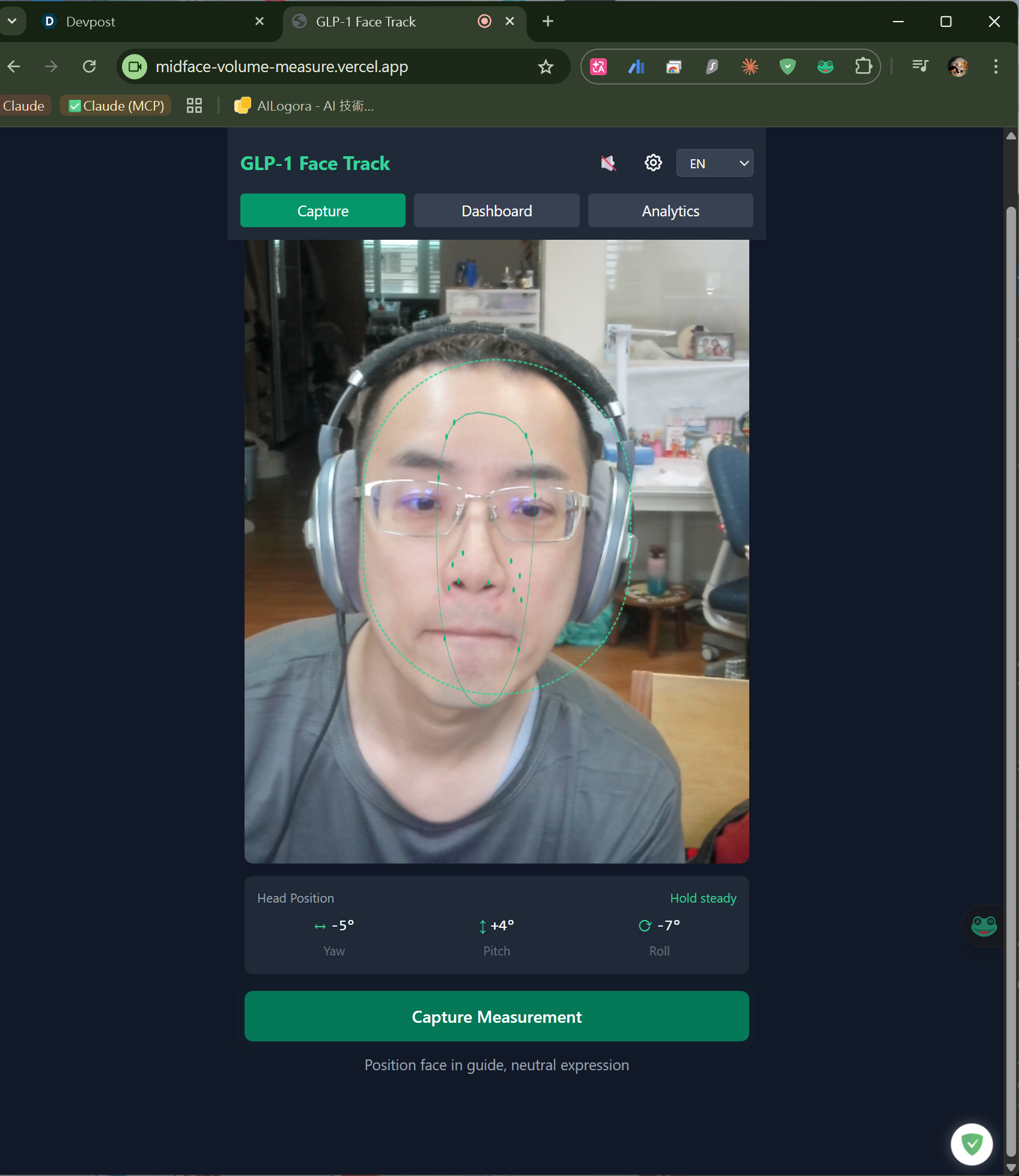

2. Pose Estimation Challenges

Head pose significantly affects measurement accuracy. I implemented Euler angle estimation:

  • Yaw ($\alpha$): Left-right rotation
  • Pitch ($\beta$): Up-down tilt
  • Roll ($\gamma$): Side tilt

The acceptable tolerance was set to $\pm 10°$ for all angles, ensuring consistent measurements across sessions.

3. Privacy-First Architecture

Building a health app taught me the importance of data sovereignty:

  • Local-First Design: IndexedDB stores all data on the user's device
  • Optional Cloud Sync: Supabase integration is opt-in, not required
  • No Analytics Tracking: User behavior is never monitored

4. Multi-Language Support

Implementing i18n (internationalization) revealed the complexity of localization:

const translations = {
  'zh-TW': { capture: '拍攝', dashboard: '儀表板' },
  'ja': { capture: '撮影', dashboard: 'ダッシュボード' },
  'en': { capture: 'Capture', dashboard: 'Dashboard' }
};

Voice guidance required not just translation, but culturally appropriate phrasing.

How I Built It

Architecture Overview

┌─────────────────────────────────────────────────────────┐
│                    Browser (Frontend)                    │
│  ┌─────────┐  ┌──────────┐  ┌──────────┐  ┌─────────┐  │
│  │ Camera  │  │ FaceMesh │  │ Metrics  │  │   UI    │  │
│  │ Module  │─▶│ Module   │─▶│ Engine   │─▶│ Module  │  │
│  └─────────┘  └──────────┘  └──────────┘  └─────────┘  │
│       │                                          │       │
│       └──────────────────────────────────────────┘       │
│                          │                               │
│              ┌───────────▼───────────┐                   │
│              │   IndexedDB (Local)   │                   │
│              └───────────┬───────────┘                   │
└──────────────────────────┼───────────────────────────────┘
                           │ (optional)
                           ▼
              ┌─────────────────────────┐
              │   Supabase (Cloud)      │
              │   • Authentication      │
              │   • PostgreSQL + RLS    │
              │   • Storage Bucket      │
              └─────────────────────────┘

Technology Stack

Component Technology Why
Face Detection MediaPipe Face Mesh 468 landmarks, runs in-browser, no API calls
Styling TailwindCSS (CDN) Rapid prototyping, small bundle
Charts Chart.js Lightweight, responsive
Local Storage IndexedDB Structured data, large capacity
Cloud Backend Supabase PostgreSQL + Auth + Storage in one
Deployment Vercel Automatic builds, environment variables
Language Vanilla JavaScript No build step needed, fast loading

Key Implementation Decisions

1. No Framework (Vanilla JS)

Given this is a single-page app with moderate complexity, frameworks like React would add unnecessary overhead. The entire app loads in under 2MB including MediaPipe models.

2. Modular Architecture

Each concern is a separate module:

  • camera.js - WebRTC camera access
  • faceMesh.js - MediaPipe integration
  • poseEstimator.js - Head pose calculation
  • metrics.js - Volume calculations
  • analytics.js - Health scores, predictions
  • storage.js - IndexedDB wrapper
  • visualization.js - Chart.js integration

3. Region-Based Volume Analysis

Following the research paper's methodology, I defined anatomical regions:

const MIDFACE_REGIONS = {
  upperCheek: {
    left: [116, 117, 118, 119, 120, 121, 187, 205, 36, 142],
    right: [345, 346, 347, 348, 349, 350, 411, 425, 266, 371]
  },
  // ... more regions
};

4. Merz Aesthetics Scale Mapping

To make results clinically interpretable, I mapped volume changes to the Merz Scale (0-4):

Score Severity Volume Change
0 None > -5%
1 Mild -5% to -15%
2 Moderate -15% to -25%
3 Noticeable -25% to -35%
4 Severe < -35%

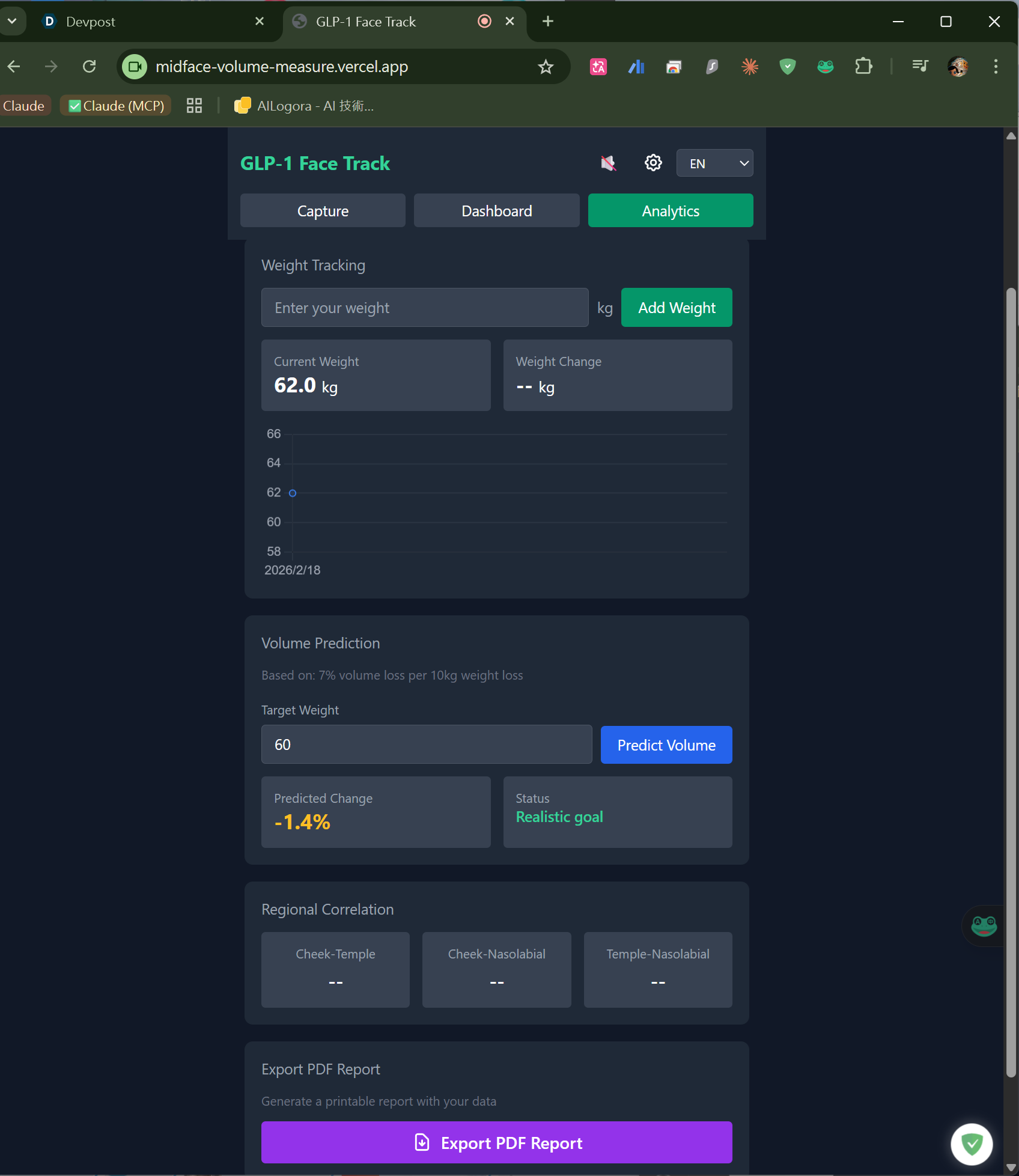

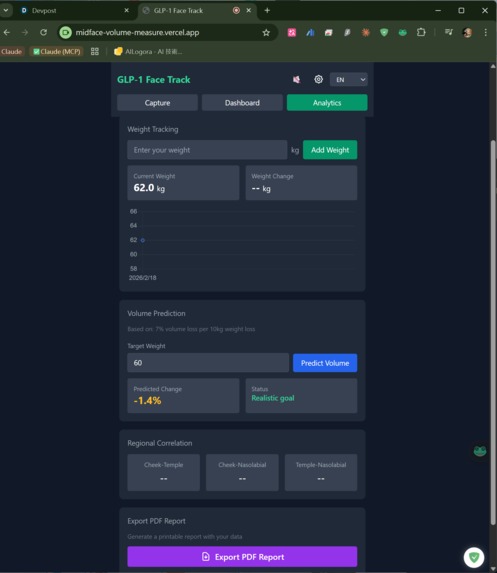

Prediction Model

Based on the research correlation ($\rho = 0.590$ between weight loss and superficial volume loss), I implemented a prediction formula:

$$\Delta V_{predicted} = \frac{\Delta W}{10} \times 7\%$$

Where $\Delta W$ is weight change in kg.

For a patient planning to lose 15kg: $$\Delta V = \frac{15}{10} \times 7\% = 10.5\% \text{ predicted volume loss}$$

Challenges Faced

Challenge 1: MediaPipe Initialization Timing

Problem: MediaPipe models load asynchronously, causing race conditions.

Solution: Implemented a promise-based initialization with retry logic:

async init() {
  return new Promise((resolve, reject) => {
    this.faceMesh = new FaceMesh({
      onResults: (results) => this.handleResults(results)
    });
    this.faceMesh.initialize().then(resolve).catch(reject);
  });
}

Challenge 2: Z-Depth Accuracy

Problem: MediaPipe's Z-coordinates are estimates, not true depth measurements.

Solution: Used relative Z-depths within a single frame and normalized by IPD. This doesn't give absolute volume but provides consistent trend tracking.

Challenge 3: Storage Path Configuration

Problem: When deploying to Vercel, the static file server couldn't access files outside the src/ directory.

Solution: Created a build script that generates config.js into src/js/ based on environment variables:

// build-config.js
fs.writeFileSync(
  'src/js/config.js',
  `window.SUPABASE_URL = '${process.env.SUPABASE_URL}';`
);

Challenge 4: Row Level Security (RLS) Complexity

Problem: Supabase's RLS policies are powerful but tricky to get right.

Solution: Carefully crafted policies ensuring users can only access their own data:

CREATE POLICY "Users can view own measurements"
  ON measurements FOR SELECT
  USING (auth.uid() = user_id);

Challenge 5: Mobile Browser Camera Constraints

Problem: iOS Safari has strict requirements for getUserMedia - it only works with user-facing camera and requires user gesture.

Solution:

  • Only request camera on explicit button tap
  • Use playsinline attribute for video element
  • Provide clear error messages for permission denial

Challenge 6: Multi-Language Voice Guidance

Problem: Web Speech API support varies across browsers and languages.

Solution: Implemented graceful degradation with feature detection:

async speak(text, lang) {
  if (!('speechSynthesis' in window)) {
    console.warn('Speech synthesis not supported');
    return;
  }
  const utterance = new SpeechSynthesisUtterance(text);
  utterance.lang = lang;
  window.speechSynthesis.speak(utterance);
}

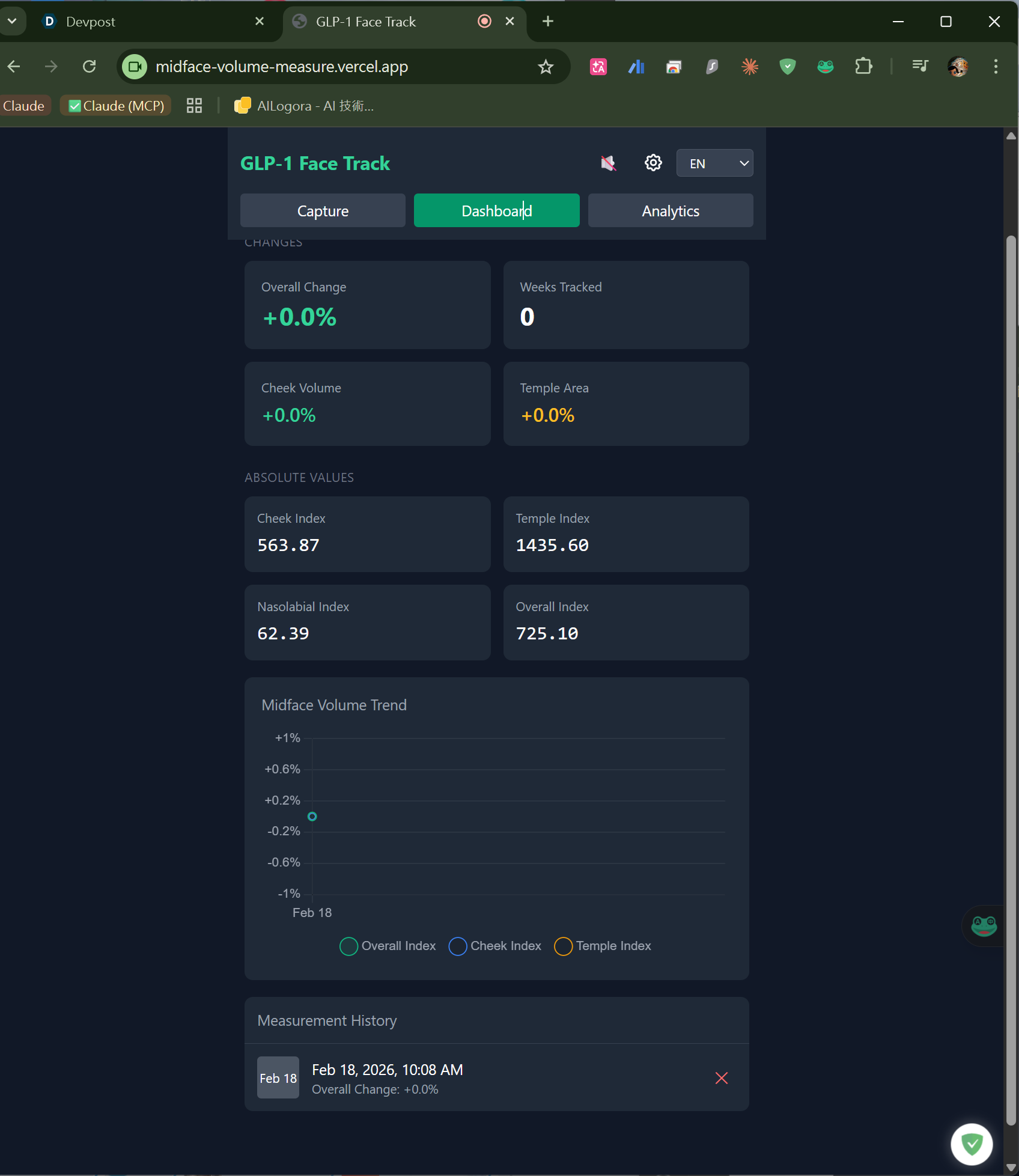

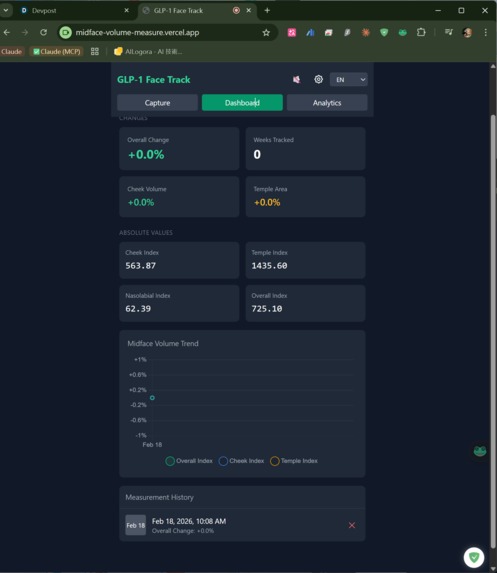

Results

After several iterations, the app now provides:

  • Real-time face detection with pose guidance
  • Accurate trend tracking for volume changes
  • Weight-volume correlation visualization
  • PDF report generation for medical consultations
  • Cross-device sync via Supabase

Live at: https://midface-volume-measure.vercel.app

Future Improvements

  1. 3D Reconstruction: Integrate depth-sensing cameras for true volumetric analysis
  2. Clinical Validation: Partner with dermatologists to calibrate thresholds
  3. AI Insights: Use machine learning to predict individual trajectories
  4. Intervention Suggestions: Recommend skincare routines based on detected changes

Conclusion

GLP-1 Face Track demonstrates that accessible technology can bridge the gap between clinical research and everyday health monitoring. By combining computer vision, thoughtful UX, and privacy-first design, we've created a tool that empowers patients to understand their bodies better.

The project taught me that the most impactful applications often come from addressing real-world problems with simple, accessible solutions. Sometimes, you don't need complex infrastructure - just the right combination of existing technologies applied thoughtfully.

"The best measure of a person's health is not what they weigh, but how they feel in their own skin."

Accomplishments that we're proud of

What we learned

What's next for midface-vulome-measure

Built With

  • canvas-api
  • html5
  • mediapipe
  • web-speech
