Micah: Multimodal Intelligent Clinical Assistant/Healthcare

An open-source, embodied, virtual assistant for clinicians that interfaces with an EHR system and FHIR stores using natural language and deep analysis of free-form medical notes and text.

Comment

Micah

  • Embodied, virtual assistant for clinicians using EHR
  • Improve usability of EHR systems by interfacing using natural language instead of GUI widgets
  • Micah communicates using voice, text, images, multimedia...

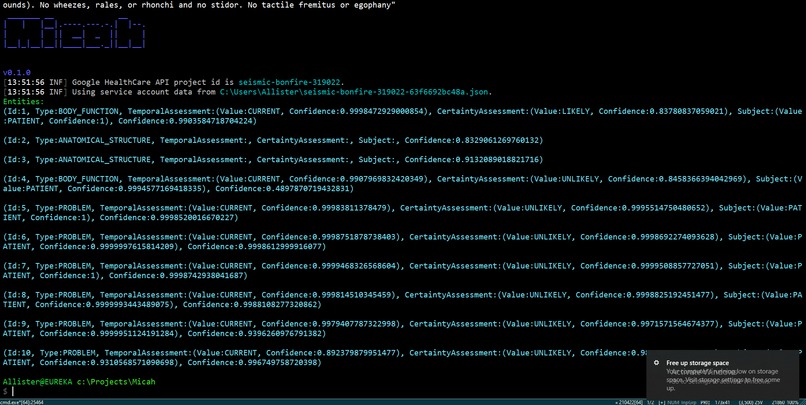

  • Deep analysis of natural language medical notes and free text to extract structured information
  • Store and query health data in multiple FHIR stores
  • 100% open-source

Problem statement - EHR pain points

  • Too much time spent fighting EHR systems vs. spending time with patients
  • Complex, unforgiving interface actions required for querying, searching, retrieving information from EHR
  • Mode mismatch entering and querying patient data vs. conversing with patient or other staff
  • Software or interface changes or additions require retraining
  • Physician burnout...
  • Proprietary software promotes vendor lock-in, patient data silos
  • Cost

STOP! - How to avoid medical 'Clippy'?

  • Use deterministic rule-based dialogue manager based on NLU semantic parsing
  • NLU technology is maturing rapidly
  • Models trained on knowledge graphs, not simple conversations
  • In the lab ASR approaching human-level recognition
  • It's going to happen....

Typical use case

  1. User logs in to Micah over the Web
  2. Authentication via OAuth and optional biometric authentication
  3. User selects public-facing FHIR server or uses Google Healthcare store
  4. User queries patient records FHIR store using natural language e.g
    • Find Michael Parks from Manhattan
    • show me all vital observations for Michael Parks since last Thursday
  5. Single query can potentially be sent to multiple FHIR servers
  6. User adds notes, observations, Health & Physical Examination....
  7. Micah extracts FHIR resources from text and stores it in designated server

Implementation - Overview

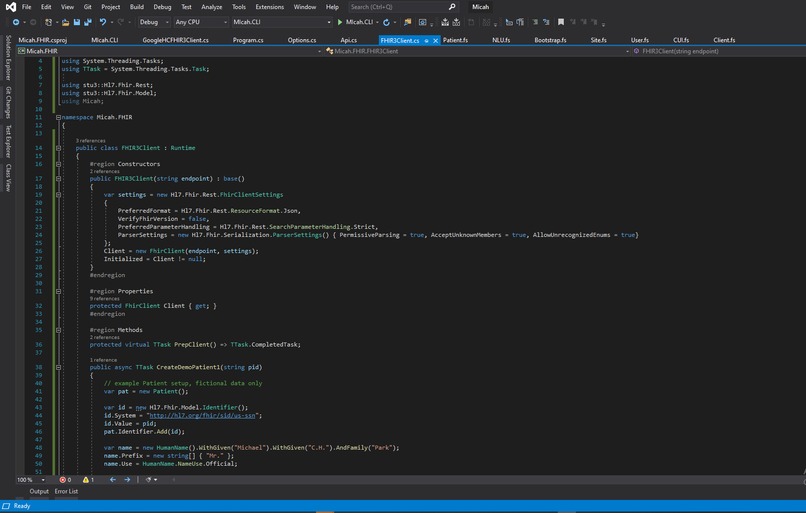

  • Written in F# and runs on .NET and PGSQL
  • Hosted on RedHat OpenShift Kubernetes-based PaaS

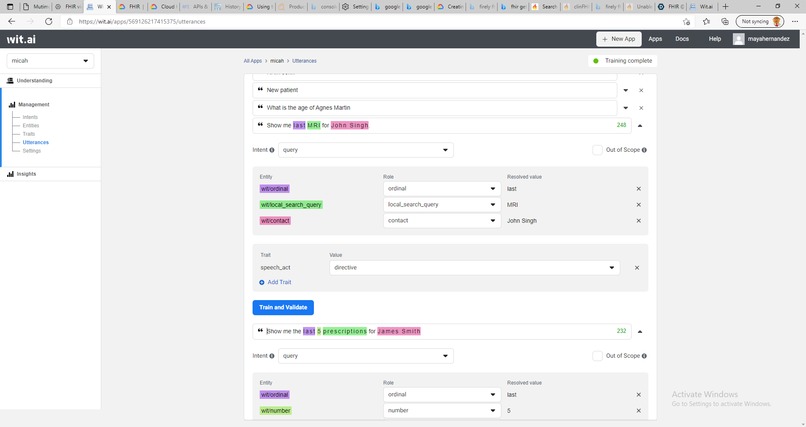

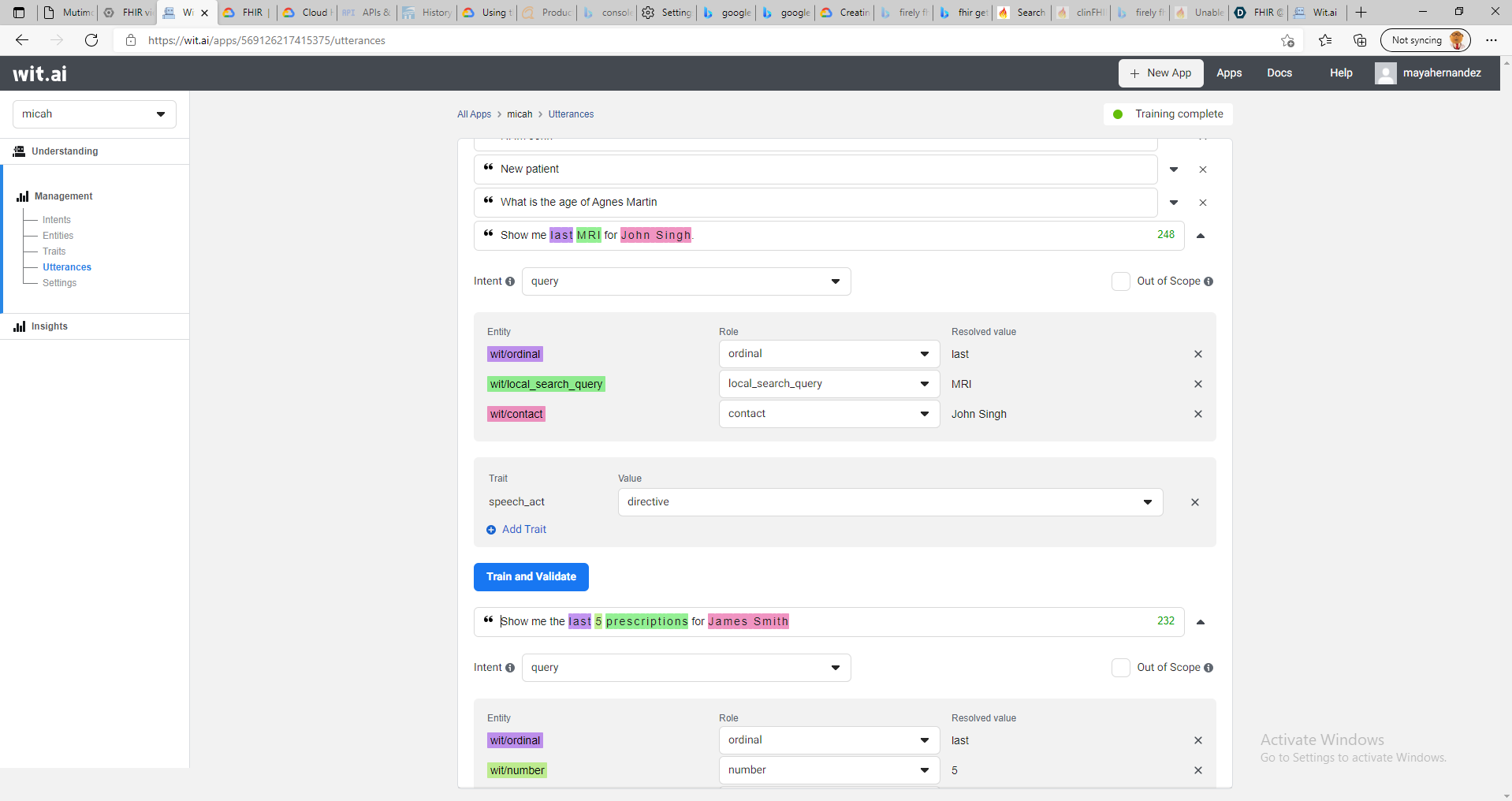

  • NLU services:
    • Wit.ai
    • Google Healthcare NLU
    • expert.ai
  • Firely .NET FHIR libraries

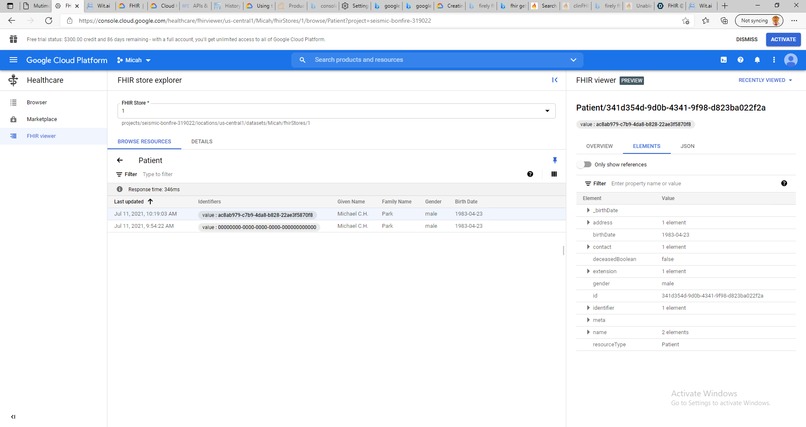

  • Connects to Google Healthcare FHIR store + public FHIR stores
  • Can use facial and TypingDNA typing biometric authentication

Implementation - Security

  • OAuth authentication using Google
  • In-browser biometric facial recognition e.g via. Azure Face recognition
  • In-browser biometric typing recognition via TypingDNA
  • Google Healthcare is HIPAA compliant
  • Google Healthcare FHIR uses OAuth authentication
