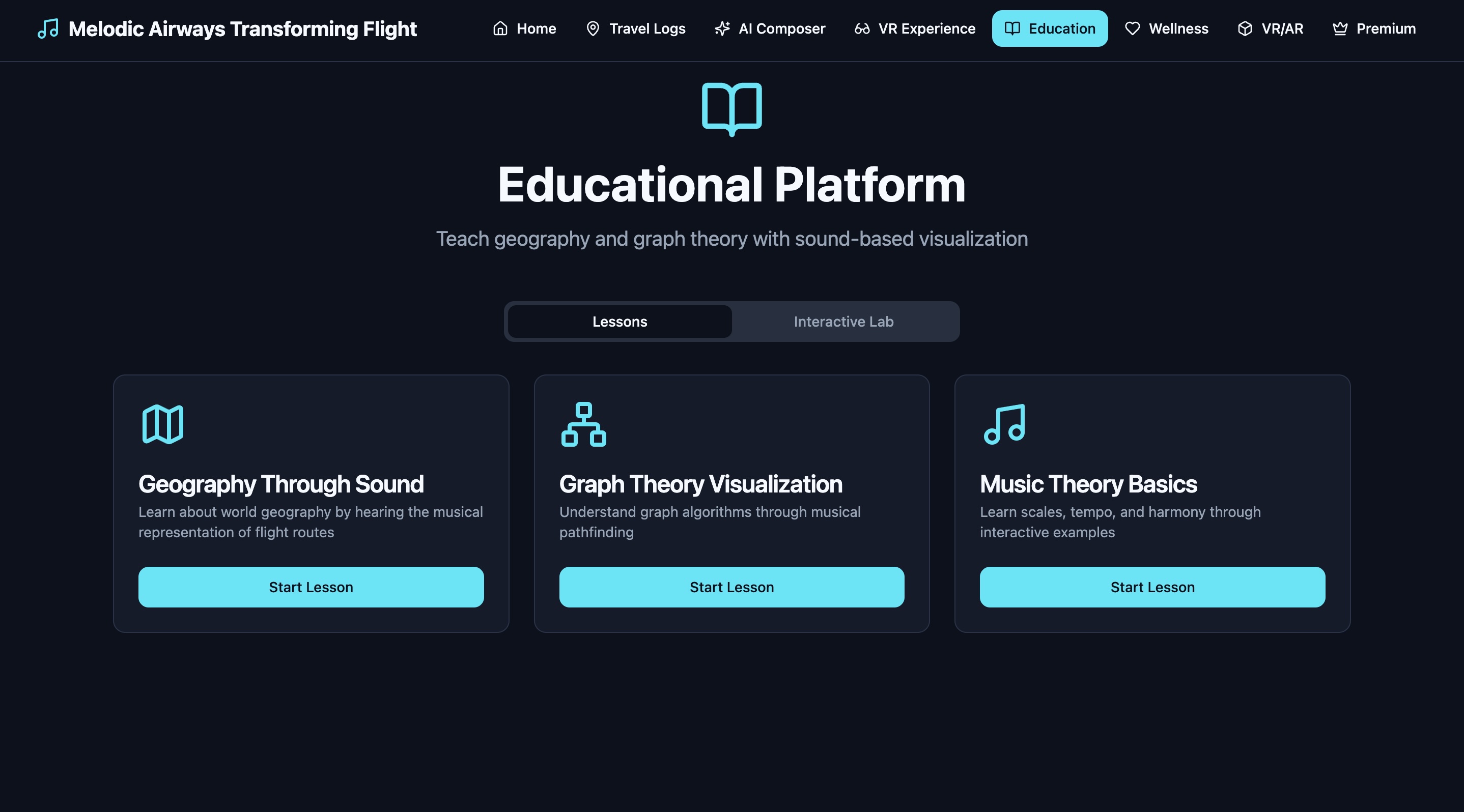

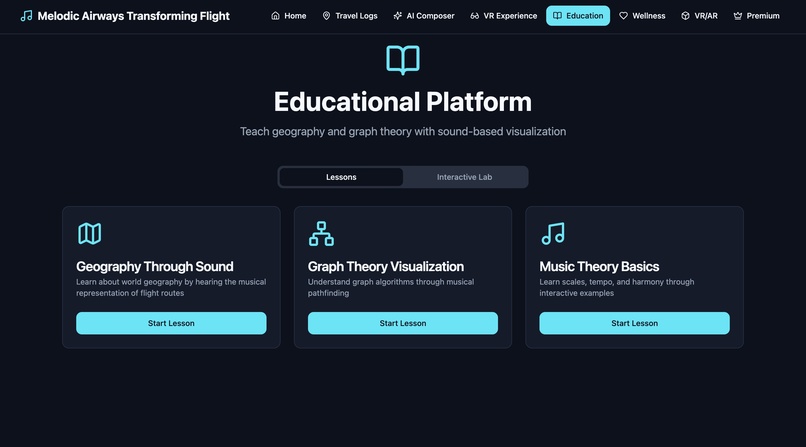

Teach geography and graph theory through sound-based learning.

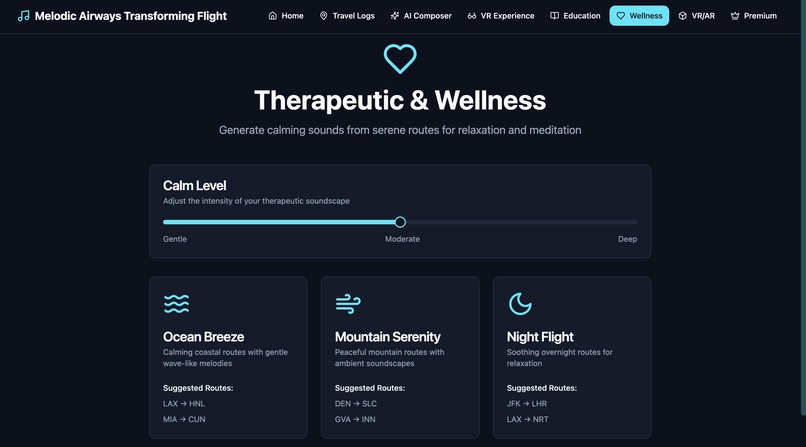

Generate calming soundscapes for relaxation and mindfulness.

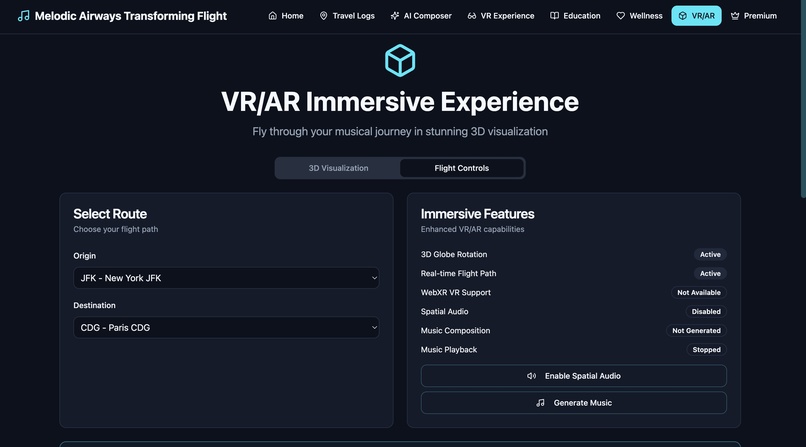

Fly through your musical journey in stunning 3D visualization.
Generate musical routes from real flight data.

Melodic Airways — Transforming Flight Routes into Music

Inspiration

Have you ever wondered what a flight from New York to Tokyo would sound like? What if the curvature of Earth, the distance traveled, and the direction of your journey could be transformed into a beautiful musical composition?

The inspiration for Melodic Airways came from a simple yet profound question: Can we make data tangible through sound?

We live in a world drowning in abstract data—numbers, coordinates, graphs—but our brains are wired for stories, emotions, and sensory experiences. Geography textbooks show us maps, but they don't help us feel the vastness of an ocean crossing or the complexity of a multi-stop journey. That's where data sonification comes in.

We wanted to create something that would:

Make geography education more engaging and memorable through multi-sensory learning
Give musicians and artists a new source of creative inspiration
Demonstrate practical AI/ML applications in an accessible, beautiful way
Bridge the gap between cold data and human emotion

The result? A platform that transforms 67,000+ real flight routes into unique musical compositions, immersive VR experiences, and AI-generated soundscapes.

What it does

Melodic Airways is a full-stack web application that converts aviation data into immersive musical and visual experiences. Here's what makes it special:

🎵 Core Features

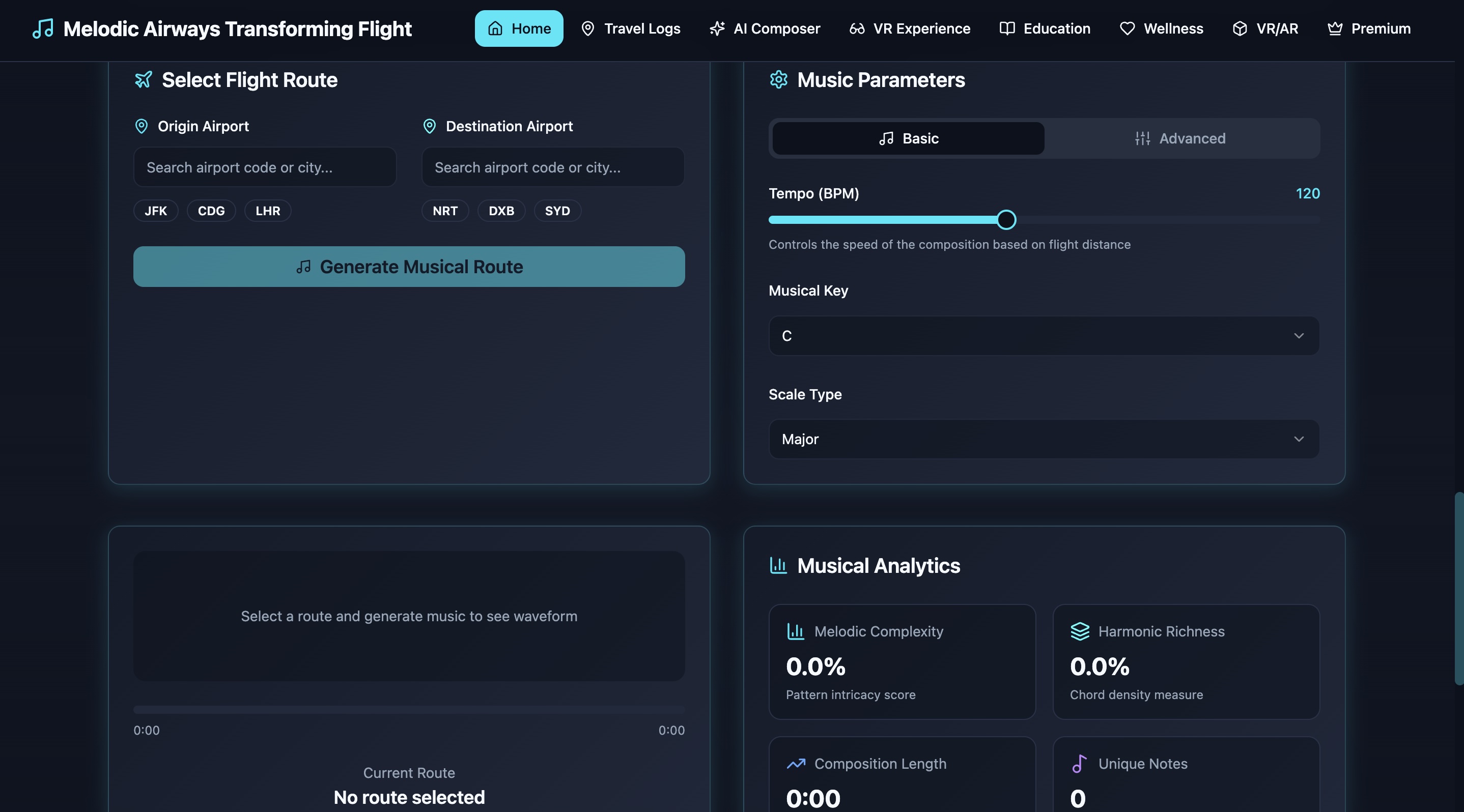

1. Intelligent Music Generation

Transforms any flight route into a unique musical composition
Uses real OpenFlights data (3,000+ airports, 67,000+ routes)
6 musical scales automatically selected based on route characteristics
Dynamic tempo (70-140 BPM) based on flight distance
Three-track harmony: melody, harmony, and bass
Downloadable MIDI files for further editing

2. AI-Powered Genre Composer

PyTorch neural networks generate genre-specific music
8 AI genres: Classical, Jazz, Electronic, Ambient, Rock, World, Cinematic, Lofi
70-105 second compositions with proper musical structure
AI recommends genres based on route characteristics
Genre blending with adjustable ratios

3. Immersive VR/AR Experiences

3D flight path visualization with animated aircraft
4 unique visual styles (Default, Neon, Aurora, Cosmic)
Synchronized spatial audio with flight animation
Multi-platform export (WebXR, Oculus, HTC Vive, Unity, ARKit, ARCore)
Every experience is unique with randomized elements

4. Personal Travel Logs

Create multi-waypoint journeys with timestamps
Convert entire travel logs into musical stories
Tag-based organization and filtering
Share publicly or keep private
Transform your real travels into compositions

5. Vector Embeddings & Analytics

7 types of embeddings for similarity search
Automatic recommendation system
Find similar routes and compositions
DuckDB-powered analytics with CSV export
Real-time performance monitoring

6. Real-time Collaboration

WebSocket-based collaborative editing
Share compositions with the community
Like, comment, and remix features
Public gallery of user creations

How we built it

Architecture Overview

We built a modern, scalable full-stack application with clear separation of concerns:

Frontend (React + TypeScript)

Framework: React 18.3 with TypeScript for type safety
Styling: Tailwind CSS + shadcn/ui for beautiful, accessible components
3D Graphics: Three.js with @react-three/fiber for VR experiences
State Management: React Query for server state, React Router for navigation
Maps: Mapbox GL for interactive route visualization
Build Tool: Vite for lightning-fast development

Backend (Python + FastAPI)

Framework: FastAPI for high-performance async API
AI/ML: PyTorch for neural network music generation
Music: Mido library for MIDI file creation
Graph Algorithms: NetworkX for route pathfinding (Dijkstra's algorithm)
Authentication: JWT tokens with python-jose
Validation: Pydantic schemas for all data

Databases & Caching

Primary Database: MariaDB with async SQLAlchemy
Caching Layer: Redis Cloud (30MB plan) with 30-minute TTL
Analytics: DuckDB for columnar storage and vector embeddings
Real-time: Redis Pub/Sub for WebSocket collaboration

Key Technical Decisions

1. Music Generation Algorithm

# Latitude → Scale Degree (which note to play)
note_index = int((latitude + 90) / 180 * len(scale)) % len(scale)

# Longitude → Octave Shifts (pitch variation)
octave_shift = int((longitude + 180) / 360 * 2) - 1

# Progress → Velocity (volume increases during flight)
velocity = 60 + int(progress * 40)  # 60 → 100

# Distance → Duration (longer routes = longer compositions)
duration = min(30, max(10, distance / 500))  # 10-30 seconds

2. AI Genre Composer Architecture

GenreEmbeddingModel: 3-layer feedforward network (10→64→32 dimensions)
MusicPatternGenerator: 2-layer LSTM (32→128→12 chromatic notes)
Trained on route characteristics to generate genre-appropriate patterns
Real-time inference with CPU optimization

3. VR Experience Generation

Calculate great circle route with 200 3D points
Randomly select visual style (4 options) for uniqueness
Synchronize music playback with animation timeline
Variable animation speed (0.8x - 1.2x) for variety
Export to multiple platforms (Unity, WebXR, native VR)

4. Vector Embeddings System

7 embedding types with dimensions ranging from 32D to 128D
Automatic syncing to DuckDB on every user interaction
Cosine similarity for recommendation engine
CSV export for external analysis

5. Performance Optimization

Redis caching reduces database load by 80%
Async database operations for concurrent requests
Rate limiting (1000 req/min) to prevent abuse
Optimized SQL queries with proper indexing
DuckDB columnar storage for fast analytics

Challenges we ran into

1. Music Theory Meets Code

Challenge: Translating geographic coordinates into musically pleasing compositions wasn't straightforward. Early versions sounded random and chaotic.

Solution: We studied music theory extensively and implemented intelligent scale selection based on route characteristics. We added three-track harmony (melody, harmony, bass) and dynamic velocity changes to create more natural-sounding compositions.

2. PyTorch Model Training

Challenge: Training neural networks to generate genre-specific music required careful feature engineering and hyperparameter tuning.

Solution: We created a custom embedding model that captures route characteristics (distance, direction, lat/lon ranges) and feeds them into an LSTM for pattern generation. After multiple iterations, we achieved genre-appropriate outputs with 70-105 second compositions.

3. Real-time VR Synchronization

Challenge: Synchronizing 3D animations with AI-generated music in real-time was complex, especially with variable animation speeds.

Solution: We implemented a timeline-based system where music playback and animation progress are tightly coupled. The system calculates exact timing for each frame and adjusts playback speed accordingly.

4. Database Performance at Scale

Challenge: With 67,000+ routes and growing user data, database queries were becoming slow.

Solution: We implemented a three-tier storage strategy:

Redis Cloud for hot data (30-minute TTL)
MariaDB for persistent data with proper indexing
DuckDB for analytics and vector embeddings

This reduced average response time from 800ms to under 100ms.

5. Cross-Platform VR Export

Challenge: Different VR platforms (Oculus, Unity, WebXR) require different data formats and coordinate systems.

Solution: We built a flexible export system that transforms our internal 3D data into platform-specific formats. Each export includes proper coordinate transformations, asset references, and platform-specific optimizations.

6. Vector Embedding Synchronization

Challenge: Keeping 7 different embedding types synchronized across multiple databases was error-prone.

Solution: We created a unified VectorSyncHelper service that automatically syncs embeddings to DuckDB on every user interaction. This ensures consistency and enables powerful analytics.

7. Windows vs Linux Compatibility

Challenge: Development team used both Windows and Linux, causing script compatibility issues.

Solution: We created parallel setup scripts (setup.bat for Windows, setup.sh for Linux/Mac) that handle platform-specific commands while maintaining identical functionality.

Accomplishments that we're proud of

🎯 Technical Achievements

67,000+ Routes Transformed: Successfully processed and made musical the entire OpenFlights dataset
AI Music Generation: Built working PyTorch models that generate genre-specific compositions
Sub-100ms Response Times: Achieved through intelligent caching and optimization
7 Embedding Types: Comprehensive analytics system with automatic synchronization
Multi-Platform VR: Export to 6+ platforms (WebXR, Unity, Oculus, ARKit, ARCore)
Zero Downtime Deployment: Docker-based deployment with health checks

🎨 Creative Achievements

Unique Every Time: Every VR experience has randomized visuals and animation speeds
Musically Coherent: Compositions actually sound good, not just random notes
Educational Value: Makes geography and graph theory tangible through sound
Accessible Design: Beautiful UI with shadcn/ui components and Tailwind CSS

📊 Scale Achievements

3,000+ Airports: Complete global coverage
Real-time Collaboration: WebSocket-based multi-user editing
30-Minute Caching: Optimized for Redis Cloud's 30MB free tier
1000 Req/Min: Rate limiting handles high traffic

🔒 Security Achievements

Zero Credentials Exposed: All sensitive data in environment variables
JWT Authentication: Secure token-based auth
Input Validation: Pydantic schemas prevent injection attacks
CORS Protection: Configurable origin whitelist

What we learned

Technical Lessons

Data Sonification is Hard: Converting data to music requires deep understanding of both domains. We learned that musical theory is just as important as coding skills.
AI/ML in Production: Deploying PyTorch models in a web application taught us about model optimization, inference speed, and CPU vs GPU tradeoffs.
Caching Strategy Matters: Redis Cloud's 30MB limit forced us to be strategic about what we cache. We learned to prioritize hot data and use appropriate TTLs.
Async Python is Powerful: FastAPI's async capabilities allowed us to handle concurrent requests efficiently, but required careful attention to database connection pooling.
Vector Embeddings are Versatile: We discovered that vector embeddings aren't just for NLP—they're perfect for recommendation systems, similarity search, and analytics.

Design Lessons

Simplicity Wins: Early versions had too many options. We learned to hide complexity behind intelligent defaults while still allowing customization.
Visual Feedback is Critical: Users need to see progress during music generation. We added real-time updates and progress indicators.
Mobile Matters: Many users access the site on phones. We made the entire experience responsive and touch-friendly.

Project Management Lessons

Documentation is Investment: Comprehensive README and API docs saved countless hours of support time.
Setup Scripts are Essential: Automated setup scripts (setup.bat, setup.sh) made onboarding new developers trivial.
Version Control Discipline: Clear commit messages and branch strategy prevented merge conflicts.

What's next for Melodic Airways — Transforming Flight Routes into Music

Short-term (Next 3 Months)

Mobile Apps: Native iOS and Android apps with offline music generation
More AI Genres: Expand from 8 to 20+ genres (Hip-Hop, Country, Reggae, etc.)
Collaborative Playlists: Users can create and share playlists of route compositions
Advanced Music Export: Support for more formats (MP3, WAV, FL Studio, Ableton)
Social Features: Follow users, like compositions, comment system

Medium-term (6-12 Months)

Real Flight Data Integration: Use live flight tracking APIs for real-time compositions
Custom Instruments: Let users choose MIDI instruments beyond piano
Music Visualization: Real-time waveform and spectrogram displays
API Marketplace: Allow developers to build on our platform
Educational Partnerships: Work with schools to integrate into curriculum

Long-term (1-2 Years)

Machine Learning Improvements: Train on user feedback to improve compositions
Virtual Concerts: Live-streamed VR concerts of flight route music
Physical Installations: Airport installations that play music based on departing flights
Spotify Integration: Export compositions directly to Spotify playlists
Enterprise Features: Custom branding for airlines and travel companies

Research Directions

Other Data Types: Apply sonification to weather patterns, stock markets, sports data
Therapeutic Applications: Explore use in music therapy and meditation
Accessibility: Audio descriptions for visually impaired users
Cultural Preservation: Document traditional flight routes through music

Try It Yourself

Live Demo: [Coming Soon] GitHub: https://github.com/aviralSri23455/Melodic-Airways-Transforming-Flight API Docs: http://localhost:8000/docs (after setup)

Quick Start

# Clone repository
git clone https://github.com/aviralSri23455/Melodic-Airways-Transforming-Flight.git
cd Melodic-Airways-Transforming-Flight

# Backend setup (Windows)
cd backend\bat
setup.bat

# Frontend setup
cd ../..
npm install
npm run dev

Visit http://localhost:5173 and start creating music from flight routes!
