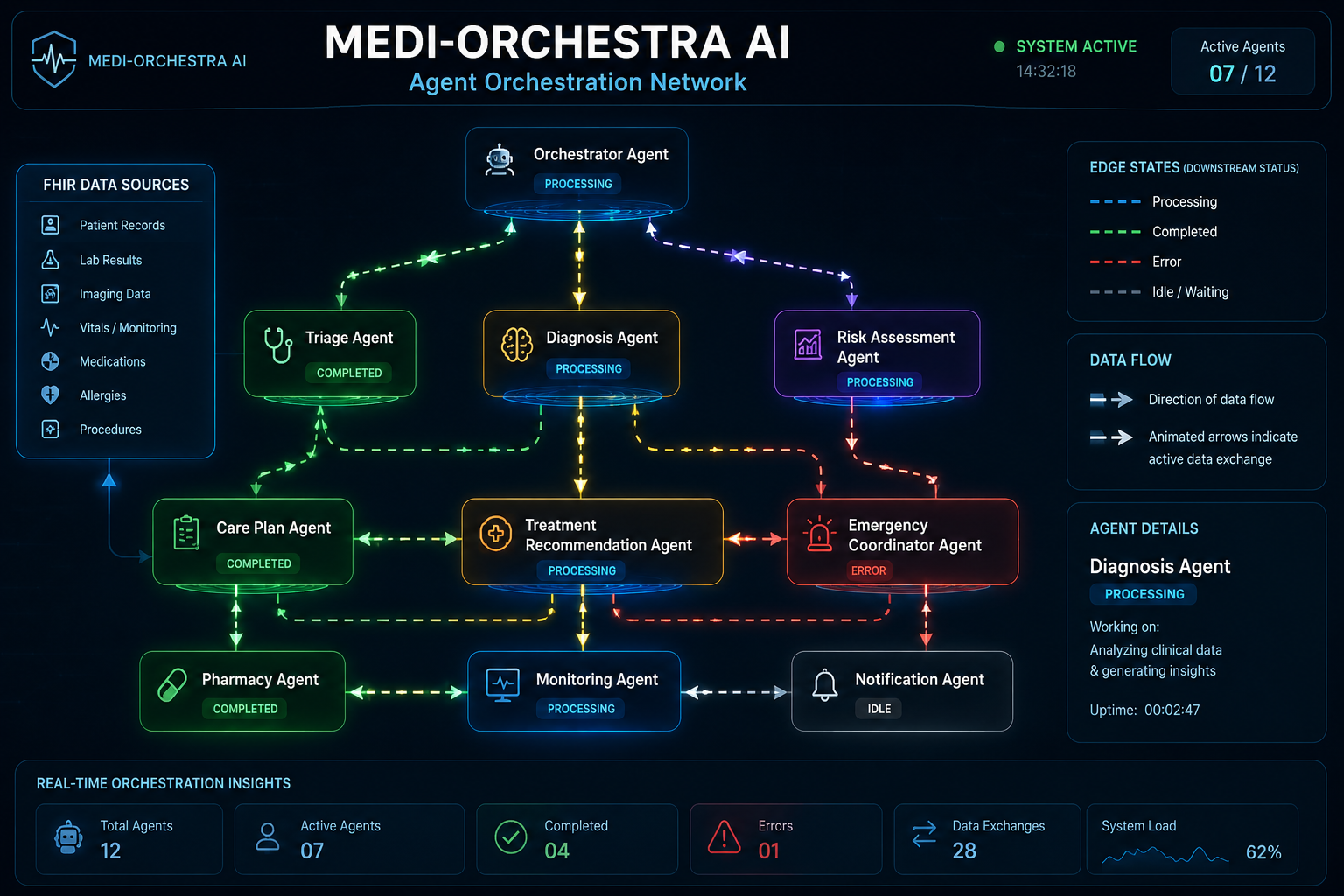

I have updated the Agent Orchestration Network visualization to show granular downstream agent dependencies. Here is what has been implemented: Granular Edge States: Edges no longer just show an "active" vs "idle" state. The connections now color-code correctly according to whether the downstream agent that consumes the data is currently processing, completed, erroring, or idle. Directional Flow Arrows: Added animated arrow markers to the edges indicating precisely the direction of the AI's data exchange graph so you can trace the system's thought process. Active Processing Styling: When an agent starts working, the edge feeding data from its upstream dependants changes dynamically: it glows vibrantly and the dash pattern animates to signify data currently flowing.
Built With
- 2.3%
- 97.2%
- css
- html
- typescript
