med_simplify

for healthcare

Comment

Inspiration

To simplify complex medical data

What it does

Summarize the data Convert to FHIR Resources Validate both summary and FHIR

How I built it

Using Python libraries and OpenAI API Key for the ChatOpenAI function for LLM and Neo4j Aura credentials for the graph insertion and visualization

Challenges I ran into

on integrating all the functions on Streamlit and especially when I used EC2, I faced so many issues and rectified

Accomplishments that I'm proud of

For integrating them and finishing the whole project individually within 5 days since I came to know about this hackathon by July 5/6

What I learned

about different AWS Services and genAI tools and graph database and so many technical things

What's next for med_simplify

Scalability

Built With

  • langchain
  • langchain-openai
  • matplotlib
  • neo4j
  • networkx
  • scipy
  • streamlit
Share this project:

Updates

posted an update —

Med Simplify – Clinical Text to FHIR Graph Generator

Med Simplify is a GenAI-powered Streamlit application designed to process unstructured clinical notes into FHIR-compliant resources, validate them, and visualize the structured data using knowledge graphs. This project is built with LangChain, OpenAI's LLMs, and Neo4j, and deployed on AWS EC2.

Features

  • Summarization (Summary_code.py):
    Uses ChatOpenAI from langchain_openai to convert raw unstructured medical notes into clean, structured clinical summaries.
    Prompting is done with HumanMessage to guide the LLM's responses.

  • FHIR Conversion (Summary_to_FHIR.py):
    Uses ChatOpenAI from langchain_openai to transform the summary into FHIR-compliant JSON. Prompting is done with HumanMessage to guide the LLM's responses.

  • Validation:

    • Summary Validation (Validating_summary.py):
      Uses OpenAIEmbeddings to convert generated and ground truth summaries to vectors. Cosine similarity is calculated via scipy.spatial.distance.cosine to estimate confidence.
    • FHIR Validation (Validating_FHIR.py):
      FHIR resource is converted back into textual form (fhir_to_text) and compared with original summary using the same cosine-based validation technique.

  • Graph Generation (insert_and_visualize_graph.py):

    • Inserts FHIR data into Neo4j using Cypher queries.
    • Uses NetworkX to fetch the graph and visualize it.
    • Pandas and Matplotlib are used to render the graph and structure the data.

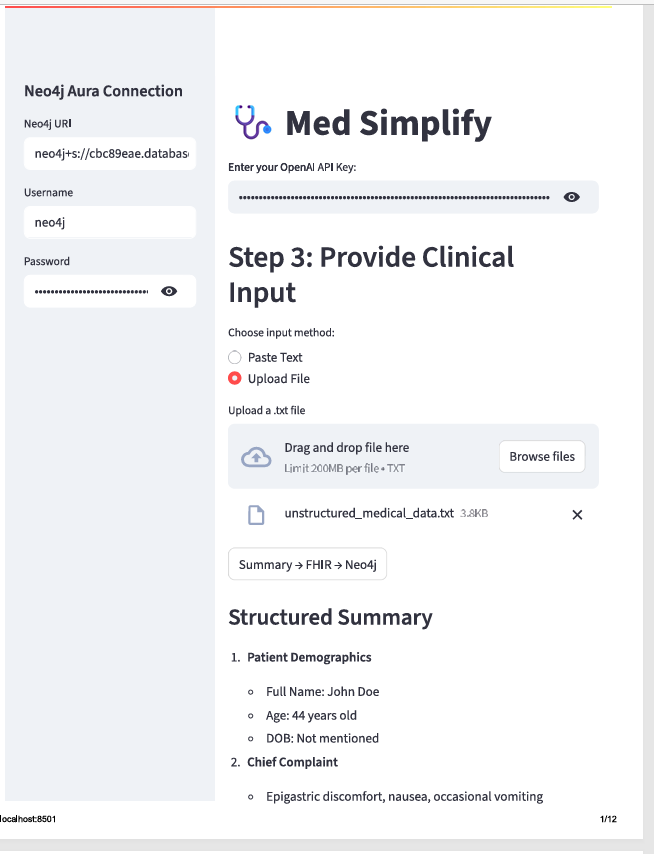

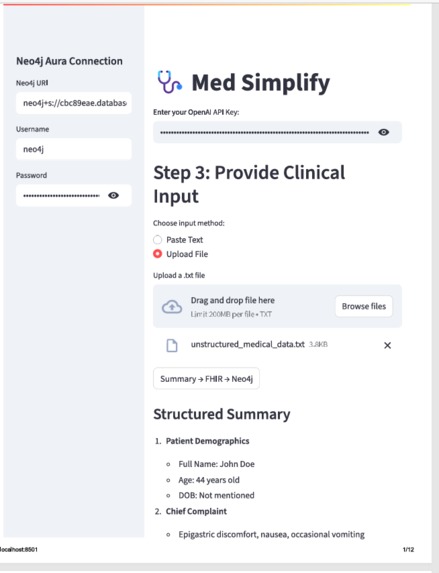

  • Streamlit UI (app.py):

    • Combines all steps into an intuitive web interface.
    • Handles file upload, LLM processing, validation metrics, and graph visualization in one place.

Tech Stack

  • Language Model: ChatOpenAI (LangChain wrapper)
  • prompting: HumanMessage (Prompting)
  • Embedding: OpenAIEmbeddings (LangChain)
  • Vector Similarity: scipy.spatial.distance.cosine
  • Graph DB: Neo4j
  • Graph Tools: NetworkX, Matplotlib, Pandas
  • UI Framework: Streamlit
  • Deployment: AWS EC2 (Amazon Linux 2)

Deployment

The deployed app is hosted on AWS EC2.

Testing Instructions

  1. Give your openai_api_key and neo4j aura credentials.
  2. Write or upload an unstructured clinical note (.txt file).
  3. The app will:
    • Generate a clinical summary.
    • Convert the summary to a FHIR resource.
    • Validate both via cosine similarity.
    • Insert and display the resulting FHIR graph.

Repository Access

Private repository access has been granted to:

  • genaihackathon2025@impetus.com
  • testing@devpost.com
