Axiom Zen - Mastermind Challenge #1 and #2

A RESTfull API and HTML UI to play the mastermind game

Comment

Usage

The bot is currently very simple, you can create games, make a guess and ask for a hint.

Create games

Send a message to the bot (for the sake of the example, let's call it macaco):

@macaco create ... [list of players]

For example:

jvdm [6:42 PM]
@macaco: create with @felipenfranco

macacoBOT [6:42 PM]
@jvdm: sure, give me a second to create a game for you...

[6:42]
@jvdm: the game #1 has been created, there are 2 players (@jvdm, @felipenfranco), you all may send guesses by sending messages like 'guess #29 <your guess>'.

Making a guess

Send a message to the bot like this:

@macaco guess #<game-id> <guess string>

And the bot will reply (to the same channel):

jvdm [6:42 PM]
@macaco: guess #29 abcdefgh

macacoBOT [6:42 PM]
@jvdm: 0 exacts, 6 nears (total guess: 1)

Guesses are all lower-case characters from a to g (8 possibilities, 8**8 combinations).

A reply with 8 exacts marks you as a winner. The other players can keep playing (the bot will accept their guesses) until they submit the correct answer. If you have already guessed the correct answer or if you send a invalid guess (for example, bad characters in the guess and so on) the bot only replies with:

macacoBOT [6:42 PM]
@jvdm: bad guess

Yes, that's a FIXME.

Asking for a hint

To ask for a hint just say something to the bot with hint followed by a game id in the form #<id>, e.g.:

@macaco please, give a hint for the game #29?

Or:

@macaco with a hint i certainly can finish the game #29

The bot replies:

jvdm [6:51 PM]
@macaco: with a hint I can finish #29

macacoBOT [6:51 PM]
@jvdm: 'd' at position 0

Introduction

This is a django backend multiplayer implementation of the Mastermind game in the form of a RESTfull API, including a slack bot to play the gam, running at http://mastermind-macacoprego.herokuapp.com/.

This original game was for two players: One player becomes the codemaker, the other the codebreaker. The codemaker chooses a pattern of four code pegscodebreaker. The codebreaker tries to guess the pattern, in both order and color, within twelve (or ten, or eight) turns.

This is a very simple implementation, with minimal interfaces, no authentication and was created during the participation of macacoprego.tech on the 2016's vanhackathon.

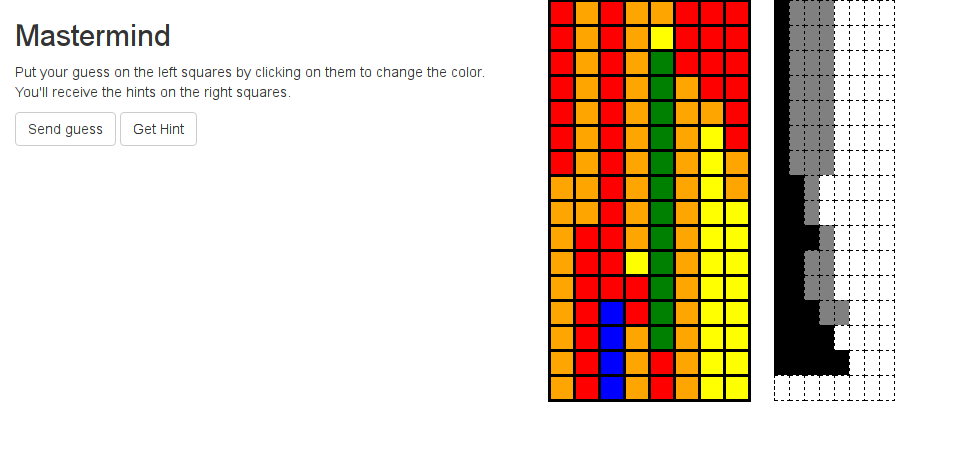

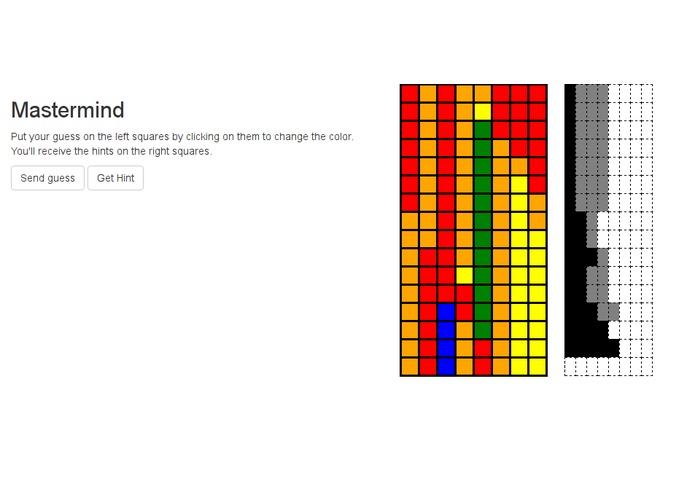

This implementation mimics the codemaker role on the backend. Then the HTML UI can be used be codebreakers and also the slack bot proxies the backend as a codemaker using the same APIs.

We also support multiple concurrent codebreakers for each game. This is a very simple implementation, with minimal interfaces.

Inspiration

This was built based on the Axiom-Zen challenge #1, #2 and #3.

What it does

It provides a multiplayer API to play mastermind, including multiple games concurrently offered in as a RESTfull API. This RESTfull API is used to provide a web interface and a slack bot for users to play the mastermind game.

How we built it

Everything uses python3. The backend uses Django and Django REST Framework. The bot is using aslack <https://github.com/macacoprego/aslack>_ asynchronous interface to slack (on top of asyncio).

Installation

Typically you would run the backend and it inside a pyvenv::

$ git clone https://github.com/macacoprego/mastermind-bot $ mastermind-bot $ mkdir venv $ pyvenv venv/mastermind-bot $ source venv/mastermind-bot/bin/activate

It is distributed with setuptools, you only need to install it using::

$ python setup.py install .

And then::

$ mastermind-bot

It will ask you for the api token, you can also user --token or set MACACOPREGO_MASTERMIND_BOT_TOKEN.

Challenges we ran into

Initially we thought that APIs to join a game between two different users were supposed to keep the HTTP request waiting for all participants to join. This led to a lot of discussions on how to synchronize multiple django requests, using postgresql or any other inter-process locking mechanism.

After we discovered (by asking Axiom-zen people about it) that this was not a requirement everything became easier.

Accomplishments that we're proud of

The API is very maintainable and scalable, we also think that we made it usable very quickly.

What we learned

  • How to provide custom endpoints for rest framework's ViewSets.

What's next for mastermind-backend

  • Include a field during game creation to enable users to select the maximum number of guessing rounds.

  • Delete the game after if nobody plays during some timeout.

API Documentation

Three APIs are provides, they all receive JSON inputs, so fields below refers to properties of a JSON object.

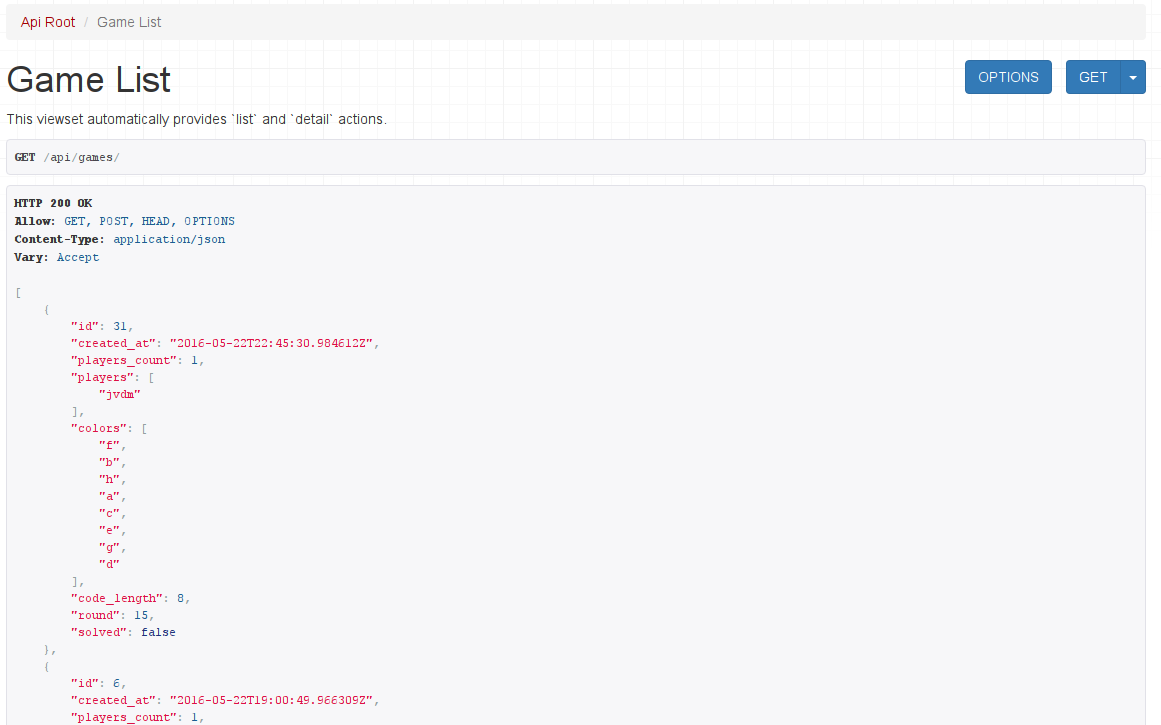

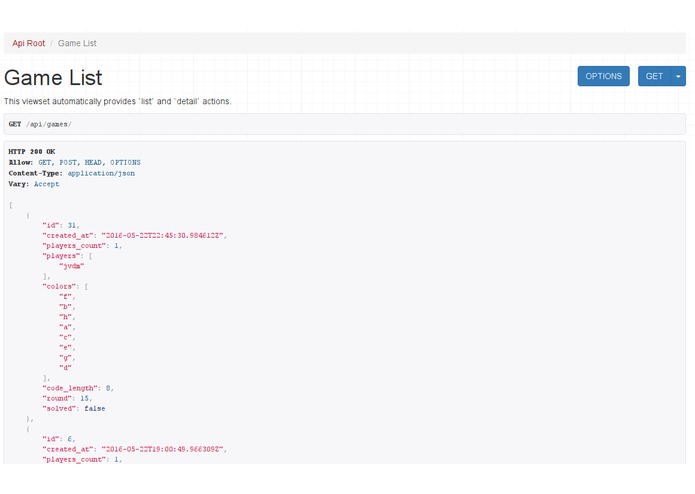

GET /api/games/

List all games.

**Parameters**:

``None``

**Returns**:

List of objects for each game::

  { "id": <game id>
  , "created_at": <timestamp of game creation>
  , "players_count": <total number of players allowed to join>
  , "players": <list of current players (which will be always be empty on creation)>
  , "colors": ["e","f","d","g","c","h","a","b"]
  , "code_length": 8
  , "round": <game rounds or turns played until now (which will be 0)>
  , "solved" : <if the game was solved or not>
  }

**Description**:

All games are returned, solved and unsolved.

POST /api/games/

Create a new game.

**Parameters**:

  :players_count: Number of players this game supports.

**Returns**:

  { "id": <game id>
  , "created_at": <timestamp of game creation>
  , "players_count": <total number of players allowed to join>
  , "players": <list of current players (which will be always be empty on creation)>
  , "colors": ["e","f","d","g","c","h","a","b"]
  , "code_length": 8
  , "round": <game rounds or turns played until now (which will be 0)>
  , "solved" : <if the game was solved or not>
  }

**Description**:

Create a new game.  ``players_count`` defines the maximum amount
of people allowed to join, after that no other player can join.
Currently there is no limit on the amount of guesses a player can
get until he solves the challenge.

GET /api/games/<game_id>/

Retrieve information of a specific game.

See GET ``/api/games/`` for the object returned.

POST /api/games/<game_id>/join/

Join a game.

**Parameters**:

  :name: Name of the player joining the game

POST /api/games/<game_id>/guess/

Send a guess.

**Parameters**:

  :name: Name of the player
  :code: Player guess, ex: 'abcdefgh'

**Returns**:
    {
        'exact': <number of exact colors
        'near': <number of colors missed>
    }

r
