Team 11 - FitBox

•

  M&TSI 2024 - FitBox

•

•

•

•

•

Inspiration

We are high school students who are working hard on their university applications. Sometimes, finding time to go to the gym and work out can be challenging. We are aware that this struggle extends to businessmen and college students who also find it difficult to prioritize physical wellness. Not everyone has access to a local gym, which often hinders their ability to work out.

What it does

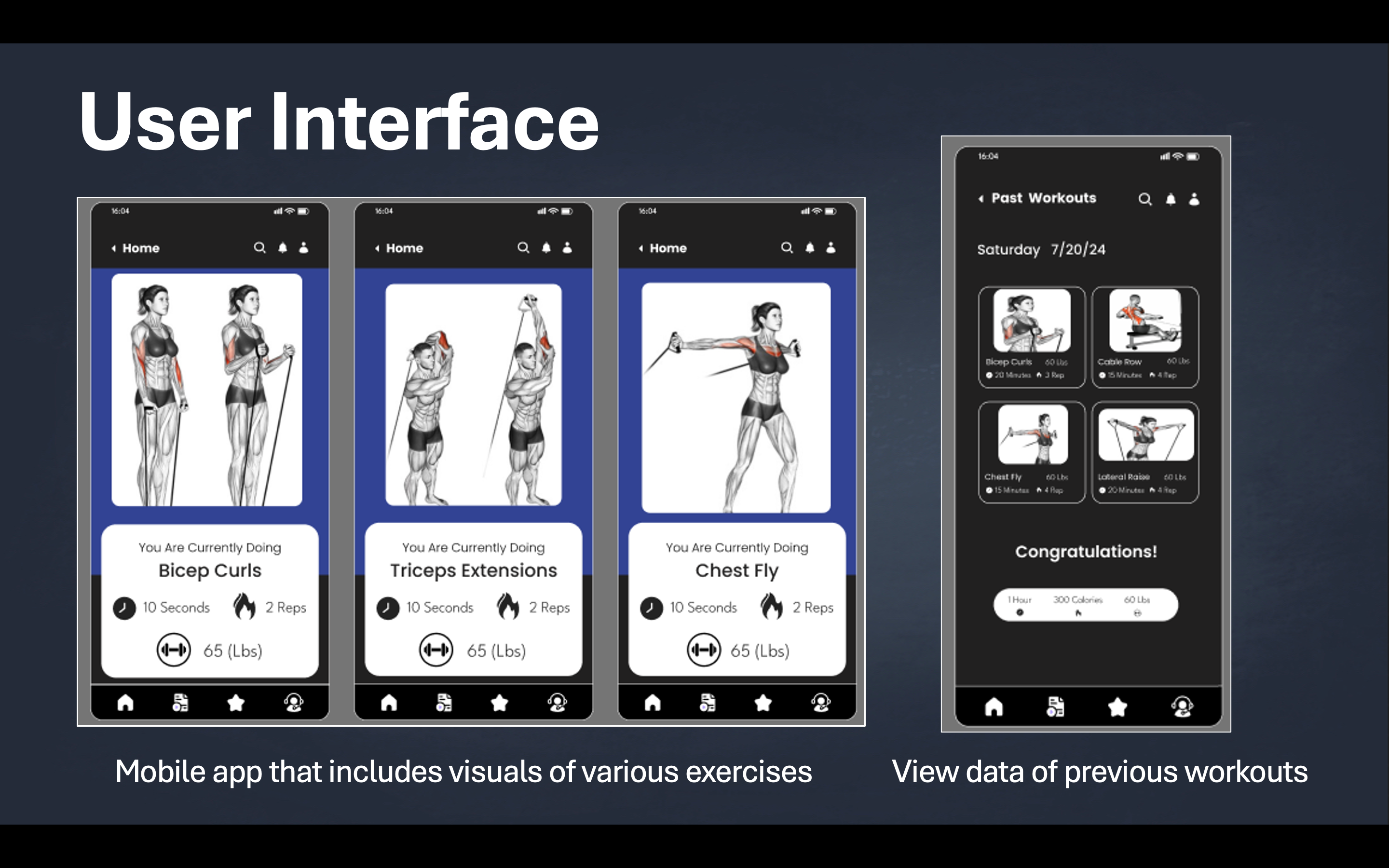

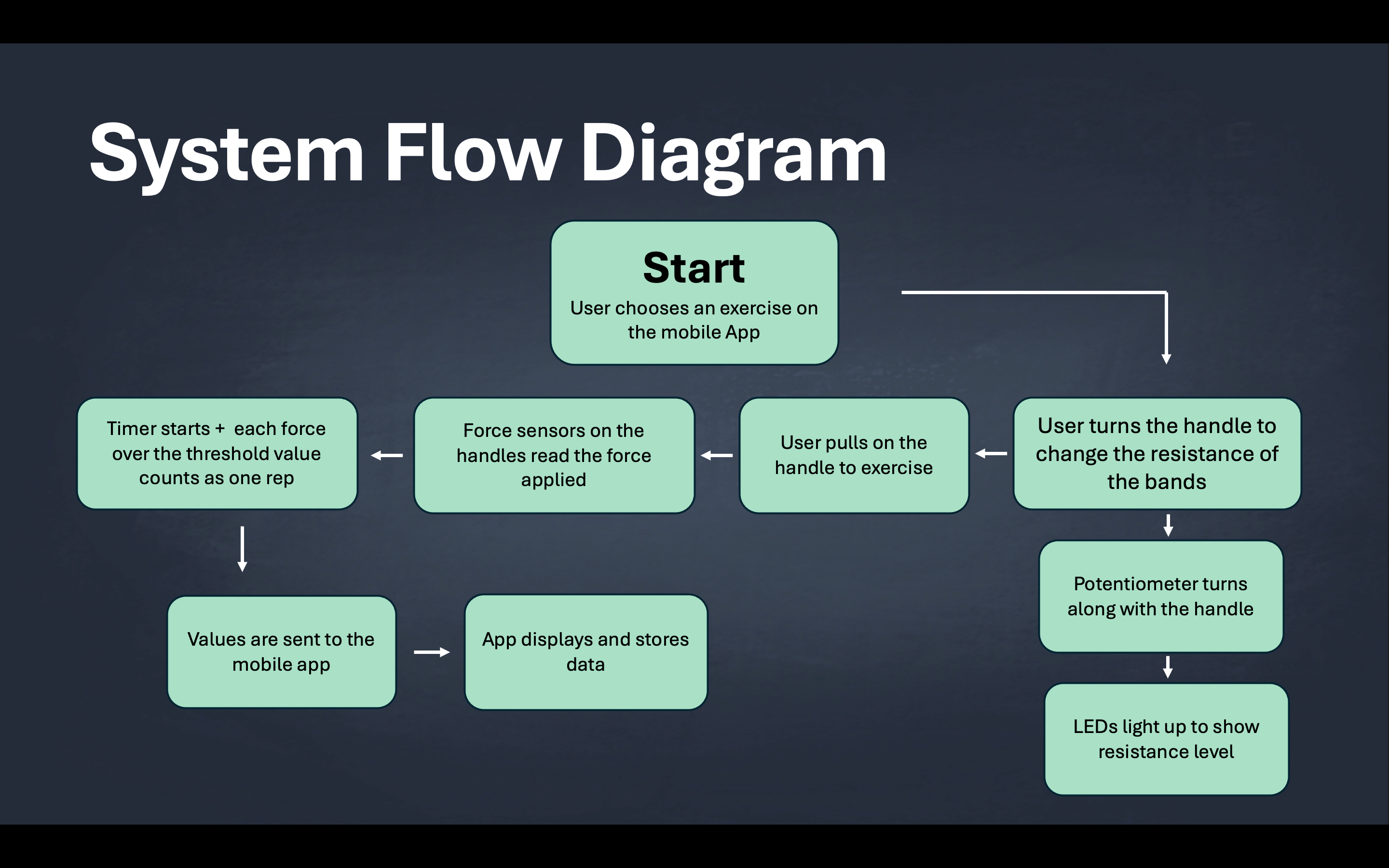

FitBox is a portable gym machine that utilizes a pulley mechanism and an elastic band. It allows users to perform weight exercises without the need for physical weights. It features a smart feedback mechanism that displays a timer for rests, the number of successful reps, and the force exerted during each rep.

How we built it

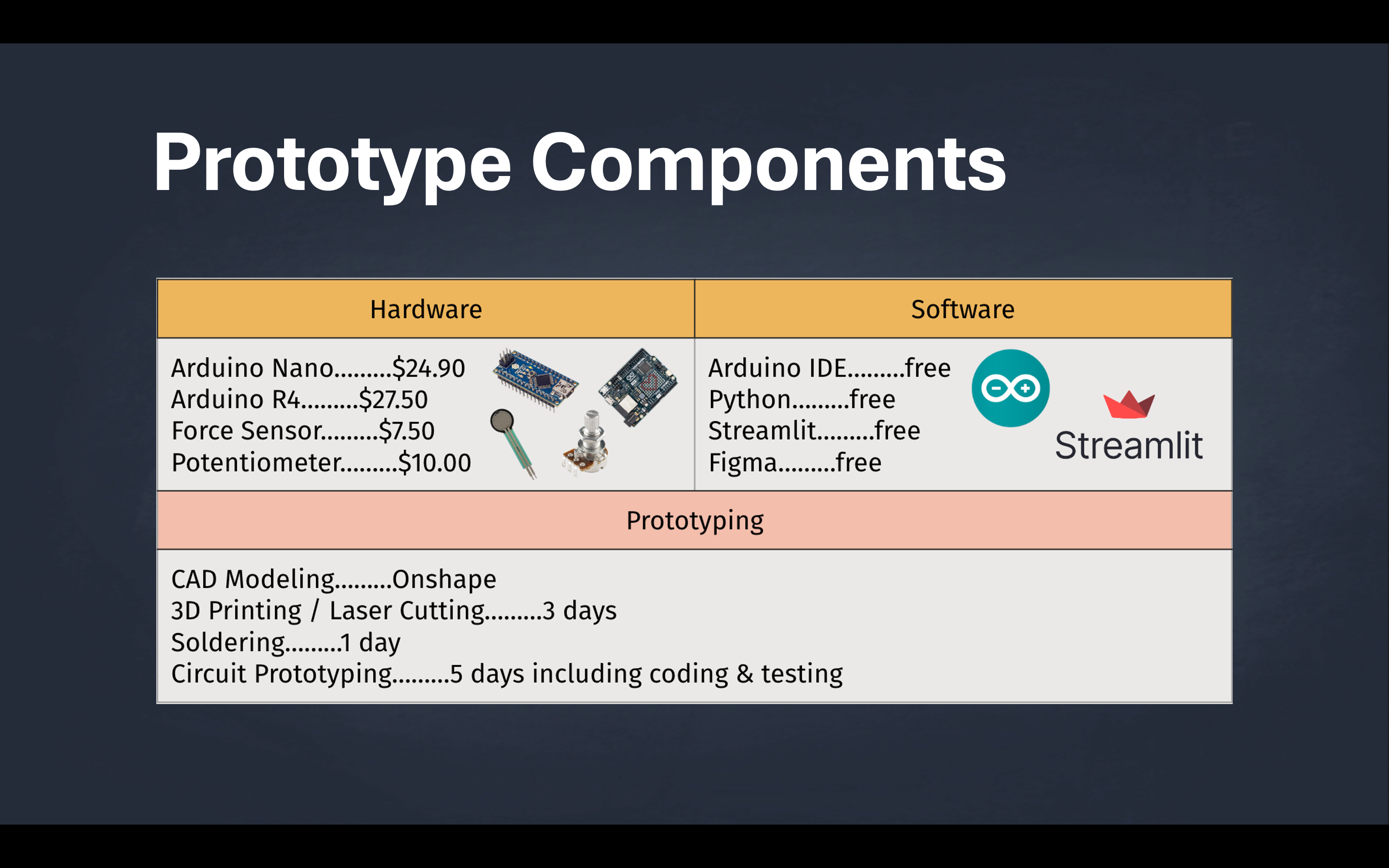

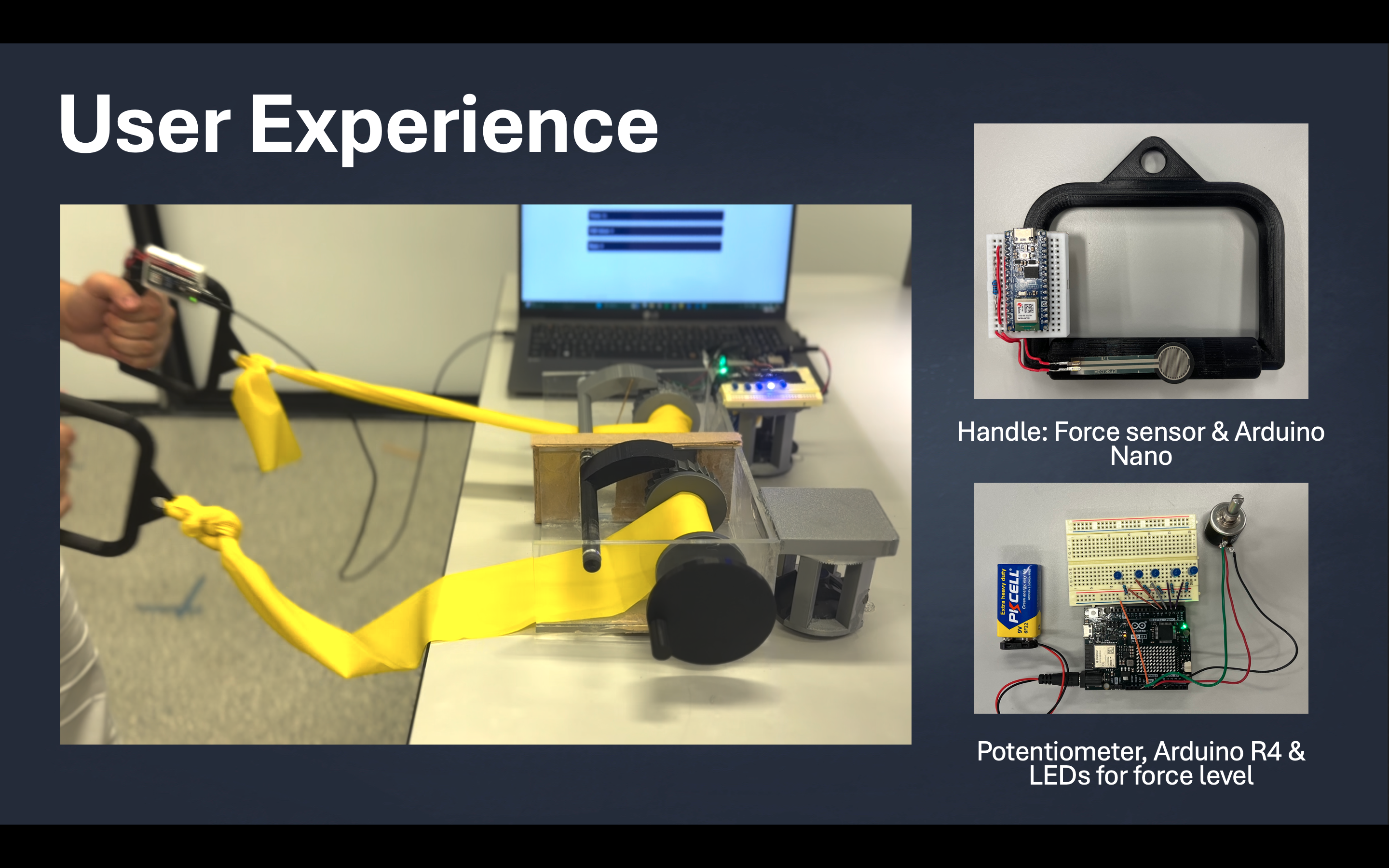

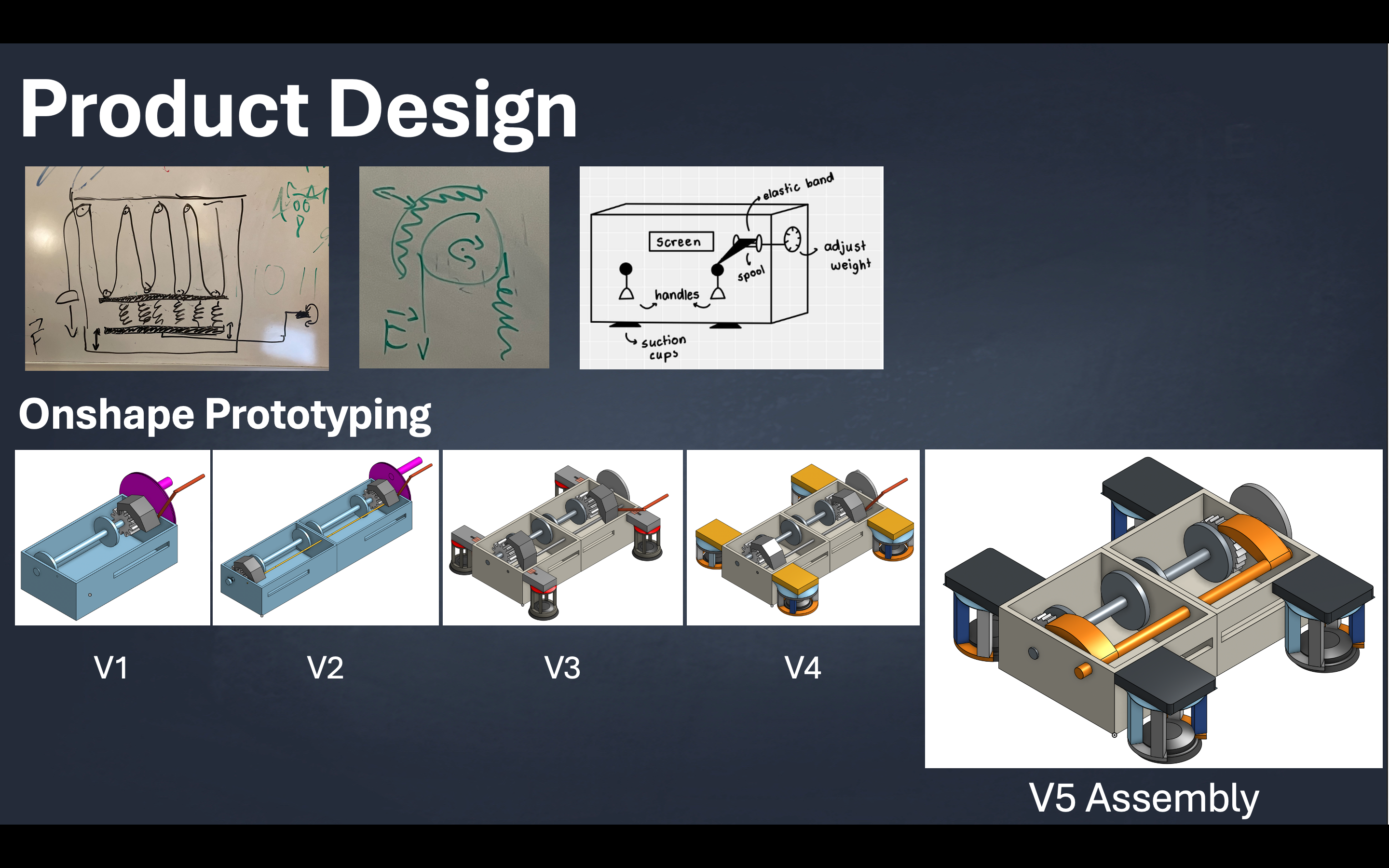

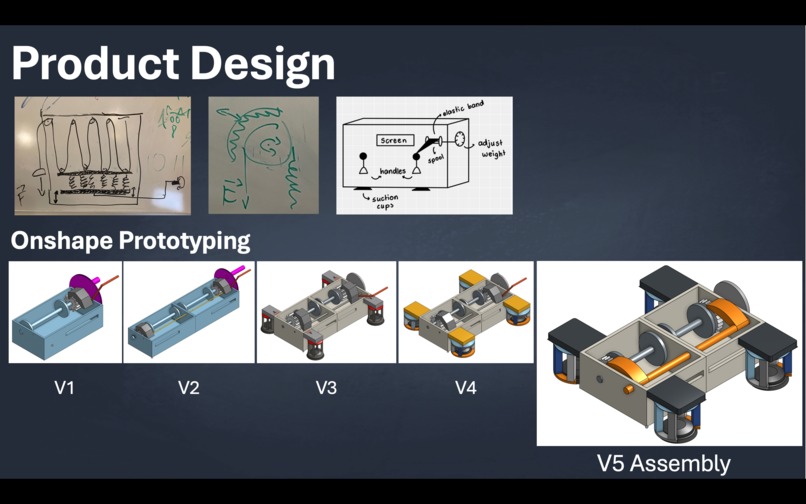

We began by working on the electronics and coding for our project. We developed an Arduino circuit using a force-sensitive resistor and a potentiometer to display necessary feedback. Simultaneously, we designed the physical structure of our product using CAD modeling for 3D printing.

Challenges we ran into

Designing the weight system proved to be time-consuming. Initially, we considered building our own field-oriented control motor or a Peloton system using magnets and a flywheel. However, due to the complexity of controlling force and the need for advanced scientific knowledge, we opted for an elastic band. Integrating this mechanical system with the electronic feedback mechanism posed additional challenges.

Accomplishments that we're proud of

We are proud of our team dynamics and efficient communication. At the outset, each team member specialized in specific areas such as Arduino programming, CAD design, coding, and business, leveraging personal strengths to successfully execute our project.

What we learned

M&TSI 2024 provided us with the opportunity to understand the strong relationship between business management and technology. As a team, we experienced the entire process of building a tech product and developing a viable go-to-market plan. We also learned valuable crisis management skills as we navigated strict deadlines and encountered technological challenges.

What's next for M&TSI Team 11 - FitBox

The demand for FitBox is evident among various populations. Many individuals want to stay active but face obstacles such as time constraints, lack of motivation, or limited access to a gym. Our immediate goal is to refine the mechanical weight system and smart feedback mechanism of FitBox to obtain more accurate data.

Built With

• arduino
• blynk
• cad
• fcs
• potentiometer
