M.A.C.A

An AI Medical Conversational Avatar for early medical diagnoses, symptoms analysis and reports

Comment

MACA - Multimodal Assistant for Clinical Analysis

An AI medical consultamt powered by LiveAvatar.com technology with LiveKit integration.

Features

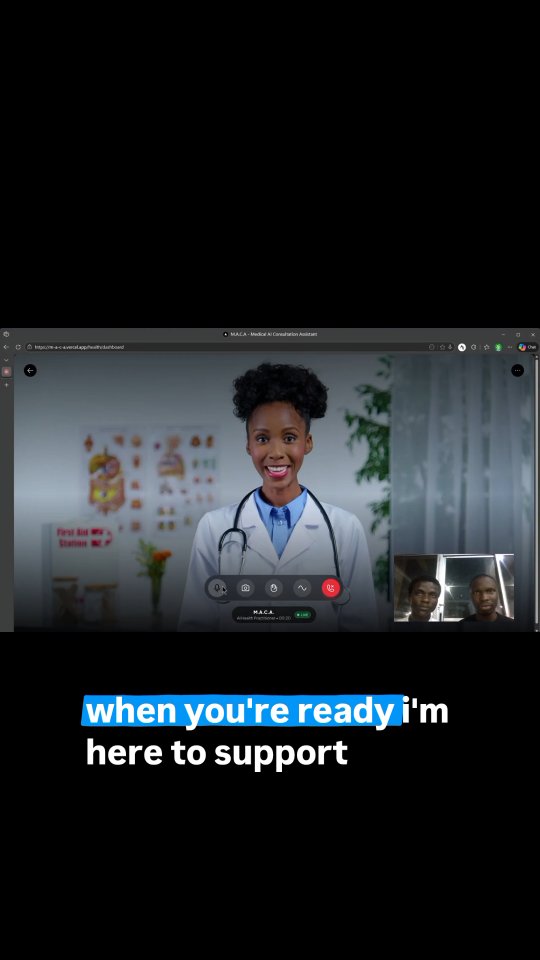

  • Real-time video conversations with AI medical professionals
  • Voice and text interaction capabilities
  • Responsive UI optimized for healthcare consultations
  • Secure session management

Dependencies

  • Next.js 16
  • React 19
  • Tailwind CSS v4
  • react-icons
  • LiveKit Client SDK
  • LiveKit React Components

Prerequisites

Before running this application, you'll need:

  1. Node.js (version 18 or higher)
  2. PNPM package manager
  3. LiveAvatar API credentials:

Note: This app uses CUSTOM mode, which only requires an avatar ID. You'll manage your own LLM/conversation logic.

Setup Instructions

  1. Clone the repository:

    git clone <repository-url>
cd maca

  2. Install dependencies:

    pnpm install

  3. Create a .env.local file in the root directory:

    cp .env.example .env.local

  4. Configure your LiveAvatar credentials in the .env.local file:

    • Sign up at LiveAvatar to get your API key
    • Find your API key on the LiveAvatar settings page
    • Get your Avatar ID from the LiveAvatar dashboard
    • See the Quick Start Guide for more details

  5. Start the development server:

    pnpm dev

  6. Open your browser to http://localhost:3000 to access the application

Environment Variables

The application requires the following environment variables:

  • LIVEAVATAR_API_KEY: Your LiveAvatar API key for authentication
  • LIVEAVATAR_AVATAR_ID: The ID of the avatar you want to use

See .env.example for a template.

Note: Using CUSTOM mode means Voice ID and Context ID are not needed. You handle your own conversation logic.

Available Scripts

  • pnpm dev: Start the development server
  • pnpm build: Build the production application
  • pnpm start: Start the production server
  • pnpm lint: Run ESLint

LiveAvatar Integration

This application uses LiveAvatar.com's API in CUSTOM mode with LiveKit for real-time avatar experiences.

What is CUSTOM Mode?

In CUSTOM mode, LiveAvatar handles video generation from audio only. You manage:

  • Your own LLM/conversation logic
  • Audio input (TTS or microphone)
  • When to send audio to the avatar

LiveAvatar generates the corresponding video of the avatar speaking.

Integration Flow

  1. Create a session token with avatar configuration (CUSTOM mode)
  2. Start the session to get LiveKit room credentials
  3. Connect to the LiveKit room
  4. Send audio data to the avatar via LiveKit data channel
  5. Receive video stream of the avatar speaking

Custom Mode Utilities

The app includes utilities for CUSTOM mode:

  • sendAudioToAvatar() - Send audio data to generate avatar video
  • sendTextAsAudio() - Convert text to speech and send to avatar
  • MicrophoneAudioSender - Capture and stream microphone audio

See src/lib/liveavatar-livekit/customModeUtils.ts for implementation details.

Resources

Demo Page

Visit /liveavatar-demo to test the LiveAvatar integration with a simple interface.

Built With

  • css
  • next.js
  • react-icons
  • tailwind
