Lumos — Smart Home Agent System

Lumos is an intelligent, context-aware smart home platform powered by a multi-agent AI layer. It coordinates devices, fuses weather and grid data (e.g. ERCOT), learns usage patterns, and responds to natural-language and voice commands—with a full simulation environment for testing without real hardware.

Table of contents

Inspiration

Traditional smart homes are mostly rule-based: "if time is 7am, turn on the coffee maker." They don't use real-time weather, grid stress, or your calendar. We wanted a home that reasons about context—heat waves, ERCOT alerts, meetings, and your own routines—and acts proactively (pre-cool before peak heat, charge the battery, switch to eco mode) instead of waiting for simple triggers.

We were also inspired by the idea of a digital twin of the home: an agent that knows every device, respects critical constraints (never turn off the fridge or lock yourself out), and learns from how you actually use the system. Adding voice and pattern learning made it feel less like programming and more like having a smart home that adapts to you.

What it does

  • Landing & sign-in — A marketing landing page (hero, bulb section, "money saved" counter) and Google sign-in. Once authorized, you get access to the dashboard; logout signs you out of both the app and your Google account.

  • Dashboard — Room-based device cards, energy summary, a threat banner (The Oracle: heat wave, grid strain, storm, etc.) with recommended actions, voice alerts, and a natural-language command bar (text or voice). Everything updates in real time over WebSocket.

  • Patterns — The system detects routines (e.g. weekday morning: lights on, coffee on), preferences (e.g. you always bump the thermostat after an auto-adjustment), and energy patterns. You can view, enable, or tune pattern-based automations.

  • Simulation — A full simulation dashboard for demos and testing: run pre-built scenarios (temporal and instant), override weather, ERCOT grid, GPS location, battery state, and device failures. Time control and an event log let you replay or stress-test behavior without real hardware.

  • Smart execution — Behind the scenes, an Orchestrator uses an LLM to plan actions while respecting critical devices (fridge, lock, battery), home modes (normal, focus, sleep, preparing_for_meeting), and user permissions for voice. The Threat agent can auto-trigger the orchestrator on HIGH/CRITICAL threats; Voice (ElevenLabs) gives spoken feedback and alerts.

How we built it

We split the system into three main layers:

  1. Frontend (React + Vite + TypeScript) — Landing page, Google OAuth, protected routes, and three main views: Dashboard, Patterns, and Simulation. We use Tailwind CSS, Radix UI, Framer Motion, and Recharts. The dashboard and simulation pages consume REST APIs and a WebSocket (/ws) for live device state, agent actions, and threat updates.

  2. Backend (FastAPI + Python) — REST routes for devices, commands, agents, threats, patterns, voice, and simulation; a single WebSocket endpoint that pushes typed messages to all connected clients. The device registry loads a YAML config of simulated devices (lights, thermostats, plugs, sensors, lock, water heater, battery, coffee maker) and talks to an MQTT broker (Mosquitto) for state and commands. Storage is SQLite (events, patterns) and ChromaDB (for pattern/context).

  3. Agent layer — A central Orchestrator starts and coordinates five sub-agents: Threat Assessment (OpenWeather + ERCOT → LLM → threat level/type/actions), Pattern Detector (event history + Chroma + LLM → routines/preferences/energy patterns), Home State (LangChain tools + device registry to execute actions), Voice (ElevenLabs TTS, permission phrasing via LLM), and User Info (Google Calendar + GPS/geofence for location and calendar context). The orchestrator uses OpenRouter for all LLM calls and enforces critical-device rules and home modes. For demos, a simulation engine lets us override weather, grid, GPS, battery, and device failures so we can test threat and mode flows without real APIs or hardware.

We use Mermaid in the repo for architecture and agent-network diagrams; see Architecture and Agent network below.

Challenges we ran into

  • Orchestrator prompt design — Getting the LLM to only output valid device actions (no hallucinated device IDs or actions) and to respect critical devices and home modes required careful prompt structure and dynamic injection of the device inventory and action reference from the registry. We iterated on JSON response schemas and added "not_understood" and clarity checks for voice.

  • Threat → Orchestrator handoff — When the Threat agent detects HIGH/CRITICAL, it calls the orchestrator to run threat-response actions (pre-cool, charge battery, eco mode). Coordinating that callback without circular imports and with clear permission/voice messaging took some refactoring.

  • Simulation vs. production — We wanted one codebase that works with real MQTT and real APIs but also runs in a "simulation" mode with overrides (weather, ERCOT, GPS, battery, device failures). We introduced a simulation-override layer that the threat agent, ERCOT client, OpenWeather client, and user-info agent read from when overrides are set, so the rest of the pipeline stays unchanged.

  • Frontend auth and API base — The frontend runs either as a dev server (e.g. localhost:5173) or as static files served by FastAPI (e.g. HTTPS 8443). Wiring Google OAuth (authorized origins, client ID) and ensuring the frontend knew the correct API base for REST/WebSocket in both setups required env and proxy/cors configuration.

Accomplishments that we're proud of

  • Full agent network — Six agents (Orchestrator, Threat, Pattern, Home State, Voice, User Info) working together with clear responsibilities and a single orchestrator that can reason over threat, calendar, location, patterns, and device state in one flow.

  • Real-time, type-safe frontend — Dashboard and simulation UIs stay in sync with the backend via WebSocket; we use typed message payloads and React state so device cards, threat banner, and scenario timeline update without full-page reloads.

  • Simulation without touching production — Overrides for weather, ERCOT, GPS, battery, and device failures let us demo heat-wave response, "user leaving home," and failure scenarios in a repeatable way. Temporal scenarios (multi-step timelines) make it easy to tell a story in a pitch or video.

  • Voice and patterns — Voice commands with clarity checks and TTS feedback, plus pattern detection (routines, preferences, energy) that drives automations and user learning, make the system feel more adaptive and less "scripted."

  • Documentation — We documented the full architecture and agent network in Mermaid (in this README and in docs/ARCHITECTURE.md) so onboarding and judging can follow data flow from UI to agents to devices and back.

What we learned

  • LLMs need tight constraints in production — Free-form "control my home" responses led to invalid actions. We got better results by giving the model a strict JSON schema, a dynamic device/action reference, and explicit rules (e.g. never turn off critical devices, sensors are read-only). For voice, a quick "clarity check" step reduced nonsense executions from bad transcriptions.

  • Agent boundaries matter — Keeping Threat (data fusion + assessment), Pattern (learning + triggers), and Home State (execution) separate made it easier to test and override each part. The orchestrator stays a "planner" that delegates to these agents instead of doing everything itself.

  • Simulation as a first-class feature — Building overrides and scenarios early made it possible to demo and debug threat and mode logic without depending on live weather or grid APIs. We could also test "user away" and "device failure" flows reliably.

  • WebSocket + REST — Using REST for initial load and commands and WebSocket for live updates kept the frontend simple: one connection, typed events (device_state, agent_action, threat_update), and no polling for the dashboard.

What's next for Lumos — Smart Home Agent System

  • Backend auth — Right now the frontend uses Google OAuth for UI access; we’d like to validate the Google token on the backend and optionally tie it to user-specific preferences and pattern data.

  • Real devices — Connect real smart-home devices (or device emulators) via MQTT or vendor APIs so Lumos can control actual lights, thermostats, and plugs instead of only simulated ones.

  • Mobile and PWA — A mobile-friendly build or PWA so users can check the dashboard and run voice commands from their phone; we already support HTTPS and certificate download for local trust.

  • Richer patterns — More pattern types (e.g. occupancy-based), better confidence and conflict resolution when multiple patterns match, and a clearer UI for "why did Lumos do that?"

  • Cost and reliability — Monitor LLM and API usage, add retries and fallbacks for OpenRouter/OpenWeather/ERCOT, and consider caching or local models for critical paths.

  • Stretch: Twilio + ElevenLabs outbound calls — On threat escalation (e.g. HIGH/CRITICAL), use Twilio to place an outbound call to the user and play an ElevenLabs-generated voice alert (e.g. "Heat wave alert: your home is pre-cooling. Grid stress is high.") so they’re notified even when they’re not in the app.

Technical reference

The following sections cover setup, environment variables, architecture and agent-network diagrams, user command flow, project structure, and key files. For more workflow detail (startup, threat loop, simulation, device/MQTT), see docs/ARCHITECTURE.md.

Prerequisites

  • Python 3 (see .python-version if using pyenv)
  • Node.js and npm (for frontend build)
  • Mosquitto MQTT broker (e.g. brew install mosquitto on macOS)
  • OpenRouter API key (LLM)
  • Google OAuth client ID (frontend sign-in) and optionally client secret (backend Calendar)
  • Optional: OpenWeather, ERCOT, ElevenLabs, Google Calendar API keys for full functionality

Tech stack (reference)

Layer Technologies
Frontend React 19, Vite 7, TypeScript, Tailwind CSS 4, Radix UI, Framer Motion, Recharts, React Router, Google OAuth (@react-oauth/google)
Backend Python 3, FastAPI, Pydantic, Uvicorn; REST + WebSocket
AI / agents LangChain, LangGraph, OpenRouter (LLM); ChromaDB for pattern/context storage
IoT MQTT (Mosquitto), device registry from YAML
Storage SQLite (event store, patterns), ChromaDB
Integrations OpenWeather, ERCOT, Google Calendar, ElevenLabs

Quick start

  1. Clone and enter the repo

    cd /path/to/Lumos

  2. Backend environment

    • Copy .env.example to .env in the project root (if present), or create .env with at least:
    • OPENROUTER_API_KEY — required for orchestrator and threat/pattern agents.

  3. Frontend environment

    • In frontend/, copy .env.example to .env.
    • Set VITE_GOOGLE_CLIENT_ID to your Google OAuth Web client ID (create at Google Cloud Console); add your app origin (e.g. http://localhost:5173 or https://localhost:8443) to Authorized JavaScript origins.

  4. Run the app

    ./start.sh

    This script will:

    • Create a Python venv and install requirements.txt if needed
    • Build the frontend if frontend/dist is missing
    • Generate self-signed SSL certs in certs/ if missing
    • Start Mosquitto (if installed) and the FastAPI server on HTTPS port 8443

  5. Open in browser

    • Local: https://localhost:8443
    • On the same network: https://<LAN_IP>:8443 (script prints the URL)
    • Accept the certificate warning once; then use the landing page, sign in with Google, and open the Dashboard, Patterns, or Simulation.

Alternative (backend only, no HTTPS)
Run from project root with a pre-activated venv:

python -m uvicorn src.main:app --host 0.0.0.0 --port 8000 --reload

Then run the frontend separately (e.g. cd frontend && npm run dev) and use the dev server origin in Google OAuth.

Environment variables

Backend (project root .env)

Variable Description Required
OPENROUTER_API_KEY API key for OpenRouter (LLM) Yes
OPENROUTER_BASE_URL OpenRouter API base (default: https://openrouter.ai/api/v1) No
OPENROUTER_DEFAULT_MODEL Default model (e.g. openai/gpt-4o-mini) No
ELEVENLABS_API_KEY ElevenLabs TTS For voice
ELEVENLABS_VOICE_ID Voice ID (default provided) No
OPENWEATHERMAP_API_KEY OpenWeather API key For threat/weather
GOOGLE_CLIENT_ID Google OAuth client ID (backend) For Calendar
GOOGLE_CLIENT_SECRET Google OAuth client secret For Calendar
MQTT_HOST MQTT broker host (default: localhost) No
MQTT_PORT MQTT port (default: 1883) No
HOME_LATITUDE, HOME_LONGITUDE Home location for geofence No
GEOFENCE_RADIUS_METERS Radius for “home” (default: 200) No

Frontend (frontend/.env)

Variable Description Required
VITE_GOOGLE_CLIENT_ID Google OAuth Web client ID for sign-in Yes for login

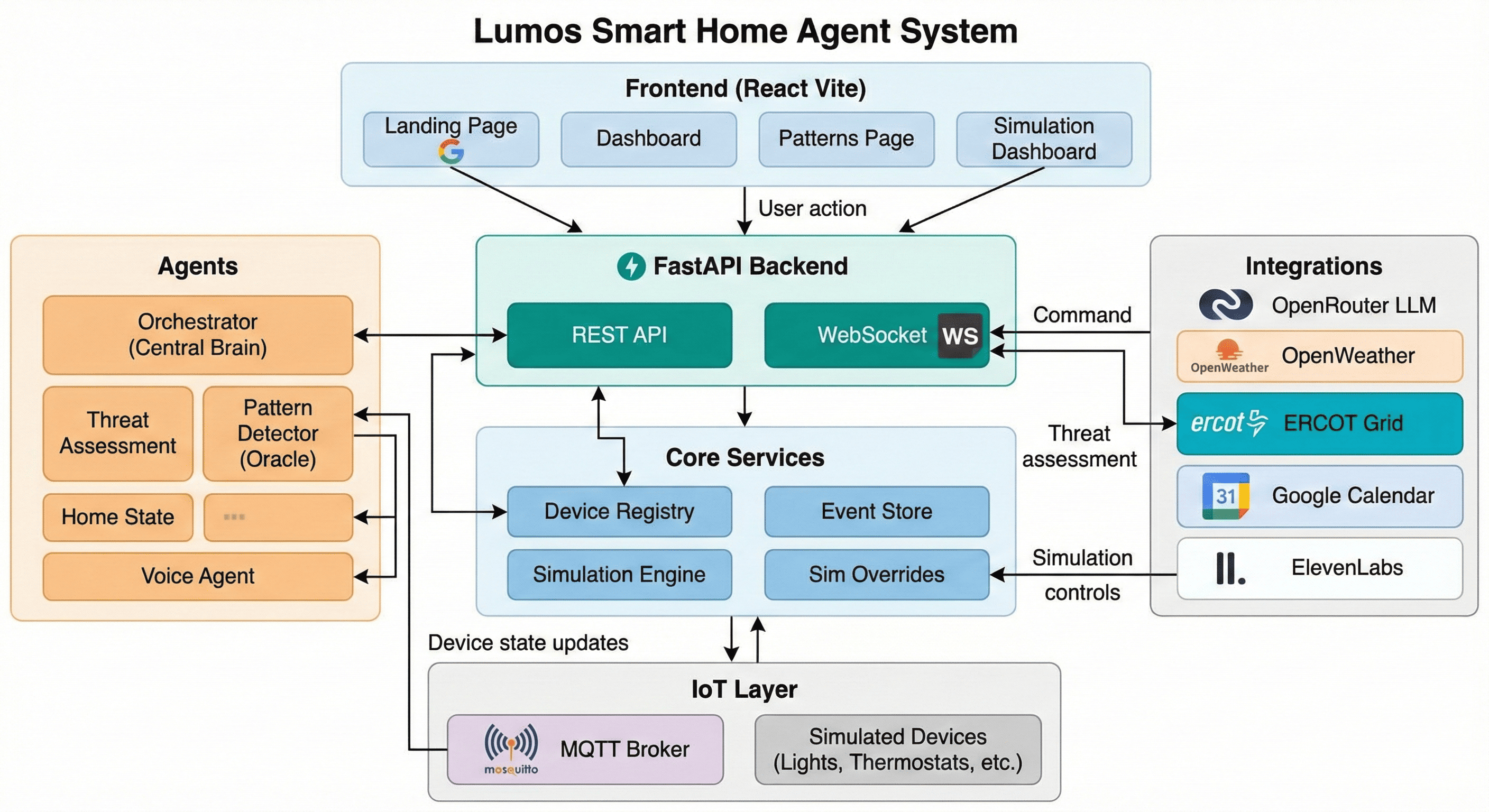

Architecture

The system is organized in three main tiers: frontend (React SPA), backend (FastAPI with REST and WebSocket), and agents + devices (orchestrator, sub-agents, device registry, MQTT). The diagram below shows how they connect and where external integrations plug in.

flowchart TB
    subgraph frontend [Frontend React Vite]
        Landing[Landing Page]
        Dashboard[Dashboard]
        Patterns[Patterns Page]
        SimDashboard[Simulation Dashboard]
        Landing -->|Google OAuth| Dashboard
    end

    subgraph api [FastAPI Backend]
        REST[REST API]
        WS[WebSocket]
        REST --> DevicesRouter[devices]
        REST --> CommandsRouter[commands]
        REST --> AgentsRouter[agents]
        REST --> ThreatsRouter[threats]
        REST --> PatternsRouter[patterns]
        REST --> VoiceRouter[voice]
        REST --> SimRouter[simulation]
    end

    subgraph agents [AI Agents]
        Orchestrator[Orchestrator]
        ThreatAgent[Threat Assessment]
        PatternAgent[Pattern Detector]
        HomeState[Home State]
        VoiceAgent[Voice]
        UserInfo[User Info]
        Orchestrator --> ThreatAgent
        Orchestrator --> PatternAgent
        Orchestrator --> HomeState
        Orchestrator --> VoiceAgent
        Orchestrator --> UserInfo
    end

    subgraph core [Core Services]
        DeviceRegistry[Device Registry]
        EventStore[Event Store]
        SimEngine[Simulation Engine]
        SimOverrides[Sim Overrides]
    end

    subgraph integrations [External Integrations]
        OpenRouter[OpenRouter LLM]
        OpenWeather[OpenWeather]
        ERCOT[ERCOT Grid]
        GoogleCal[Google Calendar]
        ElevenLabs[ElevenLabs]
    end

    subgraph iot [IoT Layer]
        MQTT[MQTT Broker]
        Devices[Simulated Devices]
        DeviceRegistry --> Devices
        Devices <--> MQTT
    end

    frontend -->|HTTP REST| REST
    frontend -->|WS| WS
    CommandsRouter --> Orchestrator
    Orchestrator --> OpenRouter
    ThreatAgent --> OpenWeather
    ThreatAgent --> ERCOT
    UserInfo --> GoogleCal
    VoiceAgent --> ElevenLabs
    HomeState --> DeviceRegistry
    Orchestrator --> DeviceRegistry
    Orchestrator --> EventStore
    agents --> EventStore
    SimRouter --> SimEngine
    SimEngine --> SimOverrides
    SimOverrides --> ThreatAgent
    DeviceRegistry --> MQTT
    api --> WS
    EventStore --> WS
    DeviceRegistry --> WS
    agents --> WS
  • Frontend talks to the backend over REST (devices, commands, agents, threats, patterns, voice, simulation) and WebSocket (/ws) for real-time device state, agent actions, and threat updates.
  • Commands are handled by the Orchestrator, which uses the OpenRouter LLM and sub-agents to plan and execute device actions.
  • Device Registry loads from config/devices.yaml, manages simulated devices, and communicates with the MQTT broker.
  • Simulation engine and overrides can replace weather, grid, and other inputs for testing; overrides are consumed by the threat agent and related clients.

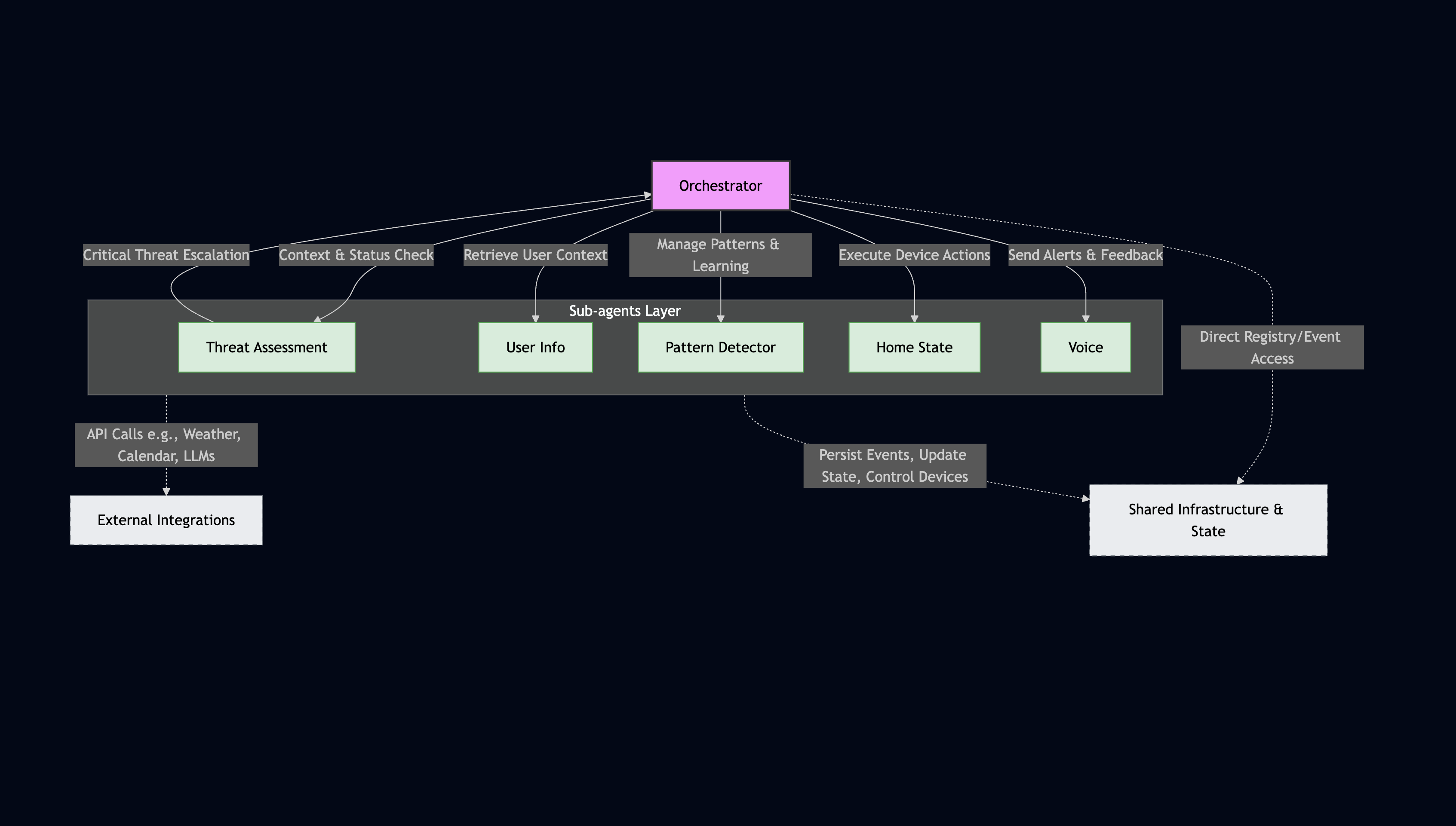

Agent network

The Orchestrator is the central coordinator: it starts and uses five sub-agents, reads from shared services (Device Registry, Event Store, WebSocket), and relies on integrations (OpenRouter, OpenWeather, ERCOT, Google Calendar, ElevenLabs, ChromaDB). The following diagram shows the agent layer and the main control and data flows.

flowchart TB
    subgraph orchestrator [Orchestrator]
        Orch[Orchestrator]
        OrchLLM[OpenRouter LLM]
        Orch --> OrchLLM
    end

    subgraph subagents [Sub-agents]
        Threat[Threat Assessment]
        Pattern[Pattern Detector]
        HomeState[Home State]
        Voice[Voice]
        UserInfo[User Info]
    end

    subgraph shared [Shared services]
        DeviceRegistry[Device Registry]
        EventStore[Event Store]
        WS[WebSocket Manager]
    end

    subgraph homeStateInternals [Home State internals]
        DeviceTools[Device Tools]
        QueryTools[Query Tools]
        HomeState --> DeviceTools
        HomeState --> QueryTools
        DeviceTools --> DeviceRegistry
        QueryTools --> DeviceRegistry
    end

    subgraph integrations [Integrations]
        OpenWeather[OpenWeather]
        ERCOT[ERCOT]
        OpenRouter[OpenRouter]
        GoogleCal[Google Calendar]
        ElevenLabs[ElevenLabs]
        Chroma[ChromaDB]
    end

    Orch -->|"latest_assessment, summary"| Threat
    Orch -->|"location, calendar_context"| UserInfo
    Orch -->|"patterns, get_matching, log_event, learn_preference"| Pattern
    Orch -->|"execute_action, get_energy_summary"| HomeState
    Orch -->|"run (TTS), set_dnd_mode"| Voice
    Threat -->|"handle_threat_assessment (HIGH/CRITICAL)"| Orch

    Threat --> OpenWeather
    Threat --> ERCOT
    Threat --> OpenRouter
    UserInfo --> GoogleCal
    Voice --> ElevenLabs
    Pattern --> Chroma
    Pattern --> OpenRouter

    HomeState --> EventStore
    HomeState --> WS
    Threat --> WS
    Pattern --> EventStore
    Voice --> EventStore
    Voice --> WS
    UserInfo --> EventStore
    Orch --> DeviceRegistry
    Orch --> EventStore

Flow summary:

From To Purpose
Orchestrator Threat Read latest threat assessment and summary for context in user commands and threat response.
Orchestrator User Info Read location and calendar context for home mode (e.g. preparing_for_meeting).
Orchestrator Pattern Read active patterns; get matching patterns for triggers; log device events; learn user preferences.
Orchestrator Home State Execute device actions (user commands, threat response, patterns, mode changes).
Orchestrator Voice Run TTS alerts and feedback; set DND mode for sleep/meeting.
Threat Orchestrator On HIGH/CRITICAL threat, call handle_threat_assessment for voice alert and device actions.
Home State Device Registry All device control and queries via LangChain tools (Device Tools, Query Tools).
All agents Event Store / WebSocket Persist events and broadcast state to the frontend.

User command flow

When a user types or speaks a command on the Dashboard, the request is sent to the backend; the Orchestrator gathers context from the other agents and the device registry, uses the LLM to plan actions, then executes them via the Home State agent. Device updates and agent activity are pushed to the UI over WebSocket.

sequenceDiagram
    participant User
    participant UI as Dashboard UI
    participant CommandsAPI as POST /commands
    participant Orch as Orchestrator
    participant LLM as OpenRouter
    participant HomeState as Home State Agent
    participant Registry as Device Registry
    participant MQTT as MQTT
    participant WS as WebSocket

    User->>UI: type or speak command
    UI->>CommandsAPI: { command, source: text|voice }
    alt source is voice
        CommandsAPI->>Orch: check_command_clarity
        Orch->>LLM: clarity check
        LLM-->>Orch: is_clear, cleaned_text
    end
    CommandsAPI->>Orch: handle_user_command(command)
    Orch->>Orch: gather context (devices, threat, calendar, patterns)
    Orch->>LLM: plan actions with context
    LLM-->>Orch: actions list
    loop for each action
        Orch->>HomeState: execute_action(device_id, action, params)
        HomeState->>Registry: get device, execute
        Registry->>MQTT: publish command
        Registry->>EventStore: record event
        EventStore->>WS: broadcast device_state / agent_action
    end
    Orch-->>CommandsAPI: result
    CommandsAPI-->>UI: success, message
    WS-->>UI: real-time device/agent updates

Project structure

Lumos/
├── config/
│   ├── devices.yaml      # Device definitions (rooms, types, energy, priority)
│   ├── settings.py       # Pydantic settings (env vars)
│   └── mosquitto.conf    # MQTT broker config
├── frontend/             # React + Vite SPA
│   ├── src/
│   │   ├── App.tsx       # Routes, layout, protected routes
│   │   ├── main.tsx      # GoogleOAuthProvider, AuthProvider
│   │   ├── components/   # landing, home, layout, sim, ui
│   │   ├── contexts/    # AuthContext
│   │   ├── hooks/       # useWebSocket, useApi, voice, etc.
│   │   ├── pages/       # Dashboard, Patterns, SimDashboard
│   │   └── types/
│   └── .env.example     # VITE_GOOGLE_CLIENT_ID
├── src/
│   ├── main.py          # FastAPI app, lifespan, routes, WebSocket, static serve
│   ├── agents/          # Orchestrator, Threat, Pattern, Home State, Voice, User Info
│   │   └── tools/       # device_tools, energy_tools, query_tools (LangChain)
│   ├── api/
│   │   ├── routes/      # devices, commands, agents, threats, patterns, voice, simulation
│   │   └── websocket.py # ConnectionManager, broadcast
│   ├── devices/         # Base device, registry, light, thermostat, plug, battery, etc.
│   ├── integrations/    # openrouter, openweather, ercot, google_calendar, elevenlabs
│   ├── models/          # device, command, events, pattern, threat
│   ├── mqtt/            # MQTT client, topics
│   ├── simulation/      # engine, overrides, scenarios, time_controller
│   └── storage/         # event_store, chroma
├── docs/
│   └── ARCHITECTURE.md  # Detailed architecture and workflow diagrams
├── start.sh             # Venv, frontend build, certs, Mosquitto, uvicorn HTTPS
├── requirements.txt
├── .env                 # Backend env (create from example)
└── README.md            # This file

Key files

Layer Path Purpose
Backend entry src/main.py FastAPI app, lifespan, CORS, routers, WebSocket, health, static frontend serve
Orchestrator src/agents/orchestrator.py Command handling, threat response, mode changes, pattern triggers, LLM planning
Threat agent src/agents/threat_assessment.py Weather + ERCOT fusion, threat level/type/actions, optional auto-trigger to orchestrator
Home State src/agents/home_state.py LangChain AgentExecutor, device/query tools, execute_action for orchestrator
Device registry src/devices/registry.py Load devices from YAML, start/stop, state, action reference, critical device list
WebSocket src/api/websocket.py ConnectionManager, broadcast to frontend
Simulation src/simulation/engine.py, src/simulation/scenarios.py Scenario runner, overrides, temporal steps
Frontend app frontend/src/App.tsx Routes, Layout, ProtectedRoute
Dashboard frontend/src/pages/Dashboard.tsx Rooms, energy, threat, voice, command input, WebSocket hook
Auth frontend/src/contexts/AuthContext.tsx User/token state, Google logout, session persistence

For more workflows (startup, threat loop, dashboard data flow, simulation, device/MQTT), see docs/ARCHITECTURE.md.

License

See LICENSE in this repository.

Built With

Share this project:

Updates
