Inspiration

I wanted to learn how to use DynamoDB and AWS Lambda. I decided to build a URL shortener called Liliput, which is not an uncommon project but I wanted to focus specifically on

  • Security: All operations in Liliput put security as a primary concern.
  • Atomicity and uniqueness of short links: DynamoDB supports atomic counters, that is used in the link generation logic

What it does

Liliput is a secure, serverless shortener of URLs with the following features:

  • Logged-in users can create links and view their previously created links
  • Anonymous users can visit shortlinks
  • All short links are unique to a user - if the same long link is shorted multiple times, the same short URL is returned
  • Usage counts (expansion count) are tracked and displayed on the UI
  • Links can be expanded at most 25 times to prevent illegitimate usage (spam and phishing)
  • Verified users can create links that can be expanded unlimited times (verification process is through the source code)

Focus on Security

This application is secure because:

  • To create short links, you need a valid Google account

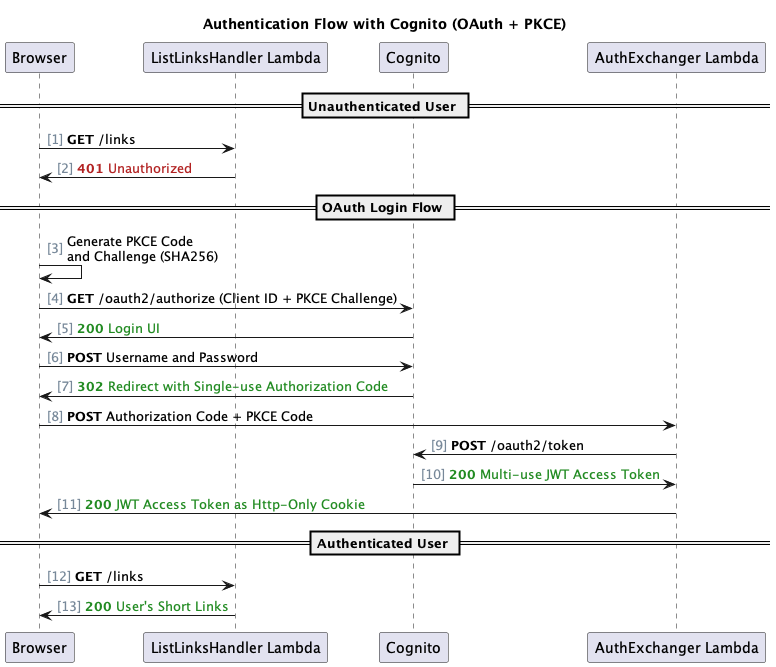

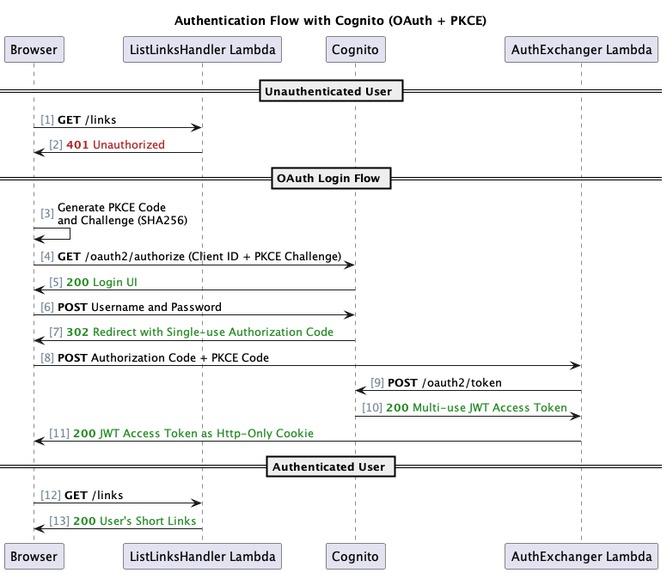

  • Signing into Google uses the OAuth 2.0 with PKCE
  • All cookies are HTTP-only (Javascript cannot access it)
  • Links can only be expanded 25 times to prevent misuse, unless the user is verified
  • All APIs are rate limited and alerts for when rate limit is breached

How we built it

The system uses:

  • DynamoDB for storage
  • Amazon Cognito and Google Oauth for login flows
  • Lambda functions for logic implementation (shown below)
  • API gateway for mapping lambda functions to routes
  • Authorizer in API gateway with another Lambda function
  • Public DNS (liliput.mourjo.me) for APIs

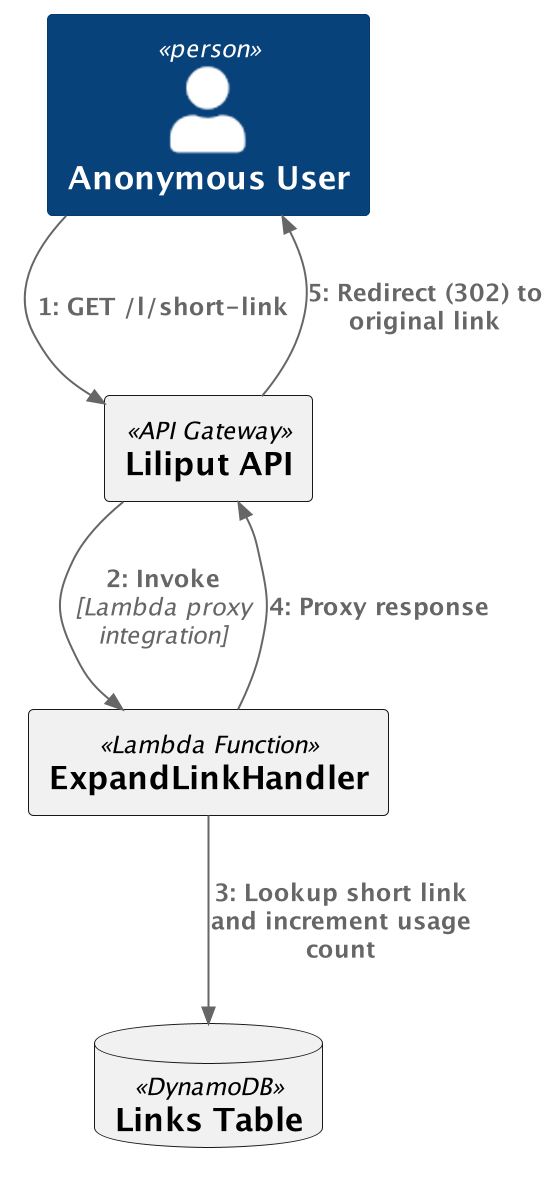

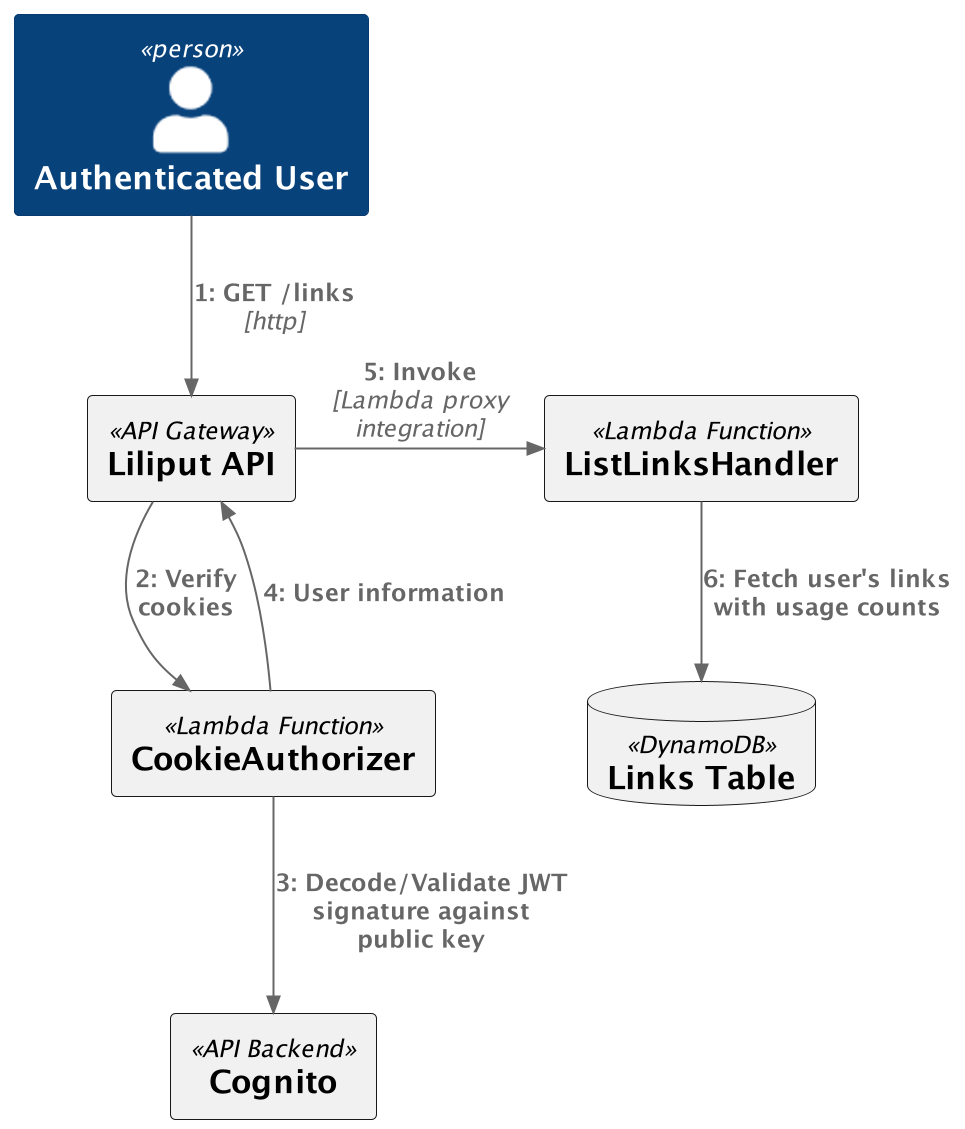

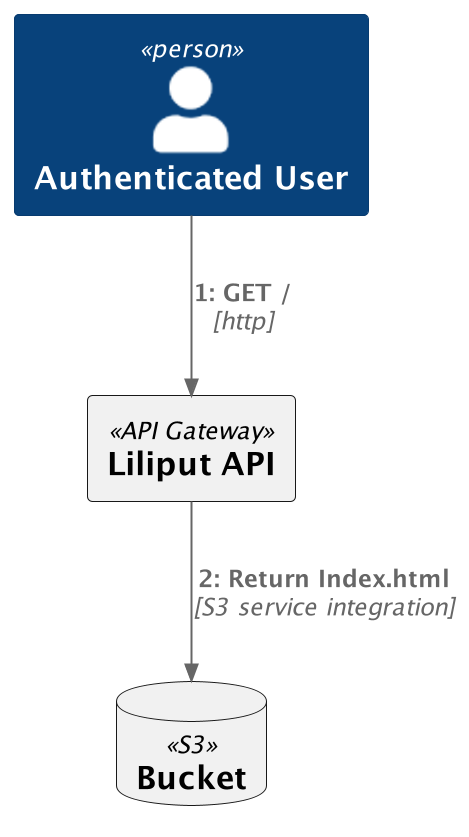

Logged in Flows Anonymous flows

Challenges we ran into

  • Slow startup with Java based Lambda functions
  • Managing login state in a single-page Javascript between the OAuth dance

What we learned

  • Amazon Cognito integration with Google OAuth
  • Authorizer middleware in API gateway with Lambda function
  • Generating IAM policy document for giving access to only verified users

What's next for Liliput

  • Verification without source code change
  • Disable link expansions explicitly
  • Switching between multiple Google accounts
  • Searching for links shortened
