Lego Robot AI

Innovative approach to support STEM education

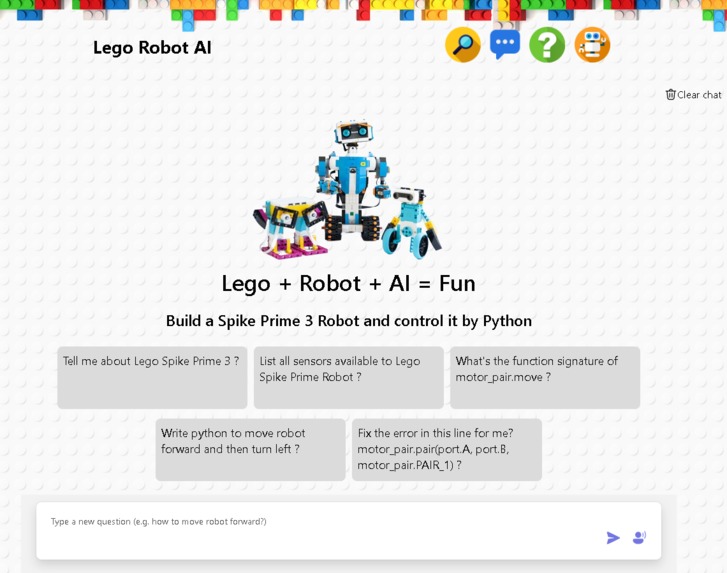

Build a Spike Prime Lego Robot and control it by Python

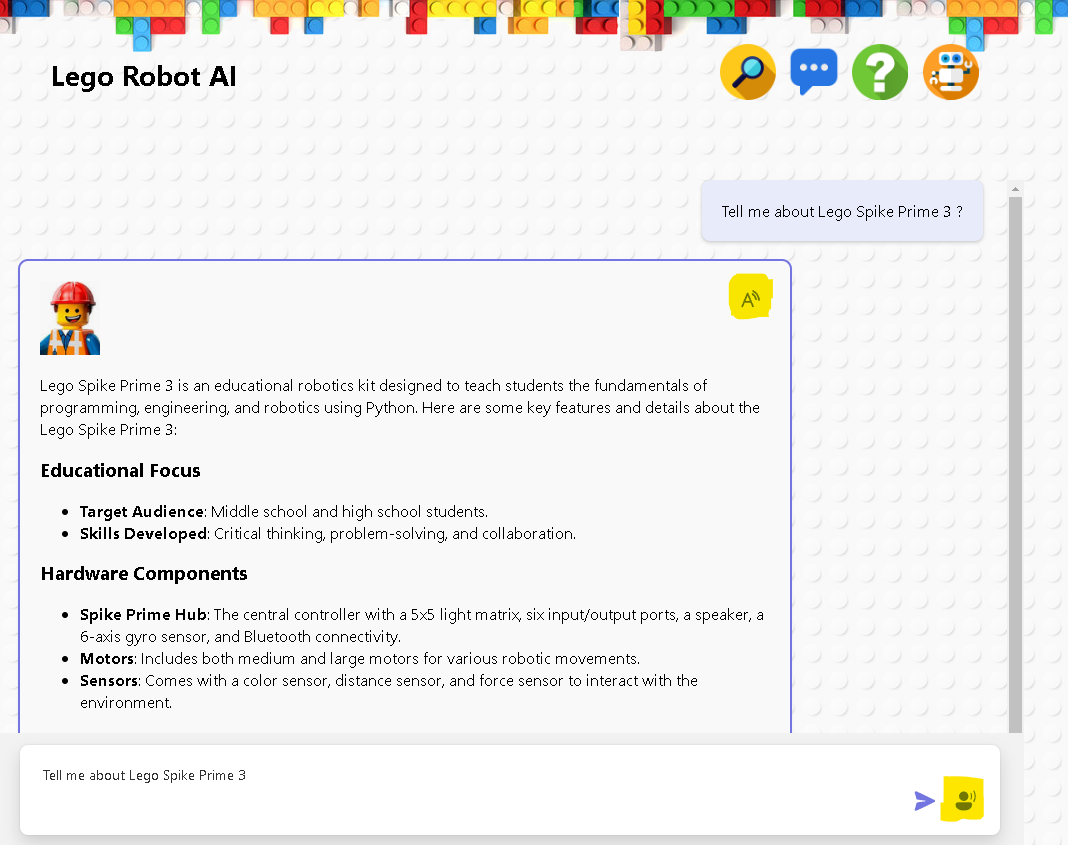

Chatbot function with voice and speech support
Understand Spike Prime python syntax and API knowledge base

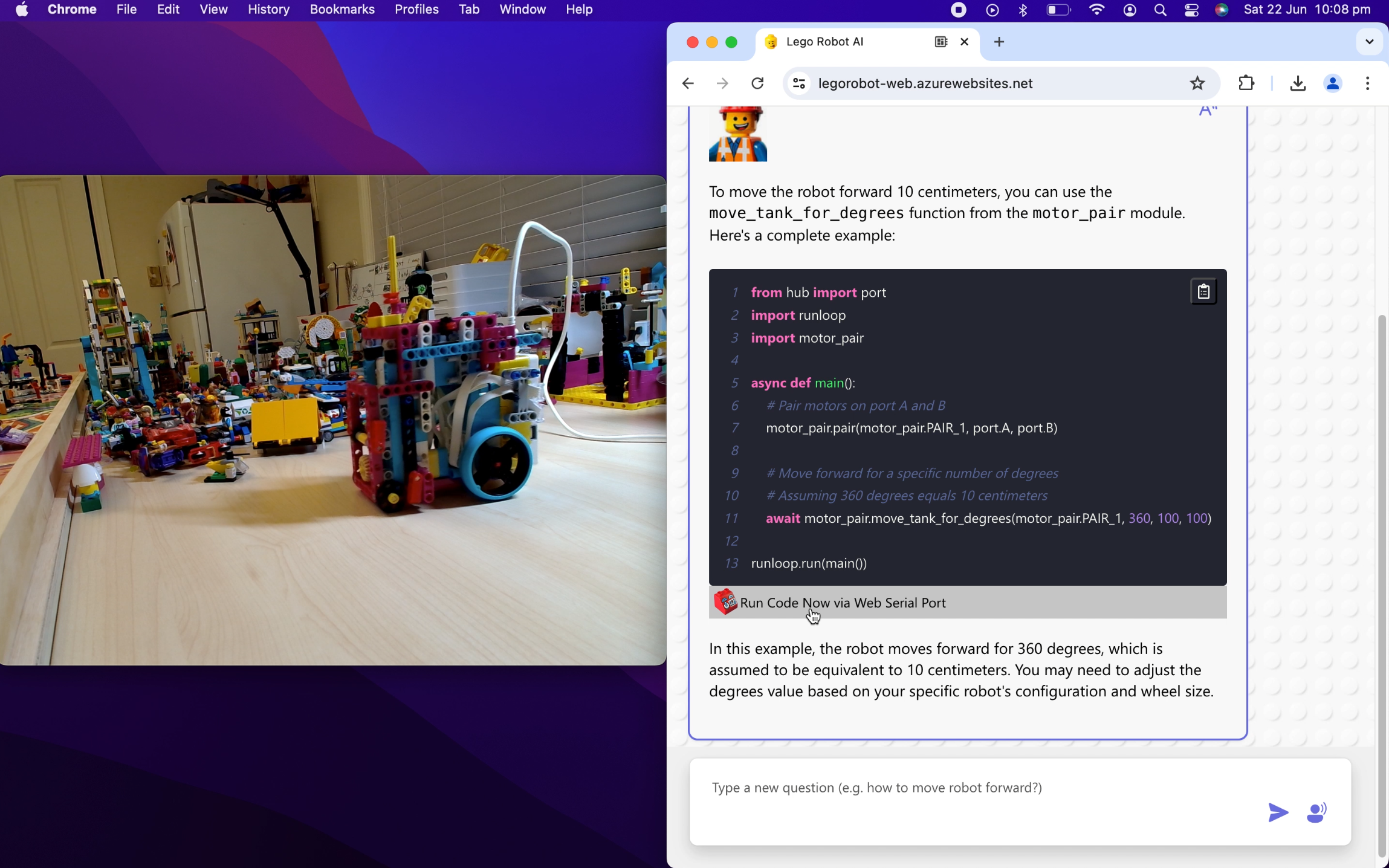

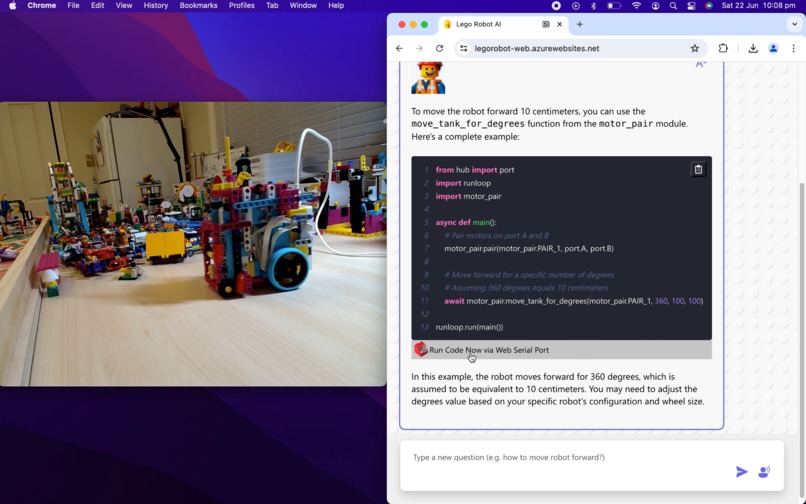

Lego robot demo - run python robot code in browser

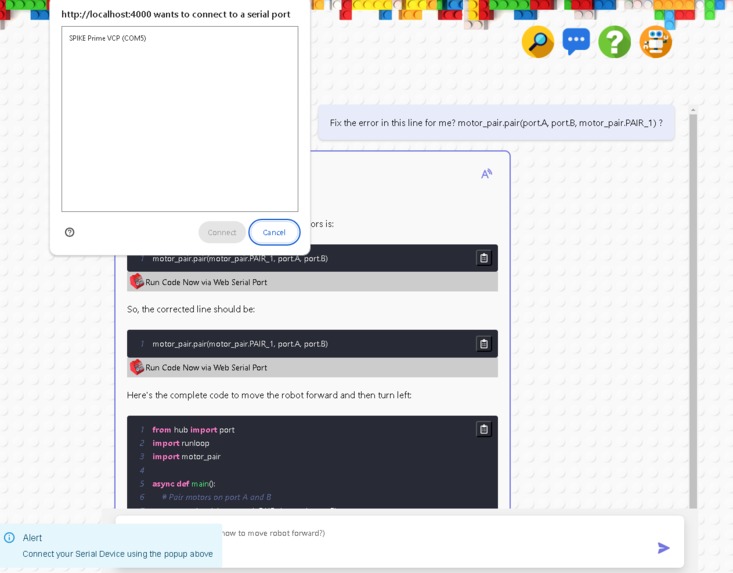

Web serial port to control Lego robot via browser directly

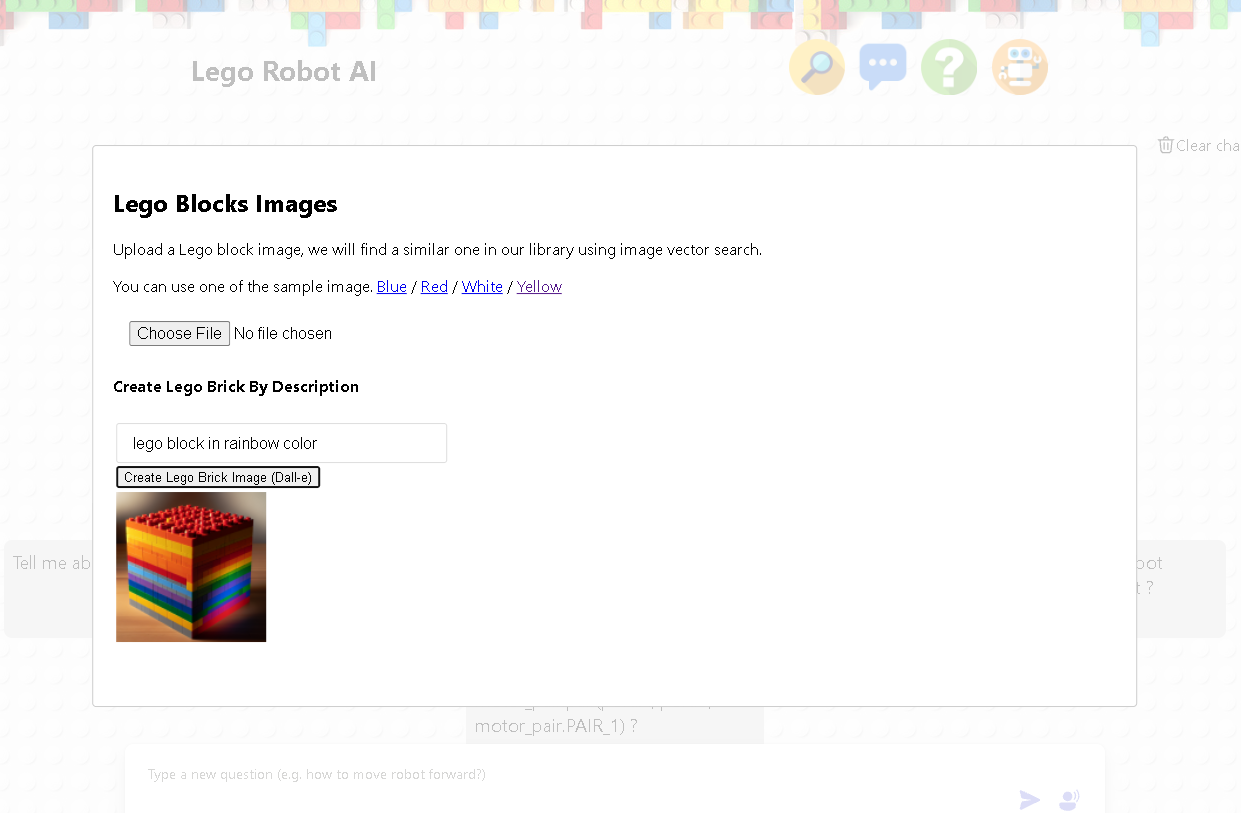

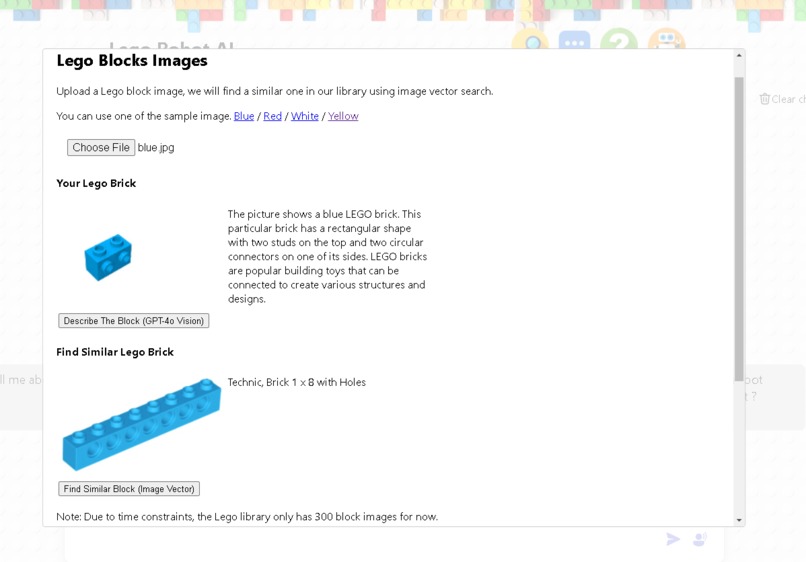

Lego brick image vector search & gpt-4o vision
Lego brick image generation with Dall-e

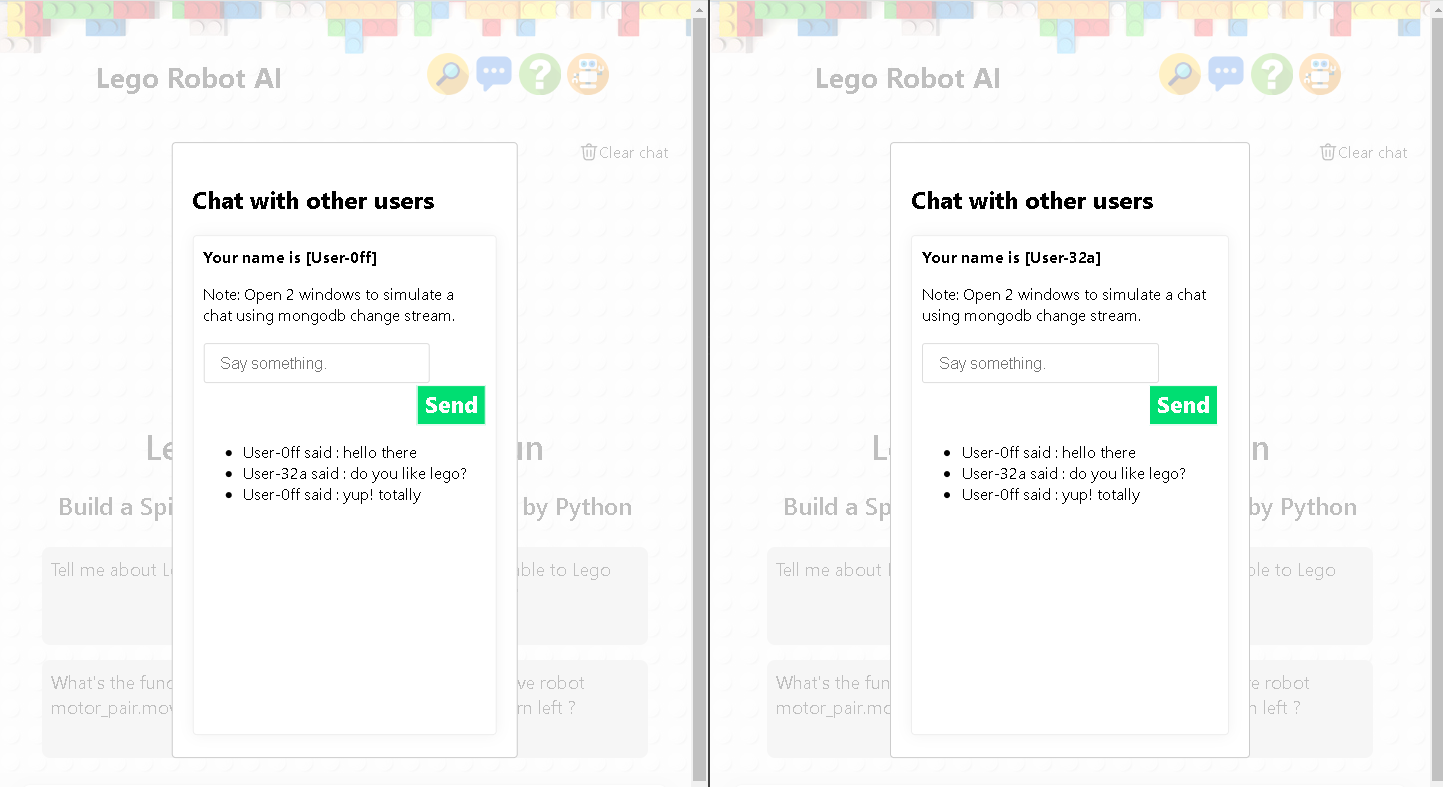

Live user chat using MongoDb change stream

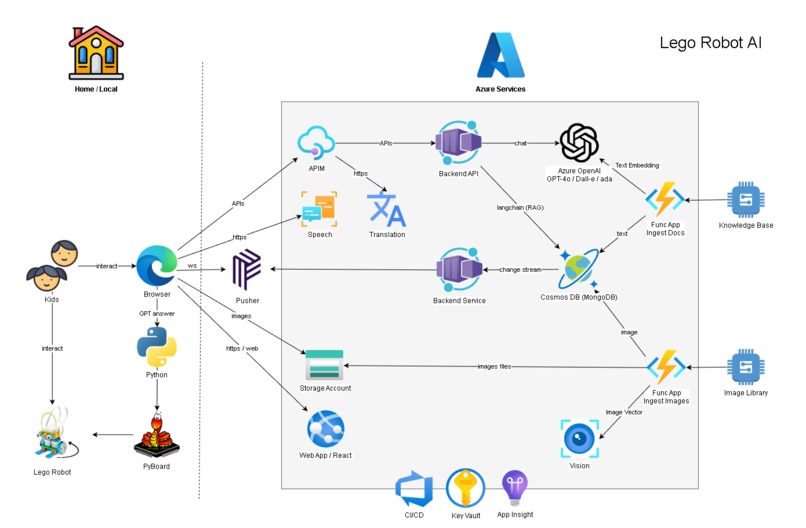

solution diagram: azure services

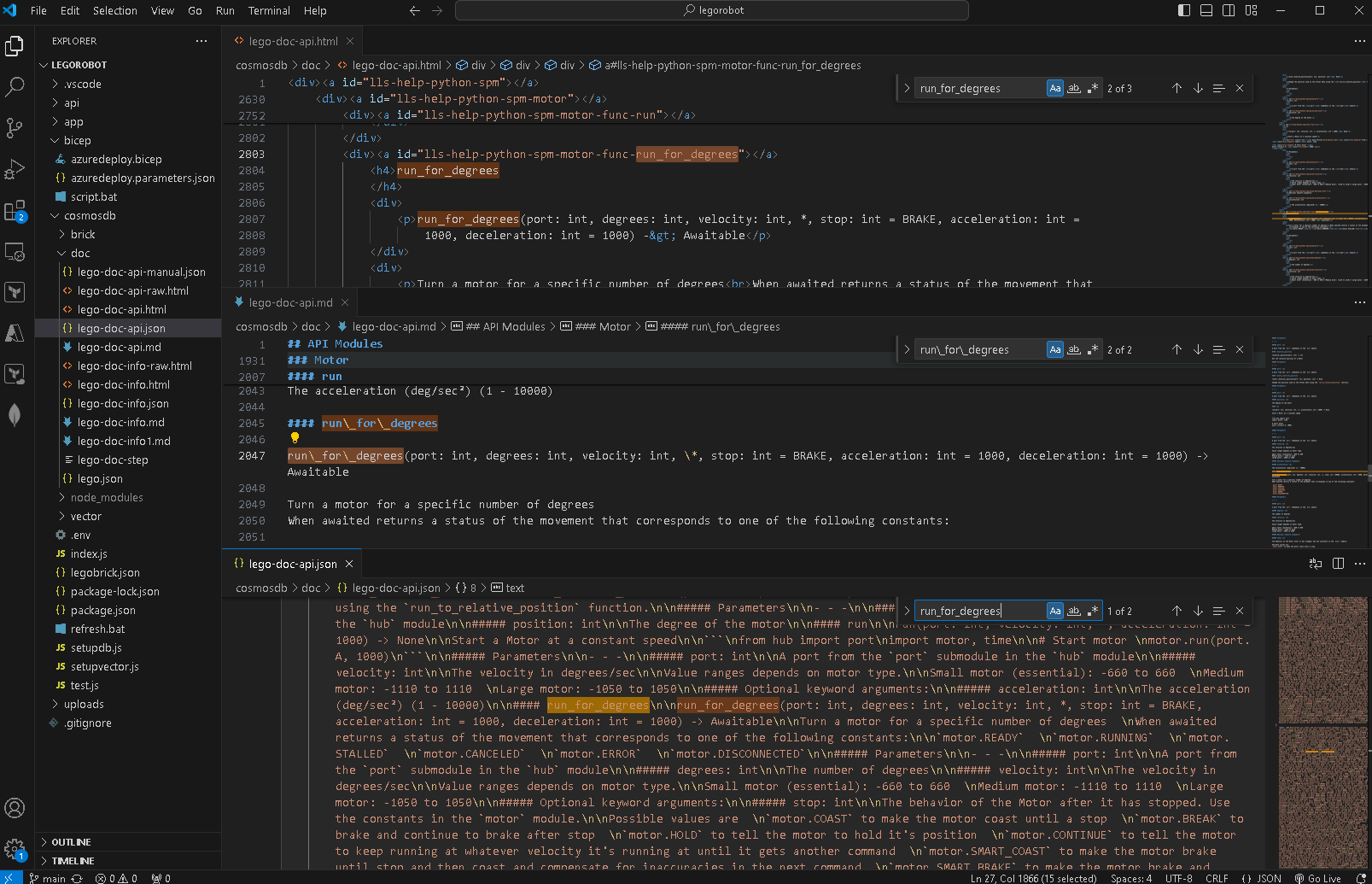

Data Engineering to format raw html API spec to markdown then to json

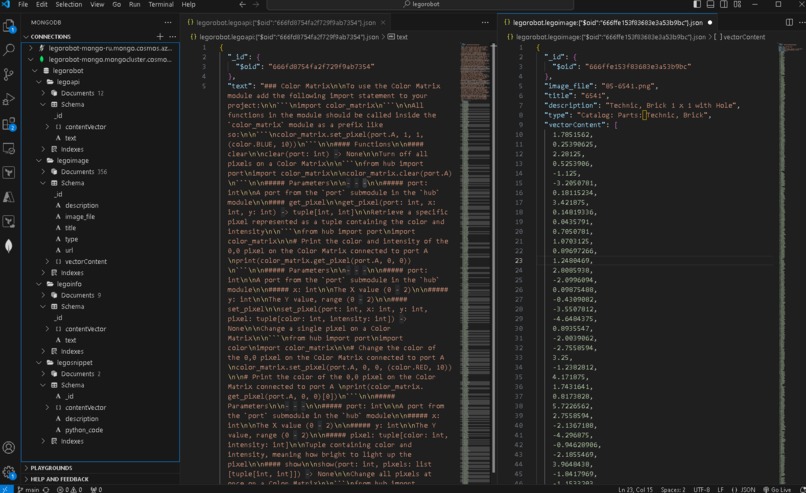

Cosmos MongoDB structure with jsons + vectors
Have fun in coding and robotics

Inspiration

Our Year 6 girls' FIRST Lego League team embarked on an exciting journey to learn Python for Spike Prime Lego Robot last year in preparation for the FIRST Lego League competition. Transitioning from block coding to Python was a significant challenge, and while they faced struggles in getting their programs to run independently, their determination never wavered. One student sought help from ChatGPT, but encountered issues with legacy and third-party libraries.

These young, passionate learners are in need of an innovative approach to support their STEM education (science, technology, engineering and mathematics) that allows them to interact with objects in real-time, enriching their experience and fueling their curiosity.

What it does

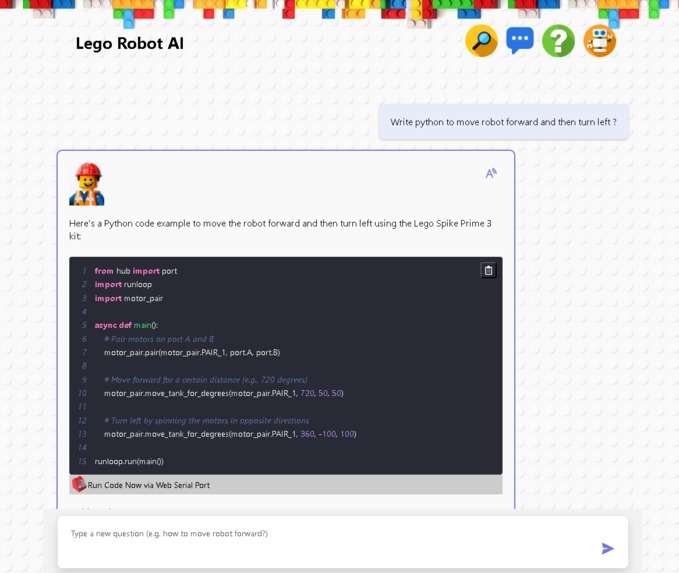

Lego Robot AI enriches learning experience by generating and explaining Python code using the Spike Prime 3 API specifications and knowledge base. Students can write and execute Python code directly on their Lego Robot through a web browser using a web serial port. This seamless integration helps young learners understand coding concepts while watching their robots come to life.

The app also features:

Lego Brick Image Library: Find similar bricks using an image search.
Speech Conversation Support: Makes interaction easier for young kids.
Live User Chat: Facilitates communication between kids and teachers.
Image Generation/ Description : Help kids build their Lego robots and discover new ideas.

How we built it

We did a prototype in March: a Python console program that can generate Python code using a fine-tuned GPT-3 model. However, this version was difficult to use due to:

text-based interface
require extensive setup on the device
the generated code often lacked accuracy

Now, we have transformed the prototype into a fully web-based solution with a more capable LLM model and heaps of new features.

Frontend: Built with React and TypeScript for a user-friendly web interface.
API Endpoints: Proxied through Azure API Gateway to ensure seamless communication.
Backend: Hosted on Azure utilizing Azure OpenAI services and Cosmos DB (MongoDB).

We employed a variety of Azure services including App Service, Function App, APIM, Container App, Cosmos DB, ACR, Speech Service, Computer vision, Translation Service, Key Vault, Azure Devops. This comprehensive setup has allowed us to create a powerful, user-friendly app that makes coding accessible and fun for young learners.

Challenges we ran into

The knowledge base needs to be generated using raw Spike Prime API specs and user guides.
Legacy versions and 3rd party libraries of APIs on the internet needs to be excluded
The chatbot needs to generate accurate python code that is executable directly on the robot.
Hard to integrate web serial port in the browser (compatibility issues)
Need to build up Python code snippet libraries to perform various robot actions (for LLM)
Feed useful information to RAG and does not slow down response time
Use Cosmos DB (MongoDb) Vector search for both text and image
Cosmos DB (MongoDb)'s change stream does not have 'delete' events
Don't store/ leak API keys in React App
Certain AI Services are expensive and needs to keep cost down
Inconsistency between python library and node library
