LED_MATRIX_WIRELESS_CHARGING_DOCK

•

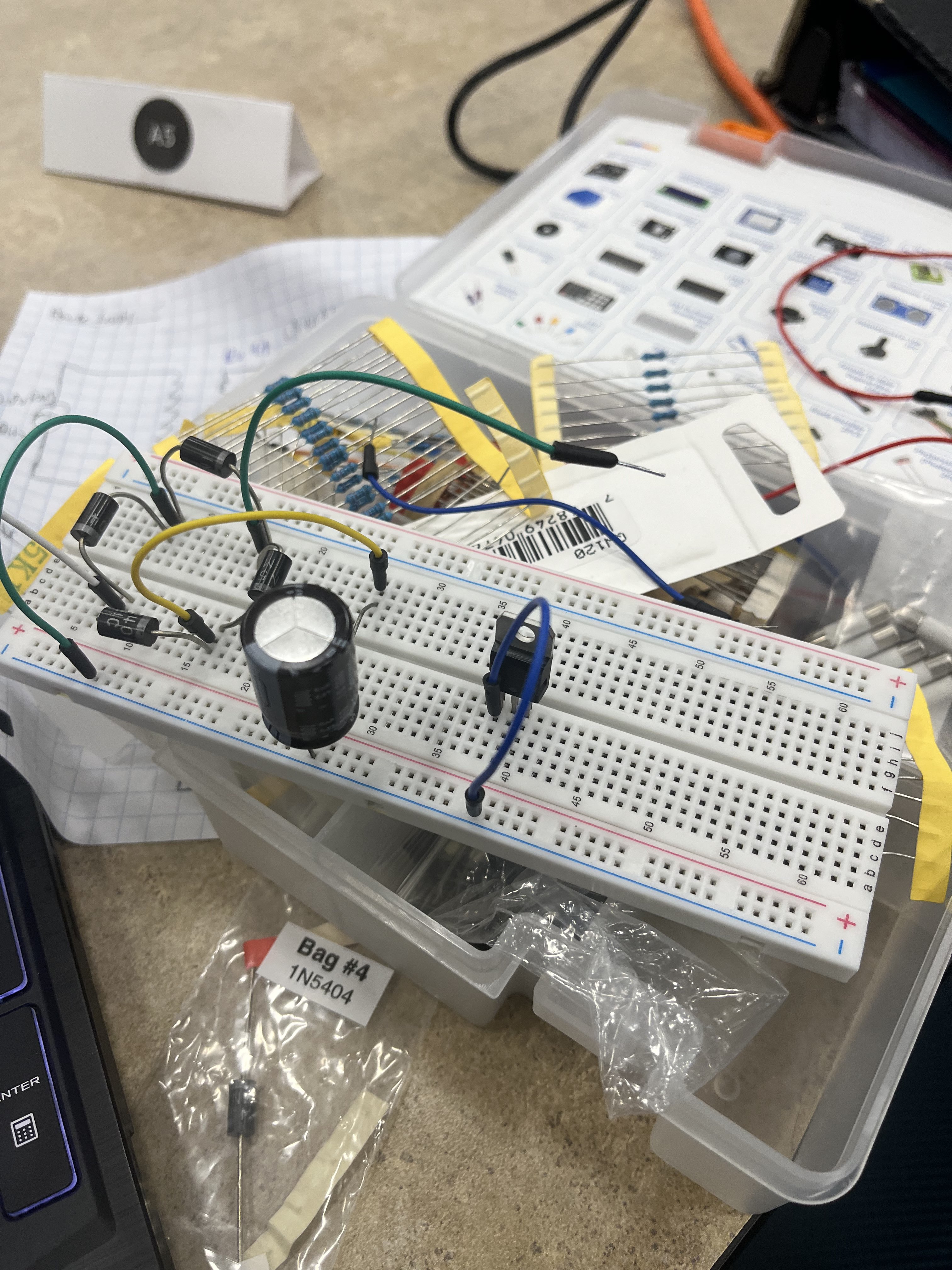

  half completed power supply for the wireless charger

•

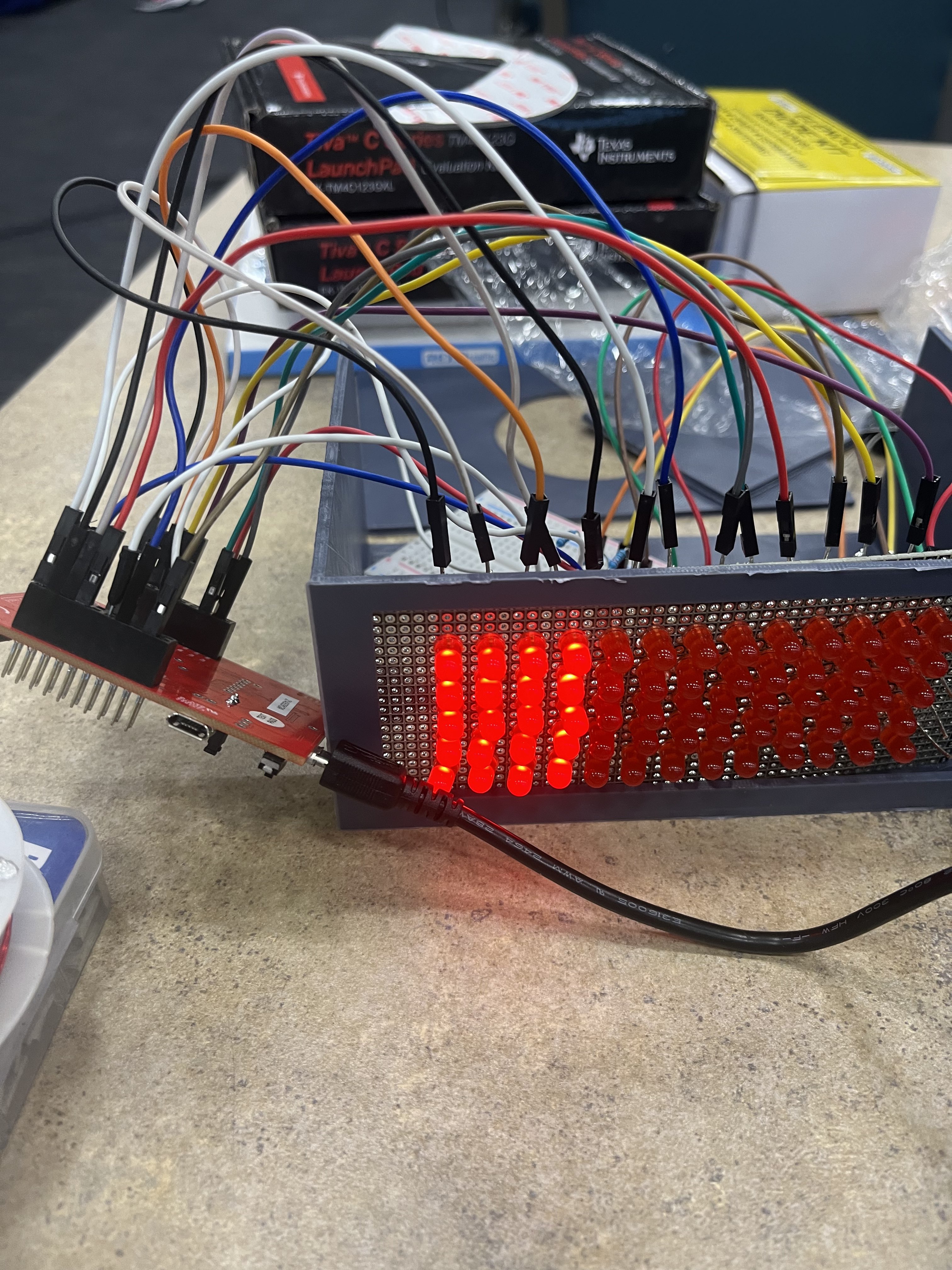

  LED display

Inspiration

I wanted to make a functional piece of decor for a room.

What it does

Wireless charging and LED matrix display.

How we built it

LEDs are in a matrix configuration. 220ohm resistors to limit current. TM4X123G microcontroller is used to power everything. LED refreshes from top to bottom.

Challenges we ran into

This project is not yet complete. Some soldered wires got loose. There are pins that are not behaving as they should causing LED display to only work on a small segment. Code is not yet complete to control the LED display. The wireless charger is not completely assembled. Soldering the led display took a very long time.

Accomplishments that we're proud of

Part of the LED display works.

What we learned

Adding hardware to the project consumes a lot of time.

What's next for LED_MATRIX_WIRELESS_CHARGING_DOCK

Adding an interface for the user to work with to control the LED display.

Built With

• c++
• keil
• tm4c123g
