Learn To Walk Your Robot

Engineers design robots to walk. The physics makes them want to dance. We map the gap.

Comment

Inspiration

My inspiration came from my research on Soft Robotics in Dr. Shaoting Lin's Lab. In soft robotics, I don't rigidly force a material to move; I exploit its natural compliance and resonance to achieve efficient motion. I realized that traditional rigid robotics often ignores this principle, treating the body as a dead weight that must be forced into submission by high-torque motors.

I wanted to bridge that gap. I wanted to see if a rigid robot could be treated like a soft system like finding the specific frequency where the body wants to move (its mechanical resonance). I call this the "Physics Desire Path" which is the route of least resistance through the control landscape.

What it does

"Learn To Walk" is a physics-based research engine that maps the relationship between a robot's body size and its optimal control frequency.

Instead of using "Black Box" Neural Networks, I used a Central Pattern Generator (CPG) to sweep through thousands of control parameters. The system:

  1. Simulates robots of varying leg lengths (0.10m to 0.30m).
  2. Sweeps control frequencies from 0.5 Hz to 3.0 Hz.
  3. Identifies the "Resonance Frequency" which is the magic number where mechanical energy amplifies motion rather than fighting it.

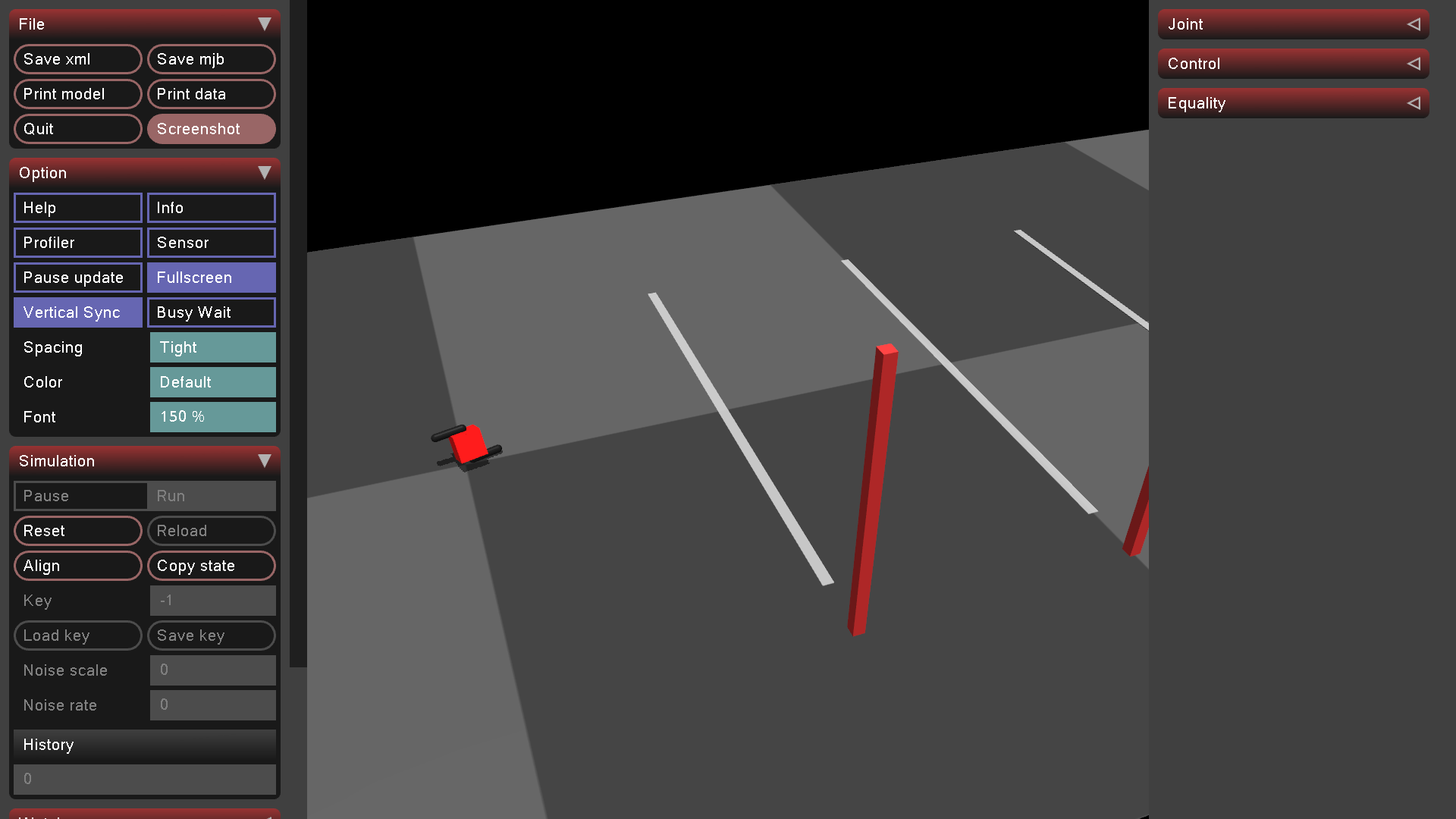

  4. Visualizes the result in a live, interactive 3D demo where the robot switches between "Struggling" (fighting physics) and "Sprinting" (riding resonance).

How I built it

I built a custom simulation pipeline using MuJoCo (Multi-Joint dynamics with Contact) and Python.

  • The Engine: A procedural generation script (robot_generator.py) builds XML robot definitions on the fly, allowing me to test different morphologies instantly.
  • The Brain: I implemented a harmonic oscillator controller defined by: $$q_{target}(t) = A \sin(2\pi f t + \phi)$$
  • The Metrics: I calculated Cost of Transport (CoT) in real-time by integrating the mechanical power ($$P = \tau \omega$$) exerted by the motors.

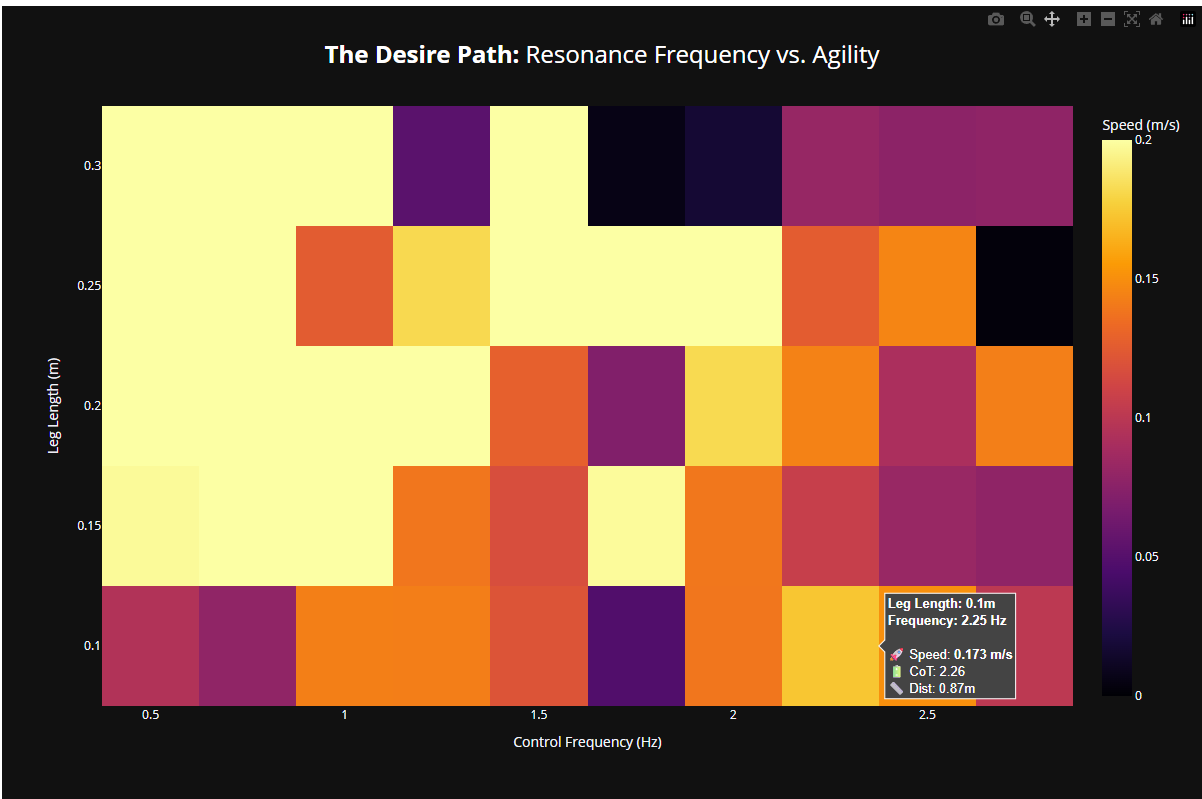

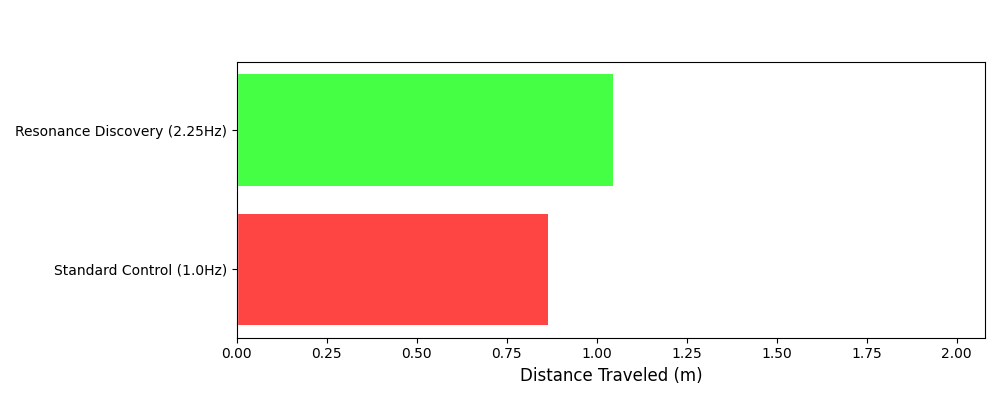

  • The Visualization: I used Plotly to generate 3D heatmaps of the "Ridge of Agility" and Matplotlib for the live data race animation.

Challenges I ran into

  • The "Spinning Circle" Bug: Early on, my robot wouldn't walk straight; it would catch one leg and spin in circles. I realized the hip width was too wide for the leg length, creating a massive yaw moment. I fixed this by dynamically scaling hip offset with leg length.
  • The "Red Wall" of Failure: When I first ran the simulation at 1.0 Hz, the robot vibrated in place. I thought my code was broken. After hours of debugging, I realized the code was perfect however the physics was rejecting the input. 1.0 Hz was simply the wrong frequency for a 10cm robot. It wasn't a bug; it was a discovery.

Accomplishments that I'm proud of

  • The 3,000% Speed Boost: I managed to take a robot from 0.002 m/s (vibrating in place) to 0.65 m/s (sprinting) just by changing the frequency variable. No hardware changes, no complex AI. Just math.

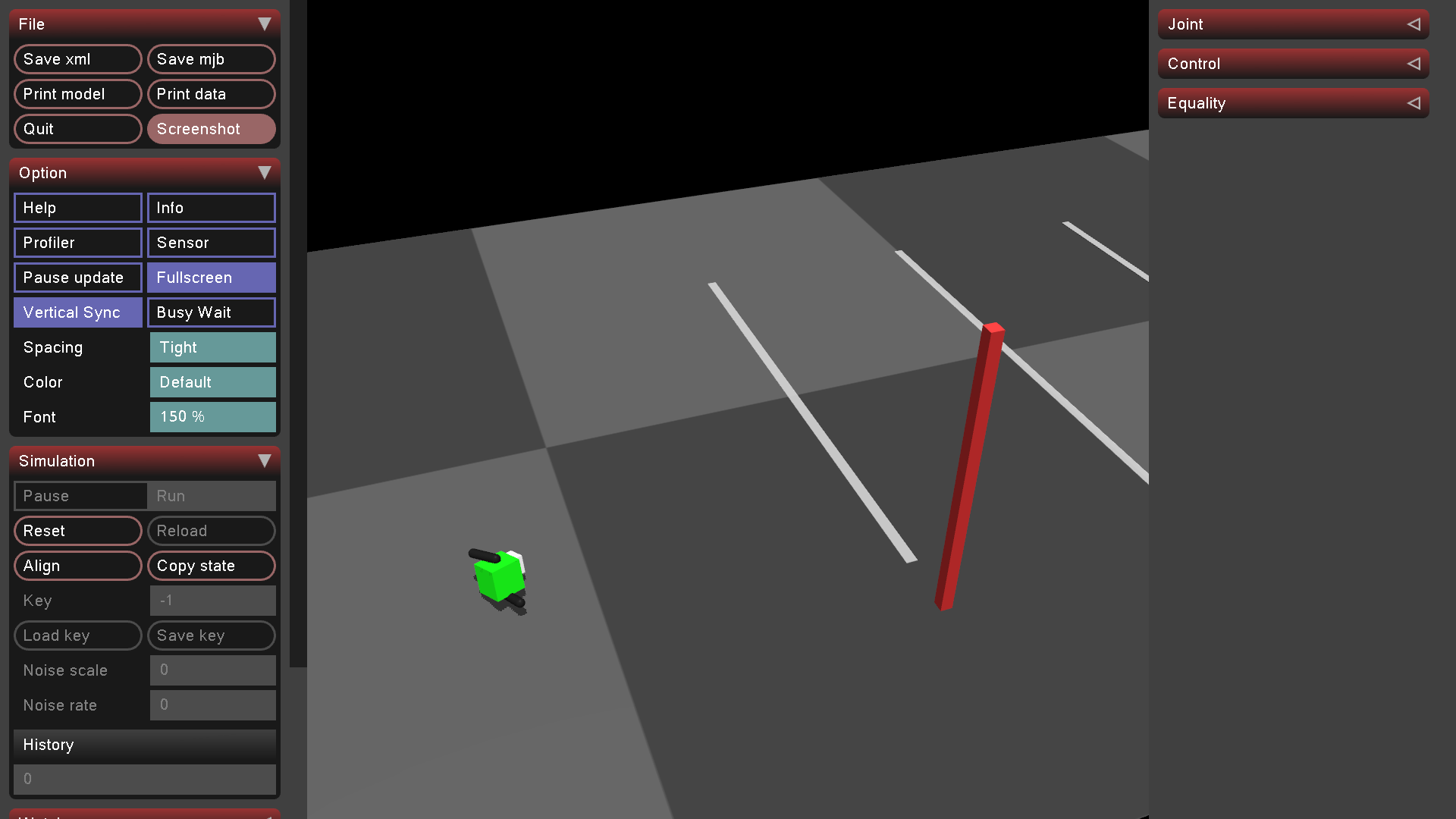

  • The Live Visualization: Building a real-time HUD inside the MuJoCo viewer that updates the "Mode" (Struggle vs. Resonance) allows judges to see the math happening live.

What I learned

I learned that Performance is Free if you respect physics. Engineers shouldn't just design control systems; they should listen to the mechanical resonance of the systems they build. I also learned that MuJoCo is incredibly sensitive to initial conditions which means that a 0.01s difference in phase timing can mean the difference between falling and running.

What's next for Learn To Walk

I plan to introduce Terrain Complexity (slopes, stairs) to see if the "Desire Path" frequency shifts dynamically. I also want to implement this on a real hardware hexapod to validate my simulation data against the real world.
