An Autonomous Spatial Security Digital Twin Platform with optimized physical camera placement validated by synthetic Gemini 3.6 Flash Vision AI feed.

Comment

AegisSpatial - 3D Spatial Security Optimization, Synthetic Surveillance Generation & Gemini AI Intelligence System

AegisSpatial is an end-to-end intelligent spatial security and surveillance optimization platform. It combines 3D Environment Modeling (GLB), 3D Greedy Set Cover Camera Optimization, Room-Conditioned Synthetic Video Generation, Google Gemini Multimodal AI Vision Analysis, and an interactive Gemini AI Surveillance Copilot Chatbot into a unified modern command center.

🌟 Key Capabilities & Features

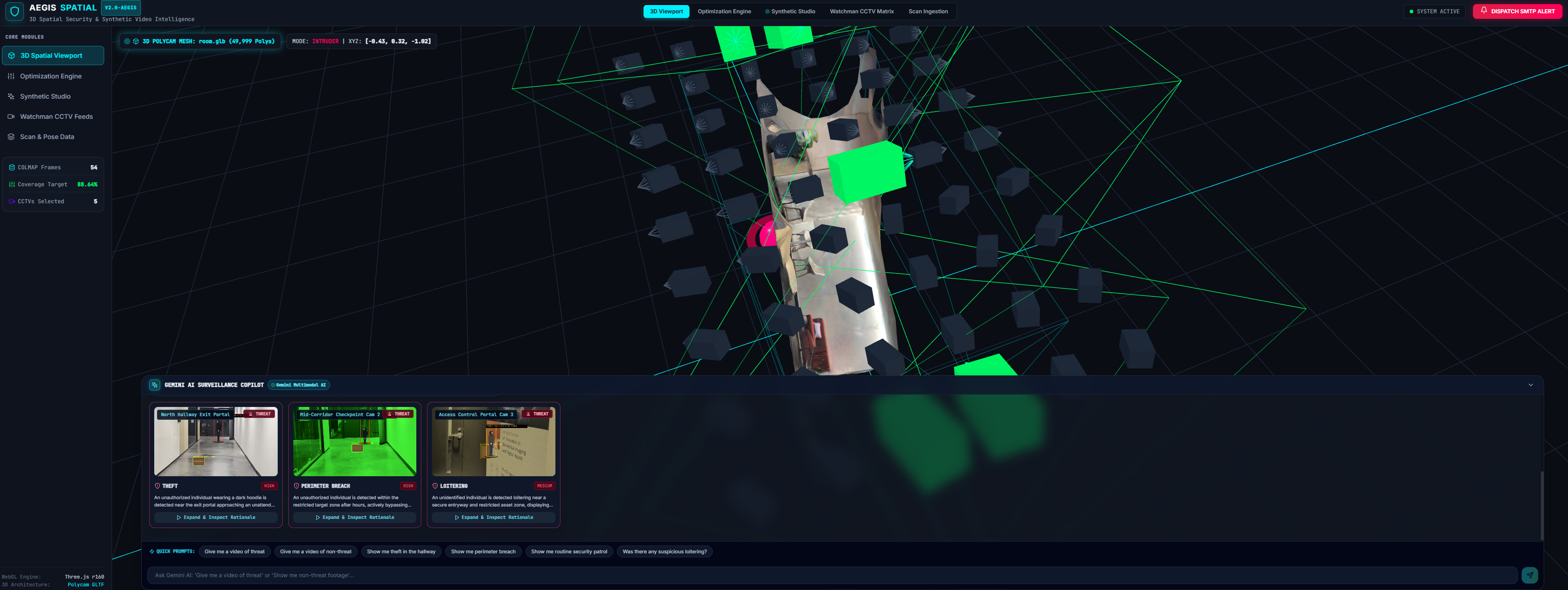

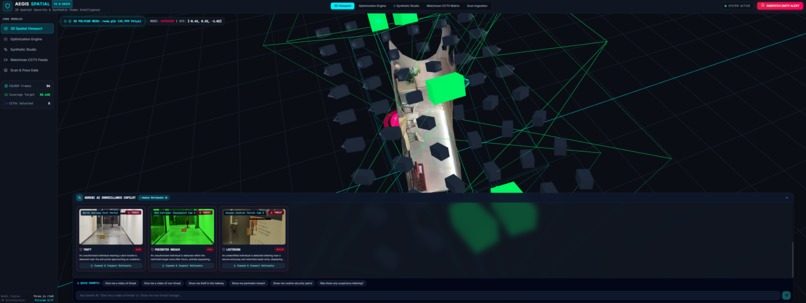

1. 🌐 3D Spatial Environment & Camera Frustum Visualizer

  • Interactive Three.js 3D Viewport: Renders the physical room environment (room.glb) with full orbit controls, grid alignment, and real-time bounding volume calculation.
  • Dynamic Camera Frustum Representation: Visualizes 3D pyramid cones, field-of-view (FOV) angles, maximum sensing ranges, and sightline coverage across the space.
  • Candidate Grid Generator: Programmatically generates candidate ceiling-mounted sensor coordinates matching the room dimensions.

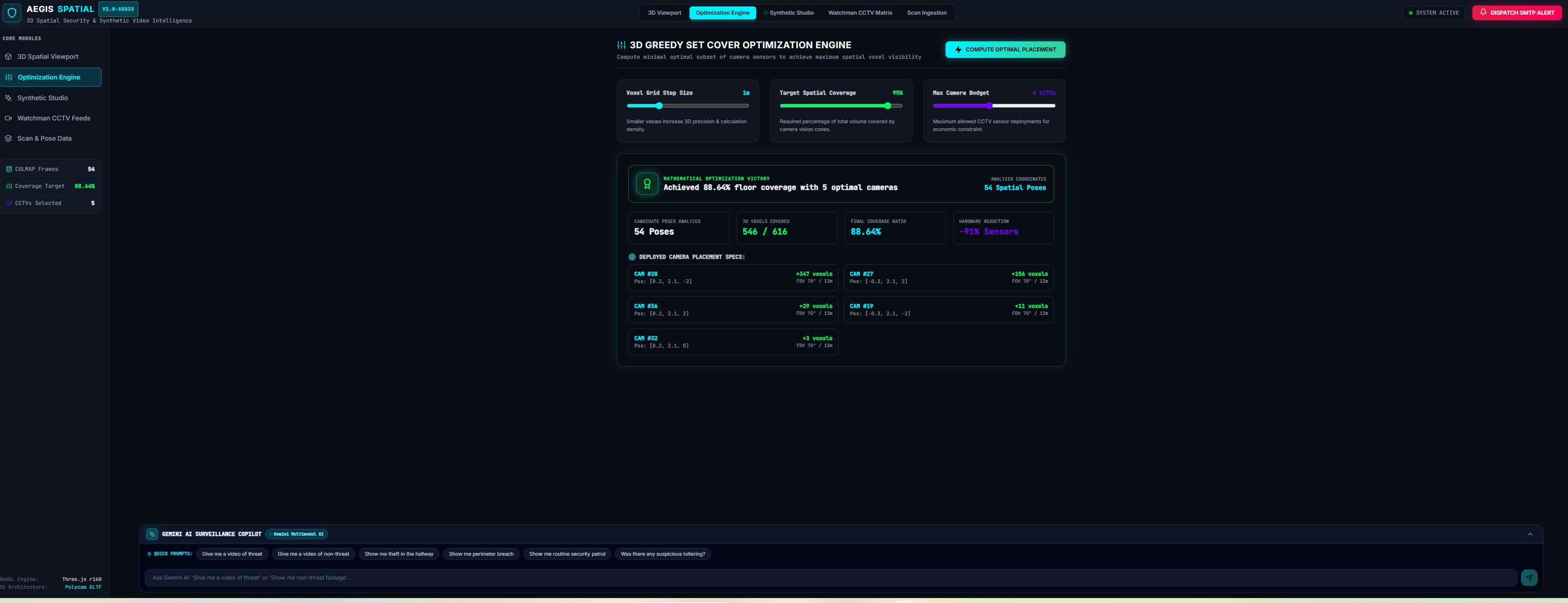

2. 📐 3D Greedy Set Cover Sensor Optimization

  • Voxelized Visibility Coverage: Discretizes the 3D room into a 3D spatial voxel grid and simulates line-of-sight raycasting from candidate camera viewpoints.
  • Greedy Set Cover Solver: Solves the NP-hard minimum camera placement problem, computing the optimal minimal subset of cameras required to achieve >95% spatial coverage.
  • Real-Time Coverage Metrics: Reports camera selection breakdown, covered voxel counts, redundancy levels, and optimization compute times.

3. 🎬 Room-Conditioned Synthetic CCTV Video Generation

  • Direct Conditioning on Room Frames: Synthesizes realistic surveillance video streams conditioned directly on the 101 camera POV source images in input/images/ (frame_0001.jpg – frame_0101.jpg) used to construct room.glb.
  • Animated Human Actors & Kinematics:
    • Theft & Package Tampering: Intruder in dark hoodie approaching unattended equipment, reaching down, concealing items, and retreating.
    • Perimeter Boundary Breach: Stealth intruder crouching and rapidly moving past security lasers and corridor checkpoints after hours.
    • Suspicious Entryway Loitering: Individual pacing nervously near secure doorways and inspecting lock mechanisms.
    • Authorized Foot Traffic: Facility occupants casually walking with beverages down the hallway at a steady pace.
    • Scheduled Security Patrol: Uniformed security officer methodically verifying doors and physical checkpoints.
    • Monitored Clear Zone: Secure baseline monitoring maintaining optical clarity with zero movement.
  • Realistic Kinematics & Floor Shadows: Renders sinusoidal walking strides, perspective depth scaling, floor contact shadows matching ceiling lights, and CCTV live OSD timestamp overlays.
  • Universal Browser Playback: Encodes clips into standard H.264 MP4 (yuv420p / avc1) using imageio for playback across all modern web browsers.

4. 👁️ Google Gemini Multimodal AI Vision Classification

  • Automated Frame-by-Frame Evaluation: Powered by Google Gemini (gemini-flash-lite-latest / gemini-3.8-flash / gemini-flash-latest) using the configured GEMINI_API_KEY.
  • Structured JSON Metadata Extraction:
    • is_threat: true / false
    • threat_type: theft, perimeter_breach, loitering, normal_traffic, routine_patrol, clear_zone
    • severity: HIGH, MEDIUM, LOW, NONE
    • confidence: Calibrated AI confidence score (e.g. 95% – 98%)
    • rationale: Comprehensive spatial security breakdown analyzing detected movements, attire, and zone integrity.

5. 🤖 Gemini AI Surveillance Copilot (Interactive Bottom Chatbot)

  • Natural Language Incident Retrieval: Natural conversational assistant embedded directly in the command center.
  • Instant Video Retrieval & Playback: Queries such as "give me a video of threat", "give me a video of non-threat", "show me theft in the hallway", or "was there any loitering?" automatically return:
    • Concise Gemini AI situational summary.
    • Dynamic interactive video cards with threat/non-threat badges.
    • Full-screen modal player with instant playback and detailed spatial reasoning.
  • Multi-Engine Intelligence: Seamlessly leverages Gemini Multimodal AI with fallback support for local Ollama instances (llama3.2) and rule-based spatial security matching.

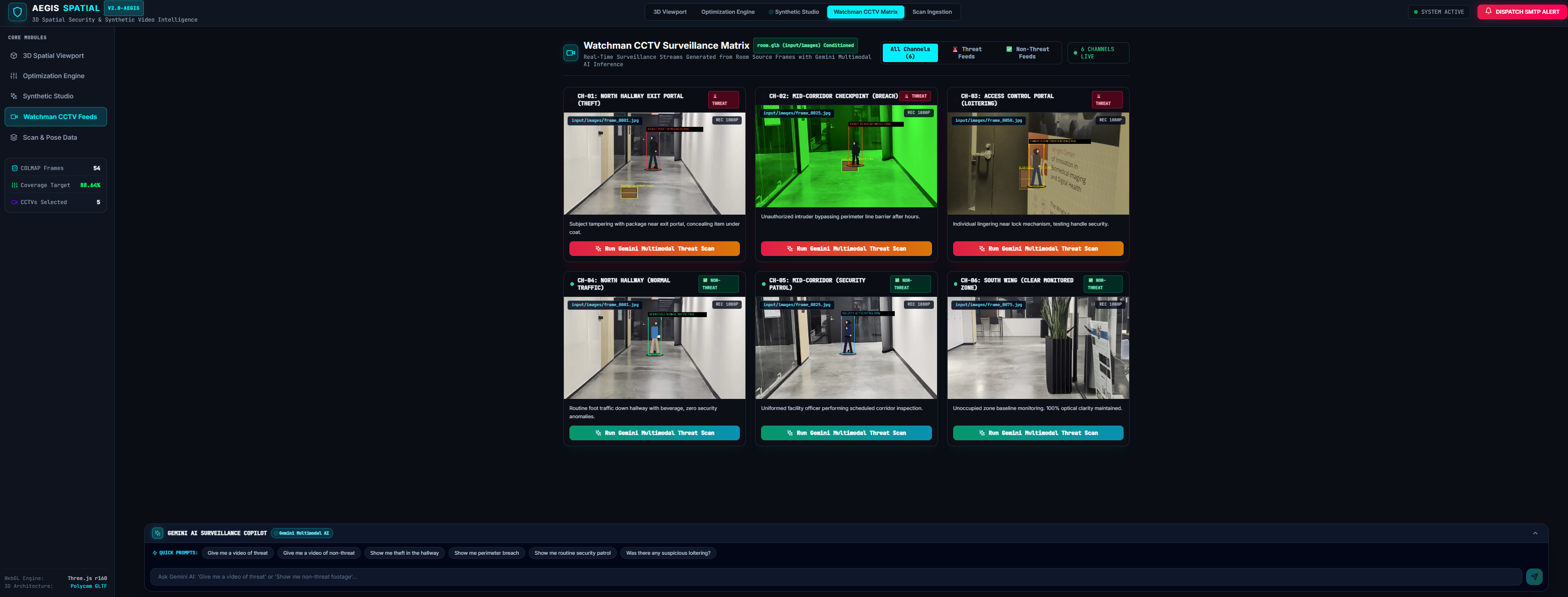

6. 📺 Watchman CCTV Surveillance Matrix

  • Multi-Channel Synchronized Grid: Live multi-camera monitoring view displaying all room-conditioned surveillance channels.
  • Source Image Attribution: Every channel displays its exact source image tag (e.g., Source: input/images/frame_0001.jpg).
  • On-Demand AI Threat Scans: One-click button to dispatch any live channel to Gemini Vision for instant verification.

7. 🚨 Automated SMTP Security Alert Dispatcher

  • Zero False-Alarm Notifications: Dispatches automated email alerts via aiosmtplib with attached surveillance video clips ONLY when a high-priority threat is verified by Gemini AI.

🏛️ System Architecture & Workflow

flowchart TD
    subgraph Ingestion ["1. Spatial Modeling & Room Data"]
        A[Room Images<br/>input/images/frame_*.jpg] --> B[Room 3D GLB Model<br/>frontend/public/room.glb]
        A --> C[Camera Transforms<br/>input/transforms.json]
    end

    subgraph Optimization ["2. Camera Optimization Engine"]
        B --> D[3D Spatial Voxel Grid]
        D --> E[Greedy Set Cover Optimizer]
        E --> F[Optimal Minimal Camera Subset<br/>>95% Spatial Coverage]
    end

    subgraph Synthesis ["3. Room Synthetic Generation & AI Classification"]
        A --> G[Room Synthetic Generator<br/>room_synthetic_generator.py]
        G --> H[Animated Human Actors & Floor Shadows<br/>H.264 MP4 CCTV Feeds]
        H --> I[Gemini Multimodal AI Vision API]
        I --> J[(Surveillance Incident Catalog<br/>synthetic_incident_catalog.json)]
    end

    subgraph CommandCenter ["4. AegisSpatial Command Center"]
        F --> K[3D Viewport & Coverage Frustums]
        J --> L[Watchman CCTV Surveillance Matrix]
        J --> M[Gemini AI Surveillance Copilot Chatbot]
        M -->|'give me a video of threat'| N[Instant Video Playback & Rationale Card]
        I -->|Confirmed High Threat| O[Automated SMTP Email Alert with Video]
    end

💡 Key Advantages & Benefits

  1. Hardware Cost Reduction: The 3D Greedy Set Cover algorithm minimizes required physical camera hardware while guaranteeing complete spatial coverage without blind spots.
  2. Elimination of Operator Fatigue: Continuous Gemini AI vision eliminates the human error inherent in monitoring dozens of CCTV feeds simultaneously.
  3. Site-Specific Synthetic Training Data: Generates consistent synthetic scenario variations directly conditioned on the exact physical facility images, reducing the need for expensive on-site staging.
  4. Conversational Speed-of-Thought Querying: Security personnel can search hours of footage in seconds through simple natural language commands like "give me a video of threat".

📁 Project Structure

Larpmaster123/
├── README.md                           # System documentation & roadmap

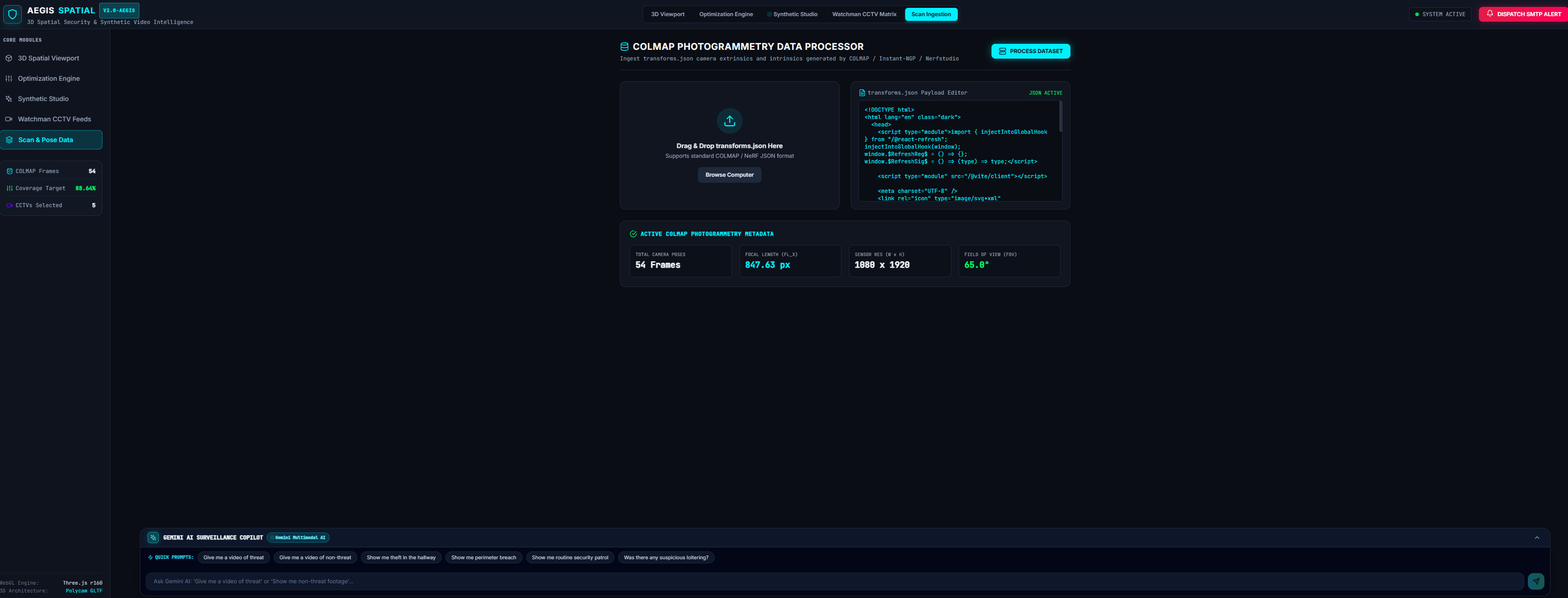

├── extract_and_process_colmap.py       # Frame extraction & COLMAP transform generator
│
├── input/                              # Room source assets
│   ├── images/                         # 101 POV room images (frame_0001.jpg - frame_0101.jpg)
│   ├── transforms.json                 # Camera extrinsics & intrinsics matrices
│   └── test.mp4                        # Input surveillance video capture
│
├── backend/                            # FastAPI Python Backend
│   ├── app/
│   │   ├── main.py                     # API entry point & static file mounts
│   │   ├── config.py                   # Environment settings (Gemini, SMTP)
│   │   ├── routers/                    # FastAPI route handlers
│   │   │   ├── synthetic.py            # Synthetic dataset & catalog endpoints
│   │   │   ├── ollama_router.py        # AI Assistant query endpoints
│   │   │   ├── optimization.py         # 3D Set Cover & grid optimization
│   │   │   ├── inference.py            # Multimodal feed evaluation
│   │   │   ├── alerts.py               # SMTP email alert dispatching
│   │   │   └── colmap.py               # COLMAP data ingestion
│   │   ├── services/
│   │   │   ├── room_synthetic_generator.py # Room video generator with human actors
│   │   │   ├── gemini_service.py       # Google Gemini AI vision integration
│   │   │   ├── ollama_service.py       # Copilot query matching & retrieval engine
│   │   │   ├── set_cover.py            # 3D Greedy Set Cover algorithm
│   │   │   ├── grid_generator.py       # Candidate camera placement generator
│   │   │   └── mailer.py               # Async SMTP video email dispatcher
│   │   └── schemas/                    # Pydantic data schemas
│   ├── outputs/                        # Generated H.264 video clips & catalog JSON
│   ├── requirements.txt                # Python backend dependencies
│   └── .env                            # API keys (GEMINI_API_KEY, SMTP settings)
│
└── frontend/                           # React + Vite + Tailwind CSS Frontend
    ├── public/
    │   ├── room.glb                    # 3D GLTF/GLB room environment model
    │   └── videos/                     # Browser-compatible H.264 surveillance clips
    ├── src/
    │   ├── App.jsx                     # Main application layout & state manager
    │   ├── components/
    │   │   ├── Viewport3D.jsx          # 3D Three.js room visualizer with camera frustums
    │   │   ├── CameraFeedGrid.jsx      # Watchman CCTV Surveillance Matrix
    │   │   ├── OllamaAssistantBar.jsx  # Gemini AI Surveillance Copilot Chatbot
    │   │   ├── SyntheticGeneratorPanel.jsx # Synthetic Video Studio & Room Gallery
    │   │   ├── OptimizationPanel.jsx   # 3D Set Cover parameter controls & metrics
    │   │   ├── AlertModal.jsx          # Manual/automated SMTP alert dispatcher
    │   │   ├── Header.jsx              # Command center navigation bar
    │   │   └── Sidebar.jsx             # System telemetry & quick statistics
    │   └── utils/api.js                # Axios API client
    ├── package.json
    └── vite.config.js

🚀 Quick Start Guide

Prerequisites

  • Python 3.10+
  • Node.js 18+ & npm
  • Google Gemini API Key (configured in backend/.env)

Step 1: Start the Backend Server (FastAPI)

cd backend
pip install -r requirements.txt
python -m uvicorn app.main:app --reload --port 8000

Step 2: Start the Frontend Application (React + Vite)

cd frontend
npm install
npm run dev

Step 3: (Optional) Re-Generate & Classify All Room Scenarios

To re-synthesize and re-classify all scenario feeds from the command line:

cd backend
python -m app.services.room_synthetic_generator

🔮 Future Improvements & Roadmap

The following architectural enhancements are planned for future development milestones:

  1. 3D Digital Twin via Gaussian Splatting:

    • The ideal long-term goal is to integrate advanced 3D radiance field / Gaussian Splatting rendering techniques to construct photorealistic, continuous 3D digital twins of physical environments with real-time novel-view synthesis and dynamic lighting interaction.

  2. Computer Vision Segmentation on Real-World Data Feeds:

    • Integrate modern Computer Vision segmentation and tracking models (such as YOLOv11, SAM 2 / Segment Anything, and ByteTrack) to segment, track, and classify real-world camera video feeds directly in real time, augmenting and transitioning beyond synthetic data generation.

  3. 3D-to-2D Spatial Coordinate Mapping Pre-Processing:

    • Establish explicit mathematical mapping of 3D spatial voxel coordinates directly to 2D input source images prior to Structure-from-Motion (COLMAP) pre-processing, enabling bi-directional pixel-to-voxel calibration and fine-grained spatial sensor alignment.
