Modern AI systems are fundamentally limited — they excel at finding correlations, but fail to answer the most important question:

Why did something happen?

Across domains like software systems, SaaS metrics, and business analytics, decisions are still made on surface-level patterns rather than true causal understanding. This gap leads to poor predictions, failed strategies, and inefficient interventions.

We were inspired by the idea of moving beyond correlation into causal intelligence, grounded in the work of Structural Causal Models (SCMs).

Our goal was to build a system that:

Understands cause-effect relationships
Simulates alternate realities (counterfactuals)
And most importantly, learns from its own mistakes

That vision became LAPLACE — a platform where AI doesn’t just predict outcomes, but reasons, acts, and evolves.

What it does

LAPLACE (Logical Architecture for Predictive Learning and Autonomous Causal Evolution) is a browser-based causal intelligence engine that enables users to:

🔍 Discover Root Causes

Instead of showing correlations, LAPLACE traces causal pathways across a system to identify why a failure occurred.

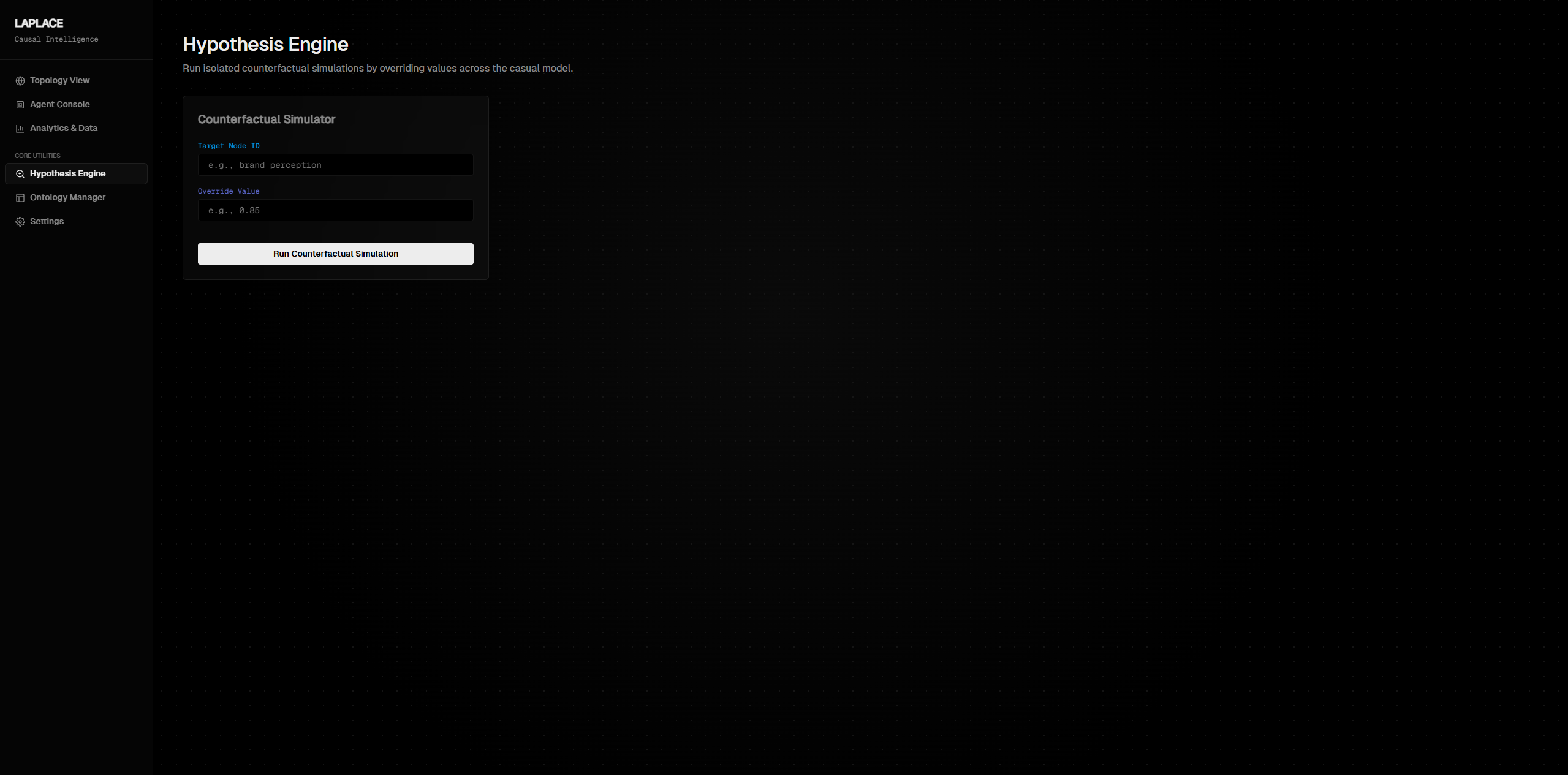

🔮 Simulate Counterfactuals

Users can ask:

“What would happen if this variable changed?”

Using causal propagation, the system computes:

$$ \text{Predicted}Y = \text{Baseline}_Y + \sum_i w{i \to Y} \cdot (X_i^{new} - X_i^{baseline}) $$

⚡ Execute Interventions

The system translates insights into actionable interventions, visually updating the system in real time.

🧬 Self-Evolve Through Error

Unlike traditional AI, LAPLACE improves itself by comparing prediction vs reality:

$$ \text{Error} = |Y_{predicted} - Y_{actual}| $$

It then updates causal weights dynamically:

$$ w_{new} = w_{old} - \alpha \cdot \nabla(\text{Error}) $$

This creates a feedback loop, where the system becomes progressively more accurate.

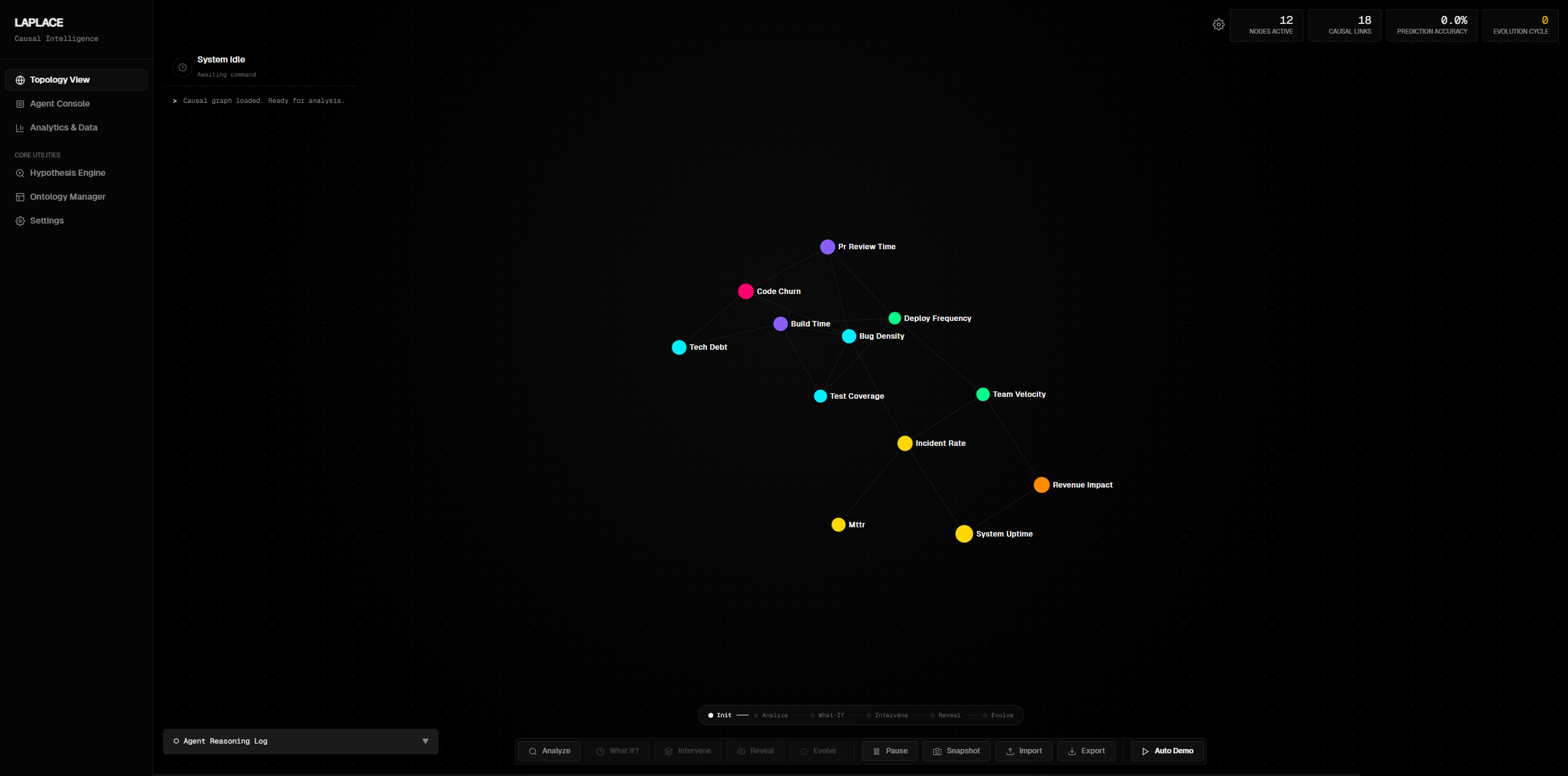

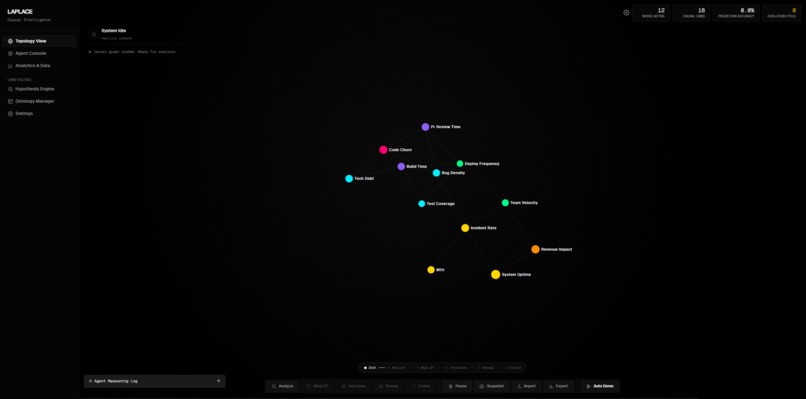

🌐 Visualize Everything Live

All causal relationships are rendered as a dynamic graph, where:

Nodes represent variables
Edges represent causal influence
Changes ripple through the system in real time

How we built it

We engineered LAPLACE as a high-performance, zero-backend system:

Frontend: Vanilla JavaScript (ES6+), HTML5, CSS3
Visualization: D3.js (d3-force, d3-zoom)
AI Layer: Google Gemini 2.5 Flash API
Deployment: Google Cloud App Engine
Architecture: Serverless SPA with a Bring-Your-Own-Key (BYOK) model

Core System Components

Structural Causal Model Engine
A custom engine processes causal graphs using nodes and weighted edges.

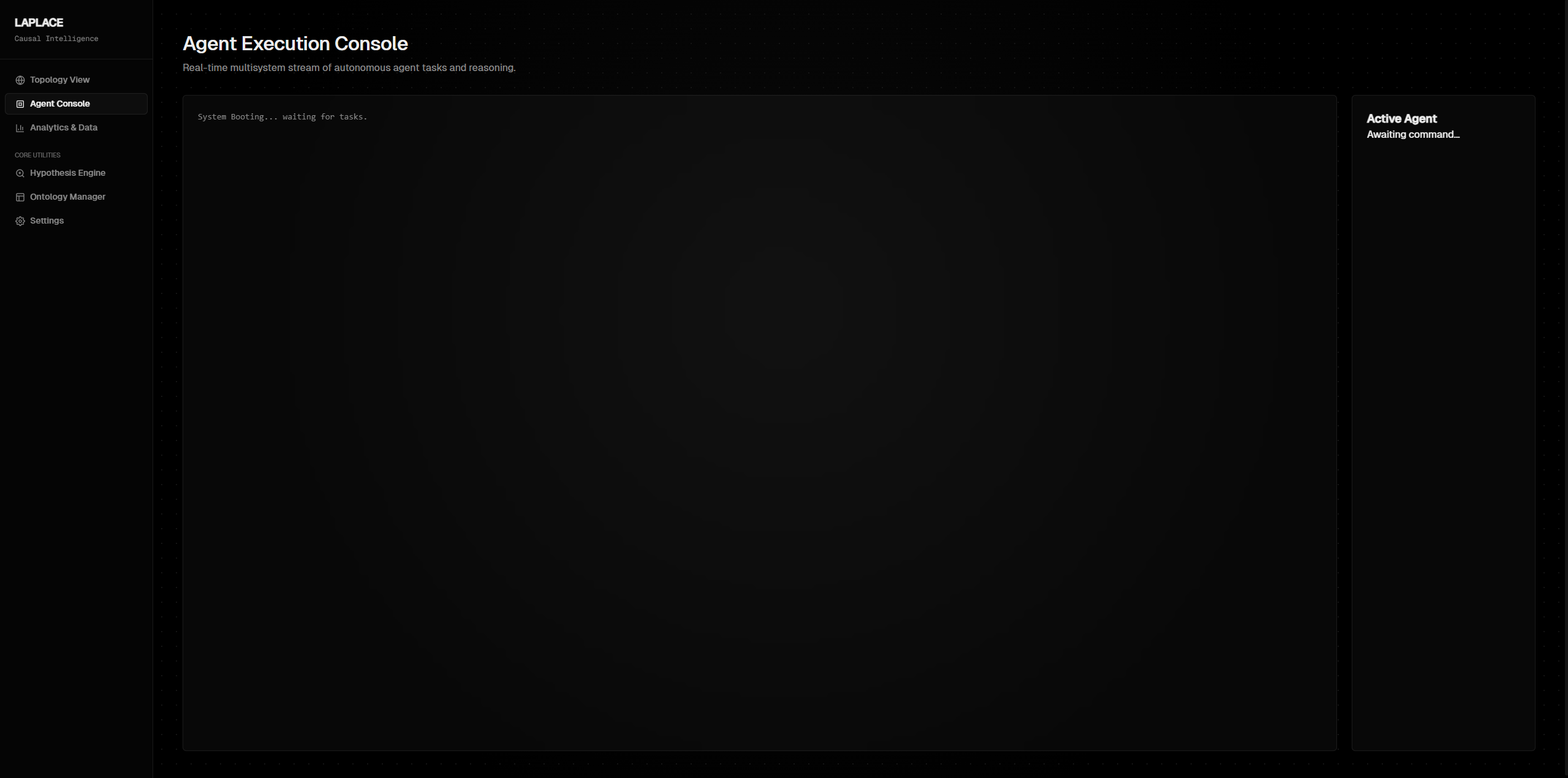

Multi-Agent AI System

Analyst Agent → finds root causes
Counterfactual Agent → simulates “what-if”
Intervention Agent → applies changes
Evolution Agent → improves the model

Dynamic Graph Engine
Real-time graph updates using D3.js with smooth performance.

Secure BYOK Architecture

API key stored only in sessionStorage
No backend, no database
Fully client-side execution

Challenges we ran into

Bridging Math and AI

LLMs are not naturally good at structured numerical reasoning. We solved this by:

Handling math on the frontend
Passing structured context to the AI

Real-Time State Management

Synchronizing:

D3 simulation
DOM updates
AI responses
was complex and required careful lifecycle handling.

Avoiding Hallucination

We prevented incorrect outputs by:

Using strict JSON structures
Feeding only relevant causal paths
Controlling prompt structure

Making Evolution Real

Instead of fake learning, we implemented:

Prediction vs actual comparison
Error-based updates
Version-based improvement

Accomplishments that we're proud of

Built a causal reasoning engine in the browser
Created a self-evolving AI system
Designed a secure zero-backend architecture
Achieved real-time interactive visualization
Implemented a multi-agent intelligence system

What we learned

Causality is fundamentally different from correlation
AI must be grounded in structure to be reliable
System design matters more than individual features
Real innovation comes from combining:
- Mathematics
- Engineering
- AI reasoning
