Kural

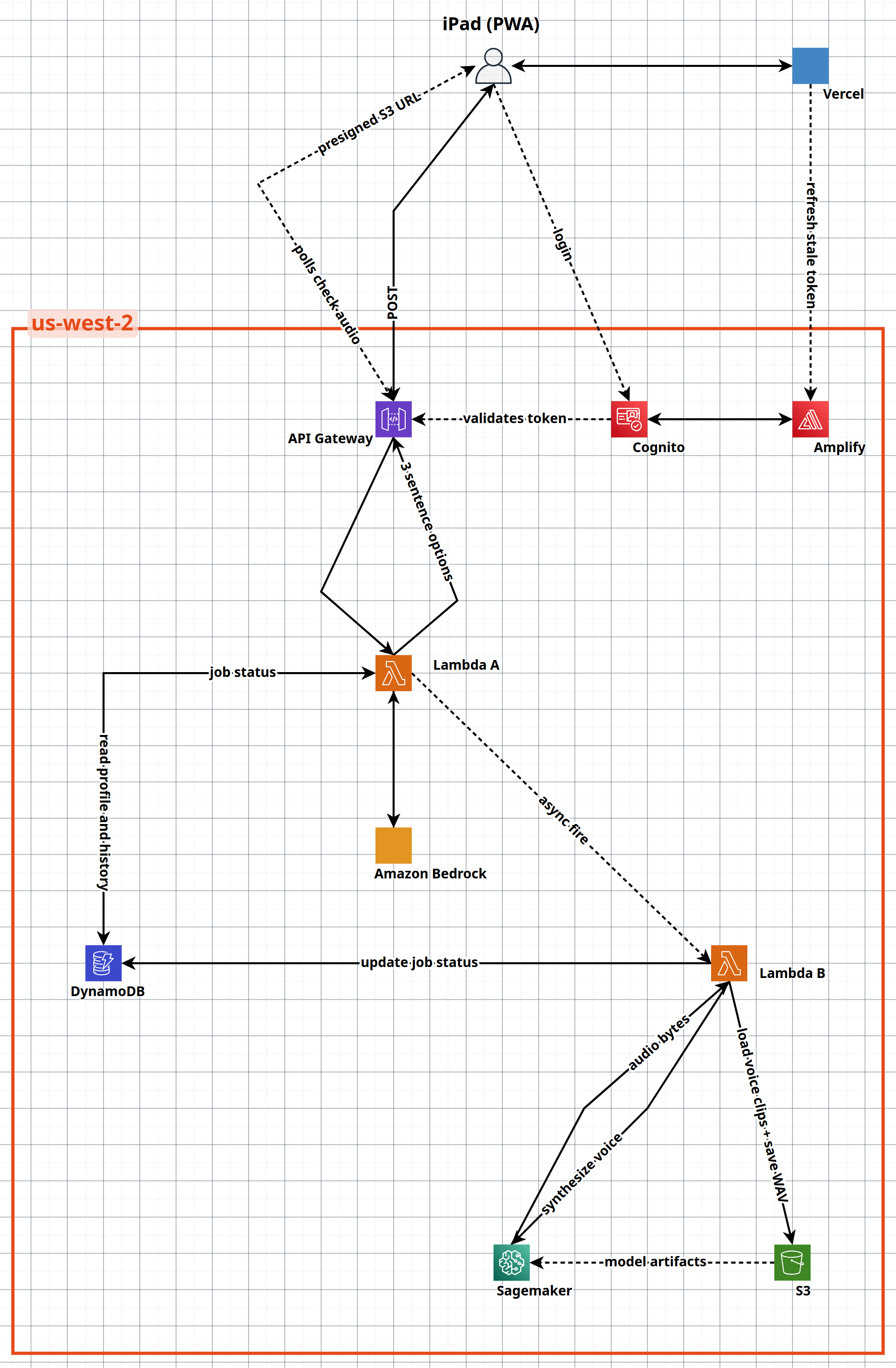

Architecture Diagram

Inspiration

Nearly 35,000 Americans live with ALS, with 5,000 new diagnoses every year. As the disease progresses, patients lose the ability to speak — but not the ability to think, feel, or connect. Current AAC (Augmentative and Alternative Communication) devices let patients spell words letter by letter using eye tracking, achieving 10–20 words per minute. They speak in a generic synthesized voice that sounds nothing like them.

We asked: what if someone could keep their voice, even after losing it?

What It Does

Kural (குரல் — Tamil for "voice") is an AI-powered AAC device that lets ALS patients communicate in their own cloned voice using eye tracking and contextual sentence generation.

Instead of spelling letter by letter, patients gaze at semantic intent tiles — broad categories like "I need...", "I feel...", "Talk about...". Three eye movements narrow down their intent. Amazon Bedrock generates a complete, personalized sentence based on the patient's communication style, relationships, and conversation history. The patient selects it, and it plays back in their own cloned voice.

Before significant disease progression, patients record voice samples through our onboarding flow. We fine-tune an XTTS v2 voice cloning model on these recordings. Every sentence Kural speaks sounds like the patient, not a machine.

How We Built It

Voice Cloning Pipeline

Patients record audio samples directly in onboarding website
Audio is converted to WAV (22050Hz mono) and uploaded to Amazon S3
XTTS v2 is fine-tuned on Amazon SageMaker (ml.g4dn.xlarge) for 10 epochs
The fine-tuned model runs on a SageMaker notebook instance, exposed publicly via an ngrok static tunnel

Sentence Generation

Amazon Bedrock (Claude Haiku 4.5) generates 3 contextually personalized sentence options per intent selection
The prompt includes the patient's full profile: communication style, relationships, interests, preferred phrasing, and the last 20 exchanges of conversation
Responses are ordered by most likely first and returned in under 2 seconds

Async Voice Synthesis

API Gateway has a hard 29-second timeout — too short for voice synthesis
We built a fully async pattern: the frontend receives a job_id immediately, fires a background Lambda that calls the synthesis endpoint, saves the WAV to S3, and returns a presigned URL
The frontend polls every 2 seconds and plays audio when ready, falling back to browser TTS if synthesis fails

Frontend

Next.js PWA installable on iPad in fullscreen landscape mode
iOS 18 built-in Eye Tracking (Settings → Accessibility → Eye Tracking) drives selection — the OS simulates a tap when the user's gaze dwells on a tile, so the app uses standard click handlers with no custom dwell logic
Static tile layout preserves muscle memory — tiles never reorder
Conversation panel logs exchanges with timestamps for caregiver context

AWS Stack Amazon Bedrock · Amazon SageMaker · AWS Lambda · Amazon API Gateway · Amazon DynamoDB · Amazon S3 · Amazon Cognito · AWS Amplify

Challenges We Faced

Voice synthesis deployment was our biggest technical challenge. Deploying XTTS v2 to SageMaker required resolving cascading dependency conflicts between TTS, torch, torchaudio, and the base container environment. Every version of the model package revealed a new incompatibility. We went through 8 iterations of the model package before finding a working configuration.

API Gateway timeout forced us to rethink the synthesis architecture entirely. We designed an async job queue pattern using DynamoDB and Lambda self-invocation to decouple the synthesis request from the response.

Latency vs. identity tradeoff — we discovered that voice cloning quality improves significantly with more training data, but recording voice samples before losing speech is already a race against time for ALS patients. We optimized inference by precomputing speaker conditioning latents and caching common phrases.

What We Learned

Voice cloning at the quality needed for identity preservation requires careful data collection long before it's needed — ideally at diagnosis
Async architecture patterns are essential when working with long-running ML inference behind API Gateway
ALS patients need predictable, stable interfaces — even small UX decisions like static tile placement have profound impact on usability

What's Next

Self-learning loop using selection history to personalize sentence generation over time
Cross-session memory so Kural remembers what was discussed in previous conversations
Clinical validation with UW Neurology and the ALS Association of Washington
