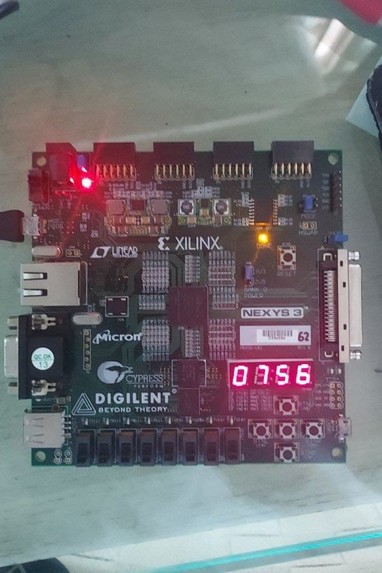

Knight Rider Digital Clock, Xilinx Spartan 6 FPGA

Components

• 4 seven-segment displays
• 3 tactile buttons
• 3 switches

Operation modes

• Real time clock Hour-Minutes (HH:MM) display mode
• Real time clock Minutes-Seconds (MM:SS) display mode
• Set real time clock
• Set alarm time
• Enable/Disable alarm

Buttons Notation:

• Up: vertical scrolling of current digit (0 > 9)/ Reset to "0" if current cursor digit is at "9".
• Right: horizontal scrolling from left to right (1st digit > 4th digit). Reset cursor to the 1st digit if cursor is at the 4th digit.
• Center: Confirm

Built With

• fpga
• ise-design-suite
• verliog
