KinetIQ

Inspiration

Home physical therapy has a 50% dropout rate, largely because patients exercise without feedback, lose motivation, and lack clinical-grade oversight. Traditional PT costs 150–250/session with limited insurance coverage, creating a gap where patients try to self-manage recovery after surgery or injury, often incorrectly.

Opennote Planning: https://easy-berry-9319.opennote.space/ccd3cbc6-a266-49da-a244-2a2ef53830d0

We wanted to replicate the "eyes-on" supervision a therapist provides by building a real-time computer vision system that tracks joint kinematics, detects compensation patterns, and delivers clinical feedback, all from a standard webcam.

What it does

KinetIQ is a webcam-based rehabilitation supervision platform with two user roles:

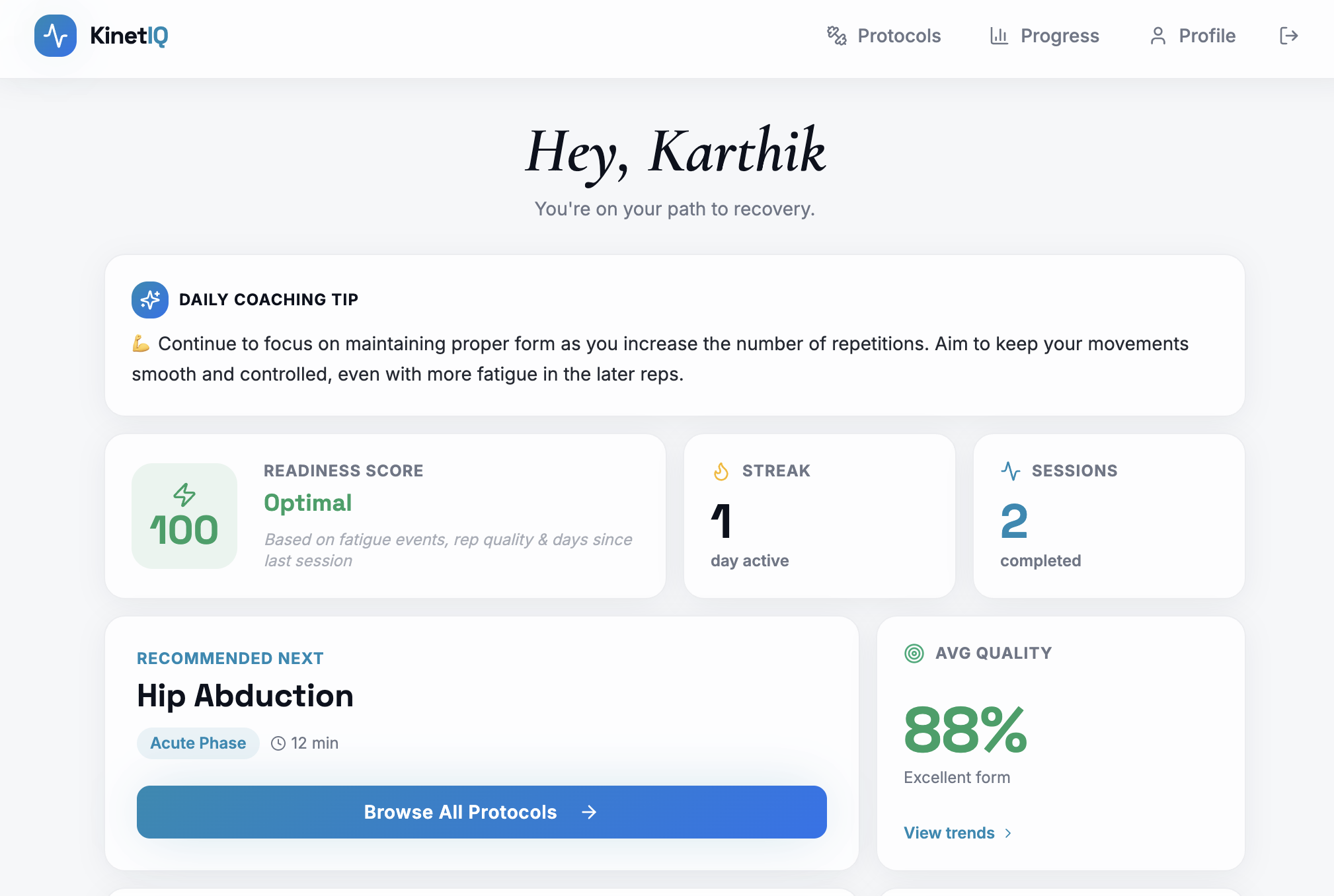

Patient App

Real-time pose estimation tracking 33 body landmarks at 30fps via MediaPipe PoseLandmarker
Exercise-specific kinematic analysis: joint angle calculation using 3-point inverse kinematics (atan2-based angle computation)

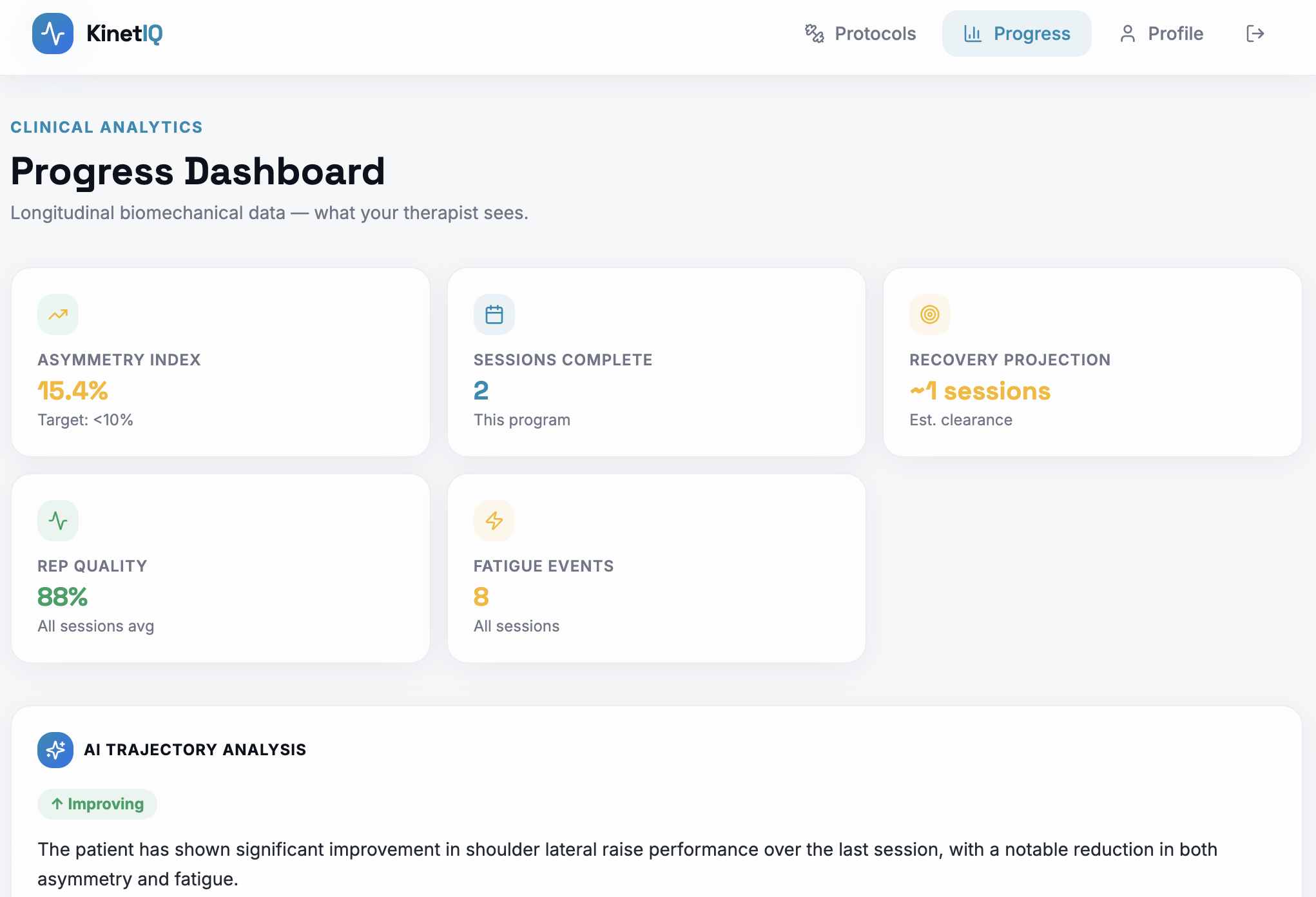

Bilateral asymmetry index: compares left vs. right limb ROM to detect compensatory patterns
Fatigue detection: variance analysis over a sliding window of landmark velocity
Form correction: error classification (overextension, knee valgus, trunk lean, pelvic drop) with timestamped logging
AI-generated session summaries and error coaching via LLM integration

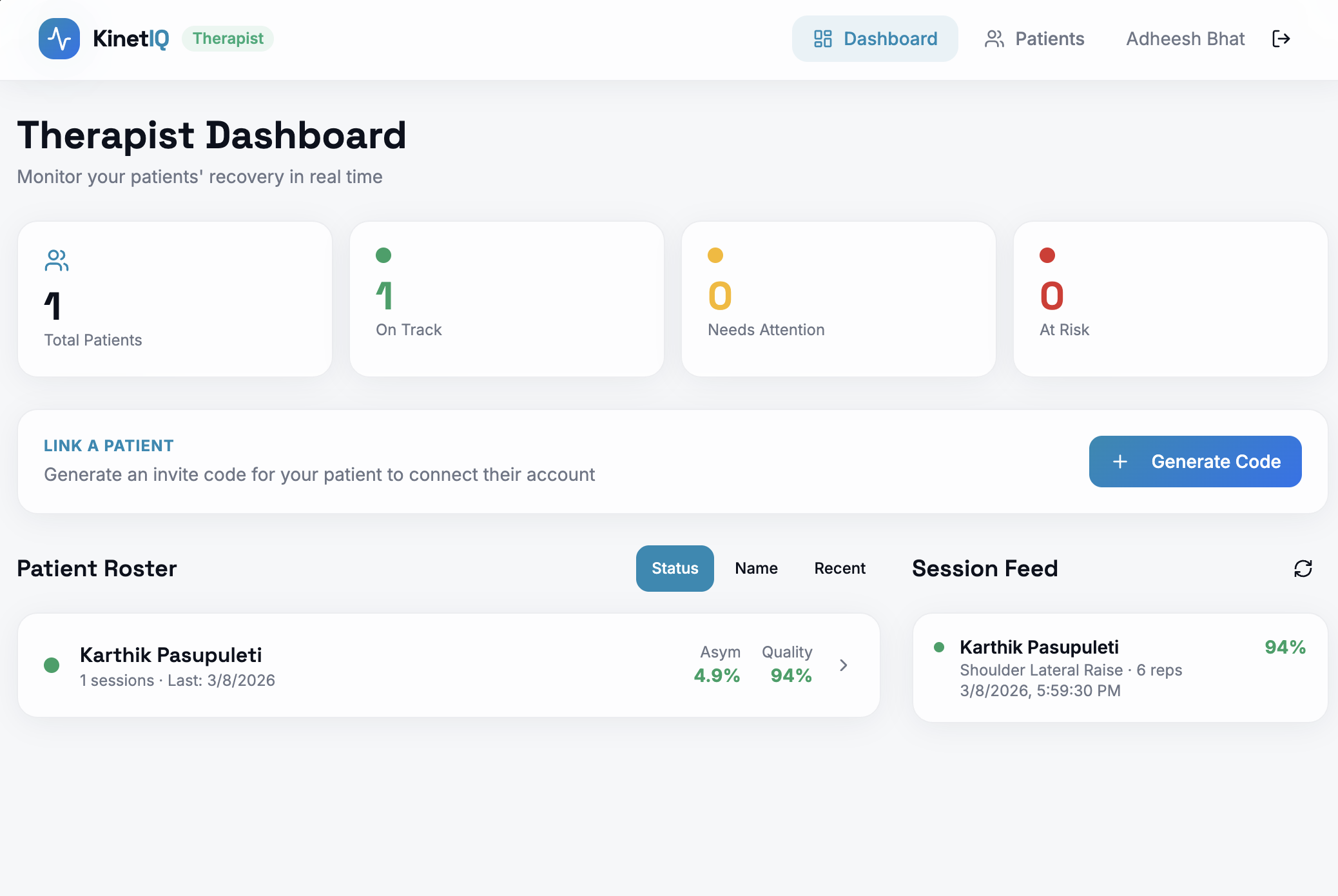

Therapist Dashboard

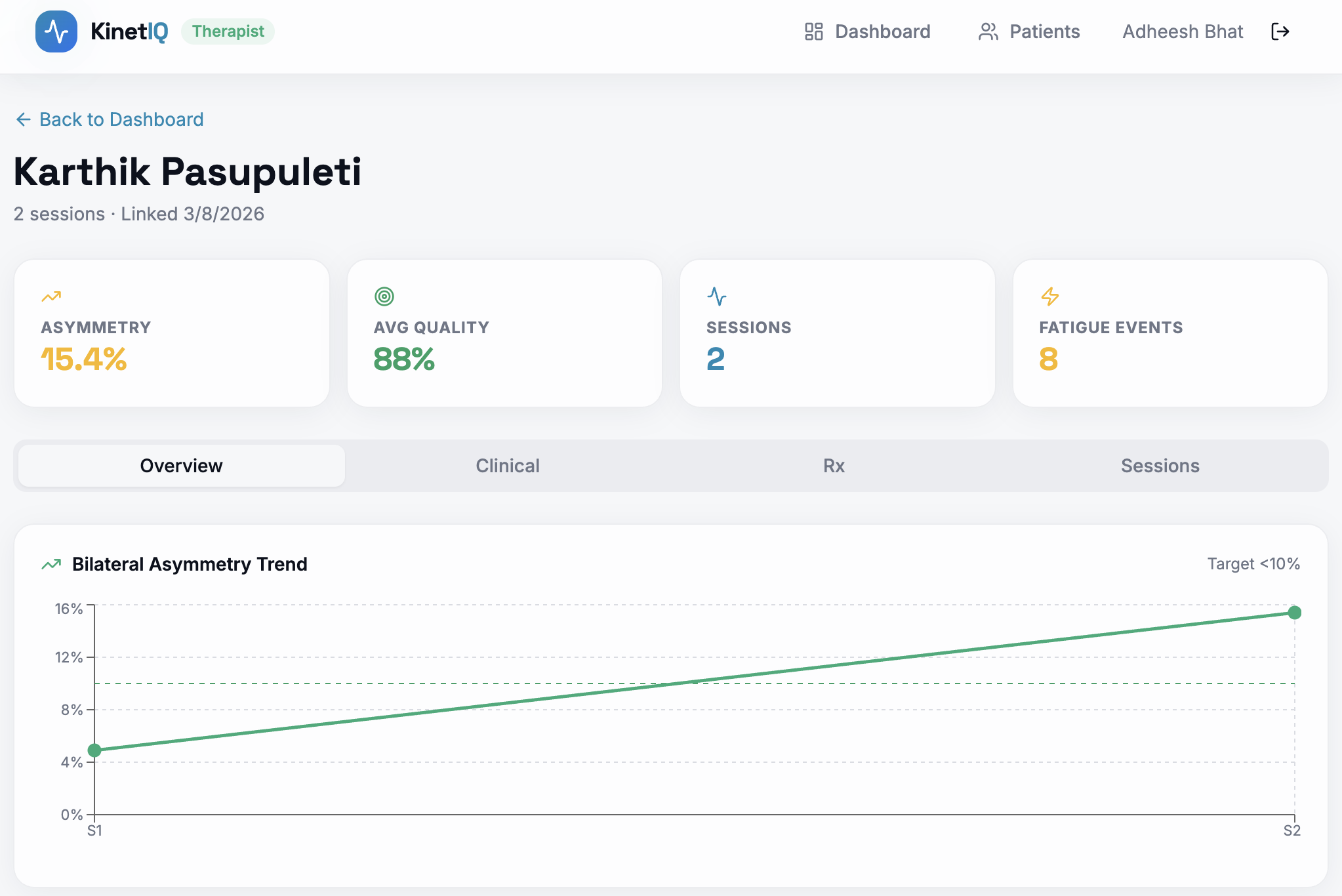

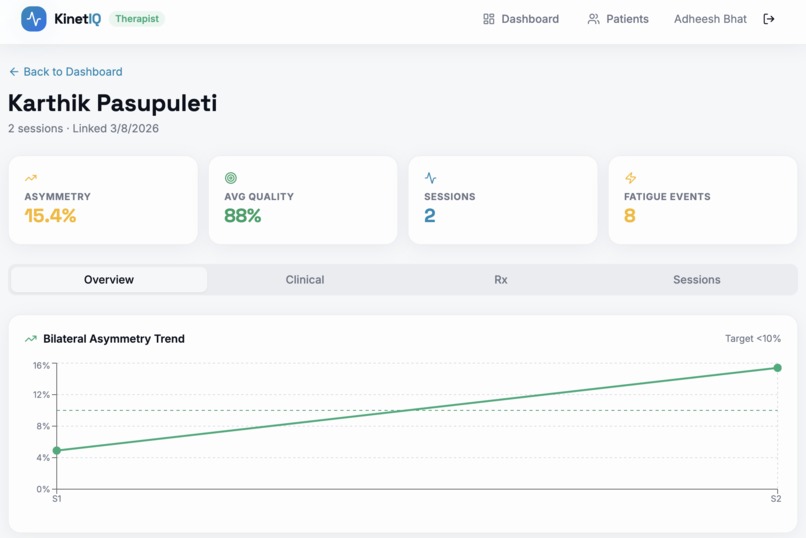

Cohort view with longitudinal asymmetry trend charts (Recharts)
Session-by-session rep quality breakdown (correct / compensated / incomplete stacked bar)
Clinical annotation system with flagging for review
Exercise prescription management with target ROM and frequency
Automated progression triggers (e.g., "advance phase when asymmetry < 10% for 3 sessions")

How we built it

Frontend Stack

React 18 + Vite + TypeScript: Component architecture with SPA routing via React Router v6
Tailwind CSS + shadcn/ui: Utility-first styling with Radix UI primitives for accessible components
Framer Motion: Choreographed animations for session flow and metric transitions
Recharts: Time-series visualization for asymmetry trends, quality breakdown, fatigue onset

Computer Vision Pipeline

MediaPipe PoseLandmarker (@mediapipe/tasks-vision): 33-landmark pose detection using the pose_landmarker_heavy model with GPU delegate

Landmark processing:

Exponential Moving Average (EMA) smoothing with α=0.3 to reduce jitter
Per-exercise primary landmark highlighting (e.g., [11,12,13,14,15,16,23,24] for shoulder exercises)
Real-time angle arc rendering on canvas with degree labels
Rep counting state machine: Phase-based detection (up/down) with angle thresholds per exercise
Fatigue detection: Variance calculation over 30-frame window of joint angles — triggers when σ² > 120

Joint Angle Calculation

function calculateAngle(a, b, c) {
  const radians = Math.atan2(c.y - b.y, c.x - b.x) - Math.atan2(a.y - b.y, a.x - b.x);
  let angle = Math.abs((radians * 180) / Math.PI);
  if (angle > 180) angle = 360 - angle;
  return angle;
}

Bilateral Asymmetry Index

asymmetryIndex = Math.abs(rightAngle - leftAngle) / ((rightAngle + leftAngle) / 2) * 100

This metric is the clinical gold standard for return-to-activity clearance (target: <10%).

Backend Architecture

Supabase (PostgreSQL): 9 tables including session_results, pain_check_ins, clinical_annotations, exercise_prescriptions, progression_triggers, therapist_patients, user_roles
Row-Level Security (RLS): has_role() SECURITY DEFINER function for role-based access
Supabase Auth: JWT-based authentication with role enum patient | therapist

Edge Functions (Deno)

Function	Purpose	AI Model
session-insight	Post-session clinical summary	Qwen2.5-7B via Featherless
error-coaching	Real-time form correction explanation	Qwen2.5-7B
daily-tip	Personalized coaching based on session history	Qwen2.5-7B
progress-analysis	Longitudinal trajectory analysis	Qwen2.5-7B
exercise-recommendation	Next-exercise prescription based on history	Qwen2.5-7B
correct-form-image	AI-generated illustration of correct form	Gemini 2.5 Flash (Lovable AI)

Session Recording

Canvas-based recording via MediaRecorder API
Format: WebM VP9 @ 800kbps
Blob storage with URL generation for playback

Challenges we ran into

1. Landmark drift at extreme ROM

At high joint angles (>120°), MediaPipe landmarks occasionally jumped. Solved with EMA smoothing and bilateral validation — if one limb's angle is physiologically implausible, we fall back to the other.

2. Rep counting reliability

Simple threshold crossing caused double-counting on slow reps.

Implemented a state machine with cooldown frames (lastErrorFrameRef.current) and hysteresis zones.

3. Exercise-specific error detection

Each exercise has different failure modes:

Shoulder lateral raise → trunk lean
Squat → knee valgus
Step-up → pelvic drop

Built a per-exercise error classification system with anatomical landmark checks:

// Pelvic drop detection for step-ups
const pelvicDrop = Math.abs(lHip.y - rHip.y);
if (pelvicDrop > 0.04) triggerError("Hip drop — engage your glutes");

4. LLM response consistency

Open-source LLMs sometimes returned malformed JSON.

Implemented fallback parsing with graceful degradation to raw text coaching.

5. Therapist adoption

Therapists need clinical-grade data, not consumer metrics.

Added:

asymmetry trend charts
compensation pattern logging
progression triggers mirroring clinical decision-making

Accomplishments that we're proud of

Sub-degree precision on joint angles via EMA smoothing at 30fps
7 deployed Edge Functions providing real-time AI coaching without client-side model inference
Bilateral asymmetry tracking — the metric orthopedic surgeons actually use for clearance
Dual-role architecture with RLS-protected data separation between patients and therapists
Zero-config AI integration via Lovable AI gateway (no API keys required for core features)
Session recording with canvas capture for therapist review

What we learned

Asymmetry > raw ROM: Therapists care less about absolute angles and more about left-right symmetry
Fatigue detection from velocity variance is more predictive than rep count alone
Landmark visibility scores matter: MediaPipe returns confidence per landmark — we filter below 0.3
EMA with α=0.3 is the sweet spot between responsiveness and jitter reduction
Structured JSON prompts with strict schemas prevent LLM hallucination in clinical context

What's next for KinetIQ

3D pose estimation: Current 2D pipeline struggles with overhead/lateral exercises — exploring MediaPipe Holistic
Wearable IMU integration: Ground-truth validation for angle measurements
Predictive pain modeling: Currently reactive — want to predict flare-ups from fatigue/asymmetry trends
Multi-clinic portal: HIPAA-compliant therapist management across organizations
Mobile PWA: Offline-capable session capture with sync-on-reconnect
Therapist video annotation: Overlay landmarks on recorded sessions for patient education
