Inspiration

I would like to show data as a tree and graph at the same in a synchronized way. A graph can be generated with compound nodes or edges. I did both of them. But I couldn't manage to show a synchronized view. But still, it generates the graphs.

What it does

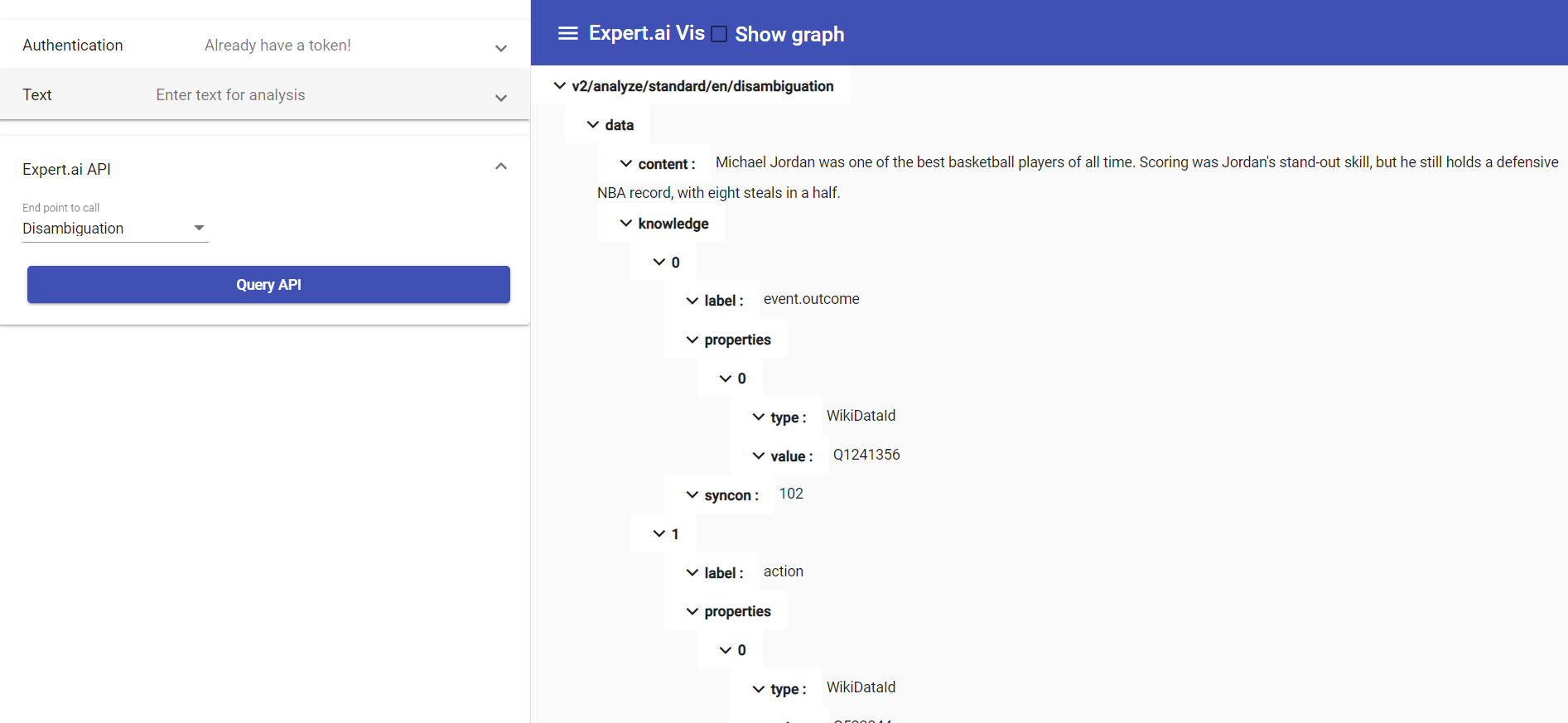

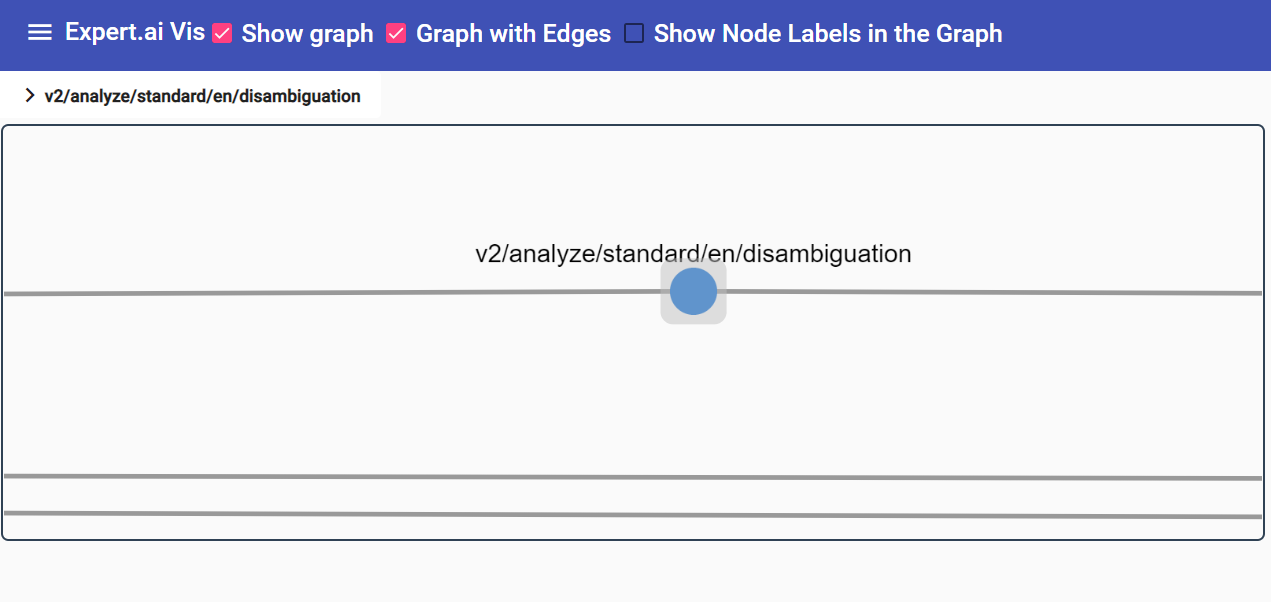

Show data as a tree and also as a graph. Graph with compound nodes and also with edges

How we built it

Angular, cytoscape.js, angular material theme

Challenges we ran into

Accomplishments that we're proud of

What we learned

What's next for JSONVis

  • Actually, I wanted to make a visualization for Knowledge graphs or some kind of more sophisticated and useful visualization. My time and domain knowledge wasn't enough for this time. In the future, it might evolve into such a visualization tool.
  • I want to synchronize the tree view with the graph view. Currently, If you collapse a tree elements, the compound graph element will also be collapsed
