JASUNK

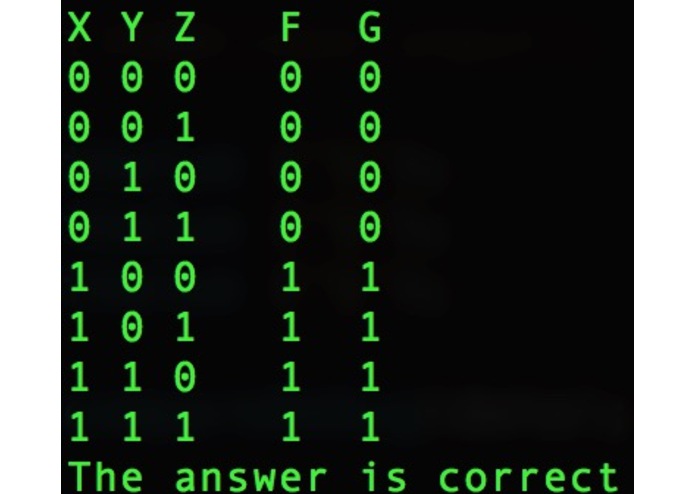

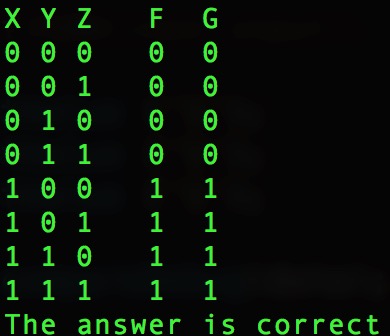

Truth table created by our algorithm for the circuit built by the student

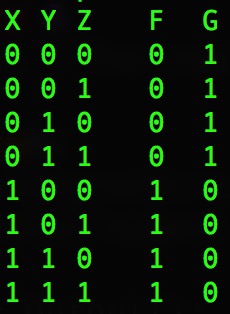

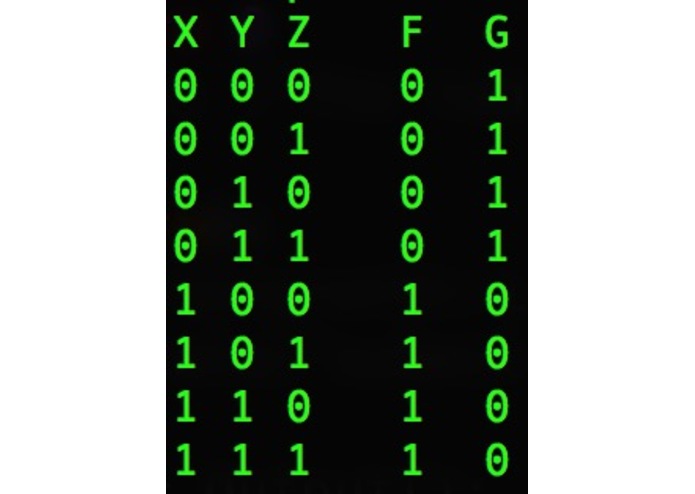

The correct truth table for the provided function

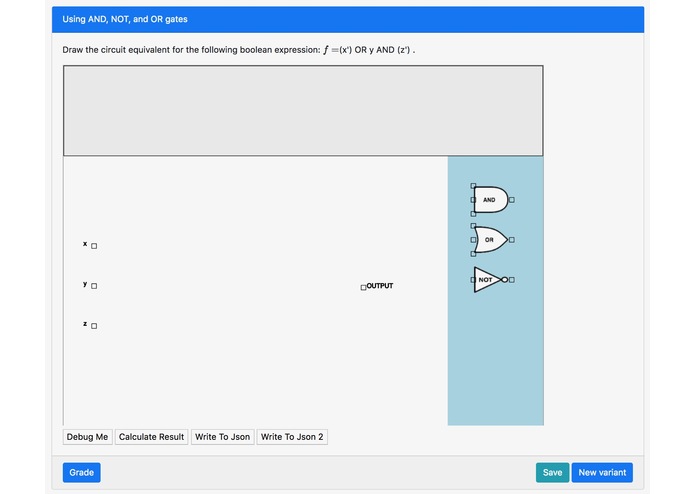

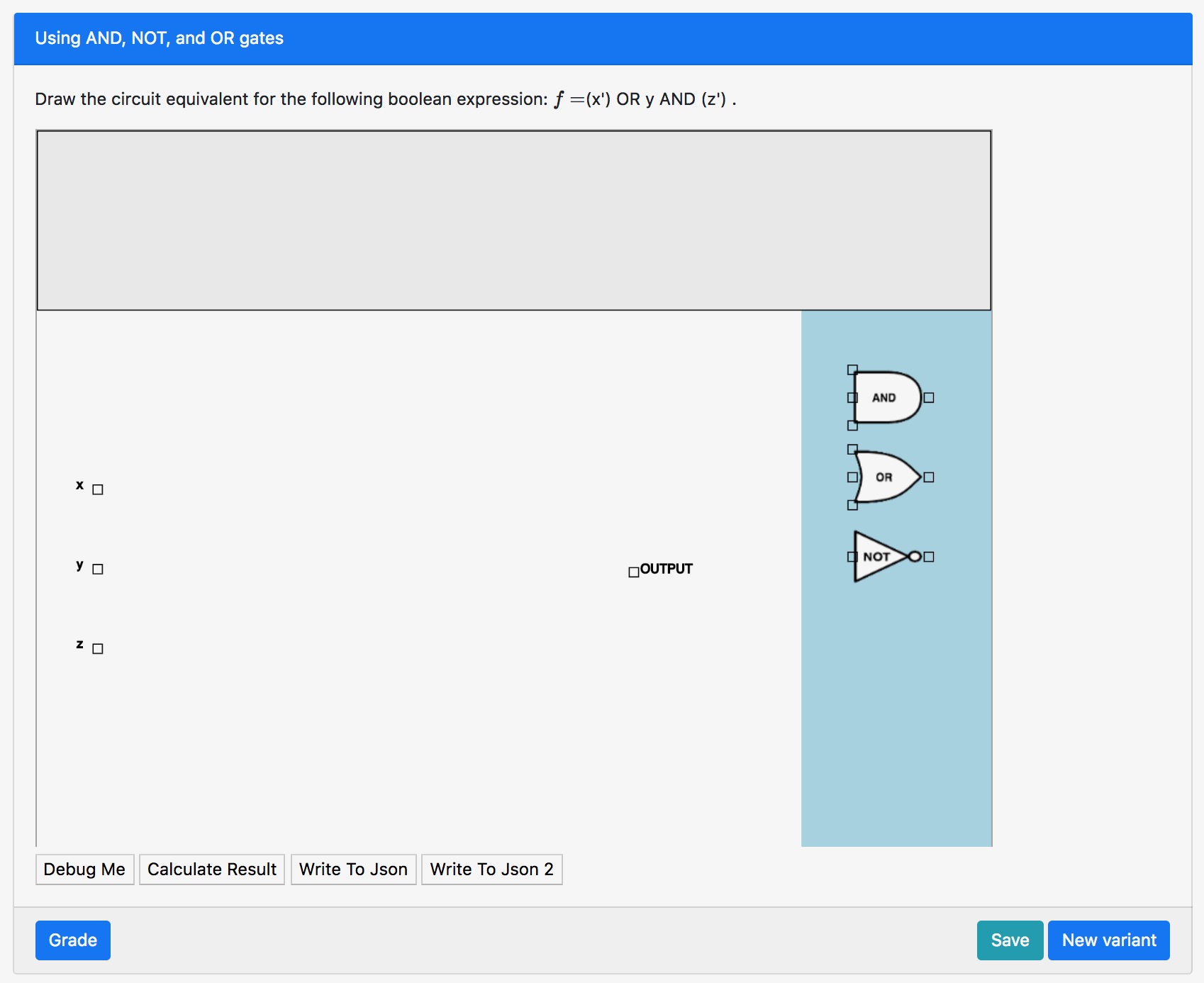

The UI on PrarieLearn for the interactive circuit builder

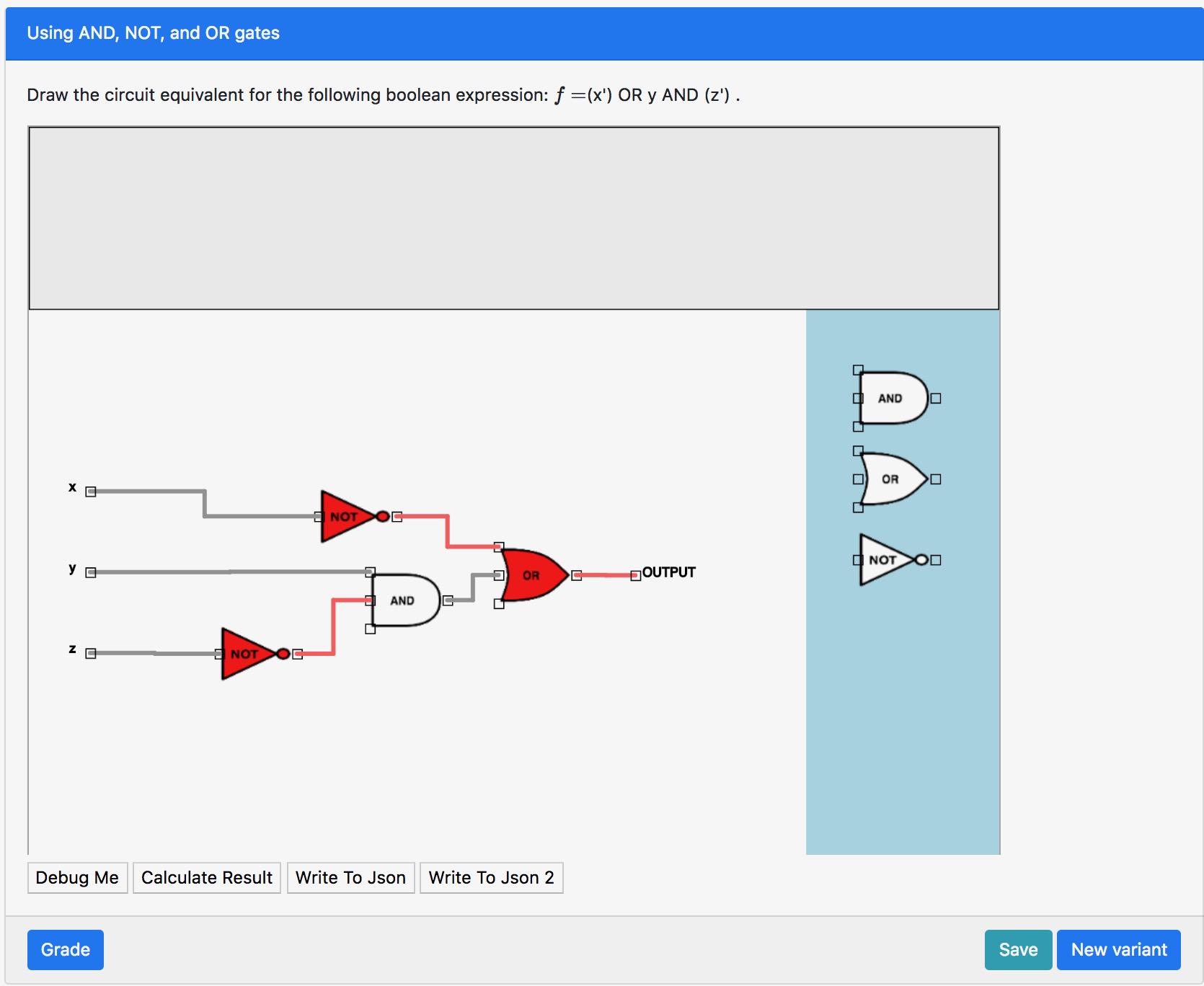

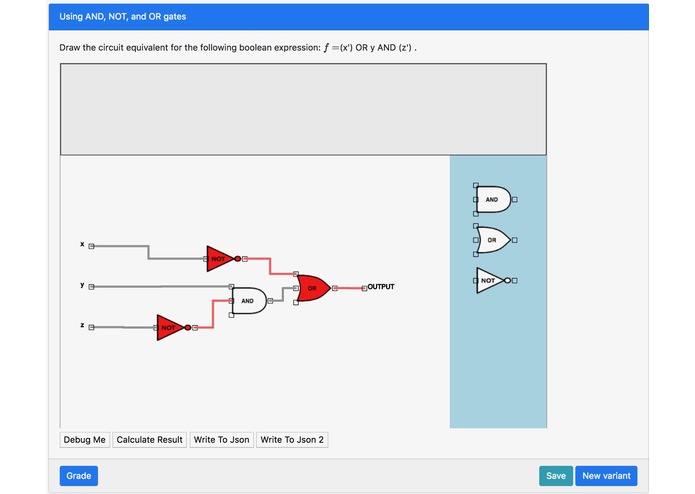

A built circuit. Wires and gates that have a voltage in them are red to make debugging easier

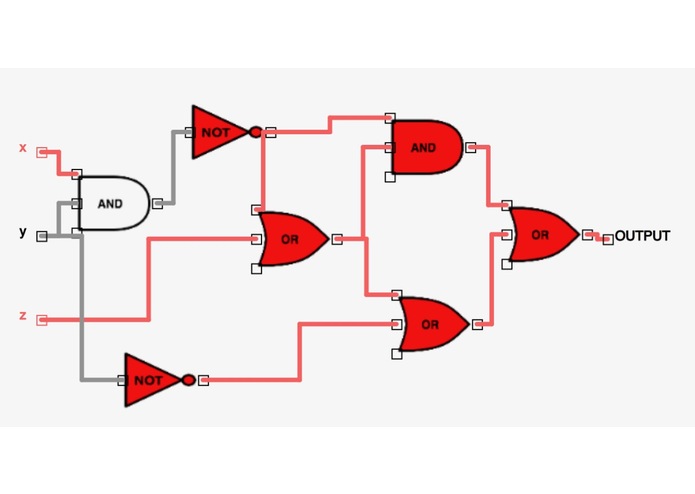

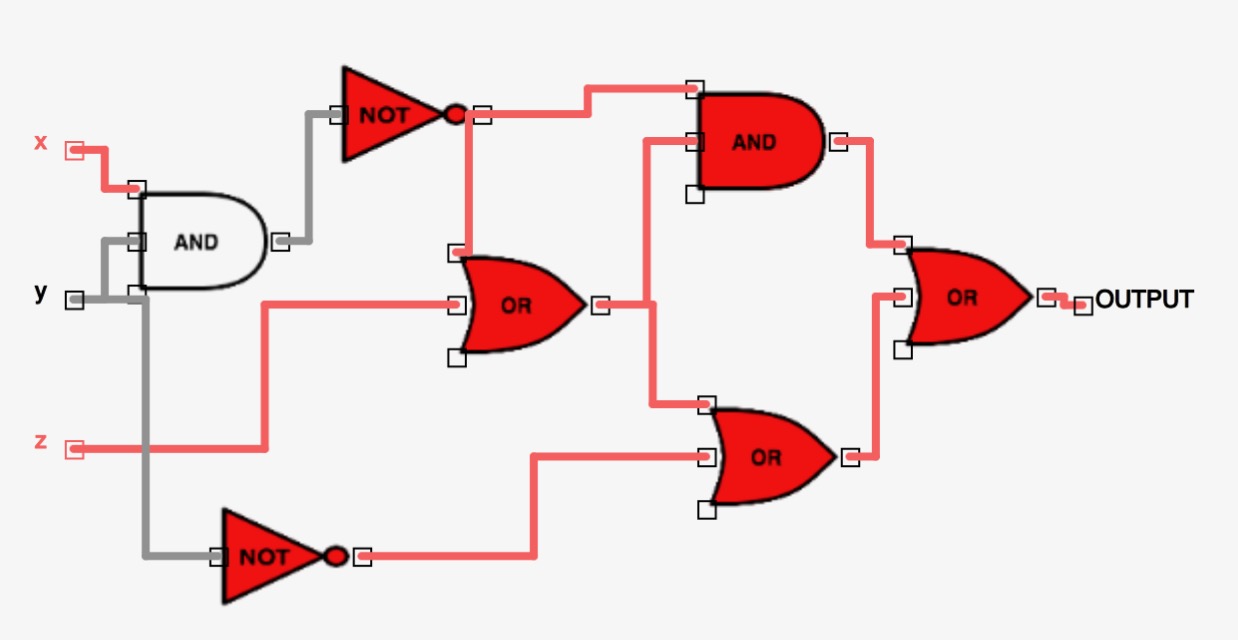

A more complicated circuit

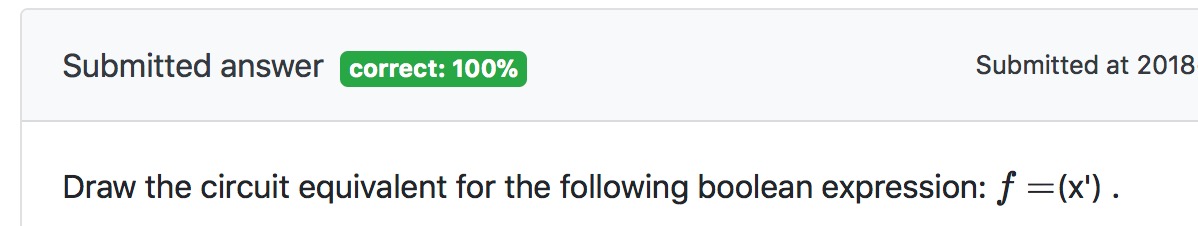

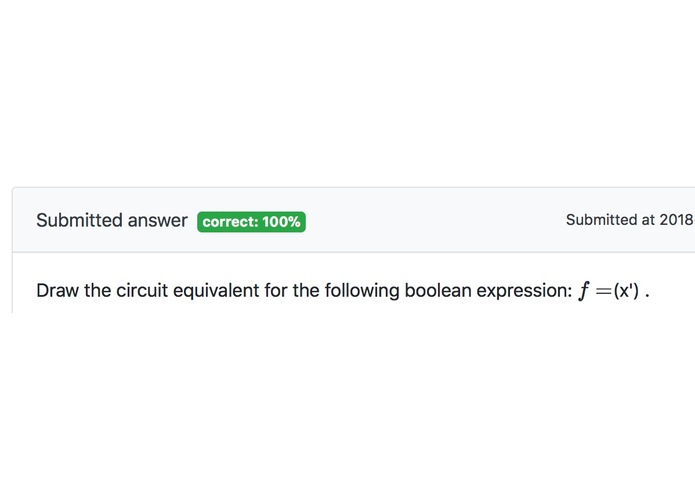

Grading when the circuit is correct

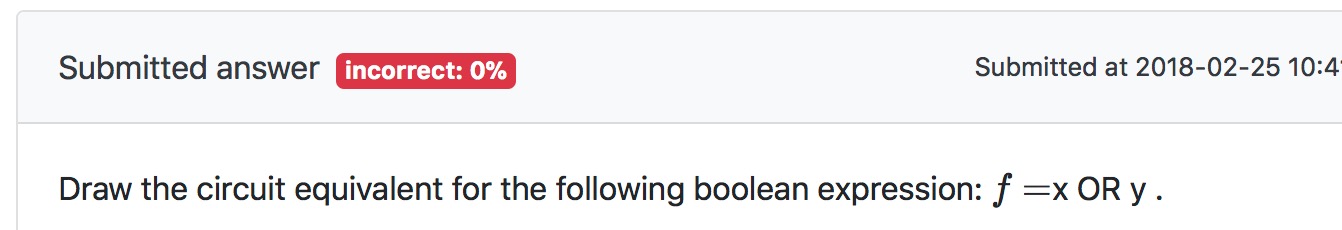

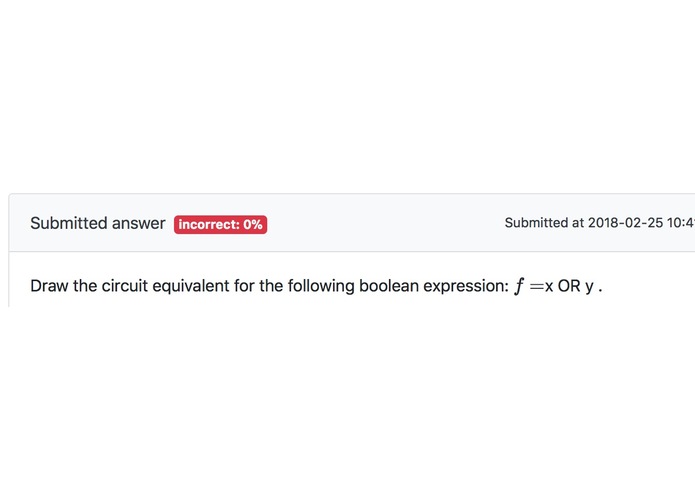

Grading when the circuit is incorrect

Inspiration

We were inspired by the execution of the ECE 120 course. Despite being a computing course, all homework for the class is done on paper because of the intricate circuits made by the students; however, we wanted to switch the coursework over to PrairieLearn.

What it does

We built an interactive system that allows students to build, debug, and grade circuits on PrairieLearn, allowing courses such as ECE 120 or CS 233 to switch over to electronic coursework.

How we built it

We started with the open source code for PrairieLearn and how the questions were built to start building our own circuit question. We started with building the interactive system itself that allows us to drag and drop gates and connect inputs and outputs. We then moved on to working on the auto grading using a recursive function. Lastly, we worked on rendering the system onto the PrairieLearn website, while still keeping the auto grading function private.

Challenges we ran into

Our most arduous task was rendering the interactive function onto the PrairieLearn website. Also, auto grading the circuit on our servers instead of the client server for security reasons was challenging.

Accomplishments that we're proud of

We are most proud of the fact that we integrated multiple languages, from front-end to back-end to develop a complete project. Also, our project is very relevant to our current education, as it will improve PrarieLearn for us and our peers.

What we learned

Each member came in with different experiences but at the end, we all became comfortable with web development as a whole, each of us learning a different aspect. Most of all, we all became comfortable with using GitHub.

What's next for JASUNK

We want to improve the UI and add more logical components, like decoders, multiplexers, and ALUs, so we can present this project to the ECE 120 staff and hopefully have them implement it instead of paper homework.

Built With

html
javascript
json
mustache
p5
prairielearn
python

Submitted to

HackIllinois 2018

Created by

I worked on much of the javascript backend and user interface, taking care of the creation, destruction, linkage and logic of the gates and circuit traces. I also added click and drag functionality, and consolidated differences in file pathing between server and local environments.

Scott Kim
I developed the code for generating the equations in python. I worked on the basic html display. I also worked on some of the javascript files and debugged.

kanads2
I wrote the algorithm to check if a circuit is logically equivalent to another. I wrote the code to convert a circuit into JSON on the JS side and convert from JSON to an array of gate objects on the python side. I added input and output nodes to the graph and wrote code to generate the output from any set of inputs. I wrote code to convert the prompt string into a truth table and compare with the array of logic gates from the JSON generated by the JS side. This code can return a score.

JosephRavi
I worked on building the basic drawing, especially connecting gates, of the circuits in JavaScript. I also helped make the .mustache file to transfer from Python to HTML to render our system onto the PrairieLearn website

Aashna Wadhwa
Worked on wire connections between inputs/gates. Debugged and determined how to paint onto the Prairie Learn question.

utripuramallu
I worked on creating the JSON files to convert the data from javascript to python. I also helped to write the connector class that creates the lines between the different types of gates.

nsk3
