JARVIS: BLE-Enabled ESP32-S3 IoT Switchboard

A Next.js Edge dashboard for smart switchboards, communicating with ESP32-S3 devices over Web Bluetooth GATT and routing voice intent queries through Cloudflare Workers to NVIDIA NIM LLMs.

Comment

Inspiration

Modern smart home devices often rely entirely on continuous Wi-Fi connectivity, external IoT cloud brokers, or high-latency processing bridges just to execute basic hardware actions like toggling a relay. We wanted to build AISW-JARVIS V2—an always-on, natural voice assistant that feels as responsive as Iron Man's JARVIS.

Our goal was to combine zero-latency local hardware control via direct Web Bluetooth with an advanced cloud AI brain powered by NVIDIA NIM (deepseek-ai/deepseek-v4-flash-0731), all running through a progressive web app hosted on Cloudflare Pages.

How We Built It

The system is split into two core layers that talk directly to each other without intermediate server infrastructure:

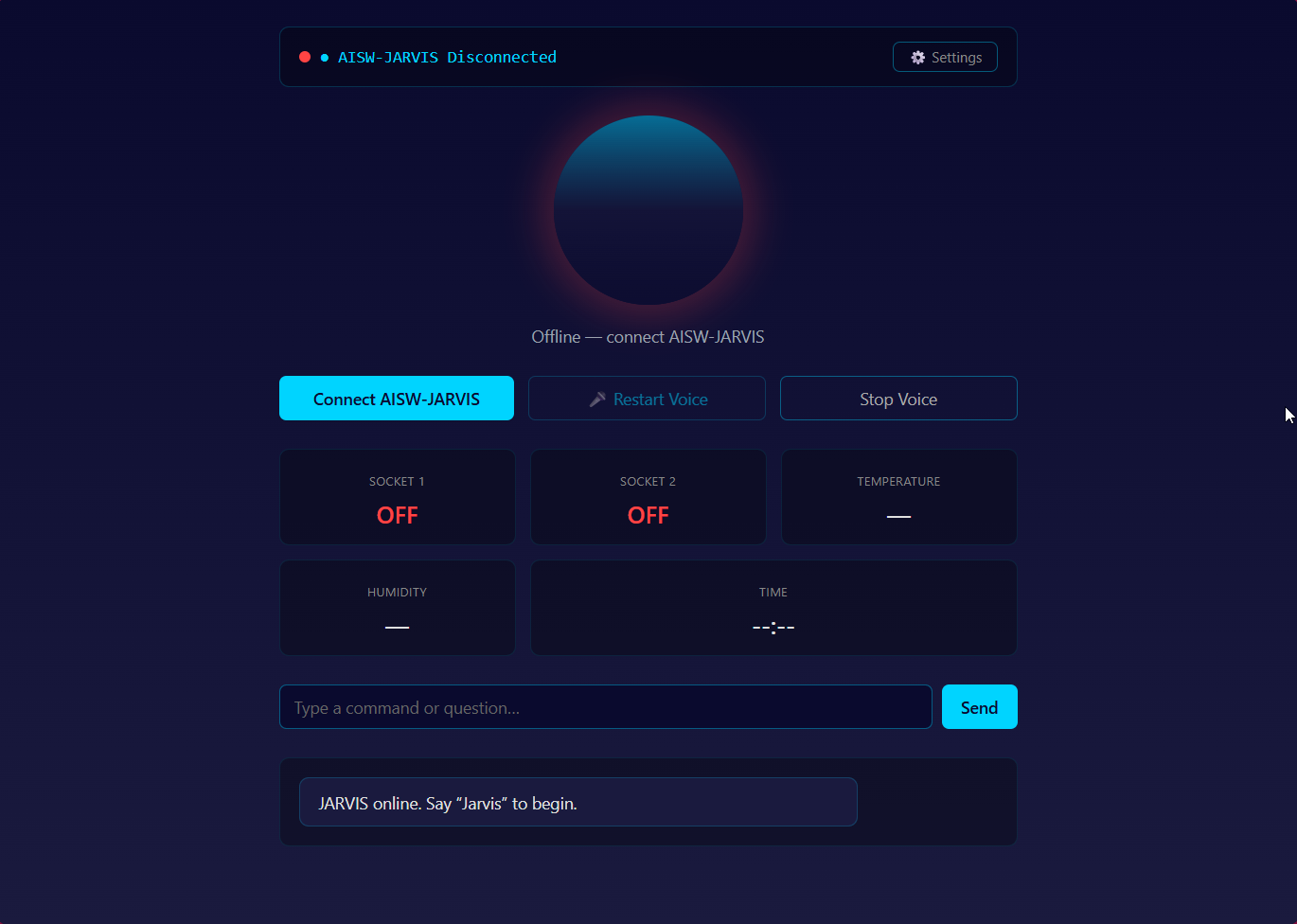

1. Edge Web Application (Next.js 14 & Cloudflare Pages)

  • Always-on Voice Loop: Utilizes browser-native speech recognition operating in continuous mode with a dedicated wake-word detection engine tuned for "Jarvis".
  • Self-Hearing Guard: Automatically suppresses microphone input during Text-to-Speech (TTS) playback to prevent positive feedback loops.
  • Local Intent Engine: Parses voice commands locally first. Hardware commands (relays, temperature, RTC queries) bypass cloud processing completely and serialize directly into low-overhead JSON BLE payloads.
  • NVIDIA NIM Integration: Offloads open-ended knowledge queries to NVIDIA NIM using an Edge-compliant Cloudflare Worker route (/api/chat).

2. Firmware (ESP32-S3 PlatformIO & NimBLE)

  • Nordic UART Service (NUS): Runs a lightweight NimBLE GATT server advertising AISW-JARVIS over UUID 6e400001-b5a3-f393-e0a9-e50e24dcca9e.
  • Hardware Interfacing: Manages dual relays (GPIO 4 & 5), environmental reading via DHT22 (GPIO 13), and precision timestamping via DS3231 RTC (I2C GPIO 8/9).
  • On-Demand RTC Architecture: Eliminates wasteful continuous polling by servicing real-time clock queries strictly on an on-demand basis.

Challenges We Faced

  • Cross-Platform Build Tooling: Compiling @cloudflare/next-on-pages build artifacts natively under Windows PowerShell introduced path execution hangs. We resolved this by configuring a GitHub Actions deployment workflow running on Linux build runners.
  • Audio Feedback Isolation: Preventing the Web Speech recognition engine from listening to the TTS speech synthesis output required implementing an asynchronous state lock during voice response generation.
  • BLE Notification Queueing: Ensuring non-blocking JSON characteristic writes between the Web Bluetooth API and ESP32 NimBLE callbacks without dropping telemetry packets.

What We Learned

  • How to design a privacy-focused IoT architecture where local hardware controls stay within physical Bluetooth range while general AI capabilities scale via Serverless Edge networks.
  • Best practices for handling Web Bluetooth GATT connection lifecycles and automatic reconnect routines across modern browser engines.
  • Structuring efficient JSON payload schemas for embedded systems to minimize memory allocation on microcontrollers.
