Helmet Intercom BLE/RF

Long-range Bike Intercom: Seamless communication and multimedia access for bikers, powered by LoRa and Bluetooth.

Comment 2

Inspiration

Wanted to create a long-range communication system for bikers that allows both communication and multimedia access. Standard Bluetooth intercoms don’t cover long distances, so we combined LoRa for long-range communication and Bluetooth for music and navigation.

What it does

The Intercom BLE/RF system enables long-distance communication (up to 2 km) between riders using LoRa, while Bluetooth provides music, navigation, and call features through a smartphone. It connects standard 3.5mm jack earphones and includes a noise-canceling microphone for clear communication.

How I built it

I used the ESP32 DevKit V1 microcontroller and LoRa SX1278 module for communication, along with a 3.5mm audio jack for earphones and an external microphone. I programmed the system using Arduino IDE and PlatformIO, and it runs on 18650 Li-ion batteries with a BMS board and TP4056 charger.

Design

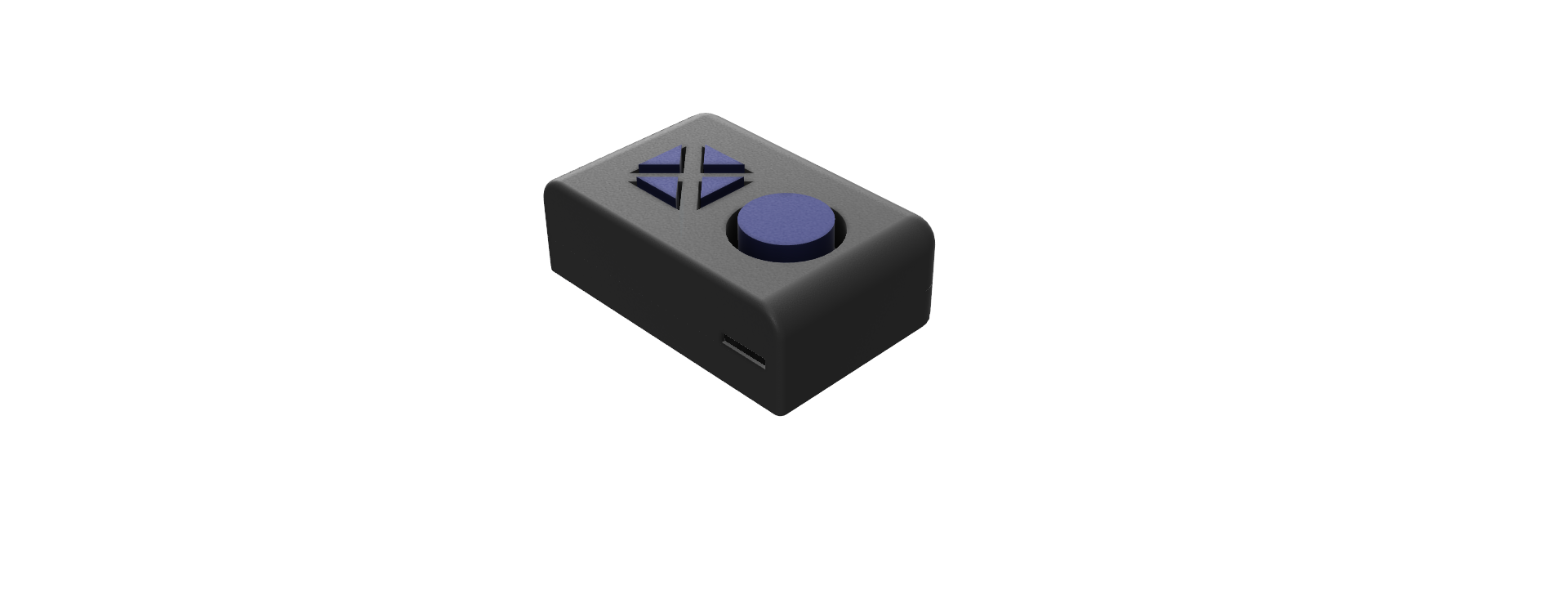

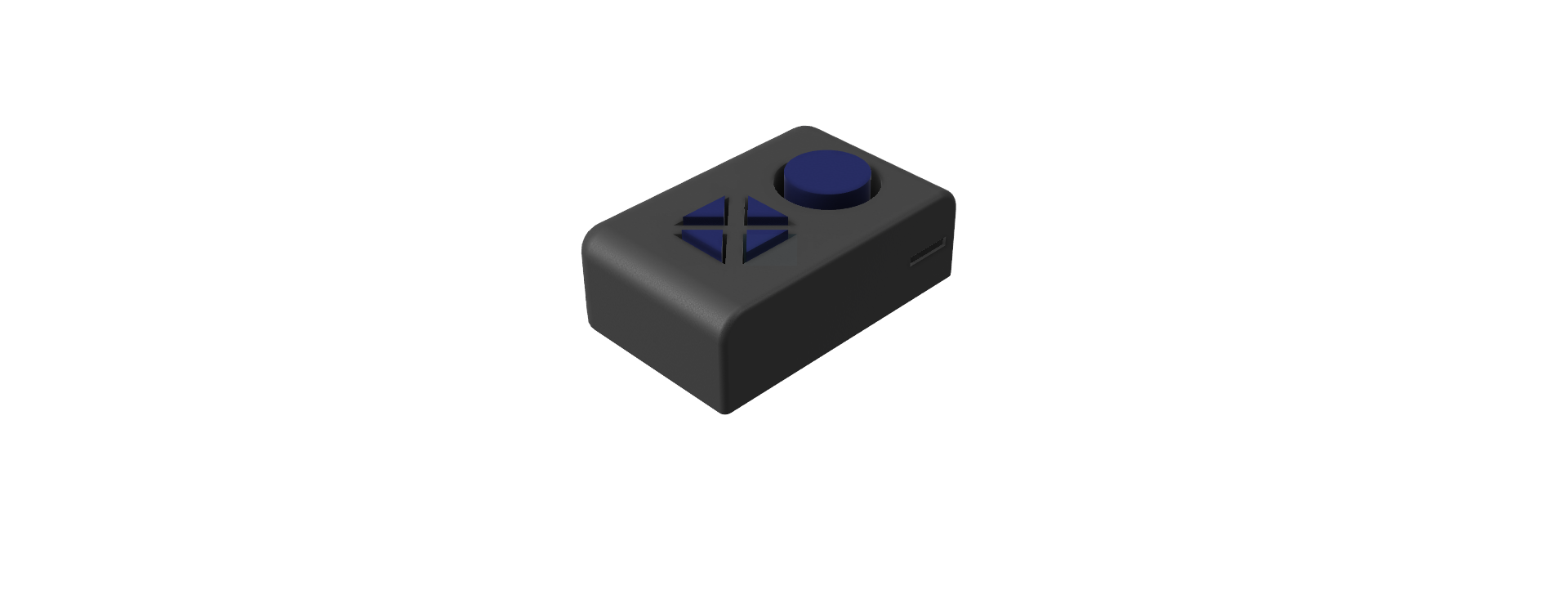

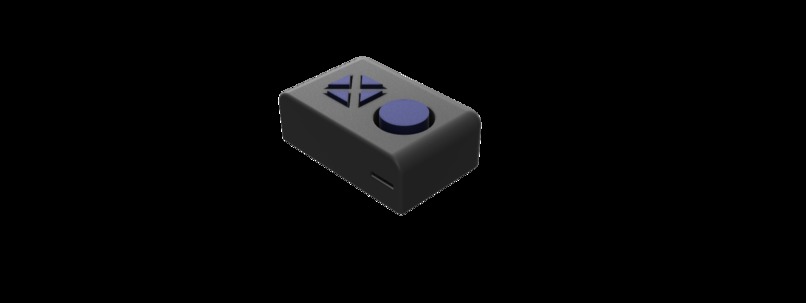

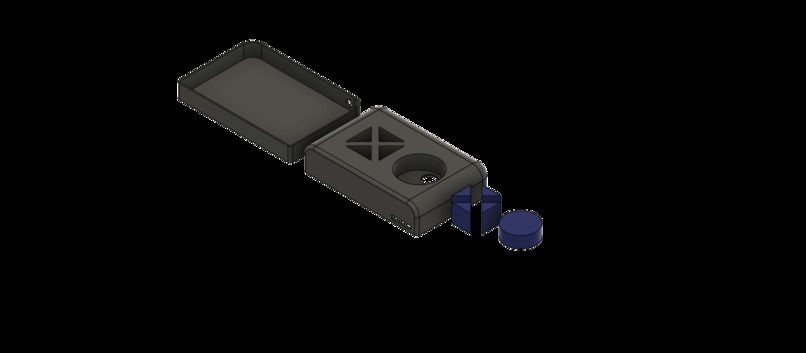

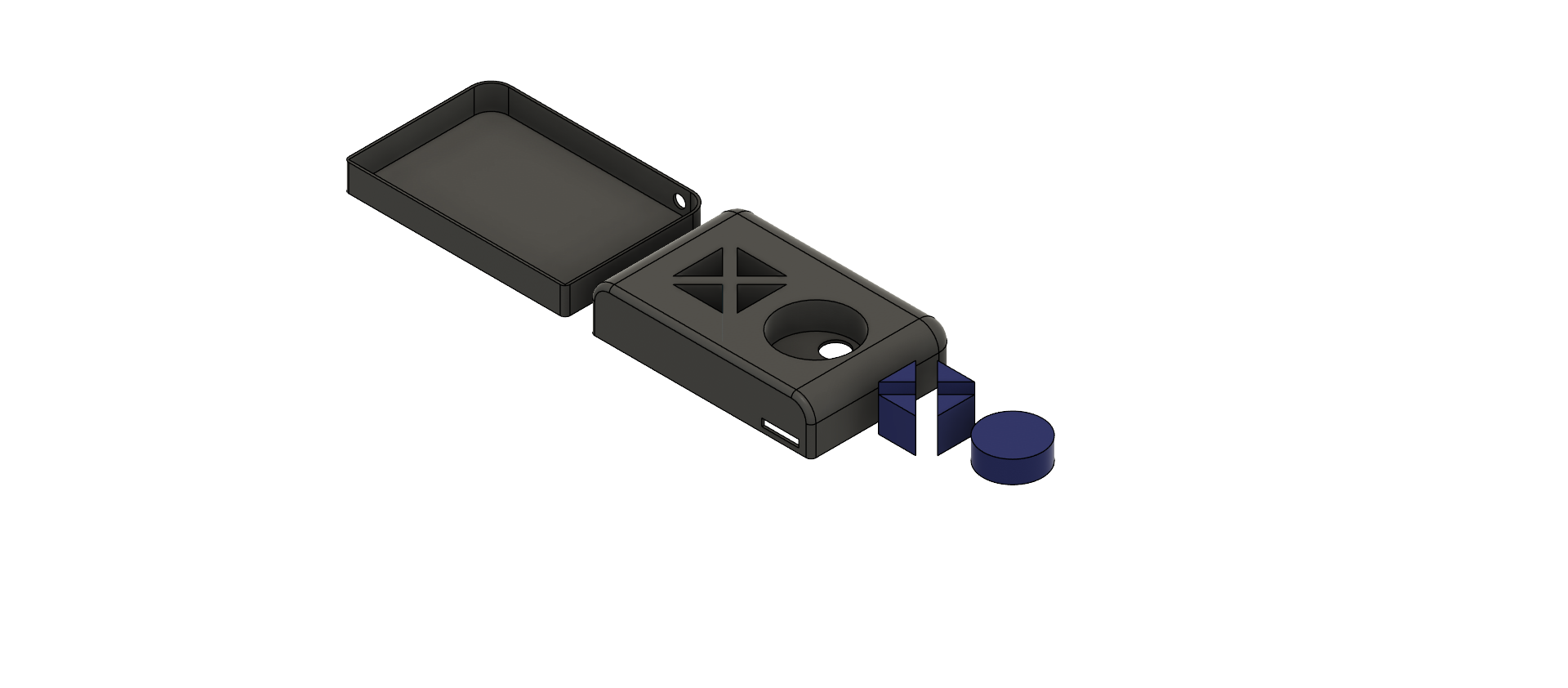

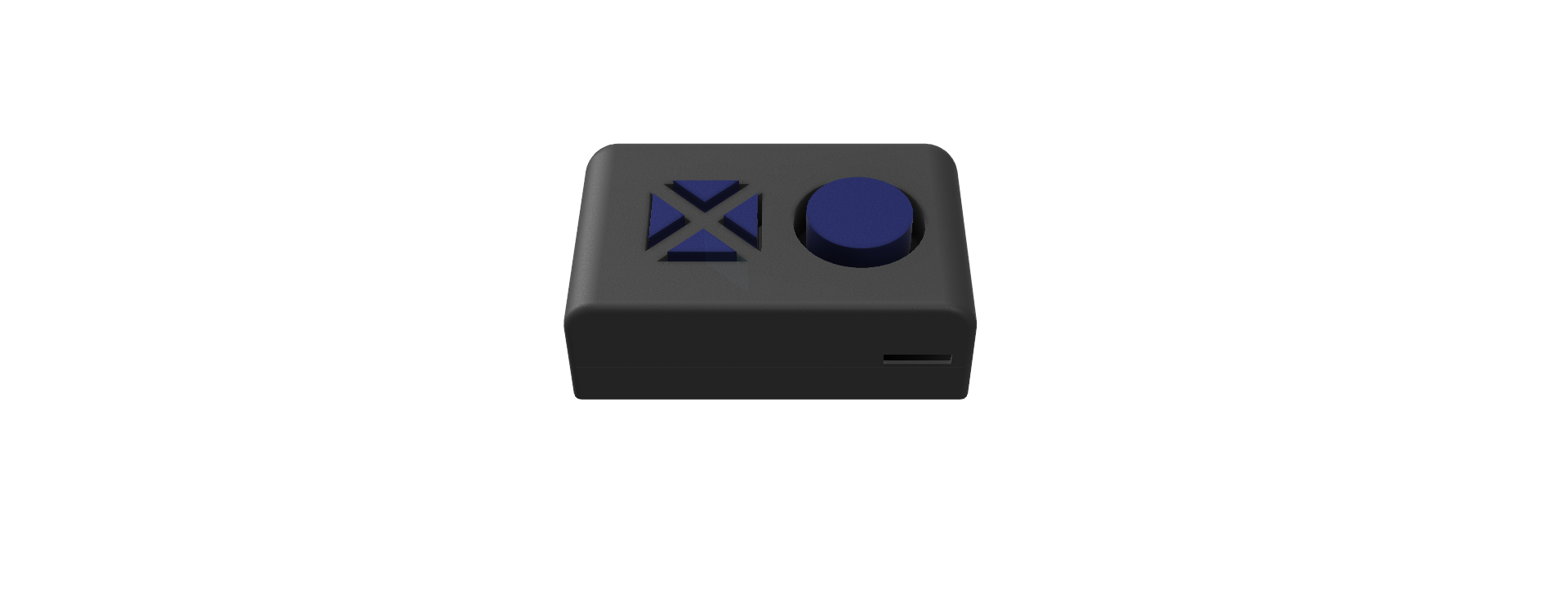

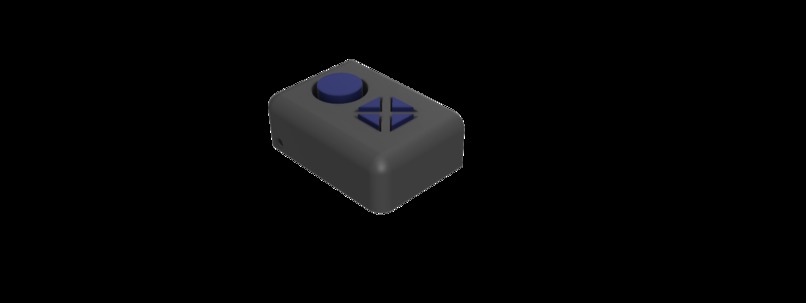

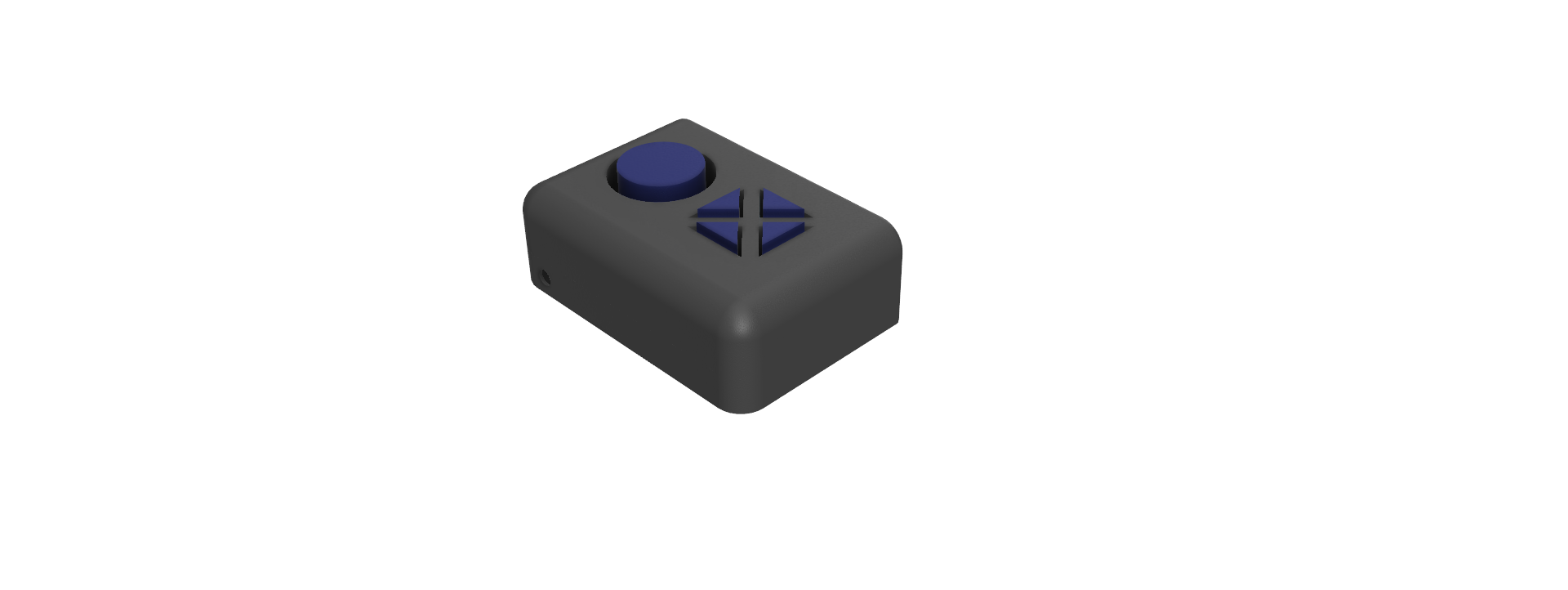

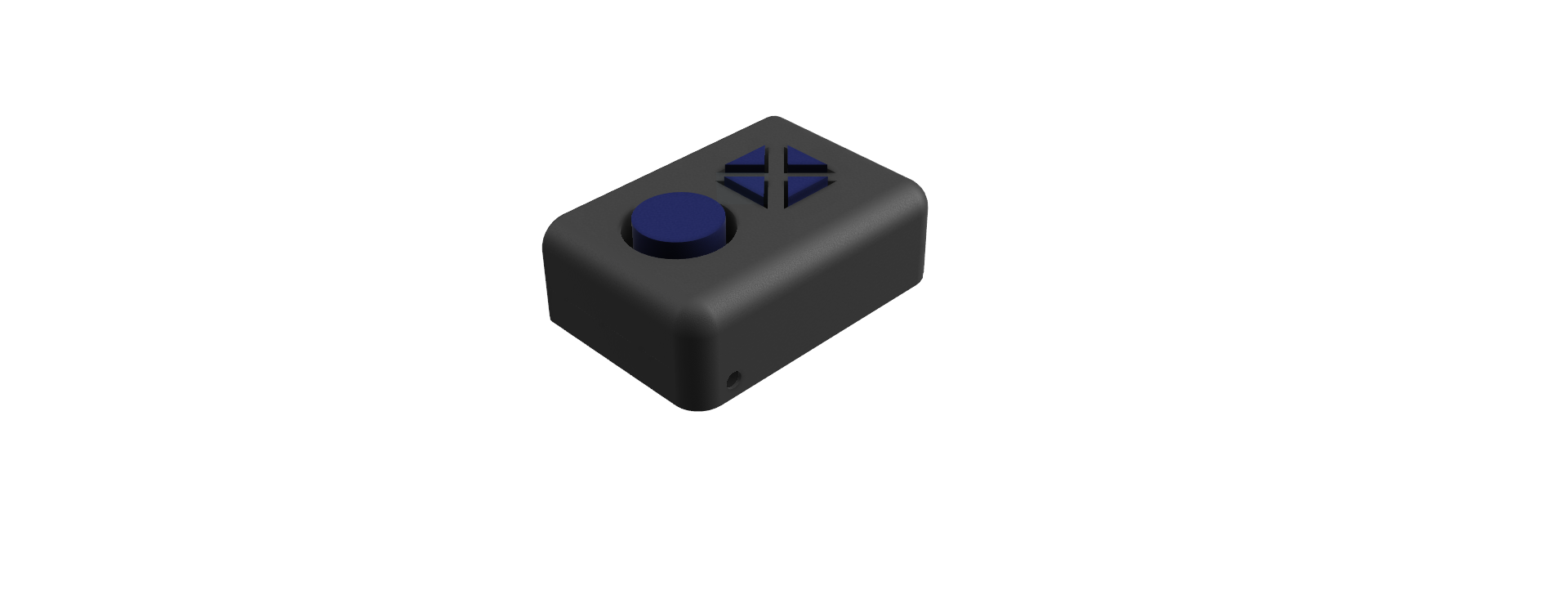

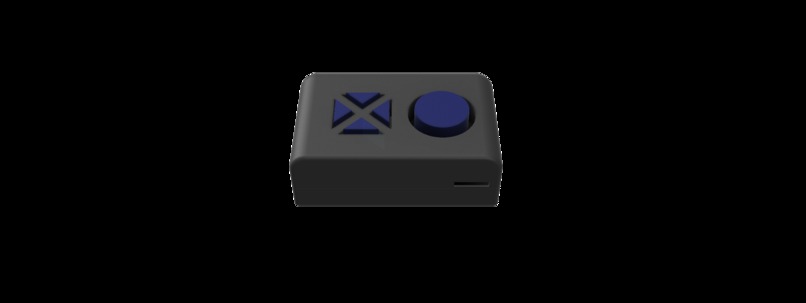

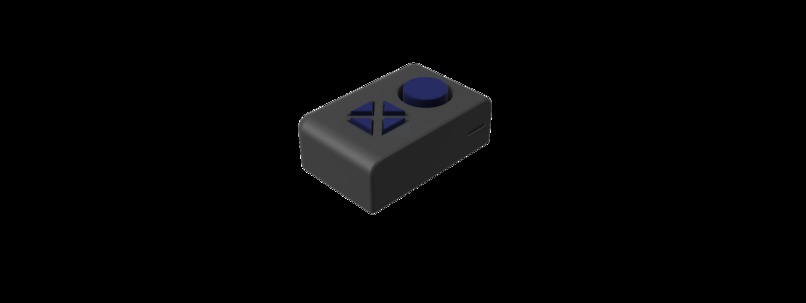

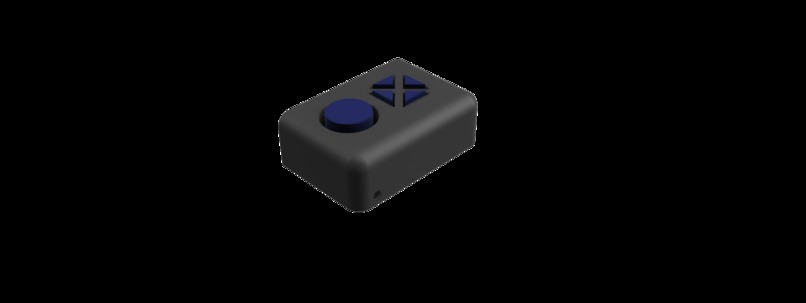

The Intercom BLE/RF system features a custom enclosure developed using a 3D printer to enhance both functionality and user comfort:

  1. Compactness: Lightweight and small enough to fit comfortably inside a helmet without adding bulk.
  2. Protection: Shields electronic components from dust, moisture, and impacts, ensuring durability during rides.
  3. Ergonomics: Optimized layout for easy access to the microphone and earphone jacks, allowing for quick connections and adjustments.
  4. Ventilation: Includes slots for airflow to prevent overheating during operation.
  5. Aesthetic Appeal: Streamlined shape and customizable colors to match personal helmet styles.
  6. Modular Design: Allows for easy upgrades or component swaps in the future without redesigning the entire enclosure.

3D Printing Process

  1. Modeling: Created a 3D model using CAD software.
  2. Slicing: Prepared the model for printing with slicing software.
  3. Printing: Printed the enclosure using PLA or ABS filament for strength and durability.
  4. Finishing: Sanded and painted the enclosure for a smooth look.
  5. Assembly: Installed electronic components securely within the enclosure.

This thoughtful design ensures that the intercom system provides reliable communication and multimedia access while enhancing the overall riding experience.

Challenges I ran into

  1. Tuning LoRa for real-time voice transmission.
  2. Managing power consumption efficiently.
  3. Ensuring audio clarity despite road and wind noise.

Accomplishments that I'm proud of

  1. Achieved seamless long-range communication using LoRa.
  2. Integrated Bluetooth for multimedia without interfering with communication.
  3. Built a compact, helmet-mounted system.

What I learned

I learned how to implement long-range RF communication using LoRa, optimize power management for battery-operated devices, and improve audio quality in noisy environments. This project also deepened my embedded systems skills.

What's next for Intercom BLE/RF

  1. Improve audio clarity with better microphones and noise reduction.
  2. Extend battery life through power optimization.
  3. Add features like group communication and voice commands.
