Agentic AML

Inspiration

Traditional AML systems rely on rigid, rule-based thresholds that flag almost everything as "unusual"
This results in false-positive rates as high as 95%, burying investigators in noise
Meanwhile, sophisticated laundering techniques like layering and smurfing are specifically designed to slip past hard-coded rules
We wanted to stop treating detection as a fixed pipeline and instead treat it as a reasoning problem
Goal: let an AI system dynamically decide what to check based on the actual question being asked - the way a sharp investigator would

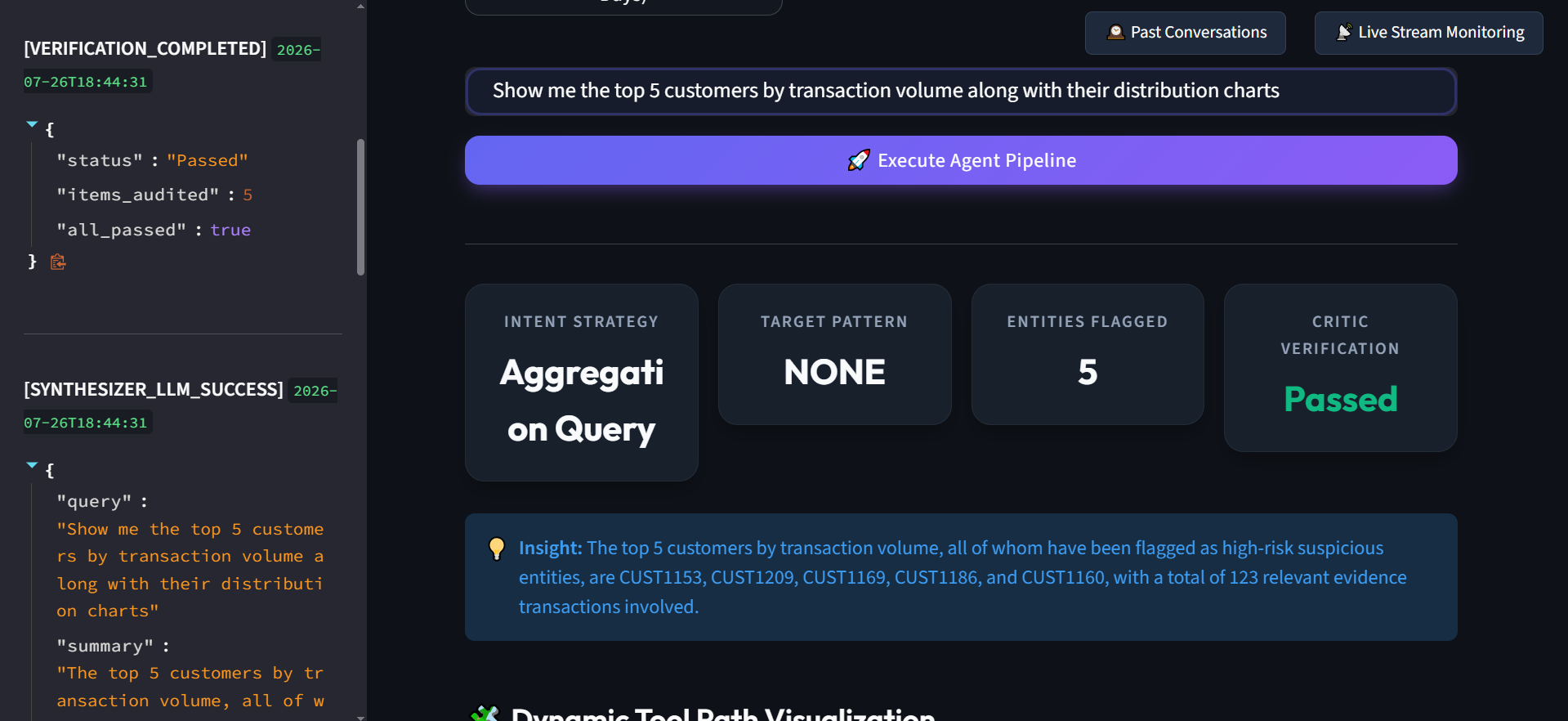

Lets a compliance investigator type a plain-language question (e.g. "Is customer CUST1237 suspicious?" or "Find structuring patterns in the last 30 days")
Returns a verified, evidence-backed answer in seconds instead of days
A Query Understanding Agent parses the intent behind the question

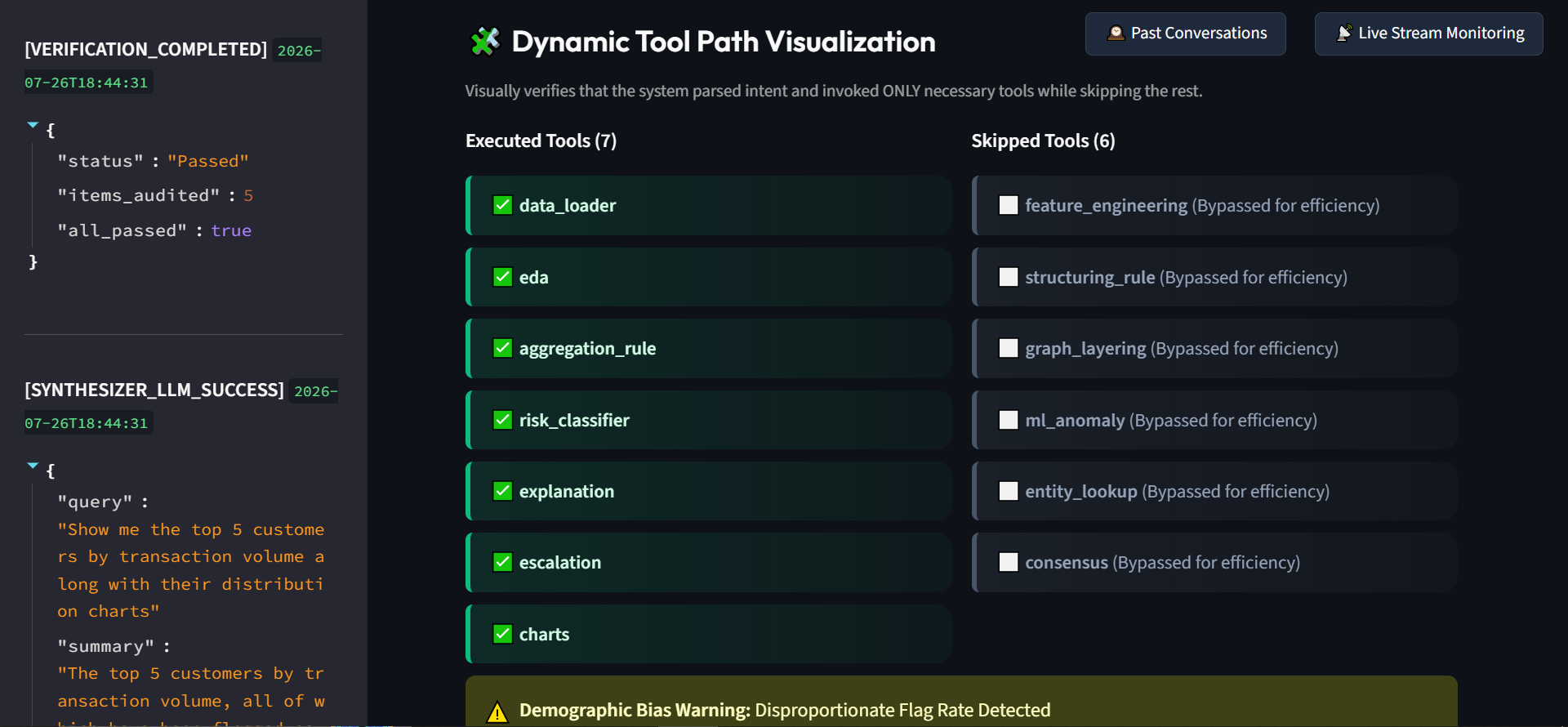

A dynamic Orchestrator decides exactly which detection tools are actually needed - not every check runs on every query
Detection tools available:
- Deterministic structuring rules - catch "smurfing" deposits kept just under the $10,000 reporting threshold
- Aggregation rules - flag volume anomalies
- NetworkX-based graph analysis - catch multi-hop cyclical laundering chains
- PyOD IsolationForest model - unsupervised anomaly detection
A Consensus Engine merges these signals into a single 0–100 risk score

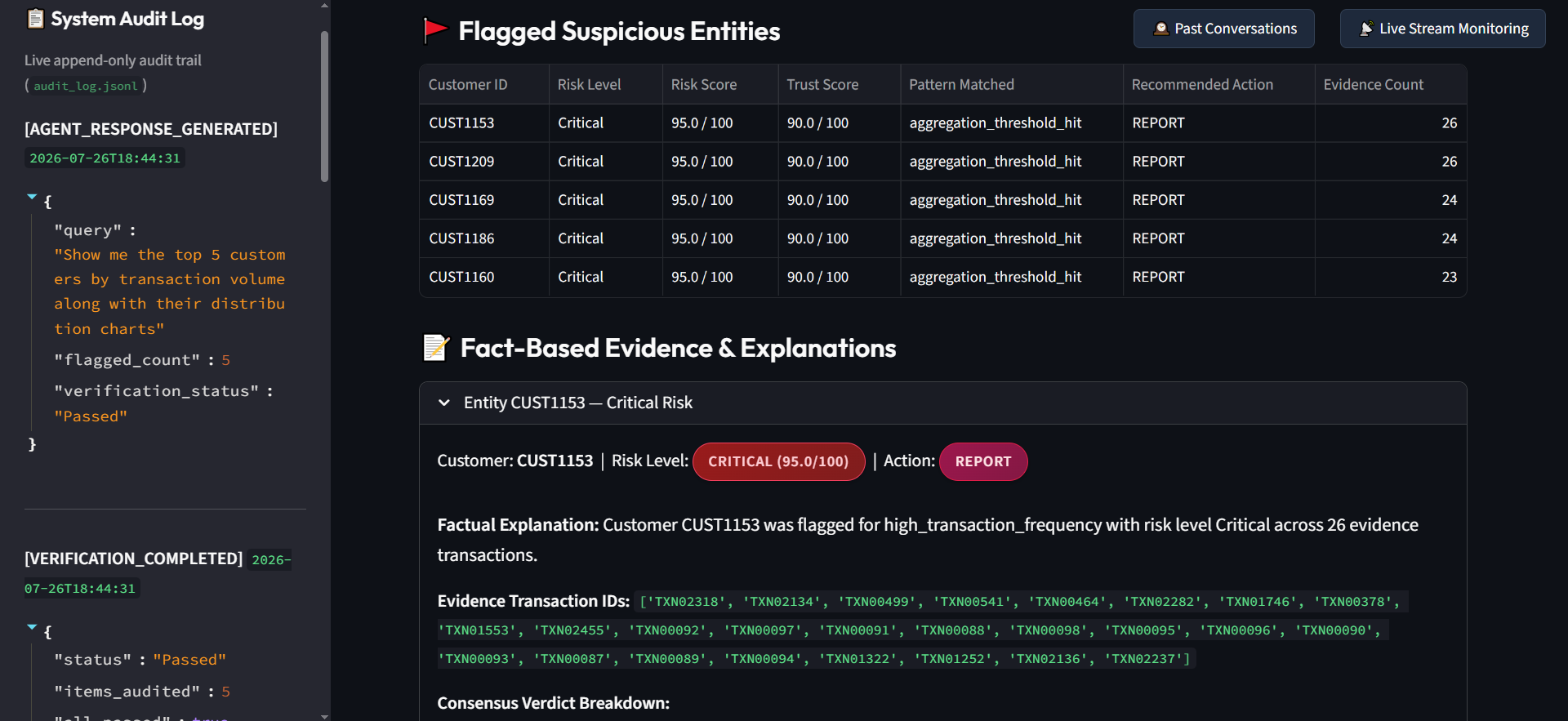

An Explainability Agent writes a plain-English justification citing specific transaction IDs
A Verifier/Critic Agent mathematically double-checks every number before it reaches a human - no hallucinated figures ever get shown

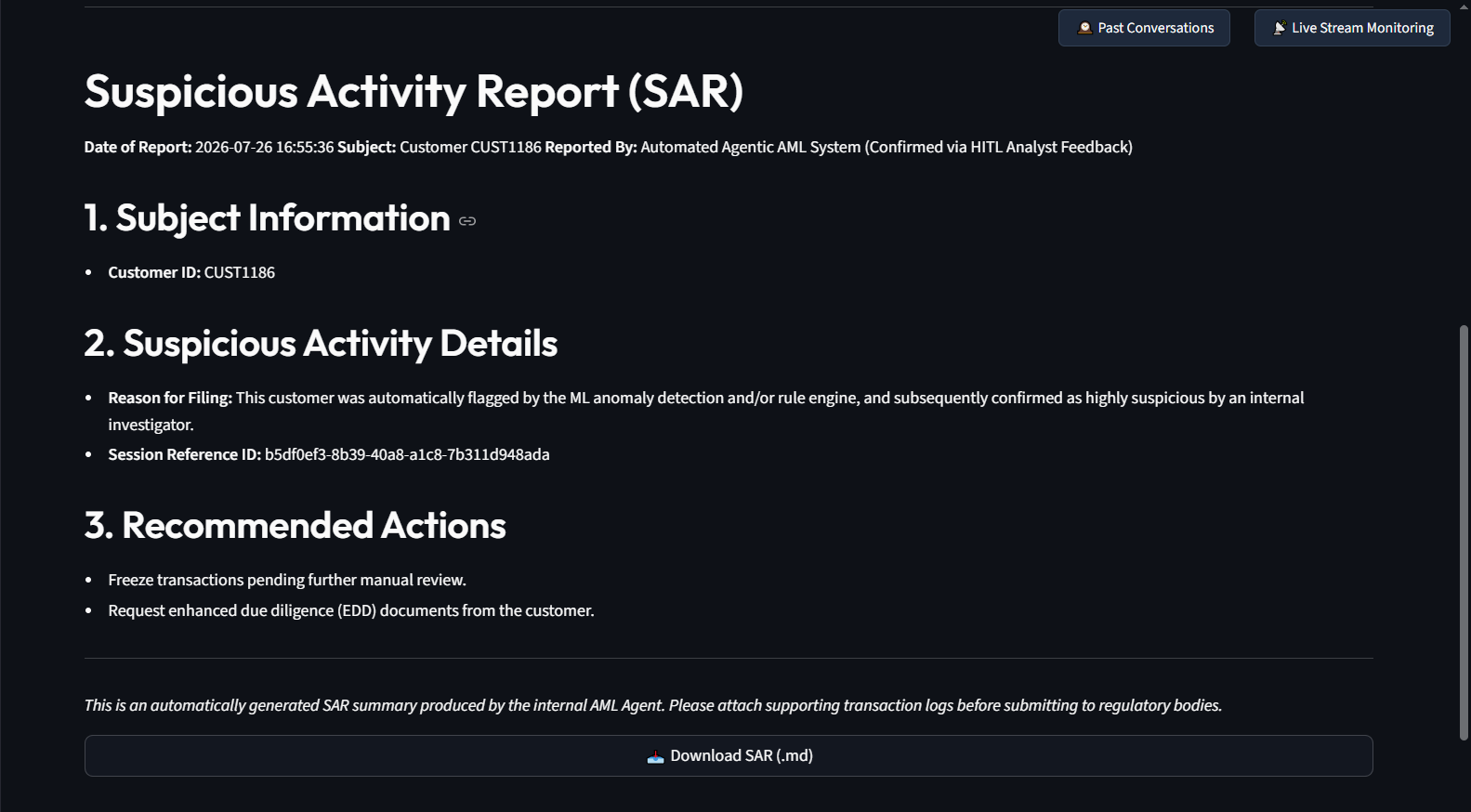

For flagged cases, the system drafts a Suspicious Activity Report (SAR) for human review

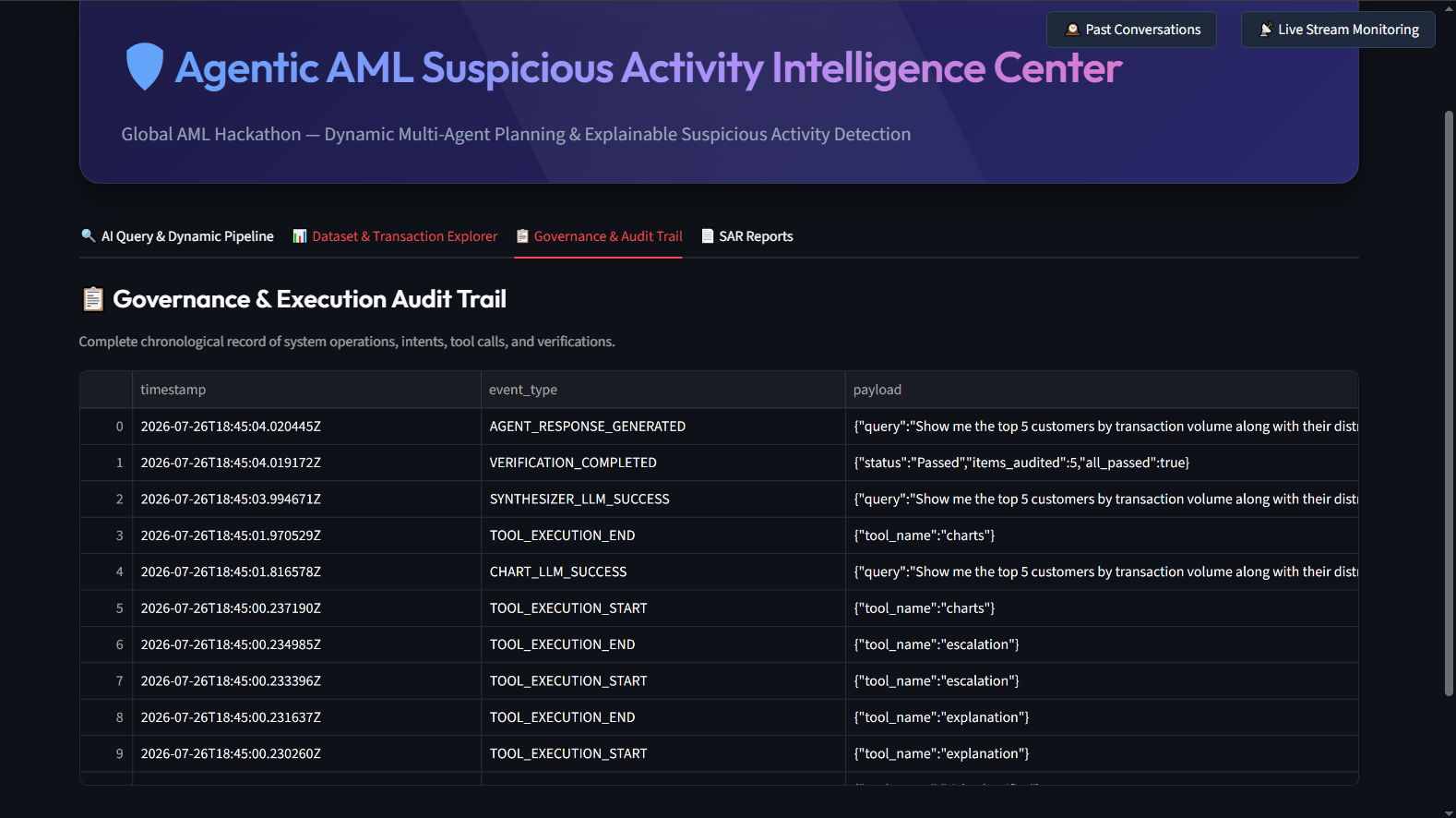

Every step is written to an immutable audit log

Backend: FastAPI service exposing a single /agent/query endpoint
Database: DuckDB, an in-process analytical database holding the transaction data

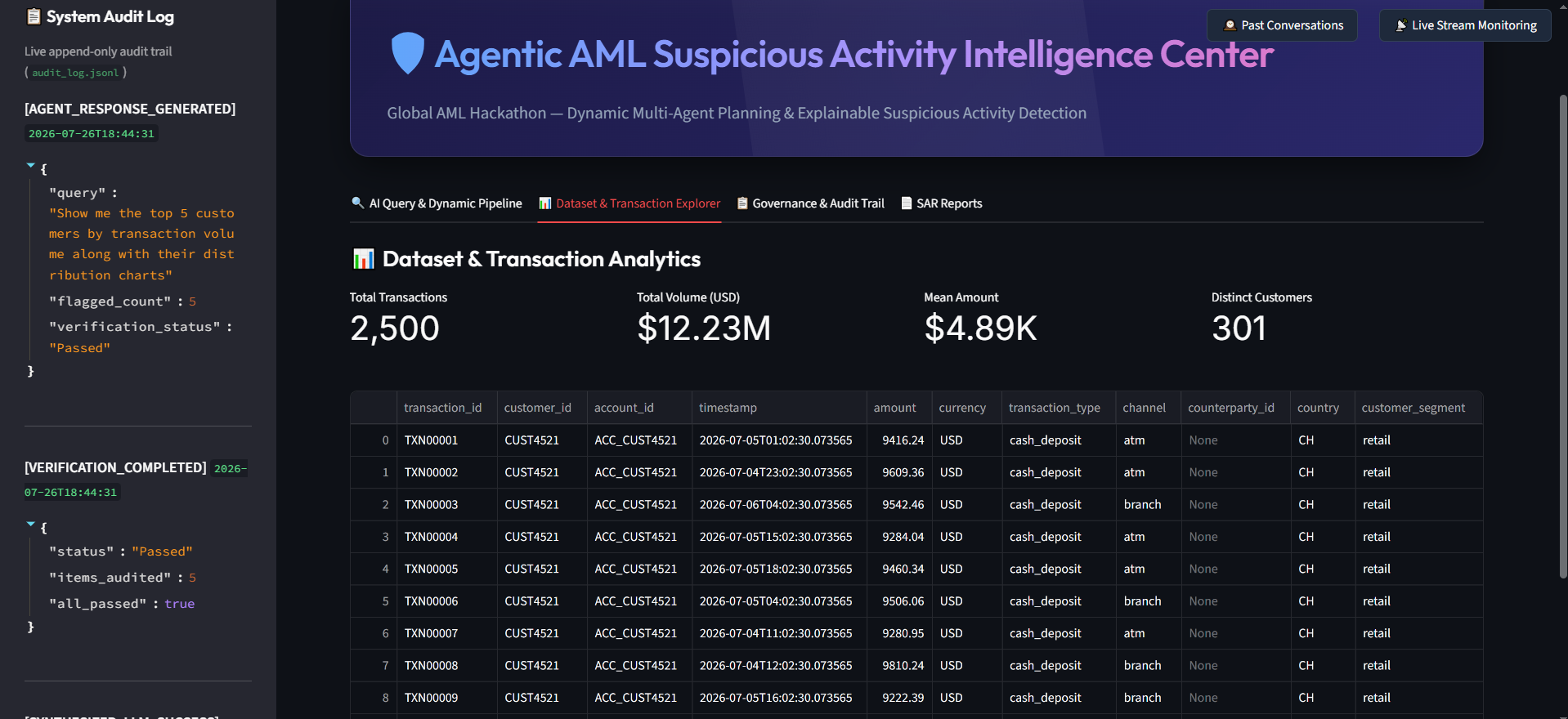

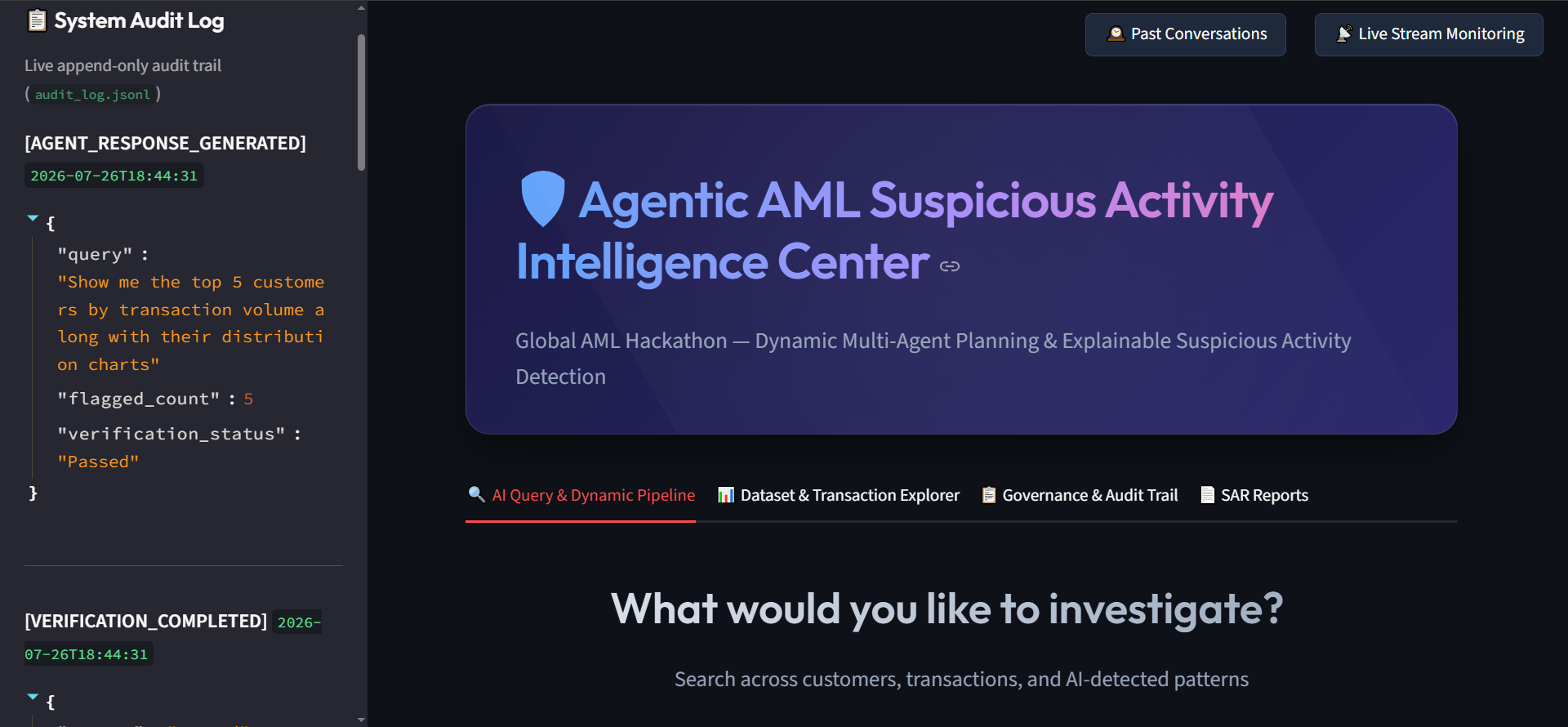

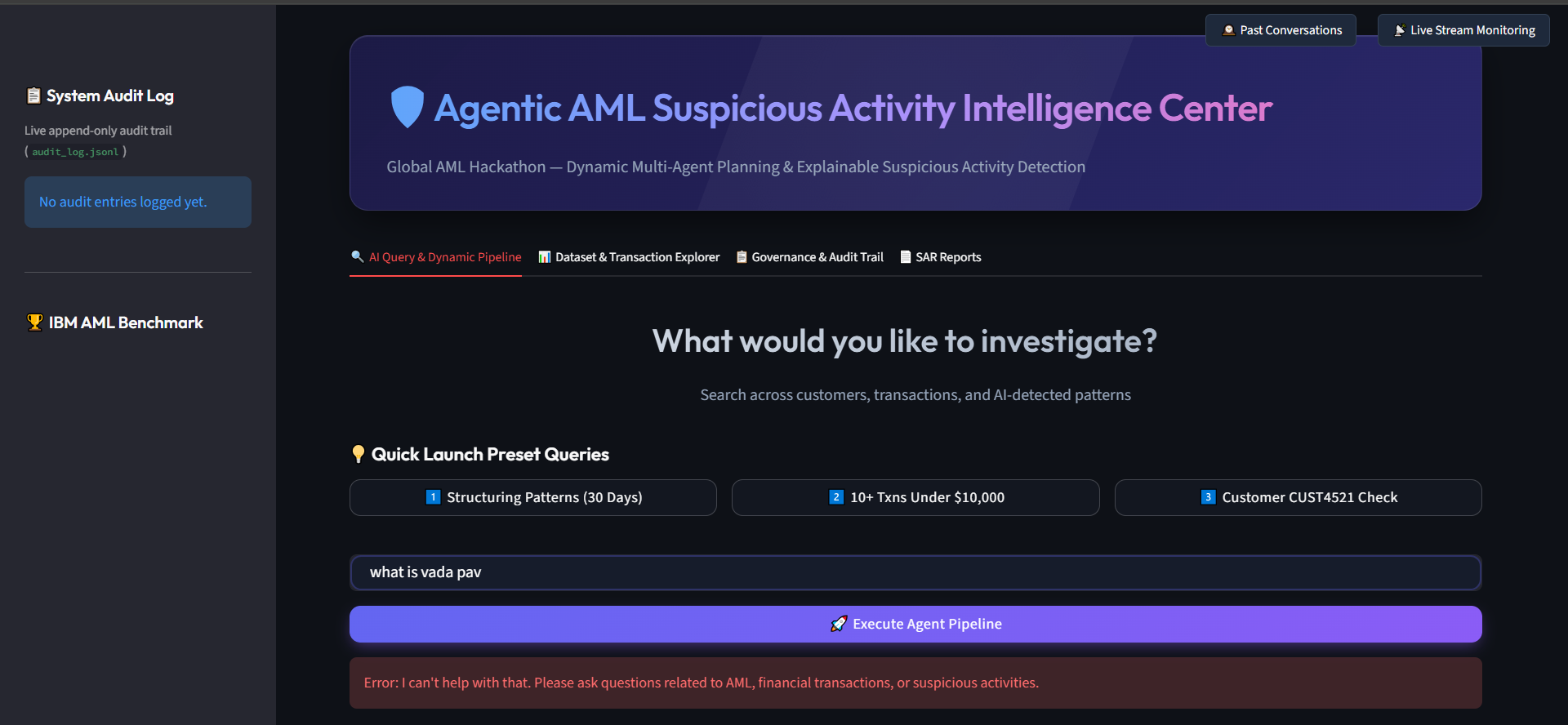

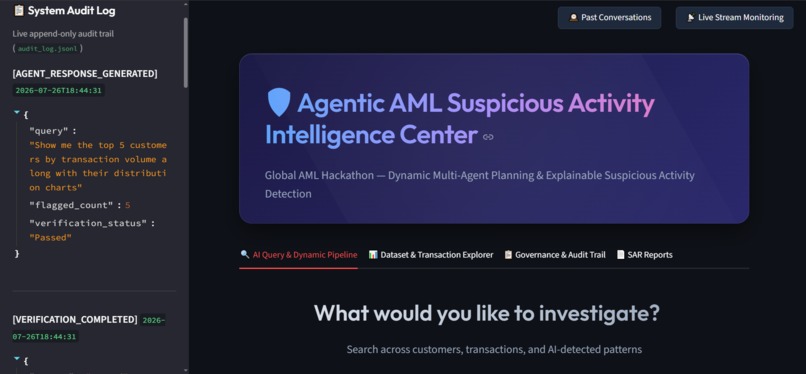

Frontend: Streamlit dashboard with a chat-style interface plus an audit log viewer
Multi-agent logic lives in the agents/ module:
- Query Understanding Agent - converts free text into a strict Pydantic Intent schema
- Orchestrator Agent - builds a dynamic execution graph and calls only the tools it needs
Detection suite lives in the tools/ module:
- Structuring and aggregation rules
- NetworkX-based graph layering detection
- PyOD IsolationForest anomaly detector

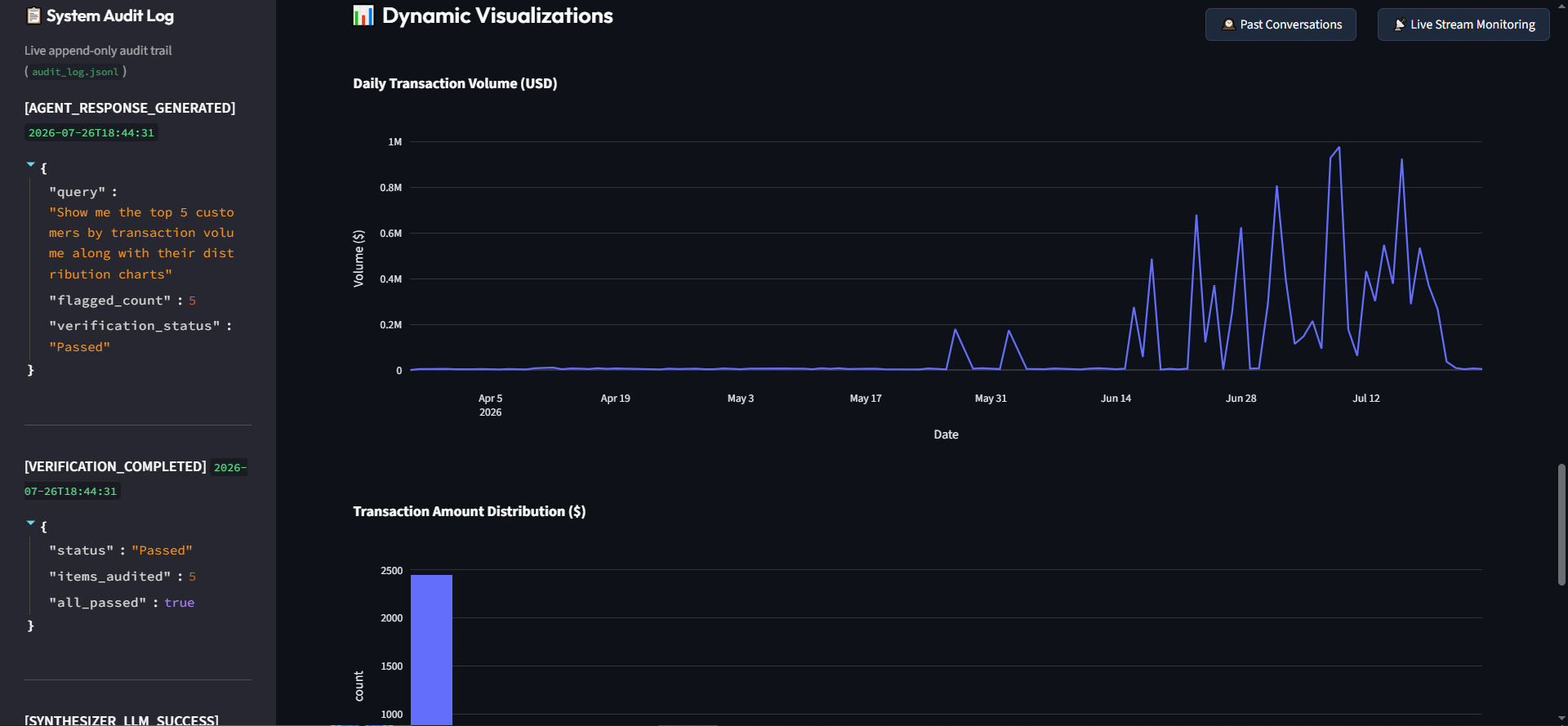

- An autonomous charting tool that writes and safely executes Plotly code on the fly from a schema description alone
Safety layer lives in the safety/ module:
- Audit logging
- Offline regex/template fallback for when the LLM is unavailable
- Verifier agent that fact-checks LLM output against the raw dataframe
LLM calls (intent parsing, explanation generation) routed through OpenRouter
Built a synthetic data generator matching the IBM AML Kaggle dataset schema so the system runs out of the box
Fully containerized with Docker Compose for one-command deployment

Making the Orchestrator genuinely dynamic - rather than secretly running every tool every time - took real iteration
Balancing skip-aggressiveness against reliability: skip too much and you miss signals, skip too little and you lose the performance benefit
Trusting an LLM with financial numbers was risky, since fluent hallucinations about transaction amounts are dangerous in a compliance context
Had to build the Verifier as a hard, mathematical gate rather than a soft suggestion - every LLM-produced figure gets checked against source data before being allowed through
Had to design around data sensitivity - keeping raw PII and transaction amounts completely out of LLM calls while still giving the model enough schema context to write meaningful queries and charts
Required carefully separating "what the model can see" from "what the model can act on"
Had to sandbox dynamically generated charting code so it can't touch the OS or network

The system genuinely reasons about which tools to call instead of running a static pipeline, cutting compute and latency on narrow queries
Built a zero-hallucination guarantee - every number an investigator sees is grounded in real data via the Verifier agent
Built a real offline failover - if the LLM provider goes down, the system silently drops to a regex/template engine so compliance operations never halt
Kept a human at the center of every consequential decision - the system recommends, drafts, and explains, but never files

Sharpened our understanding of what "agentic" should mean in a regulated domain - not maximal autonomy, but well-bounded autonomy with verification as a first-class citizen
Learned the value of combining symbolic, deterministic detection (rules) with statistical, unsupervised detection (ML) - they catch genuinely different things
Reconciling rule/ML disagreement transparently turned out to be as valuable as either method alone
Learned how much care sandboxed code generation requires when an LLM is writing and executing its own visualization code

Move from batch/on-demand querying to real streaming detection, building on the existing stream_processor.py groundwork to score transactions as they arrive
Add supervised fine-tuning on IBM AML backtesting results to improve the risk classifier
Expand graph layering detection to catch more complex multi-account topologies
Add role-based access control and richer audit trails to make the system ready for a real financial institution's compliance stack
Let compliance teams configure and tune structuring/aggregation rule thresholds directly from the dashboard, without a code change
