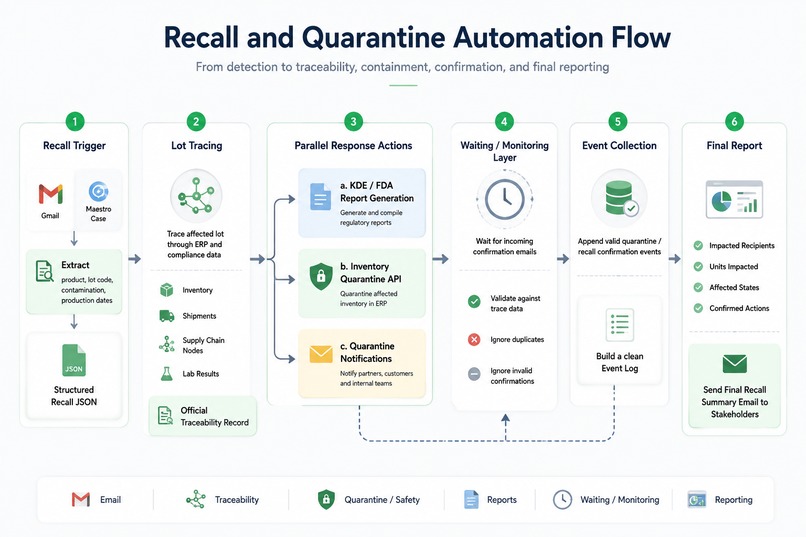

Recall and Quarantine Automation Architecture

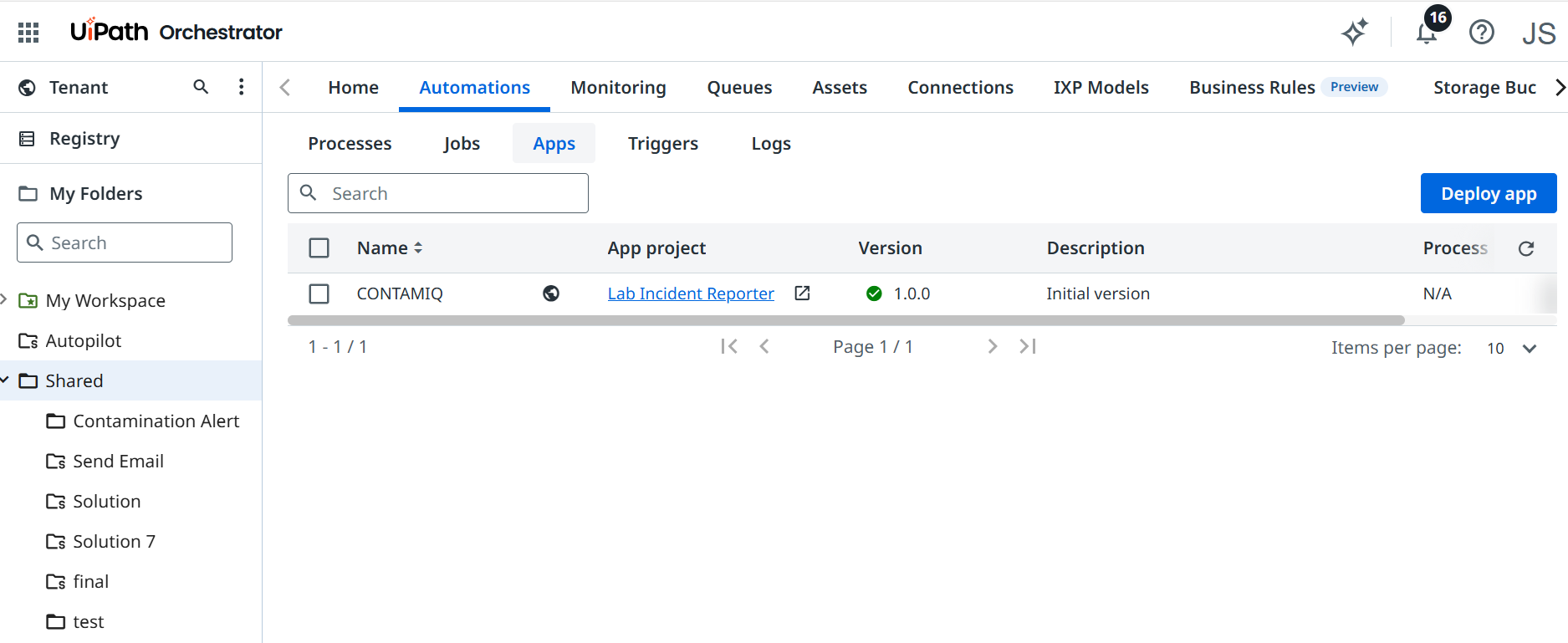

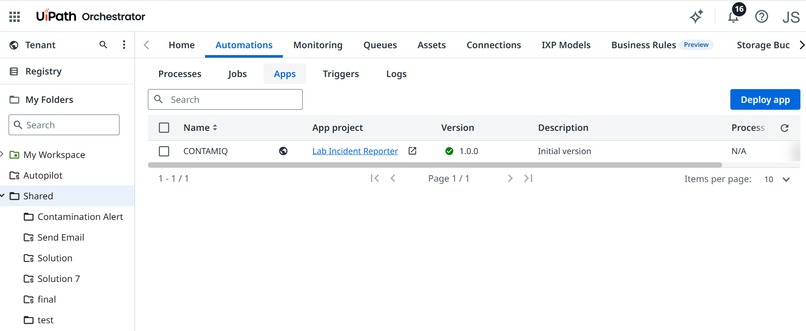

'CONTAMIQ' (Lab Incident Reporter) Application Deployed Successfully to the orchestrator

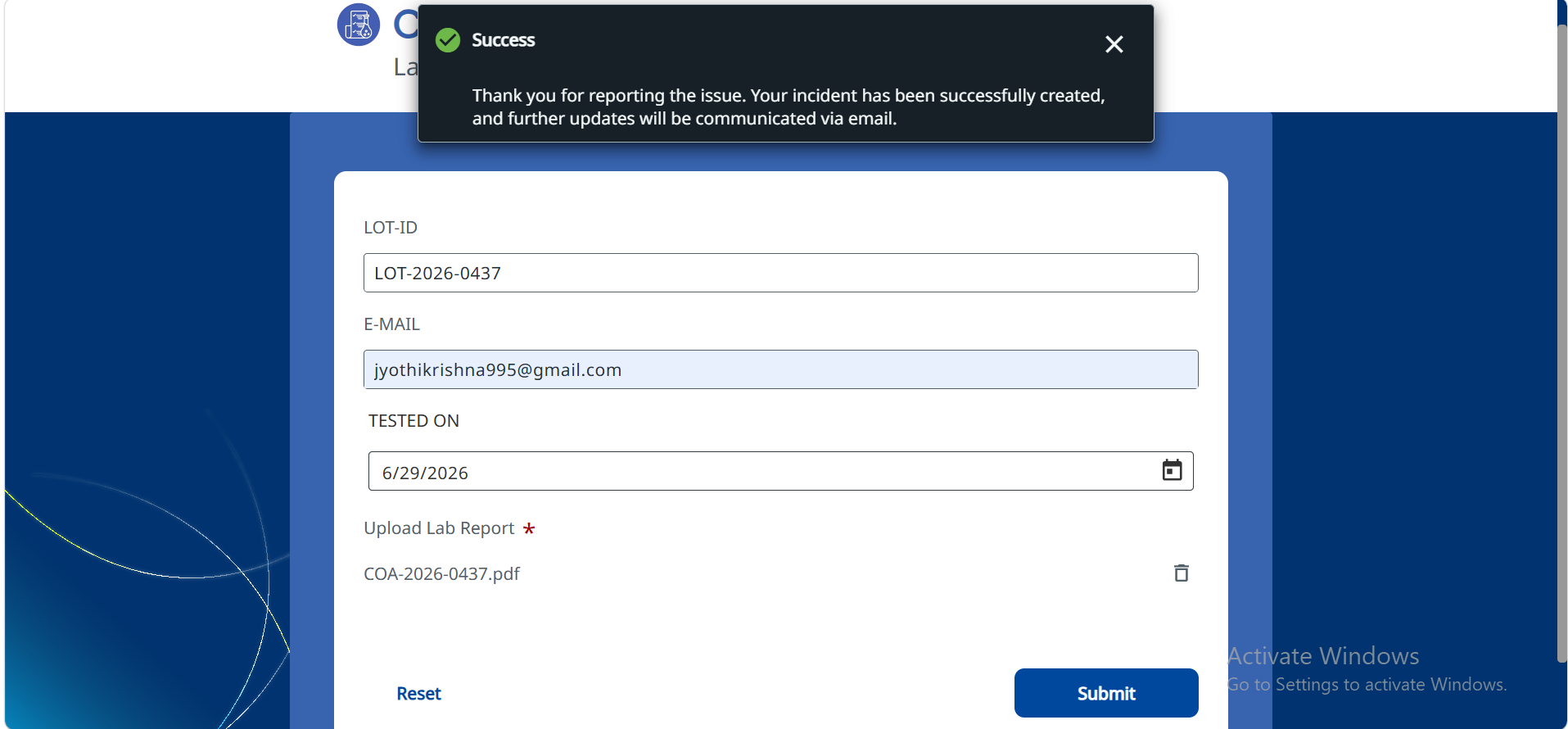

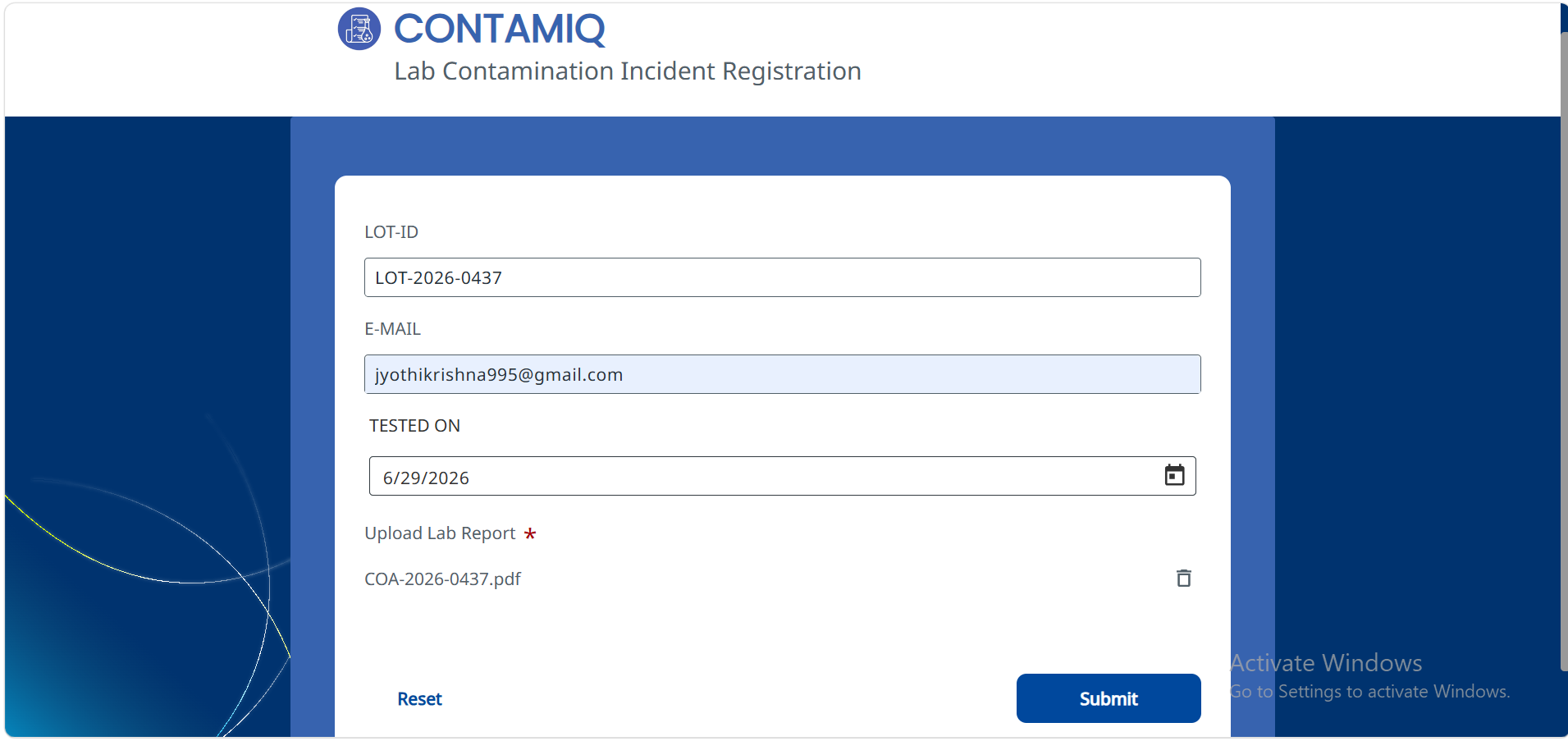

Input Entered Successfully to 'CONTAMIQ'
Incident Submitted Successfully

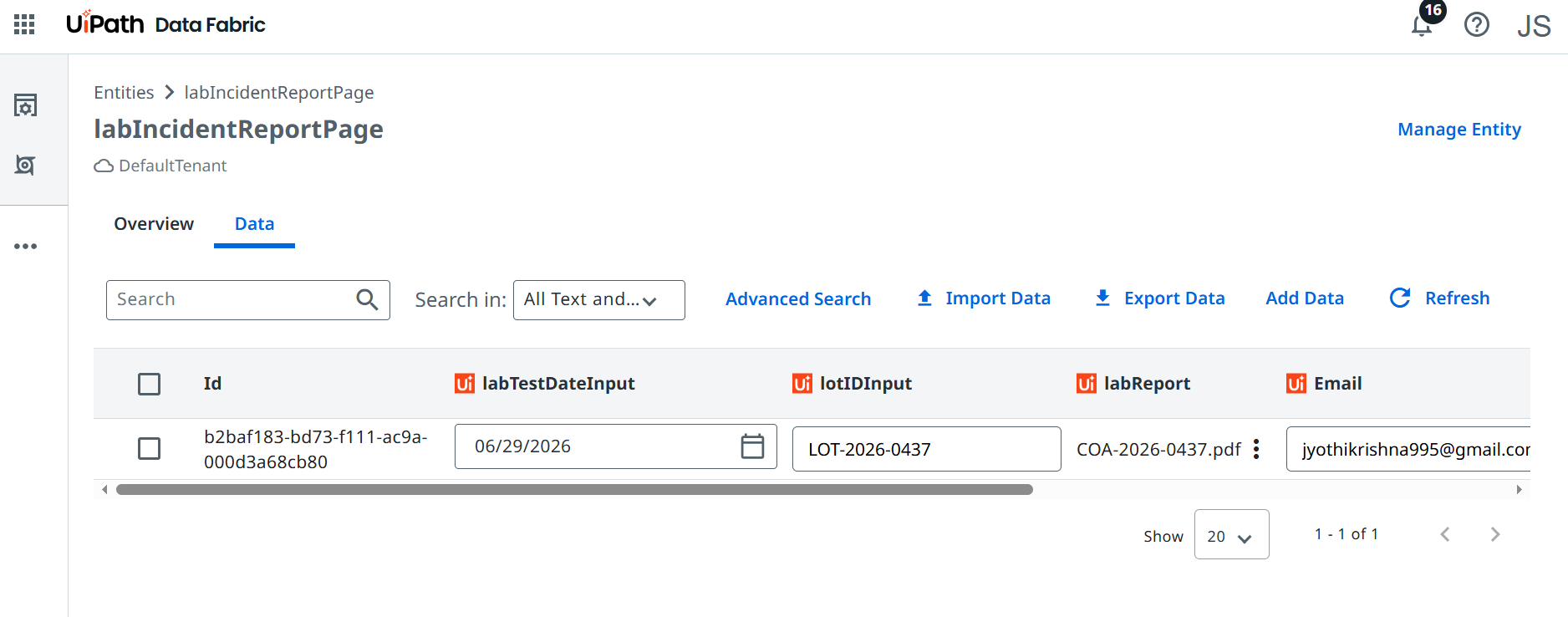

Entity Created Successfully In Data Fabric

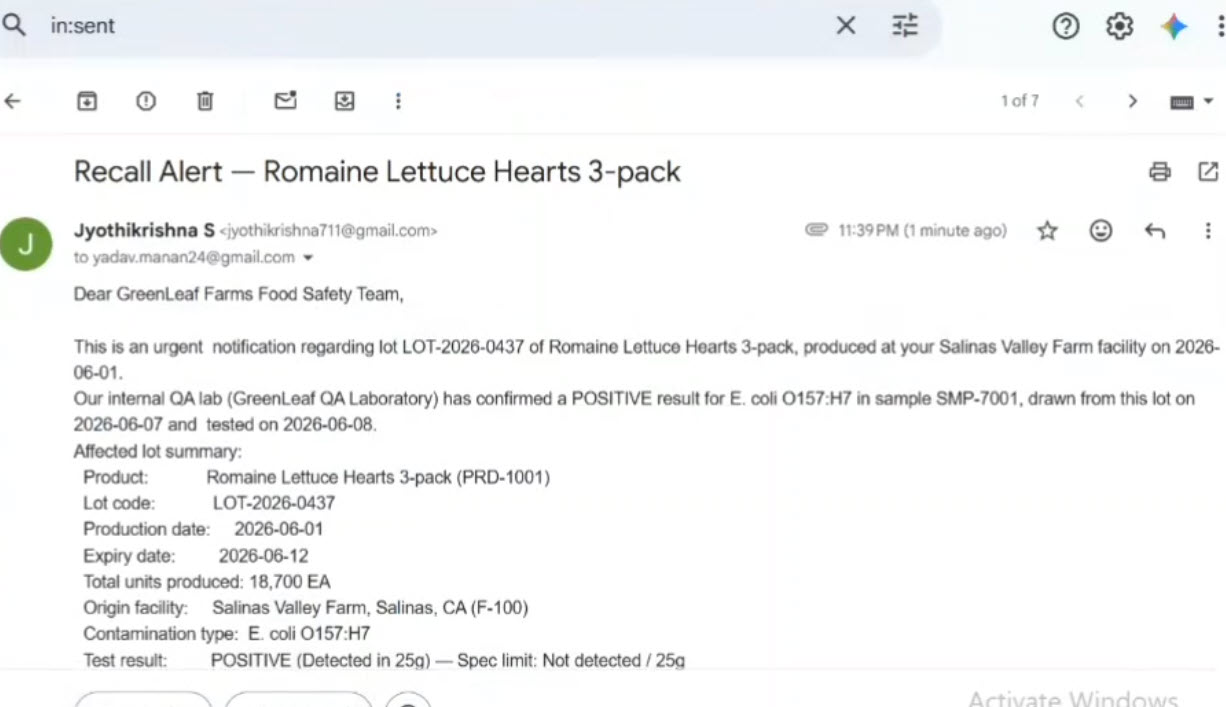

Recall Alert Coming from 'CONTAMIQ' App

FDA Recall Traceability Agent

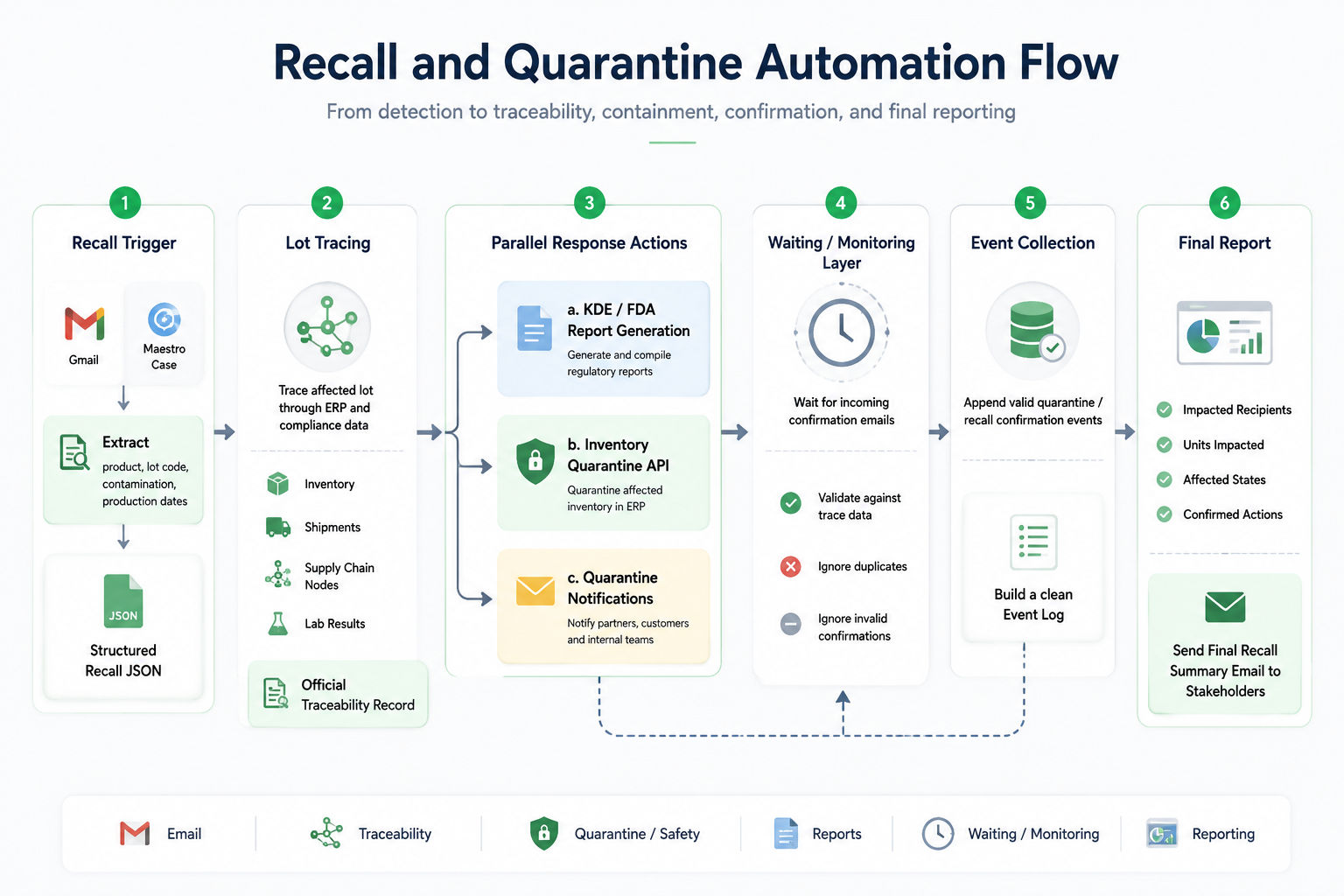

System architecture

Caption: End-to-end architecture of the FDA recall traceability system.

Inspiration

Food recalls are the kind of problem that looks administrative until people are still eating the product while someone is searching five systems and twelve emails for one lot code.

The 2018 E. coli romaine lettuce outbreak made that painfully real: it hit 210 people across 36 states and killed 5 before the FDA traced it back to Yuma, Arizona, a process that took weeks.

That was the spark for this project. In food safety, the data usually exists, but the truth is scattered across ERP records, lab results, shipment logs, warehouse inventory, and supplier emails. By the time a human stitches it together, the lettuce has already had a better travel itinerary than most people.

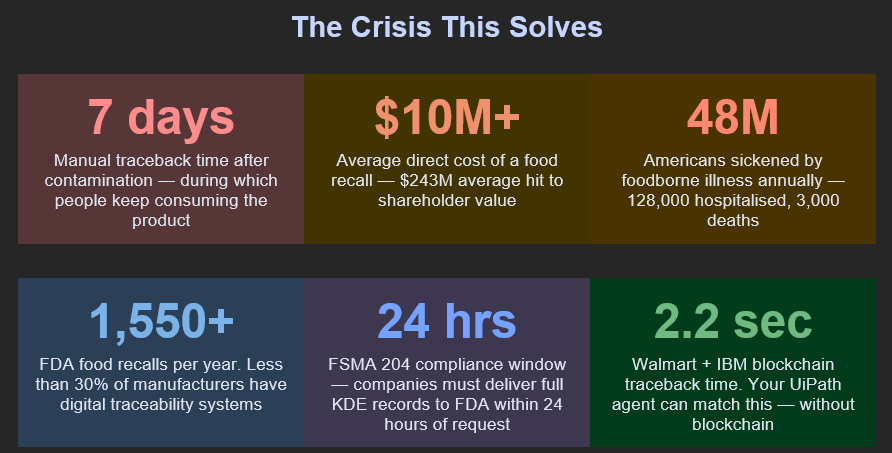

The crisis this solves

Caption: Why recall speed matters: human risk, compliance pressure, and economic cost.

We wanted to build a system that turns recall response from slow detective work into immediate action.

Walmart proved in 2019, with IBM blockchain, that faster traceability is possible. But blockchain comes with supplier buy-in, dedicated infrastructure, and long rollout cycles. Our approach is simpler and more deployable: UiPath agents pull traceability records from existing ERP, WMS, email, and supplier systems in minutes, without asking the whole supply chain to rebuild itself first.

$$ T_{\text{response}} \ll 7\ \text{days} $$

In less mathematical terms: fewer spreadsheets, fewer delays, fewer chances for contaminated product to keep moving.

At a Glance

7 days to 90 seconds for traceability
Under 4 hours to assemble the compliance package
100% KDE completeness with 0 missed nodes in the sample run

What We Learned

The biggest lesson was that recall management is not mainly a data problem. It is a coordination problem.

The crisis above makes that point clearly: the problem is not that companies know nothing, it is that they know different things in different places while the clock, the FDA, and reality keep moving.

Each system knows one part of the story:

the email knows there is danger
the LIMS result knows what contamination was detected
the traceability API knows where the lot traveled
the inventory system knows what can still be quarantined
downstream confirmations know whether anybody actually acted

The hard part is aligning all of those fragments around one shared identifier: the traceability lot code.

$$ \text{Truth} = \sum_{i=1}^{n} \text{fragment}_i \qquad \text{but only if the keys align} $$

We also learned that compliance output has zero tolerance for improvisation. An FDA-ready report cannot be “basically correct.” It has to be structured, grounded, and defensible.

How We Built It

We built an orchestrated recall workflow in UiPath using Maestro, Agent Builder, UiPath Apps, API workflows, and email-driven automations. The flow starts with a food safety signal and ends with a final recall summary after quarantine confirmations are collected.

Workflow

Recall Trigger reads the inbound email or case payload, or a lab upload from UiPath Apps, extracts product and lot details, classifies urgency, routes the trigger to the same mailbox, and opens the recall case.
Lot Tracing calls the mock ERP and traceability API to reconstruct the path of LOT-2026-0437 across origin, inventory, shipments, and downstream nodes.
KDE Report Generation creates the FSMA 204 compliance package, recall summary, and FDA-facing content.
Quarantine Inventory marks affected inventory as QUARANTINE_HOLD.
Quarantine Notification sends downstream quarantine notices with lot, units, dates, and action instructions.
Confirmation Listener waits for reply emails and appends only valid, non-duplicate confirmations.
Final Report Sender compiles the collected events into a final recall and quarantine confirmation report.

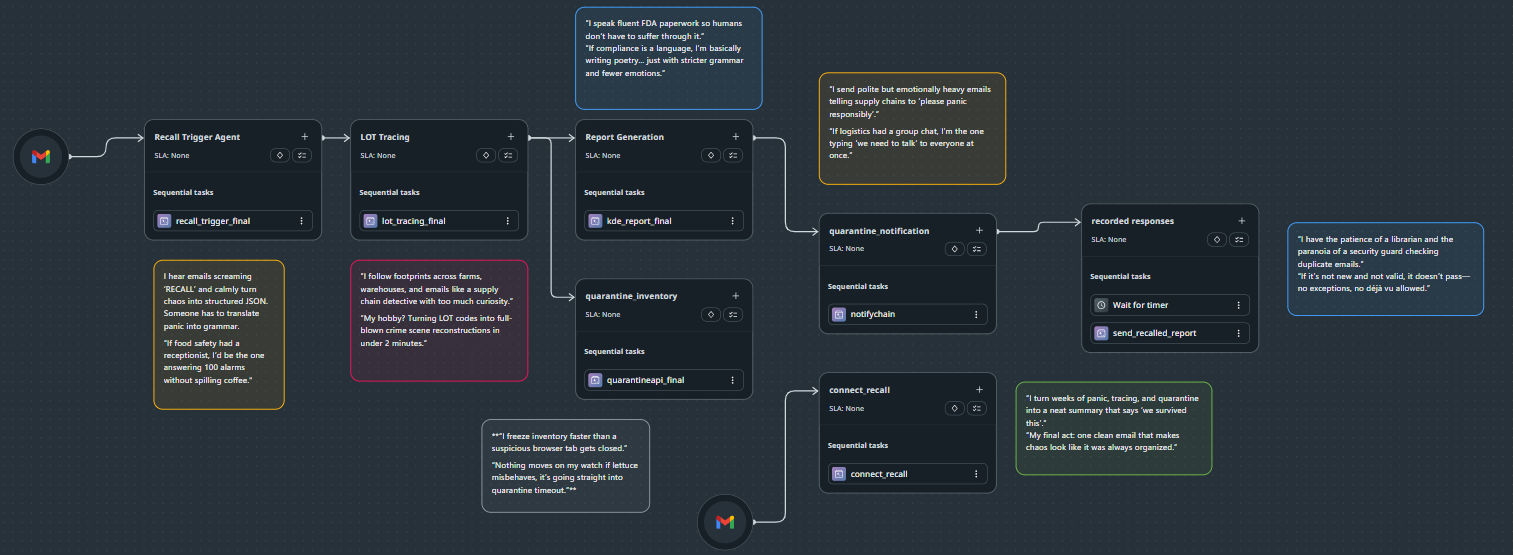

UiPath Maestro case orchestration

Caption: End-to-end recall orchestration in UiPath Maestro Case.

Tech stack

UiPath Maestro + Agent Builder for orchestration
Python + Flask mock ERP / traceability API for lot history, inventory, LIMS-style results, and shipment data
Email automation for signal intake, quarantine notifications, and confirmation capture
Structured reporting for FSMA 204 KDE and recall package generation

What the system outputs

The project produces visible, judge-friendly artifacts rather than just promises:

a case orchestration view showing the full recall workflow
an initial recall classification result from the trigger stage
a lot tracing output tied to the affected lot
a downstream quarantine notification
an impact dashboard with the headline metrics
a final report showing collected recall confirmations

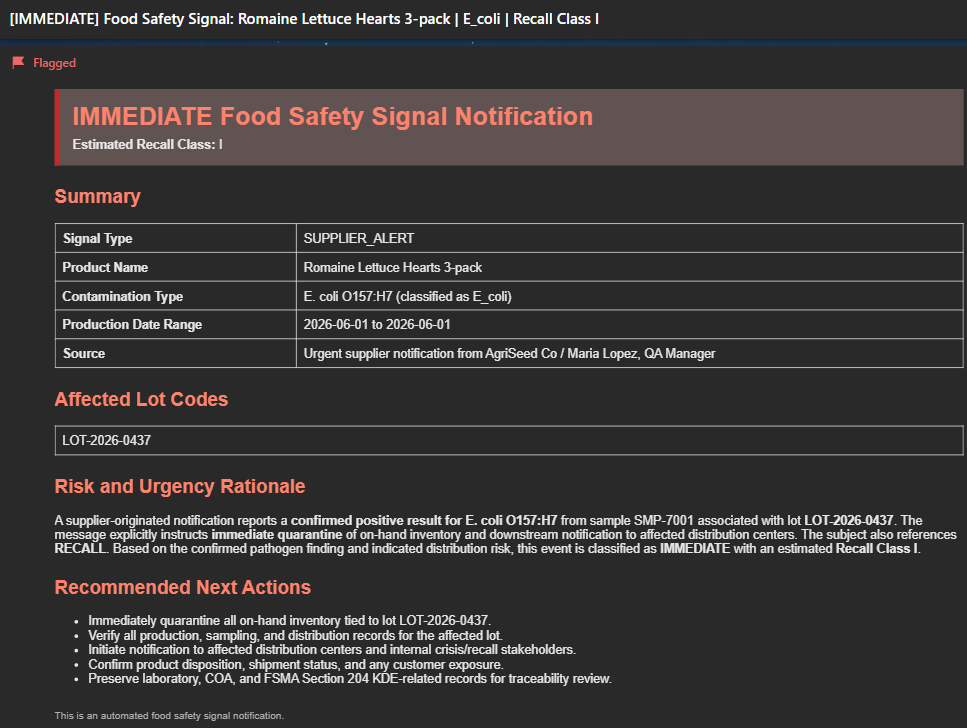

Recall classification output

Caption: Initial trigger classifies the recall and extracts the risk context.

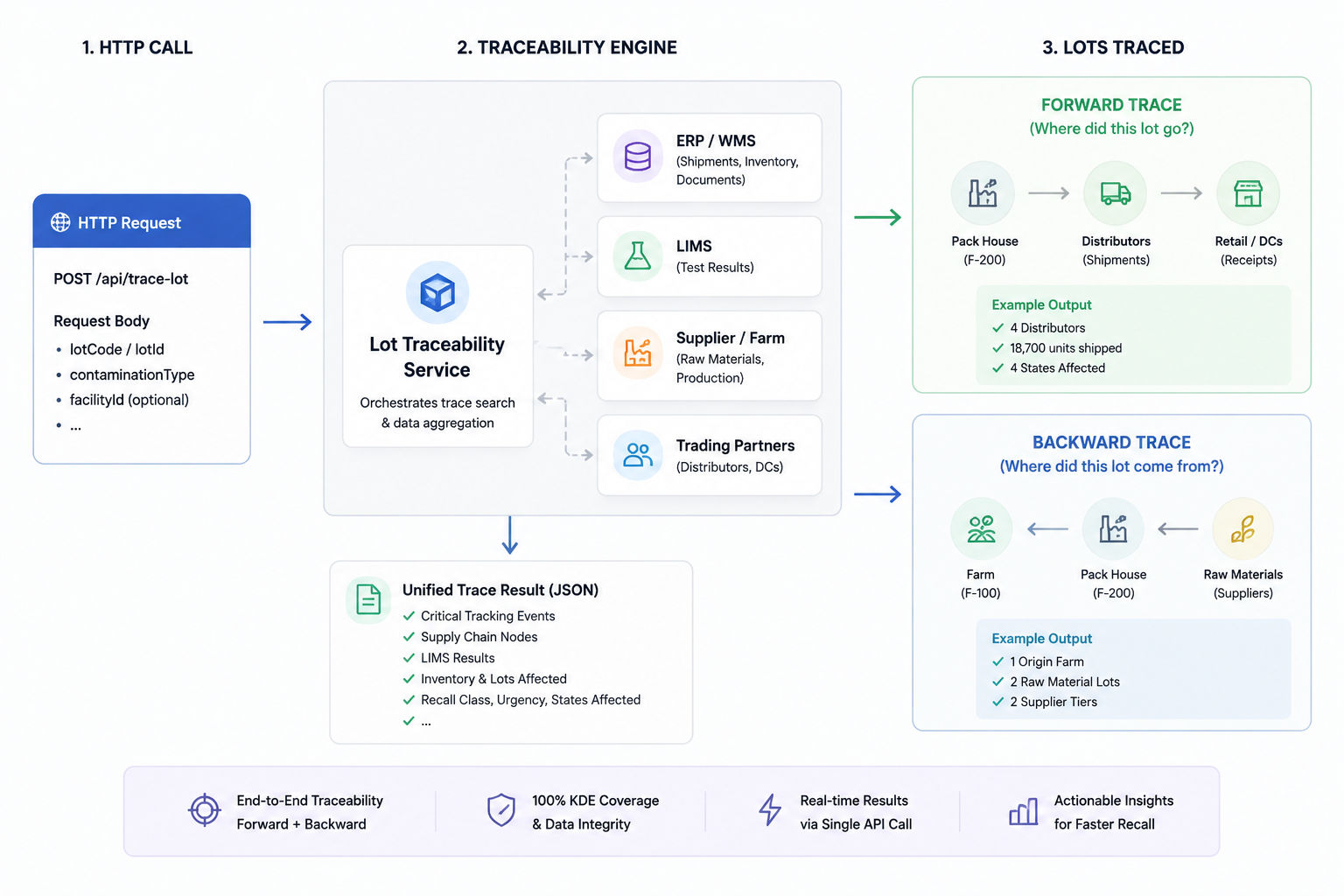

Lot tracing output

Caption: Lot tracing maps the affected path of LOT-2026-0437.

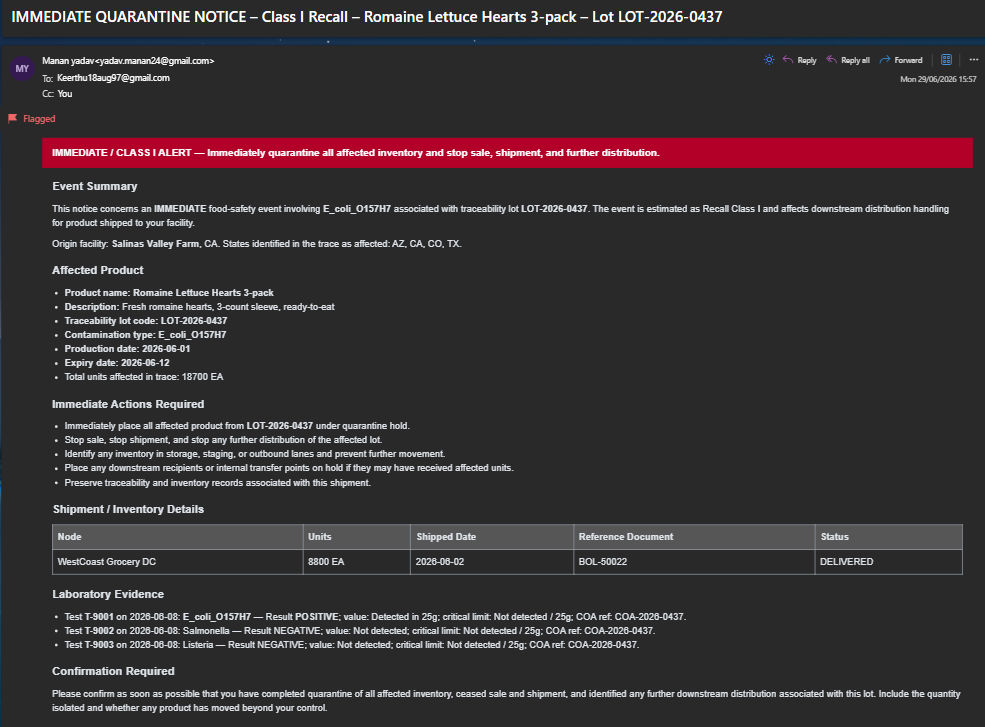

Quarantine notification output

Caption: Downstream partners receive immediate quarantine instructions.

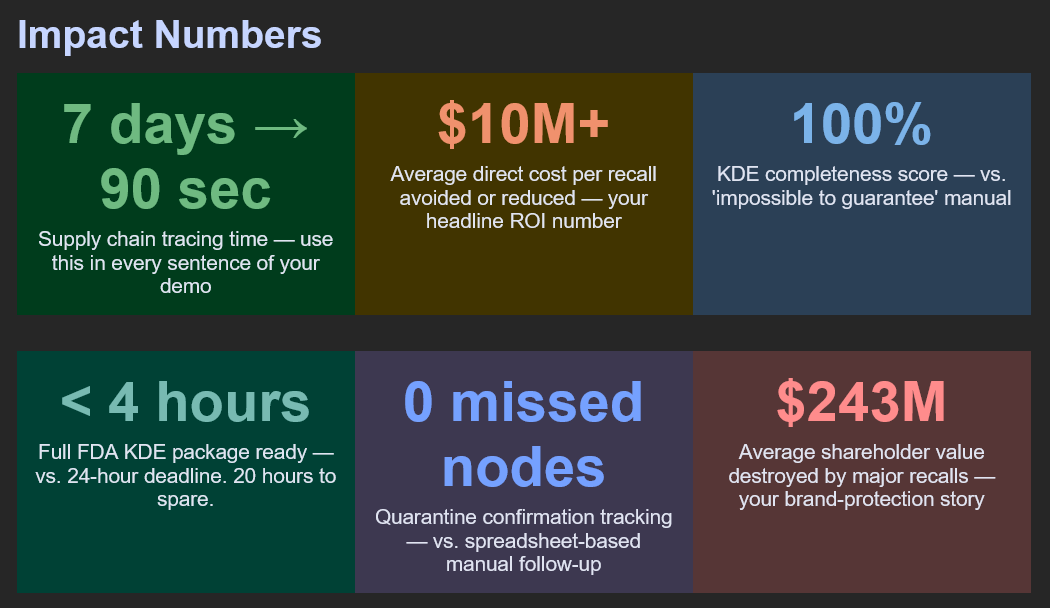

Impact metrics dashboard

Caption: Impact metrics show speed, completeness, and response coverage.

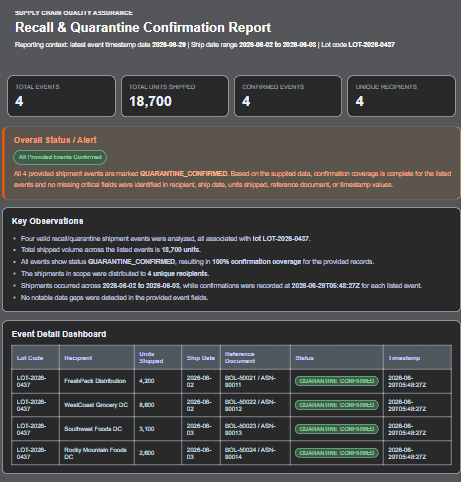

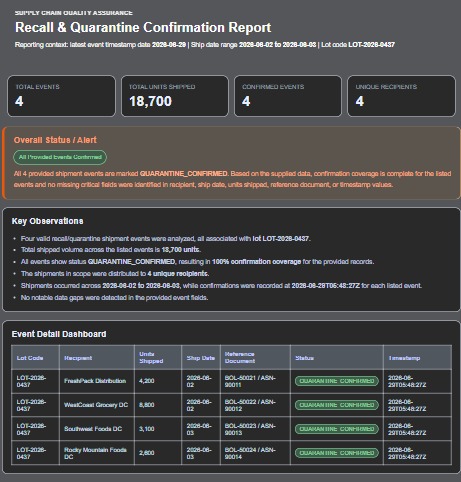

Final confirmation report

Caption: Final report consolidates confirmations and recall actions.

In the sample run shown in the outputs:

traceability time drops from 7 days to 90 seconds
the full KDE package is ready in under 4 hours
the dashboard shows 100% KDE completeness and 0 missed nodes
the traced lot response includes the recall class and affected supply-chain path early in the workflow

That is the practical win: the system does not just say “there may be a problem.” It shows the lot, the route, the inventory, the notifications, and the confirmations.

Challenges We Faced

1. One bad lot code breaks everything

The entire workflow depends on consistent lot-code alignment across emails, trace data, inventory records, and reports. One mismatch turns traceability into decorative fiction.

So we made the lot code the anchor for every downstream step.

2. Parallel steps are fast and slightly dramatic

KDE generation and quarantine actions run in parallel. That is great for speed and not always great for workflow state unless updates are idempotent.

We had to prevent the case from behaving like two people editing the same document at the same time.

3. The mock ERP became mission-critical

At first it looked like demo plumbing. Very quickly, it became the source-of-truth engine for traceability, inventory state, shipments, and lab evidence.

So it had to behave like a believable operating system, not a fake endpoint with nice formatting.

4. Compliance content cannot hallucinate

LLMs are useful, but FDA paperwork is not the place for creative writing. We had to keep outputs structured, validated, and tied to actual trace data.

Closing

We built this project to answer a simple question: when a Class I recall hits, can an agentic system turn fragmented operational data into fast, defensible action?

Our answer is yes.

The workflow detects the signal, traces the lot, quarantines inventory, notifies the supply chain, captures confirmations, and delivers the final report in one coordinated loop.

Basically, we taught recall response to move at internet speed instead of spreadsheet speed.
