✒️ InkWell

Pitch to Print — Autonomous Multi-Agent AI Comic Studio with Self-Correcting Vision QA

🚀 From Idea to Impact

The Problem — The Consistency Crisis in AI Art

Generative AI can create breathtaking standalone images, but creating a coherent, multi-page graphic novel has been virtually impossible.

  • 90%+ character drift across sequential panels in single-shot generation
  • 100% style incoherence — faces morph, lighting shifts, and costumes mutate between frames
  • 0 native typesetting or layout — creators are forced to manually splice, letter, and composite in external tools
  • The "Slot Machine" Trap — creators burn hours re-rolling prompts hoping for a coherent sequence

A creator prompts:

  1. Panel 1: "Elderly jazz pianist with calloused hands in a smoky 1950s club."
  2. Panel 2: "She stands up from the piano."

Result: The character is suddenly 20 years younger, the piano vanishes, and the art style flips from noir linework to anime watercolor.

Traditional generative tools assume isolated single-image generation, manual human photoshopping, and brute-force prompt gambling. Real comics require a coordinated studio.

The Solution — InkWell

Pitch → Story Bible → Storyboard → Illustration → Multimodal Vision QA → Typesetting → 300 DPI Print

InkWell is an autonomous, collaborative multi-agent AI comic studio that:

  • Directs story narrative and script pacing collaboratively with the creator

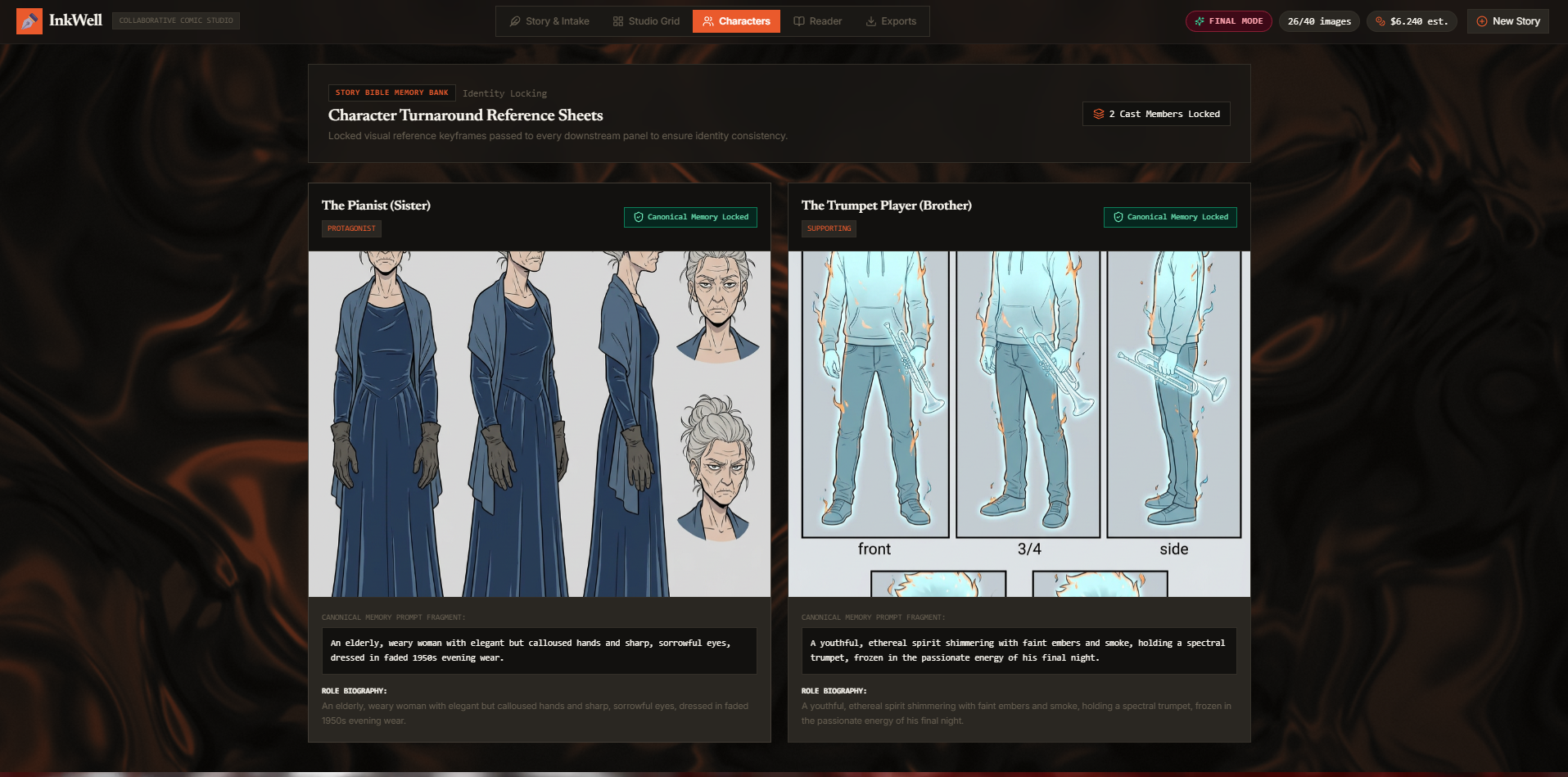

  • Locks character turnaround model sheets and environment key art before drawing
  • Illustrates panel-by-panel using vector reference anchors
  • Critiques & Self-Corrects visual drift autonomously using Gemini 3.5 Flash Vision
  • Typesets & Composites dialogue balloons, gutters, and multi-page print-ready PDFs

No photoshopping. No character drift. No prompt gambling.

🧠 What It Does

Intent → Autonomous Studio Action

Creative Phase Agent in Charge Model / Engine Studio Deliverable
1. Creative Ingress Intake Agent (Creative Director) gemini-3.5-flash Narrative arc, pacing, genre locking & Story Bible seed
2. Concept Art Character & Location Designers gemini-2.5-flash-image 3-view turnaround model sheets & environment key art
3. Storyboarding Panel Planner Agent gemini-3.5-flash 6-page beat breakdown, camera angles (WIDE, CLOSE-UP) & dialogue
4. Panel Illustration Panel Generator Agent gemini-3-pro-image High-fidelity panel art conditioned on aspect ratios (3:4 / 4:3)
5. Visual QA Audit Consistency Critic Agent gemini-3.5-flash (Vision) Three-Way Multimodal Audit & autonomous corrective redraw passes
6. Lettering & Layout Letterer & Compositor Agents PIL / ReportLab Engine Bangers speech balloons, comic gutters & 300 DPI Multi-Page PDF
7. Multimedia Exporter & Motion Agents Google Veo 3.1 & Lyria Cinematic motion comic teasers & orchestral audio scores

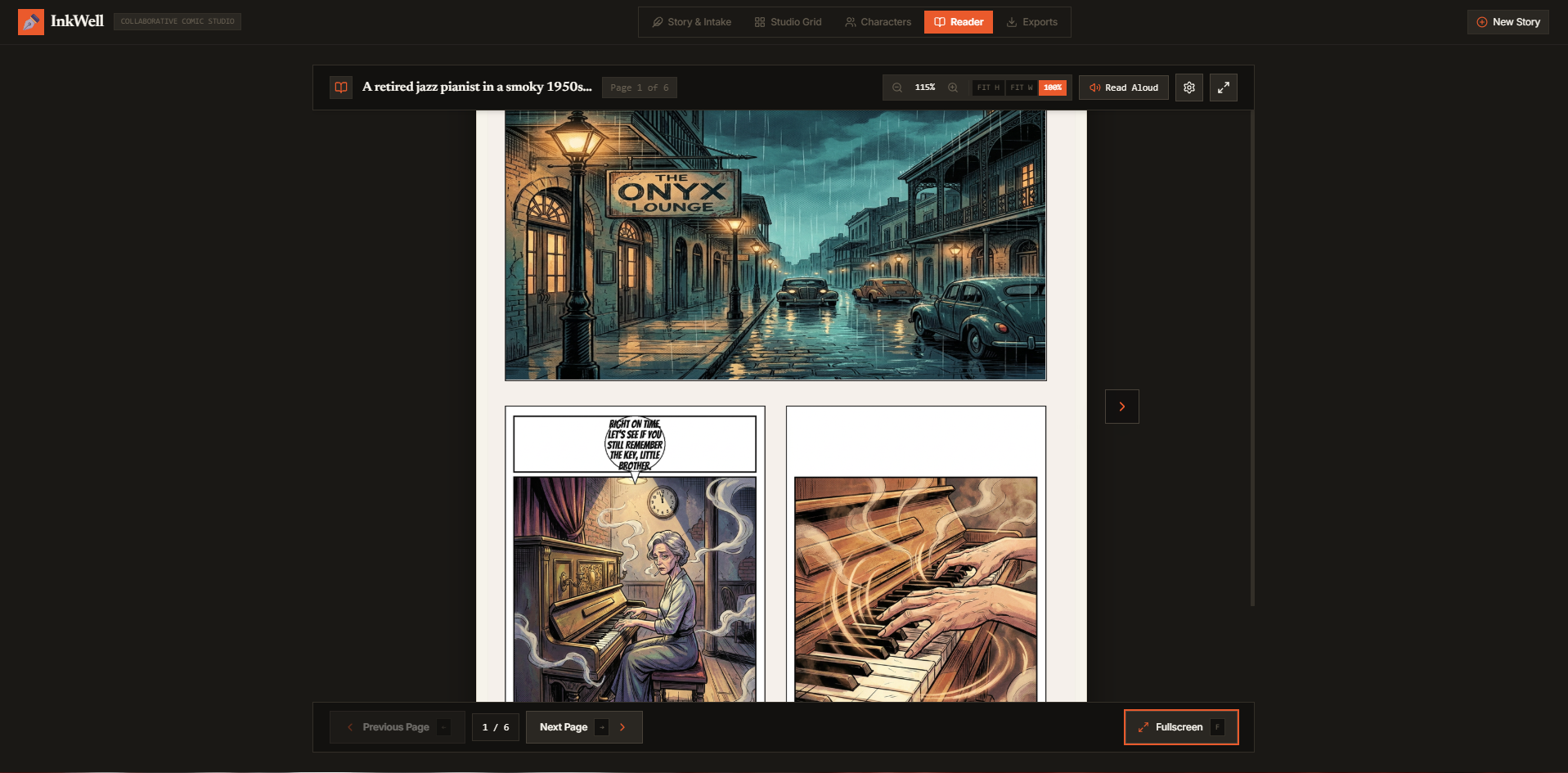

🌐 Publishing & Reader Accessibility

Mode Target Experience Format & Interaction
📖 Western Comic Graphic novels & print collectors Paged Left-to-Right layout with dynamic gutters
🇯🇵 Manga Shonen / Seinen readers Paged Right-to-Left orientation
📱 Webtoon Mobile & vertical scrolling Seamless vertical long-strip layout
🎙️ Voice Narration Accessibility & audio immersion Web Speech API dramatic text-to-speech read-aloud
🖨️ Print Production Physical publishing High-resolution 300 DPI CMYK-ready PDF

All reading modes → Synchronized from Single Firestore Story Document

🏗️ Architecture & Multi-Agent Nexus

System Overview

┌─────────────────────────────────────────────────────────────┐
│                   Client Web Studio UI                      │
│   🎨 Fluid WebGL Shader   📊 Studio Grid   📖 3-Mode Reader │
└──────────────────────────────┬──────────────────────────────┘
                               │ HTTP / WebSocket / EventStream
┌──────────────────────────────▼──────────────────────────────┐
│           Google Cloud Run Fullstack Container              │
│       FastAPI Backend  •  React 18 SPA  •  /media/ Proxy    │
└──────────────┬──────────────────────────────▲───────────────┘
               │                              │
       ┌───────▼───────┐              ┌───────▼──────────────┐
       │ Gemini 3.5    │              │ Vertex AI Image      │
       │ Flash (GenAI) │              │ Synthesis Engine     │
       │ Text & Vision │              │ (2.5-Flash / 3-Pro)  │
       └───────┬───────┘              └───────┬──────────────┘
               │                              │
               └───────────────┬──────────────┘
                               ▼
               ┌──────────────────────────────┐
               │    CostGuard Budget Gateway  │
               │  (SHA-256 Prompt-Hash Cache) │
               └───────────────┬──────────────┘
                               │
               ┌───────────────▼──────────────┐
               │   Cloud Firestore (Native)   │
               │  Reactive State & Panel Sub  │
               └───────────────┬──────────────┘
                               │
               ┌───────────────▼──────────────┐
               │  Google Cloud Storage (GCS)  │
               │  Turnarounds, Panels & PDFs  │
               └───────────────┬──────────────┘
                               │
               ┌───────────────▼──────────────┐
               │  Cloud Logging / OpenTel     │
               │  Live Critic Reasoning Trace │
               └──────────────────────────────┘

⚙️ Multi-Agent Processing Pipeline

User Premise Pitch
    │
    ├──► 1. Intake Agent (Creative Director)
    │         └──► Narrative Script + Locked House Style Guide
    │
    ├──► 2. Concept Artist Agent
    │         └──► Multi-angle Turnaround Sheets & Location Key Art
    │                   └──► Stored in Cloud Storage & Story Bible
    │
    ├──► 3. Panel Planner Agent
    │         └──► 6-Page Breakdown + Staging Angles + Dialogue Scripts
    │
    └──► 4. Self-Correcting Drawing & Vision Critic Loop
              │
              ├──► Panel Generator illustrates raw panel art
              │
              ├──► Consistency Critic (Gemini 3.5 Flash Vision)
              │         │
              │         ├──► [FAIL] Drift Detected
              │         │       └──► Inject Corrective Delta Prompt ──► Re-draw
              │         │
              │         └──► [PASS] Verified Clean
              │                 └──► 5. Letterer & Compositor Engine
              │                           └──► 300 DPI PDF + Veo Teaser

🧠 Core Breakthrough — Self-Correcting Vision QA

Problem: Stochastic Drift in Multi-Page Comics

Generative diffusion and autoregressive image models lack persistent cross-panel state. Without external grounding:

  • Faces mutate across camera angles
  • Costumes lose signature textures
  • Environmental landmarks vanish

Solution: Three-Way Multimodal Grounding

Instead of hoping the model gets it right, InkWell enforces automated visual peer-review:

Visual Audit Axis Reference Bible Grounding Verification Check
1. Character Co-reference Turnaround Model Sheets (front, profile, 3/4) Facial bone structure, hair silhouette, costume textures
2. Location Fidelity Environment Key Art Architectural landmarks, lighting temperature, atmospheric tone
3. Style & Readability House Style Tokens Linework weight, palette fidelity, dialogue balloon clear zones

📐 Mathematical Formulation of Multimodal Consistency

Let:

  • \( P \) = Candidate generated panel artwork
  • \( \mathcal{B}_C = {C_1, C_2, \dots, C_k} \) = Set of locked character turnaround model sheets
  • \( \mathcal{B}_L \) = Canonical location reference key art
  • \( \mathcal{T}_S \) = Locked house style tokens

We define the orthogonal multimodal evaluation functions computed via Gemini 3.5 Flash Vision:

$$S_{\text{character}}(P, \mathcal{B}C) = \frac{1}{k} \sum{i=1}^k \Phi_{\text{vision}}(P, C_i)$$

$$S_{\text{location}}(P, \mathcal{B}L) = \Phi{\text{vision}}(P, \mathcal{B}_L)$$

$$S_{\text{style}}(P, \mathcal{T}S) = \Phi{\text{vision}}(P, \mathcal{T}_S)$$

Composite Consistency Score:

$$\text{ConsistencyScore}(P) = w_c \cdot S_{\text{character}} + w_l \cdot S_{\text{location}} + w_s \cdot S_{\text{style}}$$

$$\text{subject to} \quad w_c + w_l + w_s = 1.0 \quad (w_c = 0.50,\ w_l = 0.25,\ w_s = 0.25)$$

Autonomous Redraw Decision Rule:

$$\text{Decision}(P) = \begin{cases} \text{APPROVE} & \text{if } \text{ConsistencyScore}(P) \ge \tau_{\text{approval}} \text{ and } \min(S_c, S_l, S_s) \ge \tau_{\text{floor}} \ \text{REDRAW}(\Delta_{\text{prompt}}) & \text{otherwise} \end{cases}$$

Where the corrective delta prompt vector \(\Delta_{\text{prompt}}\) is synthesized as the directional gradient of detected visual drift:

$$\Delta_{\text{prompt}} = \nabla_{\text{drift}} \mathcal{L}_{\text{consistency}}(\mathcal{B}_C, \mathcal{B}_L, P)$$

The generator re-renders the panel with \(\text{Prompt}{\text{new}} = \text{Prompt}{\text{base}} \oplus \Delta_{\text{prompt}}\) until the panel converges to verified consistency.

🔄 Workflows in Action

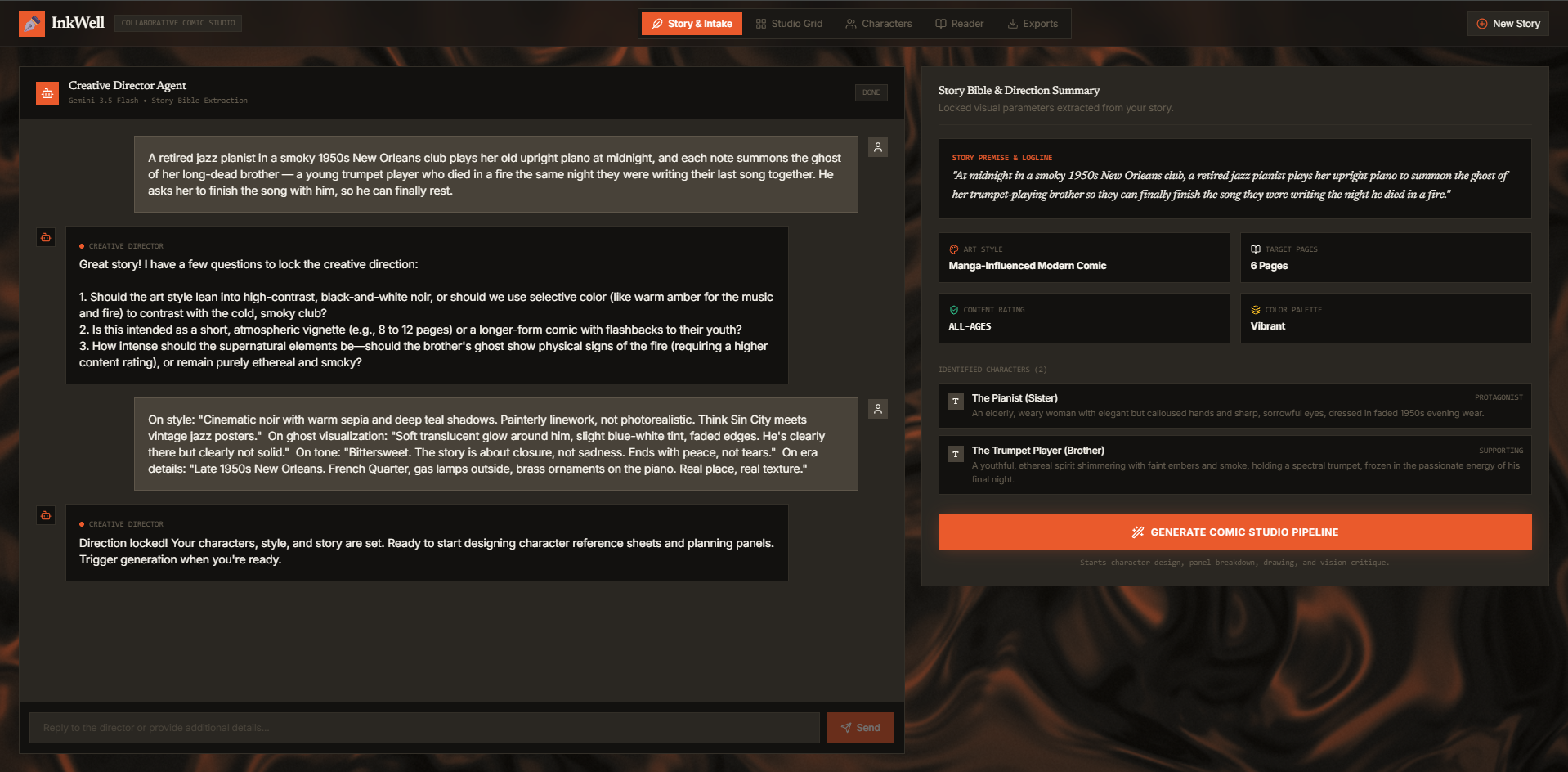

🎨 Intake & Story Dialogue Workflow

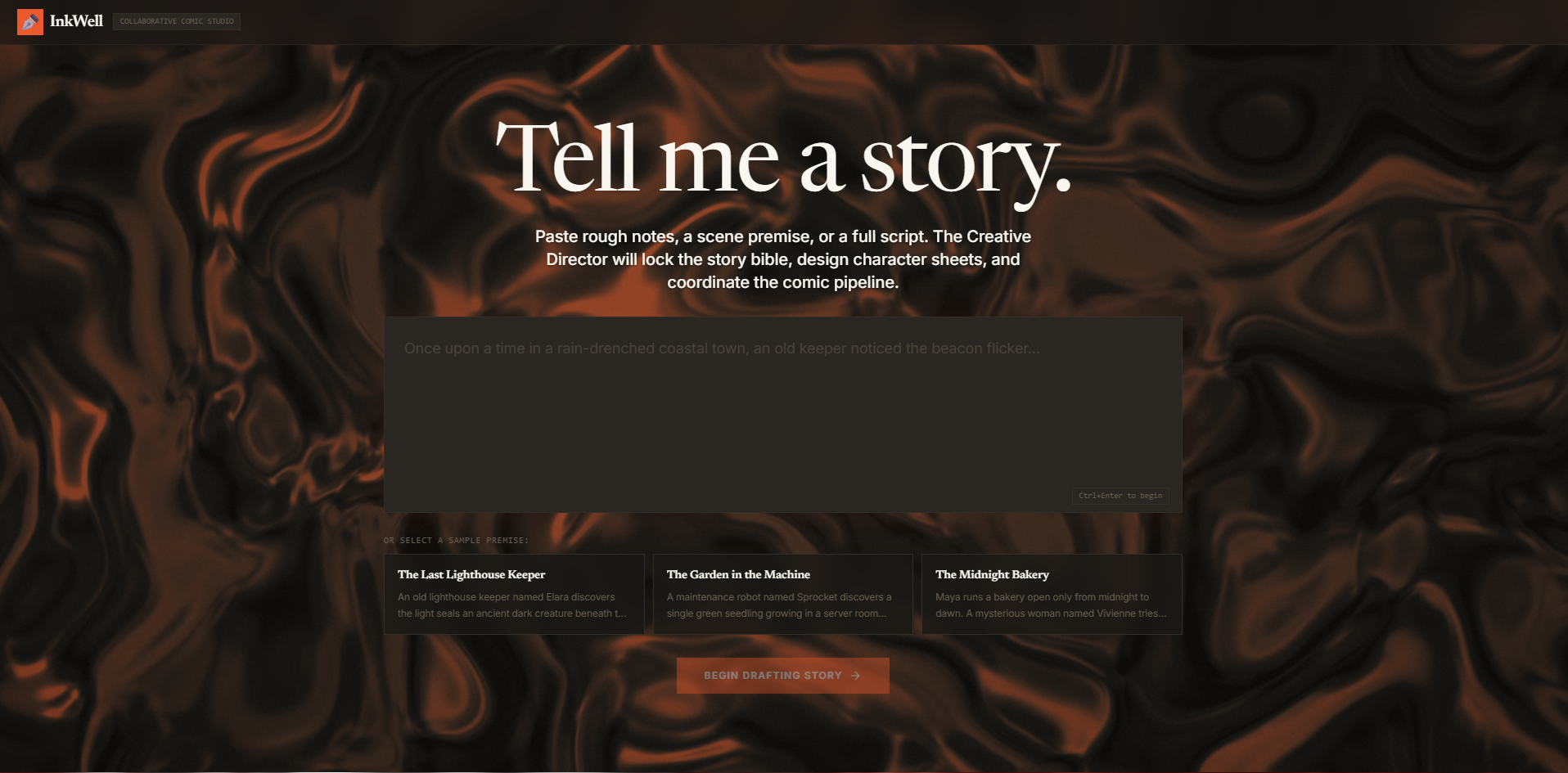

User Pitch
    │
    ├──► WebSocket / REST Endpoint
    ├──► Gemini 3.5 Flash Creative Director Persona
    ├──► Pydantic Structured Schema Validation
    ├──► Character Roster & House Style Locking
    └──► Atomic Write to Cloud Firestore ('projects/{id}')

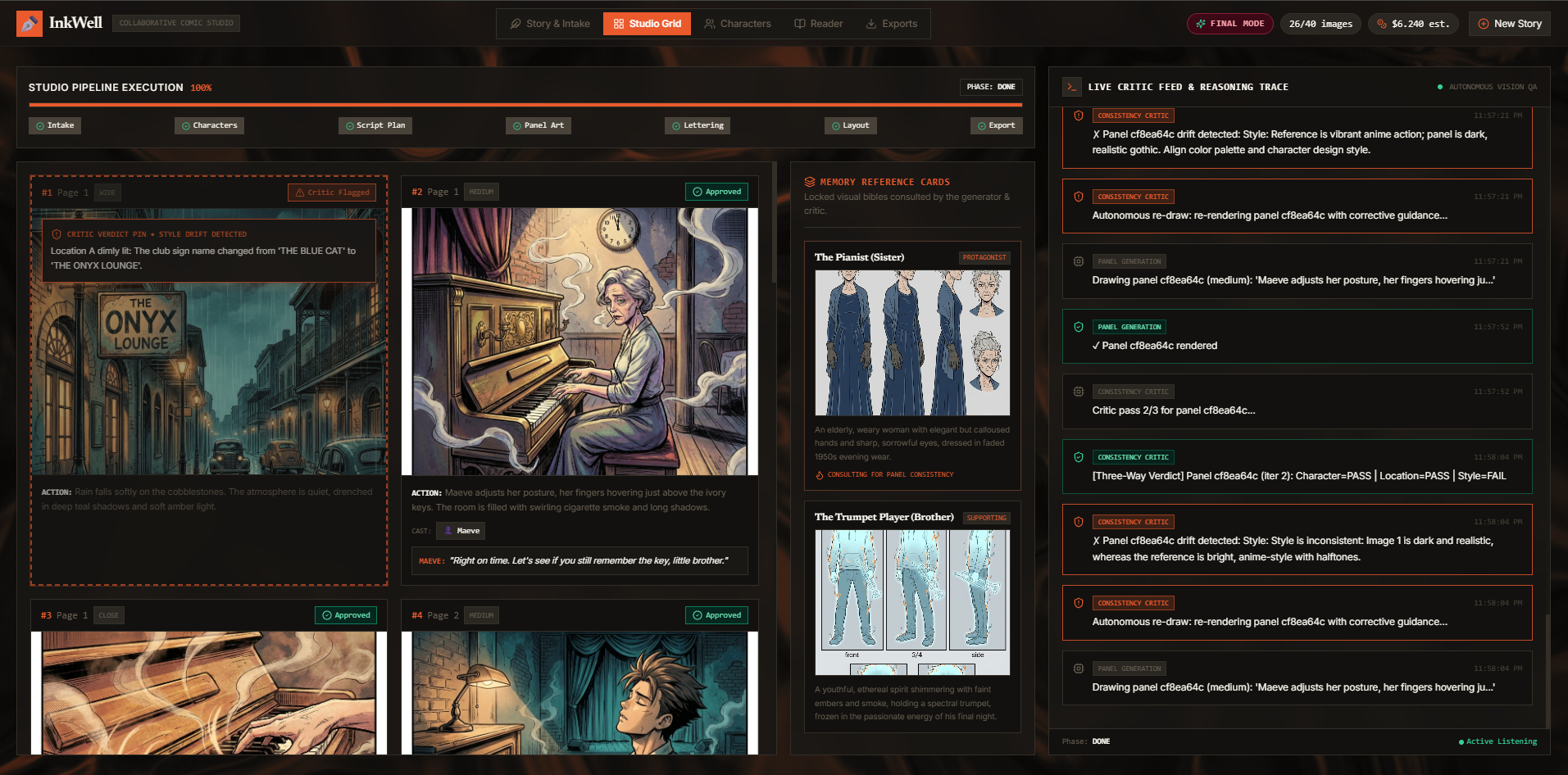

🔁 Autonomous Self-Correcting Redraw Loop

Draft Panel Rendered (GCS: gs://.../art.png)
    │
    ├──► Consistency Critic loads Panel + Turnaround Sheets
    ├──► Gemini 3.5 Flash Vision evaluates Three-Way Audit
    │
    ├──► Score < 0.70 (e.g., "Subject lacks canvas suit; hair color incorrect")
    │         │
    │         ├──► Synthesize Corrective Delta Prompt
    │         ├──► Emit OpenTelemetry Drift Span (Cloud Logging)
    │         └──► Re-trigger Panel Generator (Max 3 iterations)
    │
    └──► Score >= 0.70 (Verified Clean)
              │
              └──► Mark Panel Approved → Dispatch to Letterer

🖨️ Typesetting & 300 DPI Print Compositing Workflow

Approved Panel Artwork
    │
    ├──► Calculate Speaker Staging Vectors & Balloon Coordinates
    ├──► Render Elliptical Bangers Speech Balloons + Triangular Tails
    ├──► Typeset Rectangular Comic Neue Narration Captions
    ├──► Format Dynamic Gutter Grids & Margin Bounds
    ├──► Composite Multi-Page 300 DPI PDF (ReportLab)
    └──► Stream via Browser-Compatible /media/ Proxy

🛠️ Production Tech Stack

Layer Technology Architectural Role
Reasoning & Vision QA gemini-3.5-flash Structured script extraction, Story Bible parsing & 3-way vision critique
Image Synthesis gemini-2.5-flash-image / gemini-3-pro-image Model sheet turnarounds & aspect-controlled comic panels
Multimedia Extensions Google Veo 3.1 & Lyria Cinematic motion comic teasers & orchestral audio scoring
Local Verification Google Gemma Fast local/sidecar validation & rule-checking
Agent Framework Google GenAI SDK (google.genai) Automated function calling & Pydantic contract enforcement
Compute & API Google Cloud Run Unified auto-scaling container hosting FastAPI + built React SPA
Database & Realtime Cloud Firestore (Native) Reactive document listeners & streaming subcollection traces
Storage & Media Google Cloud Storage (GCS) High-throughput asset storage with optimized /media/ proxy
Budget Gateway CostGuard SHA-256 prompt-hash caching & atomic spend ledger
Observability OpenTelemetry & Cloud Logging Real-time reasoning trace streaming to the UI Critic Feed
Frontend UI React 18 + TypeScript + WebGL2 Ambient fluid shader, studio grid, 3-mode reader & speech narration

⚔️ Challenges Overcome

  • Eliminating Character Drift Without Expensive Fine-Tuning: Solved by anchoring canonical turnaround sheets in the Story Bible and conditioning every panel prompt with visual vector seeds.
  • Multimodal Co-Reference Precision: Calibrated Gemini 3.5 Flash Vision prompts to objectively score facial features, lighting temperatures, and linework fidelity without false-positive hallucinations.
  • Global Vertex AI Model Routing: Configured global endpoint resolution (VERTEX_LOCATION=global) to unlock low-latency access to gemini-3.5-flash on Vertex AI.
  • Zero-Waste Budget Control: Built CostGuard, a single-gate budget gateway with SHA-256 prompt hashing that prevents redundant generation spend.
  • Real-time Reactive Sync: Replaced polling with Cloud Firestore snapshot listeners, giving users real-time visual streaming as panels resolve.

🏆 Accomplishments

  • Built an end-to-end autonomous comic creation studio that runs from raw pitch to 300 DPI print-ready PDF in under 4 minutes.
  • Architected a self-correcting vision critic loop that autonomously rejects visual drift and executes corrective redrafts with zero human intervention.
  • Integrated 5 Google AI models: Gemini 3.5 Flash, Gemini 3 Pro Image, Google Veo 3.1, Google Lyria, and Google Gemma.
  • Delivered an accessible 3-mode interactive reader supporting Western comics, Manga, Webtoons, and Web Speech narration.
  • Shipped a 100% production-ready system deployed live on Google Cloud Run.

📚 What We Learned

  • Visual Bibles + Multimodal QA beat brute-force prompt engineering: Providing the model with its own reference sheets in context produces exponential consistency gains.
  • Asynchronous telemetry builds user trust: Streaming real-time agent reasoning traces and vision audit scores transforms AI generation into an engaging spectator experience.
  • Budget gateways must be single-gated: A deterministic prompt-hash cache is essential when coordinating multi-agent creative pipelines at scale.

🚀 What's Next

  • Custom Artist Style LoRAs: Allowing indie creators to upload their own sketchbook art to train personalized studio style guides.
  • Full Motion Comic Episode Generation: Expanding Veo 3.1 pan-and-scan to turn full multi-page graphic novels into animated video episodes with spatial audio.
  • Direct Webtoon & Tapas Publishing: 1-click publishing pipelines connecting directly to digital comic platforms and physical print-on-demand services.

🌍 Impact

InkWell transforms graphic storytelling from:

❌ A fragmented, weeks-long manual struggle ❌ Character drift & visual incoherence ❌ Frustrating prompt gambling

To:

✅ Real-time, collaborative pair-creation ✅ Self-correcting visual consistency ✅ Professional 300 DPI pitch-to-print reality

✨ Final Statement

"Don't gamble on prompts. Lock the Bible. Critique the drift. Print the story."

Built With

  • comic-creator
  • fastapi
  • firestore
  • gemini-3.5-flash
  • gemma
  • google-cloud
  • google-cloud-run
  • google-genai-sdk
  • lyria
  • multi-agent-systems
  • multimodal-ai
  • opentelemetry
  • python
  • react
  • reportlab
  • tailwindcss
  • typescript
  • veo
  • vertex-ai
  • webgl
