HushMap: Your Favorite AI Room Monitor and Librarian

About the project!

HushMap is a real‑time campus noise and occupancy monitoring system that combines IoT microphones, AI voice assistance, and computer vision on a live interactive map. It answers one of college students’ biggest and most common questions: Where can I study quietly right now?

Inspiration

• Constant annoyance with study areas: they were too loud to work in, and walking across campus only to find a noisy or full space wasted too much time.

• Existing tools showed schedules for study rooms, but gave nothing about actual ambient conditions and noise levels. We wanted real‑time data.


What HushMap does

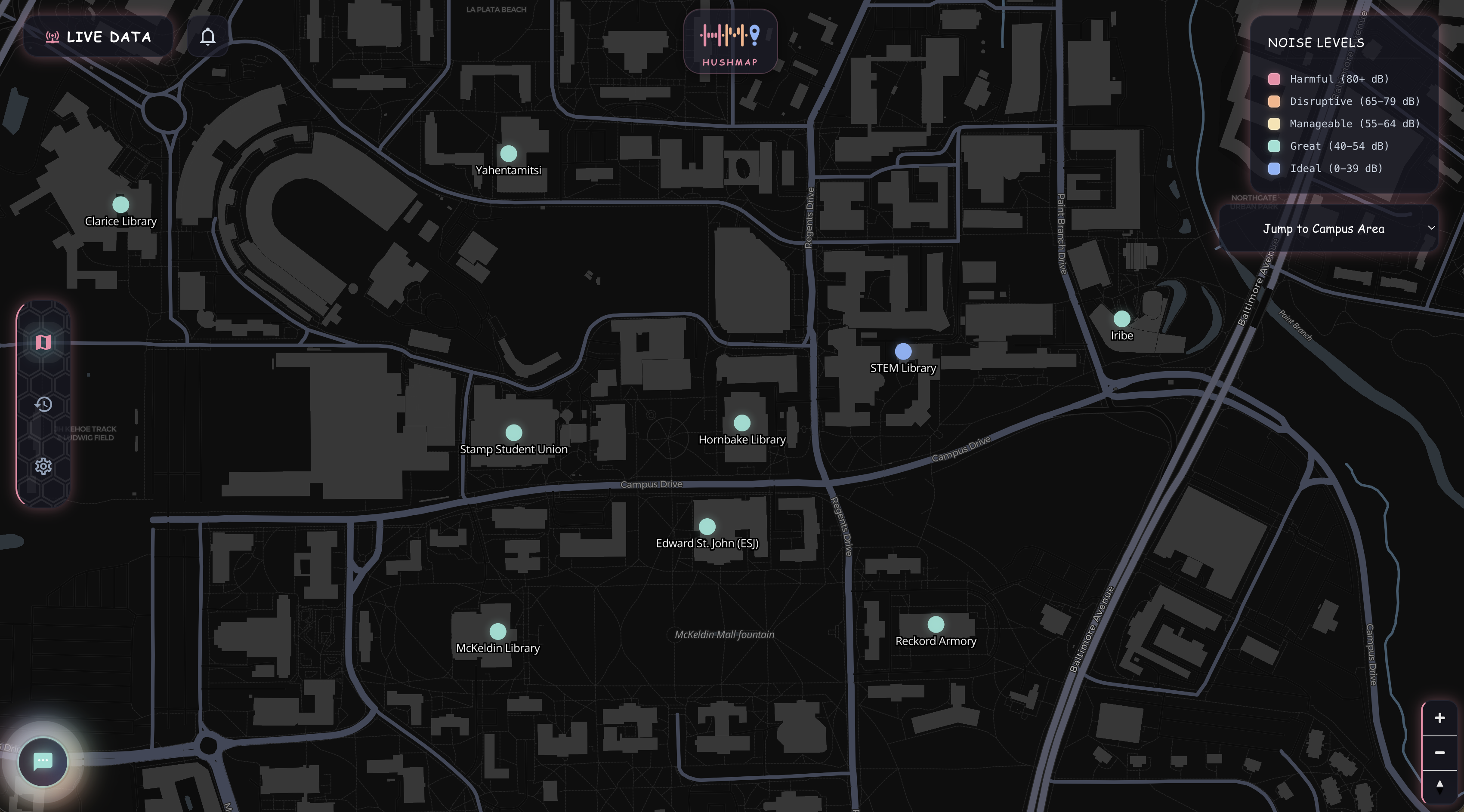

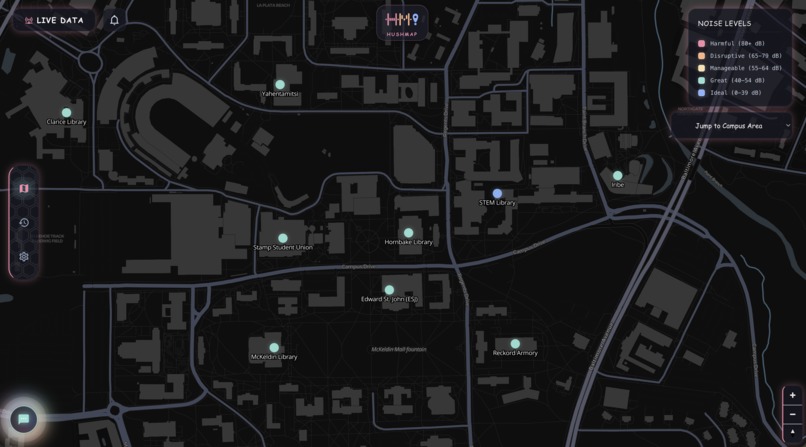

• Live noise map – interactive campus map showing current decibel levels in common study locations.

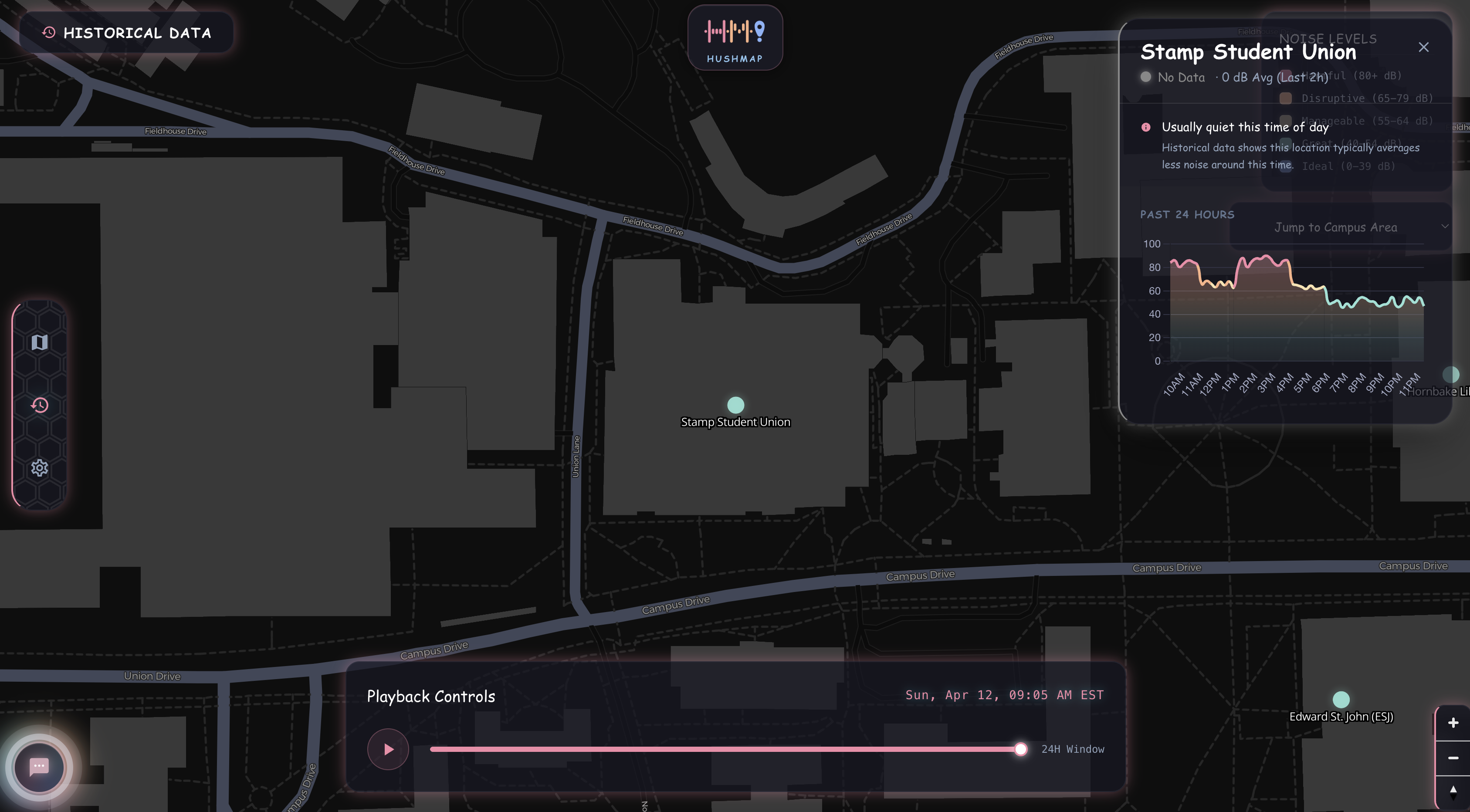

• Historical trends – 24‑hour playback and per‑location noise charts.

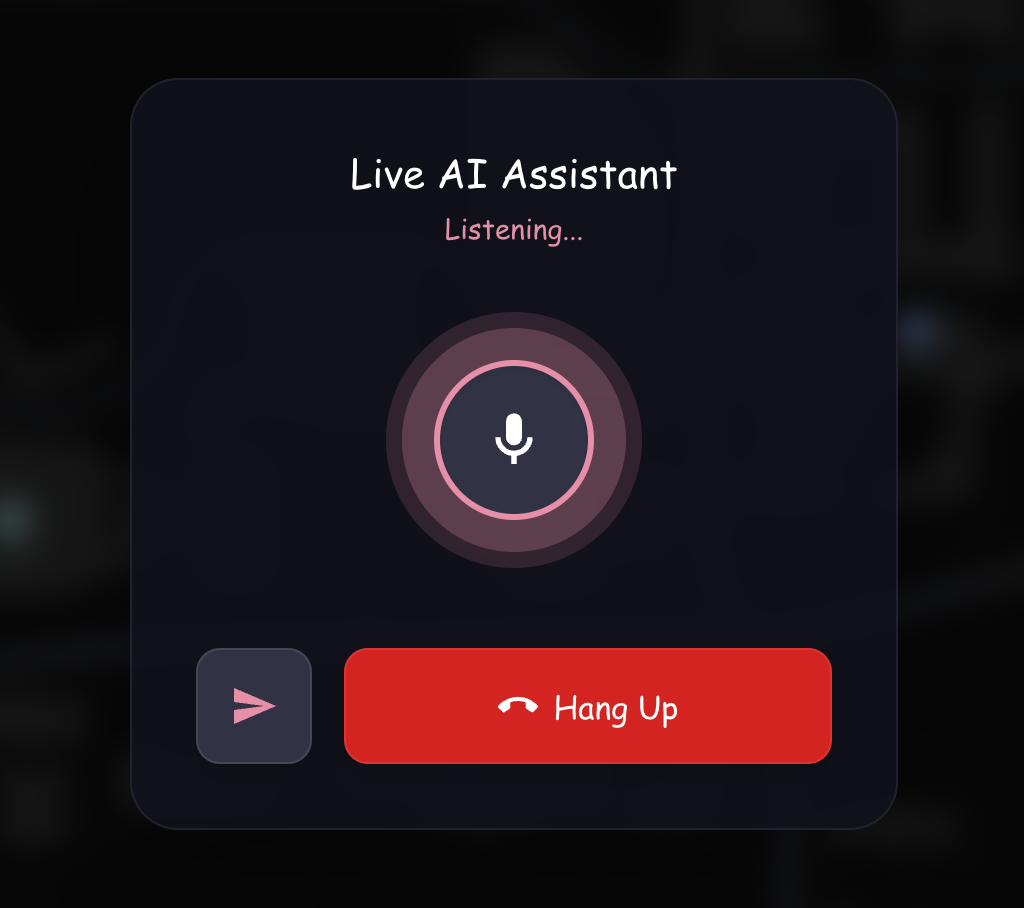

• TerpAI voice assistant – ask “Where’s the quietest spot to study?” and get a spoken answer backed by live sensor data.

• Hardware integration – M5GO nodes continuously sample audio; when noise exceeds a threshold, the device can audibly remind people to keep quiet.

• Occupancy estimation – YOLOv8 computer vision analyzes webcam snapshots to estimate how packed a room is and how many seats are free.

How we built it

System architecture

Data flow

1. M5GO devices capture ambient audio, compute average decibel level over a short window, and POST to /api/sensors every few seconds.

2. Backend stores readings in MongoDB and pushes updates over WebSockets to connected frontends.

3. Frontend map updates noise levels in real time, drawing heatmap overlays.

4. Voice‑assistant queries are streamed via WebSocket:

   • Audio chunks → Whisper transcription → TerpAI context injection (current dB stats from DB) → ElevenLabs TTS response.

5. Vision endpoint (/api/vision/room-status) accepts an image, runs YOLOv8, and returns person count and estimated seat availability.

Challenges we ran into

• Hardware reliability – Getting I2S microphone blocks working reliably on M5GO devices, handling network dropouts, and keeping power consumption low. We initially tried to use a Seeed Studio XIAO ESP32-S3 Sense as a camera, but the hardware itself was not working properly so we had to switch to YOLOv8.

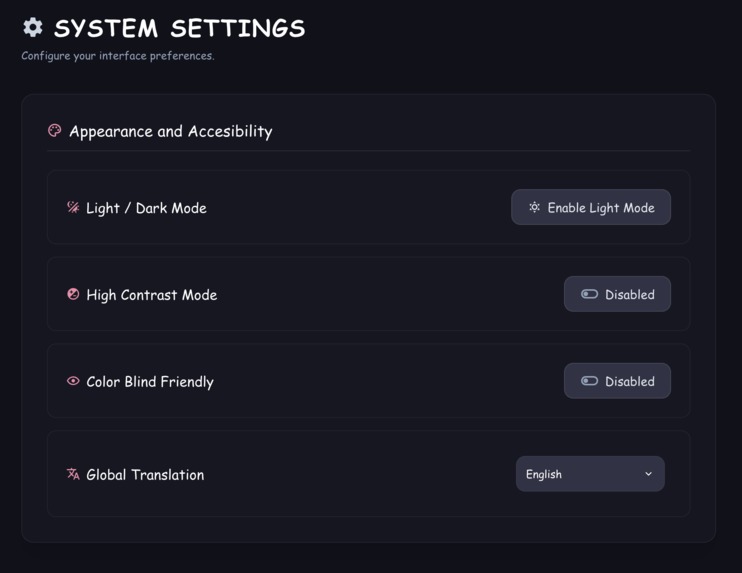

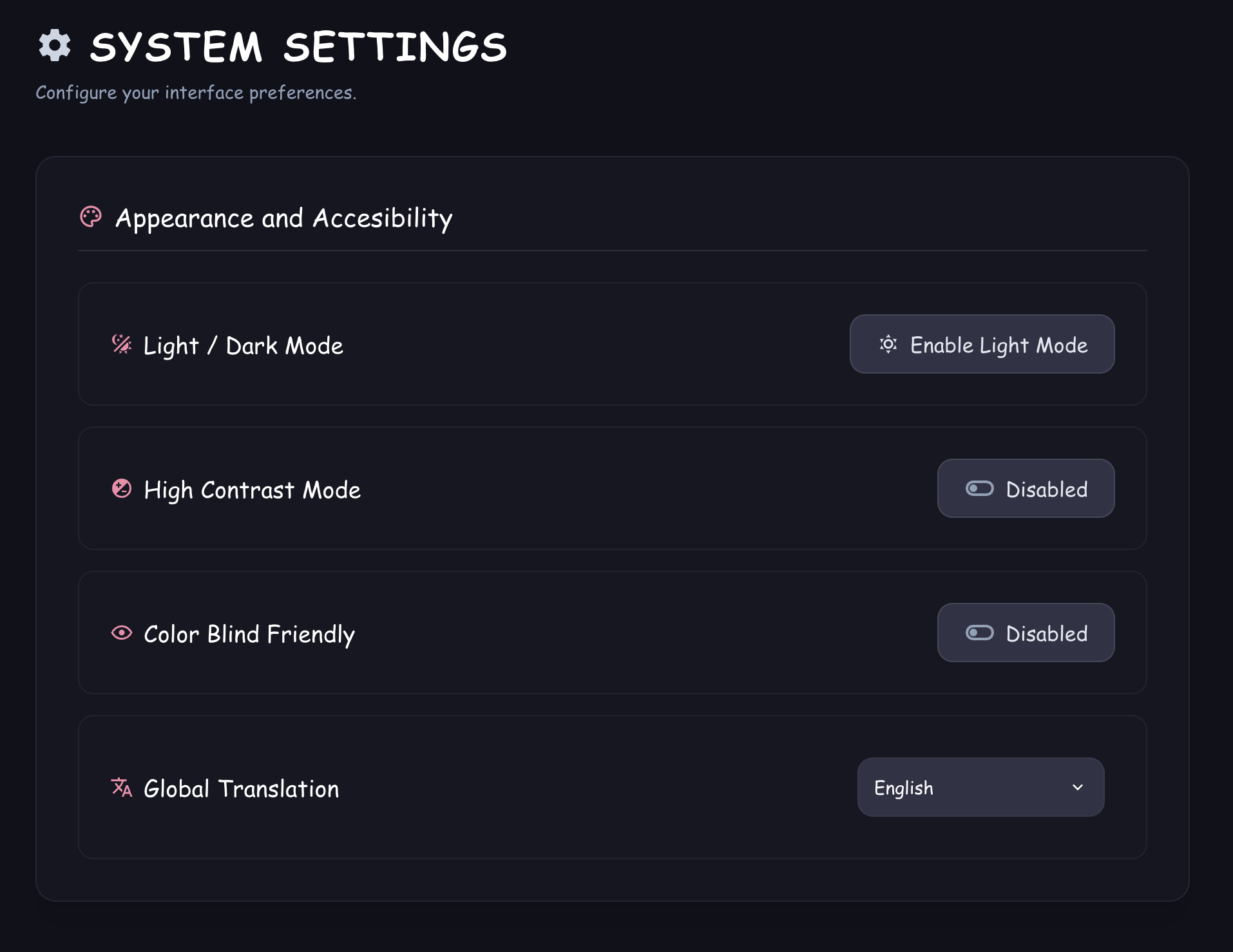

• Accessibility features – Making sure different visual modes rendered nicely and the website contained multiple accessibility features
• Real‑time synchronization – WebSocket fan‑out with concurrent sensor streams required careful handling of connection state and backpressure.


Accomplishments that we're proud of

• Fully functional map + data visualization – Heatmap and trend charts update live with no need for manual refresh.
• TerpAI integration and ElevenLabs – The assistant answers questions like “Is McKeldin quiet?” using actual sensor history and talks and listens to you.
• End‑to‑end IoT pipeline – We created the entire project in under 36 hours!

What we learned

• Hardware – We learned that reliable microphone sampling on M5GO devices requires careful power, Wi‑Fi, and buffer management.
• Analysis of network processes – We analysed the data flow processes between API calls to ensure a seamless flow between multiple AI or LLM engines. -Friendship and the Power of White Monsters – Half of us pulled all nighters, but we got the project done, so it was great! Go friendship! And go White Monster Energy Drink Zero Ultra!

What's next for HushMap

• Implement occupancy analysis – Combine noise levels with YOLOv8 person counts to predict both quietness and seat availability. Dots expand and contract depending on how packed a study area is
• Mobile push notifications – Alert users when their favorite study spot drops below a chosen noise threshold.

• More campus‑wide sensor coverage – Deploy additional M5GO nodes in high‑traffic libraries, lounges, and across campus.

Built With

• elevenlabsapi
• m5go
• mapbox
• mongodb
• svelte
• terpai
