Inspiration

Geography is a foundational knowledge that helps build a better understanding of our diverse world. Too often we forget where a country is when we aren't exposed to it frequently. And when we forget where a country is, we lose its context. A country's neighbors are culturally related, after all. Games can teach geography through play. This project experiments with this kind of play in Augmented Reality.

What it does

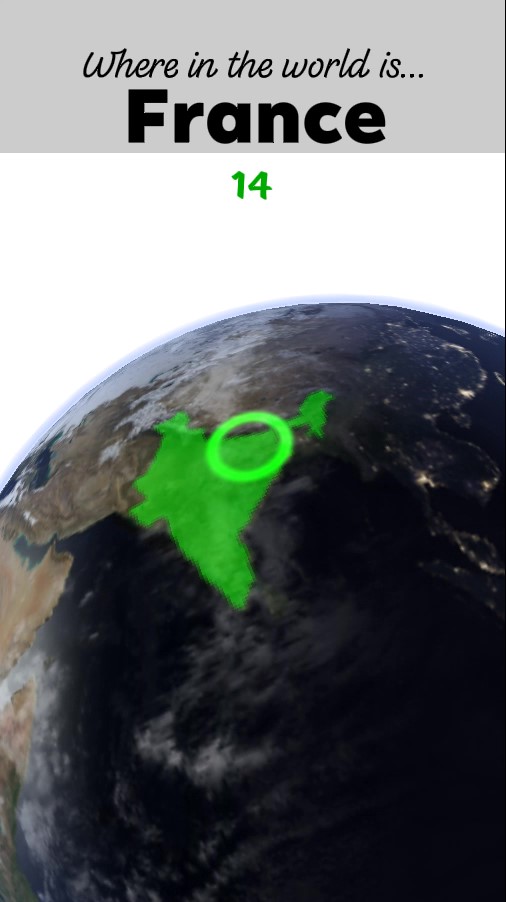

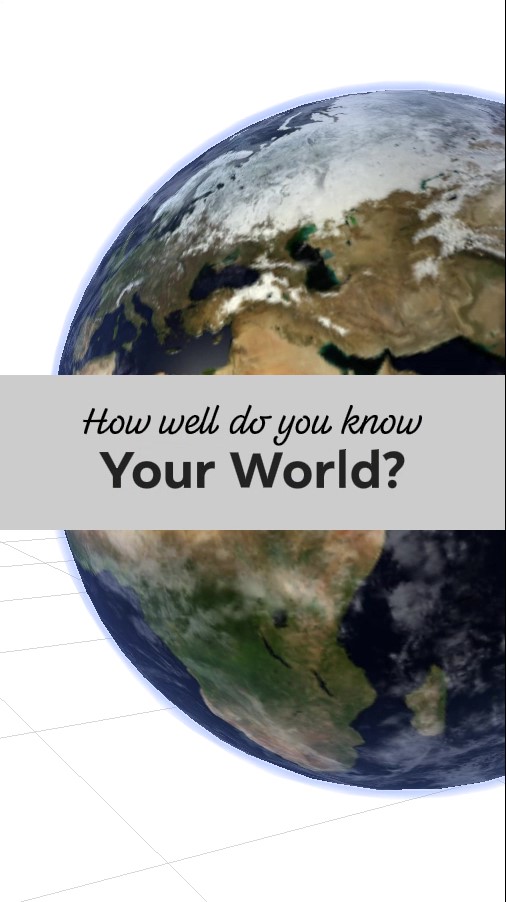

In this game you're given a timed challenge to find countries in the world. Planet Earth hovers above the floor in front of you. As you move around it, aiming your camera at its surface, countries light up below a cursor. You must point at each country you're challenged to identify before time runs out. If you get them all, you're treated to fireworks. If you miss any, don't worry. After a round, you're given some free time to explore and study the globe before you tap to play again!

How I built it

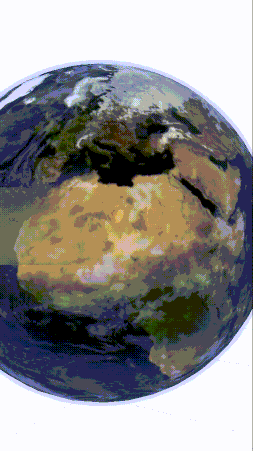

The Earth that serves as your gameboard is rendered with real NASA data, a day and night side, reflective oceans, drifting clouds, and an atmosphere.

I started off by watching the tutorial by Blender Guru on making a realistic planet Earth in Blender. It used a different technology, but there were principles I could use when building my Earth in Spark AR.

For Earth's texture, I used imagery from NASA's Visible Earth and Science Visualization Studio projects. They provide high resolution images of the Earth in the correct projection, equirectangular. I downloaded images for daytime, nighttime, clouds, topography, and a black and white land/sea mask.

For the country data, I used Michael Bostock's world-atlas. I used D3 to generate both a geoJSON and a color coded PNG of this map of countries. With d3 and a geoJSON map imported into Spark AR, I was able to raycast from the player's camera to the globa and use geoContains calls to see whether they'd hit the correct country.

Challenges I ran into

Country Selection Highlighting

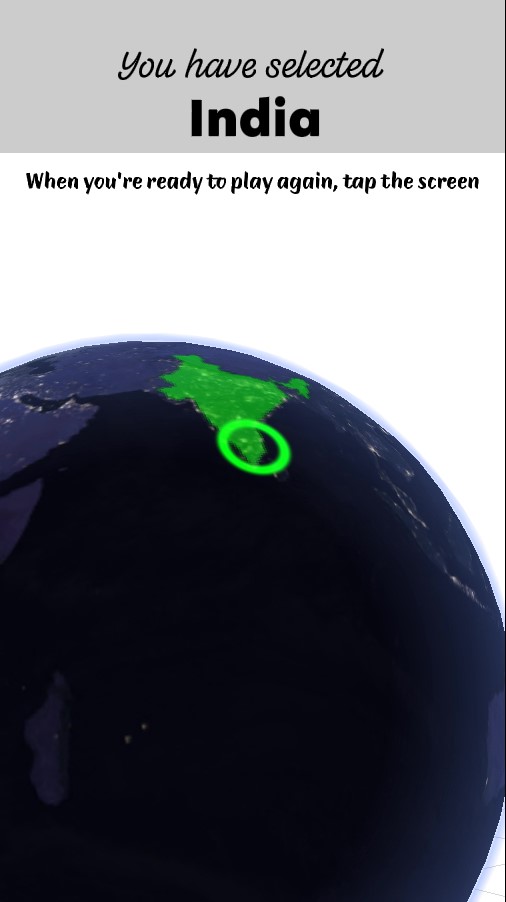

I wanted to challenge the player to find countries on a bare planet without all their borders visible. Instead I wanted to show the player just one country at a time as they scrubbed their cursor over the surface of the globe. I didn't have 3D geometry for all of the borders of the countries, and those I found online had too many polygons. I decided to try using a color coded texture. I used D3 to generate a texture in which every country had a unique color. I then figured out a clever trick to mask out all but a single country from this map. Let's say I wanted to highlight just the country colored red, (1,0,0). I put the entire map through a shader that finds each fragment color's distance from red. All countries will have a non-zero distance except the red one. Now if I subtract that value from 1, all country's values are less than one, other than the red one. Finally, I can raise that value to a high exponent and all the other country's values will drop near zero, except the red one. From there I just alter and have my highlight.

Pausing a Signal

As a player is highlighting countries, searching for the correct one, the camera orientation signal is ultimately driving the position of the cursor and the country that is highlighted. When the player hits the right country, I wanted to pause the selection of that country to allow time for the correct answer to register. This was challenging because I knew of no way to pause a signal. Luckily, I came up with a solution using the "Offset" patch. Since this patch measures the difference between the current signal and the signal's value the last time the patch was reset, I was able to use this difference to calculate the signal from the past. I suspect I could have used signal histories or signal recorders to achieve the same effect.

Accomplishments that I'm proud of

I'm really happy with how the Earth came out. It has about as much detail, animation, and realism as I could pack into an AR application. In particular, I'm proud of solving the problems of lighting and atmosphere.

To light the Earth realistically, I used NASA's separate day and night textures. I supply the position of the "Sun" directional light in the scene as input to the Earth's surface shader. I then use it to transition from day to night in a realistic way.

Another feature that worked well was the atmosphere. I created a Fresnel shader out of patches and use it to create a blue haze that hugs the edges of the earth and thickens as you look through the atmosphere at a lower angle.

What I learned

Through completing this project I learned more about:

  • Advanced 3D rendering techniques in Spark AR
  • Algorithms and patterns in Patches and Reactive programming
  • Organization and re-use with Groups and Patch Assets
  • Bridging Patches and Scripts
  • Incorporating 3rd party libraries like d3.js
  • Animating UVs and 2D UI elements
  • Particle Systems
  • Audio
  • Effective debugging in Spark AR

What's next?

There are some countries that are too small to effectively select in AR. For now, you just aren't quized on the smallest countries. I'd like to correct that, as the small countries are very important.

There are some ways of optimizing textures I'd like to try. Some of the imagery I'm using is black and white, and could be combined into the RGBA channels of a single image.
