Handle Holder

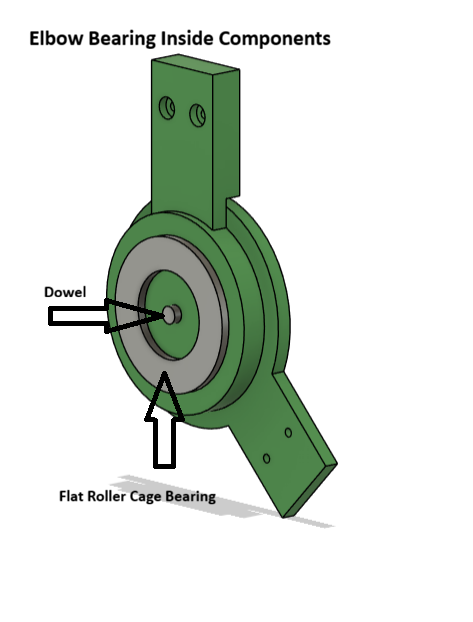

This is a view of the components inside of the elbow bearing. It consists of a through-dowel and two flat roller cage bearings.

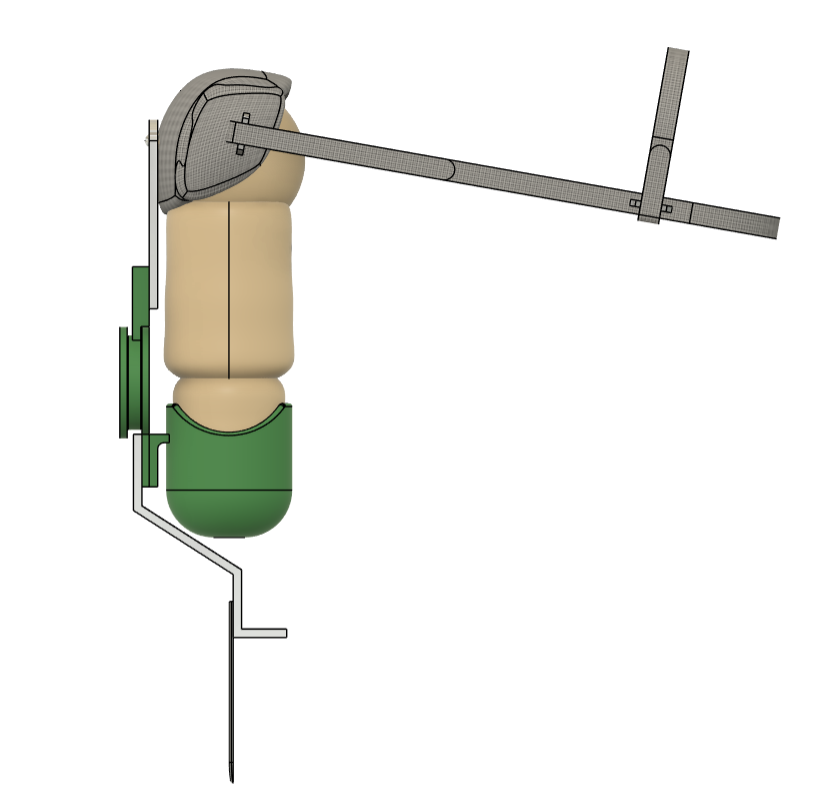

This displays the side view of the prosthetic arm.

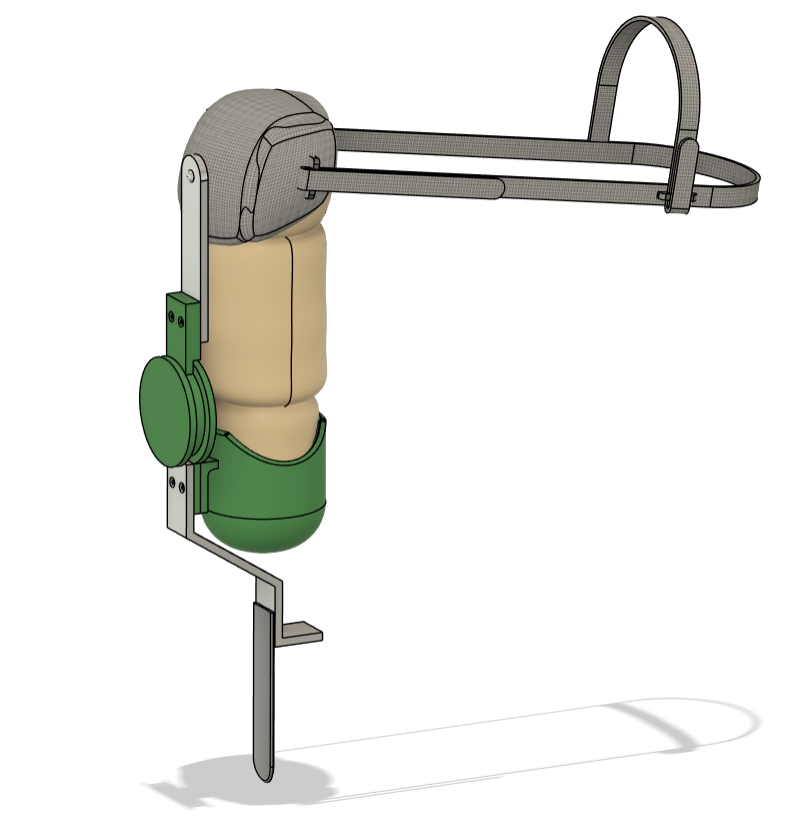

This is an isometric view of the prosthetic arm, aimed to better display all the components of the system.

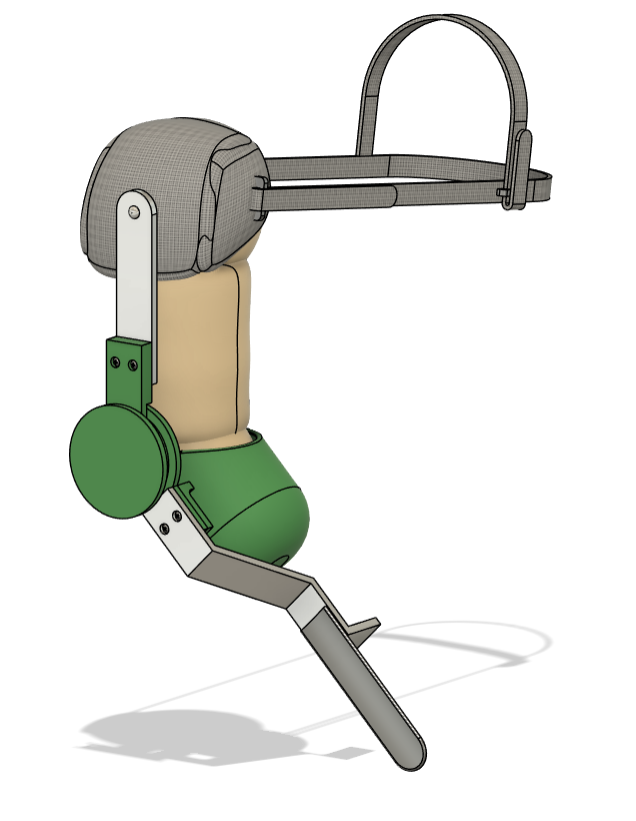

This image displays the prosthetic arm in a slightly bent position, showcasing how it prevents the forearm cup from hitting the user.

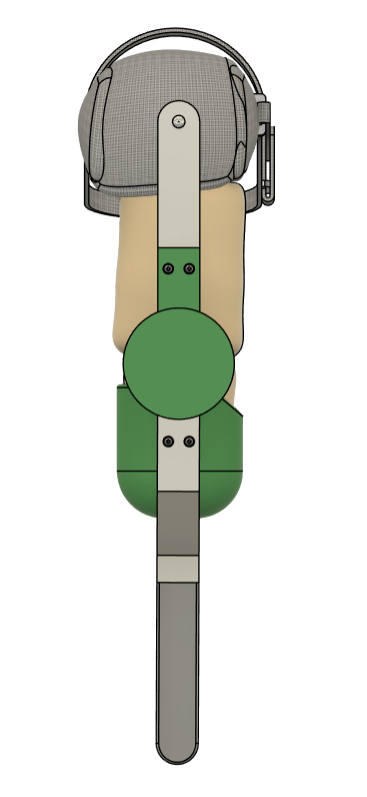

This is the front profile of the prosthetic arm

Inspiration

We were inspired by a recipient who is missing their lower arm below the elbow and requires a device to assist their ability to hold the handles of a bike or scooter.

What it does

The design allows for individuals who have elbow function but lack their lower arm to safely ride and operate a bike or scooter. It provides stability while riding by allowing the user to have control of the bike with both arms, not just their intact arm. It is also safe by allowing the user to easily detach themselves from the vehicle in case of a crash.

How we built it

We researched previous solutions to similar problems and sought for a creative way to attach to the handlebars. Lifting straps and how they reduce the demand for grip strength inspired us, along with slap bracelets and the delight they can bring to younger audiences. We wanted to prioritize stability in our design so we created a harness that would secure the device to the body and take some tension off of the limb itself. Our design ensures that the wearer still has the needed range of motion for biking or riding a scooter while providing more comfort and stability.
