Guided Ocean Observation and Navigation Exploration Rover (GOONER)

Introduction

Hello guys! This Devpost page shows all of our documentation for the SMathHacks 2026 hackathon! The project we created is called Guided Ocean Observation and Navigation Exploration Rover (GOONER), and we decided to go the hardware track for this hackathon. GOONER utilizes an Arduino Uno R3 and ESP32 Feather to create a small submersible that records images through cameras and sensors, allowing us to detect invasive species in coral reefs.

This project is brought to you by four students attending the North Carolina School of Science and Mathematics (NCSSM). Our team members include Michael Chen, Anderson Lam, Bryan Zhong, and Linda Duong!

GOONER

Abstract

Guided Ocean Observation and Navigation Exploration Rover (GOONER) is a controllable submersible that allows researchers to collect diagnostic data and monitor coral reef health.

GOONER is able to be placed completely underwater without damage to components. It features a Total Dissolved Solids (TDS) sensor and a temperature sensor, allowing us to monitor water conditions at different locations. Two ESP32-CAM cameras on the submersible provide the ability to capture underwater images for both navigation and identification of invasive species. We also used two pumps to ensure this submersible could stay in and move in water.

Our project also includes a custom YOLO image classification model for instant identification of invasive species and a website frontend that allows users to control the rover and see live video along with fish classification.

Rationale

Talk about why we did this project, and why it’s important (invasive species, conversation with Dr. Love)

Within the last year, Earth reached its very first catastrophic climate tipping point, and it directly involves coral reefs. Global temperatures have reached between 1.2 to 1.4°C of global warming above where they were in the late 19th century. Coral reefs are now in grave danger, with over 80% of reefs in 80+ countries affected by extremely high ocean temperatures. While it's not too late to save coral reefs, it means we need to take action to protect them and ensure they can continue to survive, even with climate change.

One of the biggest issues coral reefs face is the addition of invasive species. For example, researchers have found that a single lionfish living on a coral reef can reduce recruitment of native reef fish by 79 percent. Current solutions include incentivizing fishermen to catch invasive species or using biodegradable compounds to kill invasive species, but these can be inefficient or harmful to other reef wildlife. Submersibles have entered the limelight as a non-invasive method of monitoring or even removing invasive species due to their small size and maneuverability. As a result, we wanted to construct a submersible that could both monitor environmental factors that could affect reef health and search for invasive species.

Part of this project was greatly encouraged by Dr. Love, the NCSSM dean of engineering and computer science. This faculty member spoke to us while brainstorming and encouraged us to look into Colin Angle, his previous classmate at MIT and cofounder and CEO of iRobot. Colin and his wife, Erika Angle, founded a nonprofit called Robots in Service of the Environment (RSE) whose mission is to solve environmental issues through robotics. They have been working on a submersible robot, Guardian LF1, that targets lionfish, an invasive species that is native to the Indian and Pacific Oceans but have been invading Atlantic waters. With no natural predators here, their population is continuously expanding and consuming ocean life, bringing harm to coral reef systems. Guardian LF1 is working to kill these invasive fish through submersibles that capture and kill the lionfish by zapping them with electricity.

After doing research on these lionfish-targeting robots, we decided to do something similar. We wanted to both monitor the water and identify whether or not invasive species were present. Not only would this allow us to find if there are lionfish present, similar to the Angle's Guardian LF1, but would also provide up-to-date information about water quality that can determine if coral reefs are in danger.

In order to make it easier for researchers to control the submersible, we design a website frontend that displays video from the submersible camera, indicators from sensor modules, and allows for keyboard input to control submersible propulsion.

We also train an image classification model to identify and draw bounding boxes around fish. This serves as a proof-of-concept for an automated invasive fish identifier.

We discuss the integration of these components in the sections below.

High Level Overview

GOONER consists of three main parts: Submersible hardware and code, invasive fish image classification model, and a website that incorporates a flask backend with HTML/CSS/JS frontend.

Frontend

The frontend is a minimal HTML/CSS/JS interface designed to give the operator a live view of the underwater camera. It consists of two files: home.html and home.js, served as static assets by the Flask backend.

home.html renders a single <img> element pointing at the /video_feed endpoint. We use CSS to set the image to fill the entire viewport, which creates a fullscreen view.

home.js handles keyboard input for motor control. It maintains a Set of currently pressed keys to track multi-key state. On keydown, if the key is one of W/A/S/D and not already held, it sends a POST /command to the backend. On keyup, it removes the key from the set and only sends a "stop" command when all keys have been released. This means the rover keeps moving as long as any directional key is held, and only stops when the operator lifts all fingers.

Backend

The backend is a Flask application (app.py). It has three responsibilities: serving the video stream, forwarding motor commands, and running the YOLO detection model.

Video streaming: A background thread (capture_loop) grabs MJPEG (motion JPEG) frames from the ESP32-CAM using OpenCV's VideoCapture. When the browser requests /video_feed, the backend reads each frame, runs the YOLO classification model on it, draws bounding boxes, converts result to JSON, and sends it to the frontend as a MJPEG stream. This gives the frontend access to all future camera updates.

Motor control: The /command POST endpoint receives JSON from the frontend keyboard handler. It maps key names to ASCII commands (w→F, a→L, s→B, d→R) and sends them to the Arduino via the ArduinoController class (defined in input.py). The Arduino reads these bytes and drives the motors accordingly. The serial connection runs at 115200 baud.

Detection model integration: At startup, app.py loads the YOLO .ONNX model from machine-learning/output-yolo/best.onnx, which is the best model from training (see section below). Every frame in the MJPEG stream passes through detect() and draw_detections() before being sent to the browser. Invasive species (lionfish) are highlighted with red bounding boxes; all other detected fish get green boxes.

Fish Detection Classification Model (YOLO)

We built a fish detection model that identifies 14 species of reef fish from live underwater camera frames. The model produces bounding boxes and class labels for every fish visible in a frame, which the Flask backend draws onto the video stream before sending it to the frontend. We chose a lightweight architecture so the model can run in real time on a laptop CPU, with the goal of eventually migrating inference to a Raspberry Pi onboard the submersible.

Classes (14)

ID Species Invasive?
0 AngelFish No
1 BlueTang No
2 ButterflyFish No
3 ClownFish No
4 GoldFish No
5 Gourami No
6 MorishIdol No
7 PlatyFish No
8 RibbonedSweetlips No
9 ThreeStripedDamselfish No
10 YellowCichlid No
11 YellowTang No
12 ZebraFish No
13 Lionfish Yes

Architecture

The model uses YOLO11n (nano), the smallest variant in the Ultralytics YOLO11 family. It takes 320x320 RGB input and produces a list of detections, each with bounding box coordinates, a class ID, and a confidence score. It is small enough to run CPU-only on a laptop or Raspberry Pi (see future work).

YOLO11n is a single-stage anchor-free detector, meaning it processes the full image in one forward pass and outputs all detections simultaneously. This makes YOLO a good choice for live image labeling.

We originally trained a MobileNetV2 classifier (train.py / about.md), but that approach only outputs one class label per image — it cannot locate fish within a frame or handle multiple fish at once. Switching to YOLO gave us bounding box coordinates for every fish in the frame, which is what the frontend needs to draw detection overlays.

We use 320px input rather than the default 640px because the ESP32-CAM only captures at 640x480, and underwater conditions already limit fine detail. Halving the resolution reduces inference time by roughly 4x while retaining enough spatial information for reliable detection.

Dataset

The primary dataset comes from Roboflow Fish Detection, which provides YOLO-format bounding box annotations on 640x640 images.

Because the Roboflow dataset did not include any lionfish examples, we supplemented it with a lionfish-only classification dataset. Those images had no bounding box annotations, so merge_lionfish.py assigns each one a full-image bounding box (0.5 0.5 1.0 1.0) as class 13 while merging the two datasets. The images in this set are all centered with the lionfish filling most of the frame,

The combined dataset is split as follows:

Split Images Labels
Train 7,606 7,606
Validation 837 837
Test 1,098 1,098

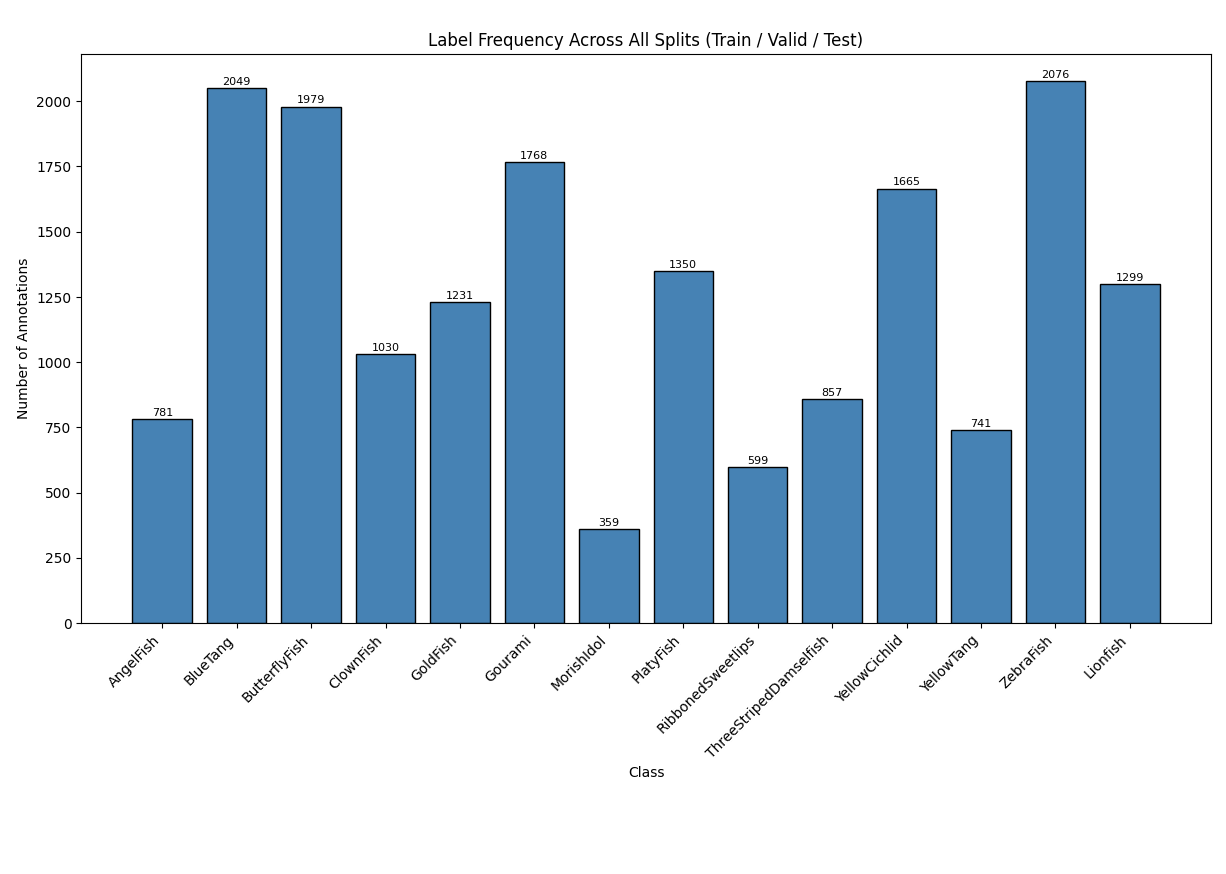

Label Distribution

Training

Training is handled by train_yolo.py, which wraps the Ultralytics training API. We fine-tuned from a YOLO11n checkpoint pretrained on COCO, training for 50 epochs at 320x320 input with a batch size of 16.

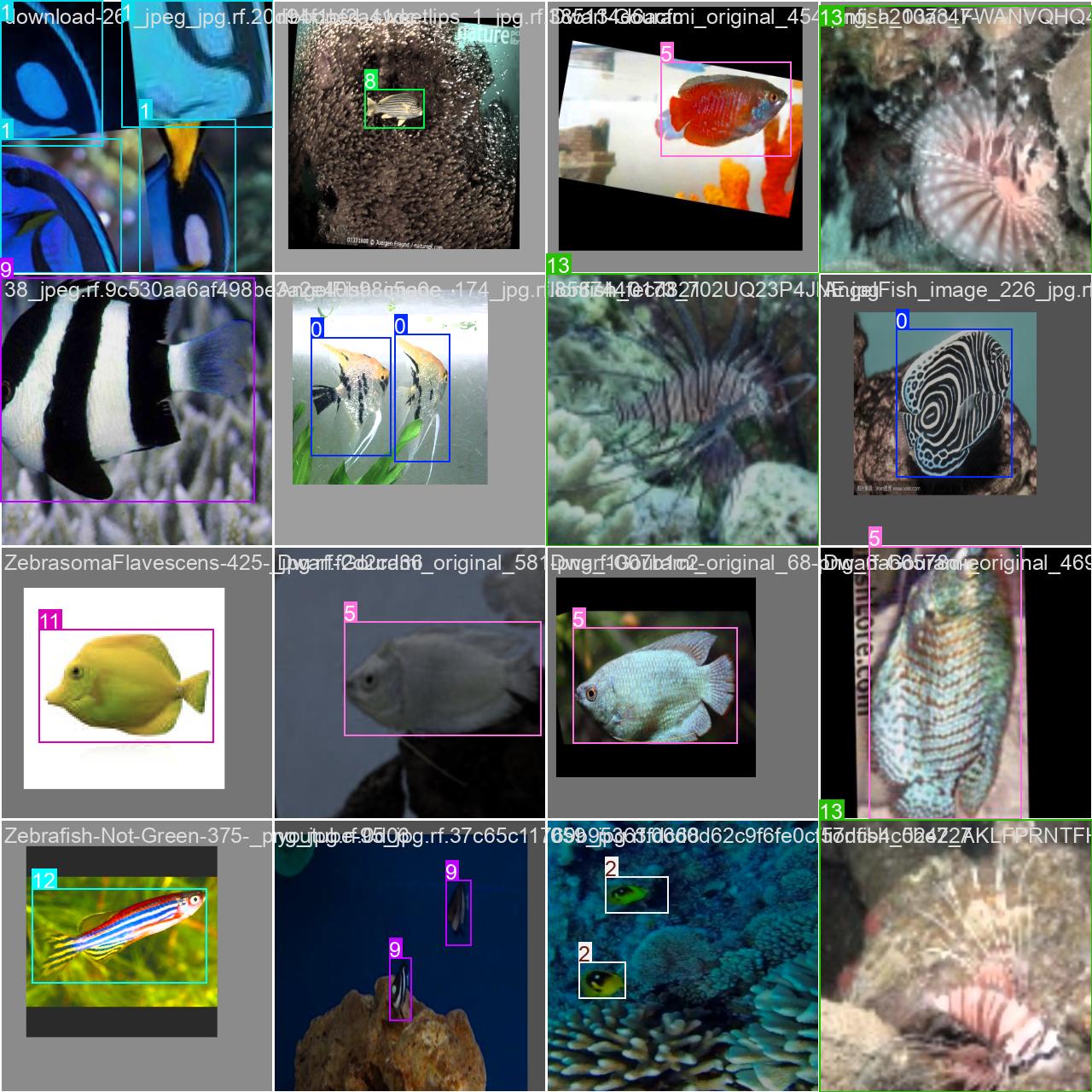

One of our training batches is shown below: Training batch

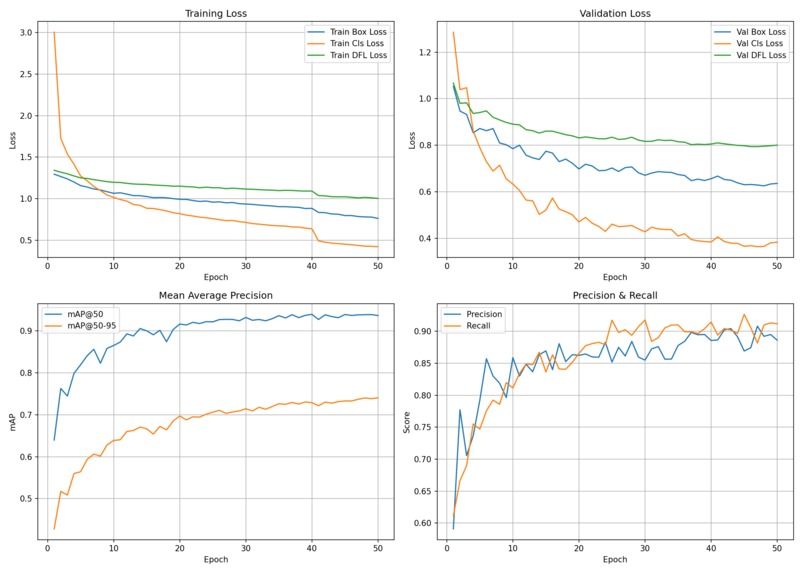

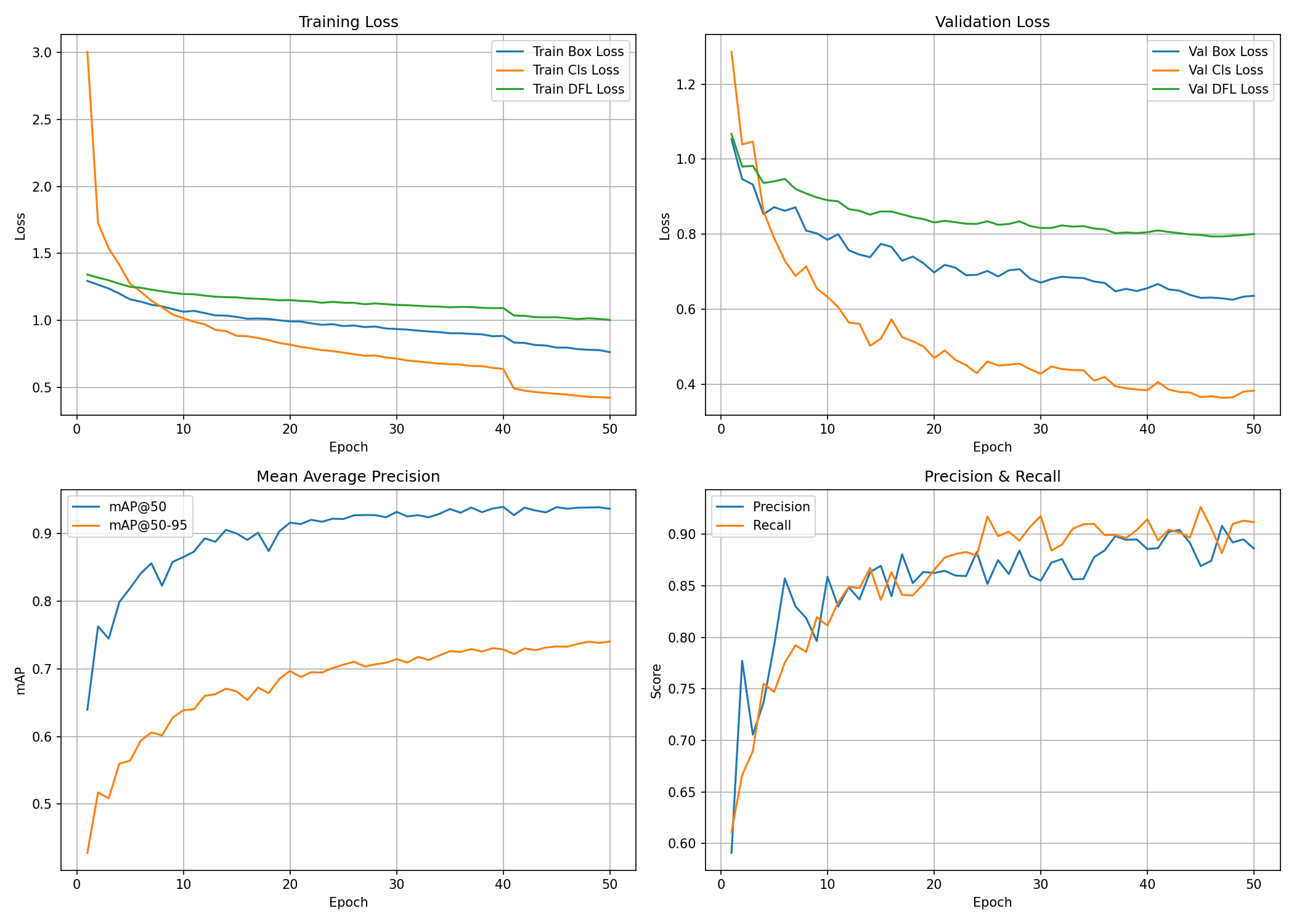

During the training process, we track model training/validation loss, precision, and recall. Below shows the training logs of our model: Training Logs

Output

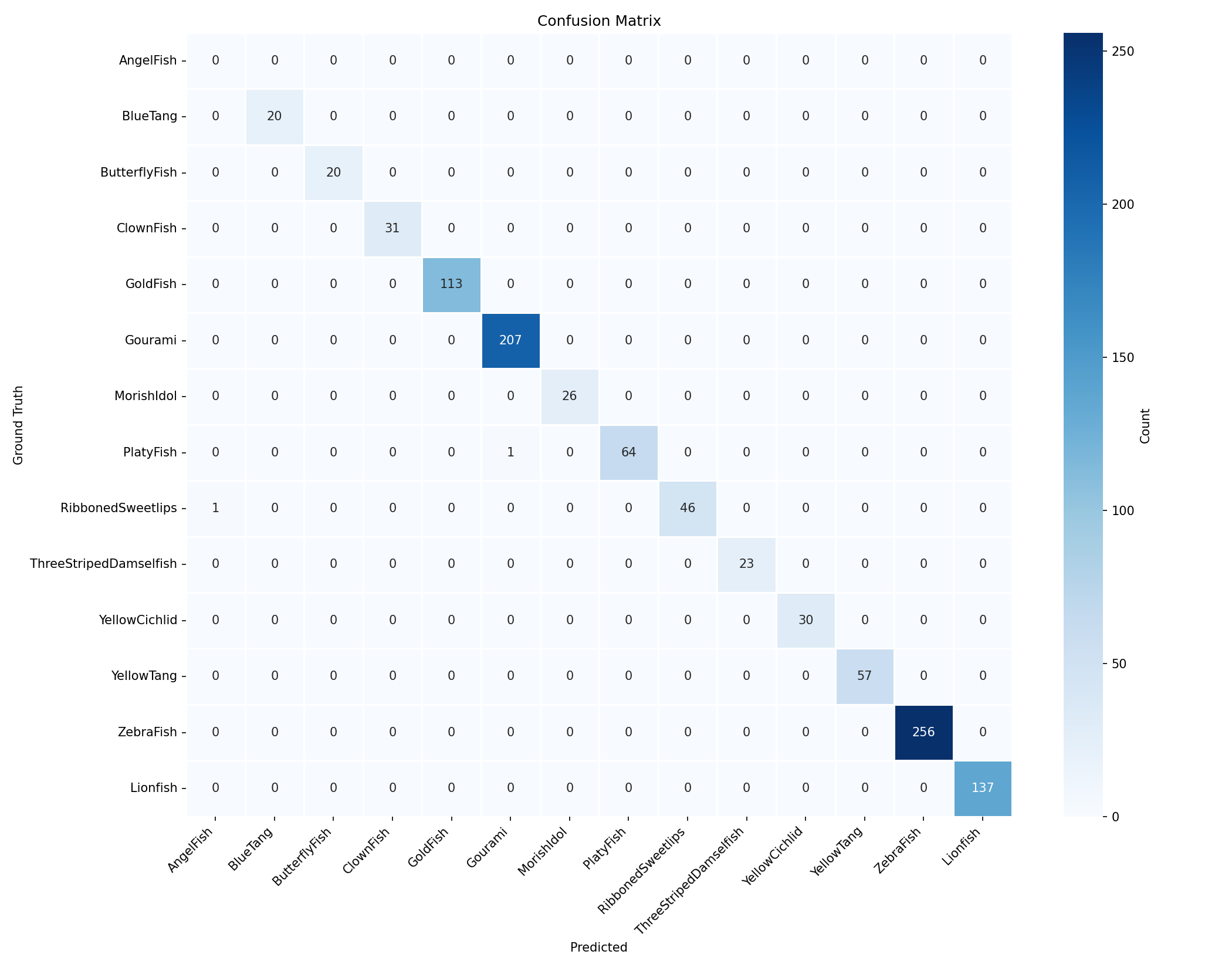

Our model is relatively accurate in identifying and labeling various fish species. We are specifically interested in model confidence and Intersection of Union (IoU) matching, which measures how closely the model predicts the fish bounding box. Model Accuracy Confusion Matrix The best-performing model is saved as best.onnx, which the backend loads via OpenCV DNN so that neither PyTorch nor Ultralytics are needed at runtime.

Design choices

We made several design choices when building our model:

We chose YOLO over a traditional classifier because the frontend needs to draw bounding boxes around individual fish. A classifier can only label the whole frame, while YOLO outputs coordinates and labels for every detected object. Within the YOLO family, we selected YOLO11n (nano) for its small size (~2.6M parameters) and single-pass inference, both of which are important for maintaining low latency on the live video feed. YOLO11 also improves on YOLOv8 with better feature extraction at similar model sizes.

The full-image bounding boxes assigned to lionfish images are a limitation because the supplemental lionfish dataset had no annotations. merge_lionfish.py assigns each image a full-frame box, so the model learns lionfish as a large centered object. This is acceptable for now since the rover is still human-operated, but in the future we would add synthetic variation to improve detection at different scales and positions.

We export the final model to ONNX so the Flask backend can load it through OpenCV DNN without requiring PyTorch or Ultralytics at runtime, which reduces the deployment footprint.

Sensors and capabilities

talk about the sensors on it, what they can measure (tuff ahh table) and then how the thing is controlled maybe idek. The parts we used

Hardware Model Parameters Measured Communication
Temperature Sensor DS18B20 Temperature (°C) Digital
Total Dissolved Solids Sensor DFRobot Gravity: Analog TDS Meter 1.0 Parts per Million (ppm) Analog
Cameras ESP32-CAM Detection of Invasive Species Digital

With the temperature sensor on our project, we are able to detect the temperature of water. As coral reefs tend to have a lgit ow tolerance for temperature variations, especially without time to adjust, we can provide early warnings for when reefs could become vulnerable to heat stress and coral bleaching, which can eventually lead to coral reef deaths.

The TDS sensor on GOONER measures the materials dissolved in water that are not pure H2O molecules. In GOONER, the TDS sensor monitors the water quality in parts per million, which tells us if there are contaminants present in specific areas that could have coral bleaching. This would typically include aquariums and reef tanks, which would ideally have a value of zero. Having low water quality can stunt coral growth or damage it, but GOONER is able to identify these water quality levels and can tell us when there are too many contaminants in the water before it becomes too late.

GOONER uses two ESP32-CAM cameras. With these cameras, we are able to not only take and save underwater images, but we can also look at the area around coral reefs specifically. Our cameras are used to detect varying species' of fish and can identify invasive species, like Lionfish. More details will be provided later in this documentation.

Connecting everything together is an Arduino Uno, with a shield for expanded capabilities. The Arduino connects and manages all of the sensors and motors involved in the project, while the cameras are connected to a laptop. Some of the other things in our project include pumps to ensure our submersible stays in the water, an Adafruit Feather for Wi-Fi purposes, and a battery pack for power.

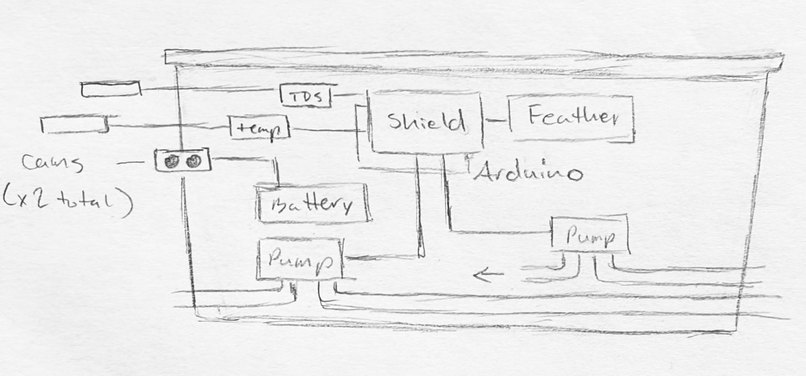

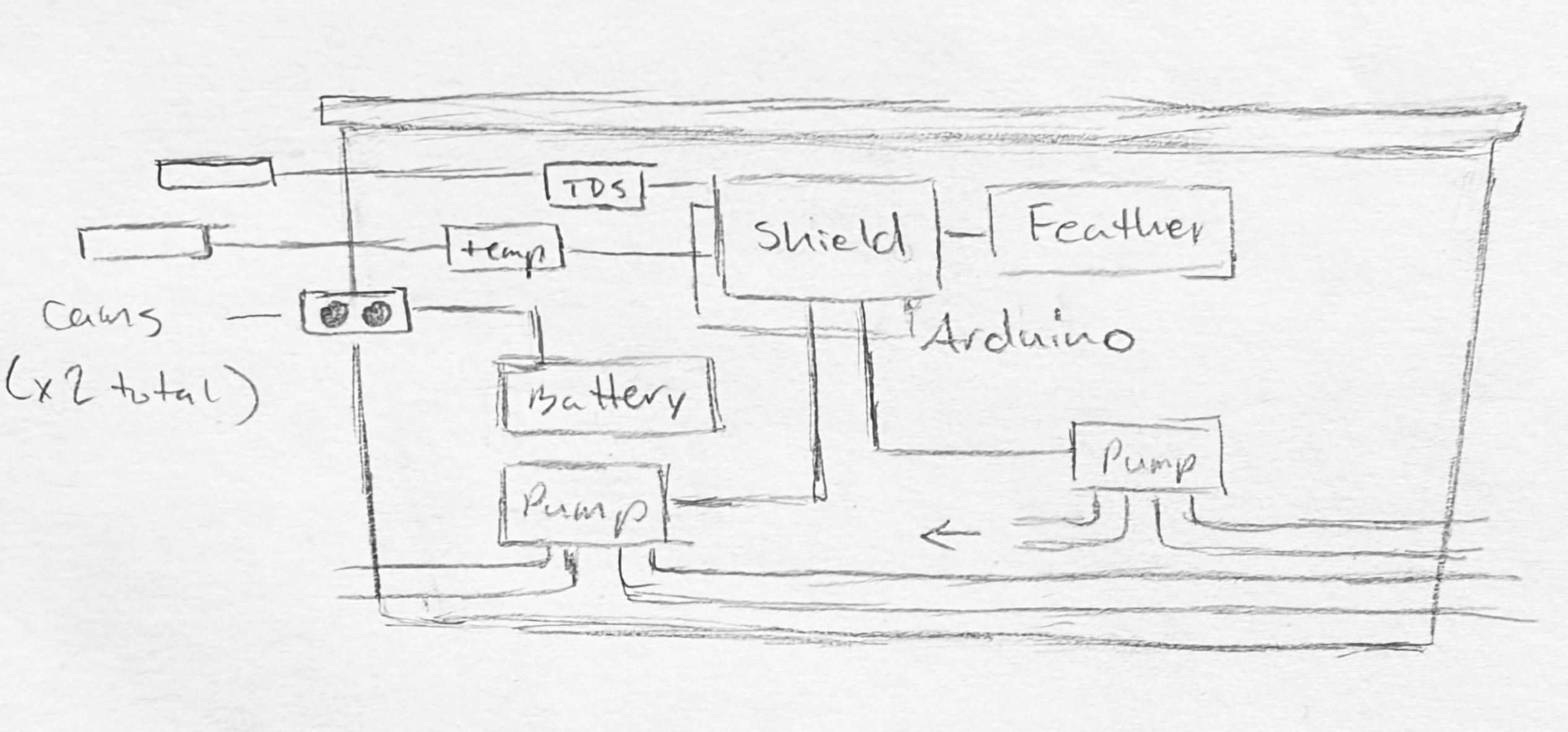

Below is our prototype diagram: Prototype diagram

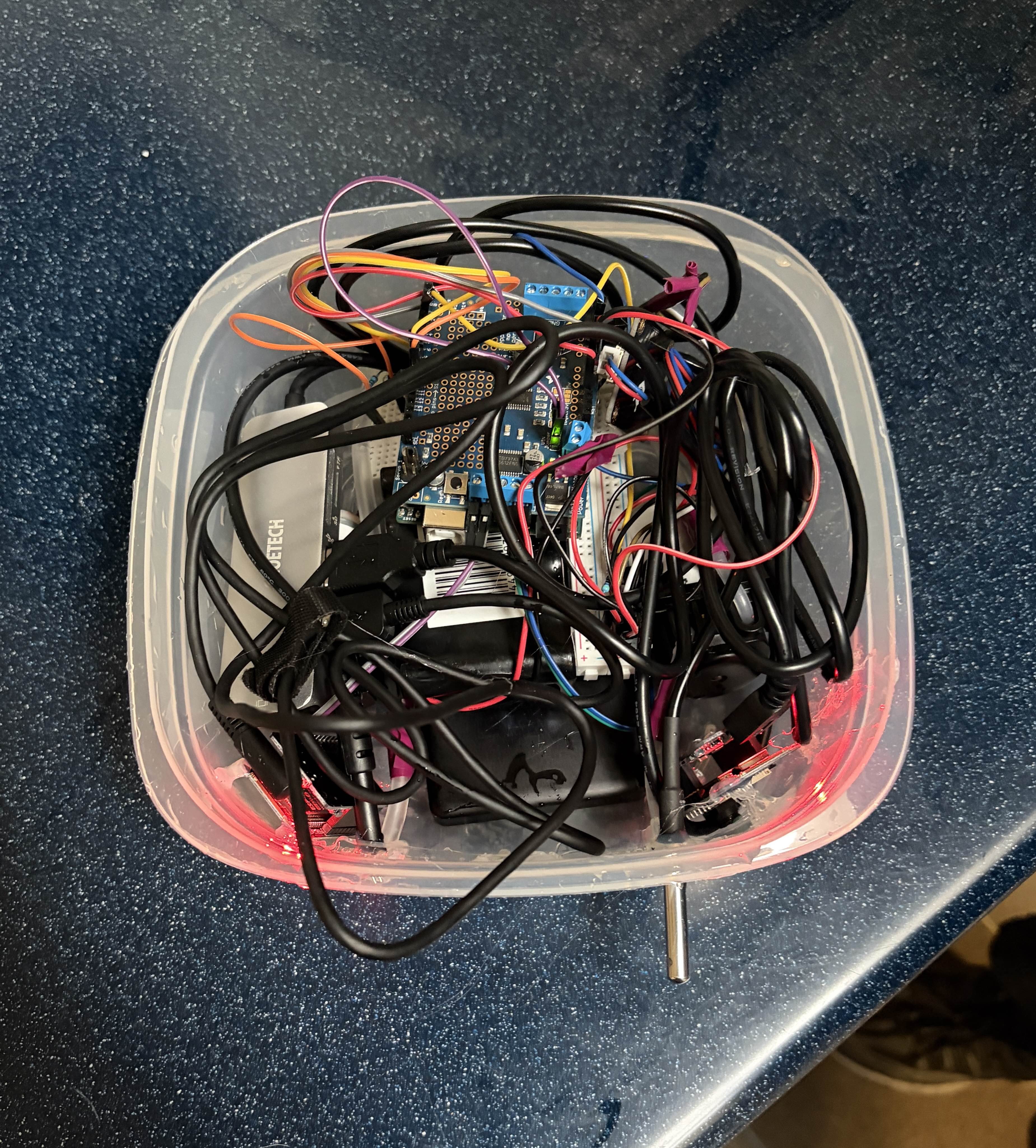

All of our wiring was contained in a Tupperware container due to lack of other options, time constraints, and the need for a waterproof case. To ensure our submersible could stay in water without floating to the surface or sinking to the bottom, we used the equation \(F_b = ρVg\) to calculate buoyant force. Our submersible had to have the same density of the water surrounding it so it would be submerged inside of the water. We know water has a density of \(1kg/L\) and that the acceleration of gravity is \(9.8m/s^2\). So, we decided to use a container of \(2\) liters, which required us to hold about \(2kg\). In ocean water, there would be a higher density because of the salt so calculations would slightly differ.

Electrical Engineering

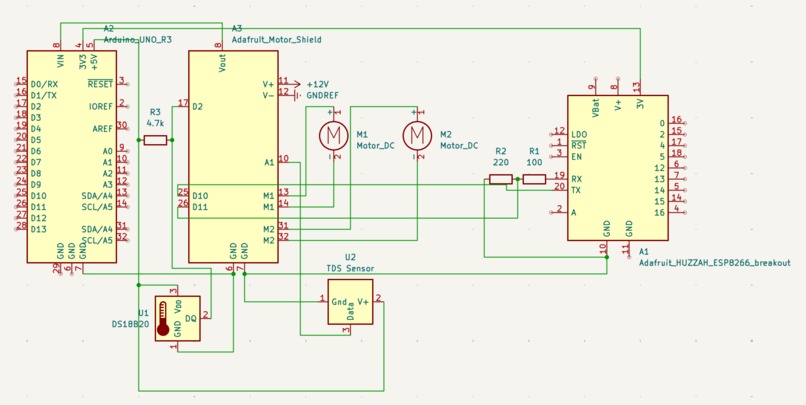

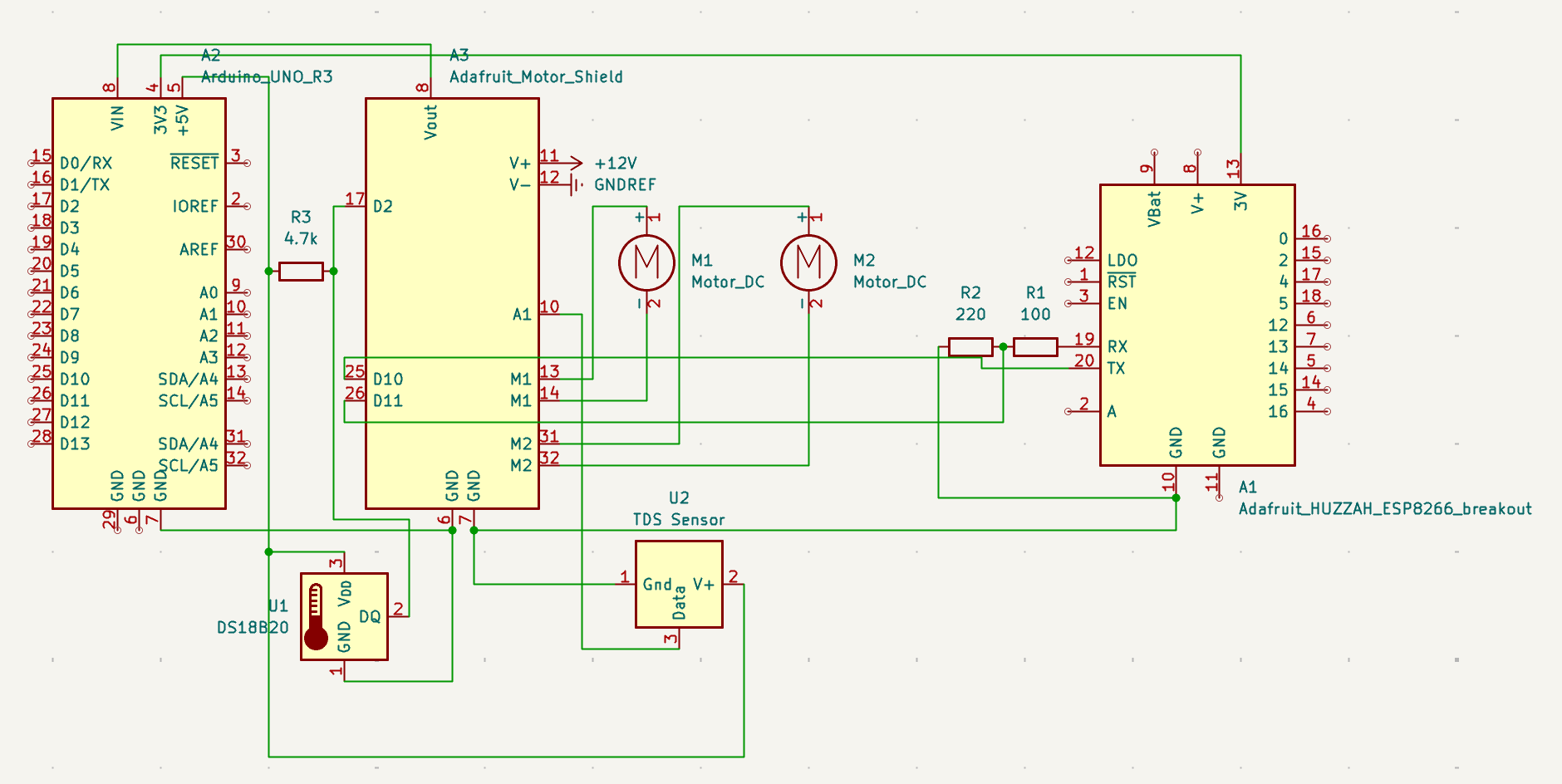

Below is KiCad render of our wiring diagram: Wiring diagram

Impact

Coral reefs provide homes to more than 25% of marine life on Earth. With this project, we want to not only improve underwater life, but we also ensure the entire world and the people in it are not at risk from the lack of coral reefs. After all, coral reefs also protect carbon dioxide-absorbing habitats, reduce impact from severe weather, and help provide millions of people with food and jobs.

Part of keeping coral reefs alive and thriving is understanding what harms them in the first place, so one of our main goals is to detect invasive species on coral reefs.

Future Work

Future work focuses on improving user control of the rover by adding more propulsion sources, which would allow for up-down turning instead of only left-right turning. We hope to improve our rover speed by switching out the tupperware case with a sleeker design (see reference sketch) and improving the output of our propulsion system.

Additionally, we hope to move the image classification model along with camera input handling to a Raspberry Pi, which will sit inside the submersible and communicate with both the arduino and laptop/web server for key input.

We also have room for additional diagnostic modules on the submersible to better measure coral reef health. These would include a water pH sensor, a pump for water quality sampling, and a flashlight module for nighttime/cave exploration.

There is currently no solution for long-distance wireless underwater communication. Technology is currently being developed by MIT researchers, but we anticipate several years of research before a fully wireless rover is feasible.
