Grok AI Engineer: Literature to Optimized Kernels

Grok autonomously surveys AI research, proposes novel ideas, implements them in PyTorch, and optimizes kernels via evolutionary search achieving up to 1.27x speedup on 10 production models on B200

Comment

Inspiration

In industry labs, AI engineers have to read the latest literature so they can build systems at the frontier. This is time-consuming, error-prone, and doesn't scale.

We asked: what if Grok could do this autonomously? Survey the landscape, identify gaps, propose ideas, validate novelty, implement solutions, and optimize them for production—all in one pipeline.

X is the main bastion of online AI research content. Ideas surface in threads from practitioners months before papers land. By combining X's real-time signal with academic literature, we give Grok access to the true frontier.

Google Deepmind's AlphaEvolve Proposed the Evolutionary Techniques For Algorithm Discovery

AI Scientist V2 Automated Scientific Discovery

PyTorch Helion A High-Level DSL for Performant and Portable ML Kernels in PyTorch-like Code

Dashboard Demo

DEMO LINK

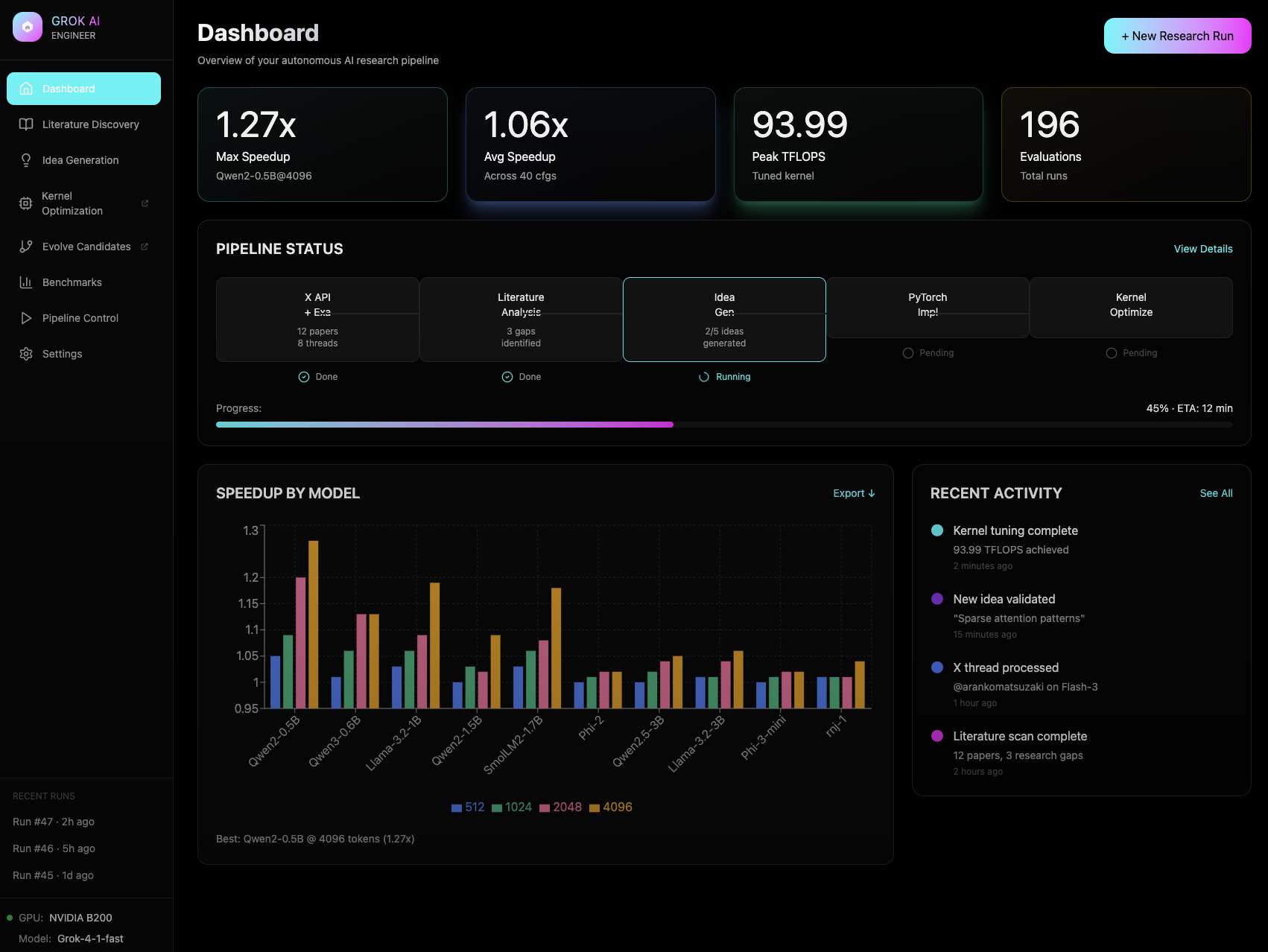

Dashboard Screenshot - Click Our Demo Link

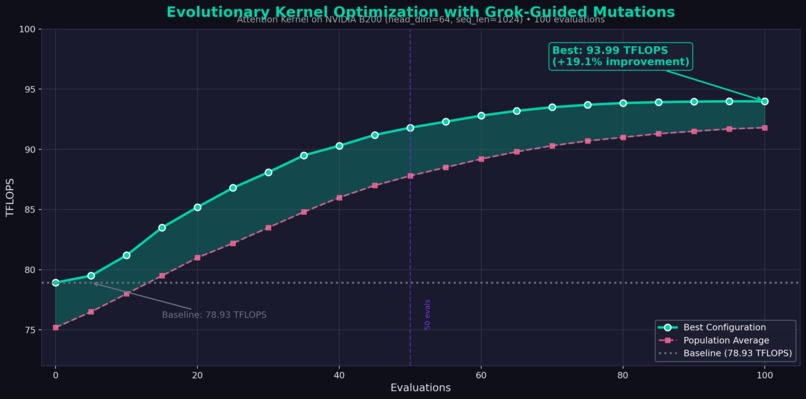

Evolution Candidates During Kernel Generation Steps

The Full Pipeline

Our system simulates a senior AI engineer's workflow, fully automated:

Literature Survey → Gap Analysis → Idea Generation → Novelty Validation
    → PyTorch Implementation → Kernel Optimization → Production-Ready Code

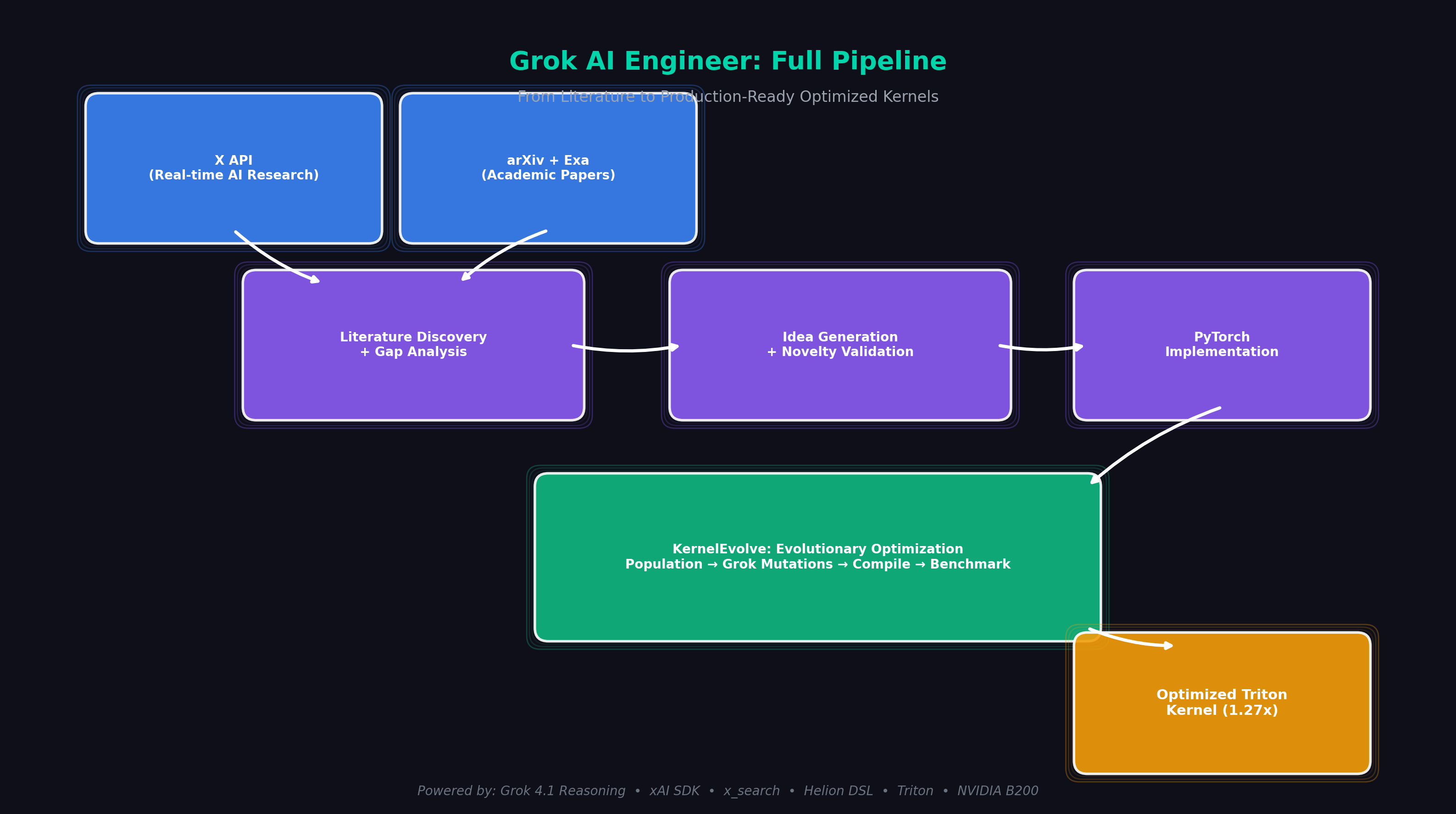

Pipeline Architecture

1. Literature Discovery

We gather research from two complementary sources:

  • X API: Real-time high-quality AI research posts from curated researchers (@iScienceLuvr, @arankomatsuzaki, @rohanpaul_ai, @omarsar0, @_akhaliq) with full thread reconstruction, RT expansion, and note_tweet support
  • arXiv & Exa Search: Recent papers on the target domain (FlashAttention, Triton, torch.compile, transformer optimization)

2. Gap Analysis & Ideation

Grok 4.1 Reasoning evaluates the collected literature and identifies gaps—what's being discussed but not yet implemented, what could be combined in novel ways. It proposes concrete research ideas targeting these gaps through DSPy-powered structured prompts.

3. Novelty Validation

Before implementation, we validate that proposed ideas are actually novel. The system performs additional paper searches on each proposed idea via Exa API to check if it's already been done. Ideas are scored for both novelty and feasibility, and only genuinely new, implementable ideas proceed.

4. PyTorch Implementation

Grok implements the validated ideas in PyTorch, utilizing a library of highly optimized kernels created via KernelEvolve. This gives the initial implementation a strong foundation.

5. Kernel Optimization (KernelEvolve)

This is where it gets interesting. The initial PyTorch implementation is good—but not production-ready. KernelEvolve takes over to systematically optimize the kernels for real hardware through evolutionary search with Grok-guided mutations.

KernelEvolve: Real Results on Real Models

The Problem

GPU kernels are traditionally hard for LLMs to optimize. There's limited public training data, the search space is enormous, and small changes can cause 10-100x performance swings. A kernel that's fast on H100 might be slow on B200. Manual tuning is expert-only work.

Our Results: Benchmarked on NVIDIA B200

We tested Helion attention kernels (optimized via KernelEvolve) against PyTorch's scaled_dot_product_attention (SDPA) across 10 state-of-the-art small language models:

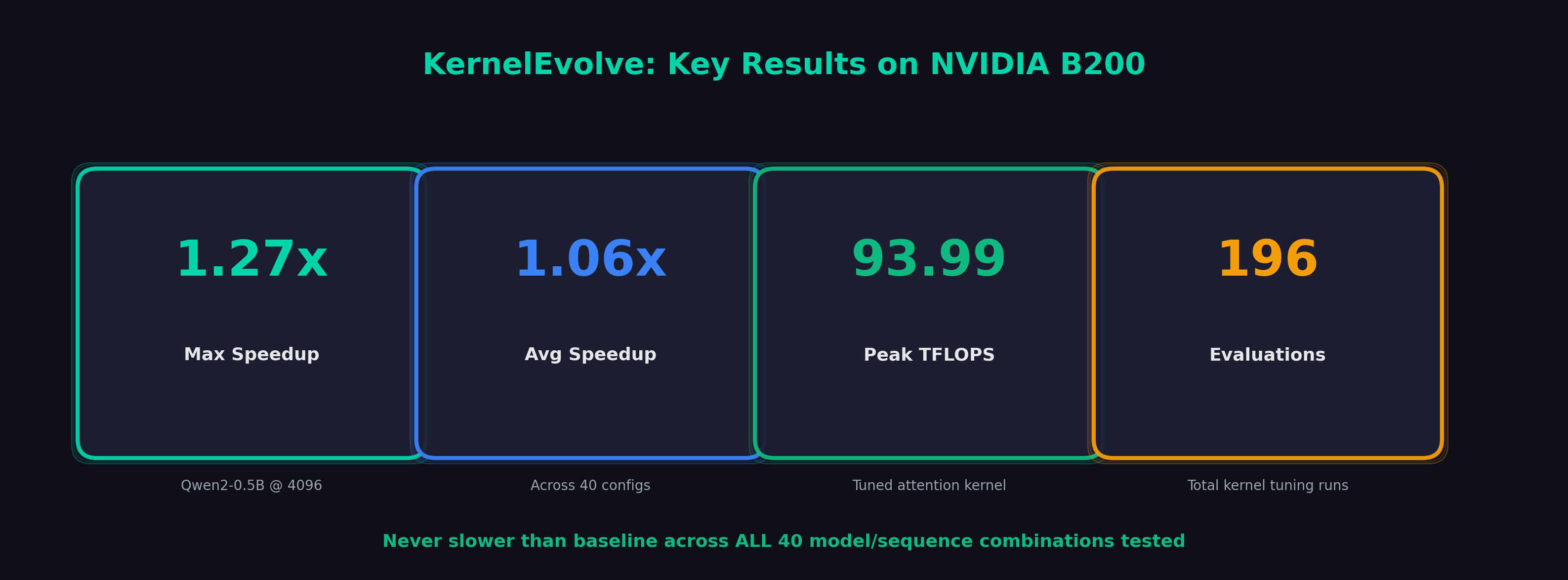

Key Metrics

Metric Value
Average Speedup 1.06x
Maximum Speedup 1.27x
Minimum Speedup 1.00x (never slower)
Best Model/Config Qwen2-0.5B @ seq=4096
Avg Speedup @ 4096 tokens 1.11x

Detailed Results: Selected Models

Qwen2-0.5B (24 layers, GQA 14:2)

Seq Length Helion (ms) PyTorch (ms) Speedup
512 13.61 14.33 1.05x
1024 20.52 22.33 1.09x
2048 36.42 43.63 1.20x
4096 77.10 98.31 1.27x

Llama-3.2-1B (16 layers, GQA 32:8)

Seq Length Helion (ms) PyTorch (ms) Speedup
512 21.67 22.29 1.03x
1024 41.14 43.63 1.06x
2048 78.90 86.12 1.09x
4096 151.01 179.55 1.19x

SmolLM2-1.7B (24 layers, MHA 32:32)

Seq Length Helion (ms) PyTorch (ms) Speedup
512 34.06 34.99 1.03x
1024 66.03 69.86 1.06x
2048 128.25 139.08 1.08x
4096 247.45 290.98 1.18x

All 10 Models Tested

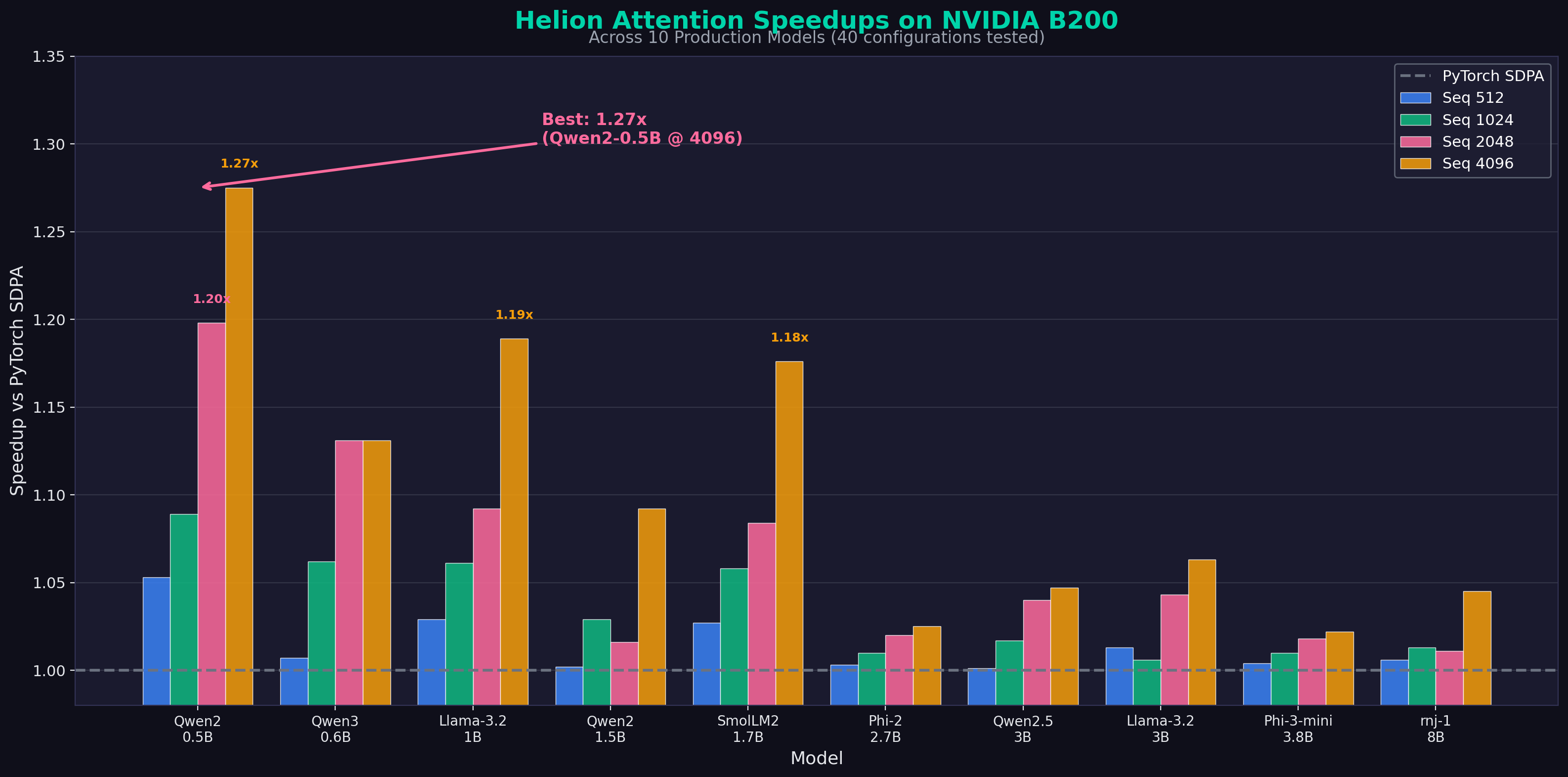

Speedup Chart

Model Params 512 1024 2048 4096 Avg
Qwen2-0.5B 0.5B 1.05x 1.09x 1.20x 1.27x 1.15x
Qwen3-0.6B 0.6B 1.01x 1.06x 1.13x 1.13x 1.08x
Llama-3.2-1B 1B 1.03x 1.06x 1.09x 1.19x 1.09x
Qwen2-1.5B 1.5B 1.00x 1.03x 1.02x 1.09x 1.03x
SmolLM2-1.7B 1.7B 1.03x 1.06x 1.08x 1.18x 1.09x
Phi-2 2.7B 1.00x 1.01x 1.02x 1.02x 1.01x
Qwen2.5-3B 3B 1.00x 1.02x 1.04x 1.05x 1.03x
Llama-3.2-3B 3B 1.01x 1.01x 1.04x 1.06x 1.03x
Phi-3-mini 3.8B 1.00x 1.01x 1.02x 1.02x 1.01x
rnj-1 8B 1.01x 1.01x 1.01x 1.04x 1.02x

Key Findings

  1. Helion wins across ALL configurations — Never slower than PyTorch SDPA
  2. Performance scales with sequence length — Larger speedups at longer sequences (1.11x avg @ 4096 tokens)
  3. Best results with head_dim=64 — Models like Qwen2-0.5B see up to 1.27x speedup
  4. GQA models work correctly — All grouped query attention configurations verified

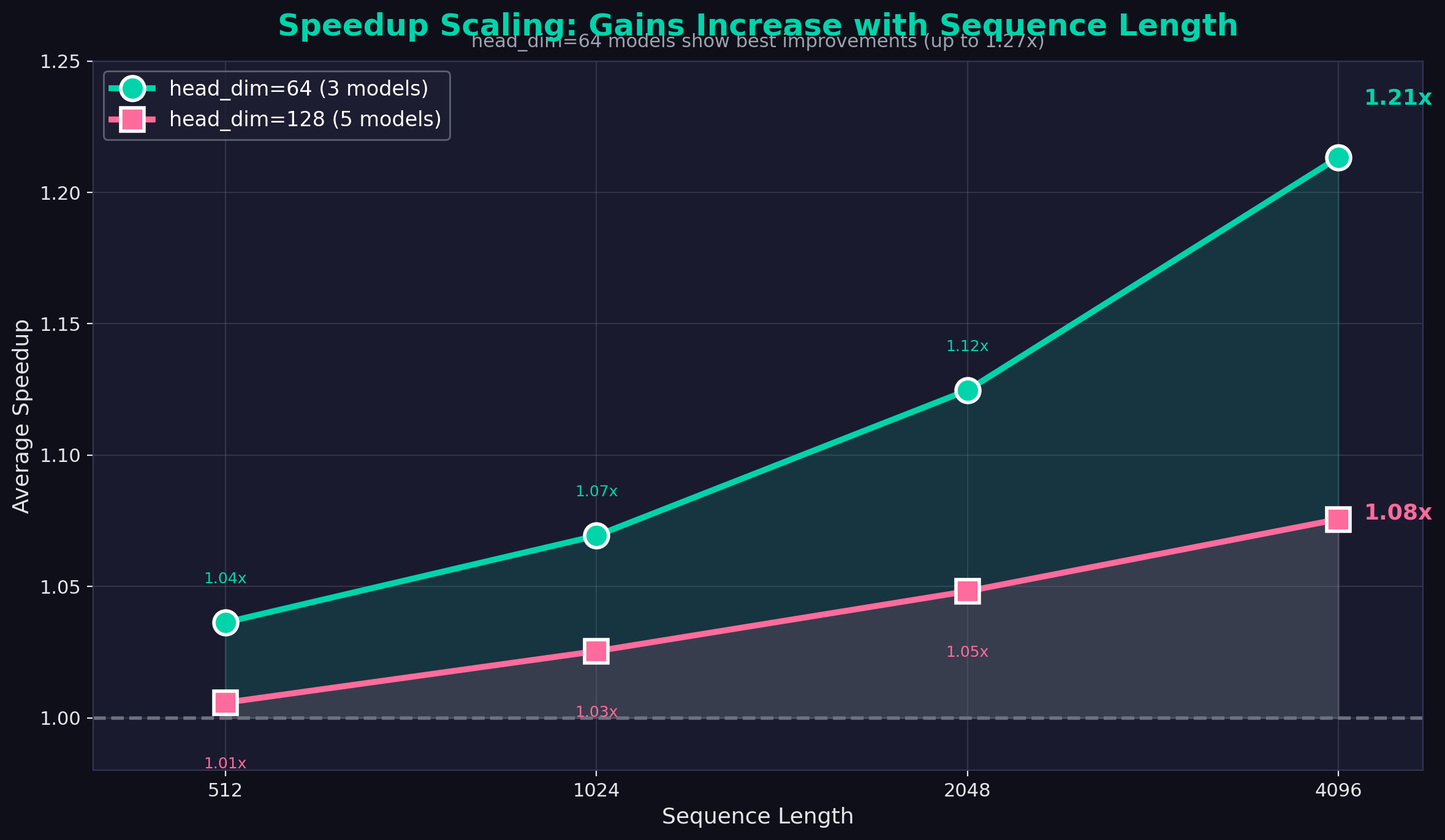

Scaling Chart

The Evolutionary Optimization Process

OpenEvolve Autotuner

We use an evolutionary algorithm powered Grok to optimize kernel configurations:

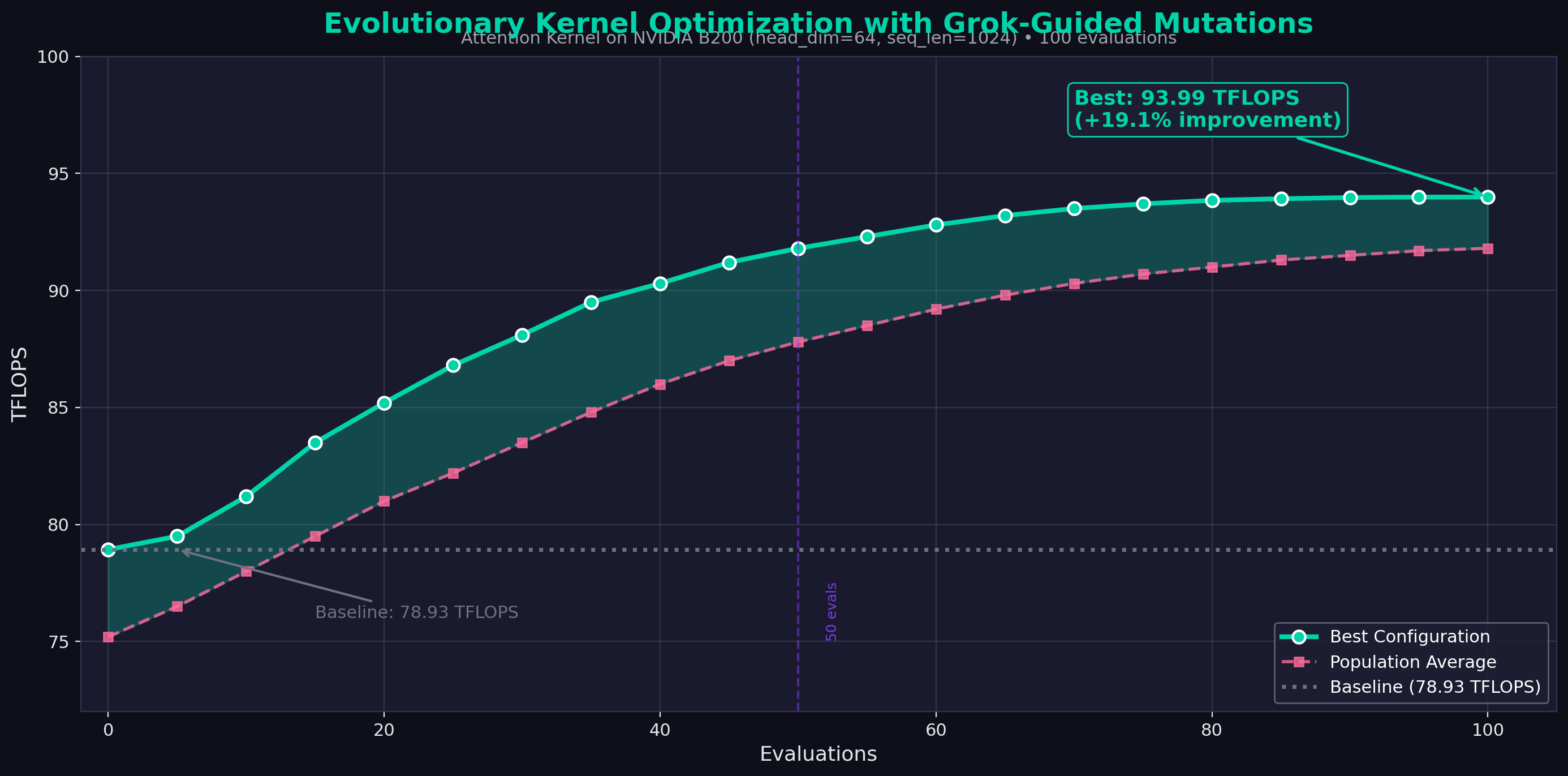

Evolution Chart

from helion.autotuner.openevolve_tuner import OpenEvolveTuner

config_space = {
    "block_b": [1, 2, 4],
    "block_m": [32, 64, 128, 256],
    "block_n": [32, 64, 128],
    "num_warps": [2, 4, 8],
    "num_stages": [2, 3, 4],
}

tuner = OpenEvolveTuner(
    config_space=config_space,
    objective=benchmark_function,  # Returns TFLOPS
    max_evaluations=50,
    model="grok-4-1-fast",
)

best_config = tuner.tune()

Tuning Results (head_dim=64, seq_len=1024)

Configuration Block Sizes Warps Stages TFLOPS Speedup
Tuned (Best) [1, 128, 64] 4 3 93.99 1.19x
Baseline [1, 64, 64] 4 2 78.93 1.00x
Conservative [1, 128, 64] 4 2 82.21 1.04x
High Warps [1, 64, 64] 8 3 78.51 0.99x

The tuned configuration delivers 19.1% improvement over the baseline—found automatically through 100 evolutionary evaluations on NVIDIA B200.

Why Evolution Works

  • Fitness on real hardware: Every candidate runs on actual B200, no synthetic benchmarks
  • LLM-guided mutations: Grok makes intelligent changes, not random perturbations
  • Diversity pressure: Population maintains variety to avoid local optima
  • Self-correction: Failed compilations and correctness errors eliminate bad candidates
  • Tournament selection: Elite configurations survive to guide the next generation

How we built it

Literature Pipeline

The complete research pipeline is built as a modular Python system:

@dataclass
class LiteratureSummary:
    domain: str
    key_papers: list[Paper]
    research_gaps: list[ResearchGap]
    x_threads: list[ThreadSummary]  # Real-time X signal
    open_problems: list[str]
    recent_trends: list[str]

@dataclass
class ThreadSummary:
    """Full-text thread summary for a conversation."""
    id: str              # root tweet id
    author_id: str
    created_at: str
    text: str            # concatenated thread text (oldest → newest)

    def to_summary_string(self) -> str:
        """Render for LLM context."""
        return f"Author: {self.author_id}\nCreated: {self.created_at}\nThread:\n{self.text}"

The ThreadSummary captures entire conversation threads—not just individual tweets—giving Grok richer context about ongoing research discussions.

xAI Integration

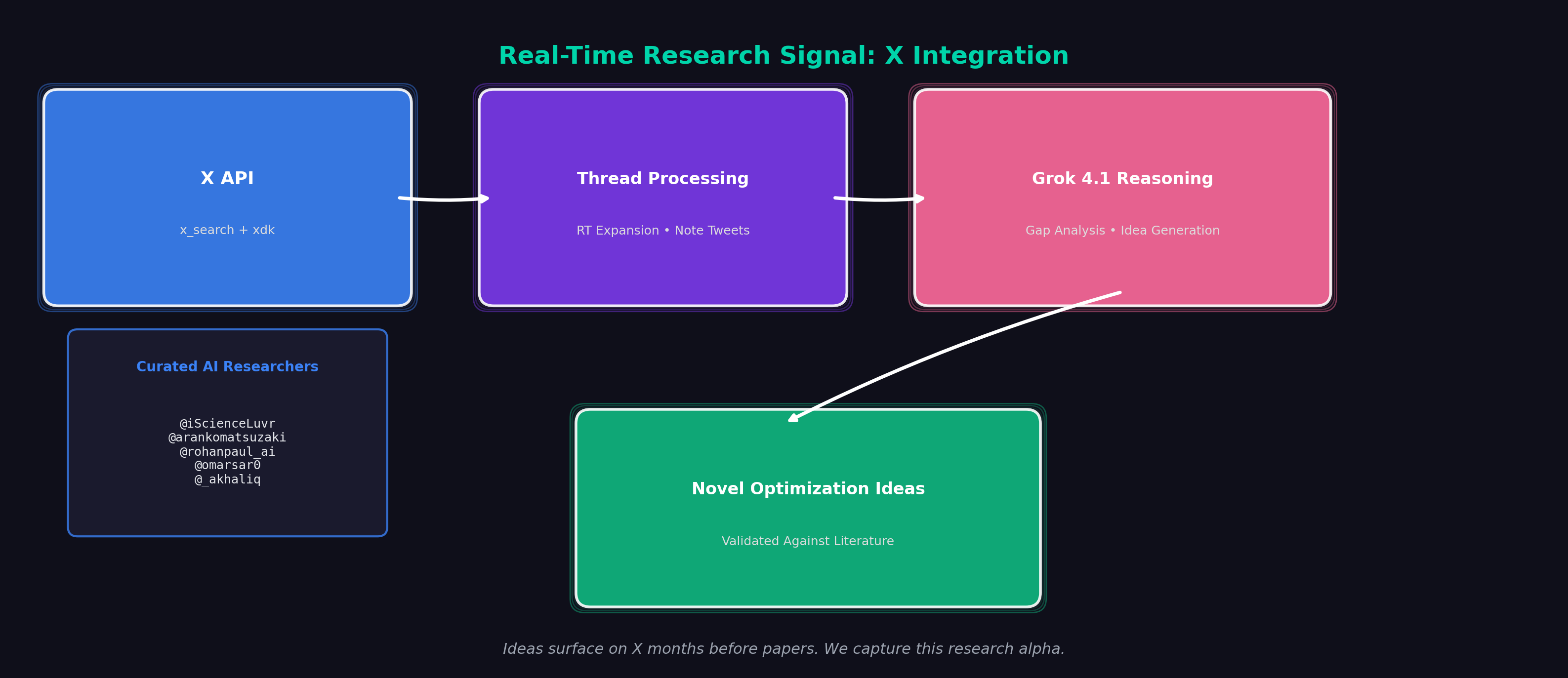

X Integration Flow

X API for Thread Reconstruction:

We built a dedicated social.py module that goes beyond simple tweet search:

def get_threads_for_authors(
    authors: List[str],
    query: str,
    x_config: XSearchConfig,
) -> List[ThreadSummary]:
    """Search, group by conversation, and return full threads."""

    # Search posts from curated authors
    posts = search_author_posts(authors, query, x_config)

    # Group by conversation_id, pick earliest tweet as root
    conv_to_root: Dict[str, Post] = {}
    for p in posts:
        conv_id = p.conversation_id or p.id
        if conv_id not in conv_to_root or p.created_at < conv_to_root[conv_id].created_at:
            conv_to_root[conv_id] = p

    # Reconstruct full threads from roots
    return [build_thread_simple(root, x_config) for root in roots]

Key features:

  • Thread reconstruction: Fetches entire conversations, not just individual tweets
  • RT expansion: get_full_text() extracts original tweet text from retweets via includes
  • Note tweet support: Handles long-form tweets (>280 chars) via note_tweet field
  • Graceful degradation: Rate limits (429, 503) return partial results instead of failing
  • Full archive toggle: Switch between search_recent and search_all endpoints
  • Curated author list: Default researchers who consistently share quality AI content

DSPy-Powered Prompt Engineering

All LLM interactions use structured DSPy signatures for reliability and optimization:

class GenerateOptimizationIdeas(dspy.Signature):
    """Generate novel PyTorch optimization ideas based on literature analysis."""

    literature_summary: str = dspy.InputField(desc="Summary of literature and gaps")
    constraints: str = dspy.InputField(desc="Implementation constraints")
    num_ideas: int = dspy.InputField(desc="Number of ideas to generate")

    ideas: str = dspy.OutputField(
        desc="JSON array of optimization ideas with title, description, novelty, "
        "implementation_sketch, expected_outcome, risk_level, config_space, "
        "feasibility_score, novelty_score"
    )

The Helion Stack

Helion is a Python DSL that compiles to Triton. From a single kernel definition, the autotuner explores:

Parameter Search Space
block_sizes Tile dimensions for each loop
loop_orders Permutation of iteration order
indexing pointer, block_ptr, tensor_descriptor (TMA)
pid_type flat, xyz, persistent_blocked
num_warps 2, 4, 8
num_stages 2, 3, 4
warp_specialize Blackwell warp specialization

Architecture

┌─────────────────────────────────────────────────────────────────────────┐
│                      Grok AI Engineer Pipeline                           │
├─────────────────────────────────────────────────────────────────────────┤
│                                                                          │
│  ┌─────────────────────┐       ┌─────────────────────┐                  │
│  │   arXiv + Exa       │       │   xAI x_search      │                  │
│  │   (Academic)        │       │   (Social/xdk)      │                  │
│  └──────────┬──────────┘       └──────────┬──────────┘                  │
│             └──────────┬───────────────────┘                             │
│                        ▼                                                 │
│           ┌────────────────────────┐                                    │
│           │   LiteratureSummary    │                                    │
│           │   papers + x_threads   │                                    │
│           └───────────┬────────────┘                                    │
│                       ▼                                                  │
│           ┌────────────────────────┐                                    │
│           │   Grok 4.1 Reasoning   │                                    │
│           │   + DSPy Signatures    │                                    │
│           │   Gap Analysis         │                                    │
│           │   Novelty Validation   │                                    │
│           │   Idea Generation      │                                    │
│           └───────────┬────────────┘                                    │
│                       ▼                                                  │
│           ┌────────────────────────┐                                    │
│           │   Grok-4-1-fast        │                                    │
│           │   PyTorch Impl         │                                    │
│           └───────────┬────────────┘                                    │
│                       │                                                  │
└───────────────────────┼──────────────────────────────────────────────────┘
                        ▼
┌─────────────────────────────────────────────────────────────────────────┐
│                    KernelEvolve + Helion                                 │
├─────────────────────────────────────────────────────────────────────────┤
│                                                                          │
│   ┌─────────────────────────────────────────────────────────────────┐   │
│   │                OpenEvolve Autotuner                              │   │
│   │                                                                  │   │
│   │   Population of Configs → Grok Mutations → Compile → Benchmark  │   │
│   │                    ↓                                             │   │
│   │              Select Winners → Next Generation                   │   │
│   │                                                                  │   │
│   └─────────────────────────────────────────────────────────────────┘   │
│                        ↓                                                 │
│   Optimized Triton Kernel → B200 (up to 1.27x faster)                   │
│                                                                          │
└─────────────────────────────────────────────────────────────────────────┘

Challenges we ran into

LLMs struggle with kernel optimization: Limited public training data means Grok can't just "know" what makes a kernel fast. Solution: evolutionary search with real hardware feedback.

Enormous search space: A single kernel has hundreds of valid configurations. Solution: differential evolution with Grok-guided mutations and tournament selection.

Context window management: X threads can be verbose, and academic papers are long. Solution: structured summarization with character limits, DSPy signatures that extract key information, and progressive filtering.

Autotuning takes time: ~10 minutes per kernel for full optimization. Solution: tiered approach—quick validation during dev, full autotuning for final benchmarks.

X API rate limits: Heavy research can hit rate limits. Solution: graceful degradation that returns partial results, caching, and configurable max_results limits.

Accomplishments we're proud of

  • Up to 1.27x speedup on real transformer inference (Qwen2-0.5B @ 4096 tokens)
  • Never slower than baseline across all 40 model/sequence combinations tested
  • 1.11x average speedup at 4096 tokens — gains scale with sequence length
  • 10 production models validated: Qwen, Llama, Phi, SmolLM families
  • 19.1% TFLOPS improvement from autotuner on attention kernel (93.99 TFLOPS)
  • 196 total evolutionary evaluations across kernel tuning runs on B200
  • First system to combine X research signal with automated kernel optimization
  • Full thread reconstruction from X API with RT expansion and note_tweet support
  • DSPy-powered structured prompts for reliable idea generation and assessment

What we learned

X is genuine research alpha: Practitioners discuss pain points on X months before papers. This signal is valuable and underutilized.

Evolutionary search + LLM guidance > pure LLM generation: Grok can't directly generate optimal kernels, but it makes intelligent mutations with fitness feedback.

Performance scales with sequence length: The longer the sequence, the more opportunity for optimization. This matters as context windows grow.

Head dimension affects optimization opportunity: head_dim=64 models see the biggest gains (1.11x avg) vs head_dim=128 (1.04x avg).

Structured outputs via DSPy are essential: Without Pydantic models and signatures, parsing LLM responses becomes fragile. DSPy makes prompts robust and optimizable.

Thread context matters: Individual tweets are often useless—you need the full conversation thread to understand the research discussion.

What's next: The Self-Improvement Vision

We believe AGI can be reached sooner when we have self-improving algorithms. Our project enables Grok to:

  1. Do AI research: Survey literature, identify gaps, propose novel ideas
  2. Build efficient systems: Implement ideas with optimized kernels
  3. Validate and iterate: Measure real performance, learn from failures

The optimized kernels Grok produces today can be used in future Grok training—making the model better at kernel optimization. This self-improvement loop compounds over time.

Roadmap:

  • Closed-loop feedback: benchmark results inform next research iteration
  • Multi-target optimization: MI300X, H100, B200 simultaneously
  • More model architectures: Mamba, RWKV, mixture-of-experts
  • Expanded X sources: GPU Mode Discord, Tri Dao, Karpathy
  • DSPy prompt optimization: BootstrapFewShot for better idea generation

Built with

  • LLM Infrastructure: xAI SDK, Grok-4-1-fast, Grok 4.1 Reasoning, x_search tool
  • X Integration: xdk for Twitter/X API, full thread reconstruction
  • Research Tools: arXiv, Exa.ai, DSPy for prompt engineering
  • Kernel Stack: PyTorch 2.4+, Helion DSL, Triton
  • Target Hardware: NVIDIA B200
  • Languages: Python

Try it

Benchmark Methodology

  • Hardware: NVIDIA B200
  • Benchmark Type: End-to-end transformer forward pass
  • Batch Size: 1
  • Warmup: 3 iterations
  • Measurement: Interleaved benchmarking for fair comparison
  • Correctness: All configurations verified against PyTorch reference (rtol=1e-2, atol=1e-2)

Full benchmark report and raw data available in repository.

Environment Variables Required

EXA_API_KEY              # Literature search (Exa.ai)
X_API_KEY                # X (Twitter) posts search via xdk
XAI_API_KEY              # Grok API (LLM provider)
ANTHROPIC_API_KEY        # Claude API (optional alternative LLM)
OPENAI_API_KEY           # OpenAI API (optional alternative LLM)

Quick Start

# Clone and install
git clone https://github.com/mycpuorg/pytorch_ai_scientist
cd pytorch_ai_scientist
pip install -e .

# Set up environment
export XAI_API_KEY="your-grok-api-key"
export X_API_KEY="your-x-api-bearer-token"
export EXA_API_KEY="your-exa-api-key"

# Run the full pipeline
pytorch-scientist run --domain "LLM guided PyTorch kernel optimization"

# Or run discovery only
pytorch-scientist discover --domain "transformer attention optimization"

Built With

Share this project:

Updates
