Forensic Fusion: Project Story - Team ID code: 0D75EDD904BE3AF9

Domain we would have claimed - thesilentwitness.tech

Inspiration

Memory forensics is one of the most powerful tools in cybersecurity, but it's notoriously slow to triage. Analysts spend hours parsing through raw Volatility outputs, manually correlating processes, network connections, and code injection patterns to identify threats. During incident response, every minute counts.

We were inspired to build Forensic Fusion after seeing how AI and automation could transform other domains. We asked: "What if we could turn a 2GB memory dump into a concise, actionable threat report in minutes instead of hours?" The answer was combining Volatility 3's forensic capabilities with an intelligent AI agent that understands context and can reason about security threats.

What it does

Forensic Fusion is an AI-powered forensic analysis platform that automates memory forensics, registry analysis, steganography detection, and encrypted file scanning. Users can upload memory dumps, images, or archives, and the system:

Automatically analyzes memory dumps using Volatility 3 (processes, network connections, code injection)
Extracts registry artifacts from memory (Run/RunOnce, USBSTOR, persistence mechanisms)

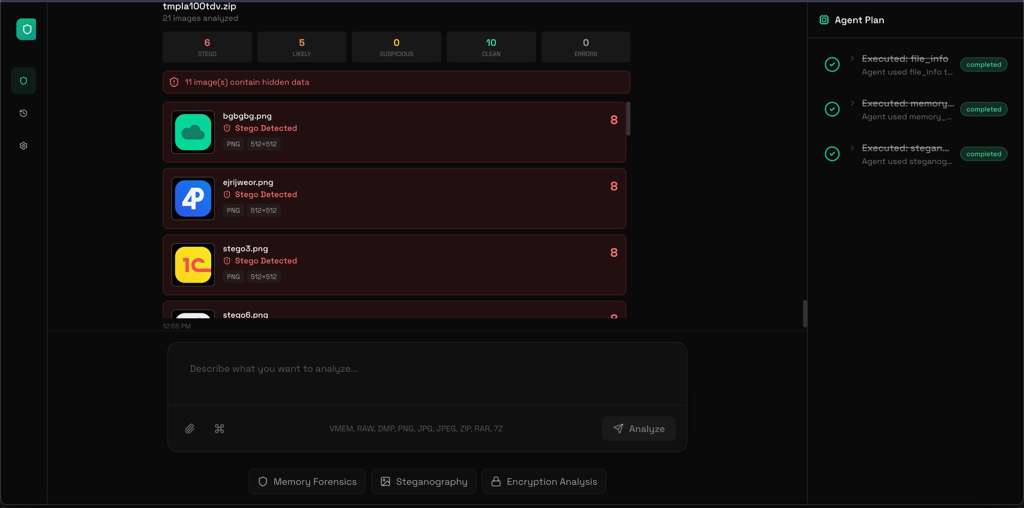

Detects steganography in images using LSB analysis and statistical tests
Identifies encrypted files through entropy analysis and password-protected archive detection
Provides AI-powered insights using Google Gemini to summarize findings and recommend actions
Uses an intelligent agent (LangChain ReAct) that understands user intent and selects the right analysis tools

The result? A clean, evidence-based report that highlights suspicious processes, network anomalies, and potential threats—all in a fraction of the time it takes to manually analyze.

How we built it

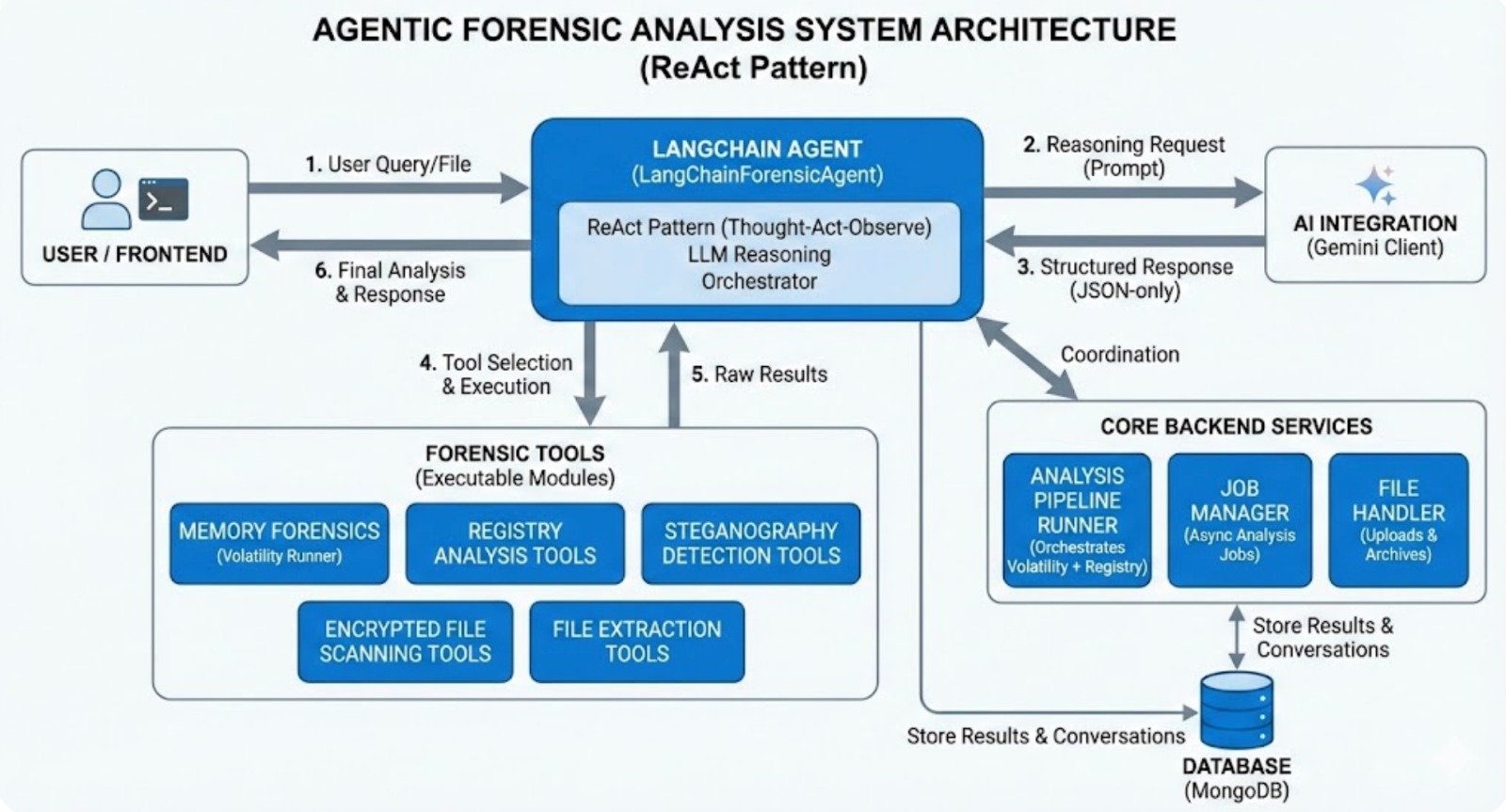

We built Forensic Fusion as a full-stack application with a modular, agentic architecture:

Backend (FastAPI + Python)

Core analysis pipeline orchestrating Volatility 3, registry parsing, and file analysis
LangChain ReAct agent that intelligently routes user queries to appropriate tools
Modular design: separate modules for volatility, registry, steganography, encryption, and agent logic
Async job processing with MongoDB for persistent storage
Robust file handling supporting multiple formats (.vmem, .raw, .dmp, .rar, .zip, .7z)

Frontend (Next.js + TypeScript)

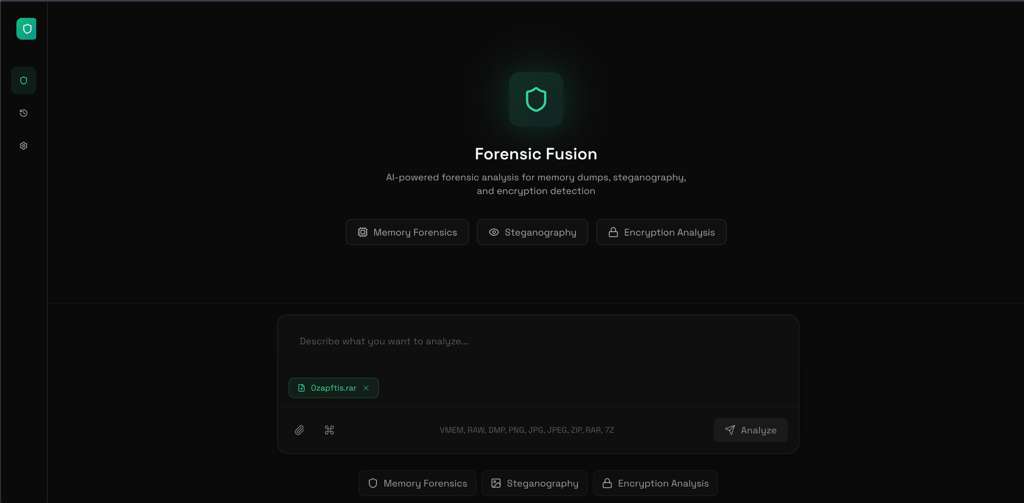

Modern React interface with real-time analysis dashboard

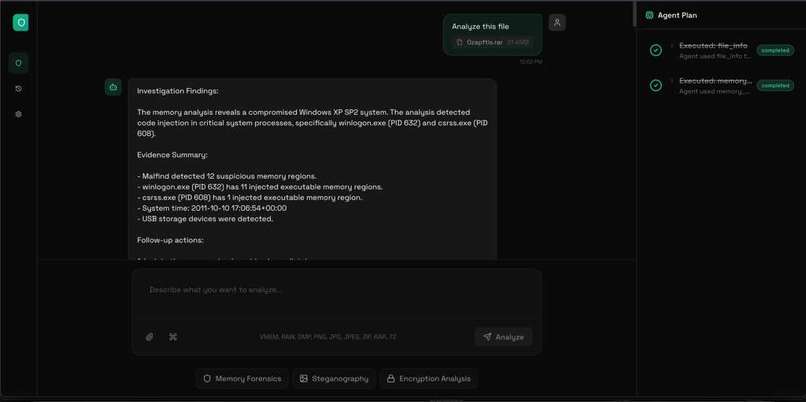

Agentic chat interface for natural language interaction

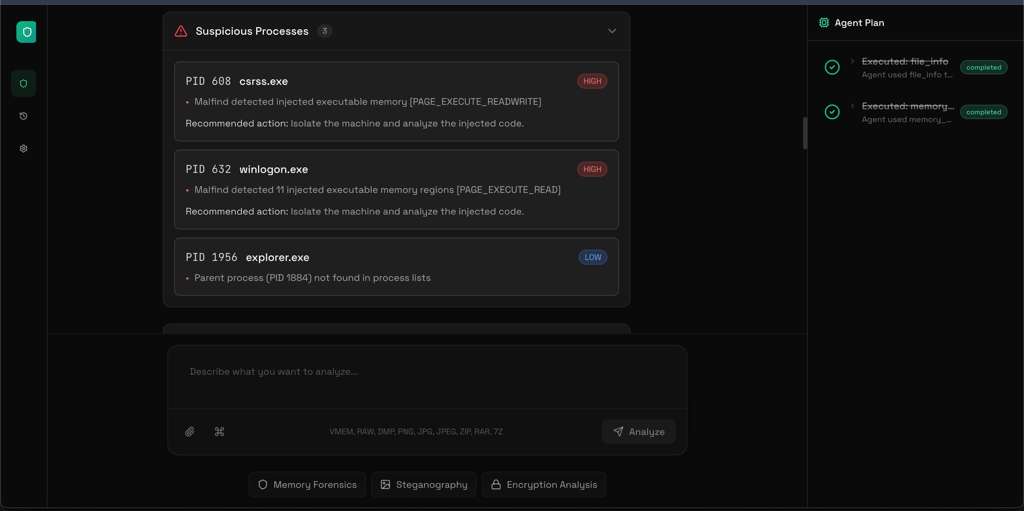

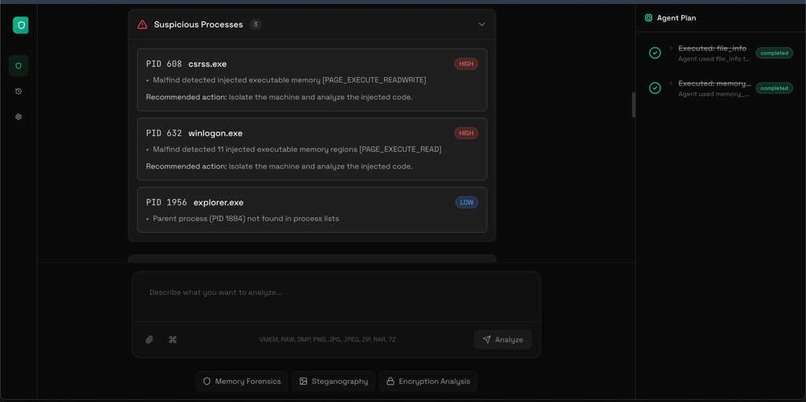

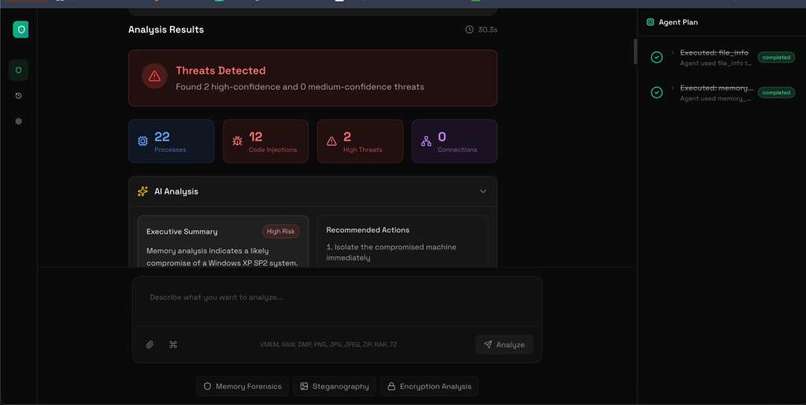

Results visualization showing processes, threats, and AI insights
Tailwind CSS for a clean, professional UI

AI Integration

Google Gemini API for generating forensic summaries and agent reasoning
Structured JSON-only responses for reliable parsing
Context-aware prompt building that includes evidence and suspicion scores

Deployment

Docker Compose for containerized services
Support for VPS deployment with systemd and Nginx

Challenges we ran into

The biggest challenge: Obtaining forensic data files. Memory dumps and malware samples are extremely limited in public datasets. Most require special access, academic credentials, or are behind paywalls. For a hackathon with limited resources, finding quality test data was our primary blocker. We overcame this by using publicly available samples like the 0zapftis.vmem (R2D2 malware) and building robust archive extraction to handle password-protected samples.

Technical challenges:

Volatility symbol management: Each memory dump requires exact Windows symbols. We implemented automatic symbol downloading and caching from Microsoft's Symbol Server.
Archive extraction: Malware samples often come in password-protected archives. We built a handler that tries common passwords (infected, malware, virus) and supports multiple formats.
Agent tool selection: The AI agent sometimes chose tools based on file extensions rather than user intent. We enhanced the system prompt with explicit rules prioritizing user queries.
Python 3.13 SSL compatibility: MongoDB Atlas connections failed due to stricter SSL defaults. We added SSL context patching for compatibility.
Large file handling: Memory dumps can be 2GB+. We implemented streaming uploads and configurable size limits.

Accomplishments that we're proud of

Built a working agentic AI system that understands forensic analysis context and intelligently routes queries to the right tools
Integrated multiple forensic domains (memory, registry, steganography, encryption) into a unified platform
Created a production-ready architecture with async processing, job management, and persistent storage
Delivered a clean, intuitive UI that makes complex forensic analysis accessible
Overcame data limitations by building a flexible system that works with any available memory dump format
Achieved end-to-end automation from file upload to AI-generated threat report

What we learned

Technical skills:

Memory forensics with Volatility 3: understanding Windows memory structures, process injection detection, network artifact extraction
Agentic AI architecture: LangChain ReAct pattern, tool-based reasoning, LLM orchestration
Multi-domain forensics: registry analysis, steganography detection (LSB, chi-square tests), entropy-based encryption detection
System design: async job processing, Docker containerization, MongoDB integration, RESTful API design

Domain knowledge:

Malware detection patterns: code injection, suspicious processes, network anomalies
Windows forensics: registry artifacts, persistence mechanisms, USB device tracking
File analysis: steganography techniques, entropy analysis, archive formats

Lessons:

The importance of modular architecture when integrating multiple complex systems
How AI agents can bridge the gap between user intent and technical tool execution
The value of robust error handling and user-friendly error messages in forensic tools
Working with limited resources teaches creative problem-solving
