Glow — AI Skincare Advisor — Project Document

Powered by Google ADK & Gemini Live API Real-time multimodal skincare analysis and personalized recommendations using voice, video, and text interaction.

Version 2.0 | March 2026 Google Cloud · Google ADK · Gemini · Firebase · Model Armor

1. Executive Summary

Glow is an intelligent, real-time skincare consultation platform that leverages Google's Agent Development Kit (ADK) and Gemini Live API to deliver personalized skincare guidance through natural voice, video, and text interactions.

Users can point their camera at their skin, speak about their concerns, and receive immediate, contextual advice from a multi-agent AI system featuring 8 specialist agents and 3 workflow agents. The platform analyzes visible skin conditions, recommends tailored routines, checks ingredient safety and interactions, finds relevant KOL content, and tracks progress over time — all within a fully Google-native technology stack.

Mission: Democratize access to personalized skincare advice through AI, making expert-level guidance available to anyone with a smartphone — while always encouraging professional dermatological consultation for serious concerns.

1.1 Key Objectives

  • Provide real-time, multimodal skincare analysis via voice and video using Gemini Live API with native audio
  • Build a multi-agent system with 8 specialist agents and 3 workflow agents (parallel, sequential, loop patterns) via ADK
  • Deliver personalized, evidence-based skincare recommendations grounded in Vertex AI Search datastores
  • Ensure user safety with defense-in-depth: Google Cloud Model Armor, ADK callbacks, and Gemini safety filters
  • Enable cross-session memory with Vertex AI Memory Bank for personalized continuity

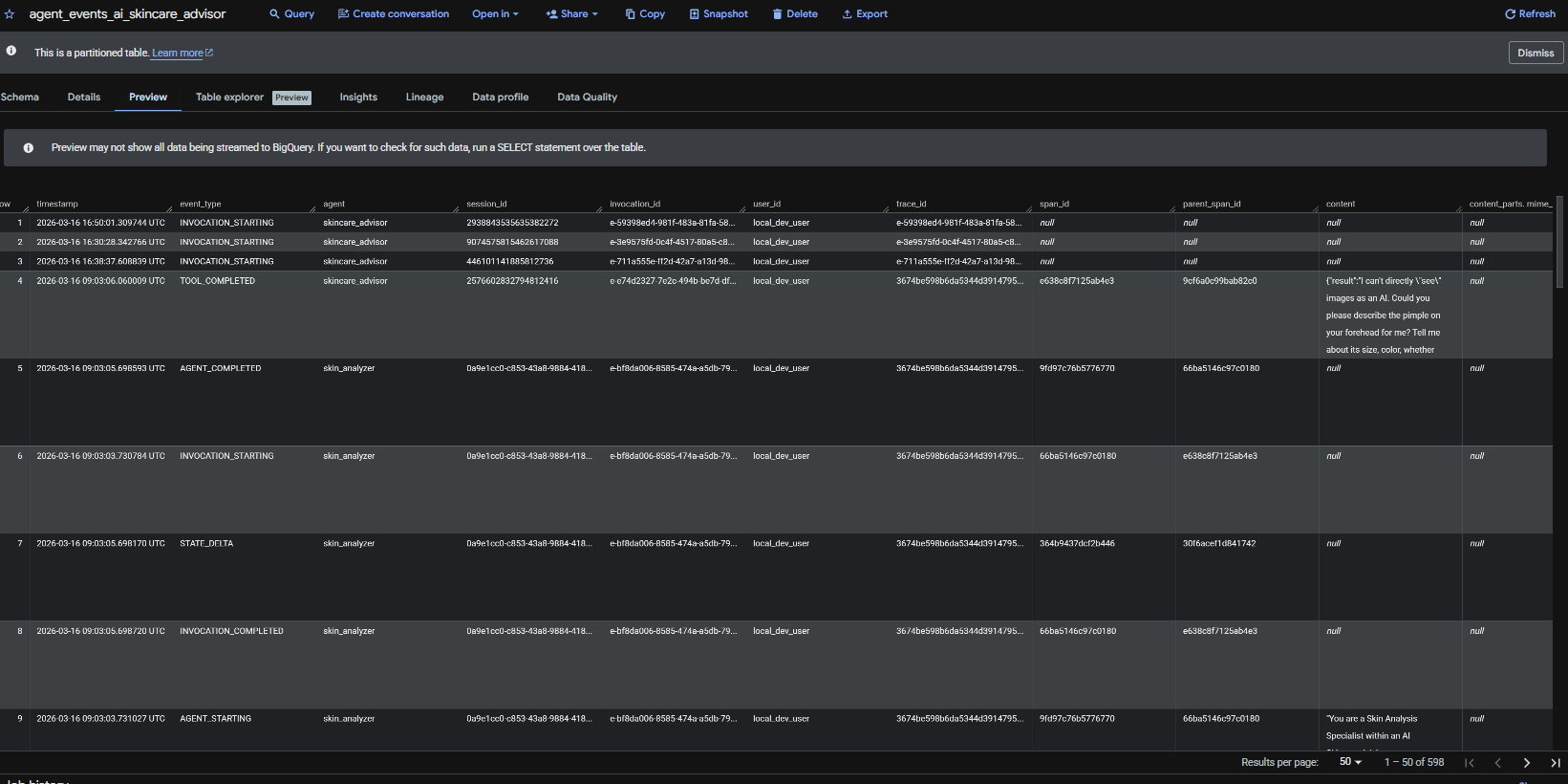

  • Track all agent interactions via BigQuery Agent Analytics Plugin for observability
  • Deploy on a fully Google-native stack: ADK, Gemini, Firebase, Cloud Run, Vertex AI Agent Engine

1.2 Target Users

  • Individuals seeking personalized skincare advice without expensive dermatologist visits
  • Skincare enthusiasts wanting to optimize their routines and check ingredient compatibility
  • People with specific skin concerns (acne, hyperpigmentation, sensitivity, aging) wanting targeted guidance
  • Users in regions with limited access to dermatological professionals

2. System Architecture

The system follows a layered architecture built entirely on Google Cloud services and open-source Google frameworks. The architecture is designed for real-time streaming, horizontal scalability, and modular extensibility.

2.1 Architecture Overview

Layer Purpose Google Services
Presentation Layer User-facing mobile interface Flutter (iOS/Android)
Streaming Layer Real-time bidirectional communication Gemini Live API, WebSocket
Agent Orchestration Layer Multi-agent coordination, routing, and workflows Google ADK (AgentTool, SequentialAgent, ParallelAgent, LoopAgent)
Intelligence Layer LLM reasoning, knowledge retrieval, thinking Gemini Live 2.5 Flash (native audio), Gemini 2.5 Flash, Vertex AI Search
Security Layer Input/output sanitization, safety guardrails Google Cloud Model Armor, ADK callbacks, Gemini safety filters
Data & Storage Layer User data, media, knowledge datastores Firestore, Cloud Storage, Vertex AI Search datastores
Observability Layer Agent analytics, tracing, structured logging BigQuery Agent Analytics Plugin, OpenTelemetry
Engagement Layer Push notifications, routine reminders, product deals Firebase Cloud Messaging (FCM)

2.2 High-Level Architecture Diagram

┌──────────────────────────────────────────────────────────────┐
│                     PRESENTATION LAYER                       │
│  ┌────────────────────────────────────────────────────┐      │
│  │  Flutter App "Glow"  (iOS/Android)                 │      │
│  │  Camera · Microphone · Push Notifications          │      │
│  └───────────────────────┬────────────────────────────┘      │
└──────────────────────────┼───────────────────────────────────┘
                           │    WebSocket (audio/video/text)
┌──────────────────────────┴───────────────────────────────────┐
│              STREAMING LAYER (Cloud Run)                      │
│           FastAPI + ADK Bidi-Streaming Server                 │
│  ┌─────────────────────────────────────┐                     │
│  │  LiveRequestQueue (ADK)             │                     │
│  │  Firebase Auth (JWT verification)   │                     │
│  │  Rate Limiting + Session Mgmt       │                     │
│  │  Binary audio / JSON text framing   │                     │
│  └──────────────────┬──────────────────┘                     │
└─────────────────────┼────────────────────────────────────────┘
                      │
┌─────────────────────┴────────────────────────────────────────┐
│           AGENT ORCHESTRATION LAYER (Google ADK)             │
│  ┌────────────────────────────────────────────────┐          │
│  │     Root Orchestrator Agent (skincare_advisor)  │          │
│  │     Model: gemini-live-2.5-flash-native-audio   │          │
│  │     BuiltInPlanner (thinking_budget=1024)       │          │
│  │     PreloadMemoryTool + AgentTool wrappers      │          │
│  └──┬────┬────┬────┬────┬────┬────┬────┬─────────┘          │
│     │    │    │    │    │    │    │    │                      │
│  ┌──┴──┐┌┴──┐┌┴──┐┌┴──┐┌┴──┐┌┴──┐┌┴──┐┌┴─────┐             │
│  │Skin ││Rou││Ing││Ing││Ski││Q&A││KOL││Prog- │             │
│  │Anal-││tin││red││red││n  ││   ││Con││ress  │             │
│  │yzer ││e  ││ie-││ie-││Con││   ││ten││Track │             │
│  │     ││Bui││nt ││nt ││dit││   ││t  ││er    │             │
│  │     ││ld ││Chk││Int││ion││   ││   ││      │             │
│  └─────┘│er │└───┘│er │└───┘└───┘└───┘└──────┘             │
│          └───┘     └───┘                                     │
│  ┌──── Workflow Agents (composite patterns) ─────────────┐  │
│  │  ParallelAgent: Parallel Ingredient Check             │  │
│  │  SequentialAgent: Full Consultation Pipeline           │  │
│  │  SequentialAgent+LoopAgent: Routine Review Loop        │  │
│  └───────────────────────────────────────────────────────┘  │
└──────────────────────────────────────────────────────────────┘
                      │
┌─────────────────────┴────────────────────────────────────────┐
│                 SECURITY LAYER                                │
│  ┌──────────────┐  ┌──────────────┐  ┌──────────────┐        │
│  │ Model Armor  │  │ ADK Callback │  │ Gemini Built │        │
│  │ (PI, PII,    │  │ before/after │  │ -in Safety   │        │
│  │  RAI, URIs)  │  │ + medical    │  │ Filters      │        │
│  └──────────────┘  └──────────────┘  └──────────────┘        │
└──────────────────────────────────────────────────────────────┘
                      │
┌─────────────────────┴────────────────────────────────────────┐
│                 DATA & OBSERVABILITY LAYER                    │
│  ┌──────────┐ ┌──────────┐ ┌──────────┐ ┌────────────┐      │
│  │Firestore │ │ Cloud    │ │ Vertex   │ │ BigQuery   │      │
│  │(Sessions)│ │ Storage  │ │ AI Search│ │ Analytics  │      │
│  └──────────┘ └──────────┘ │(5 stores)│ │  Plugin    │      │
│                             └──────────┘ └────────────┘      │
└──────────────────────────────────────────────────────────────┘

2.3 Technology Stack

Layer Technology Purpose
Agent Framework Google ADK v1.23.0 (Python) Multi-agent orchestration, AgentTool, workflow agents, streaming
Root LLM Gemini Live 2.5 Flash (native audio) Real-time multimodal reasoning with native audio input/output
Sub-Agent LLM Gemini 2.5 Flash Text-based specialist reasoning for sub-agents
Knowledge Retrieval Vertex AI Search Tool (5 datastores) Grounded retrieval: ingredients, interactions, conditions, routines, KOL content
Agent Planning BuiltInPlanner (ThinkingConfig) Native Gemini thinking for tool selection and reasoning
Cross-Session Memory Vertex AI Memory Bank + PreloadMemoryTool Persistent user preferences, skin type, concerns across sessions
Security Google Cloud Model Armor ML-powered prompt/response sanitization (PI, PII, RAI, malicious URIs)
Backend Runtime Cloud Run Serverless container hosting for FastAPI + ADK server
Production Deployment Vertex AI Agent Engine Enterprise-grade agent hosting, scaling, session/memory management
Observability BigQuery Agent Analytics Plugin Agent event logging, tool calls, LLM interactions, multimodal content
Distributed Tracing OpenTelemetry SDK Trace IDs correlation across agent/tool spans
User Database Cloud Firestore User sessions, skin history, routine data
Authentication Firebase Authentication User sign-up/login (Google Sign-In, email/password)
Push Notifications Firebase Cloud Messaging (FCM) Routine reminders, follow-up nudges, product deal notifications
Mobile Frontend Flutter Cross-platform iOS/Android app with camera, mic, push notification support
Container Python 3.13-slim, Docker Production container with non-root user
CI/CD Cloud Build + deploy scripts Automated build and deployment
Secrets Secret Manager API keys and credential management

2.4 Data Flow

Step Action Services Involved
1 User opens Glow app, authenticates via Firebase Auth Flutter, Firebase Auth
2 Client establishes WebSocket connection to backend (/ws/{user_id}/{session_id}) Flutter, Cloud Run (FastAPI)
3 Server verifies Firebase JWT, creates InMemory live session FastAPI, Firebase Auth, ADK
4 LiveRequestQueue created, RunConfig set (AUDIO modality, BIDI streaming, Aoede voice) ADK Runner
5 User streams audio/video/text to backend via WebSocket WebSocket, LiveRequestQueue
6 Root Orchestrator Agent receives input, BuiltInPlanner reasons about routing ADK, Gemini Live API
7 Root Agent calls specialist AgentTool (executed via run_async in isolated context) AgentTool, Gemini 2.5 Flash
8 Sub-agent uses Vertex AI Search Tool to retrieve grounded knowledge Vertex AI Search datastores
9 Tool results streamed back to client (toolEvent call/result JSON frames) WebSocket
10 Audio response streamed as binary WebSocket frames, transcription as JSON WebSocket
11 After-agent callback sends events to Memory Bank for extraction Vertex AI Memory Bank
12 All interactions logged via BigQuery Agent Analytics Plugin BigQuery

3. Multi-Agent Architecture

The skincare advisor uses a hierarchical multi-agent system built with Google ADK. A Root Orchestrator Agent receives all user interactions and uses AgentTool wrappers to delegate to specialized sub-agents. Sub-agents execute via run_async() in isolated contexts — this avoids the Vertex AI mixed-tool-type limitation with the live audio model.

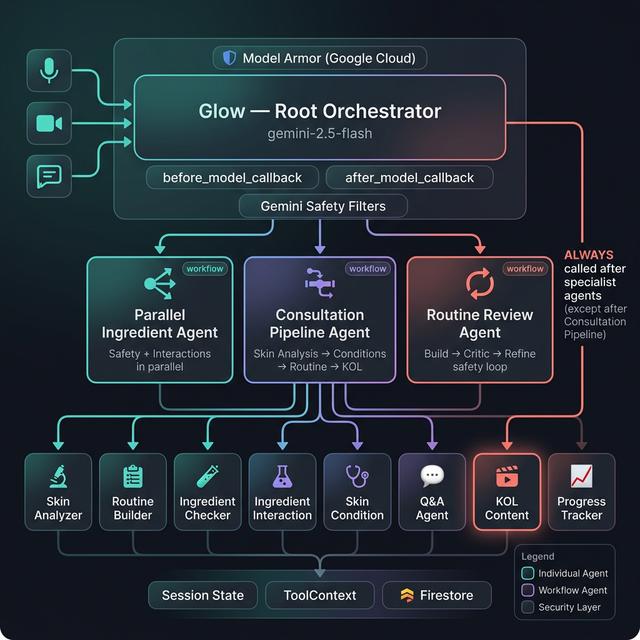

3.1 Agent Hierarchy

                     ┌──────────────────────────────┐
                     │   Root Orchestrator Agent     │
                     │   (skincare_advisor)          │
                     │   Model: gemini-live-2.5-     │
                     │     flash-native-audio        │
                     │   BuiltInPlanner + Callbacks  │
                     └──┬──┬──┬──┬──┬──┬──┬──┬──────┘
                        │  │  │  │  │  │  │  │
       ┌────────────────┘  │  │  │  │  │  │  └────────┐
  ┌────┴────┐ ┌────┴───┐ ┌┴──┐ ┌┴──┐ ┌┴──┐ ┌┴──┐ ┌───┴──┐ ┌──┴───┐
  │  Skin   │ │Routine │ │Ing│ │Ing│ │Ski│ │Q&A│ │ KOL  │ │Prog- │
  │Analyzer │ │Builder │ │red│ │red│ │n  │ │   │ │Conte-│ │ress  │
  │         │ │        │ │Chk│ │Int│ │Con│ │   │ │nt    │ │Track │
  └─────────┘ └────────┘ └───┘ └───┘ └───┘ └───┘ └──────┘ └──────┘

  ┌─── Workflow (Composite) Agents ────────────────────────────────┐
  │                                                                │
  │  🔀 Parallel Ingredient Agent                                 │
  │     ParallelAgent[IngChecker ‖ IngInteraction]                │
  │     → SequentialAgent → IngredientSynthesis                   │
  │                                                                │
  │  📋 Consultation Pipeline Agent                               │
  │     SequentialAgent[SkinAnalyzer → SkinCondition →            │
  │       RoutineBuilder → ConsultationSynthesis → KOLContent]    │
  │                                                                │
  │  🔄 Routine Review Agent                                      │
  │     SequentialAgent[RoutineBuilder →                           │
  │       LoopAgent(max=3)[RoutineCritic → RoutineRefiner]]       │
  └────────────────────────────────────────────────────────────────┘

3.2 Root Orchestrator Agent

The Root Orchestrator is the primary entry point for all user interactions. It uses the gemini-live-2.5-flash-native-audio model for real-time voice conversations and delegates to specialist agents via AgentTool wrappers.

Key Design Decision — AgentTool vs sub_agents:

Sub-agents are wrapped as AgentTool instances (NOT sub_agents / transfer_to_agent). This is necessary because:

  • AgentTool.run_async() creates a NEW Runner + InMemorySessionService
  • It calls runner.run_async() (standard async mode), NOT run_live()
  • Sub-agents execute in a completely independent context
  • VertexAiSearchTool works fine because it's not in a live session
  • The text result is returned to the live model like any function response

Responsibilities:

  • Receive and interpret all incoming user messages (text, audio, video)
  • Use BuiltInPlanner (ThinkingConfig, budget=1024) to reason about tool selection
  • Route to the appropriate specialist agent via AgentTool
  • PreloadMemoryTool retrieves user memories at the start of every turn
  • Handle general conversation, greetings, and clarification questions directly
  • Enforce safety via before_model_callback (Model Armor + medical checks) and after_model_callback
  • Persist memories via after_agent_callback (Memory Bank integration)

Code Structure:

from google.adk.agents import Agent
from google.adk.tools.agent_tool import AgentTool
from google.adk.tools.preload_memory_tool import PreloadMemoryTool
from google.adk.planners import BuiltInPlanner
from google.genai import types

root_agent = Agent(
    name="skincare_advisor",
    model="gemini-live-2.5-flash-native-audio",
    description="AI Skincare Advisor — Root Orchestrator",
    instruction=_ROOT_INSTRUCTION,  # Loaded from prompts/root_orchestrator.txt
    planner=BuiltInPlanner(
        thinking_config=types.ThinkingConfig(thinking_budget=1024)
    ),
    generate_content_config=types.GenerateContentConfig(
        safety_settings=[...],  # BLOCK_MEDIUM_AND_ABOVE for all categories
    ),
    tools=[
        PreloadMemoryTool(),
        AgentTool(agent=skin_analyzer_agent),
        AgentTool(agent=routine_builder_agent),
        AgentTool(agent=ingredient_checker_agent),
        AgentTool(agent=ingredient_interaction_agent),
        AgentTool(agent=skin_condition_agent),
        AgentTool(agent=qa_agent),
        AgentTool(agent=kol_content_agent),
        AgentTool(agent=progress_tracker_agent),
        # Composite workflow agents
        AgentTool(agent=parallel_ingredient_agent),
        AgentTool(agent=consultation_pipeline_agent),
        AgentTool(agent=routine_review_agent),
    ],
    before_model_callback=_safety_guardrail,
    after_model_callback=_output_safety_check,
    after_agent_callback=generate_memories_callback,
)

3.3 Specialist Sub-Agents

3.3.1 Skin Analyzer Agent

Analyzes skin conditions from video/image input and user descriptions. Uses Gemini Vision capabilities.

Property Details
Name skin_analyzer
Model gemini-2.5-flash
Input Video frames, images, text descriptions
Output Skin condition observations, concern identification, severity assessment
Tools save_analysis_to_state (persists to session state)
Output Key skin_analysis_result

3.3.2 Routine Builder Agent

Creates personalized morning and evening skincare routines grounded in routine template data.

Property Details
Name routine_builder
Model gemini-2.5-flash
Input User skin concerns, preferences, environment
Output Structured AM/PM routines with product suggestions and application order
Tools VertexAiSearchTool (routine-templates datastore)
Output Key current_routine

3.3.3 Ingredient Checker Agent

Analyzes product ingredients for safety, efficacy, and suitability using grounded ingredient data.

Property Details
Name ingredient_checker
Model gemini-2.5-flash
Input Product names, ingredient lists
Output Ingredient safety analysis, suitability assessment
Tools VertexAiSearchTool (skincare-ingredients datastore)

3.3.4 Ingredient Interaction Agent

Checks ingredient compatibility and identifies potential conflicts between active ingredients.

Property Details
Name ingredient_interaction
Model gemini-2.5-flash
Input Multiple ingredients or products to check
Output Compatibility report, conflict warnings, safe combinations
Tools VertexAiSearchTool (ingredient-interactions BigQuery datastore)

3.3.5 Skin Condition Agent

Provides information about skin conditions, symptoms, triggers, and recommended care approaches.

Property Details
Name skin_condition
Model gemini-2.5-flash
Input Condition names, symptoms described by user
Output Condition information, triggers, care guidelines
Tools VertexAiSearchTool (skin-conditions datastore)

3.3.6 General Q&A Agent

Handles general skincare education questions, grounded in dermatological knowledge.

Property Details
Name qa_agent
Model gemini-2.5-flash
Input Text or voice questions about skincare topics
Output Evidence-based answers with grounded references
Tools VertexAiSearchTool (skincare-ingredients datastore)

3.3.7 KOL Content Agent

Finds relevant Key Opinion Leader (KOL) and influencer skincare video content matching user concerns.

Property Details
Name kol_content_agent
Model gemini-2.5-flash
Input User's skin concerns and topics of interest
Output Relevant KOL video URLs and content recommendations
Tools VertexAiSearchTool (kol-content Google Sheets datastore)

3.3.8 Progress Tracker Agent

Tracks skin condition changes over time by recording and comparing observations.

Property Details
Name progress_tracker
Model gemini-2.5-flash
Input Current skin observations, historical data
Output Progress reports, trend analysis
Tools save_progress_note, get_progress_notes (session state)

3.4 Workflow (Composite) Agents

ADK enables powerful composite agent patterns. The system uses three workflow agents that combine specialist agents into coordinated pipelines:

3.4.1 Parallel Ingredient Check Agent

Runs ingredient safety and interaction checks concurrently, then synthesizes results.

SequentialAgent [
    ParallelAgent [
        ingredient_checker ‖ ingredient_interaction
    ],
    IngredientSynthesisAgent (merges results from state)
]

Use when: The user asks about an ingredient's safety AND its compatibility simultaneously.

3.4.2 Full Consultation Pipeline Agent

Chains specialist agents in a fixed order where each step builds on the previous one's output via session state.

SequentialAgent [
    skin_analyzer       → state: skin_analysis_result
    skin_condition      → state: skin_condition_result
    routine_builder     → state: current_routine
    consultation_synth  → state: consultation_summary
    kol_content_agent   → finds relevant videos
]

Use when: The user requests a comprehensive consultation or says "analyze everything."

3.4.3 Routine Review Loop Agent

Iteratively reviews and refines skincare routines before they reach the user using a critic/refiner loop.

SequentialAgent [
    routine_builder (→ state: current_routine),
    LoopAgent (max 3 iterations) [
        RoutineCriticAgent  (→ state: routine_criticism)
        RoutineRefinerAgent (updates routine or calls exit_loop)
    ]
]

Use when: Safety is important (sensitive skin, acne-prone skin, complex multi-step routines).

3.5 Agent Factory Pattern

To satisfy ADK's single-parent rule (each agent instance can only belong to one workflow parent), the system uses factory functions in agent_factories.py to create fresh instances with the same configuration but unique names:

def create_ingredient_checker(name="ingredient_checker", **overrides) -> Agent:
    return Agent(
        name=name,
        model="gemini-2.5-flash",
        instruction=_load_prompt("ingredient_checker.txt"),
        tools=[VertexAiSearchTool(data_store_id=DATASTORES["ingredients"], ...)],
        **overrides,
    )

3.6 Agent Routing Logic

The Root Orchestrator uses the BuiltInPlanner's thinking capability to decide which AgentTool to invoke:

User Input Example Routed To Reasoning
"Look at my skin, what do you see?" Skin Analyzer Video/image analysis request
"Build me a morning routine for oily skin" Routine Builder Routine creation request
"Is this moisturizer safe?" Ingredient Checker Single product safety query
"Can I use retinol with vitamin C?" Ingredient Interaction Ingredient compatibility query
"What is rosacea? What causes it?" Skin Condition Condition information request
"What does hyaluronic acid do?" Q&A Agent General skincare knowledge
"Show me skincare videos about acne" KOL Content Agent Content recommendation request
"How has my skin changed?" Progress Tracker Progress comparison request
"Check this product's safety AND interactions" Parallel Ingredient Agent Combined safety + interaction check
"Give me a full consultation" Consultation Pipeline End-to-end consultation pipeline
"Build me a safe routine for sensitive skin" Routine Review Agent Routine with safety validation loop

4. Tools & Integrations

4.1 Vertex AI Search Datastores

The system uses 5 Vertex AI Search datastores for grounded knowledge retrieval:

Datastore Content Data Source Agents Using It
skincare-ingredients 3,000+ skincare ingredients with safety/efficacy data Structured data Ingredient Checker, Q&A Agent
test-first-bigquery-table Ingredient interaction and compatibility data BigQuery table Ingredient Interaction Agent
skin-conditions Common conditions: symptoms, triggers, care guidelines Structured data Skin Condition Agent
routine-templates Evidence-based routine templates by skin type/concern Structured data Routine Builder Agent
kol-content KOL/influencer skincare video content catalog Google Sheets KOL Content Agent

4.2 Custom Tools (FunctionTools)

Tool Name Used By Function Storage
save_analysis_to_state Skin Analyzer Persists skin analysis results to session state Session State
save_progress_note Progress Tracker Records a progress observation with date Session State
get_progress_notes Progress Tracker Retrieves historical progress notes Session State
exit_loop Routine Refiner Signals the LoopAgent to stop iterating ToolContext (escalate)

4.3 Built-in ADK Tools

  • PreloadMemoryTool — Retrieves user memories from Vertex AI Memory Bank at the start of every turn, enabling cross-session personalization
  • VertexAiSearchTool — Grounded knowledge retrieval from Vertex AI Search datastores (used by 5 specialist agents)
  • AgentTool — Wraps sub-agents as callable tools that execute via run_async() in isolated contexts

4.4 ADK Callbacks

Callback Type Function
_safety_guardrail before_model_callback Model Armor prompt sanitization + medical request blocking
_output_safety_check after_model_callback Model Armor response screening + medical language flagging
generate_memories_callback after_agent_callback Sends recent events to Memory Bank for memory extraction

5. Knowledge Base & RAG Architecture

The skincare advisor's accuracy depends on grounded knowledge retrieval through Vertex AI Search datastores. This ensures all recommendations are evidence-based rather than relying solely on the LLM's training data.

5.1 Knowledge Base Structure

Datastore Content Update Mechanism
Ingredients 3,000+ skincare ingredients with safety/efficacy data Vertex AI Search ingestion
Ingredient Interactions Known conflicts and synergies between active ingredients BigQuery table → Vertex AI Search
Skin Conditions Common conditions: symptoms, triggers, care guidelines Vertex AI Search ingestion
Routine Templates Evidence-based routine templates by skin type and concern Vertex AI Search ingestion
KOL Content Curated KOL/influencer skincare video content Google Sheets → Vertex AI Search connector

5.2 Retrieval Pipeline

User Query (via AgentTool → sub-agent)
        │
        ▼
VertexAiSearchTool(data_store_id=..., bypass_multi_tools_limit=True)
  - Automatic query formation from agent context
  - Semantic search over datastore
        │
        ▼
Gemini 2.5 Flash (sub-agent)
  - Receives retrieved documents as context
  - Generates grounded response
  - Returns text result to root agent via AgentTool
        │
        ▼
Root Agent (gemini-live-2.5-flash-native-audio)
  - Speaks the response to the user in real-time

6. Security & Safety — Defense in Depth

CRITICAL: Skin photos and health-related data are sensitive personal information. The system implements 5 layers of security.

6.1 Layer 1: Google Cloud Model Armor

ML-powered prompt and response sanitization using the Model Armor Python SDK:

Filter Detection
Responsible AI (RAI) Hate speech, harassment, sexually explicit, dangerous content
Prompt Injection & Jailbreak Attempts to override system instructions or extract prompts
Sensitive Data Protection (PII/SDP) Credit cards, SSN, API keys, passwords, phone numbers
Malicious URI Detection URLs linked to phishing, malware, or other threats
CSAM Always-on child safety protection

Fail-open design: If Model Armor is unavailable, requests pass through with a warning log — never silently blocking all users.

from google.cloud import modelarmor_v1

# Prompt sanitization
result = model_armor.sanitize_prompt(user_text)
if result.is_blocked:
    return tailored_response(result.blocked_reason)

# Response sanitization
result = model_armor.sanitize_response(response_text)
if result.is_blocked:
    return safe_rephrased_response()

6.2 Layer 2: ADK before_model_callback

Domain-specific medical request blocking that Model Armor doesn't cover:

  • Blocks explicit prescription/diagnosis requests (12 patterns)
  • Returns friendly redirect to dermatologist consultation
  • Custom to skincare domain boundaries

6.3 Layer 3: ADK after_model_callback

Output screening for medical language in model responses:

  • Model Armor response screening
  • Flags medical-sounding language (logging only for monitoring)
  • "I diagnose," "prescription for," etc.

6.4 Layer 4: Gemini Built-in Safety Filters

Configured in generate_content_config with BLOCK_MEDIUM_AND_ABOVE threshold for:

  • Dangerous content
  • Harassment
  • Hate speech
  • Sexually explicit content

6.5 Layer 5: System Prompt Guardrails

Root orchestrator prompt includes:

  • Explicit persona boundary: "You are NOT a dermatologist"
  • Body-positive language requirements
  • Severity-based dermatologist referral thresholds
  • No storage of raw video streams

6.6 Authentication & Data Protection

  • Firebase Authentication for user identity (Google Sign-In, email/password)
  • JWT token validation on every WebSocket connection
  • CORS restricted to allowed origins only
  • Rate limiting: 30 text messages per 60-second window per session
  • Non-root container user in production Docker image
  • API keys stored in Secret Manager

7. Observability — BigQuery Agent Analytics

7.1 BigQuery Agent Analytics Plugin

The system uses ADK's BigQuery Agent Analytics Plugin for comprehensive observability:

from google.adk.plugins.bigquery_agent_analytics_plugin import (
    BigQueryAgentAnalyticsPlugin,
    BigQueryLoggerConfig,
)

bq_plugin = BigQueryAgentAnalyticsPlugin(
    project_id=_PROJECT_ID,
    dataset_id="adk_agent_logs",
    table_id="agent_events_ai_skincare_advisor",
    config=BigQueryLoggerConfig(
        enabled=True,
        gcs_bucket_name=os.environ.get("GCS_BUCKET_NAME"),
        log_multi_modal_content=True,
        max_content_length=500 * 1024,  # 500 KB
        batch_size=1,                   # Low latency
    ),
)

7.2 What Gets Logged

All agent events are automatically captured in BigQuery:

  • Agent Execution Events — which agent handled each request
  • LLM Call Events — prompts, completions, token counts, latency
  • Tool Invocation Events — input parameters, output, duration, success/failure
  • Multimodal Content — audio/image data stored in GCS, referenced from BigQuery
  • Session Events — session creation, state updates

7.3 BigQuery Analytics Views

Custom SQL views provide operational dashboards (defined in docs/bigquery_analytics_views.sql):

  • Agent usage distribution
  • Tool call success rates
  • Response latency percentiles
  • Session completion patterns
  • Error rate monitoring

7.4 Structured Logging

JSON-structured logging with rotating file handler:

  • Console handler: INFO level
  • File handler: 5MB max, 3 backup files (logs/server.log)
  • Noisy ADK module suppression (audio cache, protocol, connection)

8. Cross-Session Memory — Vertex AI Memory Bank

8.1 Architecture

The system uses Vertex AI Memory Bank for persistent, cross-session user memories:

  • PreloadMemoryTool — Retrieves relevant memories at the start of every turn
  • after_agent_callback — Sends recent events to Memory Bank after each turn

8.2 Memory Extraction

async def generate_memories_callback(callback_context: CallbackContext):
    """Sends recent events to Memory Bank for memory extraction."""
    recent_events = callback_context.session.events[-5:-1]
    if recent_events:
        await callback_context.add_events_to_memory(events=recent_events)

The Memory Bank LLM automatically:

  • Extracts meaningful info (skin type, preferences, concerns, routines)
  • Consolidates with existing memories (update, not duplicate)
  • Ignores non-informative turns

8.3 Dual-Mode Services

Mode Session Service Memory Service Trigger
Local Dev InMemorySessionService InMemoryMemoryService AGENT_ENGINE_ID not set
Production VertexAiSessionService VertexAiMemoryBankService AGENT_ENGINE_ID set

Note: Live streaming sessions always use InMemorySessionService because VertexAiSessionService's events API is incompatible with run_live().

9. Push Notifications — Firebase Cloud Messaging

9.1 Notification Types

Type Trigger Content
Routine Reminder Scheduled (morning/evening) "Time to start your morning skincare routine!"
Follow-up Nudge Time since last consultation "How's your skin doing? Want to check in?"
Progress Milestone 3, 5, 10, 25 check-ins "🏆 10 Check-ins! Incredible dedication!"
Product Discount Personalized to skin concerns Matched from product catalog with buy_url

9.2 Product Catalog

The server/product_catalog.py module provides a curated product catalog matched to user skin concerns, enabling personalized deal notifications with direct e-commerce purchase links.

9.3 API Endpoints

Endpoint Method Purpose
/api/register-token POST Register FCM device token
/api/send-notification POST Send push notification to user
/api/trigger-reminders POST Trigger routine reminders + product deals for all users

10. Flutter Mobile App — "Glow"

10.1 App Architecture

The Flutter app provides a native iOS/Android experience for real-time skincare consultation:

Screen File Purpose
Login login_screen.dart Firebase Auth (Google Sign-In, email/password)
Home home_screen.dart Dashboard with consultation history
Main main_screen.dart Navigation and app shell
Consultation Lobby consultation_lobby_screen.dart Pre-consultation setup
Consultation consultation_screen.dart Real-time voice/video consultation
Chat chat_screen.dart Text-based chat interface

10.2 Services

Service File Purpose
Audio audio_service.dart PCM audio capture and playback
Camera camera_service.dart Camera capture for skin analysis
WebSocket websocket_service.dart Bidi-streaming connection to backend
Auth auth_service.dart Firebase Auth state management
Chat History chat_history_service.dart Session history retrieval
Notifications notification_service.dart FCM push notification handling

10.3 Key Features

  • Real-time voice conversation with native audio streaming
  • Camera integration for live skin analysis
  • Tool event display (shows "Analyzing ingredients..." during agent processing)
  • Transcription display (input and output transcription)
  • Push notification support for routine reminders and product deals
  • Custom theme with dark mode support

11. Project Structure

AI_Skincare_Advisor/
├── app/
│   ├── .env                                # API keys & config
│   └── skincare_advisor/
│       ├── __init__.py                     # Package init (imports root_agent)
│       ├── agent.py                        # Root Orchestrator Agent
│       ├── model_armor.py                  # Model Armor SDK integration
│       ├── callbacks/
│       │   ├── __init__.py
│       │   └── memory_callbacks.py         # Memory Bank after_agent_callback
│       ├── sub_agents/
│       │   ├── __init__.py
│       │   ├── agent_factories.py          # DRY agent creation (single-parent rule)
│       │   ├── skin_analyzer.py            # Skin Analyzer Agent
│       │   ├── routine_builder.py          # Routine Builder Agent
│       │   ├── ingredient_checker.py       # Ingredient Checker Agent
│       │   ├── ingredient_interaction.py   # Ingredient Interaction Agent
│       │   ├── skin_condition.py           # Skin Condition Agent
│       │   ├── qa_agent.py                 # General Q&A Agent
│       │   ├── kol_content.py              # KOL Content Agent
│       │   ├── progress_tracker.py         # Progress Tracker Agent
│       │   ├── parallel_ingredient_check.py # ParallelAgent workflow
│       │   ├── consultation_pipeline.py    # SequentialAgent pipeline
│       │   └── routine_review_loop.py      # LoopAgent review workflow
│       ├── tools/
│       │   ├── __init__.py
│       │   ├── skin_tools.py              # save_analysis_to_state
│       │   └── progress_tools.py          # save_progress_note, get_progress_notes
│       ├── prompts/                        # 13 system prompts (one per agent)
│       │   ├── root_orchestrator.txt
│       │   ├── skin_analyzer.txt
│       │   ├── routine_builder.txt
│       │   ├── ingredient_checker.txt
│       │   ├── ingredient_interaction.txt
│       │   ├── skin_condition.txt
│       │   ├── qa_agent.txt
│       │   ├── kol_content.txt
│       │   ├── progress_tracker.txt
│       │   ├── ingredient_synthesis.txt
│       │   ├── consultation_synthesis.txt
│       │   ├── routine_critic.txt
│       │   └── routine_refiner.txt
│       └── tests/
│           └── integration/
├── server/
│   ├── main.py                             # FastAPI + WebSocket + ADK Runner
│   ├── auth.py                             # Firebase Auth JWT verification
│   ├── model_armor.py                      # Model Armor (server copy)
│   ├── notifications.py                    # FCM push notification service
│   └── product_catalog.py                  # Product catalog for deal notifications
├── frontend/
│   └── flutter_app/                        # Flutter "Glow" mobile app
│       └── lib/
│           ├── main.dart                   # App entry point
│           ├── router.dart                 # GoRouter navigation
│           ├── theme.dart                  # Material 3 dark theme
│           ├── config.dart                 # Backend URL config
│           ├── firebase_options.dart
│           ├── screens/                    # 6 screens (login, home, main, lobby, consultation, chat)
│           └── services/                   # 6 services (audio, camera, websocket, auth, chat, notifications)
├── scripts/
│   ├── create_agent_engine.py              # Create Vertex AI Agent Engine instance
│   ├── create_model_armor_template.py      # Create Model Armor template
│   ├── deploy-backend.sh                   # Backend deployment script
│   ├── deploy.py                           # Python deployment orchestrator
│   ├── setup-gcp.sh                        # GCP project setup
│   └── test_websocket.py                   # WebSocket connection test
├── docs/
│   ├── project_document.md                 # This document
│   ├── blog_post.md                        # Hackathon blog post
│   ├── submission_text.md                  # Hackathon submission
│   ├── frontend_screens.md                 # Frontend documentation
│   ├── model_armor.md                      # Model Armor documentation
│   ├── bigquery_analytics_views.sql        # BigQuery dashboard queries
│   ├── eval_results.txt                    # Agent evaluation results
│   └── *.png                               # Architecture diagrams
├── logs/                                    # Rotating server logs
├── Dockerfile                               # Cloud Run container (Python 3.13-slim)
├── Dockerfile.flutter                       # Flutter web build container
├── requirements.txt                         # Python dependencies
├── .env                                     # Root environment variables
└── README.md                                # Project README

12. Deployment Architecture

12.1 Environments

Environment Platform Session/Memory Services Observability
Local Dev python -m server.main InMemorySession/MemoryService Console + file logging, BigQuery plugin
Production Cloud Run + Agent Engine VertexAiSession/MemoryBankService BigQuery analytics + Cloud Logging

12.2 Cloud Run Deployment

# Dockerfile
FROM python:3.13-slim
WORKDIR /app
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt
RUN adduser --disabled-password --gecos "" appuser && \
    chown -R appuser:appuser /app
COPY . .
USER appuser
CMD ["sh", "-c", "uvicorn server.main:web_app --host 0.0.0.0 --port ${PORT:-8080}"]

12.3 WebSocket Configuration

Production WebSocket settings optimized for long-running tool calls:

  • ws_ping_interval=30 — Ping every 30s (prevents idle disconnects)
  • ws_ping_timeout=120 — Wait up to 120s for pong (handles slow tool calls)

12.4 Deployment Scripts

Script Purpose
scripts/deploy-backend.sh Build and deploy to Cloud Run
scripts/deploy.py Python deployment orchestrator
scripts/create_agent_engine.py Create Vertex AI Agent Engine instance
scripts/create_model_armor_template.py Create Model Armor template via gcloud
scripts/setup-gcp.sh Initial GCP project setup (APIs, IAM, services)

12.5 Key Environment Variables

Variable Purpose Required
GOOGLE_CLOUD_PROJECT GCP project ID Yes
GOOGLE_CLOUD_LOCATION Region (default: us-central1) Yes
AGENT_ENGINE_ID Vertex AI Agent Engine ID (production mode) Prod only
MODEL_ARMOR_TEMPLATE_ID Model Armor template ID Optional
GCS_BUCKET_NAME GCS bucket for BigQuery multimodal content Optional
BQ_DATASET_ID BigQuery dataset (default: adk_agent_logs) Optional
ALLOWED_ORIGINS CORS allowed origins Optional
SKIP_AUTH Skip Firebase Auth in local dev Dev only

13. Dependencies

google-adk[eval]==1.23.0
google-genai==1.60.0
google-cloud-aiplatform[agent_engine]
fastapi
uvicorn[standard]
python-dotenv
firebase-admin
opentelemetry-sdk
google-cloud-modelarmor

Built with ❤️ using Google ADK, Gemini 2.5 Flash, and Google Cloud for the #GeminiLiveAgentChallenge

Built With

  • bigquery
  • cloud-firestore
  • cloud-run
  • cloud-storage
  • dart
  • fastapi
  • firebase-auth
  • flutter
  • gemini-2.5-flash
  • gemini-live-api
  • google-adk
  • google-search-api
  • model-armor
  • opentelemetry
  • python
  • vertex-ai-agent-engine
  • vertex-ai-rag-engine
  • websocket
Share this project:

Updates

Submission history
