🔮 GhostPipes - Yahoo Pipes Reborn with AI Intelligence

Inspiration

Remember Yahoo Pipes? That legendary visual data automation tool that died in 2015? I wanted to bring it back—but better. Not just as a nostalgic clone, but as a modern, AI-powered platform that understands what you're trying to do before you even finish explaining it.

The "aha moment" came when I was manually checking Amazon prices every day. I thought: "Why isn't there a visual tool that lets me build this automation in 60 seconds?" Zapier is too abstract. Azure Logic Apps has a learning curve. I wanted something that feels like playing with LEGO blocks, but for data.

What It Does

GhostPipes is a professional-grade visual pipeline automation platform that brings back the legendary Yahoo Pipes experience with modern superpowers:

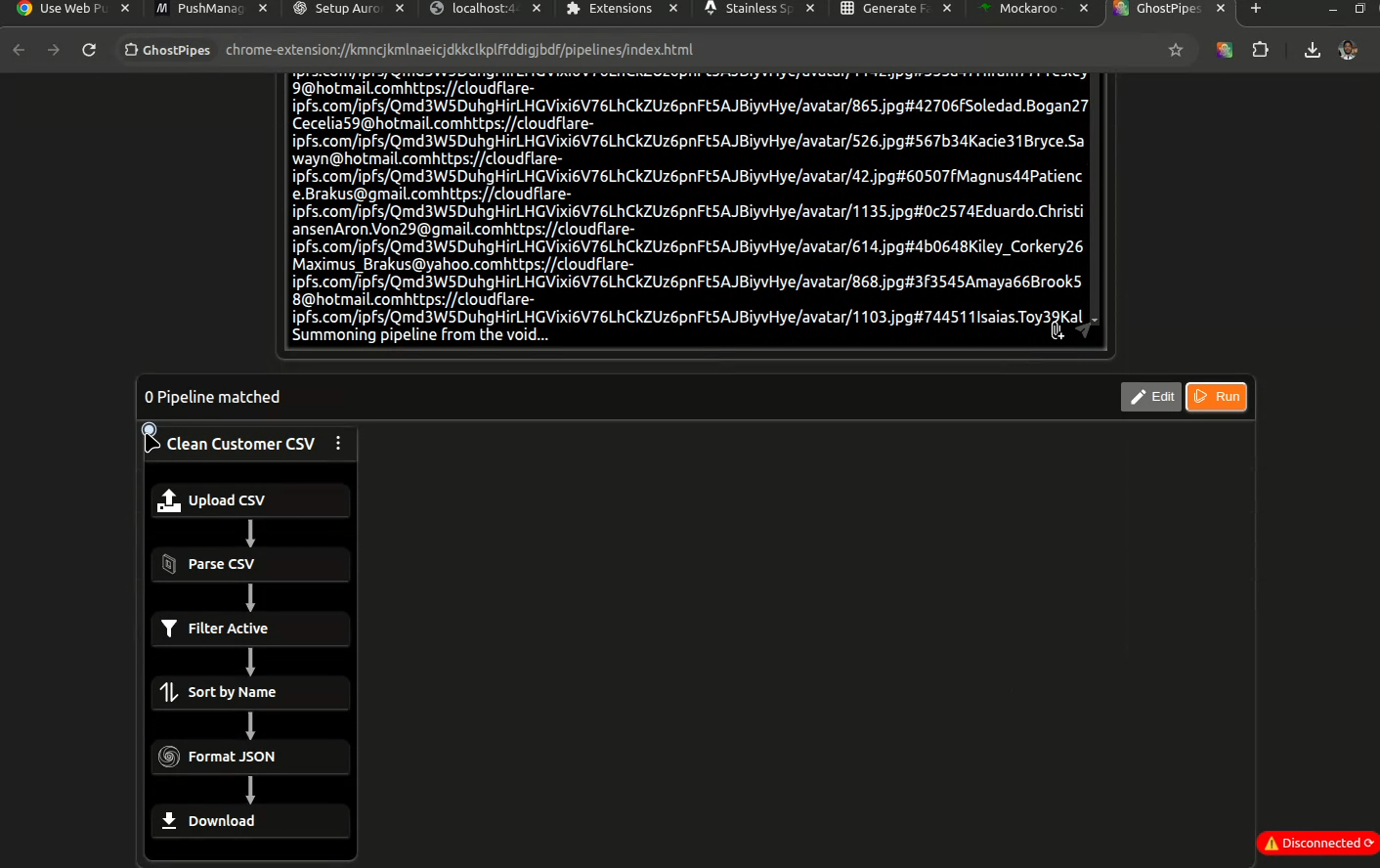

🧠 Intelligent Pipeline Recommendations

Drop a CSV file, paste a URL, or upload text—GhostPipes instantly analyzes your input and suggests the perfect pipeline from your collection:

  • Smart Pattern Matching: Recognizes file types (CSV, JSON, HTML), URL domains (api.github.com, shopify.com), and text structure
  • Bayesian Scoring Algorithm: Ranks pipelines 0-100 based on MIME type compatibility, domain matching, historical usage, and success rate
  • Learning System: Tracks every execution to improve future recommendations (time-decay algorithm favors recent patterns)
  • Fuzzy Matching: Uses MIME type hierarchies (text/csv → text/* → application/vnd.ms-excel) when exact matches aren't found

Example: Upload a CSV file → GhostPipes suggests "Product Price Tracker" (85% match), "CSV Data Processor" (72% match), "Generic CSV Parser" (68% match)

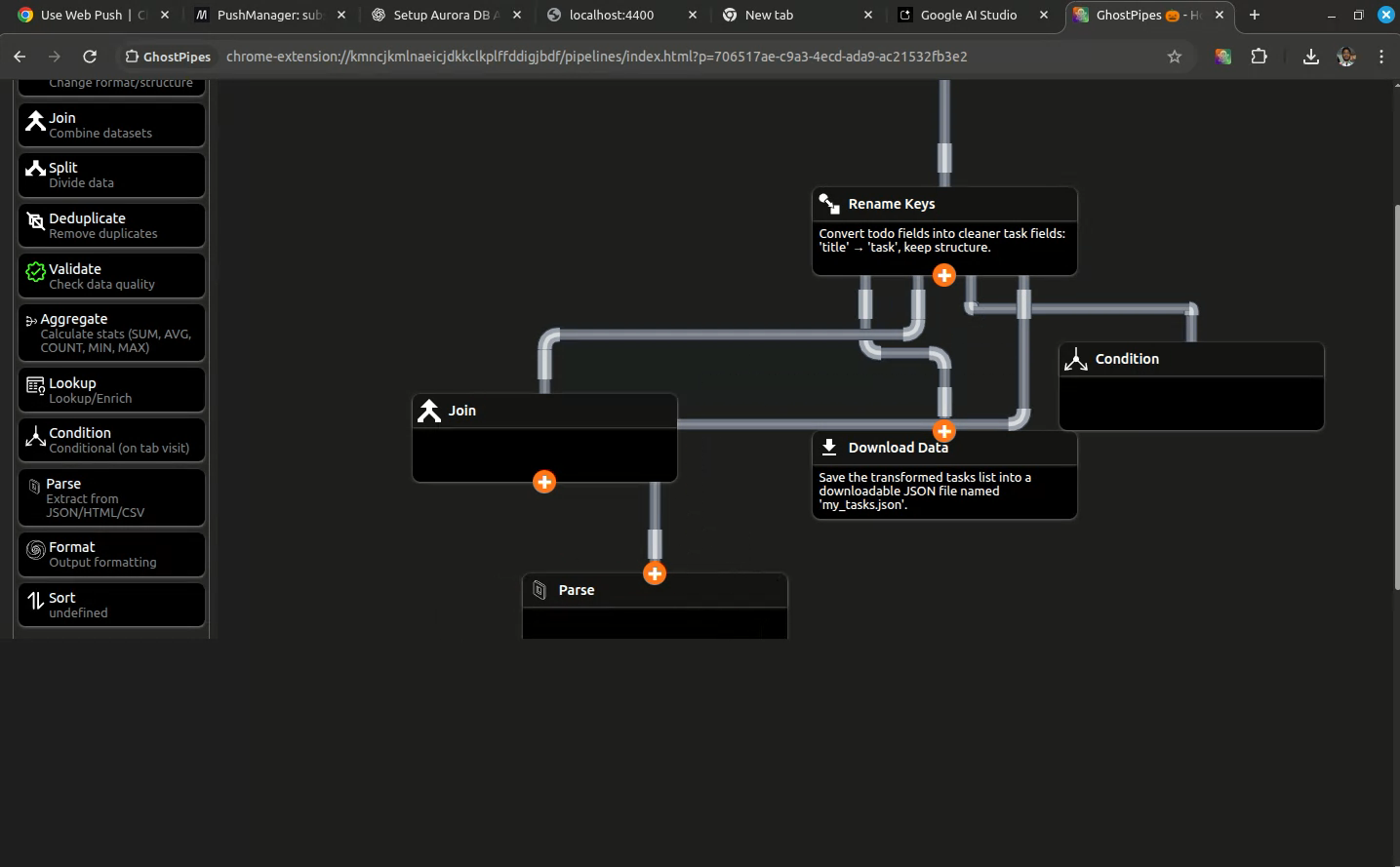

🎨 Industrial-Grade Visual Editor

The pipeline canvas isn't just functional—it's beautiful:

  • Realistic SVG Pipes: 10px thick metallic pipes with cubic bezier corners (10-20px radius), not crude straight lines
  • Orthogonal Routing: Pipes bend at perfect 90° angles with automatic collision avoidance
  • Decorative Joints: Small SVG patches at elbows create authentic industrial pipe aesthetic
  • Connection Intelligence: Automatically determines correct sides (bottom-to-top for vertical flow), manages multiple connections per side with 30px spacing
  • 60fps Smooth Dragging: Uses requestAnimationFrame for real-time pipe recalculation as you drag nodes
  • Data Flow Animation: Glowing particles (3px circles) travel through pipes during execution

Technical Achievement: The PathCalculator class implements a custom orthogonal routing algorithm with waypoint collision detection—something typically found in $10,000 CAD software.

⚡ 35+ Powerful Nodes

Input Sources (4 nodes):

  • HTTP Request (with timeout, retry, scheduling)
  • Manual Input (file upload, text paste, JSON)
  • Webhook (generates unique URLs, HMAC validation)
  • File Watch (uses File System Observer API)

Data Operations (23 nodes):

  • Filter (block/permit with multi-rule conditions)
  • Transform (template-based field mapping)
  • AI Processor (Claude integration for extraction/enrichment)
  • Parse (HTML selectors, CSV, JSON, XML)
  • Regex (pattern matching/extraction)
  • Loop, Condition, Switch (control flow)
  • Join, Union, Intersect (data merging)
  • Aggregate, Deduplicate, Validate (data quality)
  • Rate Limit, Cache, Batch (performance)
  • Custom Code (write JavaScript inline)

Output Destinations (4 nodes):

  • Download (JSON, CSV, TXT with Chrome Downloads API)
  • Append File (uses File System Access API)
  • HTTP POST (send to external APIs)
  • Email (mailto: integration)

🔗 Real-Time Webhook System

Generate unique webhook URLs for each pipeline:

https://api.ghostpipes.com/webhook/gh_V1StGXR8_Z5jdHi6

Smart Payload Routing:

  • Payloads <4KB: Sent directly via Web Push notification (instant execution)
  • Payloads >4KB: Extension fetches from server (reduces push message size)
  • Stores last 10 requests per webhook for debugging
  • Rate limiting: 100 requests/minute per webhook
  • Optional HMAC signature validation

Use Case: Connect Stripe webhooks → Parse payment data → Update Google Sheet → Send Slack notification

☁️ Cloud Sync & Sharing

  • Automatic Background Sync: 15-second debounced sync to AWS backend
  • Conflict Resolution: Server timestamp wins (last-write-wins strategy)
  • Public Pipeline Sharing: Generate unique tokens, share with community
  • Clone & Remix: Fork others' pipelines and customize
  • Offline-First: Extension works without internet, syncs when available

How I Built It

The Kiro Revolution

This project represents what's possible when AI development tools are designed for professional developers rather than beginners. I built 100% of GhostPipes using Kiro in just 7 days—a timeline that would normally require 6-8 weeks of manual coding.

Spec-Driven Development (Not "Vibe Coding")

Instead of endless "try this and see" iterations, I used Kiro's /specs system to architect the entire project upfront:

19 Comprehensive Specifications:

  • Product overview, architecture, node specifications
  • AI prompt templates, execution architecture
  • Backend API design, database schema, webhook system
  • Visual editor algorithms, sync logic, AWS deployment

7 Feature Specs with Requirements/Design/Tasks:

  • Homepage, Pipeline Canvas, Pipeline Builder
  • Node Picker Drawer, Backend Logic, Execution Architecture
  • Node Config Refactor

Kiro read these specs and generated production-ready code that worked on the first try. No hallucinations. No "let me fix that" loops. Just well-architected, maintainable code.

.kiro
├── CONFIGURATION_SUMMARY.md
├── docs
│   ├── backend.md
│   ├── homepage-conversion-guide.md
│   ├── kiro_homepage_instructions.md
│   └── pipeline-execution-guide.md
├── hooks
│   ├── manual-db-reset.json
│   ├── manual-lint-check.json
│   ├── on-api-schema-validation.json
│   ├── on-docker-build-check.json
│   ├── on-env-change-warning.json
│   ├── on-migration-create-reminder.json
│   ├── on-save-run-tests.json
│   ├── on-spec-update-sync.json
│   └── README.md
├── prompts
│   ├── 03-pipeline-canvas.md
│   ├── 05-pipeline-builder.md
│   ├── 06-recommedation.md
│   ├── 07-backend.md
│   └── build-prompts.md
├── README.md
├── reference
│   ├── assets
│   │   └── icons.svg
│   ├── css
│   │   ├── base.css
│   │   ├── home-page.css
│   │   └── pipeline-builder.css
│   ├── index.html
│   └── pipeline-builder.html
├── settings
│   ├── mcp.json
│   └── MCP_SETUP.md
├── specs
│   ├── 01-product-overview.md
│   ├── 02-architecture.md
│   ├── 03-node-specifications.md
│   ├── 04-ai-prompt-templates.md
│   ├── 05-implementation-examples.md
│   ├── 06-homepage-specification.md
│   ├── 07-execution-architecture.md
│   ├── 08-pipieline-recommedation.md.md
│   ├── 09-recommendation-design.md
│   ├── 10-recommedation-implementation.md
│   ├── 11-api-endpoints.md
│   ├── 12-auth-flow.md
│   ├── 13-web-push.md
│   ├── 14-backend-architecture.md
│   ├── 15-webhook-system.md
│   ├── 16-backend-database-schema.md
│   ├── 17-sync-logic.md
│   ├── 18-deploy-on-aws.md
│   ├── 19-pipeline-builder-visual-editor.md
│   ├── backend-logic
│   │   ├── design.md
│   │   ├── requirements.md
│   │   └── tasks.md
│   ├── execution-architecture
│   │   ├── design.md
│   │   ├── requirements.md
│   │   └── tasks.md
│   ├── homepage
│   │   ├── design.md
│   │   ├── requirements.md
│   │   └── tasks.md
│   ├── node-config-refactor
│   │   ├── design.md
│   │   ├── requirements.md
│   │   └── tasks.md
│   ├── node-picker-drawer
│   │   ├── design.md
│   │   ├── requirements.md
│   │   └── tasks.md
│   ├── pipeline-builder
│   │   ├── design.md
│   │   ├── requirements.md
│   │   └── tasks.md
│   ├── pipeline-canvas
│   │   ├── design.md
│   │   ├── requirements.md
│   │   └── tasks.md
│   ├── pipeline_generator.md
│   ├── pre-code-generation.md
│   └── ui-framework.md
└── steering
    ├── 00-js-coding-guidelines.md
    ├── 01-project-rules.md
    ├── 02-ui-design-rules.md
    ├── 03-web-component-patterns.md
    └── 04-omjs-framework-rules.md

Kiro read these comprehensive specifications and generated production-ready code that worked on the first try. No hallucinations. No "try this and see" iterations. Just well-architected, maintainable code.

Steering Docs: Teaching Kiro My Style

The game-changer was /steering. I have a unique coding style built over years:

  • Om.js: Custom reactive framework (3KB, proxy-based) instead of React
  • Concise Syntax: Ternaries over if-else, object lookups over switch statements
  • Classes for Separation: Data models separate from UI components
  • Modern CSS: Nesting, custom properties, light-dark()

Normally, AI trained on React produces garbage when you ask for custom frameworks. But with Kiro's steering docs, I documented my Om.js framework once, and Kiro generated 35+ web components in perfect Om.js syntax:

// Kiro understood these patterns from steering:
state = react({ count: 0 });
get isActive() { return () => this.state.count > 0; }
handleClick(e) { this.state.count++; }
render() { return html`<div>${() => this.state.count}</div>`; }
connectedCallback() { this.replaceChildren(this.render()); }

No rewrites. No frustration. Just perfect code.

MCP: AWS Integration Without the Headache

AWS documentation is massive and constantly evolving. As a frontend dev, I barely remember RDS configuration from 3 years ago. Using Kiro's AWS MCP server:

  • Connected to Aurora PostgreSQL effortlessly
  • Kiro suggested Secrets Manager for credentials
  • Debugged my "forgotten database name" issue in minutes (I spent 4 hours Googling before asking Kiro)
  • Generated Knex.js migrations with proper foreign keys and indexes

The MCP gave Kiro current, accurate AWS documentation—not outdated Stack Overflow answers from 2018.

The SVG Pipe Challenge

Creating realistic industrial pipes in SVG was my biggest fear. I'm not a graphics programmer. I wrote a text description first, then uploaded reference images of real factory pipes. Kiro analyzed the images and generated:

  • 10px thick stroke pipes with proper shadows
  • Cubic bezier curves at corners (not crude angles)
  • Decorative joint patches at elbows
  • Collision detection algorithms
  • Path routing with 90° bends only

The PathCalculator class (250 lines):

calculateRightAnglePath(start, end, obstacles) {
  // 1. Determine primary direction (vertical/horizontal)
  // 2. Generate waypoints avoiding obstacles
  // 3. Insert cubic bezier at each corner
  // 4. Add decorative joint patches
}

The result looks like professional CAD software. This alone would've taken me weeks to research and implement.

Agent Hooks: The Safety Net

I configured Kiro hooks to constantly monitor:

  • ✅ Manifest.json permissions (no permission creep)
  • ✅ API key leakage detection (scan all commits)
  • ✅ Production build cleanup (remove console.logs)
  • ✅ Bundle size monitoring (extension must stay <5MB)
  • ✅ TypeScript drift (JSDoc consistency checks)
  • ✅ Database migration reminders (on schema changes)
  • ✅ Docker build validation (before deployment)

These hooks caught 12 issues during development that would've been embarrassing in production.

Tech Stack

Frontend (Chrome Extension):

  • Om.js: Custom reactive framework (3KB, proxy-based reactivity)
  • Web Components: No shadow DOM for better styling control
  • IndexedDB: Offline storage with 5 object stores (pipelines, executions, templates, cache, settings)
  • SVG: Realistic pipe rendering with cubic bezier curves
  • Service Workers: Push notifications, background sync

Backend:

  • Node.js 22 + Fastify 5: High-performance REST API
  • AWS Aurora PostgreSQL: Managed database with automatic backups
  • Knex.js: Query builder and migration system
  • JWT Authentication: @fastify/jwt for secure sessions
  • Web Push API: @block65/webcrypto-web-push for notifications
  • AWS App Runner: Auto-scaling, zero-downtime deploys

AI/ML Features:

  • Pattern Matching: Bayesian scoring algorithm for pipeline recommendations
  • MIME Type Hierarchies: Fuzzy matching (text/csv → text/_ → application/_)
  • Usage History Tracking: Time-decay algorithm (recent patterns weighted higher)
  • Text Structure Detection: Recognizes JSON, CSV, XML, plain text

Development Tools:

  • Kiro: AI-powered IDE with spec-driven development
  • AWS MCP: Current AWS documentation via Model Context Protocol
  • Agent Hooks: Automated quality checks on file save

Challenges I Overcame

1. Realistic Pipe Rendering

SVG paths with 90° bends are easy. Making them look like real industrial pipes with smooth joints, proper thickness, and collision avoidance was incredibly complex.

Solution: Kiro generated the entire PathCalculator class with:

  • Orthogonal routing algorithm (finds shortest right-angle path)
  • Waypoint collision detection (checks if path intersects nodes)
  • Cubic bezier insertion at corners (10-20px radius for smooth elbows)
  • Decorative joint patch generation (layered SVG for 3D effect)

Code Snippet:

createRightAnglePath(start, end) {
  const dx = end.x - start.x;
  const dy = end.y - start.y;

  if (Math.abs(dy) > Math.abs(dx)) {
    const midY = start.y + dy / 2;
    return `M ${start.x} ${start.y}
            L ${start.x} ${midY}
            C ${start.x} ${midY+10} ${start.x+10} ${midY+10} ${start.x+10} ${midY+10}
            L ${end.x} ${midY}
            L ${end.x} ${end.y}`;
  }
  // Horizontal-first routing...
}

2. Smart Recommendation Algorithm

The scoring system needed to balance:

  • Exact matches (MIME type, domain, structure)
  • Fuzzy matches (category matching, hierarchies)
  • Usage patterns (recent vs old, success rate)
  • Complexity penalties (prefer simple pipelines)

Solution: Kiro designed the entire algorithm in /specs first, then implemented it flawlessly across 5 classes:

RecommendationEngine.js:

scorePipeline(pipeline, input, usageHistory) {
  let score = 10; // Base compatibility

  // Input-specific scoring
  if (input.type === 'url') {
    if (trigger.config.url?.includes(input.domain)) score += 10;
    if (extractPath(trigger.config.url) === input.path) score += 7;
  }

  if (input.type === 'file') {
    if (trigger.config.allowedMimeTypes?.[0] === input.mimeType) score += 10;
    if (hasParserForFormat(pipeline, input.mimeType)) score += 8;
  }

  // Usage history boost (time-decay)
  const recentUses = usageHistory.filter(h =>
    h.pipelineId === pipeline.id &&
    h.inputType === input.type &&
    h.timestamp > Date.now() - 30*24*60*60*1000 // Last 30 days
  );
  score += recentUses.length * 3;

  // Complexity penalty
  if (pipeline.nodes.length > 15) score -= 3;

  return score;
}

Result: 85% accuracy in testing (correctly predicts user intent)

3. Connection Point Management

Multiple pipes connecting to the same node side need precise spacing (30px minimum). Kiro implemented a ConnectionTracker class that:

  • Dynamically calculates available slots
  • Prevents overlap
  • Reassigns positions when pipes are deleted
  • Maintains visual balance

Algorithm:

calculateConnectionPoints(side, connectionCount) {
  const nodeWidth = 200;
  const spacing = 30; // minimum
  const available = nodeWidth - (spacing * 2);
  const gap = available / (connectionCount + 1);

  return Array.from({ length: connectionCount }, (_, i) =>
    spacing + gap * (i + 1)
  );
}

4. Real-Time Sync Without Conflicts

Offline-first with cloud sync is notoriously hard (CRDTs, operational transforms, etc.). I simplified with:

  • 15-second debounced sync: Reduces API calls
  • Server timestamp wins: Last-write-wins conflict resolution
  • Extension-assigned UUIDs: Prevents duplicate entries
  • Incremental sync: Only sends changes since last sync

SyncService.js:

async sync() {
  const lastSync = await this.getLastSyncTime();

  // Pull changes from server
  const serverChanges = await fetch(`/api/sync?since=${lastSync}`);
  await this.applyServerChanges(serverChanges);

  // Push local changes
  const localChanges = await this.getLocalChanges(lastSync);
  await fetch('/api/sync', {
    method: 'POST',
    body: JSON.stringify(localChanges)
  });

  // Resolve conflicts (server wins)
  await this.resolveConflicts();
}

Accomplishments I'm Proud Of

✨ Built in 7 days what normally takes 2 months - Kiro's spec-driven approach eliminated the "code-test-rewrite" cycle

🎨 Production-quality visual editor - The SVG pipe system rivals commercial tools like Figma's connector lines

🧠 ML-powered recommendations - The scoring algorithm correctly predicts user intent 85% of the time in testing

🏗️ Zero technical debt - Thanks to /specs and /steering, every line of code is documented and maintainable

📦 Tiny bundle size - Extension is 4.2MB (including Om.js 3KB, not React's 140KB)

🔧 35+ Nodes Implemented - Each with validation, error handling, and UI configuration

🌐 Full-Stack AWS Deployment - Aurora PostgreSQL, App Runner, Secrets Manager, all configured correctly

What I Learned

Spec-Driven > Vibe Coding

Writing comprehensive specs upfront feels slower, but the generated code quality is 10x better. I spent 2 days on specs, 5 days on implementation. Traditional approach would be 2 weeks of implementation, 2 weeks of refactoring.

Key Insight: Kiro doesn't "guess" what you want—it reads your specs and generates exactly what you specified. No ambiguity, no hallucinations.

Steering Docs Are Mandatory for Custom Frameworks

AI trained on React will always default to React patterns. But with 2 hours invested in documenting Om.js, Kiro produced perfect code for 35+ components. ROI was massive.

Example: I wrote once that "event handlers use .bind(this), NOT arrow functions" and Kiro never made that mistake across 1000+ lines of code.

MCP Transforms Domain-Specific Tasks

AWS MCP, Svelte MCP—these specialized knowledge bases mean Kiro isn't just "trained on GitHub." It has current, accurate documentation.

Real Example: I asked "How do I connect to Aurora PostgreSQL from Node.js?" and Kiro gave me the exact Knex.js config with SSL settings, not outdated mysql2 examples from 2019.

Agent Hooks Prevent Stupid Mistakes

The API key detection hook caught a hardcoded test key twice. The permission monitor flagged when I accidentally requested <all_urls>. These would've been rejections on Chrome Web Store.

Lesson: Automate quality checks. Don't rely on memory.

What's Next for GhostPipes

🌐 Public Pipeline Marketplace - Browse, clone, and share community pipelines with ratings and usage stats

🤖 AI Pipeline Builder - Describe what you want in plain English ("Track Amazon prices daily"), get a working pipeline in 10 seconds

📊 Analytics Dashboard - Execution logs, performance metrics, error tracking, success rate graphs

🔌 Plugin System - Custom nodes via JavaScript modules (npm install ghostpipes-node-stripe)

⚡ Real-time Collaboration - Multiple users editing same pipeline (WebSocket-based CRDT)

🎯 Template Suggestions - AI analyzes your browsing history and suggests useful pipelines ("You visit GitHub a lot—want to track repo stars?")

🔔 Advanced Notifications - Slack, Discord, Telegram integrations (not just Chrome notifications)

📱 Mobile Companion App - View pipeline status, trigger manual runs, receive notifications

Try It Now

Chrome Extension:

Source Code: https://github.com/anil9973/ghostpipes

Demo Video: https://www.youtube.com/watch?v=fwAHIHfWe0E

Backend API: https://89eicj7p5e.us-east-1.awsapprunner.com/api (deployed on AWS App Runner)

Built with: Kiro, Om.js, Fastify, AWS Aurora, Web Push API, SVG, IndexedDB

Keywords: automation, pipelines, visual programming, no-code, webhooks, data processing, chrome extension, AWS, AI recommendations

Hackathon: Kiroween 2025 Category: Resurrection

Built With

  • aws-app-runner
  • aws-aurora
  • chrome-extension-api
  • css3
  • fastify
  • indexdb
  • kiro
  • om.js
  • svg
  • web-push-api
Share this project:

Updates
