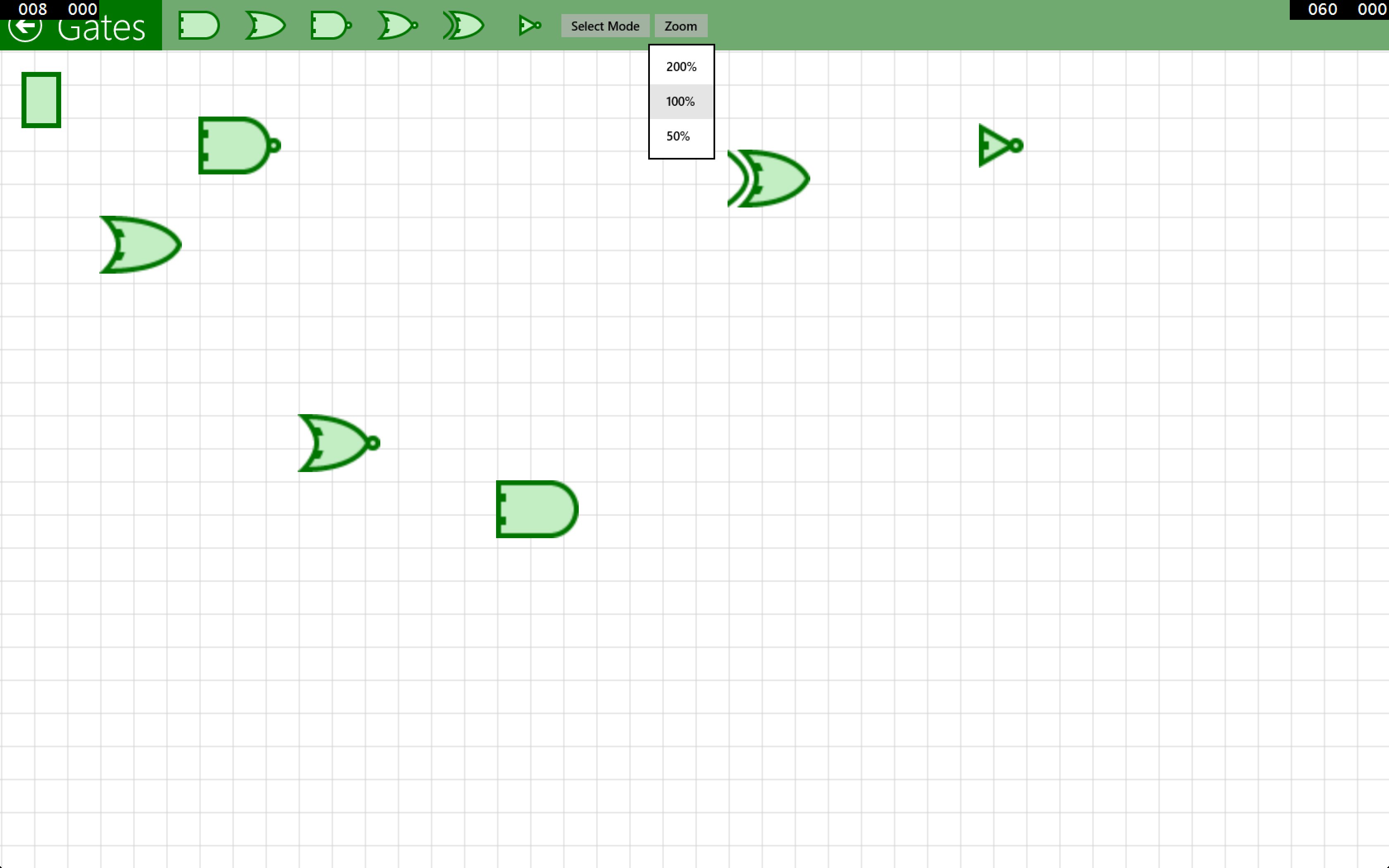

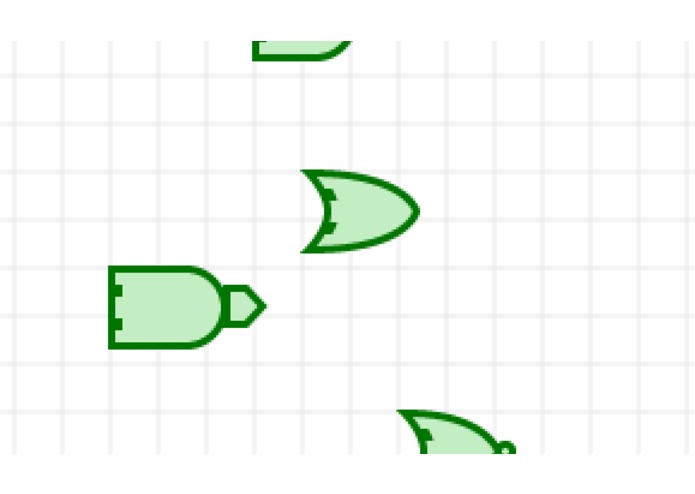

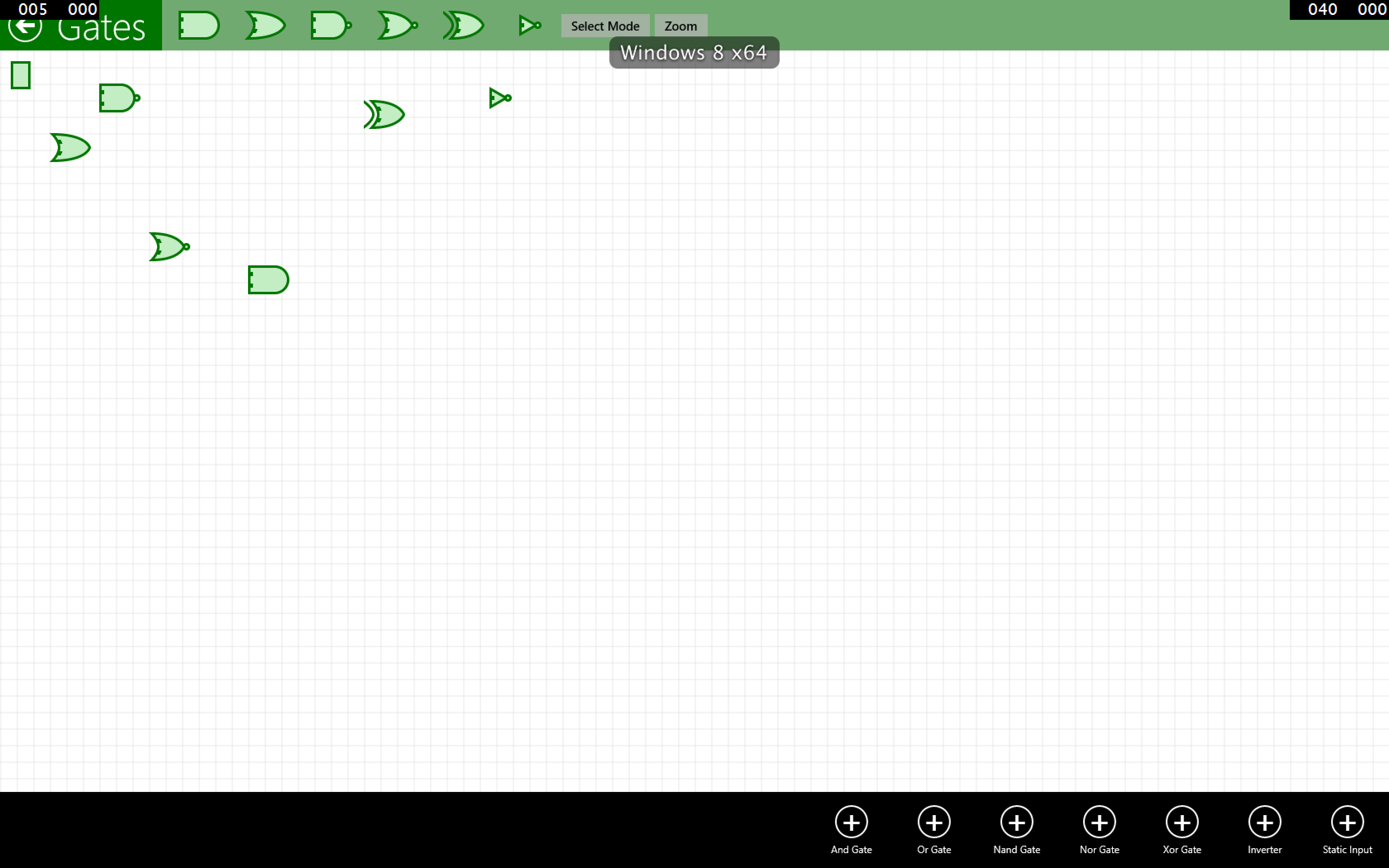

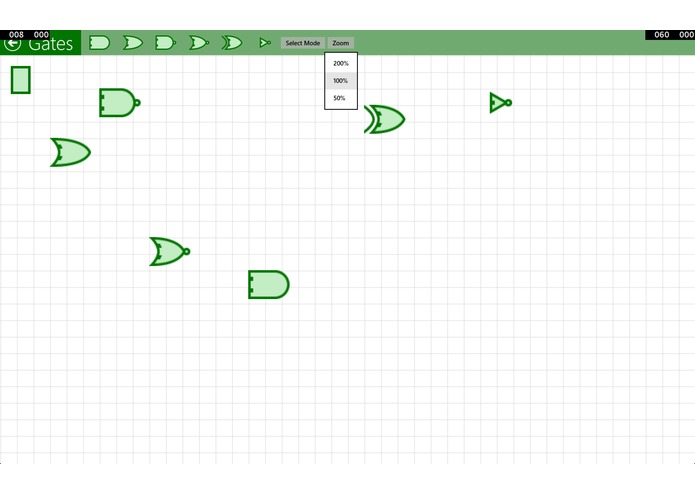

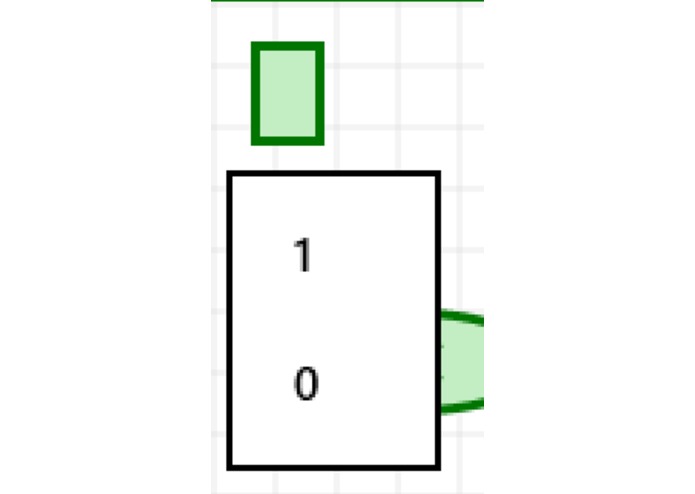

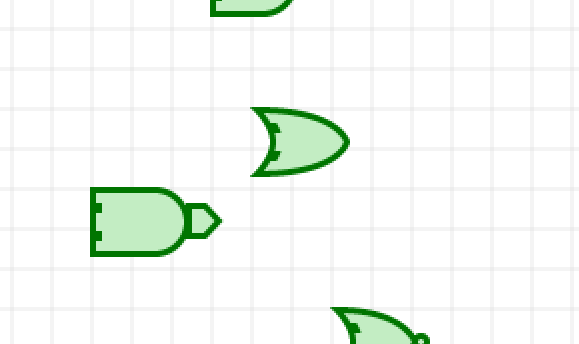

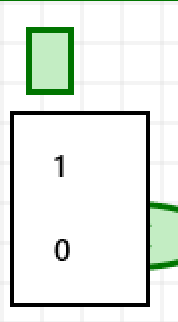

Gates is an app for the Windows Store designed to help students in EECS 281, "Logic Design and Computer Organization," understand how digital logic circuits work and how to design them. Gates lets users combine basic logic gates (AND, OR, NAND, NOR, XAND, and inverters) into more complex circuits, give those circuits an input, and view the output that the circuit produces. Gates is written in XAML and C# using Visual Studio and the .NET framework.
