🎯 What is FlowChart AI?

FlowChart AI is an open-source, AI-powered flowchart generator that transforms natural language descriptions into professional, editable diagrams. Built with modern web technologies, it combines the power of AI with an intuitive drag-and-drop interface to make flowchart creation effortless.

✨ Key Features

🤖 AI-Powered Generation: Describe your process in plain language, get a professional flowchart instantly
🎨 Interactive Canvas: Built on Excalidraw for smooth, collaborative editing experience
💾 Personal Workspace: Save, organize, and manage all your diagrams in one place
🔄 Version Control: Track changes and manage diagram versions
📤 Multiple Export Formats: Export to Excalidraw, PNG, SVG, and PDF (coming soon)
🌍 Multi-language Support: Create flowcharts in any language you're comfortable with
📱 Responsive Design: Works seamlessly on desktop, tablet, and mobile devices
🔒 Privacy-First: Self-hostable with complete data control

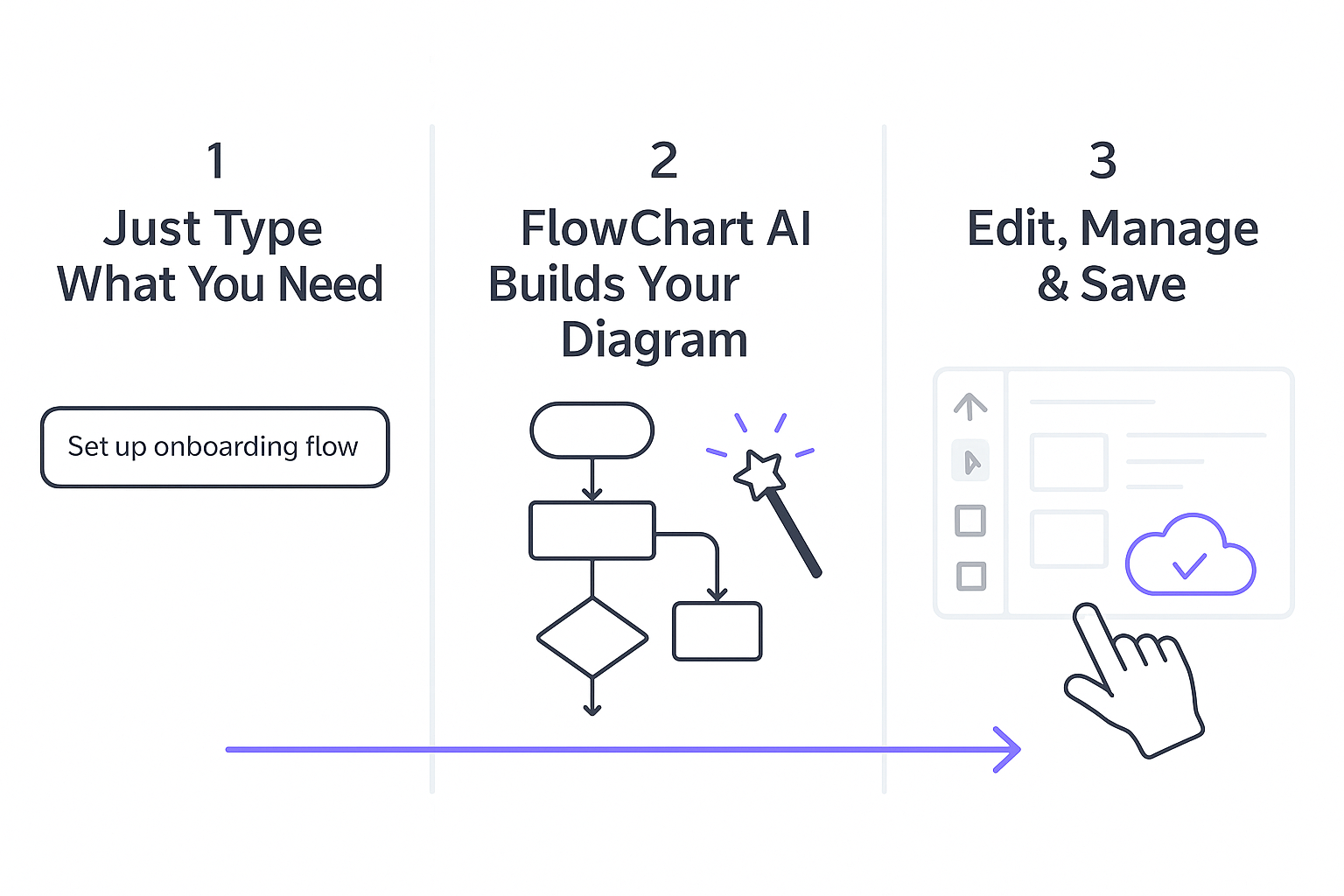

🎬 See It In Action

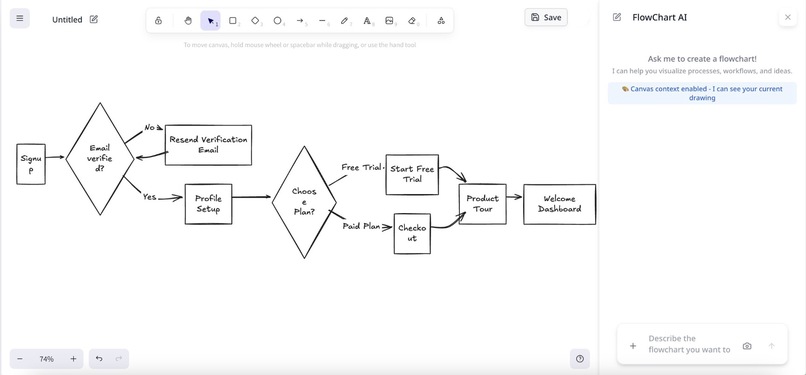

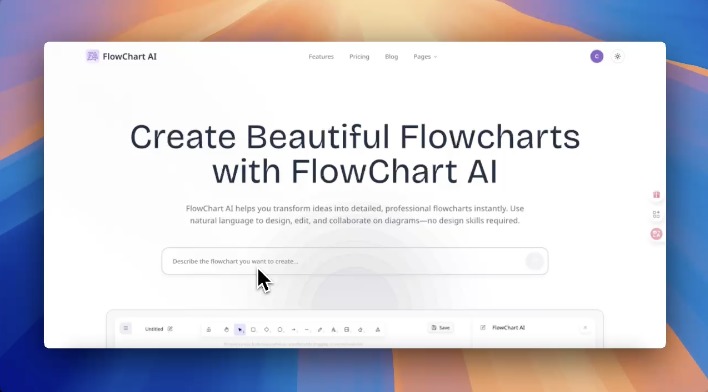

FlowChart AI Demo

From idea to flowchart in seconds - no design skills required

🚀 Quick Start

Option 1: Use Our Hosted Version

Visit flowchartai.org and start creating flowcharts immediately. Free tier includes 1 AI generation per day.

Option 2: Self-Host (Recommended for Privacy)

Follow our Self-Hosting Guide below to run FlowChart AI on your own infrastructure.

🛠️ Technology Stack

FlowChart AI is built with modern, production-ready technologies:

Frontend: Next.js 15, React 19, TypeScript 5
Styling: Tailwind CSS 4, Radix UI components
Canvas: Excalidraw integration with Mermaid support
AI: OpenRouter API (supports multiple AI models)
Database: PostgreSQL with Drizzle ORM
Authentication: Better Auth (Google, GitHub OAuth)
Payments: Creem integration for subscriptions
Storage: Cloudflare R2 / AWS S3 compatible
Deployment: Vercel, Cloudflare Workers, or self-hosted

🎯 Use Cases

FlowChart AI is perfect for:

📊 Business Process Mapping: Document workflows, decision trees, and operational procedures
💻 Software Architecture: Design system flows, API integrations, and database relationships
📚 Education & Training: Create learning materials, concept maps, and curriculum flows
🚀 Startup Planning: Visualize business models, user journeys, and go-to-market strategies
📋 Project Management: Plan project timelines, resource allocation, and team workflows
🔬 Research & Analysis: Map out research processes, data flows, and analytical frameworks

🏠 Self-Hosting Guide

Prerequisites

Before you begin, ensure you have:

Node.js 18+ and pnpm installed
PostgreSQL database (local or cloud)
OpenRouter API key for AI functionality
Google/GitHub OAuth apps for authentication
Cloudflare R2 or AWS S3 for file storage (optional)

1. Clone and Install

# Clone the repository
git clone https://github.com/tanchaowen84/flowchartai.git
cd flowchartai

# Install dependencies
pnpm install

2. Environment Setup

# Copy environment template
cp .env.local.example .env.local

Edit .env.local with your configuration:

# Database (Required)
DATABASE_URL="postgresql://username:password@localhost:5432/flowchartai"

# Authentication (Required)
BETTER_AUTH_SECRET="your-random-secret-key"
GOOGLE_CLIENT_ID="your-google-oauth-client-id"
GOOGLE_CLIENT_SECRET="your-google-oauth-client-secret"

# AI Service (Required)
OPENROUTER_API_KEY="your-openrouter-api-key"

# Storage (Optional - for file uploads)
STORAGE_REGION="auto"
STORAGE_ENDPOINT="https://your-account.r2.cloudflarestorage.com"
STORAGE_ACCESS_KEY_ID="your-r2-access-key"
STORAGE_SECRET_ACCESS_KEY="your-r2-secret-key"
STORAGE_BUCKET_NAME="flowchart-ai"
STORAGE_PUBLIC_URL="https://cdn.yourdomain.com"

# Email (Optional - for notifications)
RESEND_API_KEY="your-resend-api-key"

# Base URL
NEXT_PUBLIC_BASE_URL="http://localhost:3000"

3. Database Setup

# Generate database schema
pnpm db:generate

# Run migrations
pnpm db:migrate

# (Optional) Open database studio
pnpm db:studio

4. Configure Services

OpenRouter API (Required for AI)

Sign up at OpenRouter
Create an API key
Add to OPENROUTER_API_KEY in .env.local

Google OAuth (Required for Authentication)

Go to Google Cloud Console
Create a new project or select existing
Enable Google+ API
Create OAuth 2.0 credentials
Add authorized redirect URI: http://localhost:3000/api/auth/callback/google
Add client ID and secret to .env.local

Cloudflare R2 (Optional for File Storage)

Create R2 bucket in Cloudflare dashboard
Generate R2 API tokens
Configure custom domain for public access
Add credentials to .env.local

5. Run Development Server

# Start development server
pnpm dev

Visit http://localhost:3000 to see your FlowChart AI instance!

6. Production Deployment

Deploy to Vercel (Recommended)

# Install Vercel CLI
npm i -g vercel

# Deploy
vercel

# Set environment variables in Vercel dashboard
# Configure custom domain (optional)

Deploy to Your Own Server

# Build for production
pnpm build

# Start production server
pnpm start

7. Configuration Options

Subscription Plans (Optional)

If you want to offer paid plans, configure Creem:

# Creem Payment (Optional)
CREEM_API_KEY="your-creem-api-key"
CREEM_API_URL="https://api.creem.io"
CREEM_WEBHOOK_SECRET="your-webhook-secret"

# Product IDs for different plans
NEXT_PUBLIC_CREEM_PRODUCT_ID_HOBBY_MONTHLY="prod_xxx"
NEXT_PUBLIC_CREEM_PRODUCT_ID_HOBBY_YEARLY="prod_xxx"
NEXT_PUBLIC_CREEM_PRODUCT_ID_PROFESSIONAL_MONTHLY="prod_xxx"
NEXT_PUBLIC_CREEM_PRODUCT_ID_PROFESSIONAL_YEARLY="prod_xxx"

Feature Toggles

Customize which features are enabled in src/config/website.tsx:

features: {
  enableDocsPage: false,        // Documentation pages
  enableAIPages: false,         // AI showcase pages
  enableUpgradeCard: true,      // Upgrade prompts
  enableDiscordWidget: false,   // Discord integration
}

🔧 Customization

Branding

Replace public/logo.png with your logo
Update src/config/website.tsx for site metadata
Modify messages/en.json for text content

AI Models

FlowChart AI supports multiple AI providers through OpenRouter:

Google Gemini (default)
OpenAI GPT models
Anthropic Claude
And many more

Change the model in src/app/api/ai/chat/flowchart/route.ts:

const model = 'google/gemini-2.5-flash'; // Change to your preferred model

Styling

Built with Tailwind CSS 4
Customize themes in tailwind.config.js
Component styles in src/components/ui/

📊 Usage Limits

Free Tier (Self-Hosted)

Unlimited flowchart creation and editing
1 AI generation per day per user (configurable)
Unlimited exports and sharing

Paid Tiers (If Enabled)

Hobby: 500 AI generations/month
Professional: 1000 AI generations/month

Limits are configurable in src/lib/ai-usage.ts:

export const AI_USAGE_LIMITS = {
  FREE_USER_DAILY: 1,           // Change daily limit
  HOBBY_USER_MONTHLY: 500,      // Change hobby limit
  PROFESSIONAL_USER_MONTHLY: 1000, // Change pro limit
} as const;

🤝 Contributing

We welcome contributions from the community! Here's how you can help:

Ways to Contribute

🐛 Report Bugs: Open an issue with detailed reproduction steps
💡 Feature Requests: Share your ideas for new features or improvements
🔧 Code Contributions: Submit pull requests for bug fixes or new features
📖 Documentation: Help improve our documentation and guides
🌍 Translations: Add support for new languages

Development Setup

# Fork the repository and clone your fork
git clone https://github.com/YOUR_USERNAME/flowchartai.git
cd flowchartai

# Install dependencies
pnpm install

# Create a feature branch
git checkout -b feature/your-feature-name

# Make your changes and test thoroughly
pnpm dev

# Commit your changes
git commit -m "feat: add your feature description"

# Push to your fork and create a pull request
git push origin feature/your-feature-name

Code Style

Use TypeScript for all new code
Follow ESLint and Prettier configurations
Write meaningful commit messages following conventional commits
Add JSDoc comments for public functions
Ensure responsive design for UI changes

🐛 Troubleshooting

Common Issues

Database Connection Issues

# Check if PostgreSQL is running
pg_isready

# Verify connection string format
DATABASE_URL="postgresql://username:password@host:port/database"

AI Generation Not Working

Verify OpenRouter API key is valid
Check API quota and billing status
Ensure model is available (try google/gemini-2.5-flash)

Authentication Issues

Verify OAuth redirect URIs match exactly
Check client ID and secret are correct
Ensure OAuth apps are enabled and published

Build Errors

# Clear Next.js cache
rm -rf .next

# Clear node modules and reinstall
rm -rf node_modules pnpm-lock.yaml
pnpm install

# Regenerate database types
pnpm db:generate

Getting Help

📖 Check our documentation
💬 Join our Discord community
🐛 Open an issue on GitHub
📧 Email us at support@flowchartai.org

🔒 Security

Reporting Security Issues

If you discover a security vulnerability, please email us at support@flowchartai.org instead of opening a public issue.

Security Features

Authentication: Secure OAuth integration with major providers
Data Encryption: All data encrypted in transit and at rest
API Security: Rate limiting and request validation
Privacy: No tracking, minimal data collection
Self-Hosting: Complete data control and privacy
