Flash-Light

•

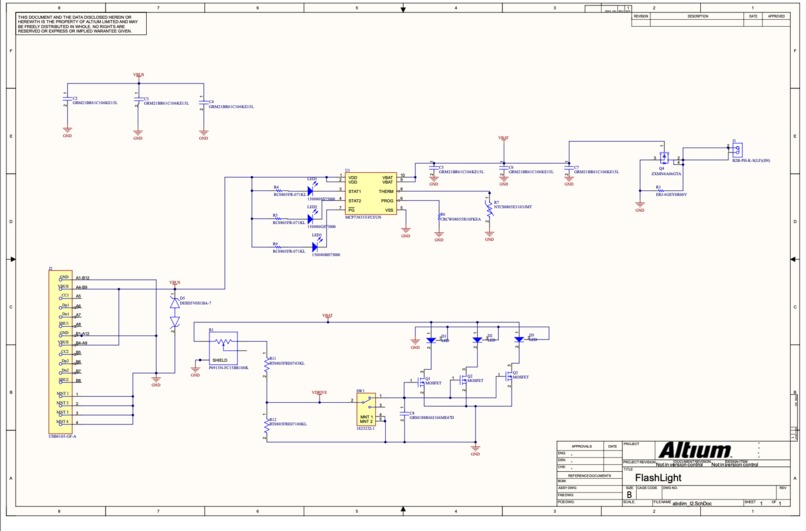

  Schematic

•

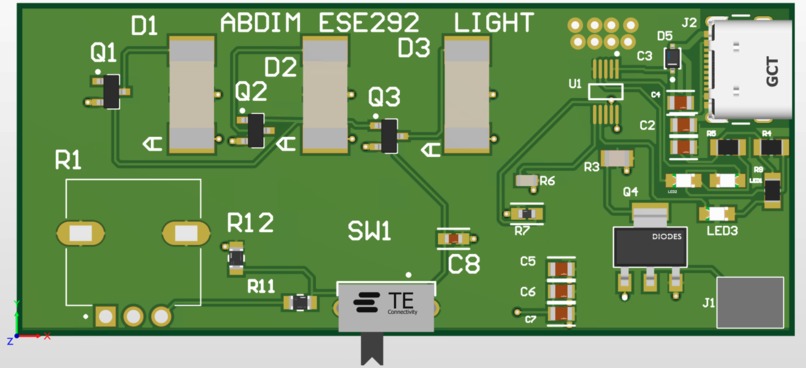

  3d bird eye view of PCB

•

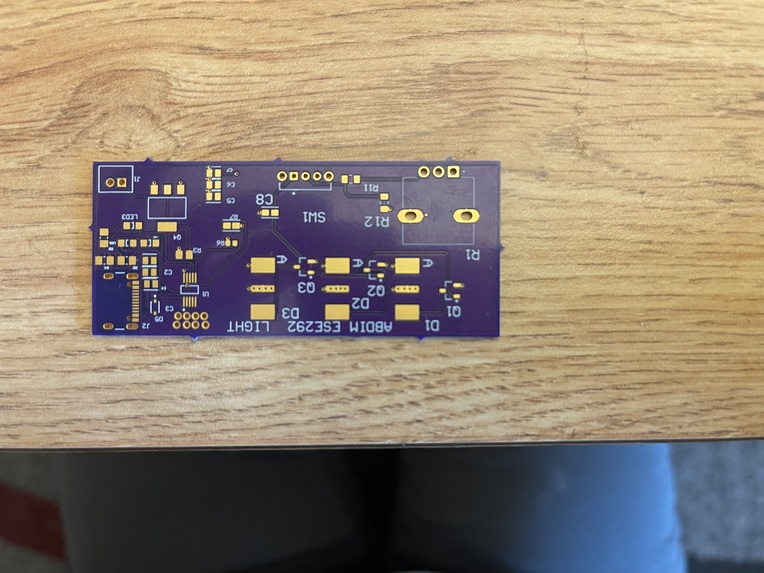

  PCB without components topside

•

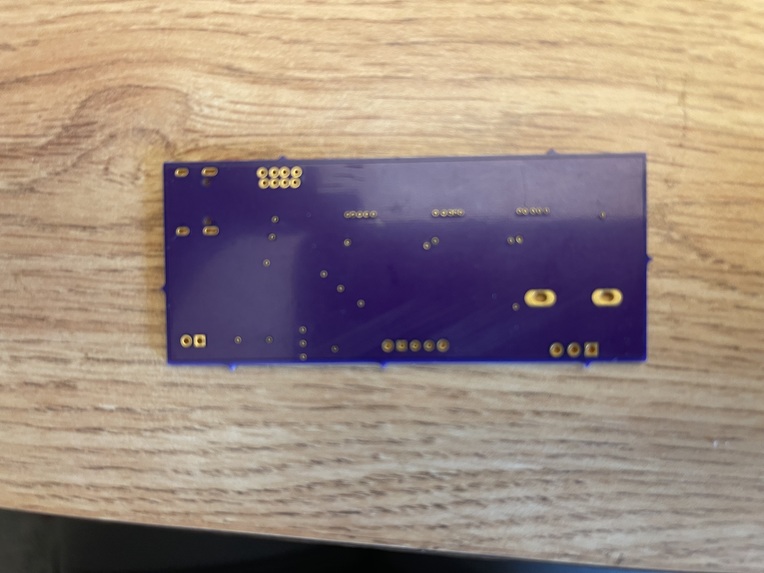

  PCB without components backside

•

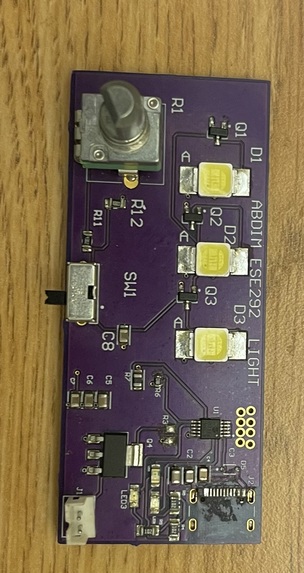

  PCB with components topside

•

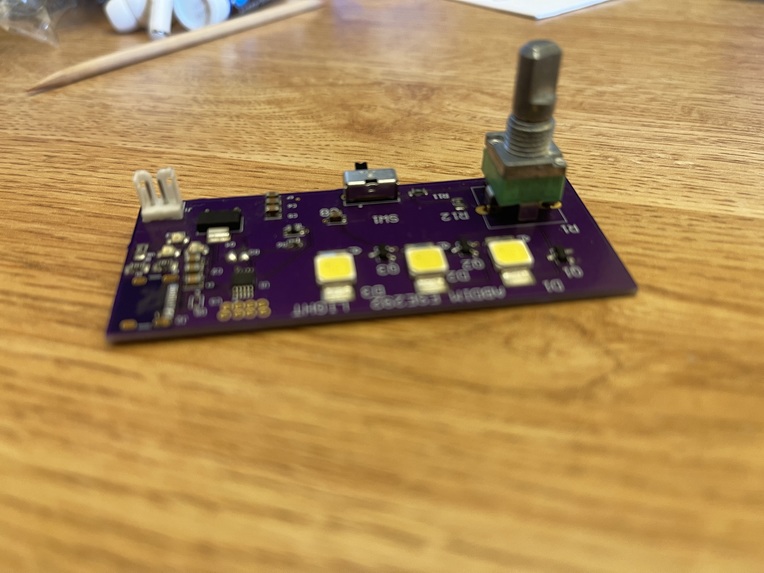

  PCB with components side profile

•

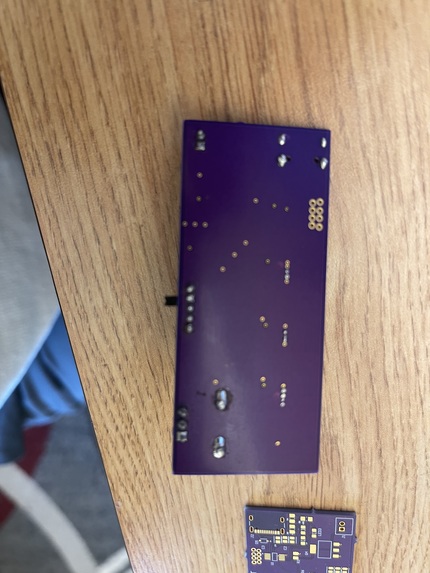

  PCB with components back side

•

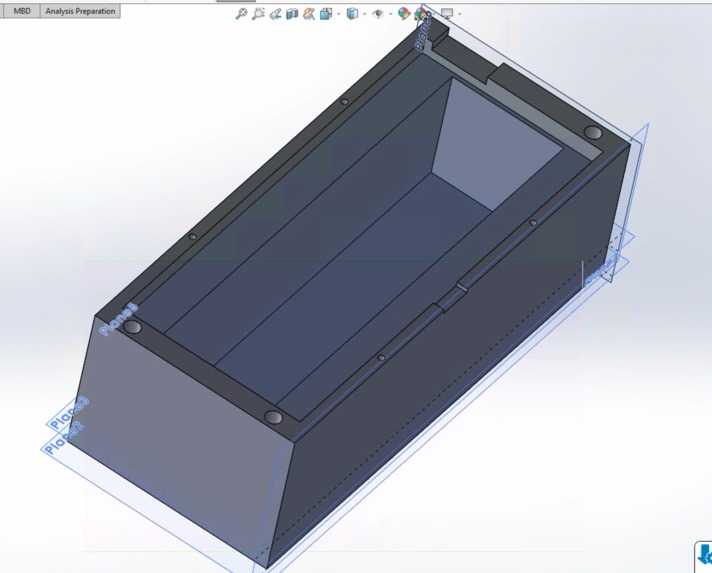

  Enclosure without battery and PCB Model

•

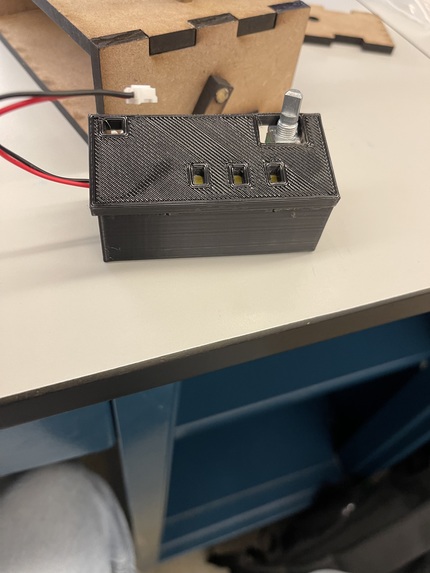

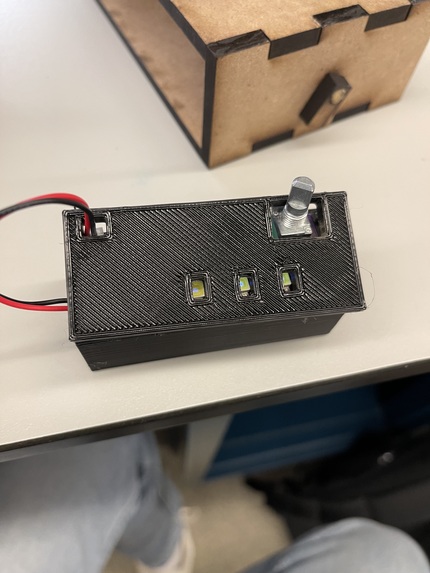

  inclusioner 1

•

  Inclusioner 2

This is the first project where I resemble somewhat an actual product. I got to use my in-class knowledge into effect for the first time by blinding the circuit board. This is my first well-settled-up project that has an enclosure that was 3d printed. I have learned a lot from designing the project components footprints in Altium all the way to having them manufactured and obeying to the manufacturer's rules. Lastly, this is my first multi-layered PCB design. Good full hands on project.

Built With

• altium
• lasercutting
• solidworks
