Explore Hardware: Integrator Circuit

•

  Integrator Circuit

Inspiration

As an engineering student without materials to practically do stuff, creating relatively complex circuits using basic components is a great learning experience.

What it does

An integrator circuit Integrates an input waveform. The input waveform is supplied using a waveform generator. There are two oscilloscopes that display both input and output waveforms.

How we built it

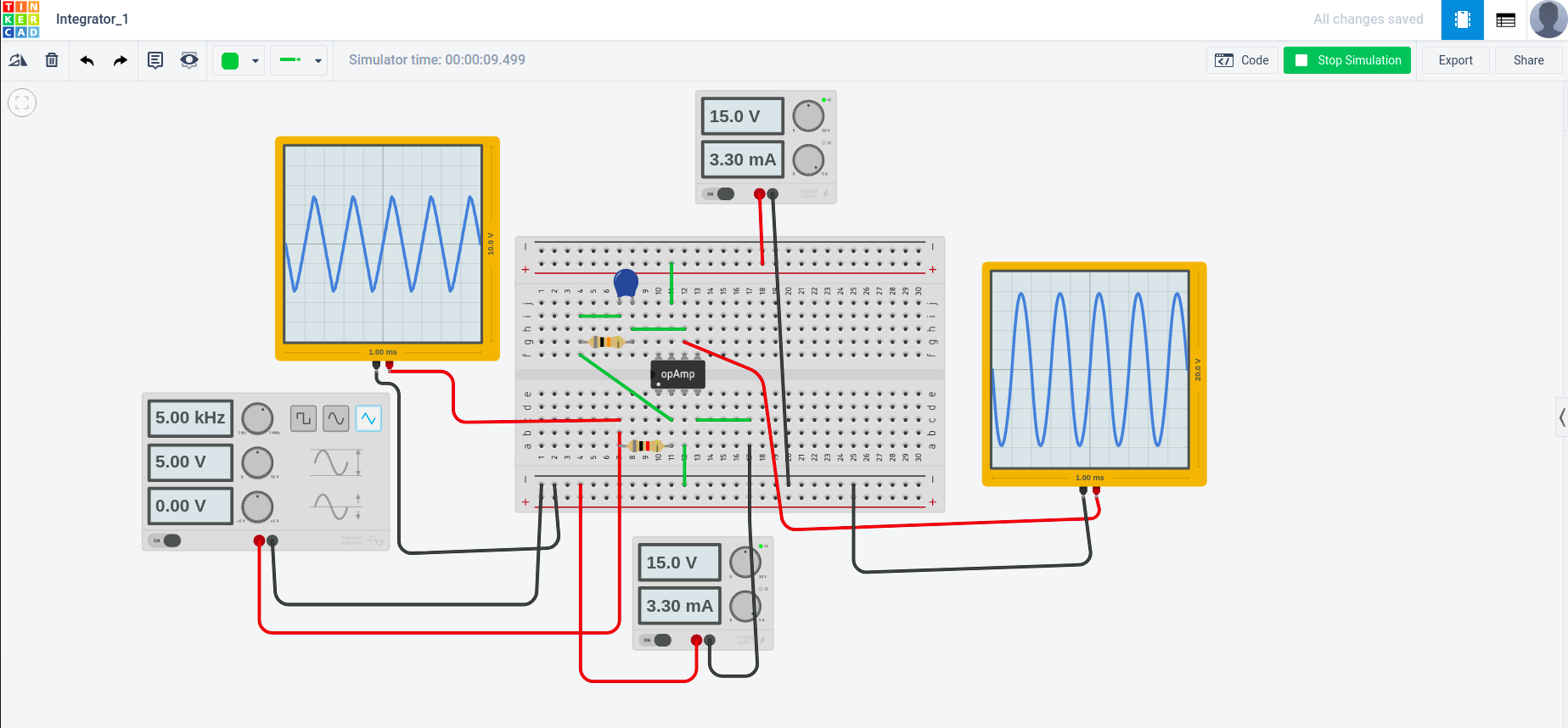

Built in Tinkercad. Components used:

• IC 741 OpAmp
• Function Generator
• Oscilloscope x2
• BreadBoard
• Independent Power Supply x2
• Capacitor
• Resistance x2

What we learned

Practically built an Integrator Circuit and gained some practical experience

What's next for Explore Hardware: Integrator Circuit

Building Differentiator Circuits, Log Amplifiers, Clippier/Clamper circuits, etc

Built With

• tinkercad
