ENERGY METER

•

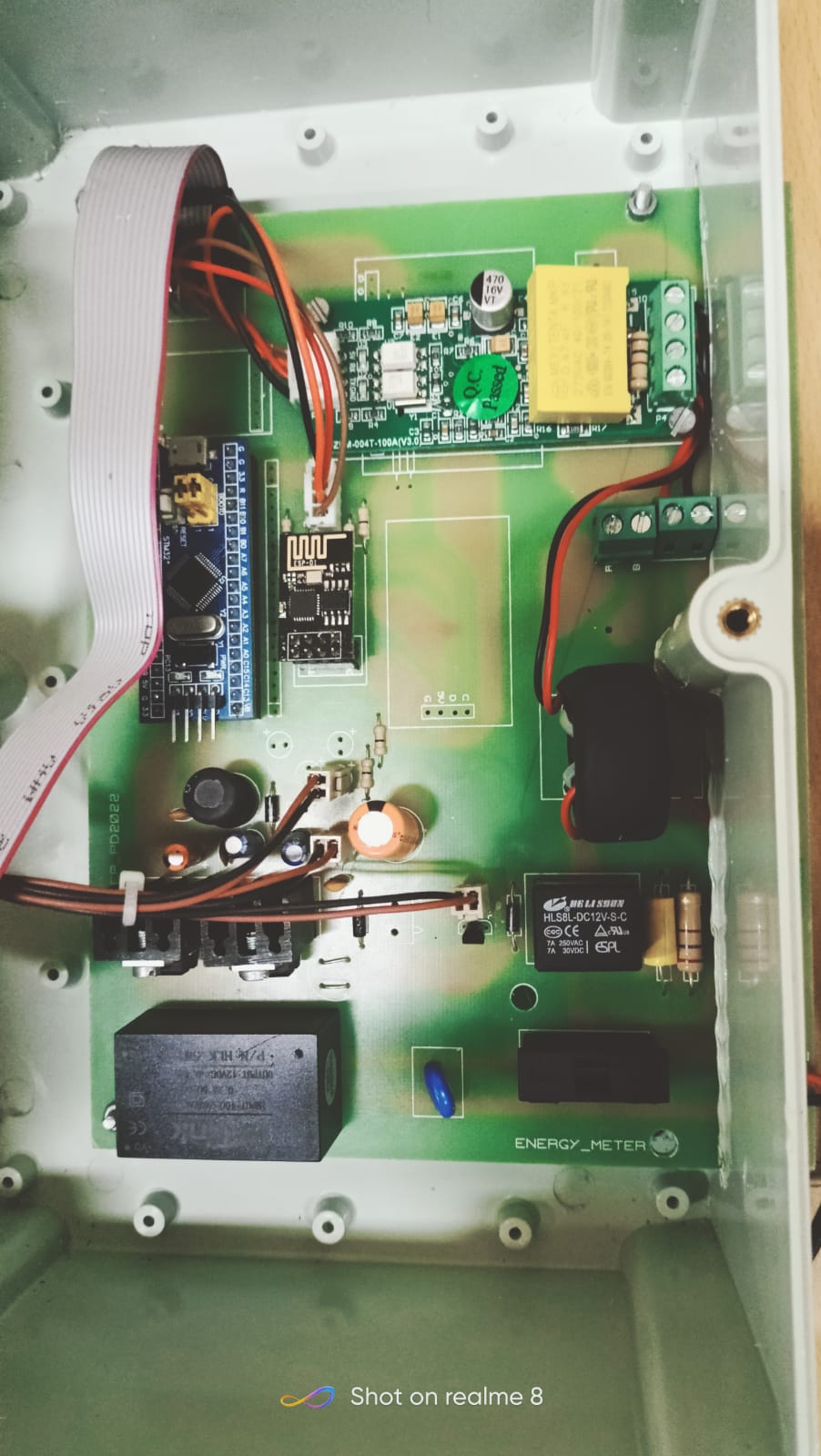

  prototype of energy meter

Inspiration

Energy meter is a device used to calculate the frequency, current and voltage of the load connected to this device. The load can be controlled from anywhere using the user friendly application developed using App Inventor tool. Serial Communication is done in between STM and ESP32 is established using Arduino IDE software and then the thinkspeak cloud is used for transferring the data to the cloud and then the data is then displayed over the user-friendly application created using app inventor software.

What it does

Energy meter is a device used to calculate the frequency, current and voltage of the load connected to this device.

How we built it

The load can be controlled from anywhere using the user friendly application developed using App Inventor tool.

Challenges we ran into

An ARM (STM32) based energy meter to calculate the voltage, current, power and frequency rating and controlling the load using user friendly application.

Accomplishments that we're proud of

the thinkspeak cloud is used for transferring the data to the cloud and then the data is then displayed over the user-friendly application created using app inventor software.

What we learned

The STM32 is an 32-bit microcontrollers based Arm Cortex processor designed to offer new degrees of freedom. It is used for high performance computing, real-time capabilities, digital signal processing, low-power / low-voltage operation, and connectivity maintaining full integration and easy development.

What's next for ENERGY METER

Adding more port to elaborate the product and calculating the particular things to be calculated.

Built With

• bulb
• sensor
• stm32
• thingspeak
