AI Circuit Architect

A society of six AI agents that argues a hardware idea into a structured KiCad project scaffold via a critic-vs-architect rework loop — measurably more complete than one model (+3.2 / 12 coverage).

Comment

Inspiration

In an earlier project I tried to get an AI to put together a whole KiCad design for me: schematic and layout, the full thing. I ran straight into the limits. Wiring up every net and placing a complex board is genuinely hard, and it's still a problem for another day.

But one part of that attempt worked better than I expected: the groundwork. The project hierarchy, the sheet structure, the skeleton you'd otherwise assemble by hand before the real design even begins. The AI was good at that scaffold and weak at everything downstream.

So for this hackathon I took that idea and ran with it. Instead of asking one model to do everything and stop at a plausible first draft, I built the scaffold out properly and handed it to a small team of agents that refine each other's work and argue over what's missing, then verify the result against real KiCad.

What it does

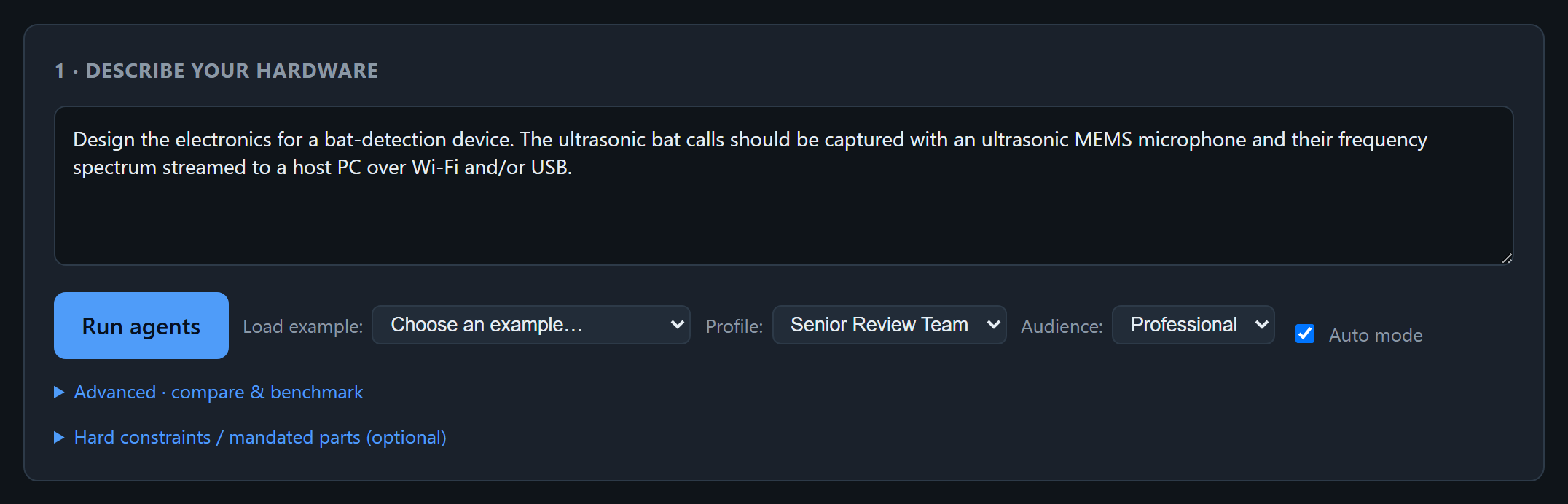

AI Circuit Architect takes a plain-English brief — for example, "a battery-powered Wi-Fi bat detector with USB-C charging" — and turns it into a structured KiCad project you can open, inspect, and keep building on.

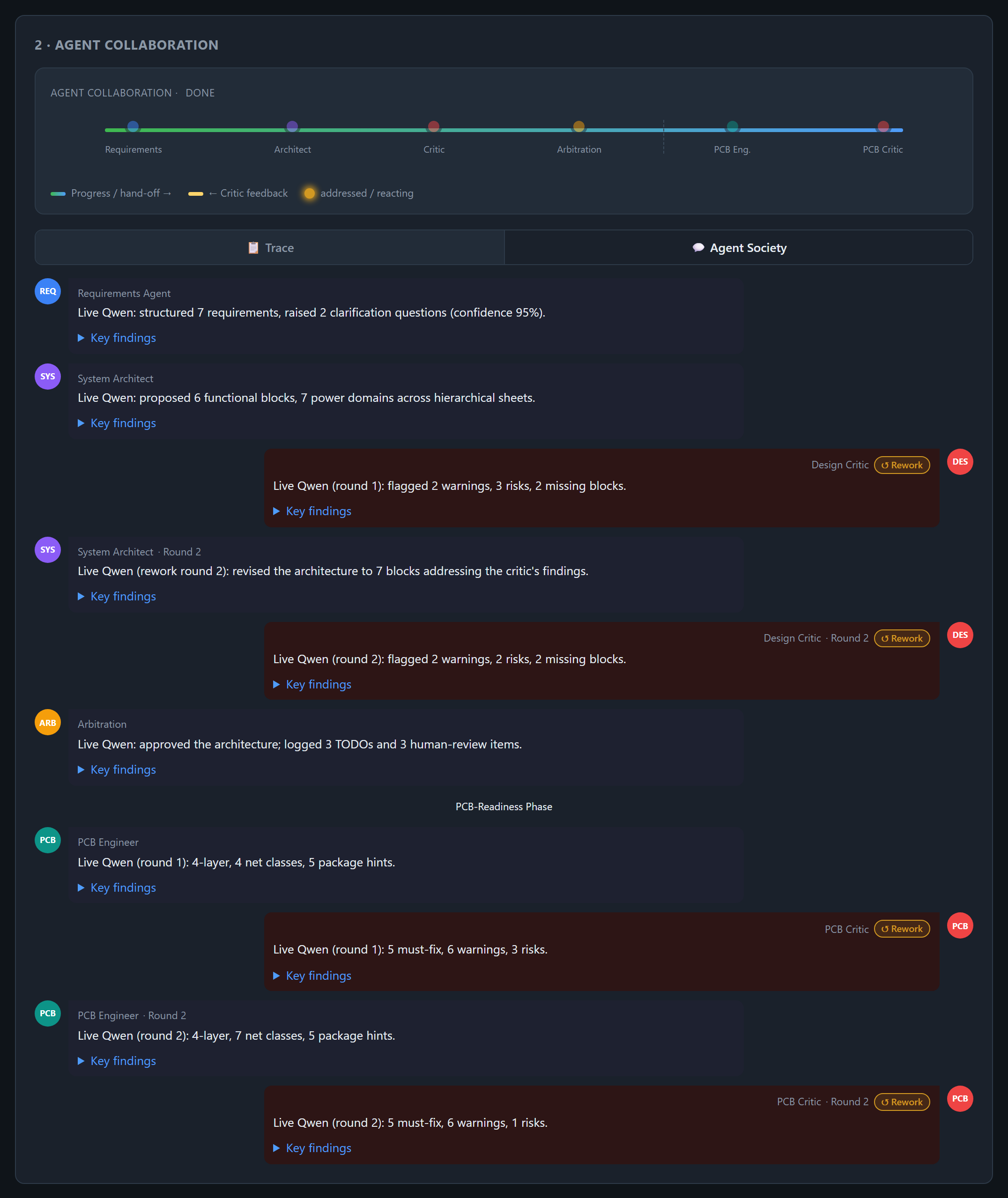

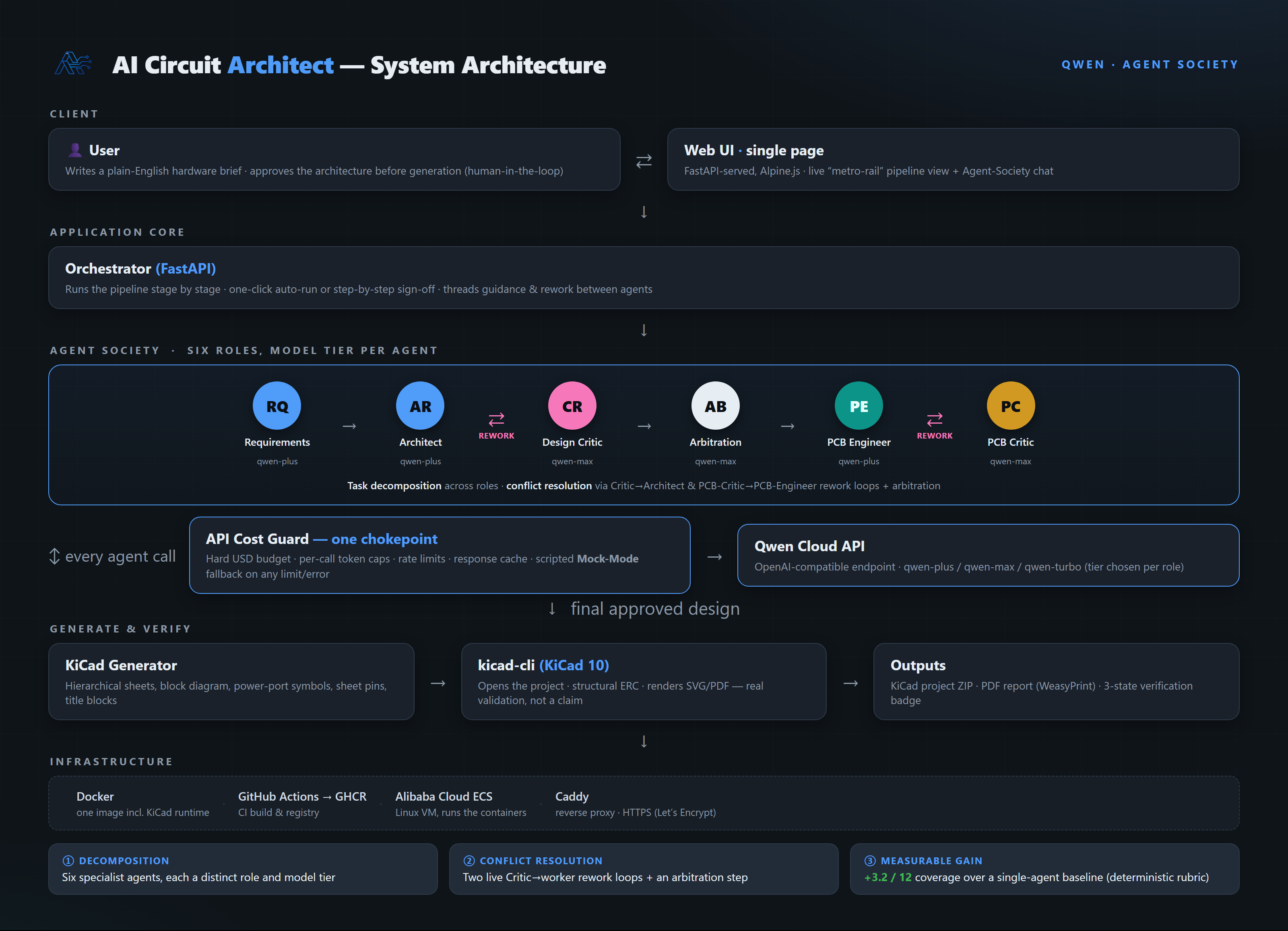

The work is split across six agents. A Requirements agent turns the brief into structured requirements and asks a few A/B/C clarifying questions where it needs them. An Architect proposes a block-level design with typed power and data connections. A Design Critic, running on the stronger model tier, reviews that design and sends it back for rework when something is missing, and an Arbitration step resolves the disagreement. A PCB Engineer and a PCB Critic then prepare the board side and run the same review-and-revise loop. So it isn't a single pass; it's a team that divides the work and resolves its own disagreements.

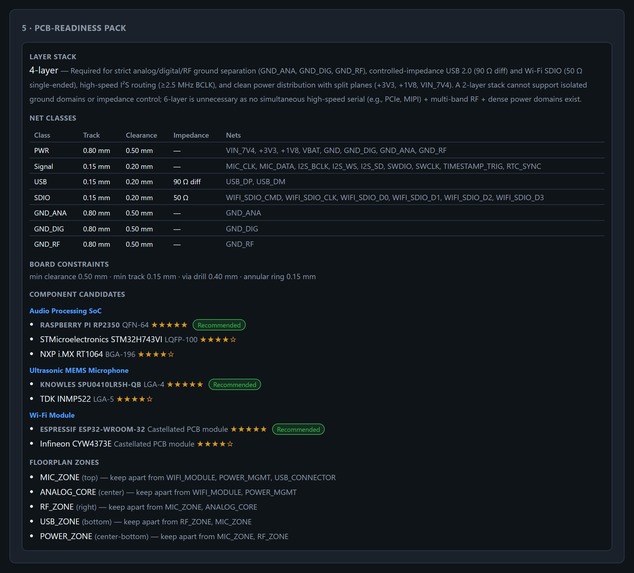

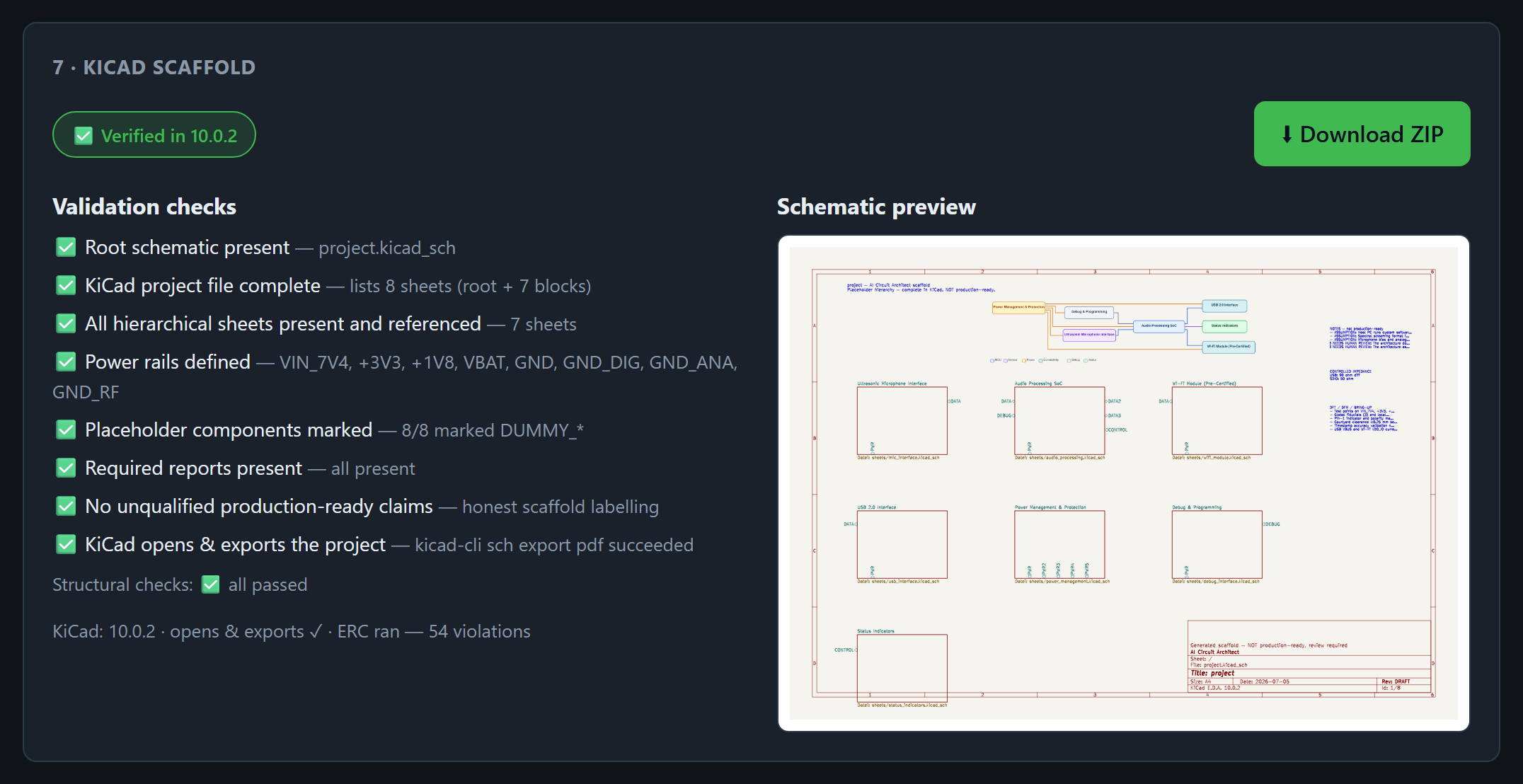

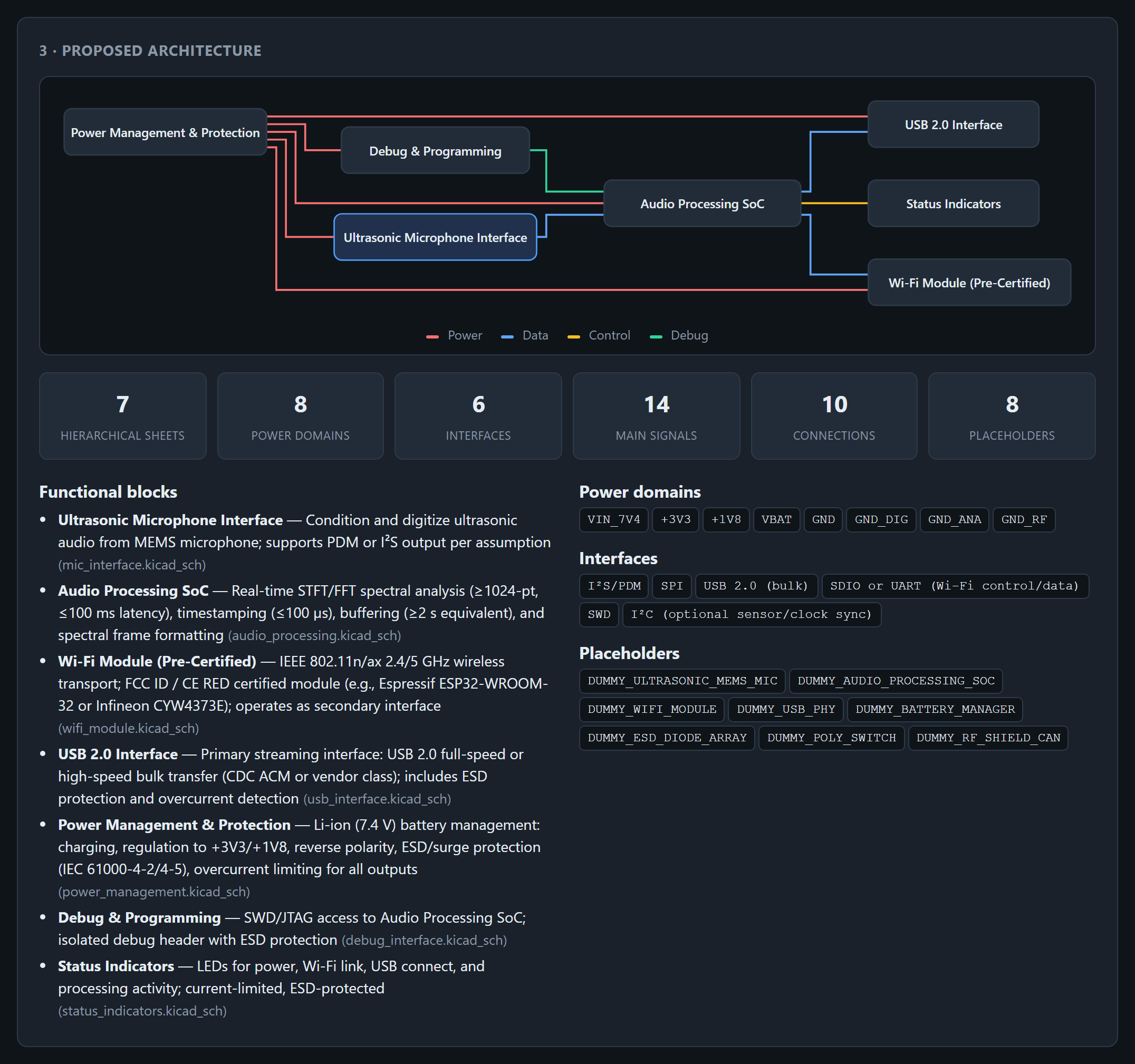

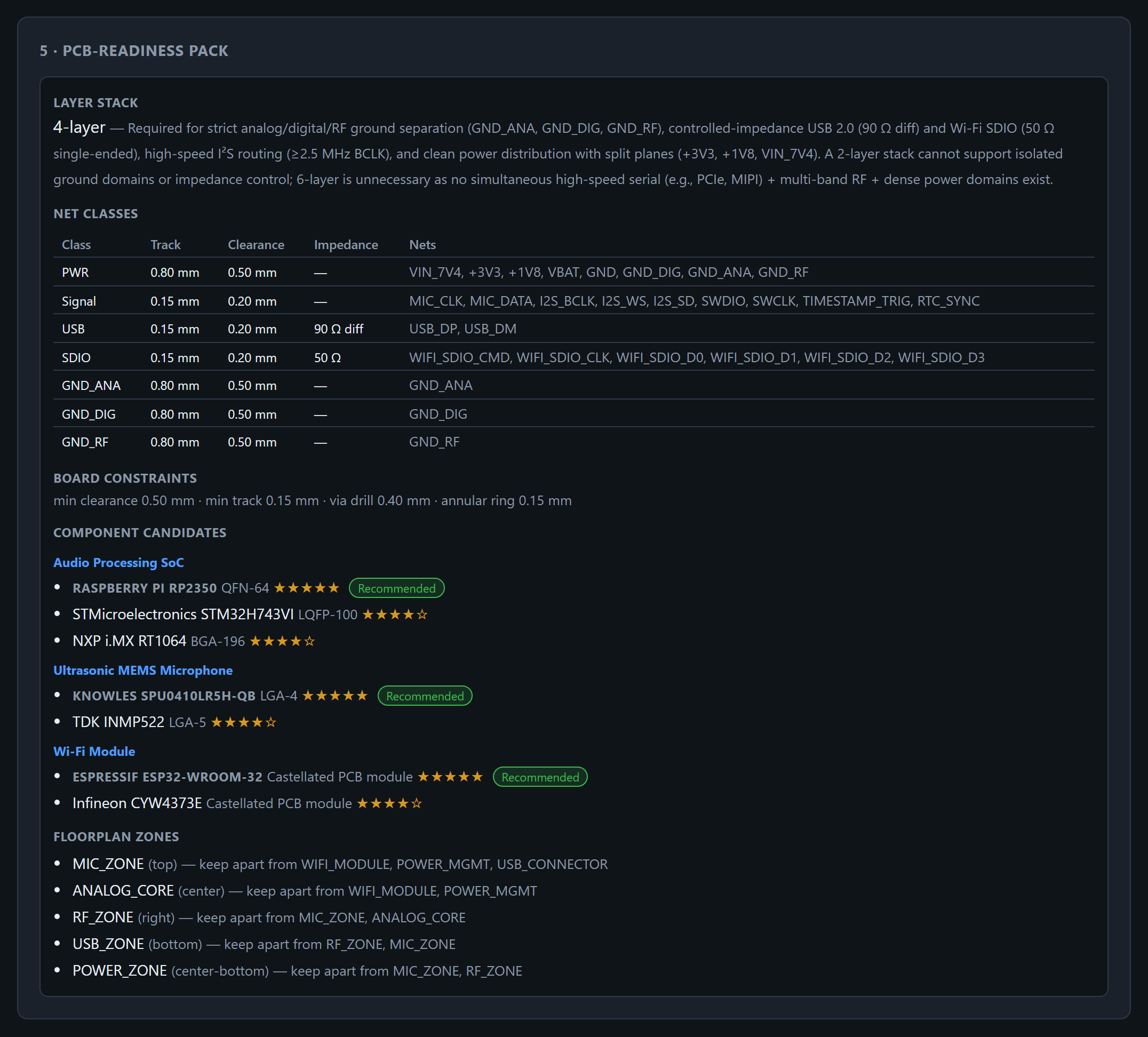

The output is a KiCad scaffold: hierarchical sheets, a block diagram, power-port symbols, sheet pins, and filled title blocks. It opens in KiCad and passes structural ERC. You also get a PDF report, a downloadable ZIP, and a three-state badge that records how far the KiCad verification got.

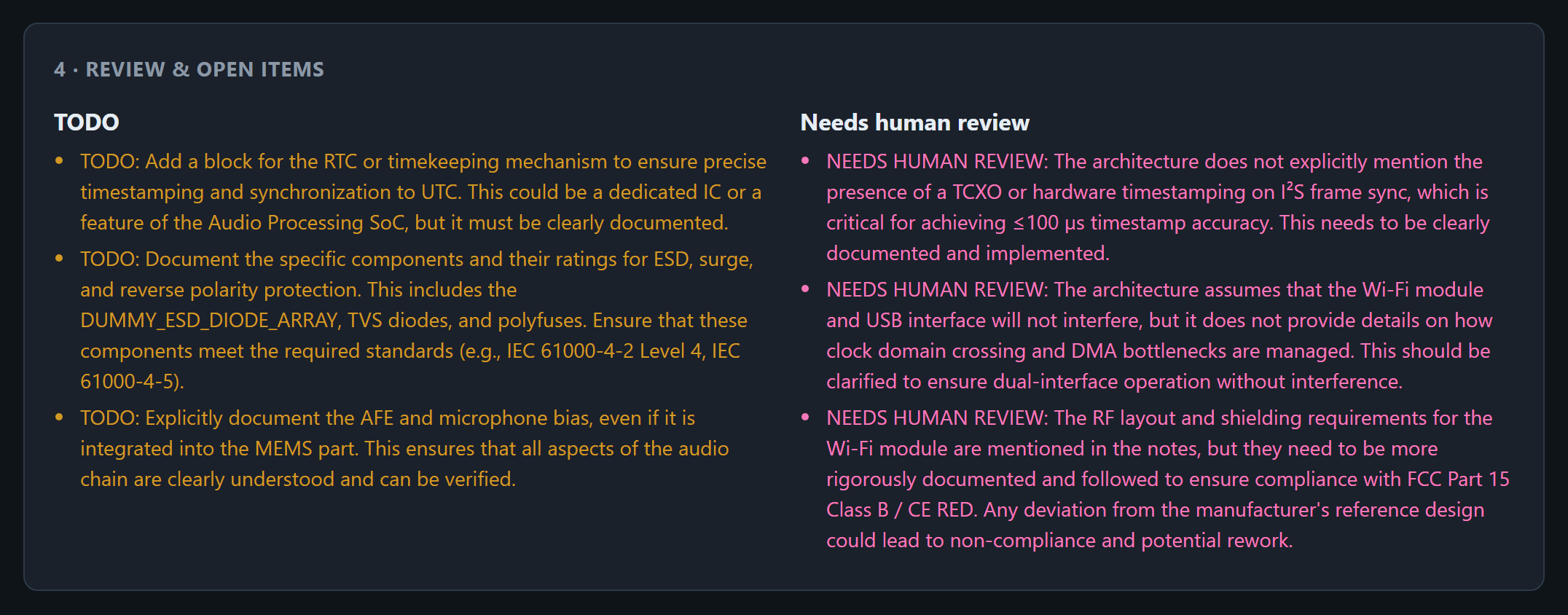

To be clear about the scope: this is a starting point, not a finished schematic. It doesn't wire up every net or produce something ready for manufacturing. You approve the architecture before anything is generated, and the engineer stays in control.

How we built it

Every agent runs on the Qwen Cloud API, with the model tier chosen per role: qwen-plus for the junior agents, qwen-max for the senior Critic, qwen-turbo for cheaper work. The interface is a single FastAPI page with a live "metro-rail" view of the pipeline and a chat panel that shows the agents handing work back and forth.

The KiCad verification is real rather than simulated. Each generated project is opened, ERC-checked, and rendered by an actual KiCad 10 install through kicad-cli, so the verification badge reflects what actually happened. Every Qwen call passes through a single cost guard that enforces a hard dollar budget, caps tokens, and applies rate limits; if a limit or error is hit, the app falls back to a scripted mock mode so the demo keeps working. It's packaged with Docker, built by GitHub Actions, and deployed on Alibaba Cloud ECS behind Caddy, which handles HTTPS.

Challenges we ran into

A couple of problems were worth the time they cost. The most misleading one: a too-tight output-token limit was cutting the Architect's JSON off mid-object. That made the JSON invalid, which dropped the run into mock mode, which then showed up as a "Qwen unreachable" message — even though Qwen was reachable the whole time. I raised the limit and changed the code to report truncation as truncation.

The stronger model, on hard prompts, was both slow and prone to returning malformed JSON. It now has a longer timeout and a sanitiser, so a bad response degrades gracefully instead of failing the run. And getting the KiCad scaffold to open reliably — correct power-symbol names, the exact hierarchical sheet-pin syntax, coordinates snapped to grid — required a live render gate in the test suite that rejects any project that doesn't open.

Accomplishments that we're proud of

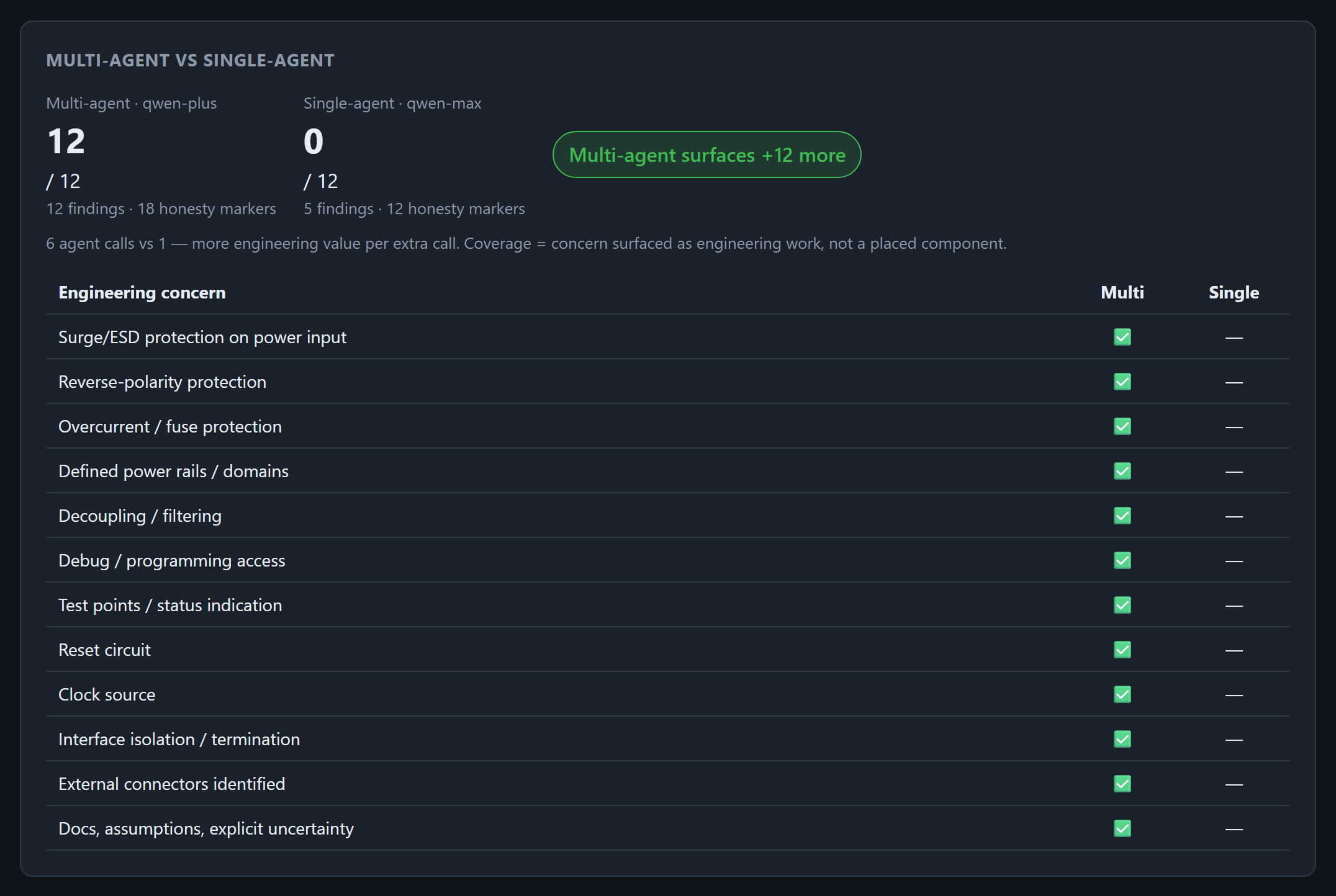

The result I trust most is a measured, reproducible one. Across five hard designs, the multi-agent team covered 11.6 of 12 engineering concerns on average, against 8.4 for a fair single-agent baseline, scored by a deterministic rubric — an average gain of +3.2 that widens with complexity. The rework loop is visible while it runs: a critic flags a gap, the architect revises, the critic checks again. The framing also stays honest throughout, with a three-state verification badge, a real budget guard, and no claim of a finished board.

What we learned

The multi-agent advantage didn't come from where I expected. The team doesn't design anything cleverer; the difference is that the review step doesn't forget the unglamorous safety and documentation items a single pass tends to drop — reverse-polarity protection, a fuse, a reset line, an explicit note of what it's unsure about. And that gap grows with complexity, which is when the help is most useful. The other lesson was about demos: graceful degradation, mock mode, and honest error messages matter as much as the happy path.

What's next for AI Circuit Architect

Next, I'd like to give the candidate parts live pricing and availability through a dedicated sourcing agent, so the shortlist reflects what's actually in stock. I also want to extend the schematic enrichment toward wired sub-circuits — still with a human approving each step — and add a self-correction loop that feeds the rubric's findings back into the agents, so the system catches more of its own gaps before the user has to.
