Omegaplan

Inspiration

Coding agents have improved rapidly through better models, tool calling via MCP, and multi-agent orchestration, but the core interaction pattern has mostly remained the same as a text-based sidebar or command line interface. We wanted to shift that paradigm into a visual VS Code panel where an agent’s work is represented as a directed graph of planned steps, not just a chat transcript or flat checklist. By letting users click into any node to reveal deeper subplans for better observability, Omegaplan enables agent reasoning to be more visible, navigable, and controllable.

What it does

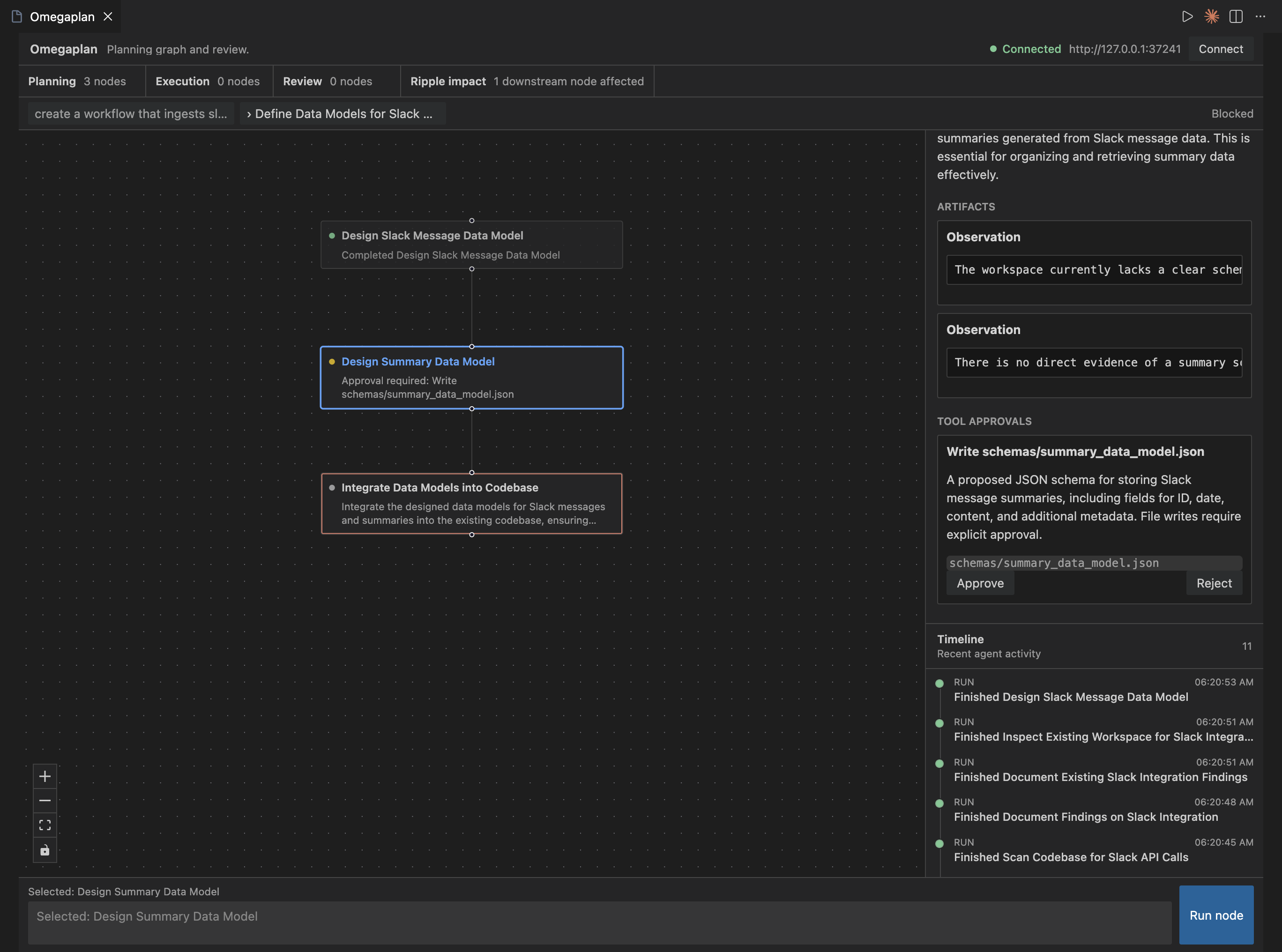

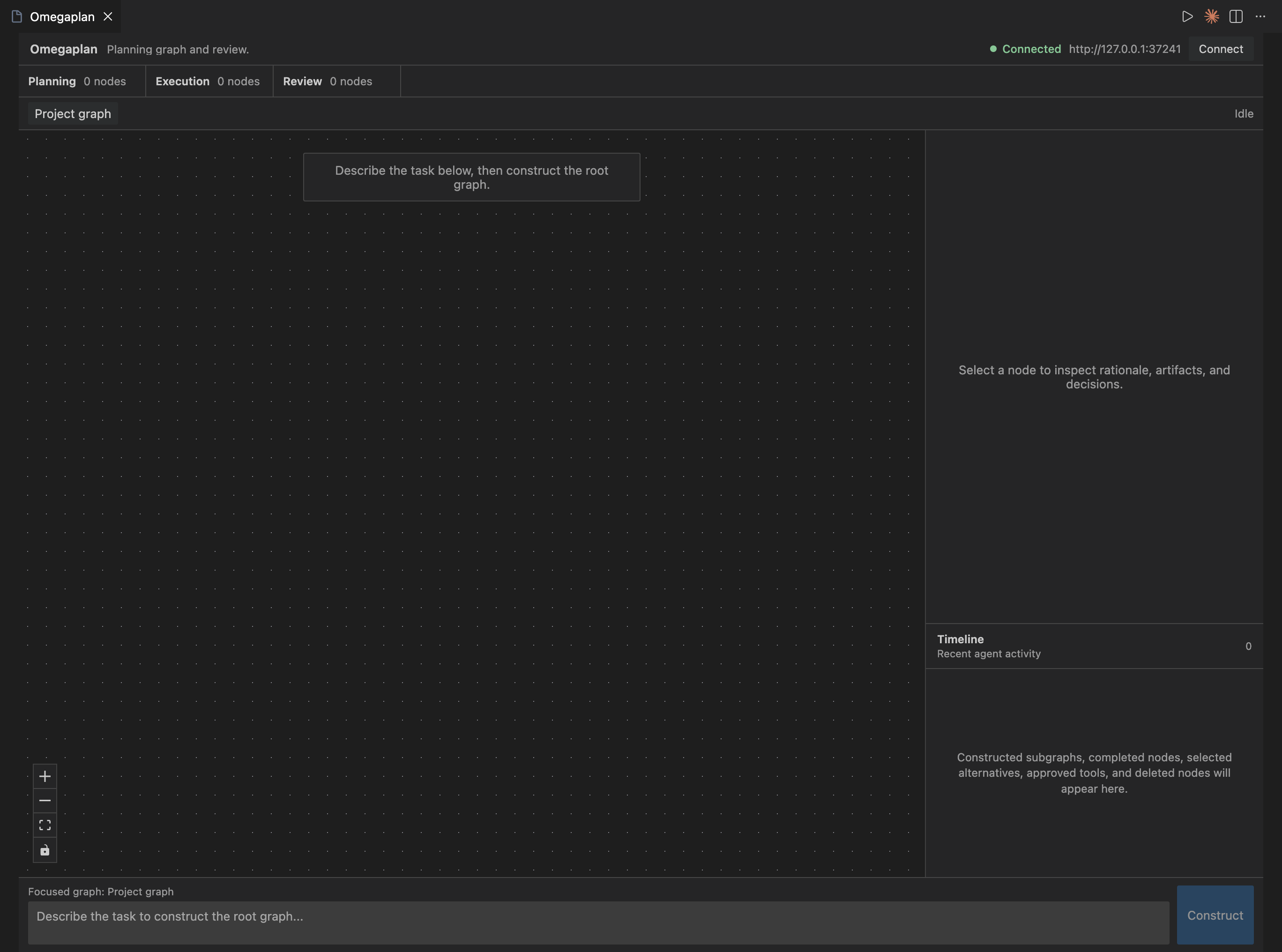

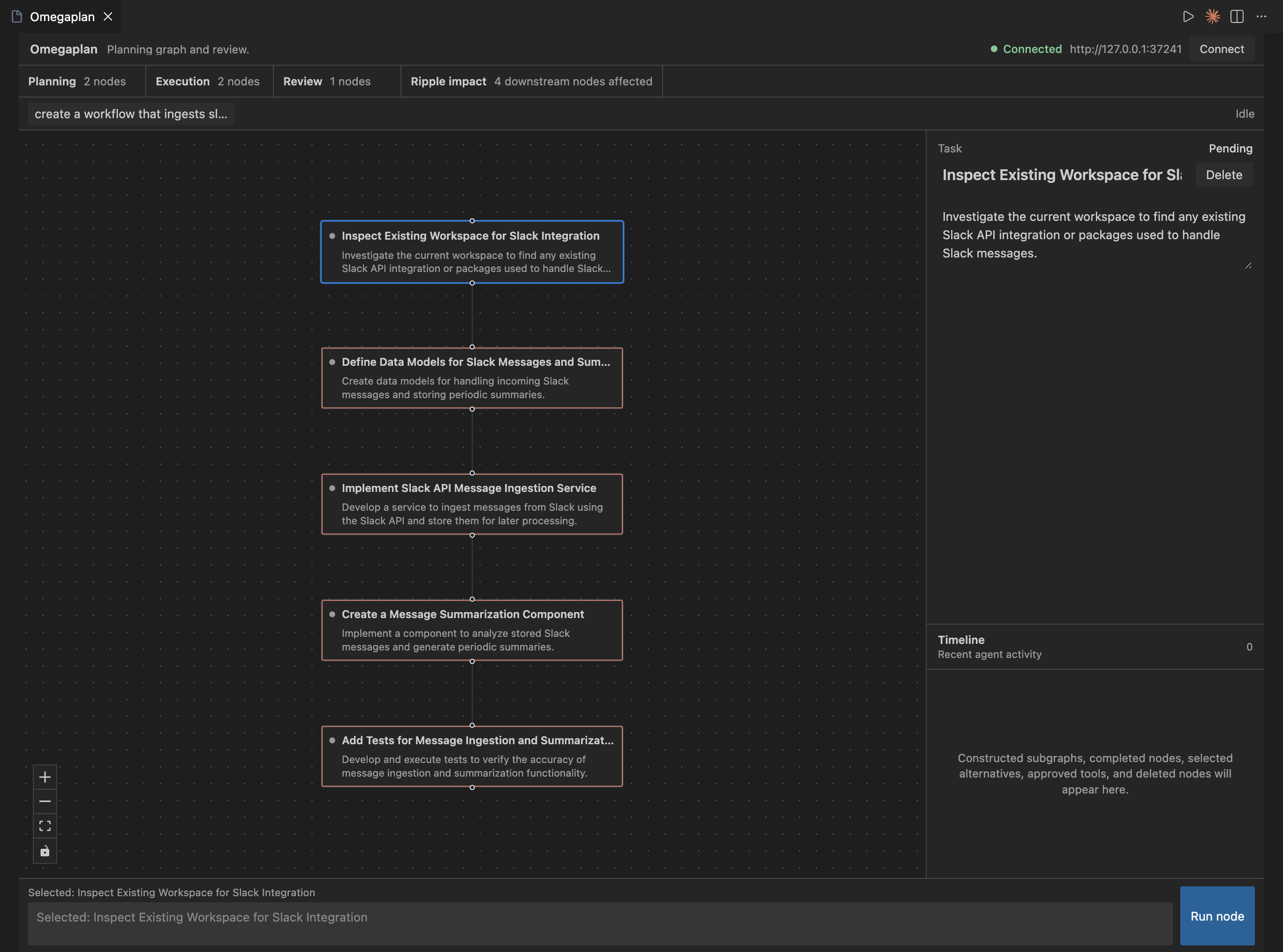

Omegaplan turns a coding task into an interactive planning graph inside VS Code. It breaks work into nodes, lets users inspect each step’s rationale, expand nodes into subgraphs, select alternatives, run individual nodes or whole graphs, approve/reject tool actions, and track high-signal events in a timeline. Instead of watching a chat display go by, developers get a more robust control surface for agent reasoning and execution.

How we built it

Omegaplan is composed of three coordinated layers:

VS Code Extension

Built with TypeScript and the VS Code Extensions API
Manages session persistence, graph snapshots, and connection state
Bridges communication between the frontend webview and the local backend agent

Frontend Webview

Built with TypeScript and React
Renders the recursive planning processes as an interactive directed acyclic graph (DAG)
Provides breadcrumbs for navigating between root graphs and focused subgraphs
Uses VS Code-native styling to integrate the interface with the editor

Backend Agent

Built with TypeScript as a local HTTP/SSE server
Uses the OpenAI API to generate coding plans, decompose nodes into subgraphs, and produce execution results
Streams structured events back to the extension so the graph updates in real time
Handles human-in-the-loop actions (tool approval, rejection, deletion, graph clearing, recursive graph execution, etc.)

Challenges we ran into

State Synchronization: Keeping the extension, webview, and local bridge server synchronized with add, modify, and delete functionalities
Recursive Graph Complexity: Supporting top-level graphs and focused subgraphs to represent agent planning processes
Human-in-the-Loop Mechanisms: Adding tool approvals, rejections, and downstream effects that were analogous to that of a standard coding agent.

Accomplishments that we're proud of

Creating a meaningfully different experience from a traditional chat-based coding agent.
Ensuring better observability and interactivity via the recursive graph model
Implementing the paradigm directly within VS Code by running as an extension

What we learned

Small differences in node states (completed, rejected, invalidated, etc.) can have major effects down the line in a graph-based model.
Recursive interfaces often require focused navigation and breadcrumbs to ensure user experience
Working with agent systems entails reliable fallbacks for empty states, user interventions, and LLM calls

What's next for Omegaplan

Multi-Agent Orchestration: Implementing a "manager graph" that decomposes large tasks, spawns sub-agents, and coordinates via the graph interface
Benchmarking on Real Tasks: Using graph signatures (reasoning traces, human interventions, etc.) to evaluate model performance on coding tasks
Replayable Components: Enabling replays of failed or suboptimal agent runs for better observability
